  1. Good formability, easy stamping and bending processing
  2. Economical ferritic stainless steel with stable performance
  3. Magnetic property, suitable for magnetic component applications
  4. Micron thickness tolerance, ultra-thin custom specification available
  5. Burr-free edge treatment for continuous high-speed stamping
Contact Us

Product Overview

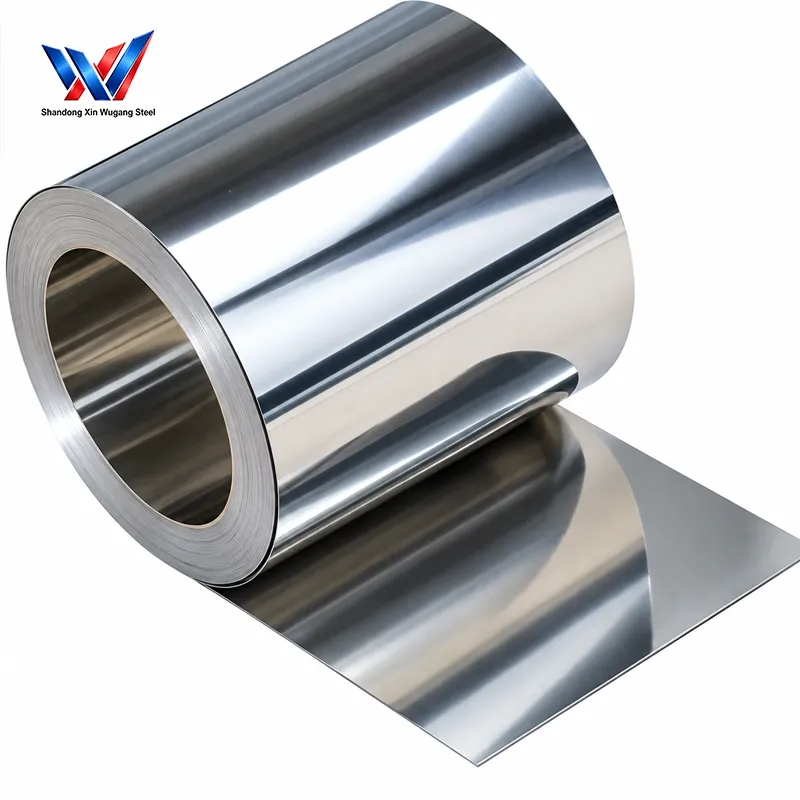

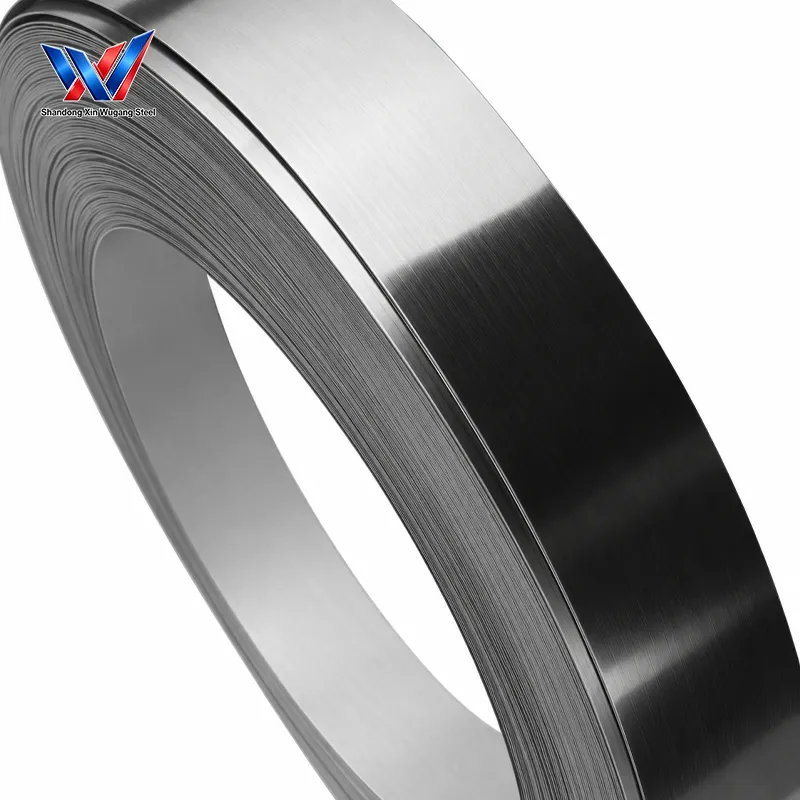

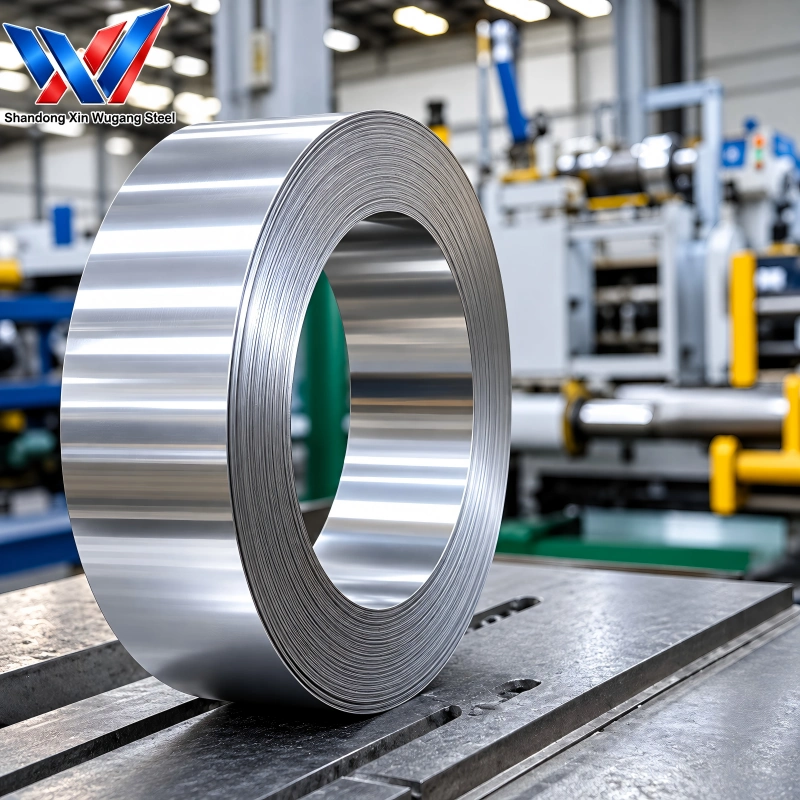

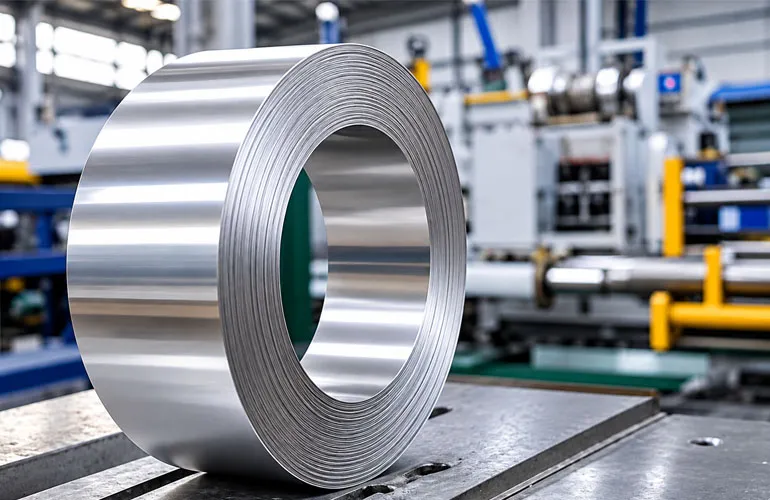

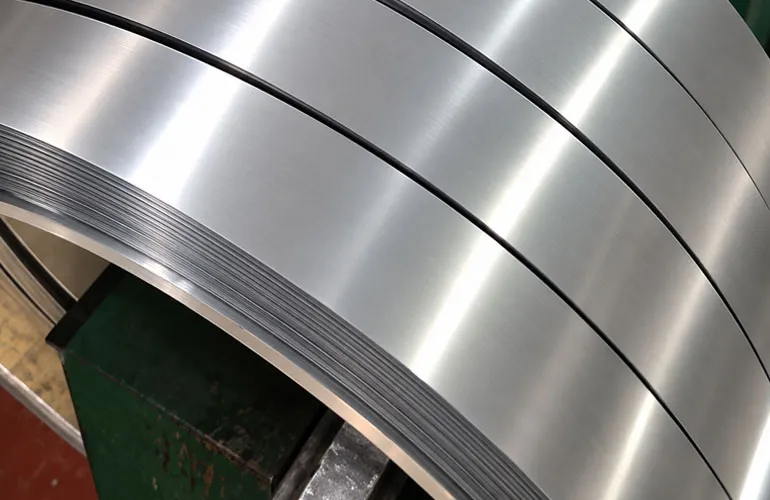

430 Stainless Steel Precision Strip (GB grade 06Cr17, SUS430, AISI430, EN1.4016 X6Cr17) is ferritic cold rolled precision stainless strip. It is produced via cold rolling finishing, stress leveling and high precision longitudinal slitting, conforming to ASTM A666, GB/T4239 and EN10088 standards.

430 grade has good formability, low cost and stable performance, with magnetic property. Thickness range:0.01mm~2.0mm, slitting width 3mm~1200mm. Surface options:2B, BA Mirror, HL Hairline. Deburring and edge rounding available.

It is widely used for home appliance decorative parts, magnetic precision shims, kitchen hardware, decorative trim thin strip, miniature stamping fittings. We supply MTC certificate and accept third-party inspection before shipment.

Stainless Steel Precision Strip

Chemical & Mechanical Property Snapshot

Grade C Max Si Max Mn Max P Max S Max Cr Ni Yield Strength (MPa) Tensile Strength (MPa) Elongation (%) Hardness HV
430 (06Cr17) 0.12 1.00 1.00 0.040 0.030 16.00~18.00 ≤0.75 ≥205 ≥450 ≥22 ≤185

Detailed Technical Specifications

Item Technical Specification
Product 430 Stainless Steel Precision Strip
Full Equivalent Grades GB:06Cr17; AISI:430; SUS:SUS430; EN:1.4016 X6Cr17

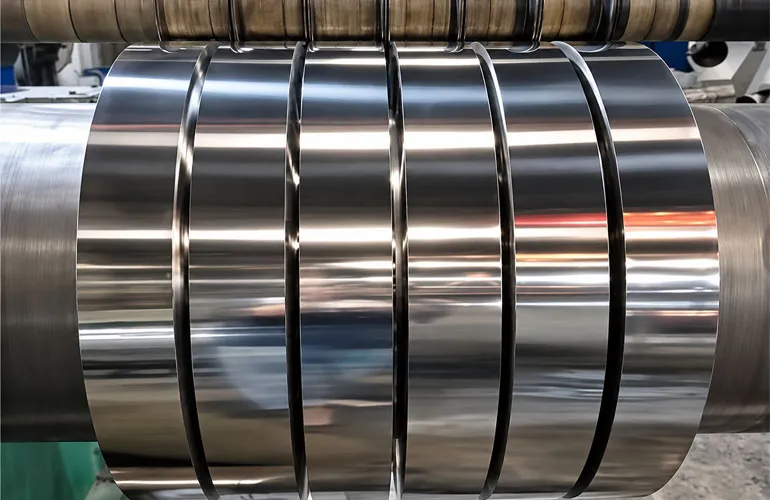

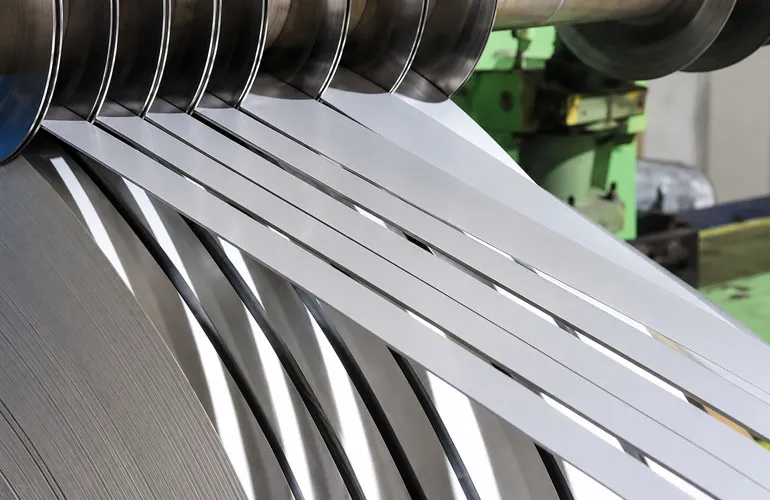

Manufacturing Process Cold rolling finishing, stress leveling and high-precision longitudinal slitting
Executive Standards ASTM A666, GB/T 4239, EN 10088
Thickness Range 0.03–2.0 mm
Customized Ultra-Thin Thickness Down to 0.01 mm
Slitting Width 3–1200 mm
Thickness Tolerance Within ±0.01 mm
Surface Finishes 2B / BA Mirror / HL Hairline / Etched Base
Edge Options Deburring / Edge Rounding / Standard Slit Edge
Material Condition Stress-relieved, flat and dimensionally controlled
Inspection Documents Material test reports and dimensional inspection documents, EN10204 3.1 MTC
MOQ 5 Ton
Payment Terms T/T, L/C at Sight
Delivery Time 7-15 working days after receiving deposit
Package Waterproof paper + galvanized steel strap + seaworthy export wooden pallet

Product Comparison Table

AISI Grade SUS Grade GB Grade EN Material No. EN Full Designation Material Feature Typical Application
201 SUS201 1Cr17Mn6Ni5N 1.4372 X12CrMnNi17-7-5 Low nickel, economical, moderate corrosion resistance Decoration, low-cost stamping parts
301 SUS301 1Cr17Ni7 1.4310 X10CrNi18-8 High work hardening, good elasticity Spring contacts, elastic shims
304 SUS304 06Cr19Ni10 1.4301 X5CrNi18-10 General anti-corrosion, excellent forming Electronic components, battery strip, gaskets
304L SUS304L 022Cr19Ni10 1.4307 X2CrNi18-9 Low carbon, anti intergranular corrosion after welding Welded precision components
303 SUS303 Y06Cr19Ni10 1.4305 X8CrNiS18-9 Free cutting, easy machining Automatic lathe precision parts
304N SUS304N1 022Cr19Ni10N 1.4311 X2CrNiN18-10 Nitrogen strengthened, higher tensile strength Thin wall high strength precision parts
316 SUS316 06Cr17Ni12Mo2 1.4401 X5CrNiMo17-12-2 Mo added, chloride corrosion resistant Coastal & weak acid environment parts
316L SUS316L 022Cr17Ni12Mo2 1.4404 X2CrNiMo17-12-3 Low carbon molybdenum grade, weldable Seawater auxiliary precision fittings
317L SUS317L 022Cr19Ni13Mo4 1.4438 X2CrNiMo18-15-4 High molybdenum, strong pitting resistance Chemical & pulp industry precision shims
321 SUS321 06Cr18Ni11Ti 1.4541 X6CrNiTi18-10 Titanium stabilized, high temp anti-corrosion High temperature precision gaskets
309S SUS309S 06Cr23Ni13 1.4828 X15CrNiSi20-12 High temperature oxidation resistance Furnace internal precision components
310S SUS310S 06Cr25Ni20 1.4845 X12CrNi25-21 Ultra high temperature resistant Kiln & heat equipment thin strip
430 SUS430 06Cr17 1.4016 X6Cr17 Ferritic, good formability, magnetic Home appliance decorative precision strip
409L SUS409L 022Cr11Ti 1.4512 X2CrTi12 Titanium stabilized ferritic steel Automobile exhaust thin strip
410S SUS410S 06Cr13 1.4000 X6Cr13 Low carbon martensitic, moderate rust resistance General anti-rust mechanical shims
410 SUS410 12Cr13 1.4006 X12Cr13 Heat treatable martensitic steel Pump & valve thin precision parts
420 SUS420 20Cr13 1.4021 X20Cr13 Hardenable martensitic, wear resistant Precision cutting blade blanks
420J2 SUS420J2 30Cr13 1.4031 X30Cr13 High carbon, high polishing performance Precision hardware blades
2205 – 022Cr22Ni5Mo3N 1.4462 X2CrNiMoN22-5-3 Duplex, ultra high strength, chloride resistance Offshore high pressure precision shims
2507 – 022Cr25Ni7Mo4N 1.4410 X2CrNiMoN25-7-4 Super duplex steel, heavy corrosion resistance Seawater desalination equipment strip
904L – 022Cr25Ni7Mo4CuN 1.4539 X1NiCrMoCu25-20-5 Super austenitic, strong acid resistance Phosphoric acid industrial components
630 SUS630 05Cr17Ni4Cu4Nb 1.4542 X5CrNiCuNb17-4-4 Precipitation hardening high strength Aerospace precision elastic parts

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

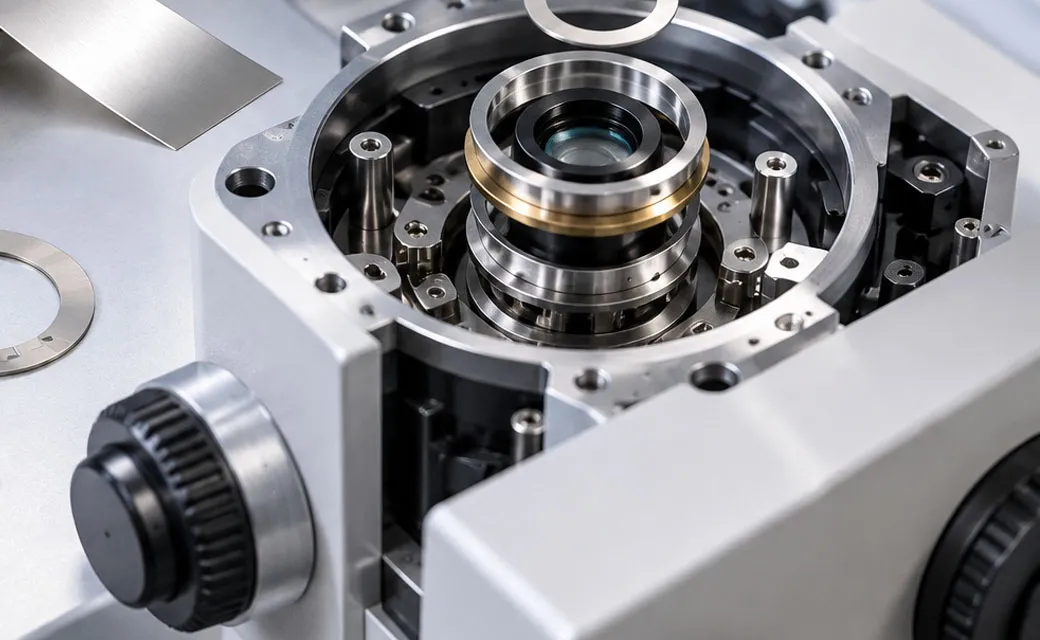

Precision Instrument Shim

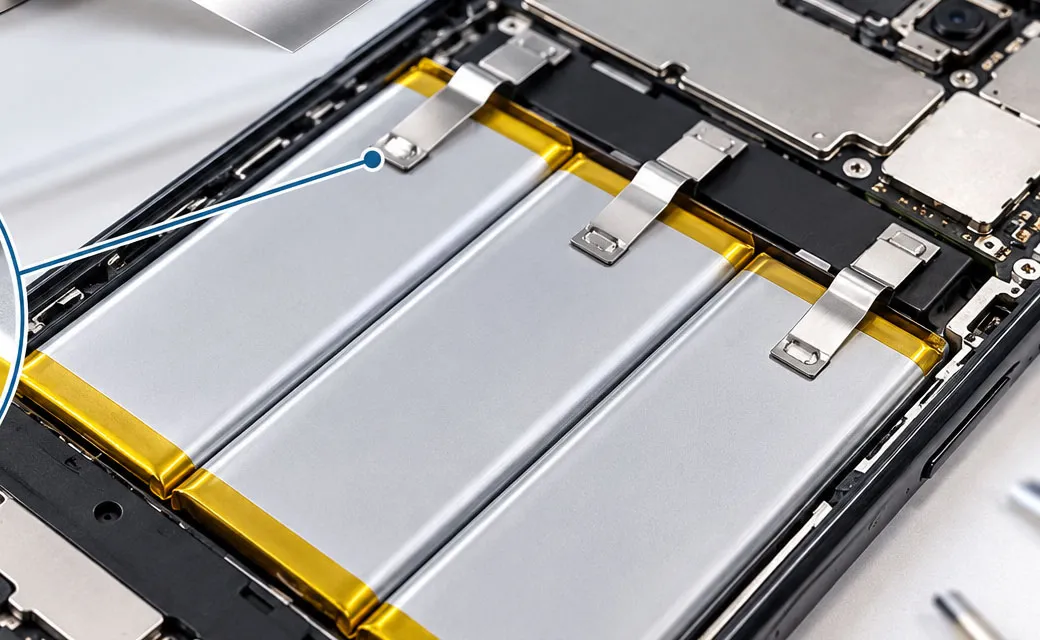

Mobile Phone Battery Steel Strip

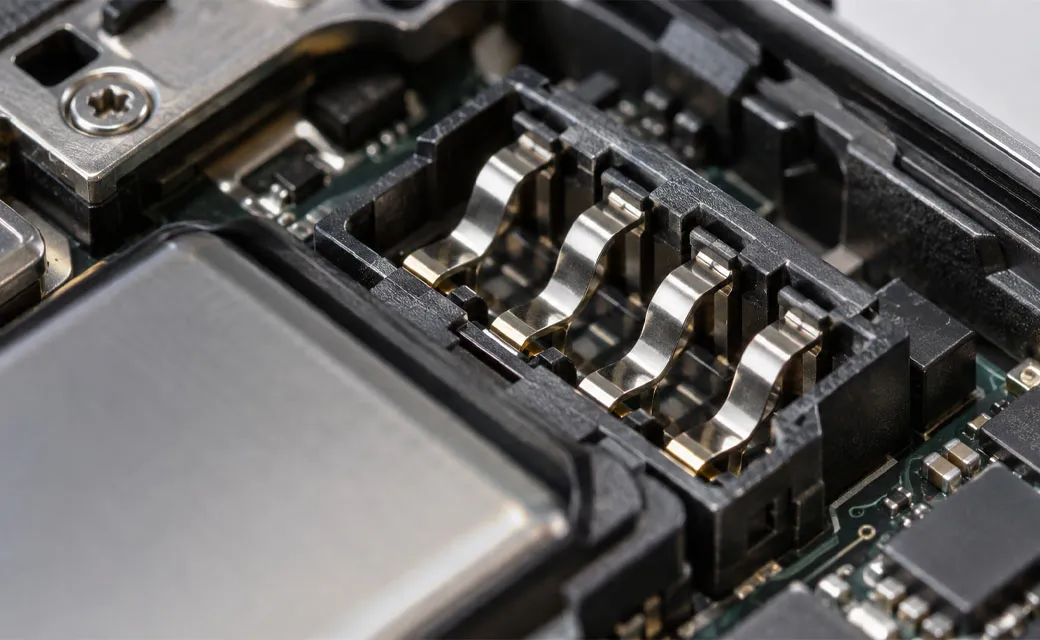

Electronic Spring Contact

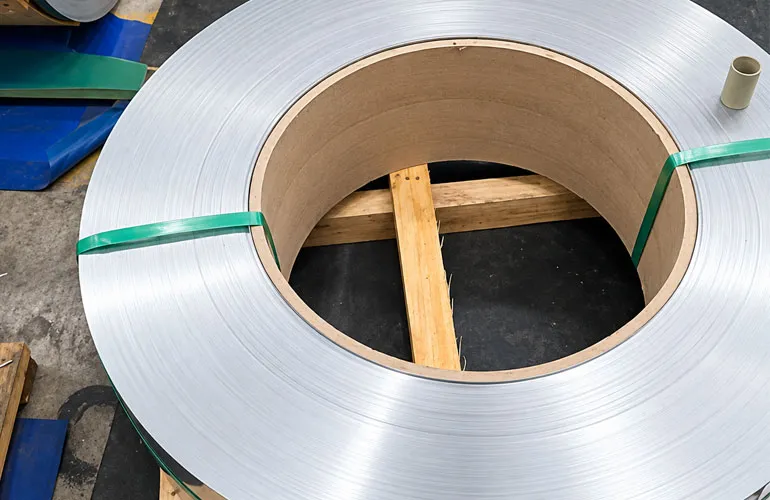

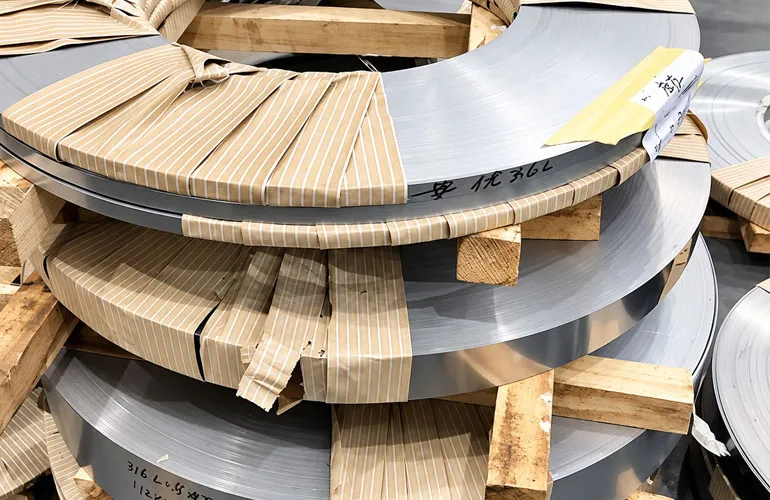

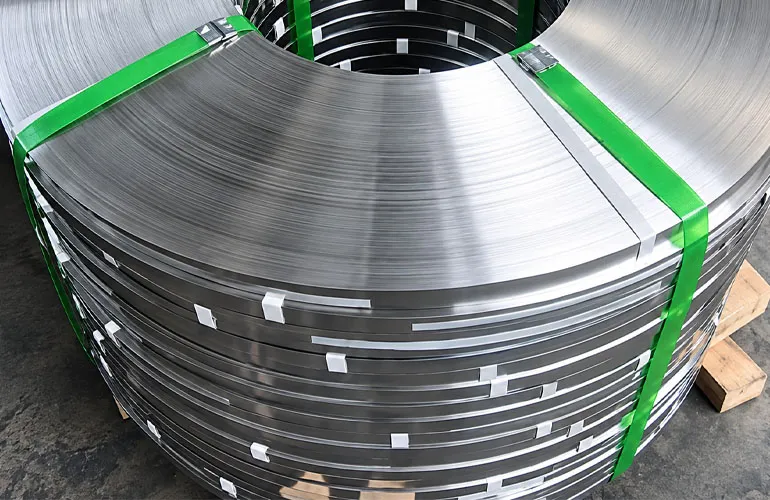

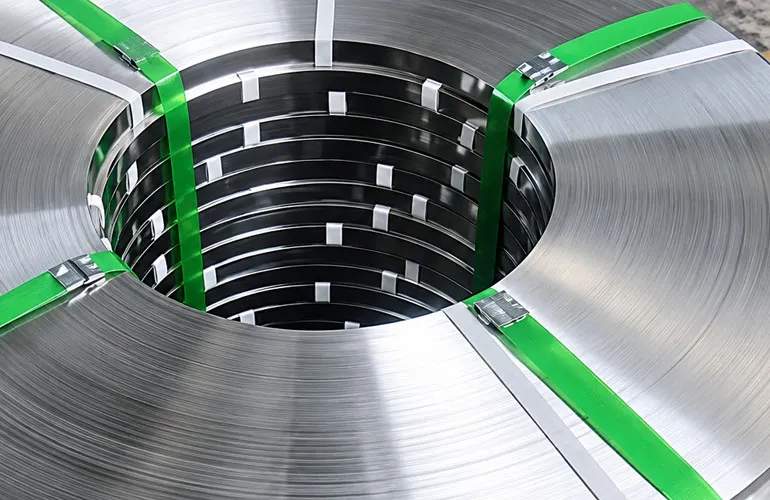

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

GB 06Cr17, AISI430, SUS430, EN1.4016 (X6Cr17). It belongs to ferritic stainless steel.

Yes, 430 ferritic stainless steel has magnetism, suitable for parts requiring magnetic performance.

Home appliance decorative parts, magnetic precision shims, kitchen hardware, decorative trim thin strip, miniature stamping fittings.

Yes, edge deburring and rounding available for continuous high-speed stamping production.

EN10204 3.1 MTC certificate, dimensional inspection report, SGS/BV third-party inspection before loading.

Related Projects

Steel And Metal Materials Supplied To Projects Worldwide.

Learn More
Vietnam Binh Duong Foreign-Invested Industrial Park Project

Vietnam Binh Duong Foreign-Invested Industrial Park Project

A large-scale foreign-invested smart manufacturing industrial park was developed in Binh Duong Province, Vietnam. The project included three large-span steel structure workshops w…

Texas Commercial Warehouse & Logistics Center Project, USA

Texas Commercial Warehouse & Logistics Center Project, USA

A large-scale e-commerce logistics center was constructed near Houston, Texas, USA, featuring a single-story large-span steel structure designed for modern warehousing and distribu…

Middle East Petrochemical EPC Project

Middle East Petrochemical EPC Project

A petrochemical EPC project in the Middle East involved the construction of new raw material storage tanks and shell-and-tube heat exchanger systems for an oil refining supporting …

Related Products

Related Steel Solutions For Construction And Industrial Applications

Learn More

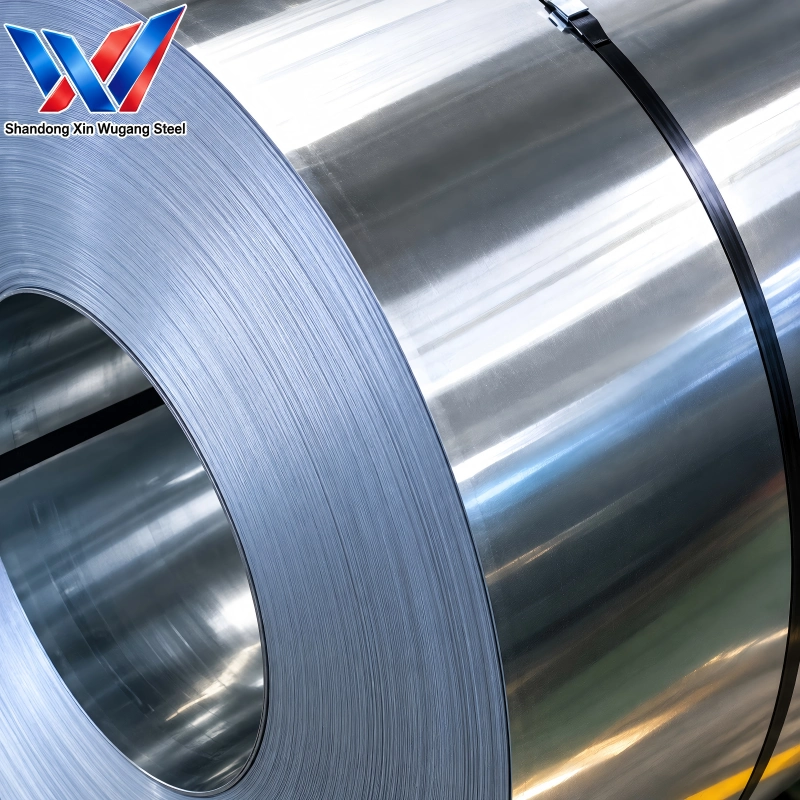

Stainless Steel Coil
