2205 Duplex Stainless Steel Coil | 022Cr22Ni5Mo3N Duplex Stainless Coil

Duplex structure of ferrite + austenite, much higher strength than ordinary austenitic stainless
Outstanding resistance to chloride pitting & stress corrosion cracking
Good toughness, fatigue resistance and weldability
Lower thermal expansion coefficient than austenitic stainless steel
Ideal choice for heavy corrosive offshore, oil & gas and desalination equipment

Product Overview

2205 duplex stainless steel coil GB grade 022Cr22Ni5Mo3N, AISI 2205, EN1.4462 (X2CrNiMoN22-5-3). This duplex grade combines ferrite and austenite dual phase structure. It has higher yield strength and far better chloride stress corrosion resistance than conventional 304 / 316L austenitic stainless steel.

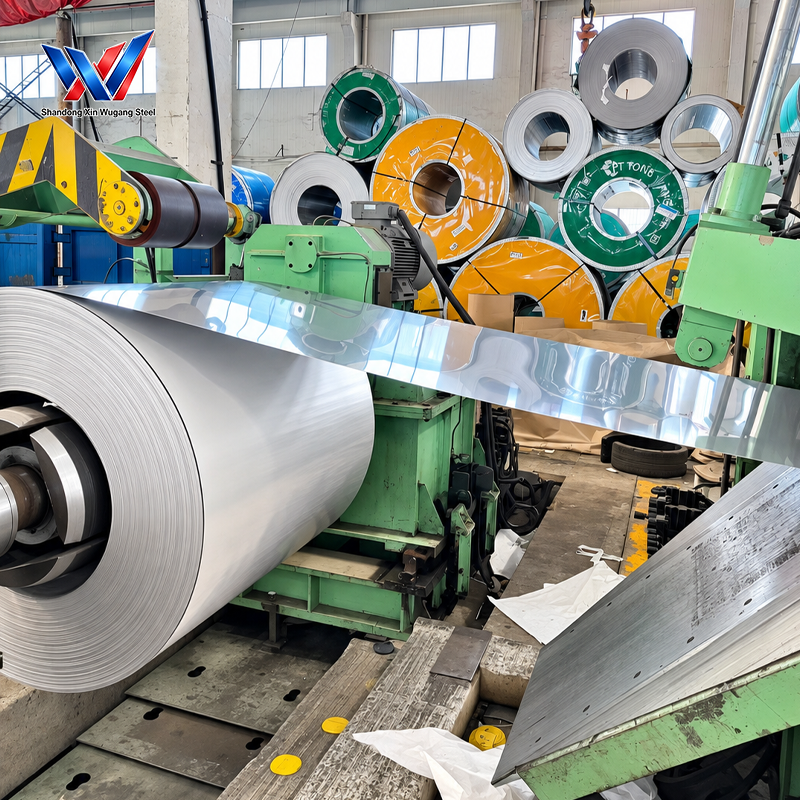

We can supply hot rolled and cold rolled 2205 stainless coil, surface No.1 / 2B. Custom slitting service for narrow stainless steel strip. Widely applied in offshore platform equipment, oil & gas pipeline, seawater desalination, chemical reactor, pulp and paper industry.

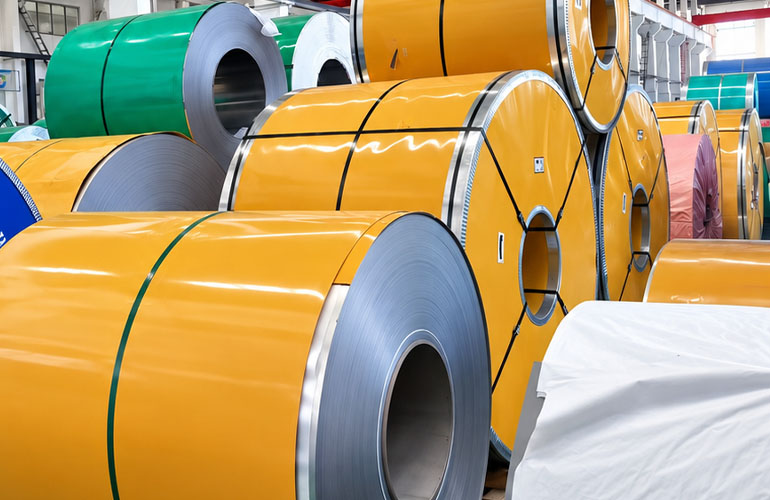

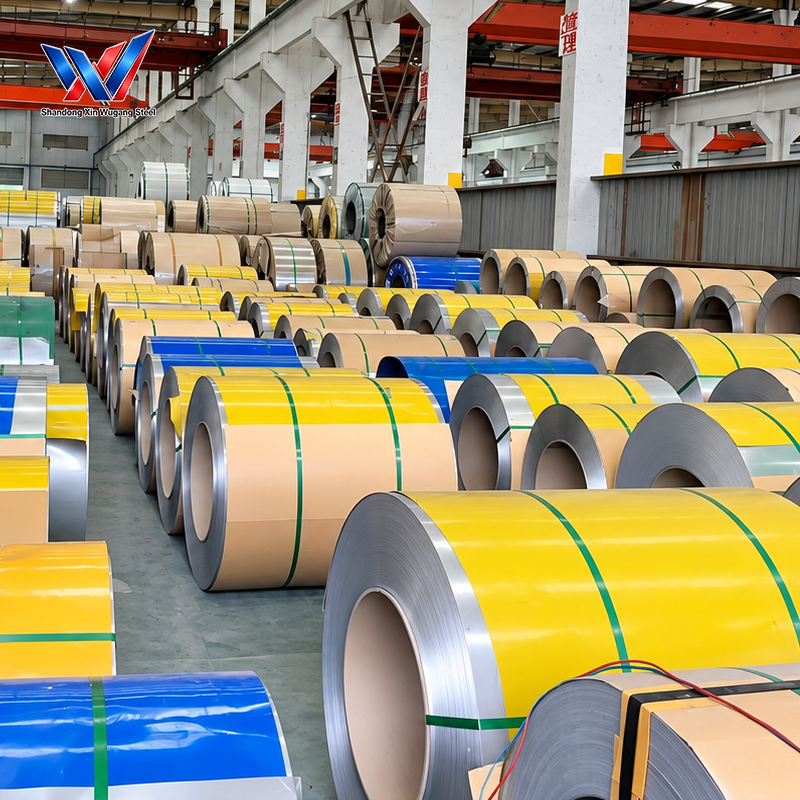

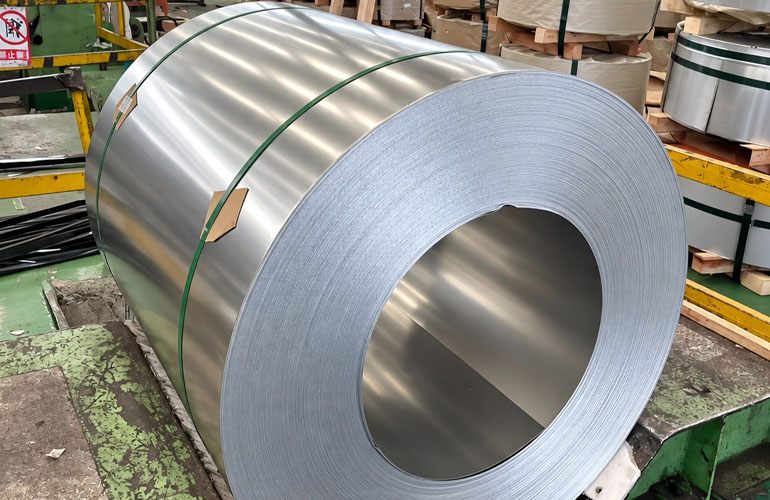

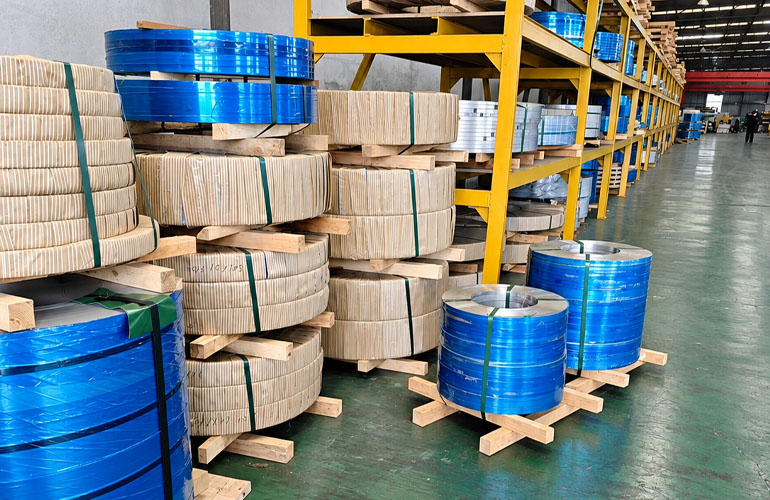

Stainless Steel Coil

Chemical & Mechanical Property Snapshot

Category	Element / Index	Standard Requirement
Chemical Composition (wt%)	Carbon (C)	≤0.03
	Silicon (Si)	≤1.00
	Manganese (Mn)	≤2.00
	Phosphorus (P)	≤0.035
	Sulfur (S)	≤0.020
	Chromium (Cr)	21.00 ~ 23.00
	Nickel (Ni)	4.50 ~ 6.50
	Molybdenum (Mo)	2.50 ~ 3.50
	Nitrogen (N)	0.08 ~ 0.20
Mechanical Properties	Yield Strength Rp0.2	≥450 MPa
	Tensile Strength Rm	≥620 MPa
	Elongation A	≥25 %
	Hardness HV	≤290 HV

Detailed Technical Specifications

Specification Item	Parameter Details
Grade	2205 Duplex / 022Cr22Ni5Mo3N
Executive Standard	GB/T 20878, ASTM A240, EN 10088-2
Rolling Type	Cold Rolled / Hot Rolled
Thickness Range	Cold Rolled:0.3mm–3.0mm; Hot Rolled:3.0mm–14mm
Thickness Tolerance	CR: ±0.02~0.05mm; HR: ±0.1~0.3mm, custom tolerance acceptable
Width Range	100mm–1500mm, custom slitting service available
Width Tolerance	±0.5mm ~ ±2mm based on width
Inner Diameter	508mm / 610mm
Surface Finish	2B, No.1
Coil Weight	1–25 Tons per coil
Delivery Condition	Solution Annealed & Pickled
Edge Type	Slit Edge / Mill Edge
Certificate	MTC, EN 10204 3.1, third-party inspection SGS/BV available
Packing	Waterproof paper + metal protective cover, seaworthy export packing
MOQ	5 Ton for standard stock sizes
Lead Time	Stock items:10–20 days; Custom non-standard:25–40 days

Product Comparison Table

Grade	GB Standard	AISI (US)	SUS (JIS)	EN Standard (Material No. & Full Designation)	Brief Application
201	1Cr17Mn6Ni5N	201	SUS201	1.4372, X12CrMnNi17-7-5	Low-nickel austenitic stainless steel, economical material, indoor decoration, kitchenware
202	–	202	SUS202	1.4373, X12CrMnNi18-9-5	Manganese-nickel stainless steel, indoor decorative panels, low-corrosion environment parts
301	1Cr17Ni7	301	SUS301	1.4310, X10CrNi18-8	High work hardening rate, elastic strips, springs, stamping components
303	Y06Cr19Ni10	303	SUS303	1.4305, X8CrNiS18-9	Free-cutting stainless steel, automatic lathe parts, bolts & precision fasteners
304	06Cr19Ni10	304	SUS304	1.4301, X5CrNi18-10	General-purpose austenitic stainless steel, construction, kitchenware, general industrial equipment
304L	022Cr19Ni10	304L	SUS304L	1.4307, X2CrNi18-9	Low carbon 304, prevent intergranular corrosion after welding, welded vessels & pipes
304N	022Cr19Ni10N	304N	SUS304N1	1.4311, X2CrNiN18-10	Nitrogen strengthened grade, higher tensile strength, thin wall structural parts
316	06Cr17Ni12Mo2	316	SUS316	1.4401, X5CrNiMo17-12-2	Molybdenum added, chloride corrosion resistant, chemical & seawater auxiliary equipment
316L	022Cr17Ni12Mo2	316L	SUS316L	1.4404, X2CrNiMo17-12-3	Low carbon 316, excellent weldability, chemical tanks, marine piping
317L	022Cr19Ni13Mo4	317L	SUS317L	1.4438, X2CrNiMo18-15-4	Higher Mo content, resist reducing acid & pitting corrosion, pulp & chemical industry
321	06Cr18Ni11Ti	321	SUS321	1.4541, X6CrNiTi18-10	Titanium stabilized, anti high-temp intergranular corrosion, high-temperature pipelines
309S	06Cr23Ni13	309S	SUS309S	1.4828, X15CrNiSi20-12	High-temperature oxidation resistance, furnace linings, heat treatment equipment
310S	06Cr25Ni20	310S	SUS310S	1.4845, X12CrNi25-21	Ultra-high temperature resistant, kilns, high-temperature furnace components
430	06Cr17	430	SUS430	1.4016, X6Cr17	Ferritic stainless steel, good formability, home appliances, decorative trims
409L	022Cr11Ti	409L	SUS409L	1.4512, X2CrTi12	Titanium stabilized ferritic steel, automotive exhaust system
410S	06Cr13	410S	SUS410S	1.4000, X6Cr13	Low carbon martensitic stainless steel, moderate corrosion resistance, general anti-rust parts
410	12Cr13	410	SUS410	1.4006, X12Cr13	Heat-treatable martensitic steel, pumps, valves, mechanical wear parts
420	20Cr13	420	SUS420	1.4021, X20Cr13	Hardenable martensitic grade, blades, cutlery, wear resistant machinery parts
420J2	30Cr13	420J2	SUS420J2	1.4031, X30Cr13	High carbon martensitic stainless, superior polishing performance, precision hardware
2205 Duplex	022Cr22Ni5Mo3N	2205	–	1.4462, X2CrNiMoN22-5-3	Duplex stainless steel, high strength, excellent pitting resistance, oil & gas equipment
2507 Super Duplex	022Cr25Ni7Mo4N	2507	–	1.4410, X2CrNiMoN25-7-4	Super duplex steel, strong chloride corrosion resistance, offshore platform equipment
904L	022Cr25Ni7Mo4CuN	904L	–	1.4539, X1NiCrMoCu25-20-5	Super austenitic stainless steel, resistant to strong acid, phosphoric acid industry
630	05Cr17Ni4Cu4Nb	630	SUS630	1.4542, X5CrNiCuNb17-4-4	Precipitation hardening stainless steel, high strength, aerospace & mechanical components

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

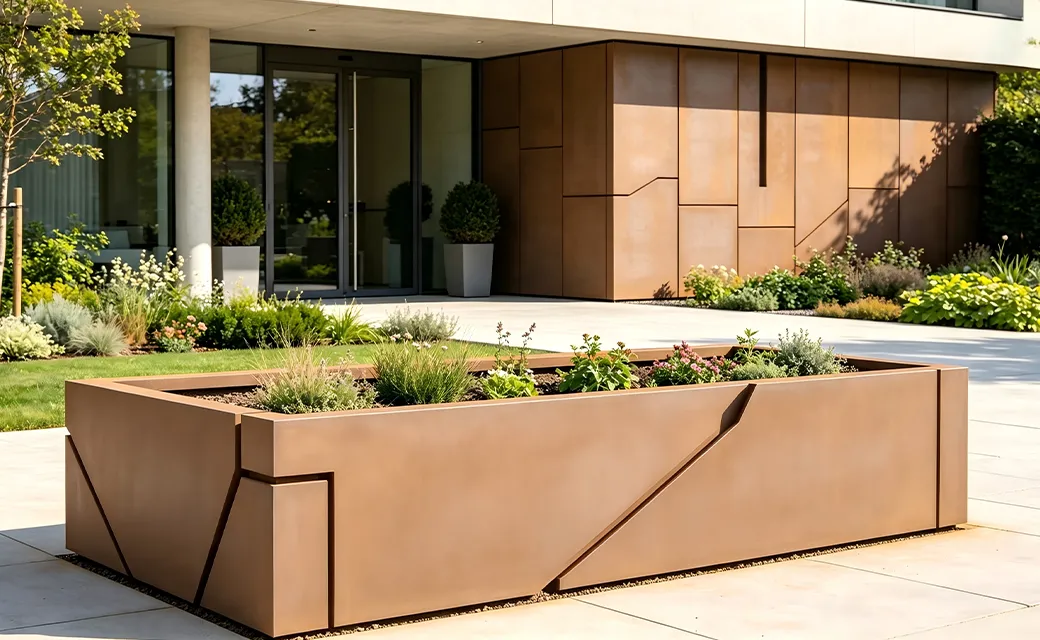

Curtain Wall & Planter

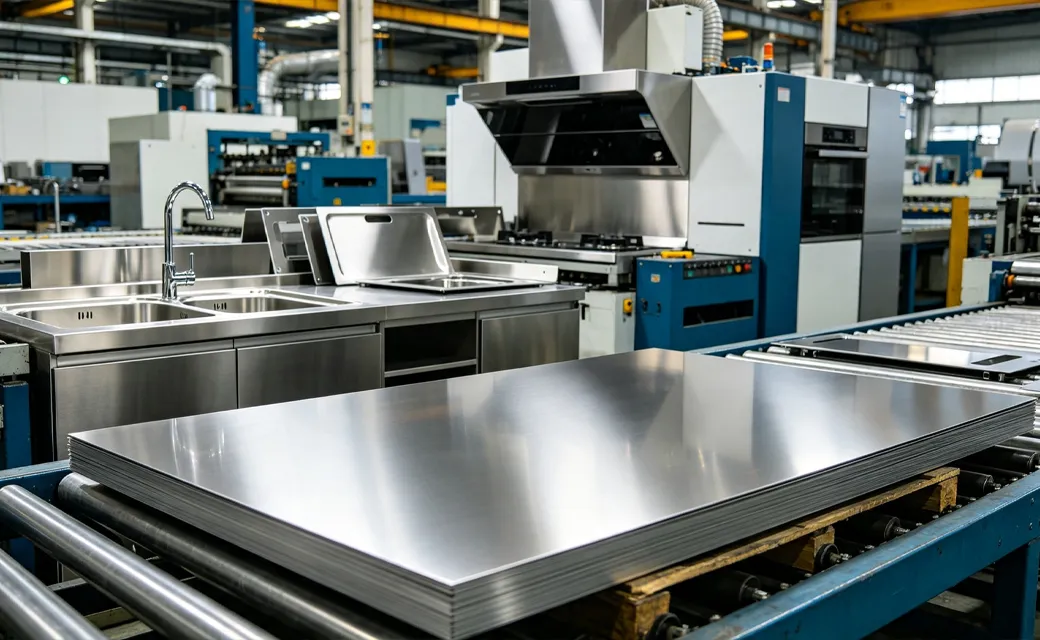

Kitchen & Bathroom Appliances Stainless Steel

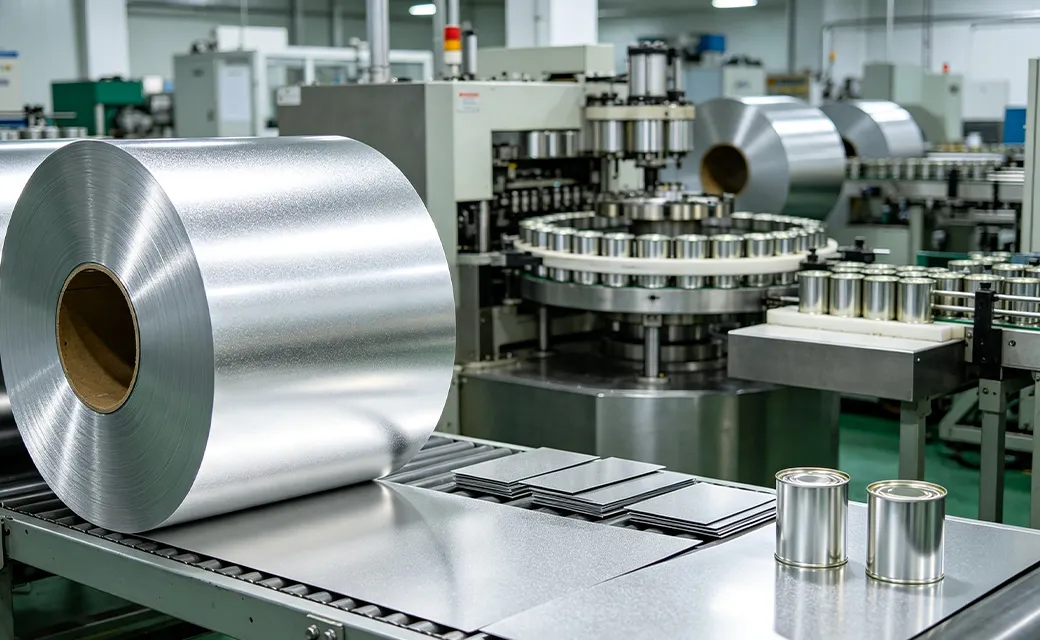

Food Can Body ETP

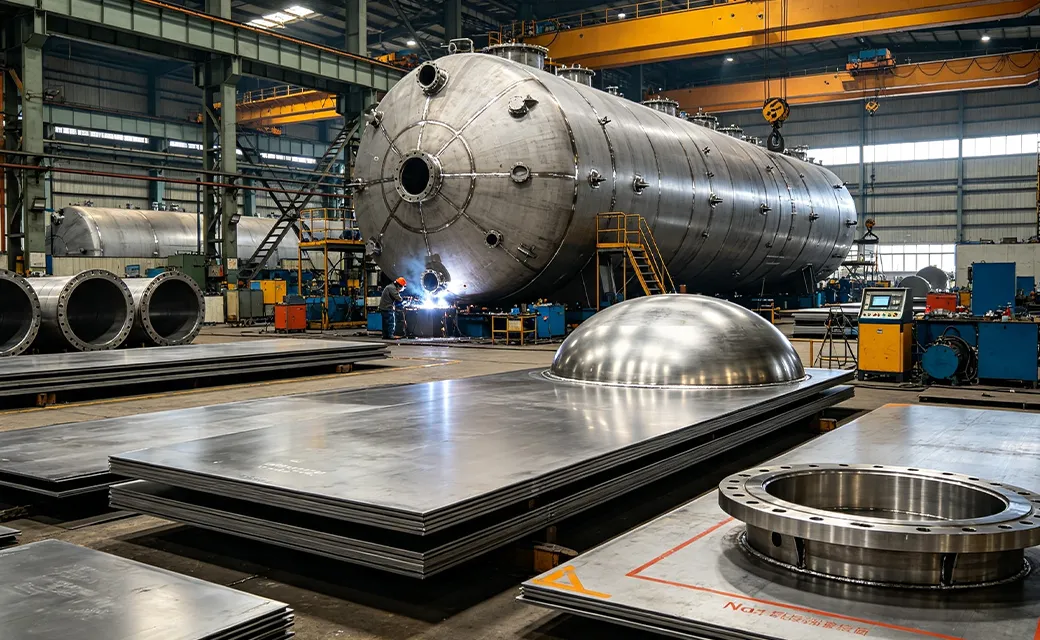

Pressure Vessels Stainless Steel

Boiler Drum

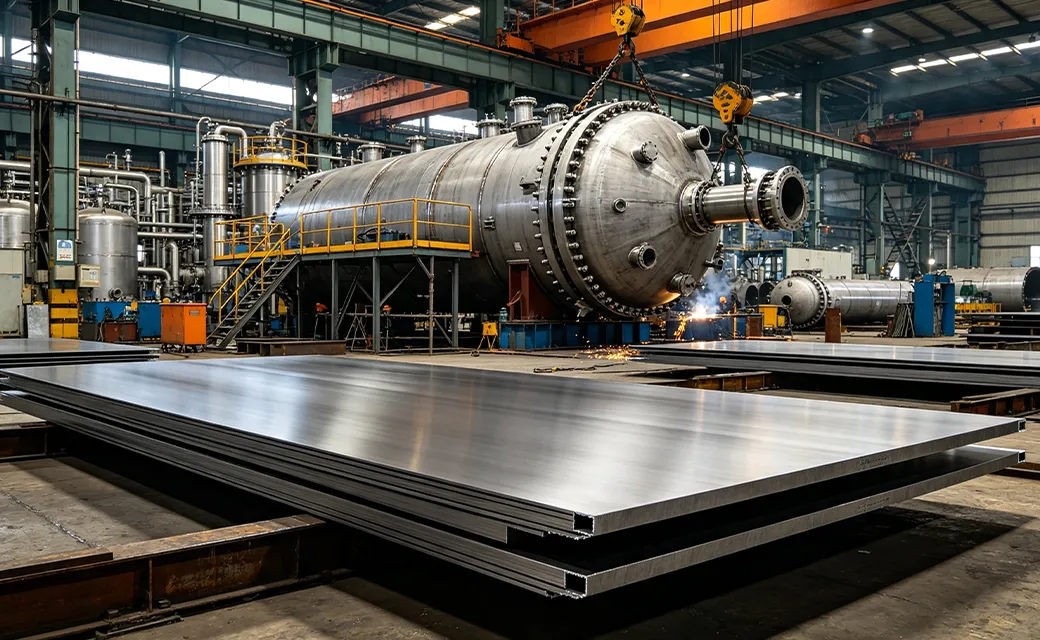

Petrochemical Equipment-Stainless Steel

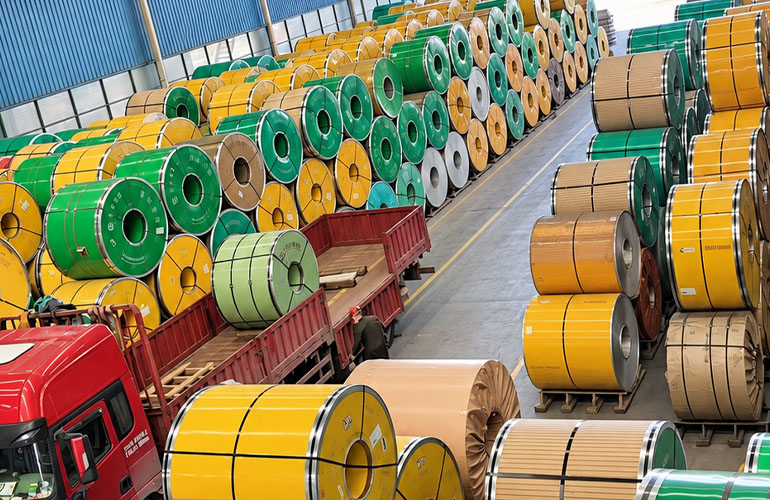

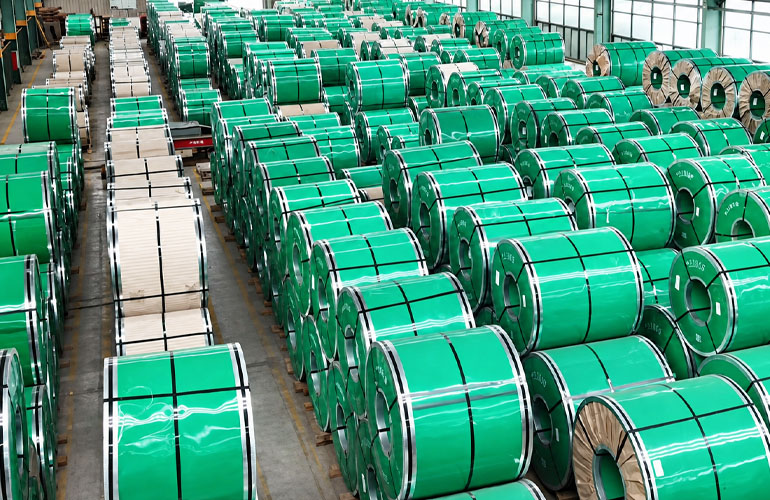

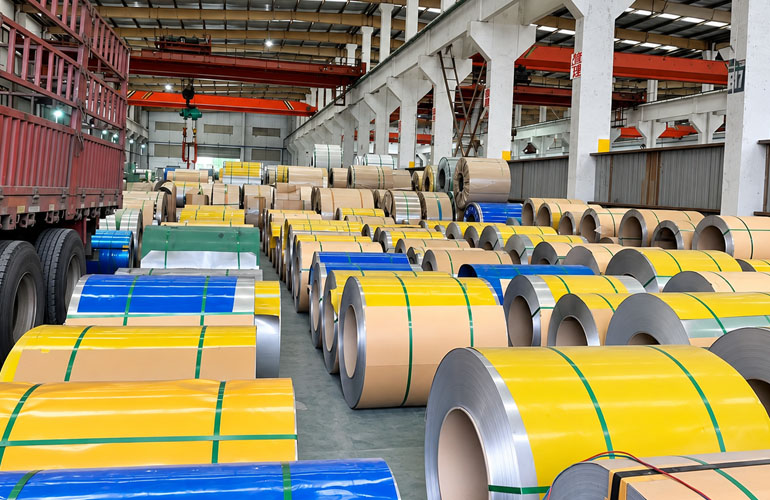

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is 2205 duplex stainless steel coil equivalent grade?

GB:022Cr22Ni5Mo3N, AISI 2205, EN 1.4462 (X2CrNiMoN22-5-3), no SUS equivalent grade.

What is advantage of 2205 compare to 316L?

Higher yield strength, much better chloride stress corrosion resistance, suitable for severe corrosive offshore environment.

What are typical applications of 2205 coil?

Offshore platform, oil & gas pipeline, seawater desalination plant, chemical reactor, pulp equipment.

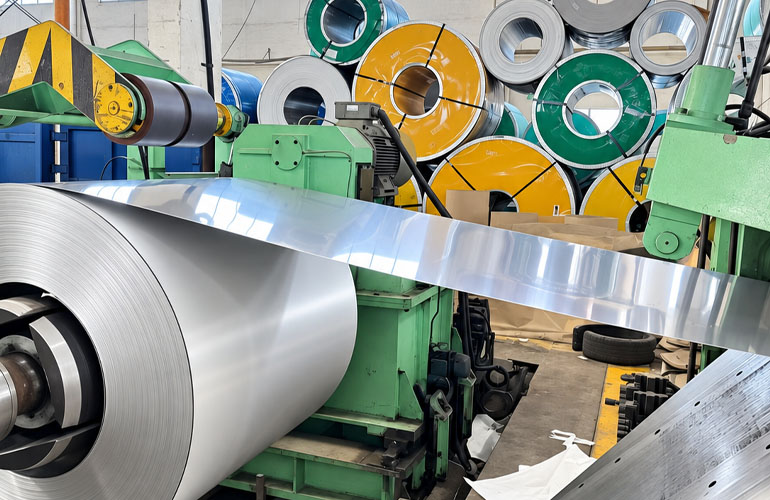

Can you slit 2205 duplex coil into narrow strip?

Yes, custom slitting available, strict width tolerance for duplex stainless strip.

What certificates can be supplied?

EN10204 3.1 MTC certificate, third-party inspection SGS/BV available before loading.

What is MOQ for 2205 duplex stainless coil?

MOQ is higher than common 304/316L, normally minimum 5 tons, depends on thickness and width
