2507 Super Duplex Stainless Steel Square Bar |1.4410 Solid Square Bar ASTM A276 EN10088

Super high pitting & crevice corrosion resistance for severe chloride environment
Ultra high mechanical strength, higher than 2205 duplex grade
Excellent resistance to stress corrosion cracking
Good toughness under low temperature
Complies with ASTM A276 & EN10088 standards

Product Overview

2507 Super Duplex Stainless Steel Square Bar (1.4410 / X2CrNiMoN25-7-4 / SUS329J4L / 022Cr25Ni7Mo4N) is premium super duplex solid square bar, dual phase ferrite-austenite structure, manufactured per ASTM A276 and EN10088 standards. Hot rolled size:5×5mm~150×150mm; cold drawn minimum 3×3mm for heavy-duty critical components.

Higher chromium, molybdenum and nitrogen content than 2205 gives 2507 outstanding anti-corrosion performance in extreme chloride medium, seawater, brine and sour chemical environment. It is widely used for desalination equipment brackets, offshore oil & gas mechanical fixtures, flue gas desulfurization equipment, heavy-duty anti-corrosion molds. All products have full material test certificate.

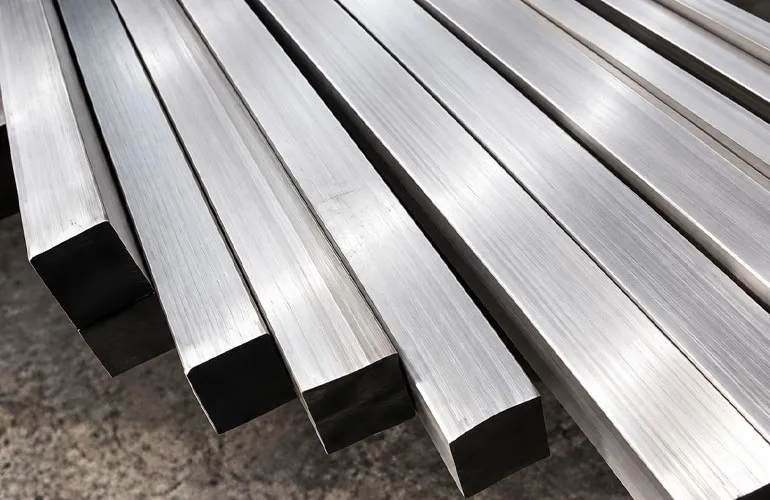

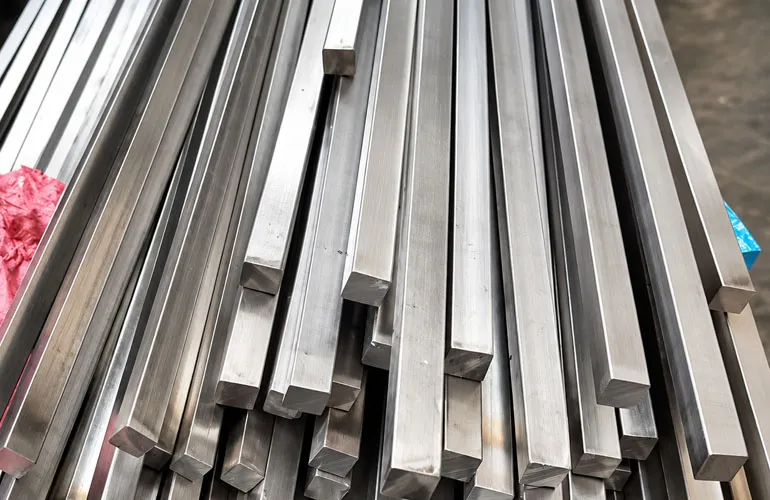

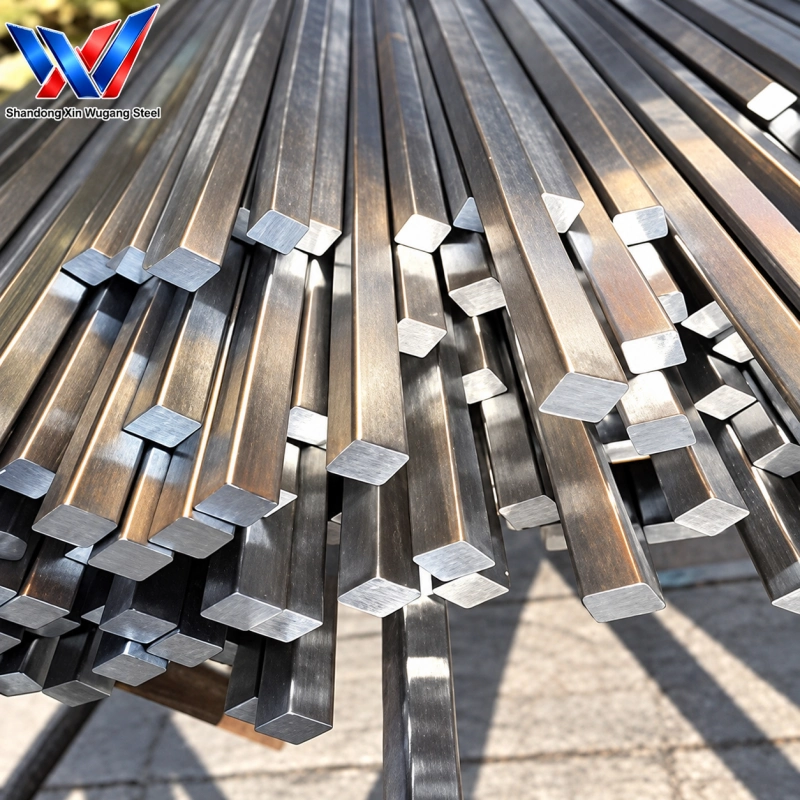

Stainless Steel Square Bar

Chemical & Mechanical Property Snapshot

Grade	Equivalent Brand	C Max	Cr	Ni	Mo	Yield Strength (MPa) Min	Tensile Strength (MPa) Min	Elongation (%) Min	Hardness HB Max
2507	1.4410 / X2CrNiMoN25-7-4 / SUS329J4L / 022Cr25Ni7Mo4N	0.03	24.00-26.00	6.00-8.00	3.00-5.00	550	795	15	310

Detailed Technical Specifications

Item	Specification
Product Name	2507 Super Duplex Stainless Steel Square Bar
Material Type	2507 Super Duplex Stainless Steel
Shape	Solid Square Bar
Manufacturing Standards	EN10088, ASTM A276
Production Type	Hot-Rolled Square Bar / Cold-Drawn Square Bar
Hot-Rolled Size Range	5×5mm – 150×150mm
Cold-Drawn Size	Minimum 3×3mm
Available Grade	2507 (1.4410)
Surface / Processing	According to production requirements
Material Performance	Superior chloride corrosion resistance, ultra high strength, good low temperature toughness
Quality Control	Mill Test Certificate with heat number, chemical composition and mechanical property records
Packaging	Seaworthy bundled packing to prevent scratches and deformation
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit

Size Specification Table

Production Type	Side Dimension	Tolerance	Surface Finish	Length Range
Cold Drawn Stainless Steel Square Bar	3×3 mm–50×50 mm	±0.02–±0.05 mm	Bright polished / Pickled	1000–6000 mm, custom cut
Hot Rolled Stainless Steel Square Bar	5×5 mm–150×150 mm	±0.3–±1.0 mm	Black / Pickled & Passivated	2000–6000 mm, custom cut

Product Comparison Table

Comparison Item	2507 Super Duplex Stainless Steel Square Bar	2507 Super Duplex Stainless Steel Round Bar	Carbon Steel Square Bar
Material	2507 Super Duplex Stainless Steel	2507 Super Duplex Stainless Steel	Carbon Structural Steel
Cross Section	Solid Square	Solid Round	Solid Square
Main Advantage	Superior pitting & crevice corrosion resistance, ultra high strength for harsh chloride environment	High strength & super corrosion resistance, fit for heavy-duty rotary components	Low cost, good weldability for general structural use
Manufacturing Standard	EN10088, ASTM A276	GB/T 1220, ASTM A276, ASTM A484, EN 10088-3	GB/T 706, ASTM A36, EN 10025
Size Range	Cold-drawn: Min.3×3 mm; Hot-rolled:5×5 mm–150×150 mm	Φ3 mm–Φ300 mm	5×5 mm–200×200 mm
Full Available Grades & Equivalent	2507 (1.4410/X2CrNiMoN25-7-4/SUS329J4L/022Cr25Ni7Mo4N)	2507 (1.4410/X2CrNiMoN25-7-4/SUS329J4L/022Cr25Ni7Mo4N)	Q235B, Q355B, S235JR, S355JR, ASTM A36
Processing Advantage	Pre-shaped square profile, less cutting & shaping work	Suitable for turning, grinding, heavy load shaft manufacturing	Easy cutting, welding & forming
Corrosion Resistance	Excellent, best for extreme chloride, brine and sour medium	Excellent, best for extreme chloride, brine and sour medium	Poor; requires anti-corrosion coating
Typical Applications	Desalination equipment supports, offshore oil & gas fixtures, FGD equipment, heavy anti-corrosion molds	Desalination pump shafts, offshore equipment rotary parts, chemical high-corrosion components	Building supports, general machinery structural parts, brackets

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

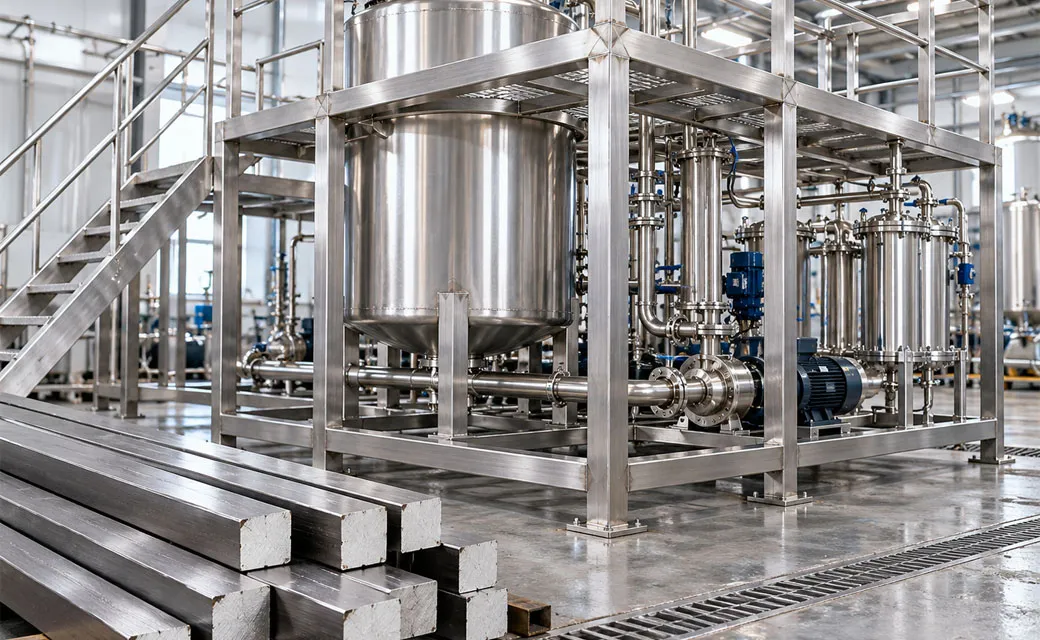

Corrosion-Resistant Equipment Frames

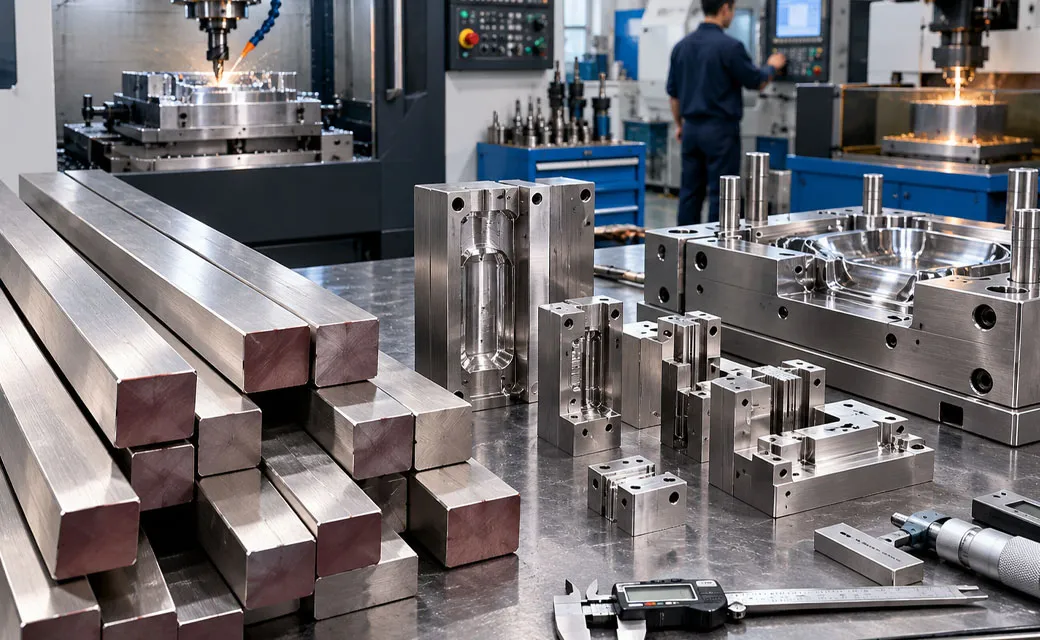

Mold Inserts

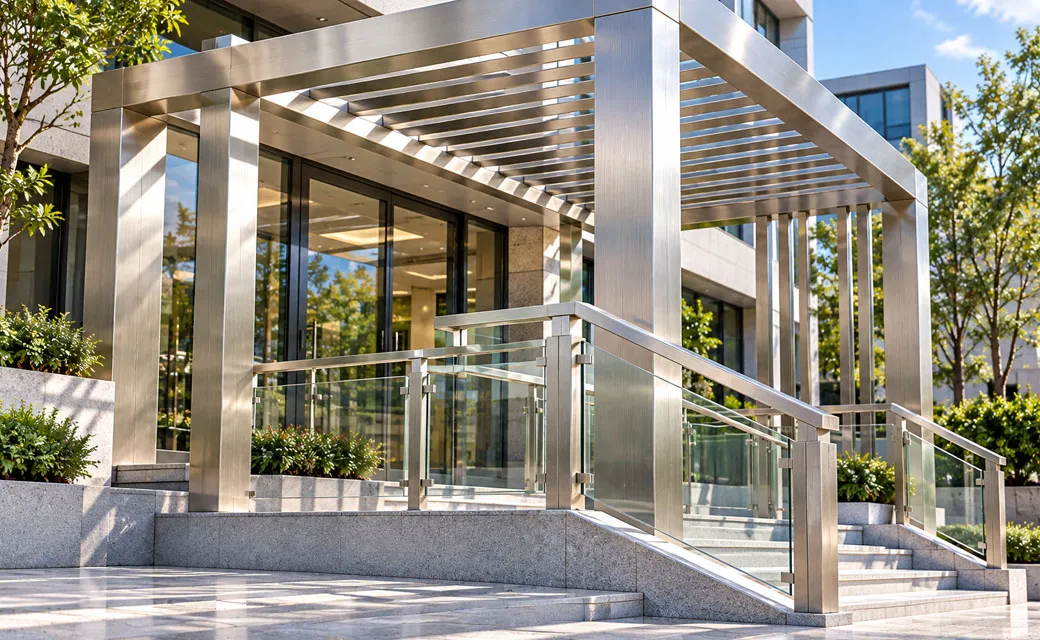

Decorative Structural Frames

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is equivalent grade of 2507 super duplex square bar?

Equivalent:1.4410,X2CrNiMoN25-7-4,SUS329J4L,022Cr25Ni7Mo4N.

What is difference between 2205 and 2507?

2507 is super duplex grade with higher Cr, Mo, Nitrogen content, stronger resistance to pitting corrosion for harsher chloride environment, higher mechanical strength than 2205.

What industry commonly uses 2507 square bar?

Desalination, offshore oil & gas, flue gas desulfurization, pulp and paper industry.

MOQ for 2507 square bar?

MOQ is 5 tons.

Do you supply MTC for 2507 material?

Yes, mill test certificate is provided for each shipment.
