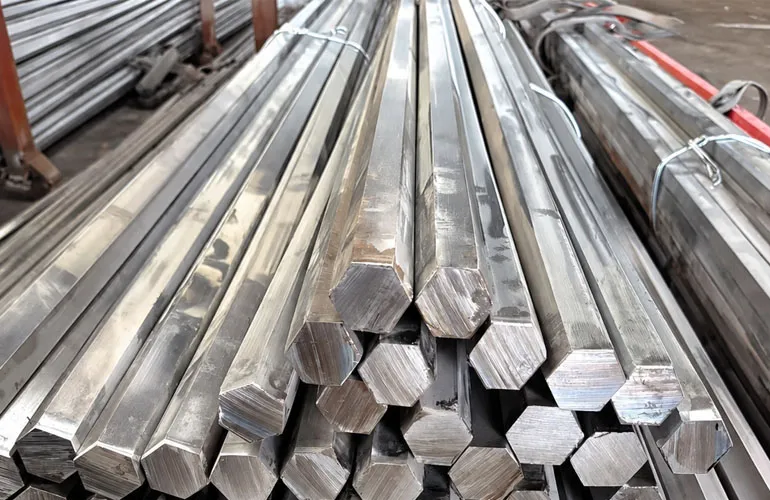

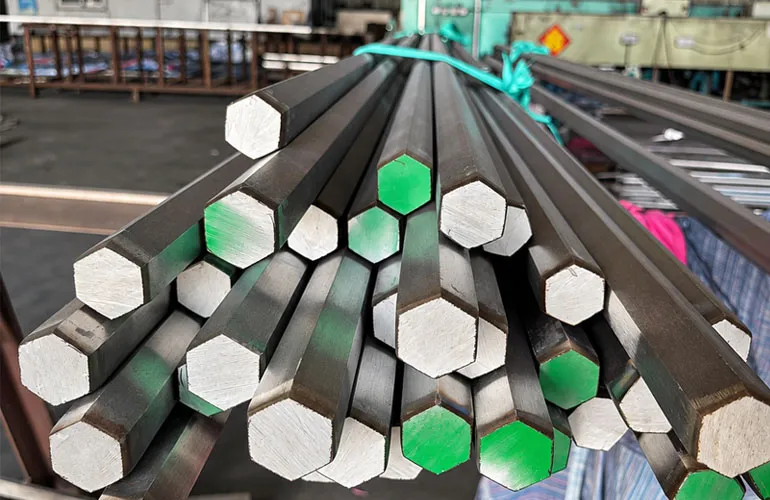

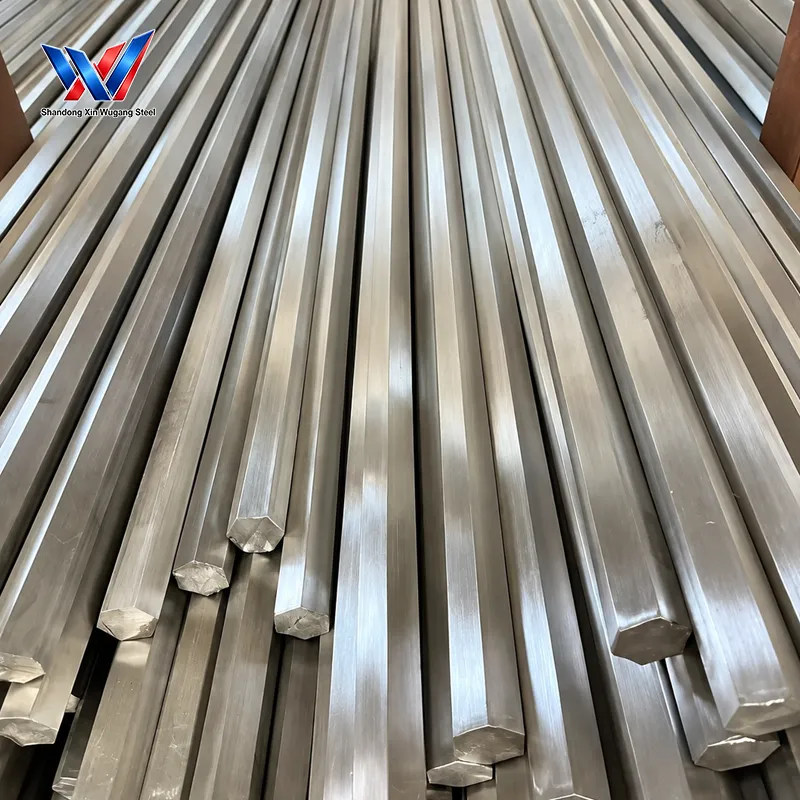

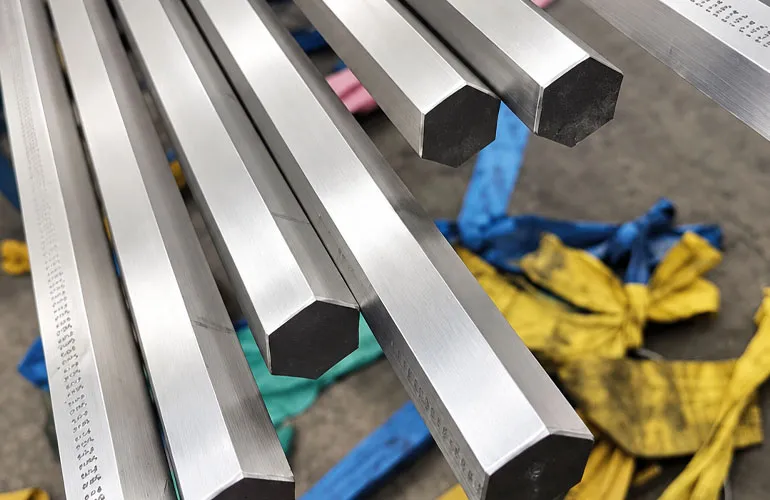

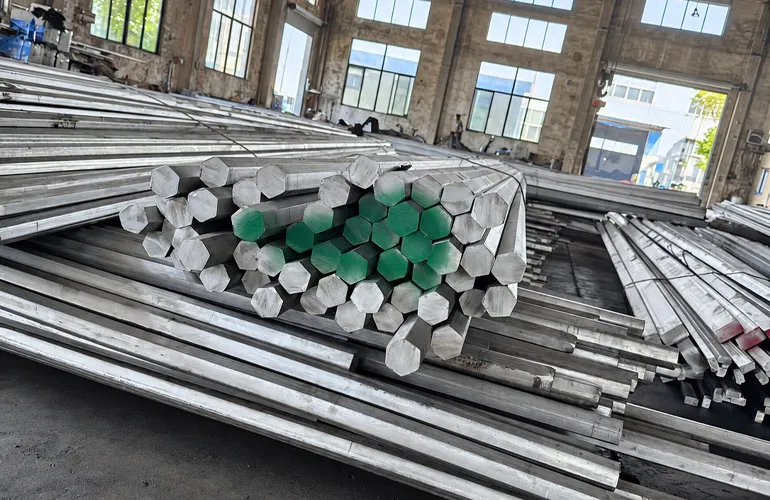

Stainless Steel Hexagonal Bar

  1. Complete size series S6‑S80 mm, covers most fastener machining requirements
  2. Wide grade selection for general‑purpose, marine, chemical and pharmaceutical service
  3. Compliant with GB/T4228, ASTM A276, EN10088 for global procurement
  4. Near‑net hex profile, greatly reduces cutting work for bolt & fitting production
Contact Us

Product Overview

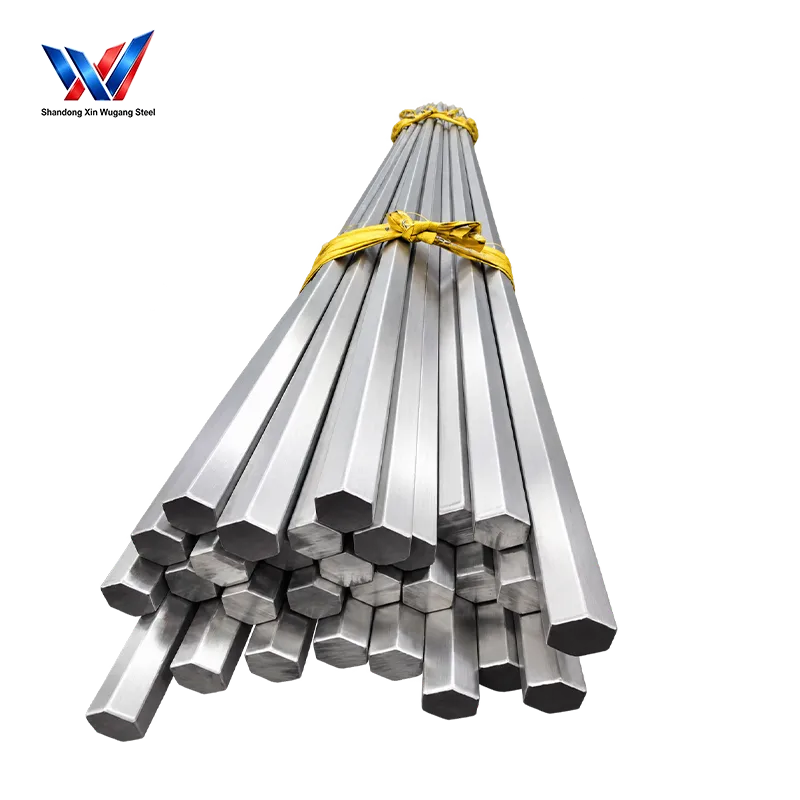

Stainless Steel Hexagonal Bar is a solid six-sided stainless steel bar designed for fastener and threaded fitting manufacturing. Manufactured according to GB/T4228, ASTM A276 and EN10088 standards, it provides reliable material performance for overseas engineering procurement requiring corrosion resistance and stable mechanical properties.

The hexagonal profile provides a near-net-shape machining advantage compared with round bar, reducing cutting work during the production of hex bolts, threaded connectors and precision components.

Stainless Steel Hexagonal Bar covers across-flat dimensions from S6mm to S80mm, with mainstream sizes including S8, S10, S12, S14, S17, S19, S22, S24, S27, S30, S32, S36, S41, S46 and S50, meeting common fastener and fitting processing requirements.

Available stainless steel grades include 304, 304L, 316, 316L, 321, 310S, 430, 2205, 2507, 904L and 17-4PH, allowing customers to select suitable materials according to corrosion environment, temperature requirements and application conditions.

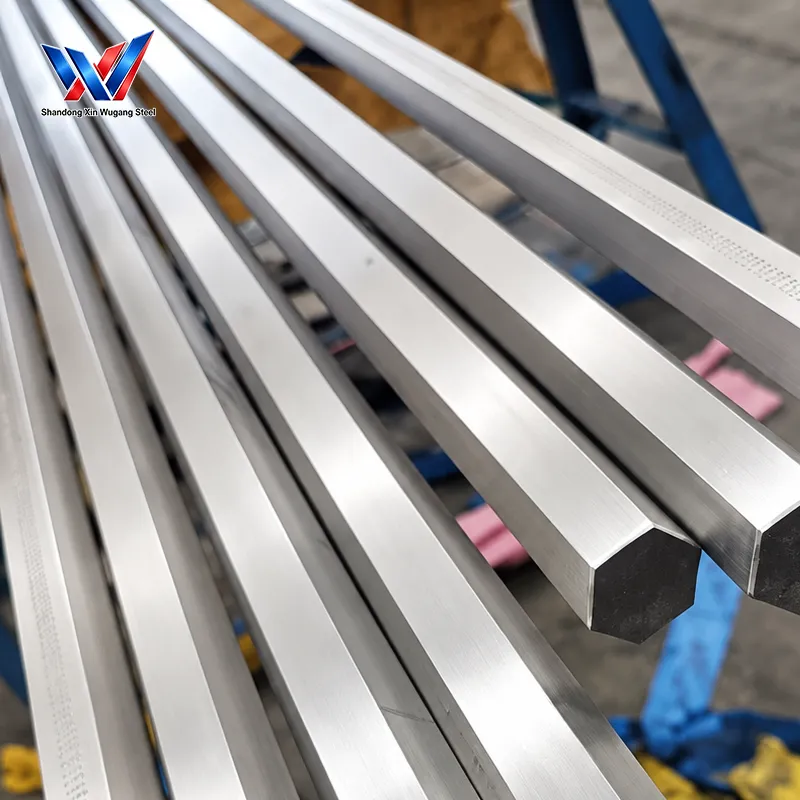

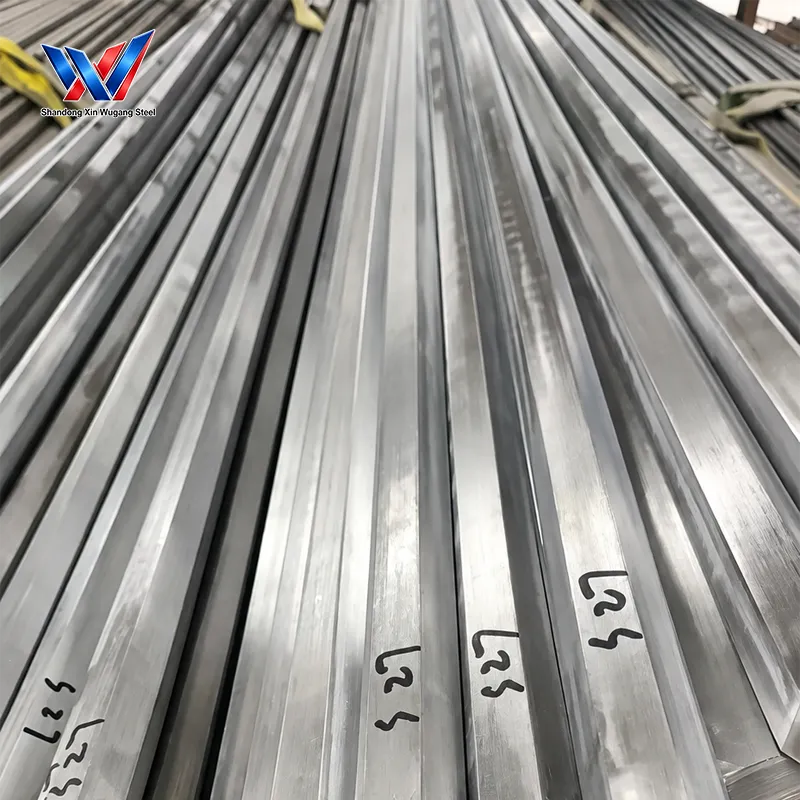

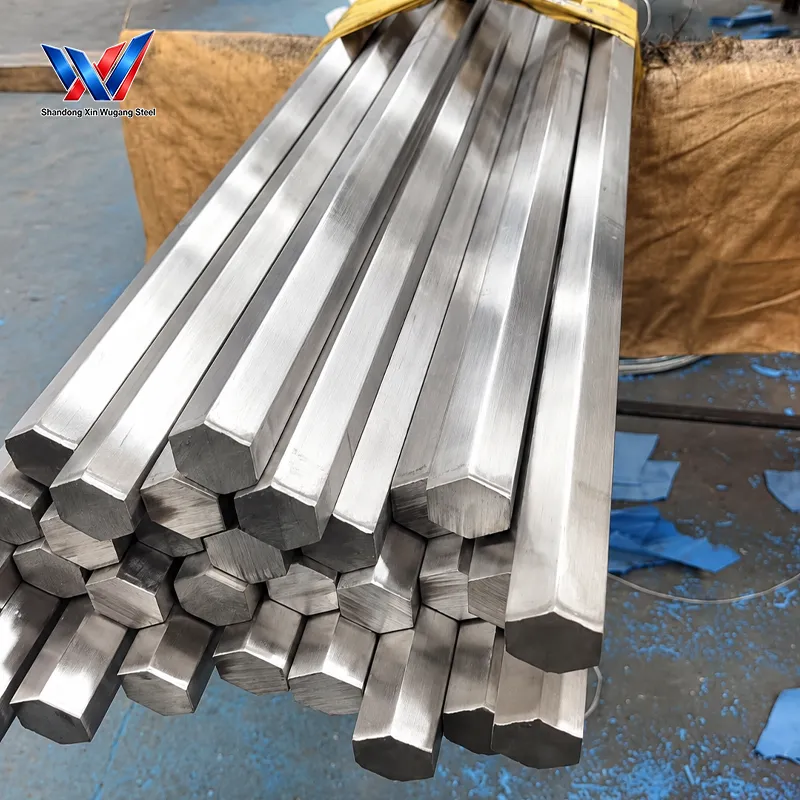

Stainless Steel Hexagonal Bar

Chemical & Mechanical Property Snapshot

Grade Equivalent Grade C Max Cr Ni Mo Mn Yield Strength (MPa) Min Tensile Strength (MPa) Min Elongation (%) Min Hardness HB Max
304 1.4301 / X5CrNi18-10 / SUS304 / 06Cr19Ni10 0.08 18.00–20.00 8.00–11.00 — 2.00 205 515 40 201
304L 1.4307 / X2CrNi18-9 / SUS304L / 022Cr19Ni10 0.03 18.00–20.00 8.00–12.00 — 2.00 170 485 40 201
316 1.4401 / X5CrNiMo17-12-2 / SUS316 / 06Cr17Ni12Mo2 0.08 16.00–18.50 10.00–14.00 2.00–3.00 2.00 205 515 40 217
316L 1.4404 / X2CrNiMo17-12-3 / SUS316L / 022Cr17Ni12Mo2 0.03 16.00–18.50 10.00–14.00 2.00–3.00 2.00 170 485 40 217
321 1.4541 / X6CrNiTi18-10 / SUS321 / 06Cr18Ni11Ti 0.08 17.00–19.00 9.00–12.00 — 2.00 205 515 40 217
310S 1.4845 / X12CrNi25-21 / SUS310S / 06Cr25Ni20 0.08 24.00–26.00 19.00–22.00 — 2.00 205 515 40 217
430 1.4016 / X6Cr17 / SUS430 / 06Cr17 0.12 16.00–18.00 ≤0.75 — 1.00 205 450 22 183
2205 1.4462 / X2CrNiMoN22-5-3 / SUS329J3L / 022Cr22Ni5Mo3N 0.03 21.00–23.00 4.50–6.50 2.50–3.50 2.00 450 620 25 293
2507 1.4410 / X2CrNiMoN25-7-4 / SUS329J4L / 022Cr25Ni7Mo4N 0.03 24.00–26.00 6.00–8.00 3.00–5.00 1.20 550 795 15 310
904L 1.4539 / X1NiCrMoCu25-20-5 / SUS904L / 015Cr21Ni26Mo5Cu2 0.02 19.00–23.00 23.00–28.00 4.00–5.00 2.00 220 490 35 215
17-4PH 1.4542 / X5CrNiCuNb16-4 / SUS630 / 05Cr17Ni4Cu4Nb 0.07 15.50–17.50 3.00–5.00 — 1.00 1100 1160 10 372

Detailed Technical Specifications

Item Specification
Product Name Stainless Steel Hexagonal Bar
Material Type Stainless Steel
Shape Solid Hexagonal Cross Section
Production Standards GB/T4228, ASTM A276, EN10088
Across Flats Dimension S6mm – S80mm
Mainstream Sizes S8, S10, S12, S14, S17, S19, S22, S24, S27, S30, S32, S36, S41, S46, S50
Available Grades 304, 304L, 316, 316L, 321, 310S, 430, 2205, 2507, 904L, 17-4PH
Material Performance Corrosion resistance, temperature resistance, mechanical strength
Typical Processing Hex bolt manufacturing, threaded fittings, precision components
Quality Control Mill Test Certificate including heat number, chemical composition and mechanical property data
Export Packing Bundled seaworthy packing to prevent bruising and scratching
MOQ 5 Ton
Payment Terms T/T, L/C at Sight
Delivery Time 7–15 working days after receiving deposit

Dimension Table

Across Flats Size (S) Weight (kg/m) Tolerance
S6 0.247 ±0.08 mm
S8 0.442 ±0.08 mm
S10 0.690 ±0.10 mm
S12 0.991 ±0.10 mm
S14 1.344 ±0.12 mm
S17 1.980 ±0.12 mm
S19 2.460 ±0.15 mm
S22 3.280 ±0.15 mm
S24 3.910 ±0.15 mm
S27 4.930 ±0.20 mm
S30 6.080 ±0.20 mm
S32 6.990 ±0.20 mm
S36 8.830 ±0.25 mm
S41 11.45 ±0.25 mm
S46 14.40 ±0.30 mm
S50 16.98 ±0.30 mm
S60 24.45 ±0.35 mm
S70 33.35 ±0.40 mm
S80 43.67 ±0.40 mm

Product Comparison Table

Comparison Item Stainless Steel Hexagonal Bar Stainless Steel Round Bar Stainless Steel Square Bar
Cross Section Hexagonal Round Square
Main Purpose Fasteners, threaded fittings, connectors Shafts, machining parts, structural components Frames, fixtures, molds
Machining Advantage Near-net hex profile reduces cutting work, saves raw material and processing time Requires secondary machining for hex shapes, more material waste Stable square geometry for fabrication, good for bending & welding
Standards GB/T 4228, ASTM A276, EN 10088 GB/T 1220, ASTM A276, EN 10088 GB/T 1220, ASTM A276, EN 10088
Typical Grades 304, 304L, 316, 316L, 321, 310S, 430, 2205, 2507, 904L, 17-4PH 304, 304L, 316, 316L, 321, 310S, 430, 2205, 2507, 904L, 17-4PH 304, 304L, 316, 316L, 321, 310S, 430, 2205, 2507, 904L, 17-4PH
Application Fields Hex bolts, pipe joints, valve fasteners, pharmaceutical fittings, marine fasteners Precision shafts, industrial components, pump parts, machinery spare parts Decorative frames, molds, equipment racks, support brackets
Key Buyer Value Less machining and efficient fastener production, consistent hex tolerance Flexible machining options, wide size coverage for custom turning Easy fabrication and structural stability, good load bearing for square assembly
Corrosion Resistance Medium to Excellent (Depends on Grade) Medium to Excellent (Depends on Grade) Medium to Excellent (Depends on Grade)
Cost Level Medium Low Medium

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Seawater Valve Fasteners

Chemical Pipeline Threaded Fittings

Corrosion-Resistant Hex Bolts

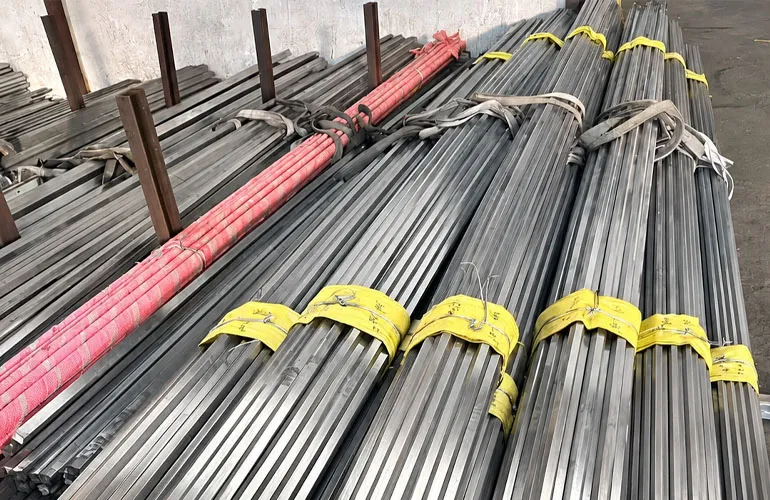

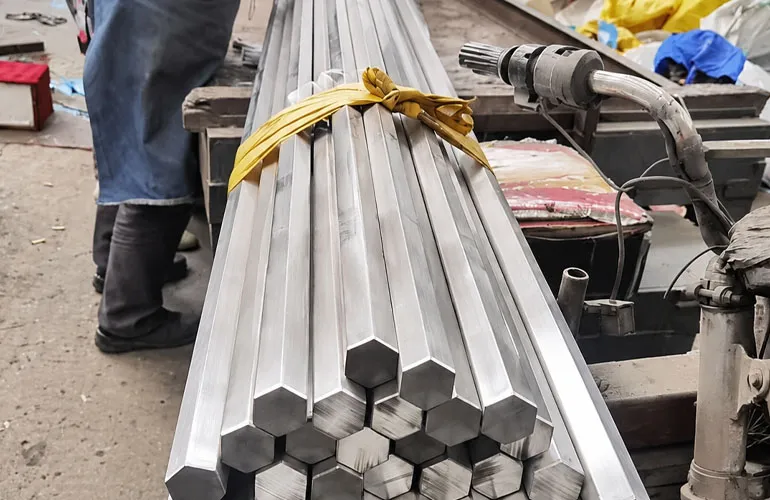

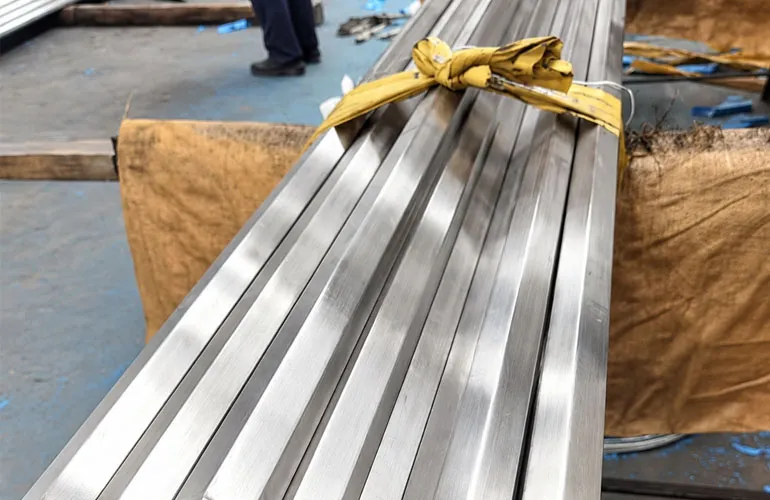

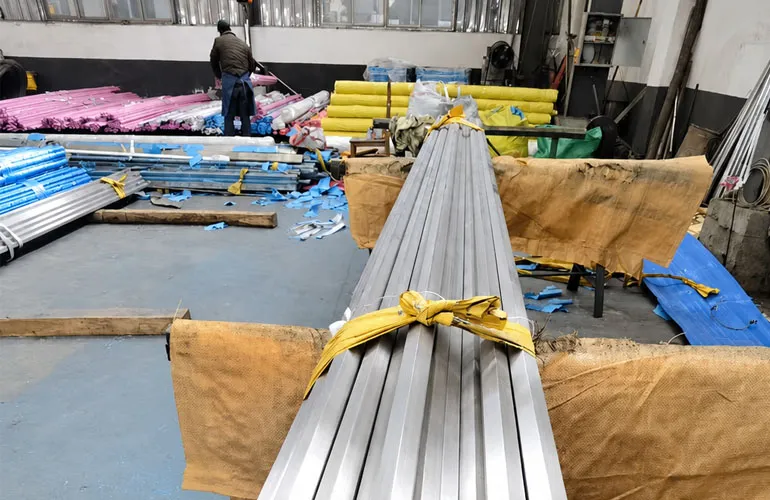

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

Stainless Steel Hexagonal Bar is mainly used for producing hex bolts, threaded pipeline connectors, marine valve fasteners and pharmaceutical equipment connection components.

The product is manufactured according to GB/T4228, ASTM A276 and EN10088 standards.

The across-flat dimension ranges from S6mm to S80mm, including common sizes from S8 to S50.

Available grades include 304, 316L, 2205, 904L, 17-4PH and other stainless steel grades.

The hexagonal profile provides a near-net shape that reduces cutting work during bolt and fitting production.
