Oil, Gas & Pipeline Steel & Pipe Solutions | API 5L & API 5CT

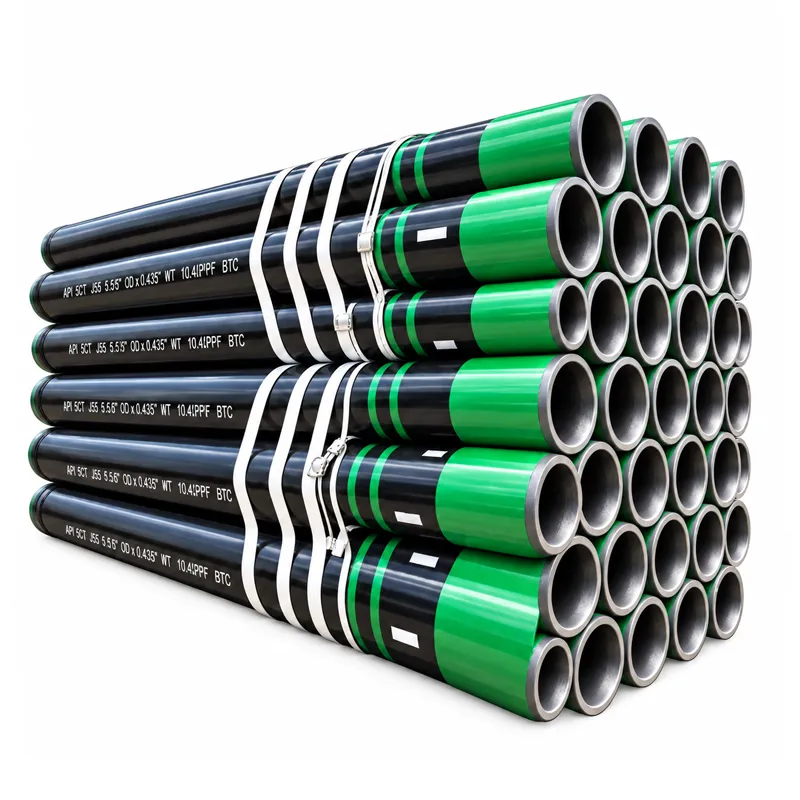

Tubing:

OD: 2-3/8″–4-1/2″ (60.3–114.3 mm)

Wall Thickness: 3.18–7.82 mm

Standard Length: R2 (7.32–9.14 m), R3 (11.58–13.72 m)

Casing:

OD: 4-1/2″–20″ (114.3–508 mm)

Wall Thickness: 6.05–16.13 mm

Length: R2 / R3 fixed lengths

End Processing: BTC, LTC and VAM special threads

Surface & Performance：Precision-finished inner and outer surfaces; thread phosphating or copper-plated lubrication. Full-length ultrasonic testing of the pipe body. Designed for internal pressure resistance, collapse resistance and tensile performance. Sour-service grades can meet NACE MR0175 requirements for resistance to hydrogen sulfide stress corrosion.

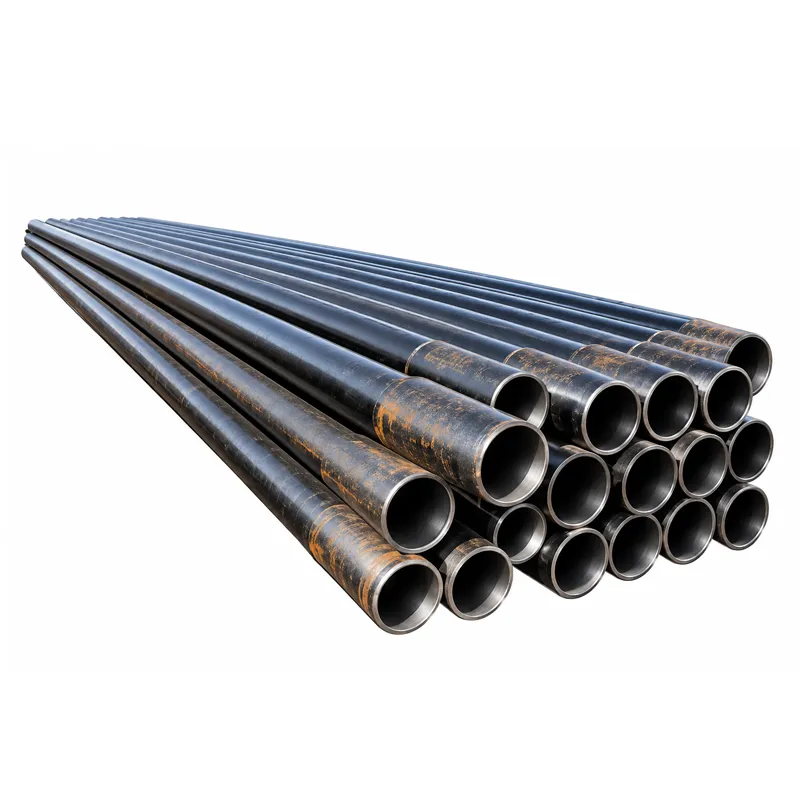

OD: 2-3/8″–6-5/8″ (60.3–168.3 mm)

Wall Thickness: 5.49–12.7 mm

Standard Length: R2 / R3

End Configuration: Upset ends with tool joints

Surface & Performance：Pipe body and tool joints are formed by friction welding, with full-size inspection. Provides high torsional strength and fatigue resistance for deep-well and directional drilling applications.

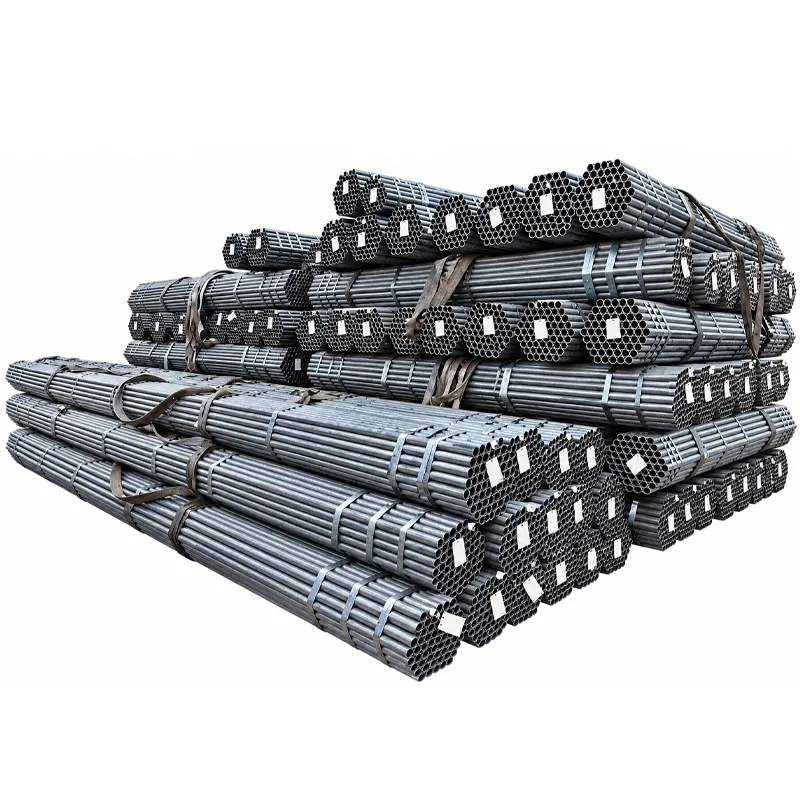

OD: 21.3–610 mm

Wall Thickness: 2.77–40 mm

Standard Length: 6 m / 12 m

Processing Options: Beveling and end chamfering available

Surface & Performance: Hot-rolled or cold-drawn construction, with ultrasonic and eddy-current testing. Designed for pressure-bearing service in oil and gas gathering systems and high-pressure station process pipelines.

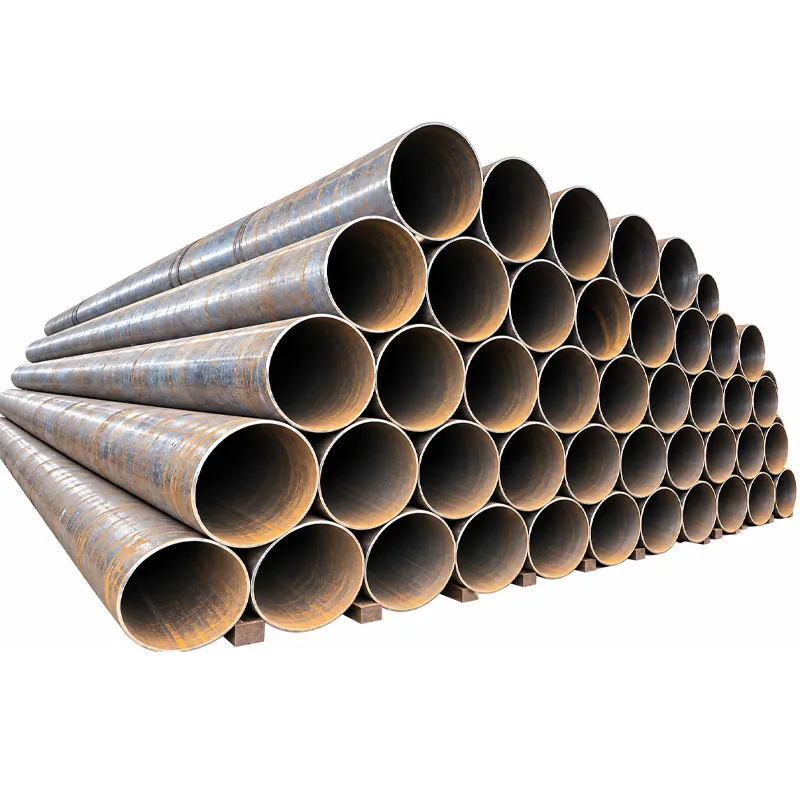

ERW Pipe:

OD: 26.9–508 mm

Wall Thickness: 2.11–12.7 mm

Standard Length: 6 m / 12 m

SSAW Pipe:

OD: 219–2420 mm

Wall Thickness: 6–25.4 mm

Standard Length: 12 m

LSAW Pipe:

OD: 406–1626 mm

Wall Thickness: 8–40 mm

Standard Length: 12 m

Surface & Performance:Optional 3PE / 2PE anti-corrosion coatings and FBE internal coating are available. Dense welded seams provide suitability for long-distance oil and gas transmission. ERW weld seams undergo full-length ultrasonic inspection, while LSAW weld seams can undergo 100% UT + RT inspection.

Thickness: 6–120 mm

Width: 1500 / 1800 / 2000 / 2500 mm

Length: 6000 / 12000 mm

Processing: Custom fixed-length cutting available

Surface & Performance:Normalized rolling, qualified impact testing and ultrasonic inspection. Designed for high-temperature and high-pressure service in refinery pressure equipment and oil and gas storage vessel applications.

Seamless Stainless Steel Pipe:

OD: 12.7–406 mm

Wall Thickness: 1.65–25 mm

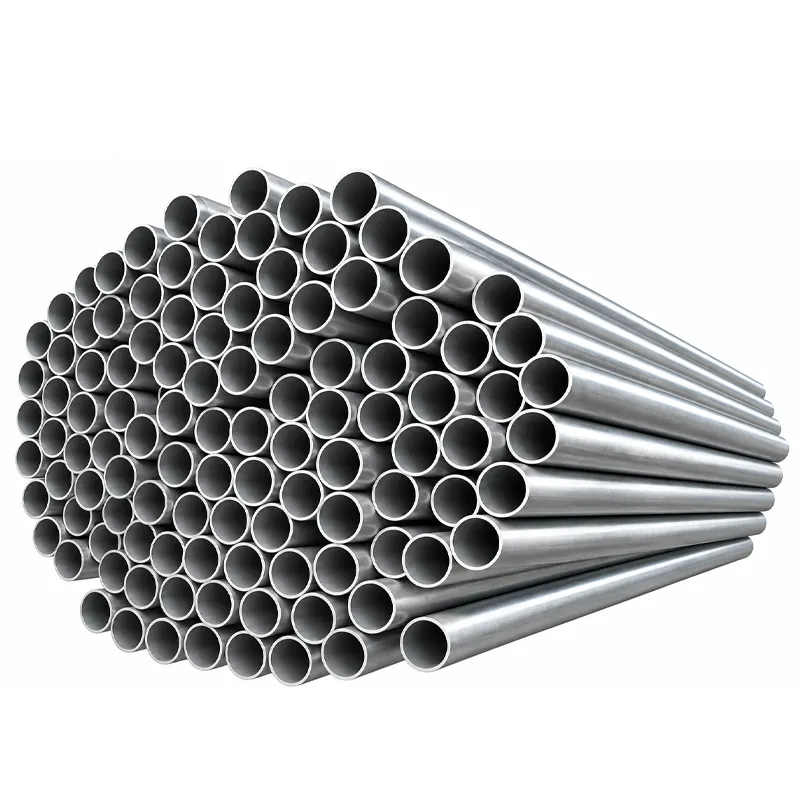

Nickel Alloy Pipe:

Inconel 625 and Alloy 825 available within the same stated size range

Surface & Performance：Solution annealed and pickled surface. Provides resistance to chloride pitting and H₂S stress cracking, making it suitable for highly corrosive sour oil and gas service, wellhead systems and seawater process pipelines.
