304 Stainless Steel Round Bar | 1.4301 SUS304 06Cr19Ni10 Hot Rolled & Cold Drawn Round Bar

Excellent general corrosion resistance for atmospheric & mild chemical environments
Dual production options: hot rolled black bar and cold drawn precision bright bar
Great formability and weldability for fabrication processing
Stable chemical composition and consistent mechanical performance
Multiple diameter sizes, custom cut length & polishing service available

Product Overview

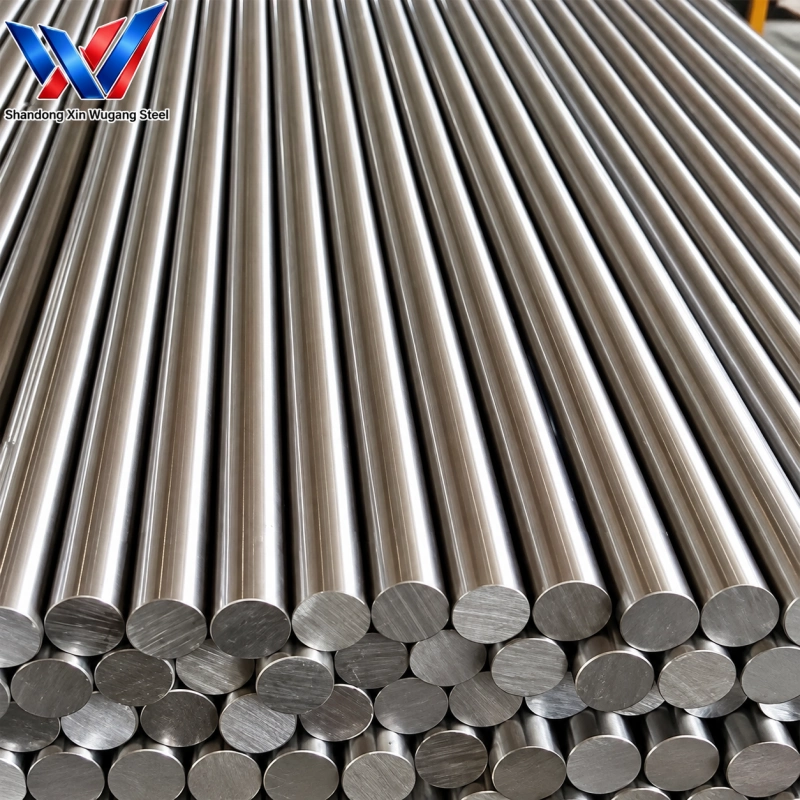

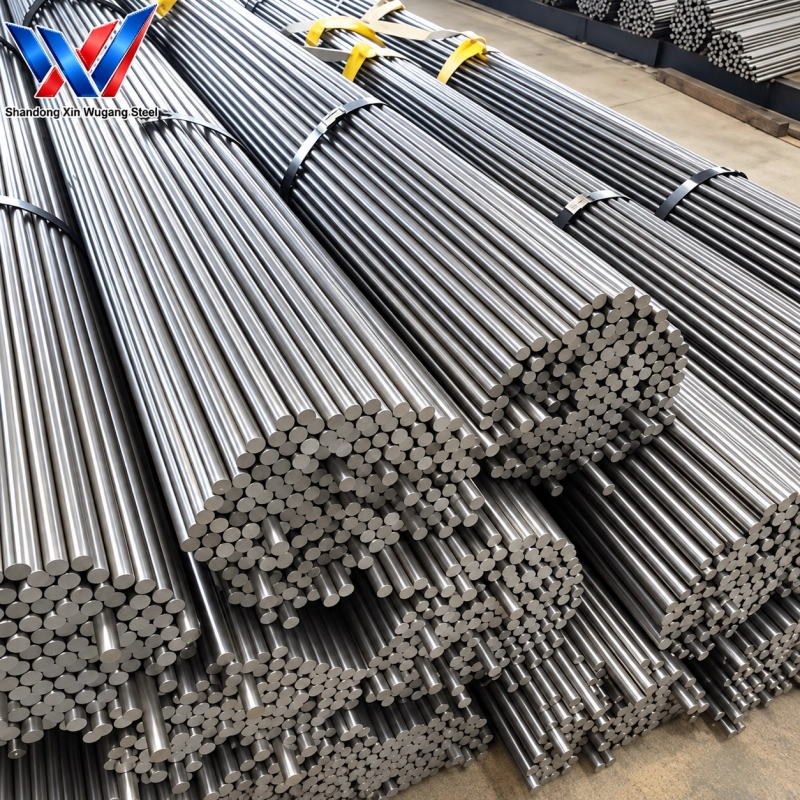

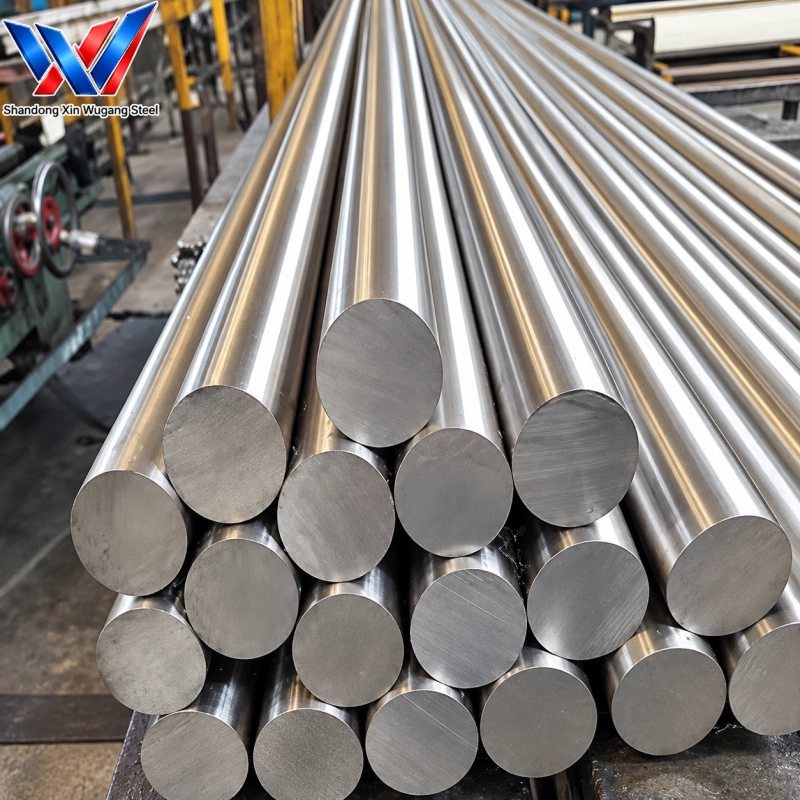

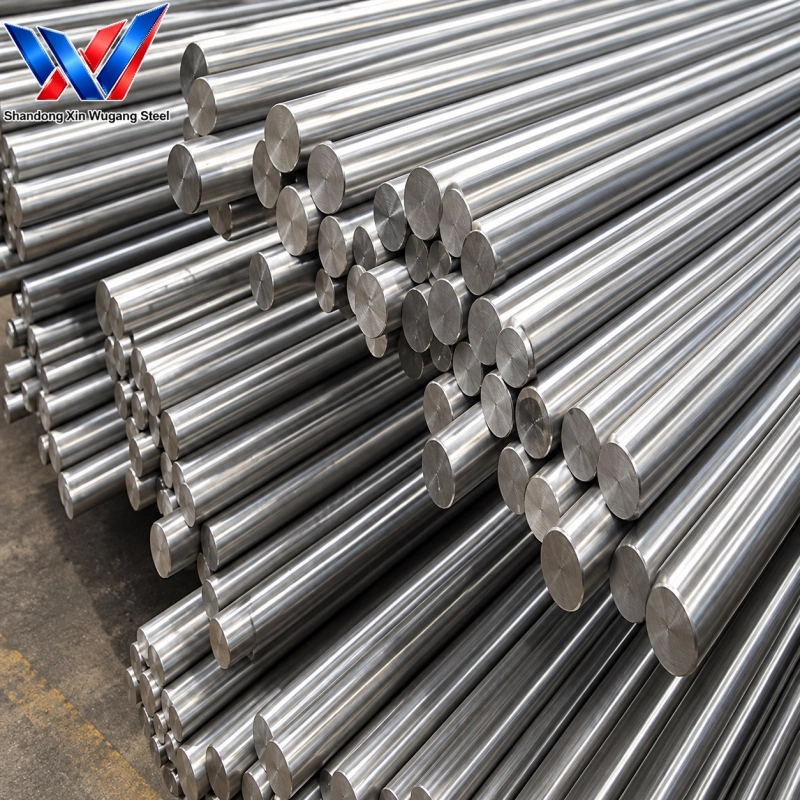

304 Stainless Steel Round Bar is the most widely used austenitic stainless solid round bar, equivalent grade 1.4301, SUS304 and 06Cr19Ni10. It is produced following GB/T1220, ASTM A276, ASTM A484 and EN10088-3 standards. We supply two types: hot rolled black surface bar for heavy machining, and cold drawn bright & precision ground round bar for high-precision applications. Hot rolled bar covers Φ16mm~Φ300mm, cold drawn bar Φ3mm~Φ120mm, tolerance up to ±0.01mm. Surface options include polishing, turning and peeling. Standard lengths 3m,6m,12m. It is commonly used for food machinery, general chemical equipment, pump & valve parts, architectural components and general mechanical manufacturing.

Stainless Steel Round Bar

Chemical & Mechanical Property Snapshot

Item	Value
Grade	304, Equivalent:1.4301/SUS304/06Cr19Ni10
C (Max)	0.08
Si (Max)	1.00
Mn (Max)	2.00
P (Max)	0.045
S (Max)	0.030
Cr	18.00~20.00
Ni	8.00~11.00
Mo	—
Yield Strength (MPa, Min)	205
Tensile Strength (MPa, Min)	515
Elongation (%)	40
Hardness HB (Max)	201

Detailed Technical Specifications

Item	Specification
Product Name	304 Stainless Steel Round Bar
Material Type	304 Austenitic Stainless Steel
Shape	Solid Round Bar
Manufacturing Standards	GB/T1220, ASTM A276, ASTM A484, EN10088-3
Production Types	Hot-Rolled Black Surface Bar / Cold-Drawn Bright & Precision Ground Bar
Hot-Rolled Diameter Range	Φ16mm – Φ300mm
Cold-Drawn & Precision Ground Diameter Range	Φ3mm – Φ120mm
Precision Tolerance	Up to ±0.01mm
Standard Length	3m / 6m / 12m
Surface Treatment	Polishing, Turning, Peeling
Quality Documentation	Mill Test Certificate including heat number, chemical composition and mechanical test data
Packaging	Seaworthy export bundling to avoid scratching and deformation
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit

Dimension Specification Table

Item	Specification
Hot Rolled Black Surface Stainless Steel Round Bar Diameter	Φ16 mm–Φ300 mm
Cold Drawn & Precision Ground Bright Round Bar Diameter	Φ3 mm–Φ120 mm
Standard Available Length	3 m / 6 m / 12 m
Custom Length	Customized fixed length available according to client requirements
Dimensional Tolerance for Precision Ground Bar	Up to ±0.01 mm
Surface Treatment Options	Polishing, turning, peeling / skin-pass machining

Product Comparison Table

Comparison Item	304 Stainless Steel Round Bar	Carbon Steel Round Bar	316L Stainless Steel Round Bar
Material Base	Austenitic Stainless Steel	Mild & Medium Carbon Steel	Austenitic Stainless Steel
Main Advantage	Excellent general corrosion resistance, good weldability & formability	Low cost, good weldability, mechanical strength	Superior pitting & chloride corrosion resistance
Typical Grades	304 (1.4301/SUS304)	Q235B, Q355B, 20#,45#	316L (1.4404/SUS316L)
Cross Section Shape	Solid cylindrical round bar	Solid cylindrical round bar	Solid cylindrical round bar
Precision Capability	Cold-drawn & ground bar tolerance up to ±0.01 mm; hot-rolled normal tolerance	Standard machining tolerance; no ultra-precision ground option	Cold-drawn & ground bar tolerance up to ±0.01 mm
Surface Options	Polished, turned, peeled, hot-rolled black finish	Black hot-rolled, pickled, painted	Polished, turned, peeled, hot-rolled black finish
Typical Applications	Food machinery, general chemical equipment, architectural components, pump & valve cores	Mechanical shafts, general construction, structural frames	Marine parts, saltwater equipment, chemical processing with chloride
Recommended Buyer	Manufacturers for general corrosion resistant components	General industrial manufacturers, construction & mechanical processing factories	Marine, chemical and coastal equipment manufacturers
Density	~7.93 g/cm³	~7.85 g/cm³	~7.98 g/cm³
Weldability	Excellent	Excellent	Excellent

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Marine Environment Components

Food Equipment Mechanical Parts

Chemical Corrosion-Resistant Shaft Components

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What are equivalent grades of 304 stainless steel round bar?

304 equivalent grades are 1.4301, SUS304 and 06Cr19Ni10.

What are the main applications of 304 round bar?

It is widely used for food processing machinery, general chemical equipment, pump and valve parts, architectural fittings and general mechanical components.

What surface options can you provide for 304 stainless round bar?

Hot rolled black, cold drawn bright, polished, turned and peeled surfaces are available.

What is the MOQ for 304 stainless steel round bar?

MOQ is 5 tons.

Can you supply mill test certificate for inspection?

Yes, MTC with heat number, chemical and mechanical test data will be provided.
