E75 API 5DP Drill Pipe | API Spec 5DP E75 Alloy Steel Drill Pipe

Strictly manufactured to API Spec 5DP standard for oilfield drilling requirement
Inertia friction welded upset tool joint for stable torque transmission
Multiple NC thread options NC26, NC31, NC38, NC40, R2 standard length 9.14m
Medium tensile & yield strength, cost‑effective for light‑load drilling condition
Complete inspection: NDT, thread test, dimension check, mill test certificate supplied

Product Overview

API 5DP E75 drill pipe is medium‑strength alloy drill pipe for shallow and light‑load drilling operations. Produced in compliance with API Spec 5DP standard, it adopts inertia friction welding process to connect pipe body with upset thickened tool joints, delivering stable torque transferring, reliable tensile performance for underground rotary drilling.

E75 grade features balanced mechanical property, lower material cost compared with X95/G105/S135 grades. Supports full NC thread series NC26, NC31, NC38, NC40, standard R2 length 9.14 meter, compatible with most mainstream small‑medium drilling rigs.

Main application covers water well drilling, shallow geological survey, HDD horizontal directional drilling, shallow coal‑bed methane exploration.

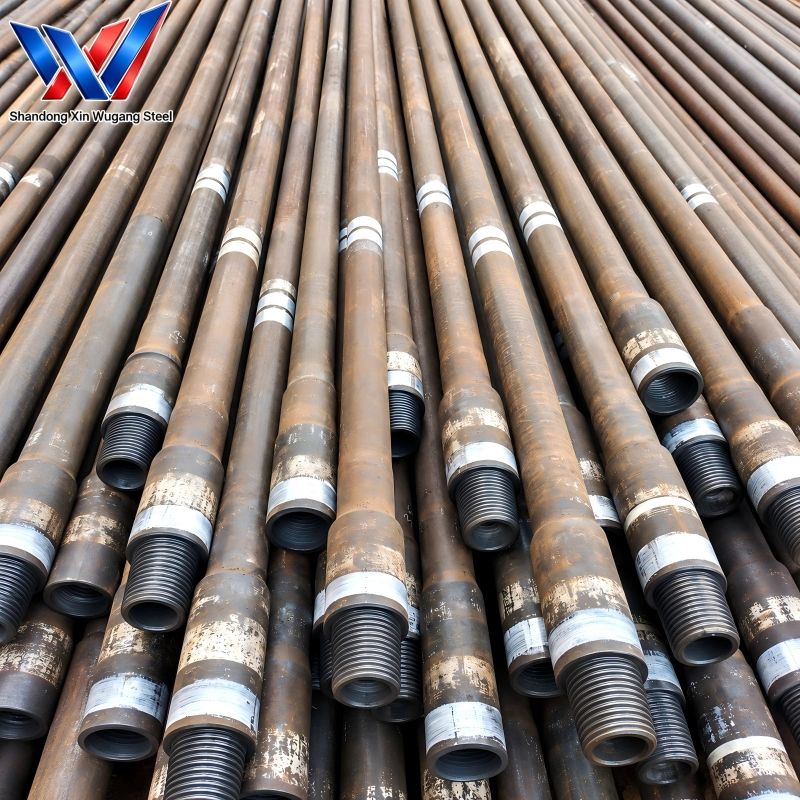

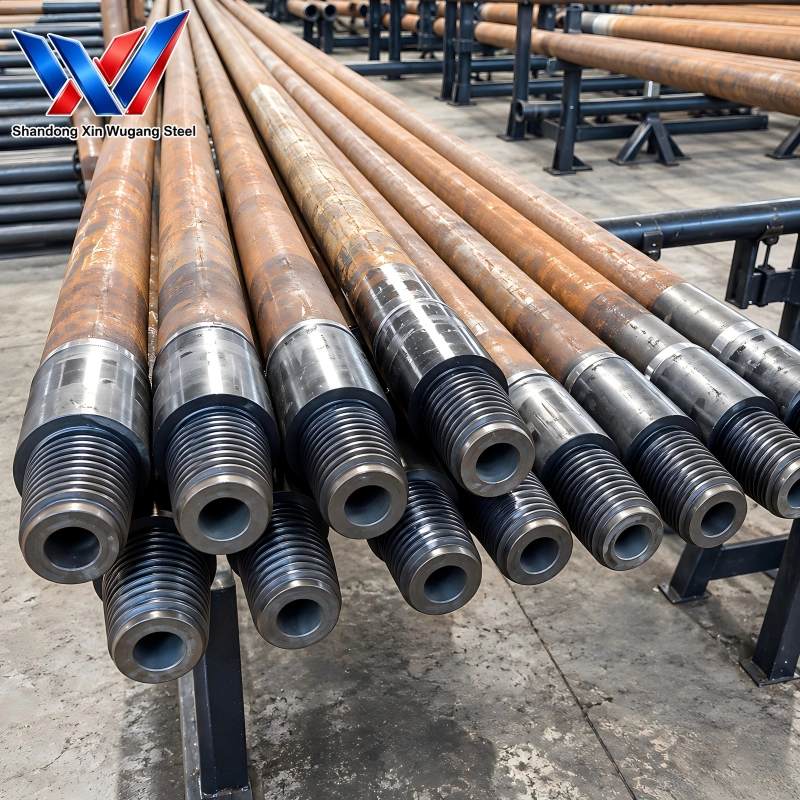

Drill Pipe

Chemical & Mechanical Property Snapshot

Grade	C (%)	Mn (%)	P (%) Max	S (%) Max	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)	Hardness (HRC)
E75	0.24‑0.28	1.20‑1.50	0.020	0.015	517‑655	≥689	≥19	≤22

Detailed Technical Specifications

Item	Details
Product Name	E75 API 5DP Drill Pipe
Applicable Standards	API Spec 5DP
Material Grade	E75
Common Outer Diameter	2‑3/8″, 2‑7/8″, 3‑1/2″, 4″, 4‑1/2″
Standard Length	R2:9.14 m
Tool Joint Type	Upset thickened tool joint
Welding Method	Inertia friction welding
Thread Connection	NC26, NC31, NC38, NC40
Connection Performance	Medium torque transmission, tensile load resistance
Application Scenario	Shallow well, water well, light‑load geological drilling
Inspection Process	Dimensional measurement, thread inspection, mechanical property testing, NDT
Certification Document	Mill Test Certificate supplied for each batch
Thread Protection	Protective caps installed on both ends
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7‑15 working days after receiving deposit
Package	Waterproof paper + galvanized steel strap + seaworthy export wooden pallet

Dimension Table

Nominal Size (inch)	OD (mm)	Wall Thickness (mm)	ID (mm)	Unit Weight (kg/m)	Thread Type	Standard Length Range
2-3/8″	60.33	4.83	50.67	16.02	NC26 / NC31	R1: 5.49–6.71 m / R2: 8.23–9.14 m / R3: 11.58–13.72 m
2-7/8″	73.03	5.51	62.01	23.29	NC31 / NC38	R1: 5.49–6.71 m / R2: 8.23–9.14 m / R3: 11.58–13.72 m
3-1/2″	88.90	5.49	77.92	29.76	NC38 / NC40	R1: 5.49–6.71 m / R2: 8.23–9.14 m / R3: 11.58–13.72 m
4″	101.60	6.65	88.30	38.23	NC44	R1: 5.49–6.71 m / R2: 8.23–9.14 m / R3: 11.58–13.72 m
4-1/2″	114.30	6.88	100.54	44.50	NC46 / NC50	R1: 5.49–6.71 m / R2: 8.23–9.14 m / R3: 11.58–13.72 m
5″	127.00	7.52	111.96	53.41	NC50 / NC56	R1: 5.49–6.71 m / R2: 8.23–9.14 m / R3: 11.58–13.72 m
5-1/2″	139.70	7.72	124.26	61.70	NC56 / NC61	R1: 5.49–6.71 m / R2: 8.23–9.14 m / R3: 11.58–13.72 m
6-5/8″	168.28	8.38	151.52	81.58	NC70	R1: 5.49–6.71 m / R2: 8.23–9.14 m / R3: 11.58–13.72 m

Product Comparison Table

Product	Main Function	Material / Standard	Key Characteristics	Typical Applications
E75 Drill Pipe	Transfers torque and drilling force between surface equipment and drill bit	API Spec 5DP, E75	Friction‑welded tool joints, NC threads, medium tensile strength, cost‑effective	Shallow wells, water wells, light‑load geological drilling
X95 Drill Pipe	Transfers torque and drilling force between surface equipment and drill bit	API Spec 5DP, X95	Higher tensile strength, good impact resistance, medium‑heavy load	Medium‑depth oil & gas wells, HDD horizontal directional drilling
G105 Drill Pipe	Transfers torque and drilling force between surface equipment and drill bit	API Spec 5DP, G105	High torque & tensile performance, fatigue‑resistant	Deep oil & gas wells, coal bed methane drilling

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Drilling for Oil and Gas Exploration

Water Well Drilling

Drilling for Geological Exploration

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What drilling depth fit for E75 drill pipe?

E75 is designed for shallow‑medium depth, light‑load drilling like water well and geological exploration, not recommended for ultra‑deep high‑torque oil‑gas well.

Can you customize drill pipe outer diameter?

We support common API OD sizes 2‑3/8" ~4‑1/2", special size can be negotiated for large order quantity.

What thread types are available for E75 drill pipe?

Standard NC26, NC31, NC38, NC40 threads, other thread types can be customized.

What is MOQ of E75 drill pipe?

MOQ is 5 tons, small trial order can be discussed.

How do you protect drill pipe threads during sea shipment?

Thread protective caps installed on both pipe ends, packed with waterproof paper and seaworthy wooden pallet.
