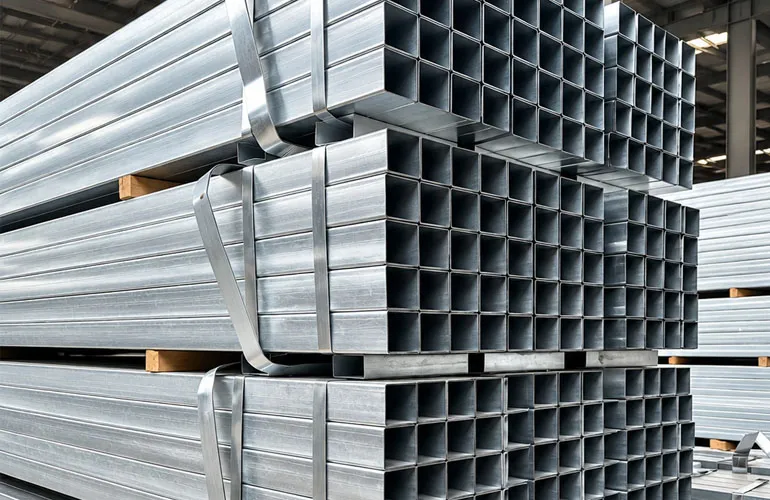

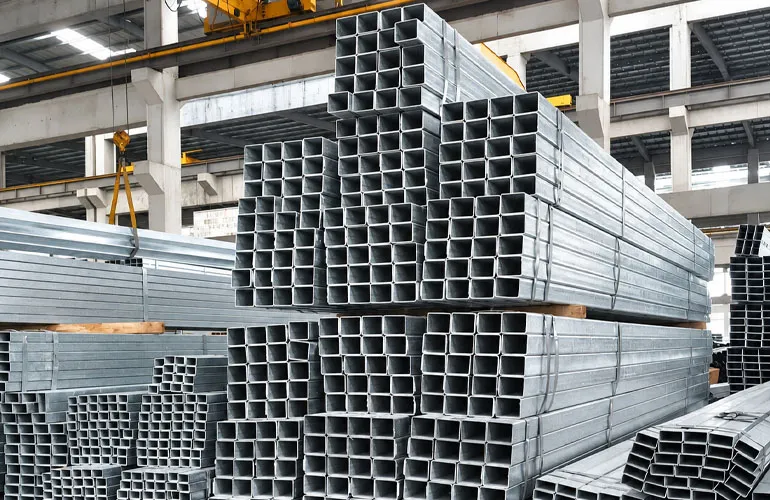

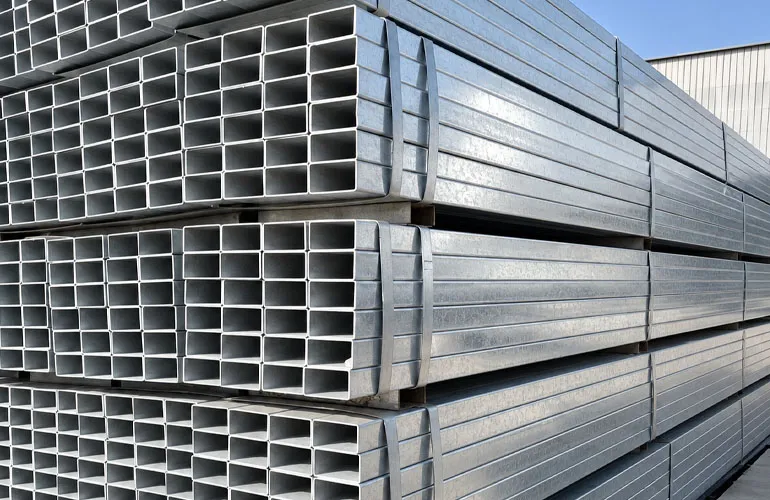

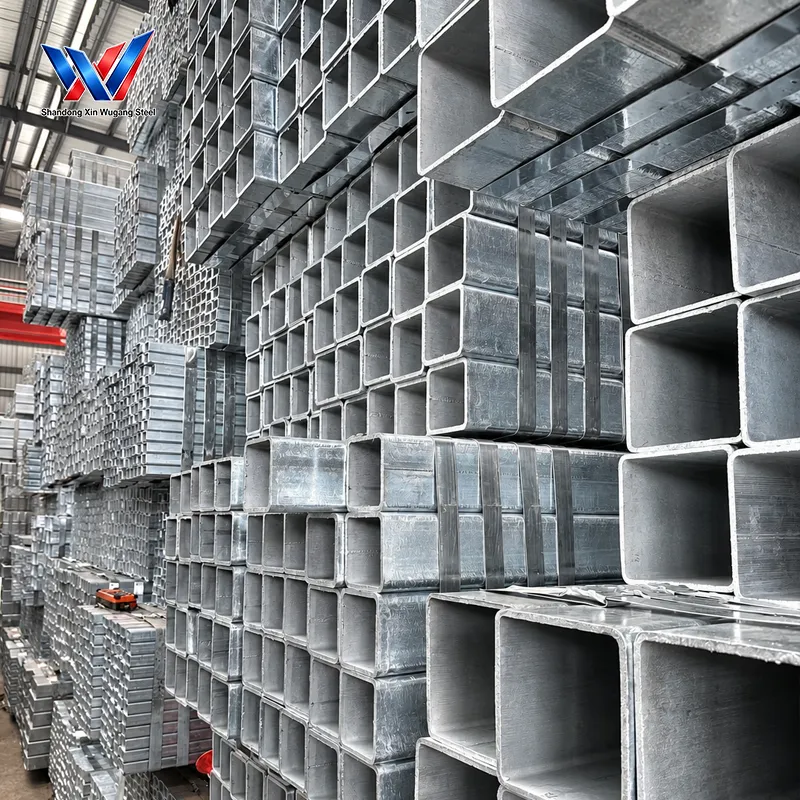

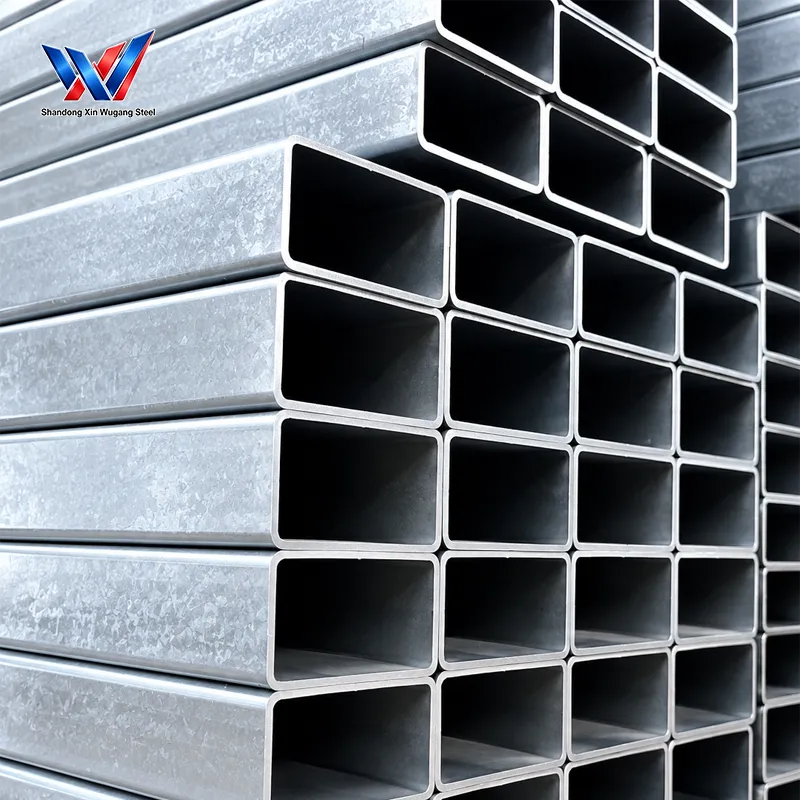

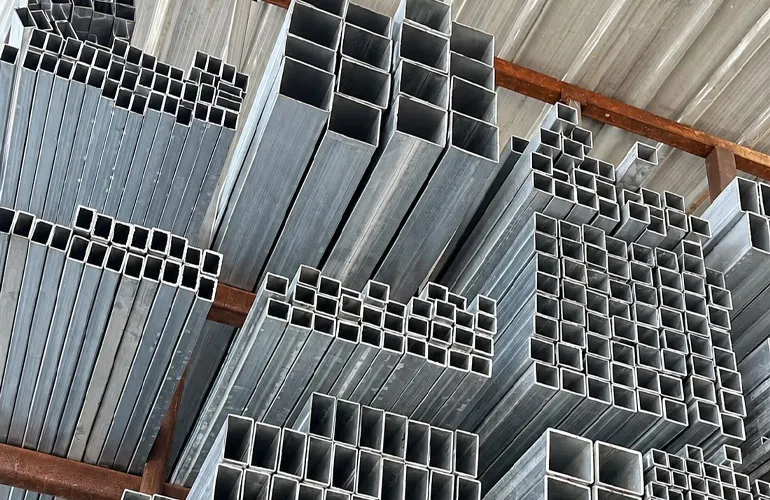

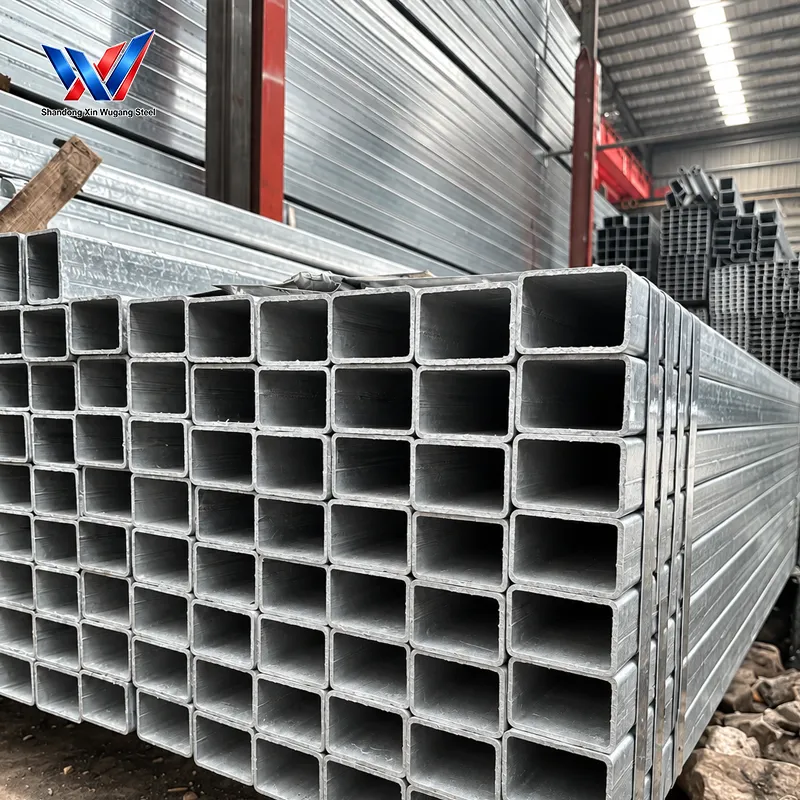

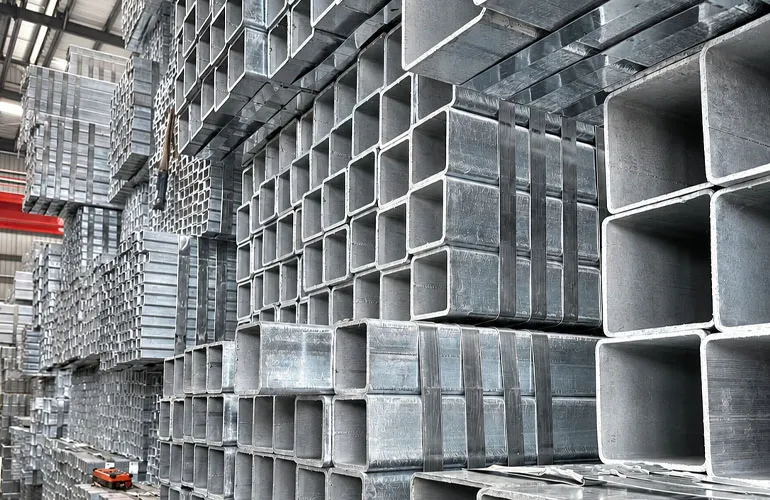

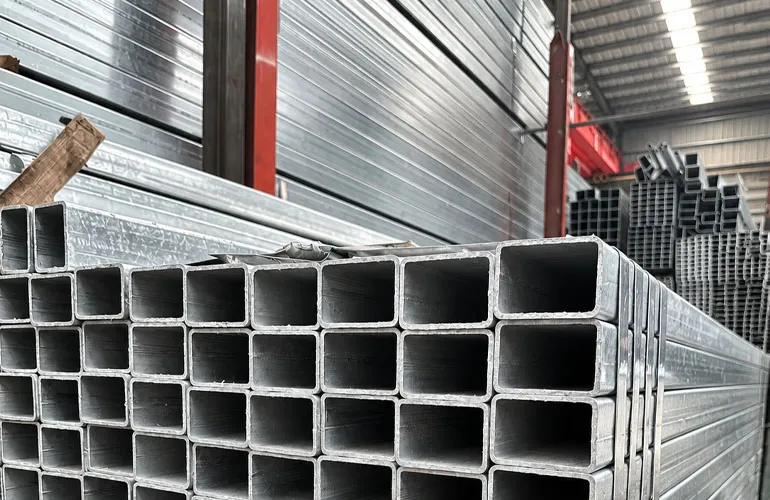

Galvanized Square Rectangular Steel Pipe SHS RHS

Galvanized Square/Rectangular Steel Pipe

  1. Multiple global standard grades: GB, EN, ASTM A500, JIS for worldwide project compliance
  2. Full‑range SHS & RHS dimension, SHS 10×10‑500×500mm, RHS 20×10‑600×400mm, wall 0.8‑16mm
  3. Flexible length: standard 6/12m, customizable cutting from 1‑12 meters
  4. Dual anti‑corrosion solution: HDG hot‑dip galvanized or PG pre‑galvanized coating complying with ISO1461
Contact Us

Product Overview

Galvanized Square/Rectangular Steel Pipe, including SHS (Square Hollow Section) and RHS (Rectangular Hollow Section), is a galvanized hollow structural steel product designed for construction, fabrication, and outdoor engineering applications. It provides a practical solution for projects requiring stable structural performance, dimensional accuracy, and improved corrosion resistance.

Manufactured according to international standards including GB/T 6728, EN 10219-1/2, ASTM A500 Grade B/C and ISO 1461, this product supports multiple steel grades such as Q195, Q235B, Q355B, S235JR, S275JR, S355JR, ASTM A500 Grade B/C, STKR400 and STKR490 to meet different project requirements worldwide.

The product covers a wide dimensional range. Square hollow sections are available from 10×10mm to 500×500mm, while rectangular hollow sections range from 20×10mm to 600×400mm, with wall thickness options from 0.8mm to 16mm. Standard lengths include 6m and 12m, with customized cutting available from 1m to 12m.

Galvanized Square/Rectangular Steel Pipe is widely used in steel structure buildings, photovoltaic support systems, fences, container frames, agricultural greenhouses, equipment bases, warehouse structures, and decorative engineering projects. It is suitable for steel fabricators, EPC contractors, solar system installers, fence manufacturers, and industrial construction companies.

Galvanized Square/Rectangular Steel Pipe

Chemical & Mechanical Property Snapshot

Grade C ≤ (%) Mn (%) Si ≤ (%) P ≤ (%) S ≤ (%) Yield Strength (MPa) Min Tensile Strength (MPa) Elongation (%) Min
Q195 0.12 0.25–0.50 0.30 0.035 0.035 195 315–430 33
Q235B 0.20 0.30–0.70 0.35 0.045 0.045 235 370–500 26
Q355B 0.20 1.00–1.60 0.50 0.035 0.035 355 470–630 21
S235JR 0.17 ≤1.40 — 0.035 0.035 235 360–510 25
S275JR 0.21 ≤1.40 — 0.035 0.035 275 410–560 23
S355JR 0.24 ≤1.60 0.55 0.035 0.035 355 470–630 21
ASTM A500 Gr.B 0.26 ≤1.40 — 0.040 0.050 290 400 20
ASTM A500 Gr.C 0.26 ≤1.40 — 0.040 0.050 345 427 20
STKR400 0.25 ≤1.40 — 0.040 0.040 235 400 23
STKR490 0.18 ≤1.60 — 0.040 0.040 325 490 22

Detailed Technical Specifications

Item Specification
Product Name Galvanized Square/Rectangular Steel Pipe
Product Type SHS Square Hollow Section / RHS Rectangular Hollow Section
Manufacturing Standards GB/T 6728, EN 10219-1/2, ASTM A500 Grade B/C, ISO 1461
Steel Grades Q195, Q235B, Q355B, EN S235JR, S275JR, S355JR, ASTM A500 Grade B, Grade C, STKR400, STKR490
SHS Size Range 10×10mm–500×500mm
SHS Common Sizes 10×10, 15×15, 20×20, 25×25, 30×30, 40×40, 50×50, 60×60, 80×80, 100×100, 120×120, 150×150, 200×200, 250×250, 300×300, 400×400, 500×500mm
RHS Size Range 20×10mm–600×400mm
RHS Common Sizes 20×10, 30×20, 40×20, 50×30, 60×40, 80×40, 100×50, 120×80, 150×100, 200×100, 250×150, 300×200, 400×200, 500×300, 600×400mm
Wall Thickness 0.8mm–16mm
Standard Length 6m / 12m
Customized Length Cutting service available from 1m–12m
Surface Treatment HDG hot-dip galvanizing or PG pre-galvanizing
Coating Standard ISO 1461 galvanizing requirement
Quality Control Dimension inspection, visual inspection, coating quality testing
Documentation Mill Test Certificate (MTC) with heat number, chemical composition and mechanical data
MOQ 5 Ton
Payment Terms T/T, L/C at Sight
Delivery Time 7–15 working days after receiving deposit
Package Waterproof paper + galvanized steel strap + seaworthy export wooden pallet

Dimension Section

Type Cross Section Size (mm) Available Wall Thickness (mm) Standard Length Custom Cut Length
SHS Square Hollow Section 10×10 0.8, 1.2, 1.5, 2.0, 2.5, 3.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 15×15 0.8, 1.2, 1.5, 2.0, 2.5, 3.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 20×20 0.8, 1.2, 1.5, 2.0, 2.5, 3.0, 4.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 25×25 0.8, 1.2, 1.5, 2.0, 2.5, 3.0, 4.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 30×30 0.8, 1.2, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 40×40 1.2, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 50×50 1.2, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 60×60 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 80×80 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 100×100 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 120×120 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 150×150 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 200×200 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 250×250 4.0, 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 300×300 4.0, 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 400×400 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 500×500 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 20×10 0.8, 1.2, 1.5, 2.0, 2.5, 3.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 30×20 0.8, 1.2, 1.5, 2.0, 2.5, 3.0, 4.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 40×20 1.2, 1.5, 2.0, 2.5, 3.0, 4.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 40×30 1.2, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 50×25 1.2, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 50×30 1.2, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 60×40 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 80×40 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 80×60 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 100×50 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 100×80 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 120×60 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 150×100 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 200×100 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 250×150 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 300×200 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 400×200 4.0, 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 500×300 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 600×400 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m

Product Comparison Table

Comparison Item Q195 Q235B Q355B S235JR S275JR S355JR ASTM A500 Gr.B ASTM A500 Gr.C STKR400 STKR490
Equivalent Standard GB/T 6728 GB/T 6728 GB/T 6728 EN 10219 EN 10219 EN 10219 ASTM A500 ASTM A500 JIS G3466 JIS G3466
Yield Strength Min (MPa) 195 235 355 235 275 355 290 345 235 325
Tensile Strength (MPa) 315–430 370–500 470–630 360–510 410–560 470–630 ≥400 ≥427 ≥400 ≥490
Typical Application Light frames, fences, decorative structures General building frames, greenhouses, solar brackets Load-bearing structures, heavy supports, engineering frames European-standard general construction Medium-load structural projects High-load outdoor structures North American building SHS / RHS North American high-load hollow sections Japanese-standard general structures Japanese-standard heavy-load frames
Corrosion Resistance After Galvanizing Good Good Good Good Good Good Good Good Good Good
Main Advantage Low cost, excellent weldability Balanced performance, widely used High strength, good impact resistance EU project compliance Higher strength than S235 High strength for heavy-duty applications Popular for U.S. construction Higher yield strength than Grade B JIS certification for the Japanese market High strength for JIS engineering

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

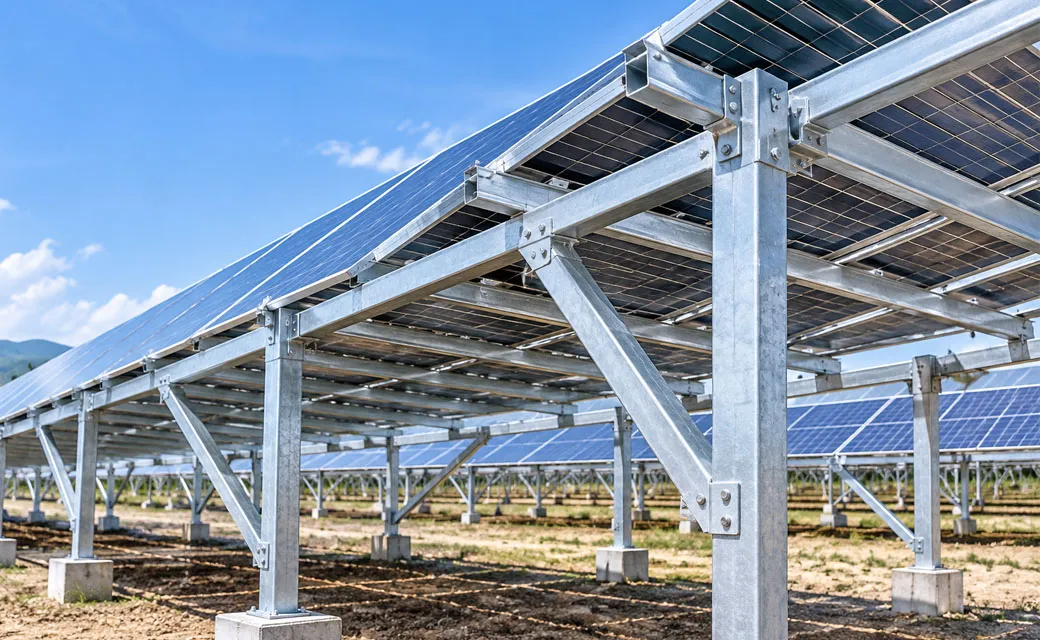

New Energy Photovoltaic Industry

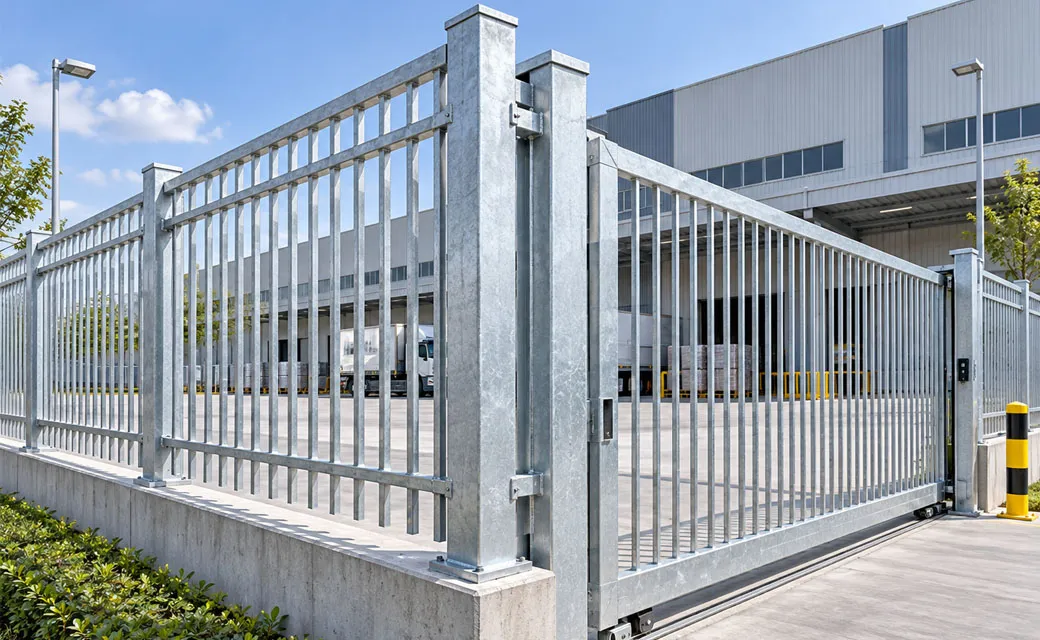

Building Enclosure and Security Engineering

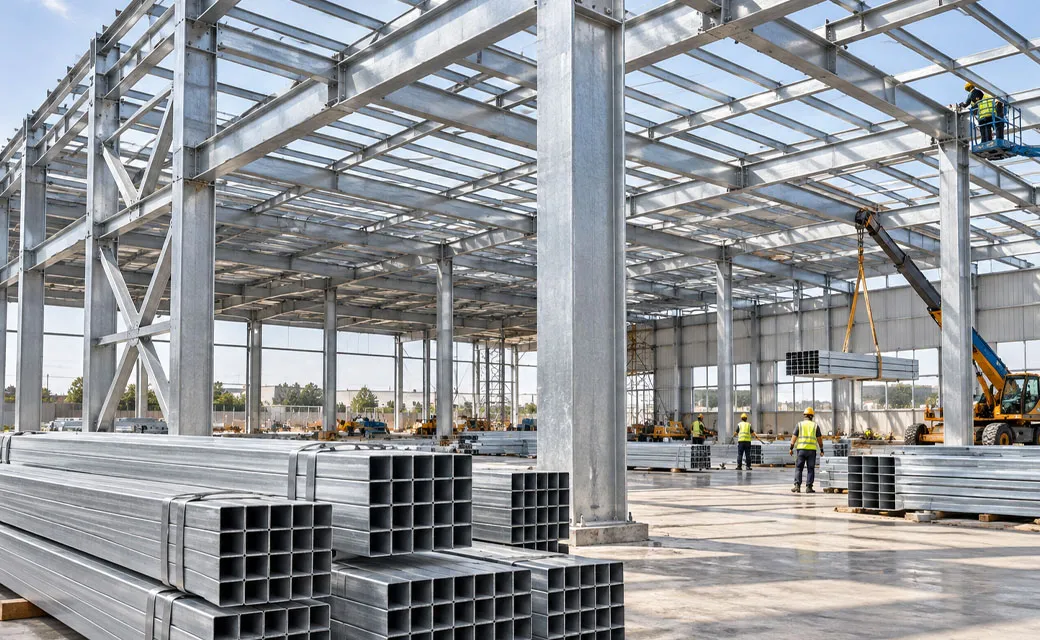

Industrial Building Steel Structures

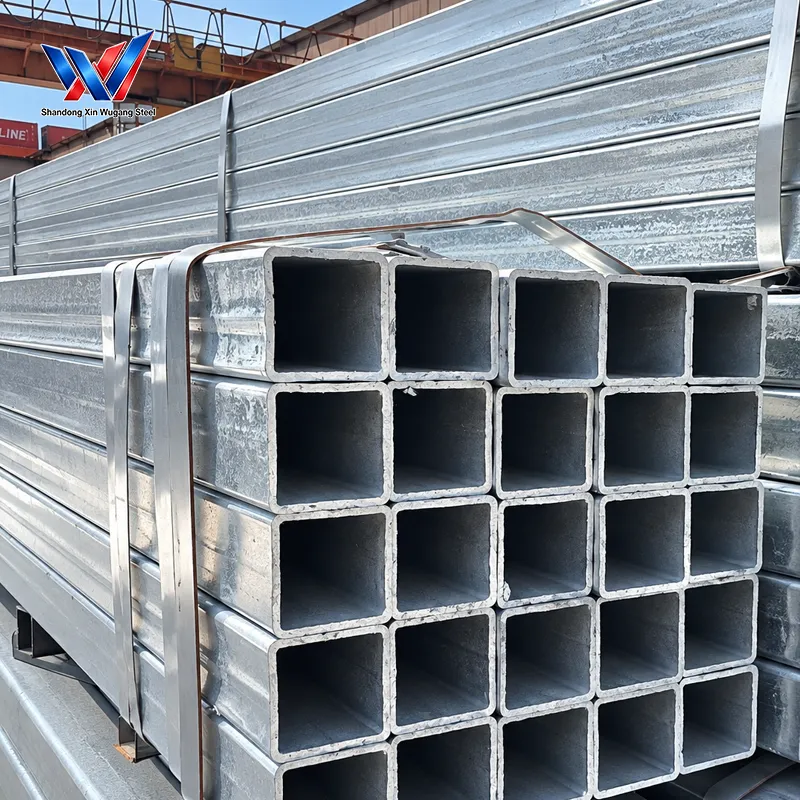

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

Galvanized Square/Rectangular Steel Pipe consists of SHS and RHS hollow sections with galvanized surface protection. It is mainly used for structural construction, fabrication, and outdoor engineering projects.

The product supports GB/T 6728, EN 10219-1/2, ASTM A500 Grade B/C and ISO 1461 standards, with steel grades including Q195, Q235B, Q355B, S235JR, S275JR, S355JR and others.

SHS sizes range from 10×10mm to 500×500mm, while RHS sizes range from 20×10mm to 600×400mm. Wall thickness options are 0.8mm–16mm.

Yes. Customers can request customized dimensions, wall thickness, steel grades, galvanizing options and cutting lengths according to project requirements.

It is commonly used in steel structures, photovoltaic support systems, fences, container frames, agricultural greenhouses, equipment bases and decorative engineering projects.
