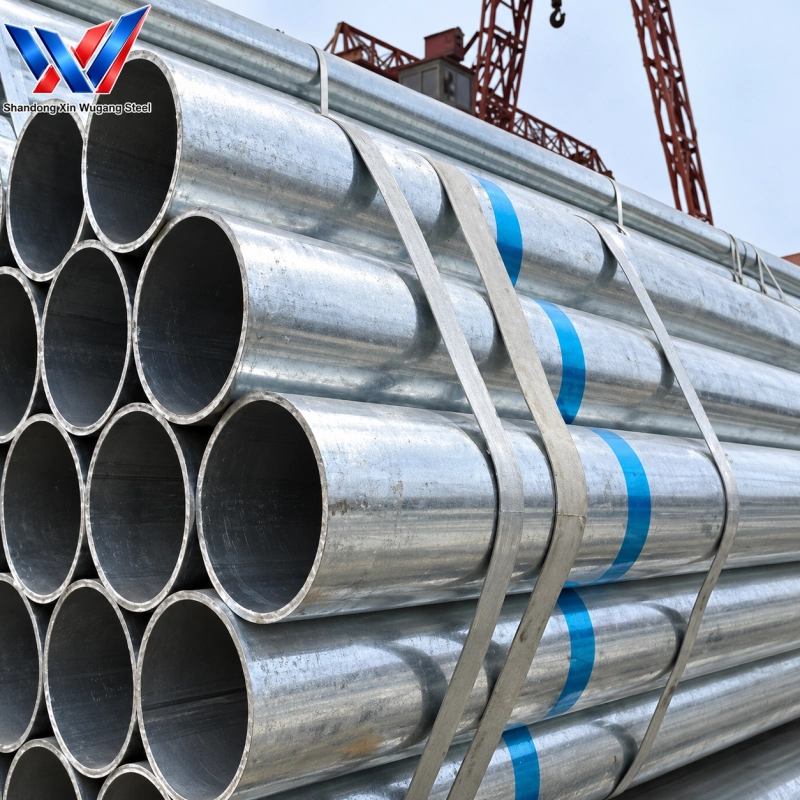

Q195 Hot Dip Galvanized Round Pipe | S195T Galvanized Carbon Steel Round Tube

Low carbon composition, excellent ductility and easy bending & fabrication
Hot-dip galvanized coating conforming to ISO1461, long-term anti-rust performance
Smooth surface finish, stable dimension tolerance for simple installation
Light weight, ideal for light-duty structural and greenhouse framework
Multiple pipe end options and custom cutting service to fit project needs

Product Overview

Our Q195 Hot Dip Galvanized Round Pipe, equivalent to EN S195T grade, is low-carbon hot-dip galvanized carbon steel round tube. Manufactured by hot dip galvanizing technology, the zinc coating forms a protective layer to resist rust and corrosion in humid & outdoor environments. Q195 / S195T material features outstanding ductility, easy bending, punching and welding. We supply Q195 galvanized round pipe in DN15-DN600, Sch40 standard wall thickness, standard length 6m /12m or custom cut length 1m-18m. It is widely used for agricultural greenhouse frames, light steel structures, fencing, cable protection conduits and low-load support projects. Pipe end processing options including plain end, bevel end, threaded end are available.

Galvanized Round Pipe

Chemical & Mechanical Property Snapshot

Item	Value
Grade	Q195 / S195T
Steel Type	Low Carbon Mild Carbon Steel
Chemical Composition (wt%)	C ≤0.15, Si ≤0.30, Mn ≤0.60, P ≤0.045, S ≤0.045
Tensile Strength (MPa)	≥315
Yield Strength (MPa)	≥195
Elongation (%)	≥33
Zinc Coating	85-600 g/m², ISO 1461

Detailed Technical Specifications

Specification	Details
Grade	Q195 / S195T
Product Name	Hot Dip Galvanized Round Pipe
Product Category	Galvanized Steel Pipe
Manufacturing Standards	GB/T3091-2024, ASTM A53, EN10255, JIS G3444, ISO1461
Nominal Diameter Range	DN15-DN600
NPS Size Range	NPS 1/2″ – 24″
Outside Diameter Range	According to DN/NPS standard sizes
Wall Thickness	Sch40 standard wall thickness, Sch80 heavy-duty thickness available
Standard Length	6m /12m
Customized Length	1m-18m available
Pipe End Options	Plain End, Bevel End, Threaded End (BSPP/BSPT/NPT), Flange Welding, Coupling Pre-assembly
Thread Processing	BSPP, BSPT, NPT thread options
Surface Treatment	Hot-dip galvanizing with zinc coating
Galvanizing Standard	ISO 1461
Zinc Coating Weight	Minimum 85g/m²; Regular 120-275g/m²; Heavy coating 300-600g/m²
Size Processing Service	Cutting, segmented processing, customized length
Quality Control	Dimensional inspection, coating weight inspection, appearance inspection
Packaging	Waterproof seaworthy export packaging
Main Applications	Greenhouse structures, light steel frames, fencing, cable protection conduits, low-load support structures
MOQ	5 Ton
Lead Time	7 -15 working days after receiving deposit
Payment Terms	T/T, L/C at Sight

Dimension Table

DN	NPS	Outside Diameter (mm)	Sch40 Wall Thickness (mm)	Sch80 Wall Thickness (mm)
DN15	1/2″	21.3	2.75	3.73
DN20	3/4″	26.9	2.75	3.91
DN25	1″	33.7	3.25	4.55
DN32	1-1/4″	42.4	3.25	4.85
DN40	1-1/2″	48.3	3.50	5.08
DN50	2″	60.3	3.65	5.54
DN65	2-1/2″	73.0	5.16	7.01
DN80	3″	88.9	4.55	7.62
DN100	4″	114.3	4.50	8.56
DN125	5″	139.7	5.00	9.52
DN150	6″	168.3	4.50	11.13
DN200	8″	219.1	6.30	12.70
DN250	10″	273.0	6.30	12.70
DN300	12″	323.9	6.35	12.70
DN350	14″	355.6	7.94	12.70
DN400	16″	406.4	8.80	12.70
DN450	18″	457.2	10.00	17.20
DN500	20″	508.0	10.00	17.20
DN600	24″	609.6	Customized	Customized

Product Comparison Table

GB Grade	ASTM Grade	EN Grade	JIS Grade	Equivalent Feature	Typical Application
Q195	—	S195T	—	Low carbon, good ductility	Greenhouses and light structures
Q215	—	—	—	Low carbon, excellent bending performance	Fencing pipes
Q235B	ASTM A53 Gr.A	S235JR	STPG370	General purpose	Water and fire pipelines
Q355B	ASTM A53 Gr.B	S355JR	STK490	High strength	Heavy loads, guardrails, steel structures
—	ASTM A53 Gr.B	S275JR	STK400	Medium strength	Fluid transmission and building frames

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Fire Protection System Engineering

Low-Pressure Gas Transmission

Municipal Water Supply and Drainage Pipeline Network

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is Q195 galvanized round pipe, what is its equivalent grade?

Q195 hot dip galvanized round pipe is equivalent to EN S195T low carbon steel grade, the most popular mild steel for light structural galvanized tubes.

What are the main applications of Q195 / S195T galvanized pipe?

It is mainly used for agricultural greenhouses, light steel support frames, fencing, cable protection conduits and other low-load outdoor projects.

What is the zinc coating standard for Q195 galvanized round pipe?

Our zinc coating complies with ISO1461 standard, coating weight from 85g/m² up to 600g/m² for different anti-corrosion requirements.

What is your MOQ for Q195 galvanized round pipe?

Our MOQ is 5 tons.

Can you cut Q195 galvanized pipe to custom lengths?

Yes, custom cutting service from 1m to 18m is available to meet your project requirements.
