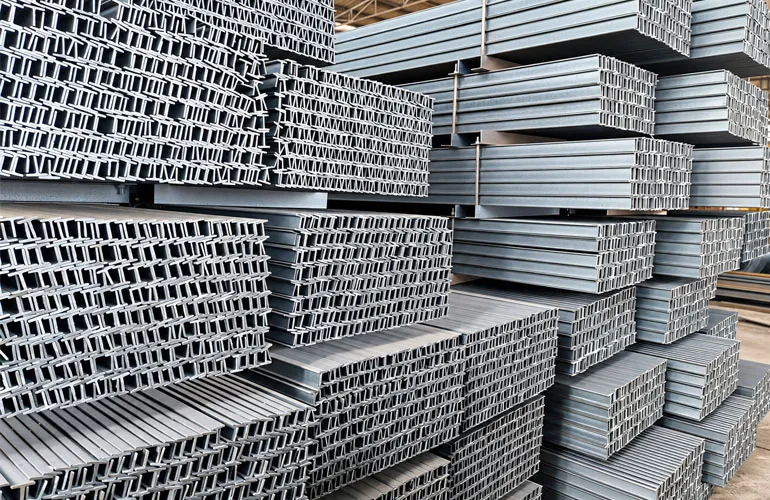

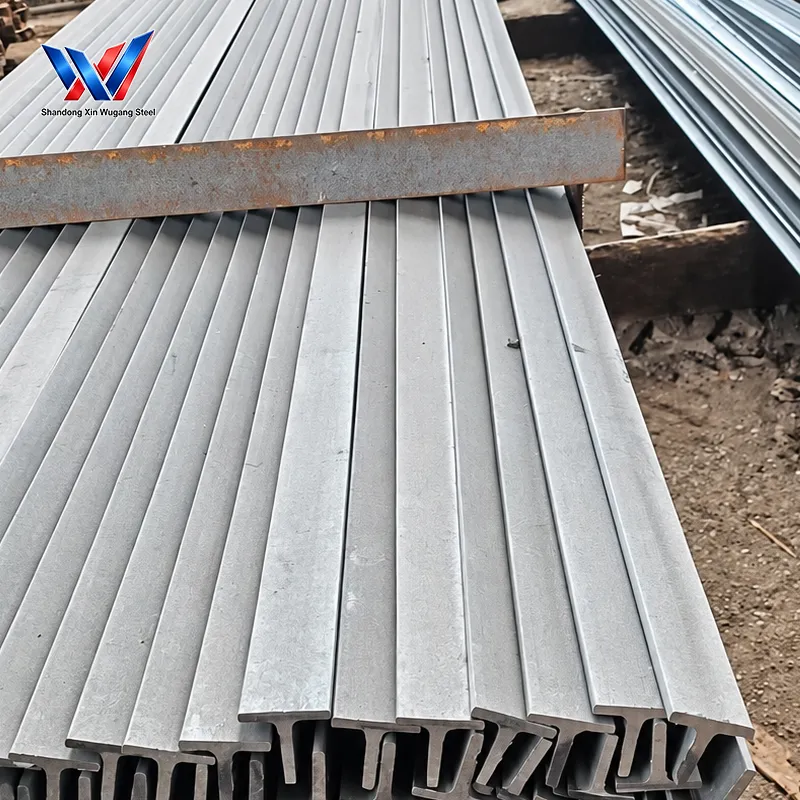

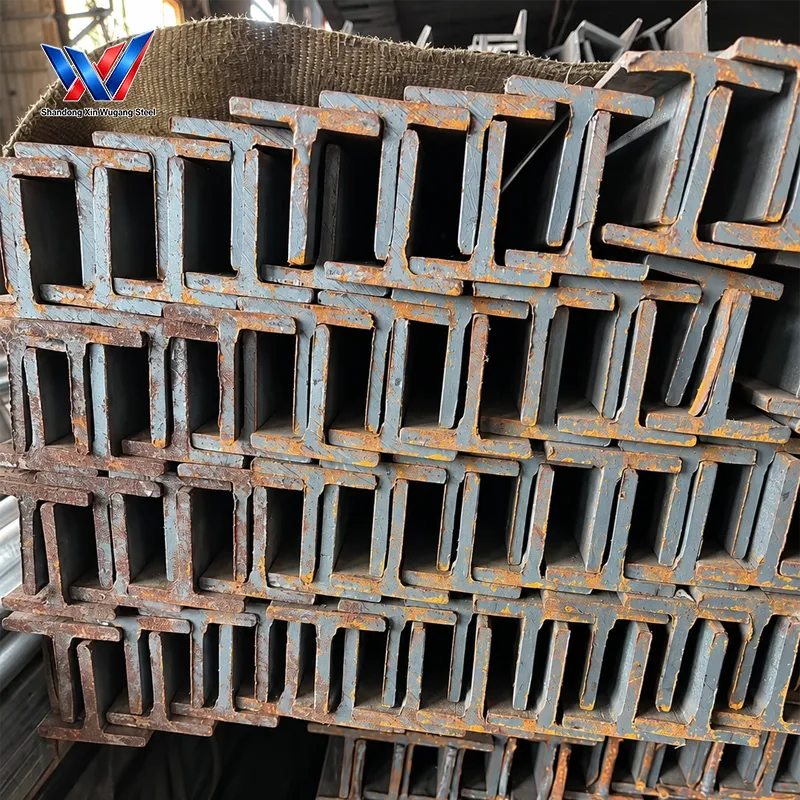

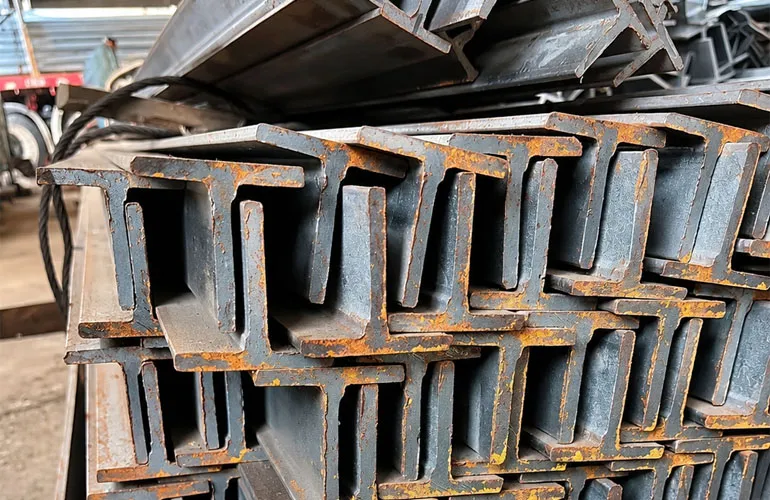

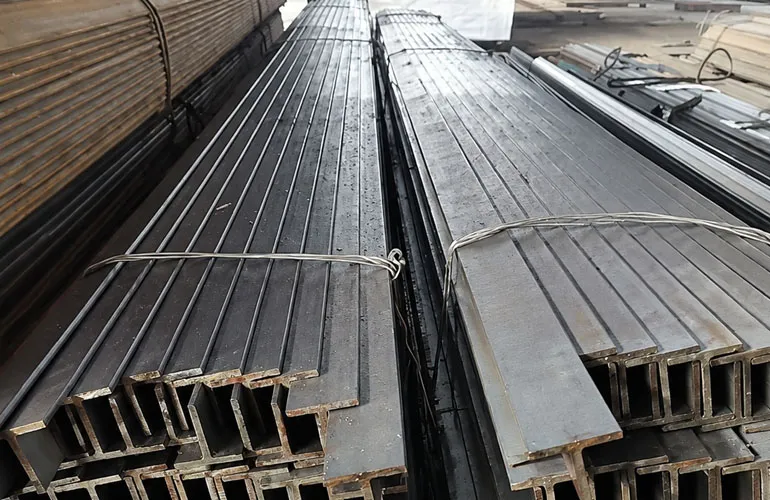

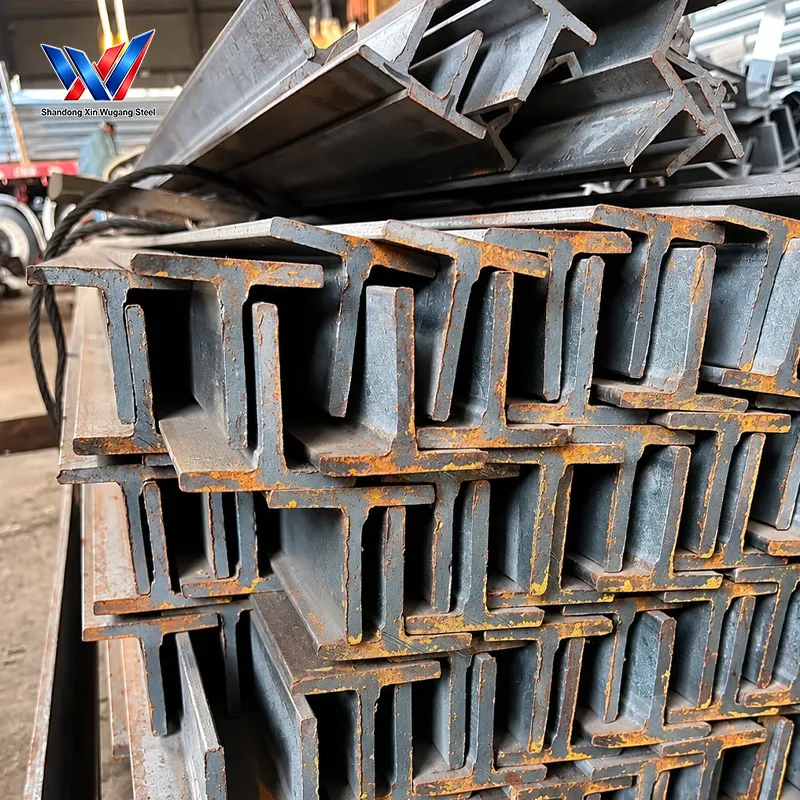

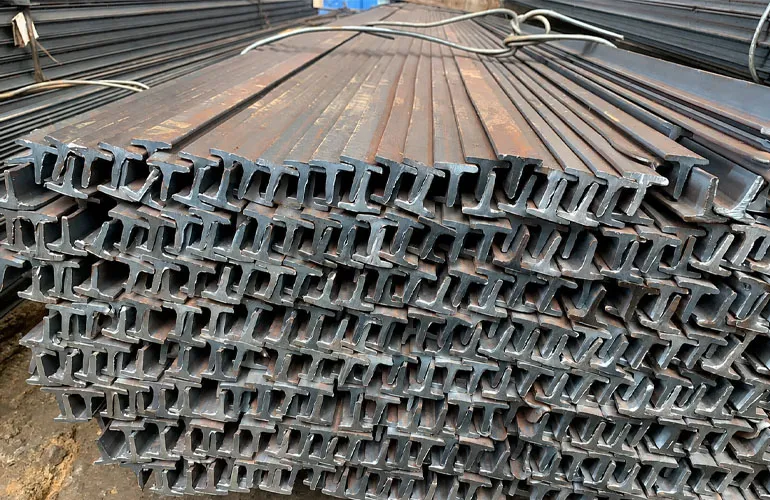

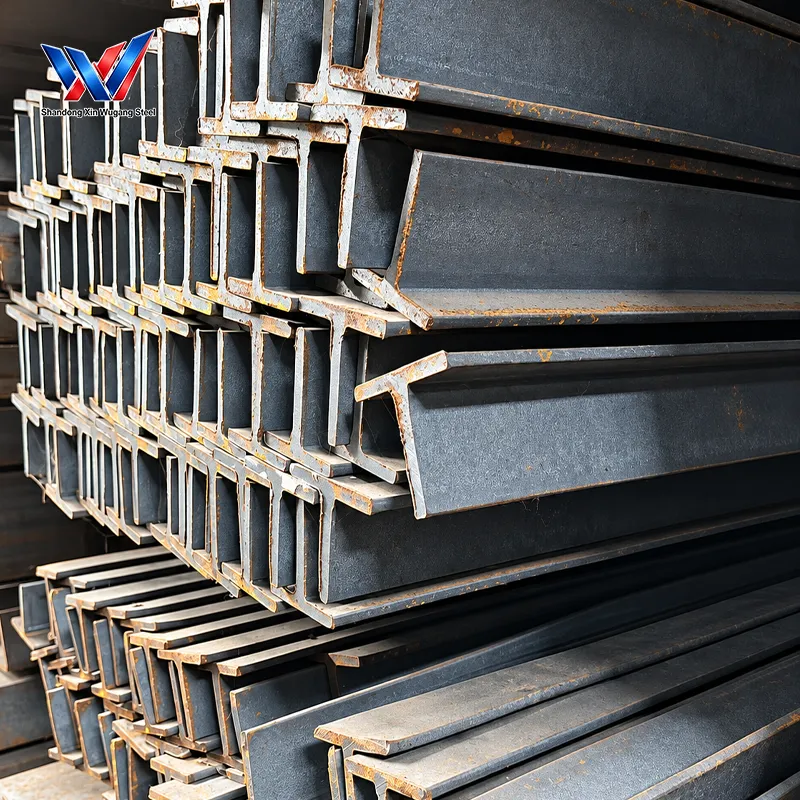

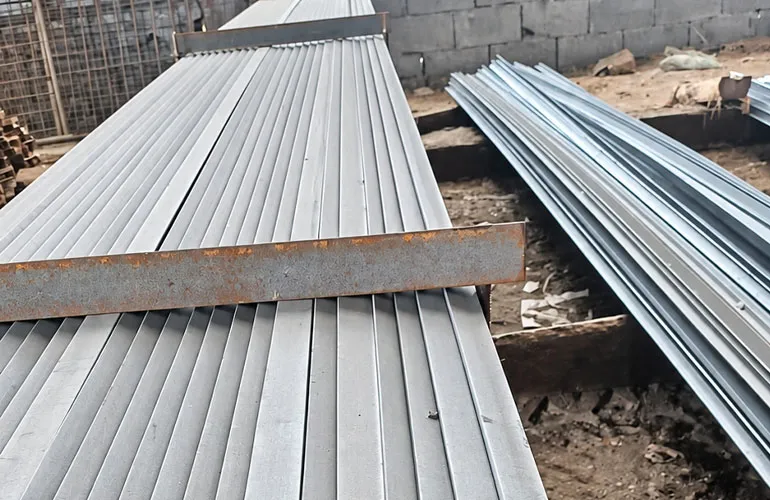

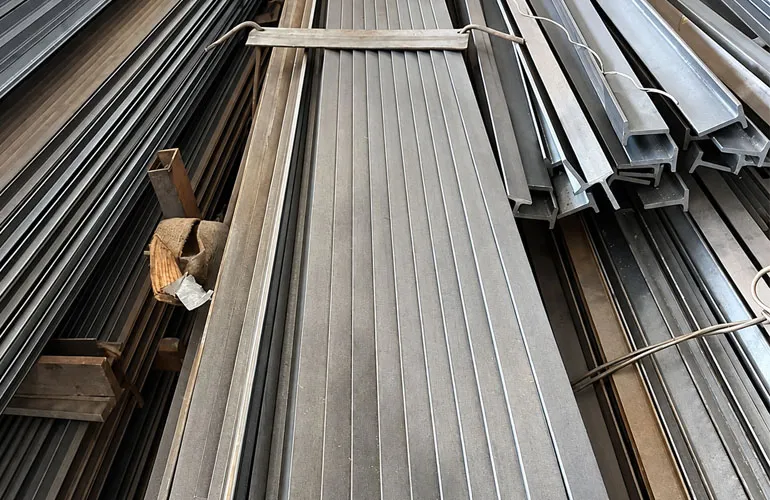

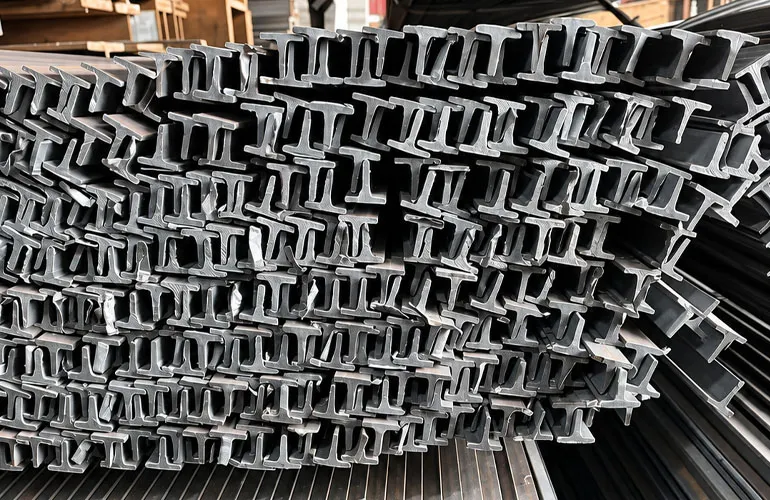

T-Bar Steel

T-Bar

Derived from split H‑beam, stable internal metallurgical performance
Optimized T‑section, reduces welding workload for T‑type connections
TW/TM/TN full series, covers light‑duty to heavy‑load engineering
Complete machining: cutting, drilling, welding & NDT inspection available

Product Overview

T-Bar is a hot-rolled T-shaped structural steel section manufactured by splitting hot-rolled H-beam. It is classified into three series: TW wide-flange T-Bar, TM medium-flange T-Bar and TN narrow-flange T-Bar. Compared with fabricated welded T sections, hot-rolled T-Bar provides stable metallurgical performance and reliable structural strength.

The product is manufactured according to international standards including GB/T 11263-2017, ASTM A6/A6M-22, EN 10034-2019 and JIS G3192-2018, supporting international engineering projects and third-party inspection requirements.

Our T-Bar portfolio covers TW, TM and TN full series. Standard specifications include TW100×100, TW125×125, TW200×200, TW250×250, TW300×300, TW400×400, TM150×100 to TM450×300, and TN100×50 to TN600×200. Custom hot-rolled T-Bar can also be supplied for heavy-load engineering requirements.

T-Bar is widely applied in industrial construction, bridge engineering, mechanical equipment structures, high-rise buildings, photovoltaic and wind power structures, warehouse systems and marine auxiliary structures. Additional services include cutting, drilling, welding, assembly and NDT inspection according to project requirements.

Inside Our Shandong Processing Facility

Chemical & Mechanical Property Snapshot

Grade	Standard	C Max (%)	Si Max (%)	Mn Max (%)	P Max (%)	S Max (%)	Yield Strength (MPa) Min	Tensile Strength (MPa)	Elongation (%) Min
Q235B	GB/T 11263	0.20	0.35	1.40	0.045	0.045	235	370-500	26
Q355B	GB/T 11263	0.20	0.50	1.60	0.035	0.035	355	470-630	21
A36	ASTM A6/A6M	0.25	0.40	1.20	0.04	0.05	250	400-550	20
S235JR	EN 10034	0.17	–	1.40	0.035	0.035	235	360-510	25
SS400	JIS G3192	0.21	–	1.40	0.05	0.05	245	400-510	21

Detailed Technical Specifications

Technical Item	Specification
Product Name	T-Bar
Product Type	Hot Rolled T Steel Structural Section
Manufacturing Process	Hot Rolling + H-Beam Splitting
Structural Shape	T-Shaped Steel Section
Series	TW Wide-Flange / TM Medium-Flange / TN Narrow-Flange
Main Standards	GB/T 11263-2017
International Standards	ASTM A6/A6M-22 / EN 10034-2019 / JIS G3192-2018
TW Standard Sizes	TW100×100, TW125×125, TW200×200, TW250×250, TW300×300, TW400×400
TM Standard Sizes	TM150×100, TM200×150, TM250×175, TM300×200, TM350×250, TM400×300, TM450×300
TN Standard Sizes	TN100×50, TN150×75, TN200×100, TN250×125, TN300×150, TN350×175, TN400×200, TN450×200, TN500×200, TN600×200
Custom Section Height	50–600mm
Custom Flange Width	50–400mm
Custom Thickness	3–50mm
Chinese Grades	Q235B, Q355B, Q345B, Q355NL, Q460
American Grades	ASTM A36, A572 Gr50, A572 Gr60, A992, A588
European Grades	S235JR, S275JR, S355JR, S355NL, S460NL
Japanese Grades	SS400, SS490, SM490A/B, SM400A
Standard Length	6m / 9m / 12m
Custom Length	3m–18m
Surface Finish	Hot Rolled Black Finish
Surface Treatment	Shot Blasting, Anti-Corrosion Painting, Hot-Dip Galvanizing
Galvanizing Weight	Z85–275g/㎡
Processing Service	Cutting, Drilling, End Beveling, Welding, Assembly
Inspection Service	NDT Inspection Available
Quality Document	Mill Test Certificate
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	15–25 working days after receiving deposit
Packaging	Steel bundles with steel strapping, wrapped with waterproof plastic sheet; each bundle marked with product label

Size Specification Table

Series	Type	Full Standard Sizes
TW	Wide-Flange T-Bar (Split from HW H-beam)	TW100×100, TW125×125, TW150×150, TW200×200, TW250×250, TW300×300, TW400×400
TM	Medium-Flange T-Bar (Split from HM H-beam)	TM150×100, TM200×150, TM250×175, TM300×200, TM350×250, TM400×300, TM450×300
TN	Narrow-Flange T-Bar (Split from HN H-beam, most popular)	TN100×50, TN150×75, TN200×100, TN250×125, TN300×150, TN350×175, TN400×200, TN450×200, TN500×200, TN600×200
Custom Hot Rolled T-Bar	Non-standard custom	Section Height: 50–600mm; Flange Width: 50–400mm; Thickness: 3–50mm
Length	Standard / Custom	Standard Length: 6m, 9m, 12m; Custom Length: 3m–18m

Product Comparison Table

Item	Hot Rolled T-Bar	Welded T Section	H-Beam
Manufacturing Method	Split from hot-rolled H-beam	Fabricated by welding steel plates	Hot rolled integrated section
Internal Structure	Stable metallurgical performance, no welding stress	Welded joint structure, residual welding stress	Stable rolled metallurgical structure
Main Shape	T Section	T Section	H Section
Welding Requirement	Lower welding workload for T-type connections	Higher welding fabrication requirement	No fabrication welding required
Standard Series	TW Wide-Flange / TM Medium-Flange / TN Narrow-Flange	Fully customized	HW / HM / HN series
Equivalent Grades	GB: Q235B, Q355B; ASTM: A36, A572 Gr50; EN: S235JR, S355JR; JIS: SS400, SS490	Custom grades as requested	GB: Q235B, Q355B; ASTM: A36, A572 Gr50; EN: S235JR, S355JR; JIS: SS400, SS490
Load Application	Medium to heavy structural loads	Special custom fabricated structures	Heavy structural framing
Common Uses	Connection brackets, supports, bracing frames	Custom steel fabrication projects	Building columns, main beams, large structures
Processing Service	Cutting, drilling, end beveling, welding, NDT	Welding required for forming	Cutting, machining, drilling available
Cost Level	Medium	Medium-High	Medium
Delivery Lead Time	Stock standard sizes fast delivery	Custom fabrication longer lead time	Stock sizes available

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

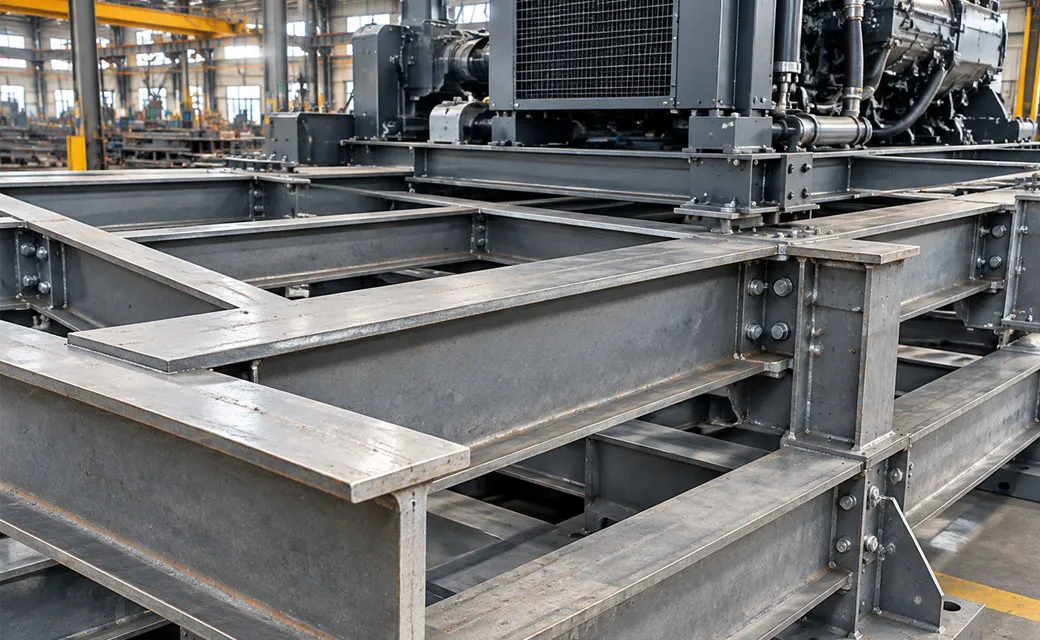

Heavy Equipment Frame Cross Beam

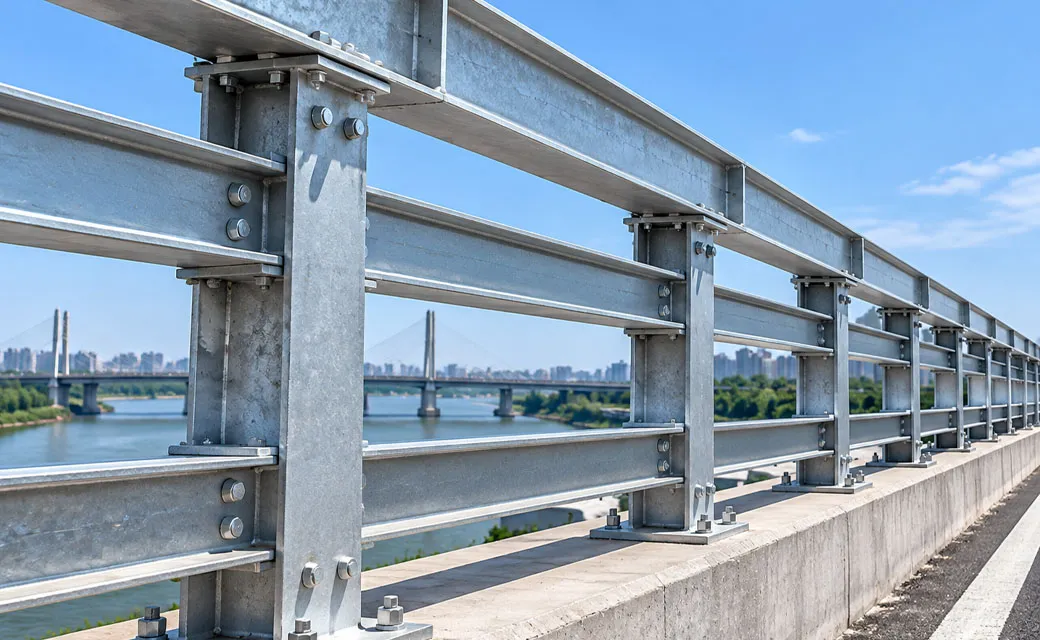

Bridge Guardrail Frame

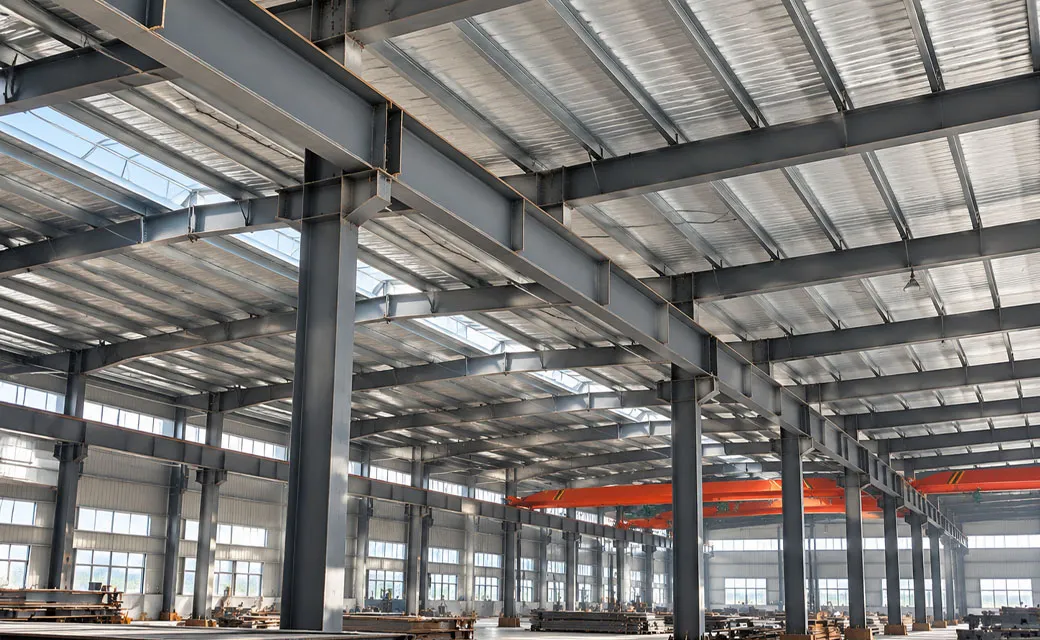

Steel Structure Factory Roof Support Beam

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is T-Bar steel?

T-Bar is a hot-rolled T-shaped structural steel section produced by splitting hot-rolled H-beam into TW, TM and TN series.

What standards does T-Bar comply with?

T-Bar complies with GB/T 11263-2017, ASTM A6/A6M-22, EN 10034-2019 and JIS G3192-2018 standards.

What sizes are available for T-Bar?

Standard sizes include TW, TM and TN series, with TN series covering TN100×50 to TN600×200.

Can T-Bar be customized?

Yes. Custom section dimensions, lengths from 3m–18m and machining services are available.

Where is T-Bar commonly used?

T-Bar is used in industrial buildings, bridges, mechanical equipment structures, high-rise buildings, renewable energy structures and marine applications.
