16Mo3 13CrMo4-5 EN 10216 Alloy Carbon Seamless Pipe | High Temperature Heat Exchanger Tube

Alloy design provides excellent high-temperature creep resistance
16Mo3 and 13CrMo4-5 cover moderate and higher temperature heat exchanger conditions
Suitable for boilers, superheaters, reheaters and high-temperature process piping
High uniformity of microstructure and stable long-term mechanical properties
Support normalized and tempered heat treatment for improved toughness

Product Overview

16Mo3 and 13CrMo4-5 are alloy carbon steel seamless pipes specified in EN 10216, designed for high-temperature applications where ordinary carbon steel cannot provide sufficient long-term strength. By adding molybdenum, chromium and other alloying elements, these grades significantly improve creep resistance, high-temperature strength and oxidation resistance.

16Mo3 is a molybdenum-alloyed steel suitable for moderate-to-high temperature boiler and heat exchanger service. 13CrMo4-5 contains chromium and molybdenum, offering even better high-temperature strength and corrosion resistance under elevated temperature and hydrogen-containing conditions. Both grades are produced by hot rolling piercing and cold drawing processes, and are normally supplied in normalized and tempered condition.

These alloy pipes are widely used in power plant boilers, superheaters, reheaters, heat exchangers, refinery furnace tubes and high-temperature process piping. They are especially suitable for equipment that operates continuously at high temperature and pressure, where material stability directly affects service life and safety.

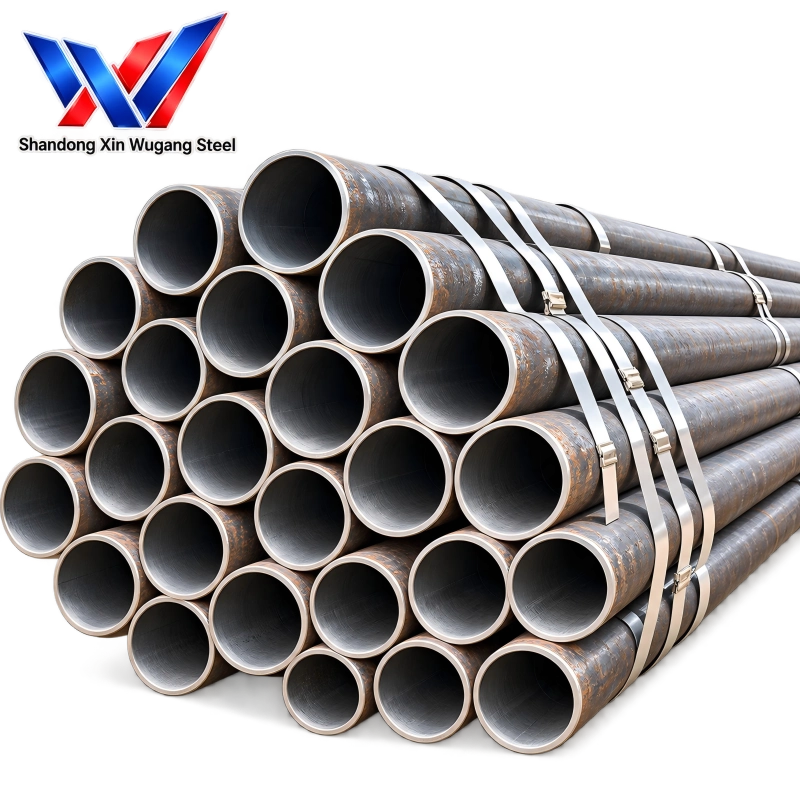

Carbon Steel Seamless Steel Pipe

Chemical & Mechanical Property Snapshot

Grade	C (%)	Mn (%)	Si (%)	Cr (%)	Mo (%)	Yield Strength Min (MPa)	Tensile Strength (MPa)	Elongation Min (%)
16Mo3	0.12–0.20	0.45–0.90	≤0.35	—	0.25–0.35	280	450–600	20
13CrMo4-5	0.10–0.17	0.40–0.80	≤0.35	0.70–1.15	0.45–0.65	300	440–590	20

Detailed Technical Specifications

Item	Details
Product Name	16Mo3 / 13CrMo4-5 Alloy Carbon Steel Seamless Pipe
Manufacturing Process	Hot rolled piercing + cold drawn seamless
Applicable Standard	EN 10216
Material Grades	16Mo3, 13CrMo4-5
Outer Diameter	6–720 mm
Wall Thickness	1–100 mm
Schedule Range	Sch10, Sch20, Sch40, Sch80, Sch160
Standard Length	6 m / 12 m
Heat Treatment	Normalized and tempered
Testing	High temperature tensile test, creep test optional, hydrostatic test, NDT optional
Typical Applications	High temperature boilers, superheaters, reheaters, heat exchangers, refinery furnace tubes
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	10–20 working days after deposit
Package	Waterproof paper + steel strap + export wooden pallet

Shape Table

Shape Type	Description	Feature
Round Seamless Pipe	Circular hollow carbon steel tube with no longitudinal weld	Uniform wall thickness, excellent pressure resistance, most widely used
Square Seamless Pipe	Square hollow section made from seamless round pipe	Good bending performance, suitable for structural support
Rectangular Seamless Pipe	Rectangular hollow section made from seamless round pipe	Ideal for frames and structural engineering

Dimension Table

Item	Specification
Outer Diameter	6 mm–720 mm
Wall Thickness	1 mm–100 mm
Schedule Series	Sch20, Sch40, Sch80, Sch160, XXS heavy wall
Standard Length	6 m / 12 m
Custom Length	Available upon request
End Options	Plain end, beveled end, threaded end
Surface Treatment	Black painted, hot-dip galvanized, 3PE coating, coal-tar epoxy coating

Product Comparison Table

Grade	Alloy System	Temperature Level	Key Feature	Typical Application
16Mo3	Mo alloy	Moderate-high temp	Good creep resistance	Boiler tubes, heat exchangers
13CrMo4-5	Cr-Mo alloy	High temp	High temp strength, corrosion resistance	Superheaters, furnace tubes, power plant piping

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Hydraulic and Pneumatic Cylinder Tubes

Boiler Superheater Tubes

High-Pressure Fluid Conveying

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is 16Mo3 used for?

16Mo3 is used for high-temperature boilers, heat exchangers and pressure vessels.

What is the advantage of 13CrMo4-5?

13CrMo4-5 has better high-temperature strength and corrosion resistance than ordinary carbon steel.

Can these grades be used in hydrogen-containing environments?

Cr-Mo alloys are often selected for high-temperature hydrogen service, but final selection depends on operating temperature, pressure and environment.

Do you provide high-temperature testing?

Yes, high-temperature mechanical testing can be arranged according to requirements

What is the delivery time?

About 10–20 working days after deposit, depending on specification.
