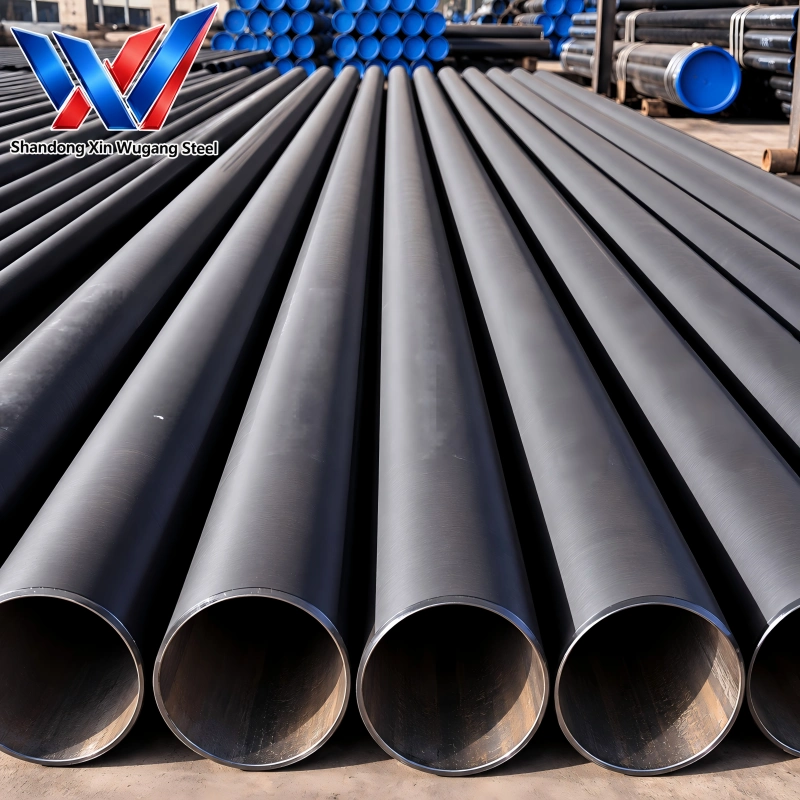

20# A106 Gr.B P265GH STPG370 Carbon Steel Pipe | Seamless Fluid Boiler Tube
- Seamless pipe structure, excellent pressure bearing capacity, no weld leakage risk
- Uniform grain structure, stable mechanical properties at medium and high temperature
- Multi-standard equivalent, widely used in power, petrochemical and boiler projects
- Strict wall thickness tolerance, suitable for flange welding and pipeline connection
- Supports annealing, pickling, passivation and other post-processing treatments
Contact Us
Product Overview
20# high-quality carbon structural seamless steel pipe is a special grade for fluid transportation and pressure-bearing equipment. Its international equivalent grades include **ASTM A106 Grade B, EN P265GH and JIS STPG370 boiler pipe**, which are standard grades for medium and high pressure fluid and boiler systems.
This pipe is manufactured by hot rolling piercing + cold drawing / cold rolling seamless process, with no weld seam on the pipe body and uniform wall thickness. It is produced in strict accordance with GB/T 8163, ASTM A106, EN 10216 and JIS G3454 standards. Available diameter covers DN15 to DN600, with common wall thickness schedules including Schedule 40, Schedule 80 and Schedule 160. Standard length is 6m and 12m, and custom fixed length can be provided. Pipe end can be processed into plain end, 35°/37.5° welding bevel and threaded end.
20# / A106 Gr.B / P265GH / STPG370 seamless carbon steel pipe is widely used in medium and high pressure fluid transmission pipelines, boiler main pipes, heat exchanger tubes, petrochemical process pipelines, thermal power pipe networks and pressure vessel components. We can provide secondary processing services such as heat treatment, pickling, passivation and end machining.
Chemical & Mechanical Property Snapshot
Detailed Technical Specifications
Pipe Shape Options Table
Dimension Range Table
Product Comparison Table
App Market
Reliable Steel Coil Solutions For Diverse Industrial Applications
Drainage and Fluid Conveying Pipelines
Factory Building Columns and Beams
Building Steel Space Frame Structure
Product Packaging
Secure Export Packaging For Safe Handling And Delivery
FAQs
20# carbon steel pipe for fluid and boiler service is usually supplied in seamless type. We can also provide ERW welded version for low pressure scenarios upon request.
Yes. ASTM A106 Grade B is a standard seamless boiler tube grade, suitable for medium temperature and medium pressure boiler and heat exchanger applications.
Under dry oxidation environment, the recommended long-term working temperature is below 450°C. For pressure-bearing boiler service, it is usually used below 350°C.
Yes. We can provide annealing, pickling, passivation, oil coating and other surface treatments to prevent rust during storage and transportation.
The MOQ is 5 tons for standard sizes. Small trial orders for special specifications can be negotiated.
