2205 Duplex Stainless Steel Hexagonal Bar | S32205 Hex Bar ASTM A276 GB/T4228

Duplex structure with ultra-high yield strength, higher than austenitic stainless steel
Excellent pitting & crevice corrosion resistance in chloride media
Good stress corrosion cracking resistance for oil & gas harsh environments
Combination of strength and corrosion resistance, reduce component section size
Certified to GB/T4228, ASTM A276, EN10088 for heavy industrial procurement

Product Overview

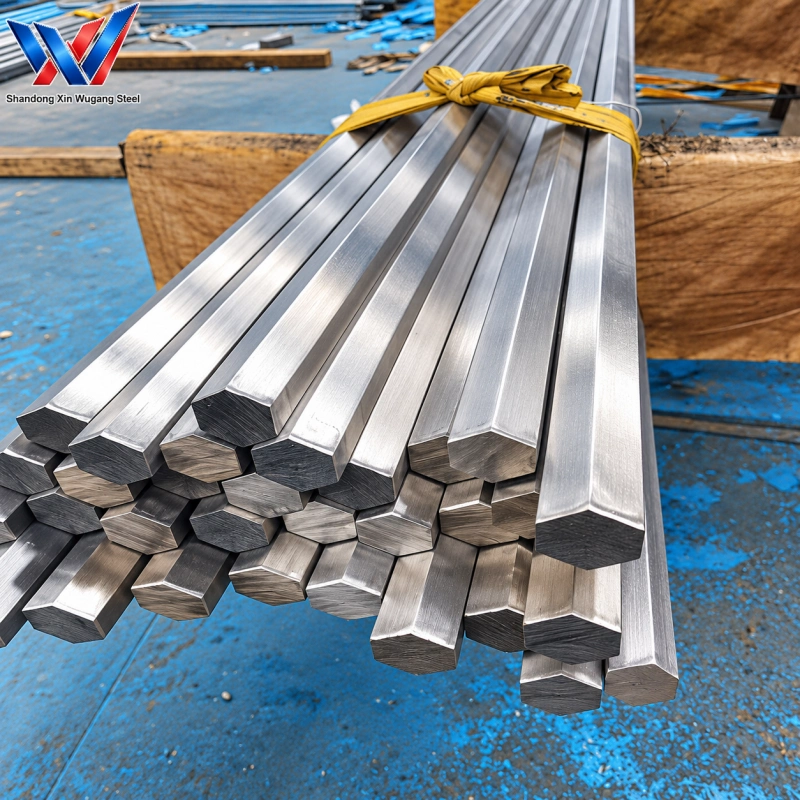

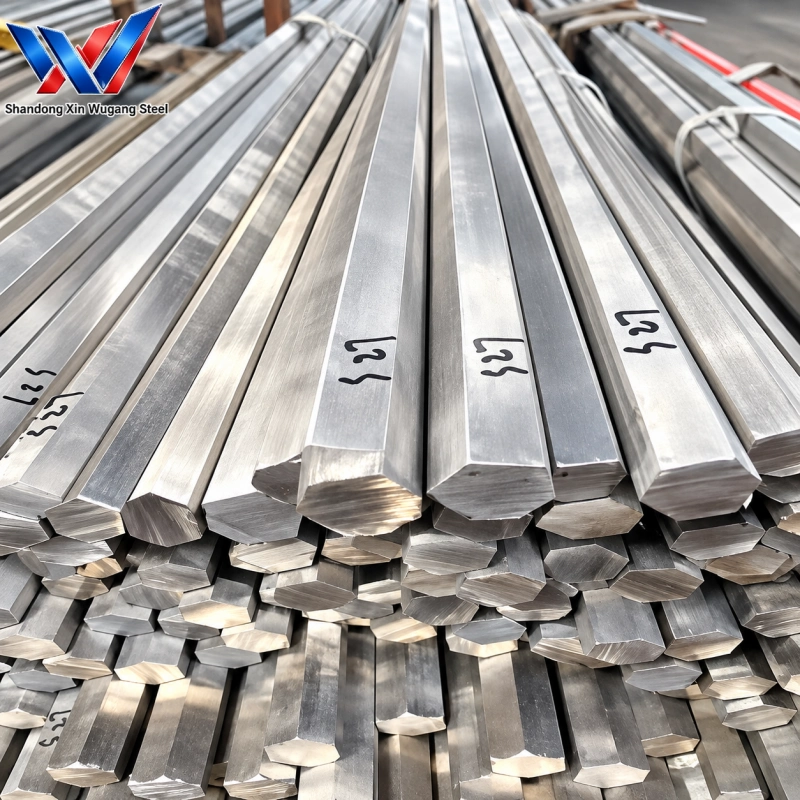

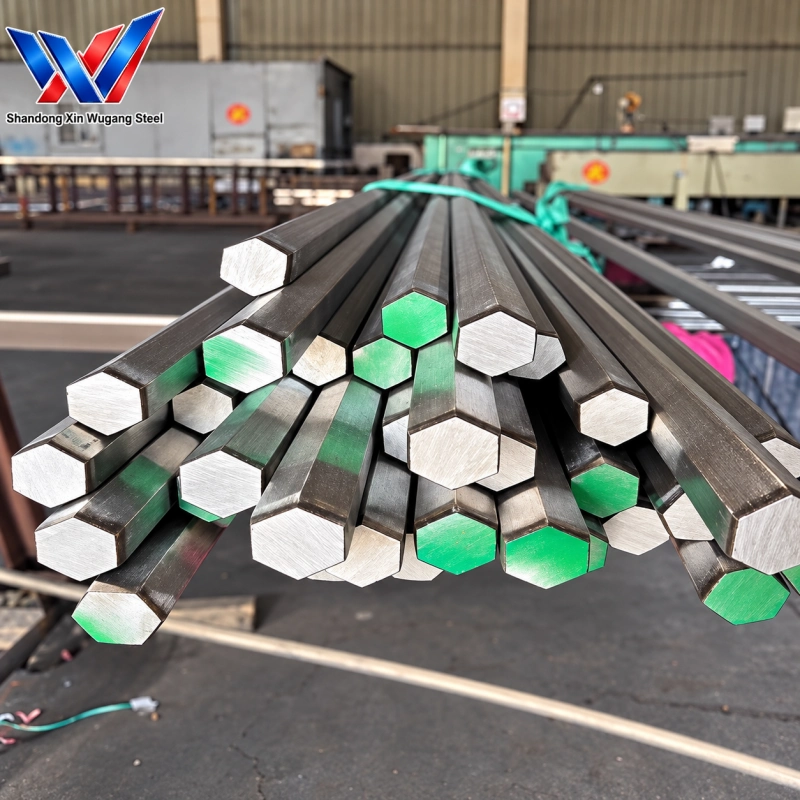

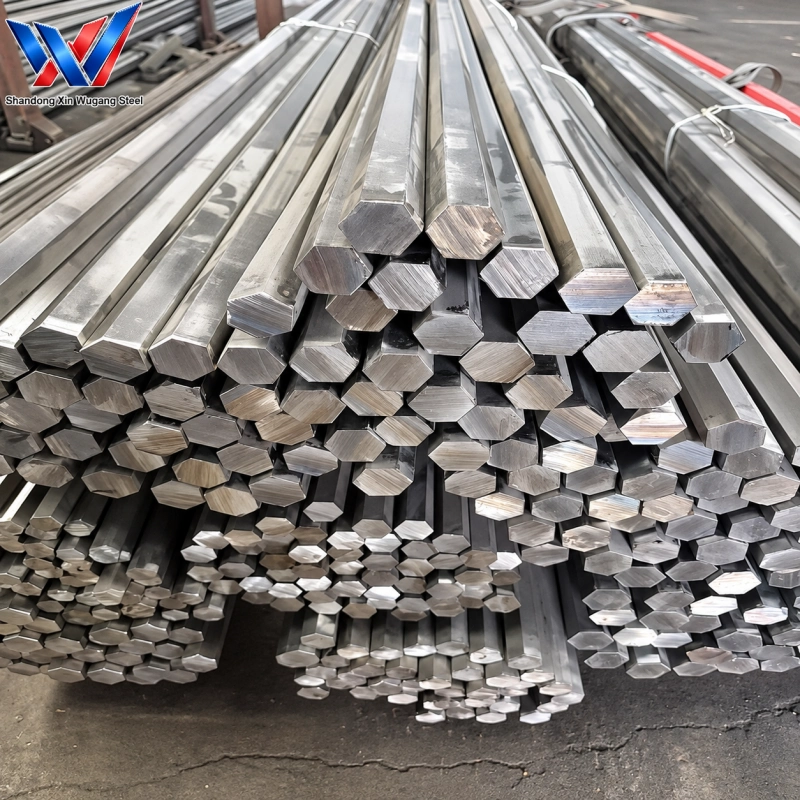

2205 Duplex Stainless Steel Hexagonal Bar (S32205, 1.4462 / X2CrNiMoN22-5-3, SUS329J3L / 022Cr22Ni5Mo3N) is duplex stainless solid hexagonal bar, manufactured under GB/T4228, ASTM A276 and EN10088 standards. Dual phase ferrite + austenite structure provides both high mechanical strength and superior chloride corrosion resistance.

The near-net hexagonal profile cuts down machining workload for heavy-duty hex bolts and pipeline connectors. Our 2205 hex bar covers across-flat dimension S6mm ~ S80mm, stock sizes S8, S10, S12, S14, S17, S19, S22, S24, S27, S30, S32, S36, S41, S46, S50.

Typical applications: offshore marine fasteners, oil & gas pipeline fittings, desalination equipment, chemical reactor components, mine processing hardware. All products are supplied with mill test certificate for material verification.

Stainless Steel Hexagonal Bar

Chemical & Mechanical Property Snapshot

Grade	Equivalent Grade	C Max	Cr	Ni	Mo	Mn	Yield Strength (MPa) Min	Tensile Strength (MPa) Min	Elongation (%) Min	Hardness HB Max
2205	1.4462 / X2CrNiMoN22-5-3 / SUS329J3L / 022Cr22Ni5Mo3N	0.03	21.00-23.00	4.50-6.50	2.50-3.50	2.00	450	620	25	293

Detailed Technical Specifications

Item	Specification
Product Name	2205 Duplex Stainless Steel Hexagonal Bar
Material Type	2205 Duplex Stainless Steel
Shape	Solid Hexagonal Cross Section
Production Standards	GB/T4228, ASTM A276, EN10088
Across Flats Dimension	S6mm – S80mm
Mainstream Sizes	S8, S10, S12, S14, S17, S19, S22, S24, S27, S30, S32, S36, S41, S46, S50
Material Performance	High strength, excellent chloride pitting & stress corrosion resistance
Typical Processing	Offshore hex bolts, oil & gas fittings, desalination equipment fasteners
Quality Control	Mill Test Certificate including heat number, chemical composition and mechanical property data
Export Packing	Bundled seaworthy packing to prevent bruising and scratching
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit

Dimension Table

Across Flats Size (S)	Weight (kg/m)	Tolerance
S6	0.247	±0.08 mm
S8	0.442	±0.08 mm
S10	0.690	±0.10 mm
S12	0.991	±0.10 mm
S14	1.344	±0.12 mm
S17	1.980	±0.12 mm
S19	2.460	±0.15 mm
S22	3.280	±0.15 mm
S24	3.910	±0.15 mm
S27	4.930	±0.20 mm
S30	6.080	±0.20 mm
S32	6.990	±0.20 mm
S36	8.830	±0.25 mm
S41	11.45	±0.25 mm
S46	14.40	±0.30 mm
S50	16.98	±0.30 mm
S60	24.45	±0.35 mm
S70	33.35	±0.40 mm
S80	43.67	±0.40 mm

Product Comparison Table

Comparison Item	2205 Duplex Stainless Steel Hexagonal Bar	2205 Stainless Steel Round Bar	2205 Stainless Steel Square Bar
Cross Section	Hexagonal	Round	Square
Main Purpose	Heavy-duty offshore fasteners, chloride environment threaded fittings	High strength shafts, oil & gas machining components	High strength structural frames, corrosion resistant supports
Machining Advantage	Near-net hex profile reduces cutting work, saves raw material and processing time	Requires secondary machining for hex shapes, more material waste	Stable square geometry for heavy load fabrication
Standards	GB/T4228, ASTM A276, EN10088	GB/T1220, ASTM A276, EN10088	GB/T1220, ASTM A276, EN10088
Application Fields	Offshore platform bolts, desalination plant fasteners, chemical pipeline fittings	Subsea pump shafts, oilfield machinery spare parts	Marine heavy load support brackets, chemical equipment frames
Key Buyer Value	Direct hex shape for high-strength fastener manufacturing, excellent chloride resistance	Flexible turning for custom heavy-duty components	High structural strength under corrosive working conditions
Corrosion Resistance	Superior (chloride, pitting & stress corrosion)	Superior (chloride, pitting & stress corrosion)	Superior (chloride, pitting & stress corrosion)
Cost Level	High	Medium	High

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Seawater Valve Fasteners

Chemical Pipeline Threaded Fittings

Corrosion-Resistant Hex Bolts

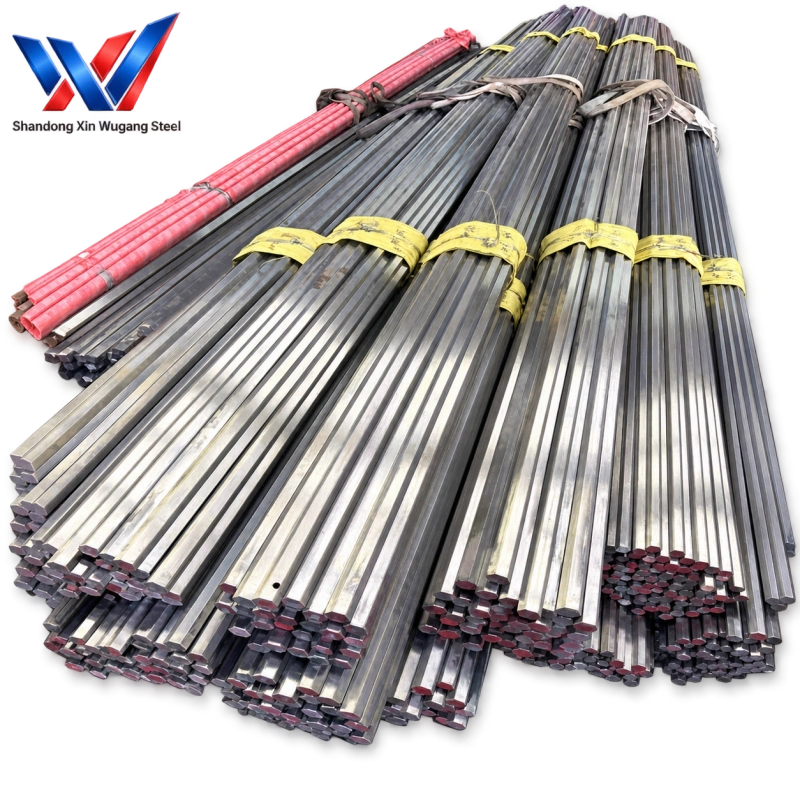

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is 2205 duplex stainless steel hexagonal bar used for?

It is widely used for offshore, desalination, oil gas industry fasteners where high strength and chloride corrosion resistance are required.

What is the advantage compared with 316L?

2205 yield strength is more than twice 316L, much better resistance to pitting and stress corrosion cracking.

Is 2205 easy to machine?

2205 has higher strength than austenitic stainless steel, cutting tools need to be selected accordingly.

What is the equivalent grade of 2205?

Equivalent: S32205, 1.4462, X2CrNiMoN22-5-3, SUS329J3L.

What is your MOQ for 2205 hex bar?

MOQ is 5 tons, mixed sizes within the order can be discussed.
