304 SS Flat Bar GB/T1220 06Cr19Ni10 Stainless Steel Flat Bar Custom Size

Outstanding general corrosion resistance for indoor & mild outdoor environments
Excellent workability, easy cutting, bending, welding and fabrication
Stable mechanical performance, long service life with low maintenance
Hygienic surface, suitable for food processing and sanitary applications
Wide size range, customizable dimensions to meet project requirements

Product Overview

304 Stainless Steel Flat Bar (SUS304 / 1.4301 / X5CrNi18-10 / 06Cr19Ni10) is produced strictly to GB/T 1220 standard. It is the most widely used austenitic stainless steel grade, featuring balanced nickel and chromium composition to deliver reliable anti-corrosion property.

Our 304 stainless flat bar is available in hot rolled and cold finished surface, various thickness and width options. It has good ductility and formability, easy to machine and weld without heat treatment. This grade resists oxidation in normal atmospheric conditions.

Common applications include food processing equipment, building structural components, chemical pipeline accessories, kitchen equipment, architectural decoration and general engineering parts. We provide cutting service, surface finishing and custom lengths for global B2B buyers.

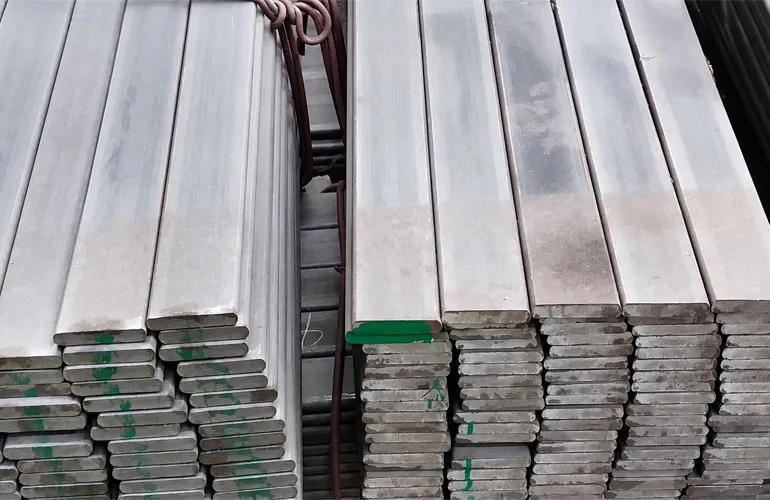

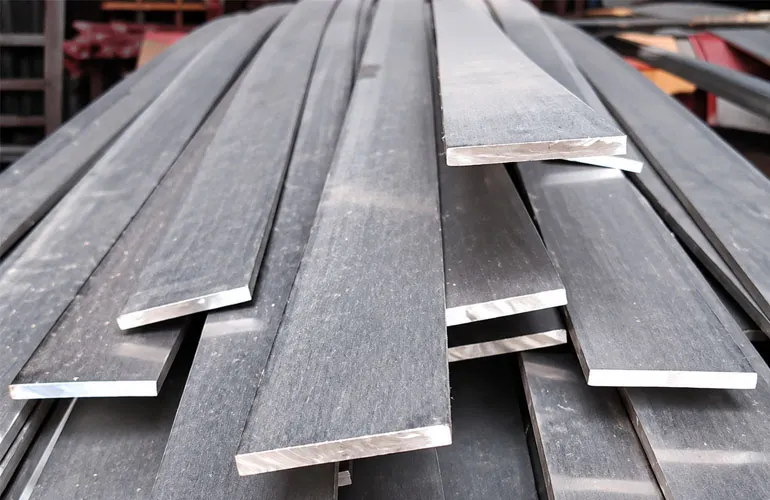

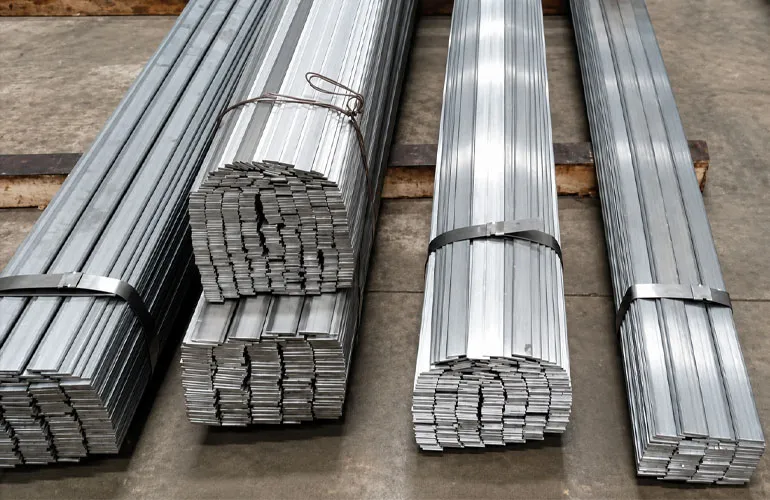

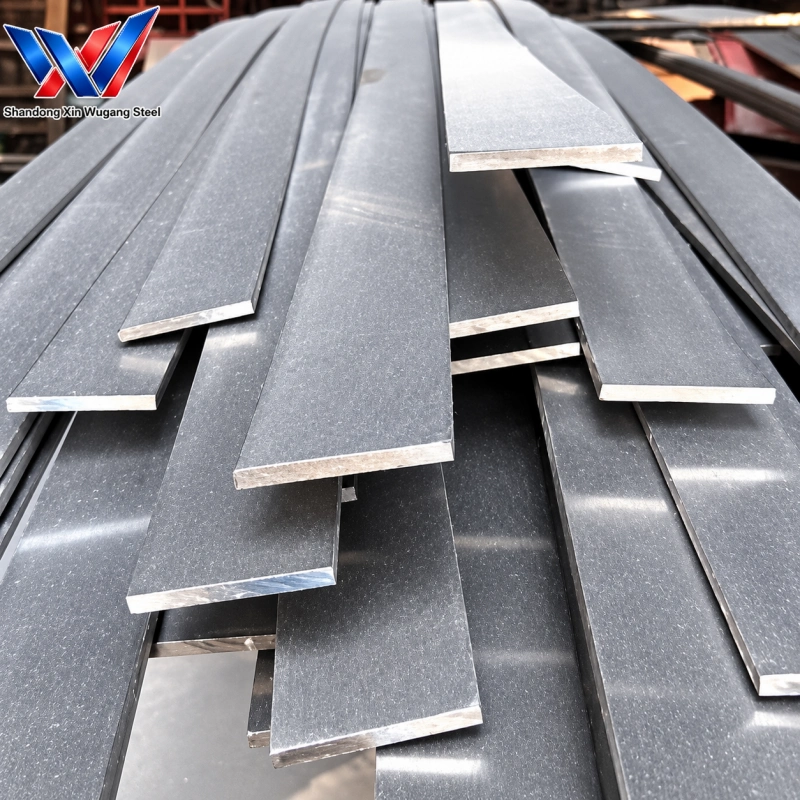

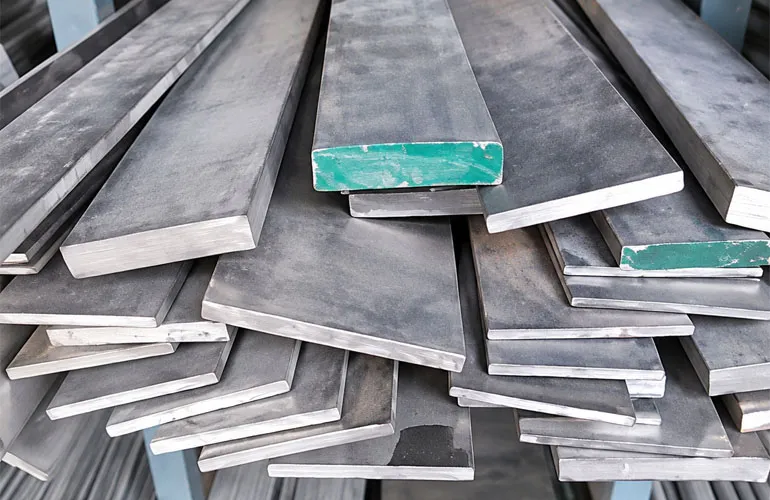

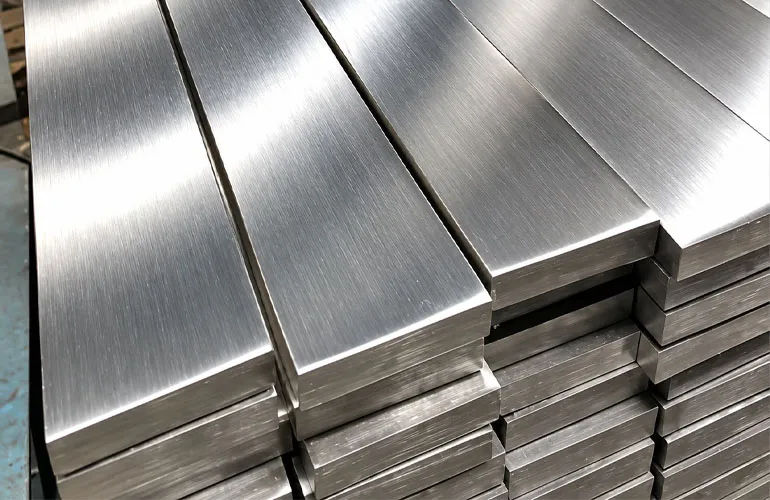

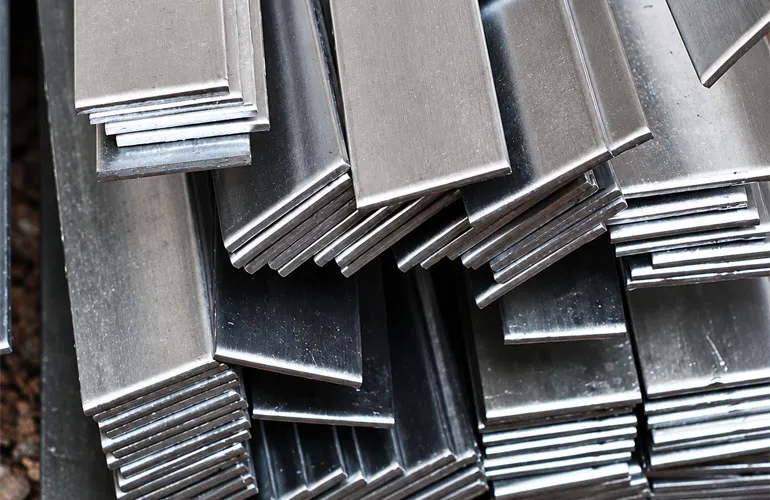

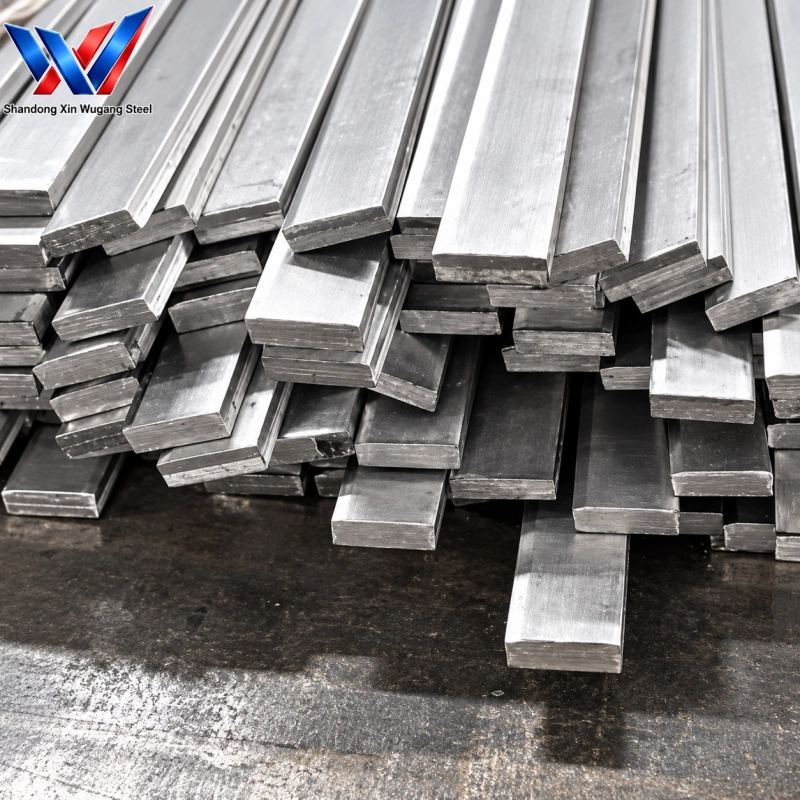

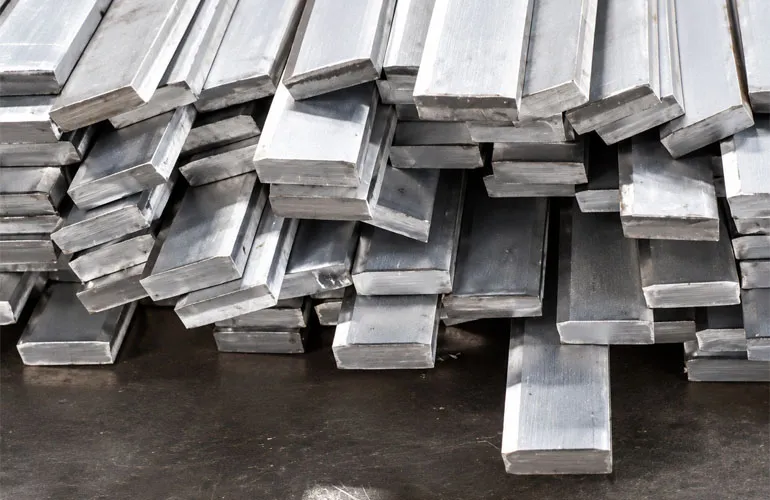

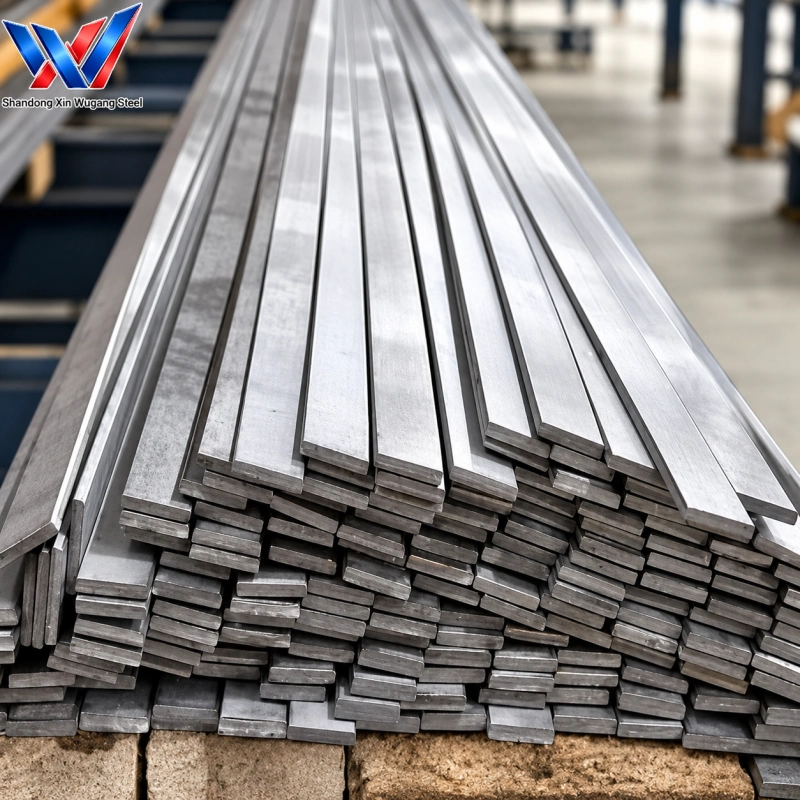

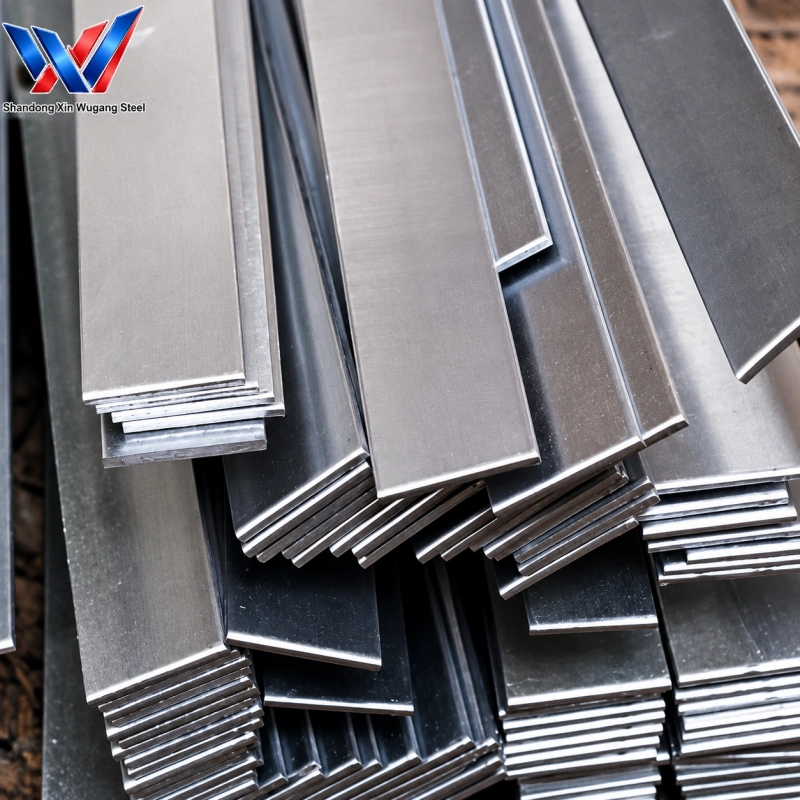

Stainless Steel Flat Bar

Chemical & Mechanical Property Snapshot

Item	Value
Grade	304 / SUS304 / 1.4301 / 06Cr19Ni10
Density	7.93 g/cm³
Yield Strength (Rp0.2)	≥205 MPa
Tensile Strength (Rm)	≥515 MPa
Elongation	≥40 %
Main Chemical Composition	Cr:18.0~20.0%, Ni:8.0~11.0%, C ≤0.08%

Detailed Technical Specifications

Specification	Details
Standard	GB/T 1220, EN 10088, ASTM A276
Grade	304 (06Cr19Ni10, SUS304,1.4301,X5CrNi18-10)
Surface Finish	Hot Rolled Black, Pickled, Bright Polished
Thickness Range	3mm ~ 100mm
Width Range	10mm ~ 200mm
Length	1000mm-6000mm, Custom Cut Length
Package	Waterproof Paper + Steel Strip, Wooden Pallet
MOQ	5 Ton
Lead Time	7-15 working days
Certificates	Mill Test Certificate 3.1, EN 10204

Size Specification Table

Item	Specification
Profile	Rectangular solid flat bar
Width Range	10 mm, 12 mm, 15 mm, 20 mm, 25 mm, 30 mm, 40 mm, 50 mm, 60 mm, 80 mm, 100 mm, 120 mm, 150 mm, 180 mm, 200 mm, 250 mm
Thickness Range	2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 15 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm
Standard Length	3000 mm, 5800 mm, 6000 mm; custom cut length available
Tolerance	Width tolerance: ±0.3 mm; Thickness tolerance: ±0.2 mm; Length tolerance: +10 / -0 mm
Surface Finish	2B, Hot-Rolled Pickled, 8K Mirror Finish, HL Hairline Brushed Finish
Available Grades	304, 304L, 316, 316L, 321, 310S, 430, 2205, 2507, 904L, 17-4PH

Product Comparison Table

Grade	Equivalent Standard	Density	Yield Strength	Core Feature	Typical Application
304	GB/T1220, SUS304,1.4301	7.93	205MPa	Excellent general corrosion resistance, easy fabrication	Food equipment, construction, chemical pipeline accessories
304L	GB/T1220, SUS304L,1.4307	7.93	170MPa	Low carbon, good intergranular corrosion resistance after welding	Welded parts, chemical equipment, pressure vessels
316L	GB/T1220, SUS316L,1.4404	7.98	170MPa	Contains Mo, superior chloride corrosion resistance	Marine, saltwater environments, pharmaceutical equipment
201	GB/T1220, SUS201,1.4372	7.93	275MPa	Low nickel, cost-effective, moderate corrosion resistance	Decoration, kitchen utensils, indoor brackets

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

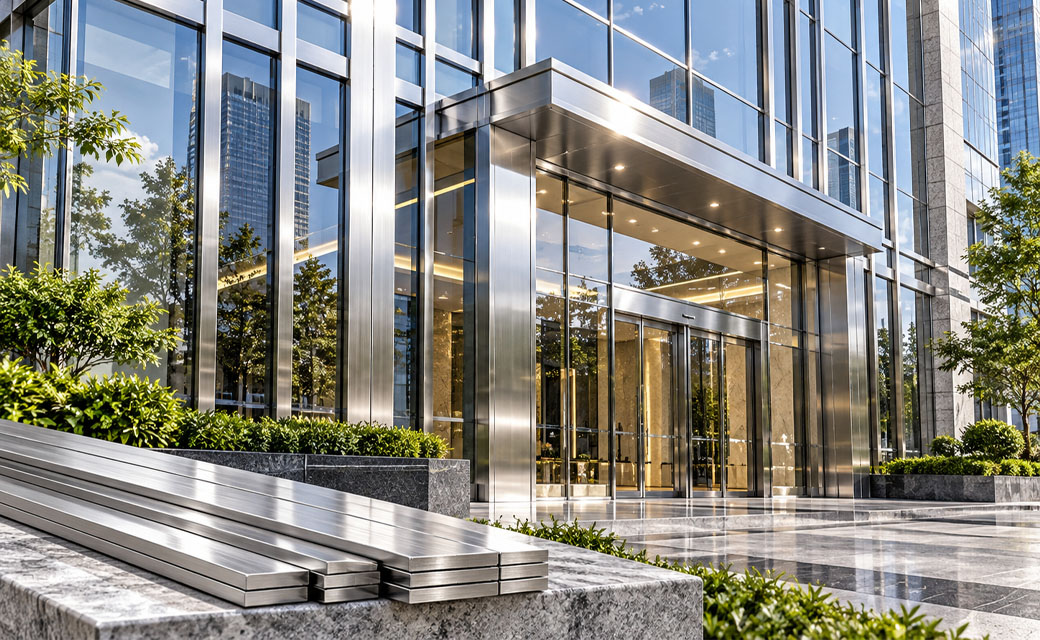

Curtain Wall Decorative Strips

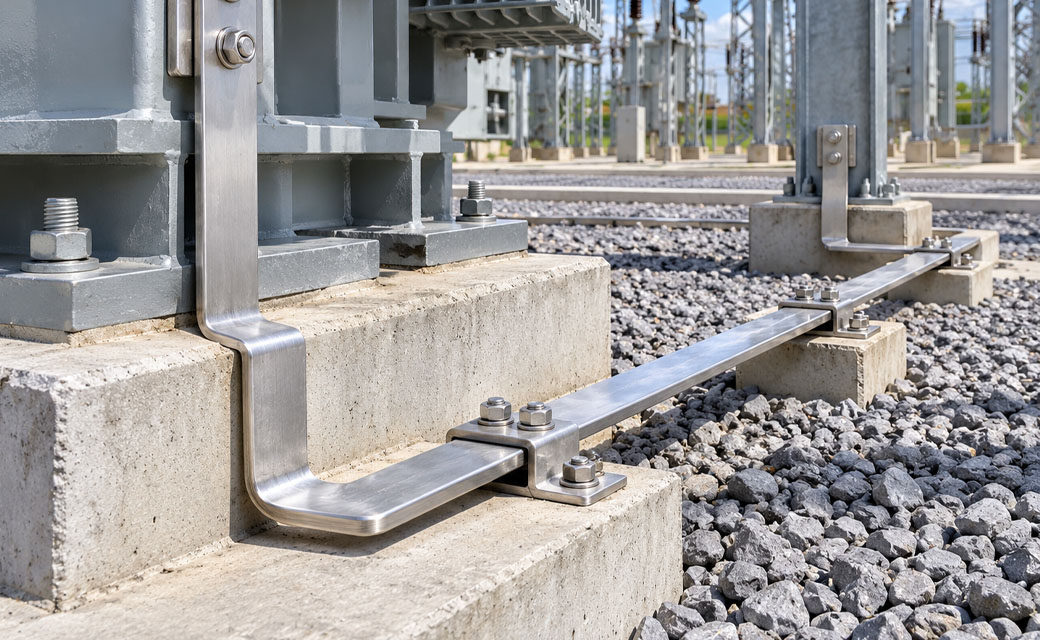

Corrosion-Resistant Grounding Flat Steel

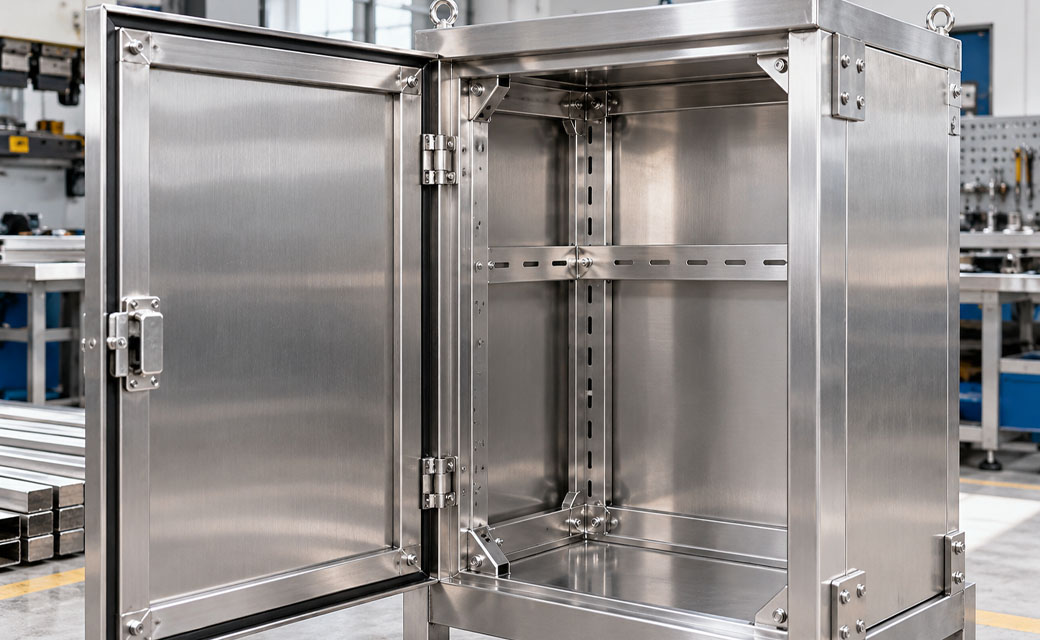

Bent Parts for Equipment Enclosures

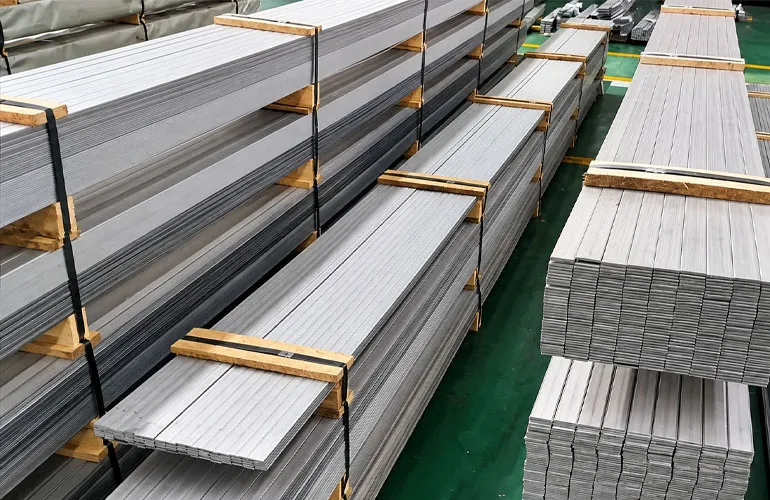

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is the equivalent grade of 304 stainless steel flat bar?

304 stainless steel flat bar 06Cr19Ni10 (GB/T1220) is equivalent to SUS304, 1.4301 and X5CrNi18-10.

What is the difference between 304 and 304L stainless flat bar?

304L is low carbon version of 304. It prevents intergranular corrosion after welding, ideal for heavy welding work. 304 is more cost-effective for non-welded or lightly welded parts.

Can you cut 304 stainless steel flat bar to custom lengths?

Yes, we offer custom cutting service to meet your required length.

Is 304 stainless flat bar suitable for outdoor use?

Yes, it performs well under normal atmospheric conditions. For coastal saltwater environment, we recommend 316L grade.

What surface options are available?

We supply hot rolled pickled surface and bright polished surface for 304 stainless flat bar.
