304 Stainless Steel Hexagonal Bar | SUS304 Hex Bar ASTM A276 GB/T4228

Excellent general corrosion resistance for atmospheric & fresh water environments
Easy machining & welding performance for fastener manufacturing
Stable mechanical property with consistent dimension tolerance
Wide size range S6-S80mm for flexible project selection
Compliant with GB/T4228, ASTM A276, EN10088 for global procurement

Product Overview

304 Stainless Steel Hexagonal Bar (SUS304, 1.4301 / X5CrNi18-10) is a solid six-sided stainless steel bar for hex bolt, threaded fitting and precision component fabrication. Manufactured under GB/T4228, ASTM A276 and EN10088 standards, this austenitic stainless hex bar delivers reliable anti-rust performance under normal atmospheric and mild corrosive conditions.

The near-net hexagonal cross-section greatly reduces cutting workload compared with round bar, saving raw material and machining time for fastener production. Our 304 hex bar covers across-flat dimension S6mm to S80mm, with popular stock sizes S8, S10, S12, S14, S17, S19, S22, S24, S27, S30, S32, S36, S41, S46, S50.

It is widely used for general engineering fasteners, food equipment fittings, marine hardware, pipe connectors and architectural components. All products come with MTC mill test certificate including heat number, chemical composition and mechanical test data.

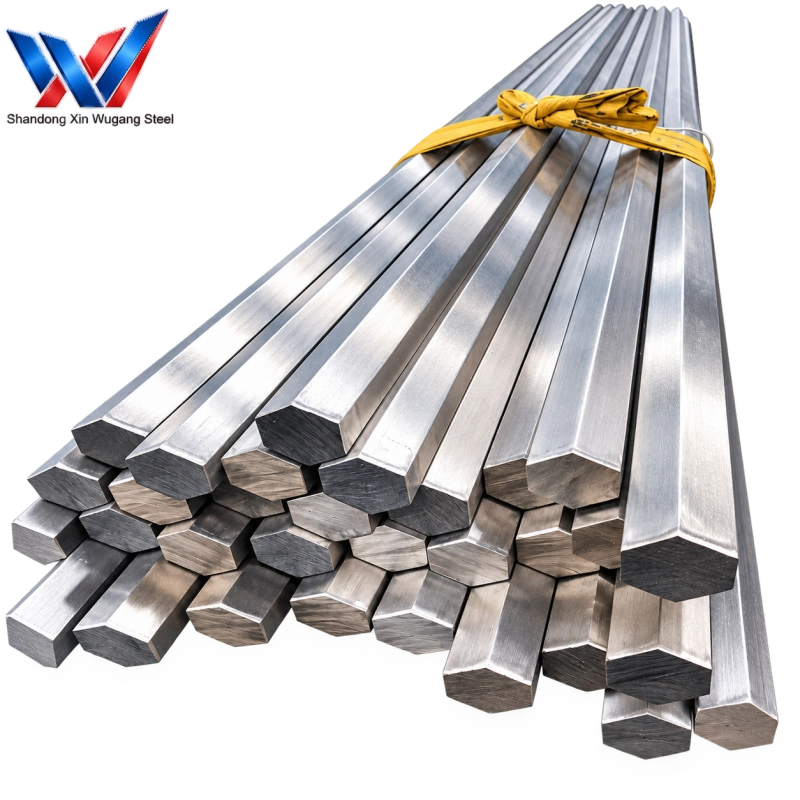

Stainless Steel Hexagonal Bar

Chemical & Mechanical Property Snapshot

Grade	Equivalent Grade	C Max	Cr	Ni	Mo	Mn	Yield Strength (MPa) Min	Tensile Strength (MPa) Min	Elongation (%) Min	Hardness HB Max
304	1.4301 / X5CrNi18-10 / SUS304 / 06Cr19Ni10	0.08	18.00-20.00	8.00-11.00	—	2.00	205	515	40	201

Detailed Technical Specifications

Item	Specification
Product Name	304 Stainless Steel Hexagonal Bar
Material Type	304 Austenitic Stainless Steel
Shape	Solid Hexagonal Cross Section
Production Standards	GB/T4228, ASTM A276, EN10088
Across Flats Dimension	S6mm – S80mm
Mainstream Sizes	S8, S10, S12, S14, S17, S19, S22, S24, S27, S30, S32, S36, S41, S46, S50
Material Performance	Good corrosion resistance, easy welding & machining
Typical Processing	Hex bolt manufacturing, threaded fittings, general precision components
Quality Control	Mill Test Certificate including heat number, chemical composition and mechanical property data
Export Packing	Bundled seaworthy packing to prevent bruising and scratching
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit

Dimension Table

Across Flats Size (S)	Weight (kg/m)	Tolerance
S6	0.247	±0.08 mm
S8	0.442	±0.08 mm
S10	0.690	±0.10 mm
S12	0.991	±0.10 mm
S14	1.344	±0.12 mm
S17	1.980	±0.12 mm
S19	2.460	±0.15 mm
S22	3.280	±0.15 mm
S24	3.910	±0.15 mm
S27	4.930	±0.20 mm
S30	6.080	±0.20 mm
S32	6.990	±0.20 mm
S36	8.830	±0.25 mm
S41	11.45	±0.25 mm
S46	14.40	±0.30 mm
S50	16.98	±0.30 mm
S60	24.45	±0.35 mm
S70	33.35	±0.40 mm
S80	43.67	±0.40 mm

Product Comparison Table

Comparison Item	304 Stainless Steel Hexagonal Bar	304 Stainless Steel Round Bar	304 Stainless Steel Square Bar
Cross Section	Hexagonal	Round	Square
Main Purpose	General fasteners, threaded fittings, pipe connectors	Shafts, turning machining parts, structural components	Frames, fixtures, support brackets
Machining Advantage	Near-net hex profile reduces cutting work, saves raw material and processing time	Requires secondary machining for hex shapes, more material waste	Stable square geometry, good for bending & welding
Standards	GB/T4228, ASTM A276, EN10088	GB/T1220, ASTM A276, EN10088	GB/T1220, ASTM A276, EN10088
Application Fields	General hex bolts, food equipment fittings, marine hardware, architectural fasteners	Precision shafts, pump parts, machinery spare parts	Decorative frames, equipment racks, mold bases
Key Buyer Value	Less machining for fastener mass production, stable tolerance	Flexible turning machining, full size coverage	Easy fabrication, good structural load bearing
Corrosion Resistance	Good (atmosphere & mild corrosion)	Good (atmosphere & mild corrosion)	Good (atmosphere & mild corrosion)
Cost Level	Medium	Low	Medium

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Seawater Valve Fasteners

Chemical Pipeline Threaded Fittings

Corrosion-Resistant Hex Bolts

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is the equivalent grade of 304 stainless steel hexagonal bar?

304 stainless hex bar equivalent to SUS304, 1.4301, X5CrNi18-10, 06Cr19Ni10.

What is the maximum size you can supply for 304 hex bar?

Our standard across-flat size range is S6mm to S80mm, custom sizes can be negotiated.

Can 304 stainless hexagonal bar be used in seawater environment?

304 performs well in fresh water, but not recommended for long-term immersion in seawater; choose 316L for marine saltwater service.

Do you provide mill test certificate for 304 hex bar?

Yes, each batch comes with official MTC including heat number, chemical & mechanical test data.

What is your MOQ and lead time?

MOQ is 5 tons, delivery time is 7–15 working days after deposit received.
