304L Stainless Steel Precision Strip | SUS304L 022Cr19Ni10 Ultra-Thin Stainless Precision Strip

304L Stainless Steel Precision Strip | SUS304L 022Cr19Ni10 Ultra-Thin Stainless Precision Strip

  1. Ultra-low carbon composition, avoid intergranular corrosion after welding
  2. No post-weld heat treatment required, reduce processing cost
  3. Excellent ductility and flatness for precision forming
  4. Burr-free edge, suitable for continuous stamping & welding
  5. Micron dimension tolerance, ultra-thin specification available down to 0.01mm
Contact Us

Product Overview

304L Stainless Steel Precision Strip (GB grade 022Cr19Ni10, SUS304L, AISI304L, EN1.4307 X2CrNi18-9) is low carbon cold rolled precision stainless strip. It is produced by mother coil cold rolling, stress leveling and high precision longitudinal slitting, conforming to ASTM A666, GB/T4239 and EN10088 standards.

The low carbon design eliminates chromium carbide precipitation during welding, which prevents intergranular corrosion. Thickness range from 0.01mm to 2.0mm, slitting width 3mm-1200mm. Surface finish includes 2B, BA Mirror, HL Hairline. Deburring and edge rounding service available.

This 304L precision stainless strip is widely used for welded precision electronic parts, welded gaskets, battery assembly components, chemical instrument thin fittings. We provide MTC certificate and support third-party inspection.

Stainless Steel Precision Strip

Chemical & Mechanical Property Snapshot

Grade C Max Si Max Mn Max P Max S Max Cr Ni Yield Strength (MPa) Tensile Strength (MPa) Elongation (%) Hardness HV
304L (022Cr19Ni10) 0.03 1.00 2.00 0.045 0.030 18.00~20.00 8.00~12.00 ≥170 ≥480 ≥40 ≤195

Detailed Technical Specifications

Item Technical Specification
Product 304L Stainless Steel Precision Strip
Full Equivalent Grades GB:022Cr19Ni10; AISI:304L; SUS:SUS304L; EN:1.4307 X2CrNi18-9
Manufacturing Process Cold rolling finishing, stress leveling and high-precision longitudinal slitting
Executive Standards ASTM A666, GB/T 4239, EN 10088
Thickness Range 0.03–2.0 mm
Customized Ultra-Thin Thickness Down to 0.01 mm
Slitting Width 3–1200 mm
Thickness Tolerance Within ±0.01 mm
Surface Finishes 2B / BA Mirror / HL Hairline / Etched Base
Edge Options Deburring / Edge Rounding / Standard Slit Edge
Material Condition Stress-relieved, flat and dimensionally controlled
Inspection Documents Material test reports and dimensional inspection documents, EN10204 3.1 MTC
MOQ 5 Ton
Payment Terms T/T, L/C at Sight
Delivery Time 7-15 working days after receiving deposit
Package Waterproof paper + galvanized steel strap + seaworthy export wooden pallet

Product Comparison Table

AISI Grade SUS Grade GB Grade EN Material No. EN Full Designation Material Feature Typical Application
201 SUS201 1Cr17Mn6Ni5N 1.4372 X12CrMnNi17-7-5 Low nickel, economical, moderate corrosion resistance Decoration, low-cost stamping parts
301 SUS301 1Cr17Ni7 1.4310 X10CrNi18-8 High work hardening, good elasticity Spring contacts, elastic shims
304 SUS304 06Cr19Ni10 1.4301 X5CrNi18-10 General anti-corrosion, excellent forming Electronic components, battery strip, gaskets
304L SUS304L 022Cr19Ni10 1.4307 X2CrNi18-9 Low carbon, anti intergranular corrosion after welding Welded precision components
303 SUS303 Y06Cr19Ni10 1.4305 X8CrNiS18-9 Free cutting, easy machining Automatic lathe precision parts
304N SUS304N1 022Cr19Ni10N 1.4311 X2CrNiN18-10 Nitrogen strengthened, higher tensile strength Thin wall high strength precision parts
316 SUS316 06Cr17Ni12Mo2 1.4401 X5CrNiMo17-12-2 Mo added, chloride corrosion resistant Coastal & weak acid environment parts
316L SUS316L 022Cr17Ni12Mo2 1.4404 X2CrNiMo17-12-3 Low carbon molybdenum grade, weldable Seawater auxiliary precision fittings
317L SUS317L 022Cr19Ni13Mo4 1.4438 X2CrNiMo18-15-4 High molybdenum, strong pitting resistance Chemical & pulp industry precision shims
321 SUS321 06Cr18Ni11Ti 1.4541 X6CrNiTi18-10 Titanium stabilized, high temp anti-corrosion High temperature precision gaskets
309S SUS309S 06Cr23Ni13 1.4828 X15CrNiSi20-12 High temperature oxidation resistance Furnace internal precision components
310S SUS310S 06Cr25Ni20 1.4845 X12CrNi25-21 Ultra high temperature resistant Kiln & heat equipment thin strip
430 SUS430 06Cr17 1.4016 X6Cr17 Ferritic, good formability, magnetic Home appliance decorative precision strip
409L SUS409L 022Cr11Ti 1.4512 X2CrTi12 Titanium stabilized ferritic steel Automobile exhaust thin strip
410S SUS410S 06Cr13 1.4000 X6Cr13 Low carbon martensitic, moderate rust resistance General anti-rust mechanical shims
410 SUS410 12Cr13 1.4006 X12Cr13 Heat treatable martensitic steel Pump & valve thin precision parts
420 SUS420 20Cr13 1.4021 X20Cr13 Hardenable martensitic, wear resistant Precision cutting blade blanks
420J2 SUS420J2 30Cr13 1.4031 X30Cr13 High carbon, high polishing performance Precision hardware blades
2205 – 022Cr22Ni5Mo3N 1.4462 X2CrNiMoN22-5-3 Duplex, ultra high strength, chloride resistance Offshore high pressure precision shims
2507 – 022Cr25Ni7Mo4N 1.4410 X2CrNiMoN25-7-4 Super duplex steel, heavy corrosion resistance Seawater desalination equipment strip
904L – 022Cr25Ni7Mo4CuN 1.4539 X1NiCrMoCu25-20-5 Super austenitic, strong acid resistance Phosphoric acid industrial components
630 SUS630 05Cr17Ni4Cu4Nb 1.4542 X5CrNiCuNb17-4-4 Precipitation hardening high strength Aerospace precision elastic parts

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Precision Instrument Shim

Mobile Phone Battery Steel Strip

Electronic Spring Contact

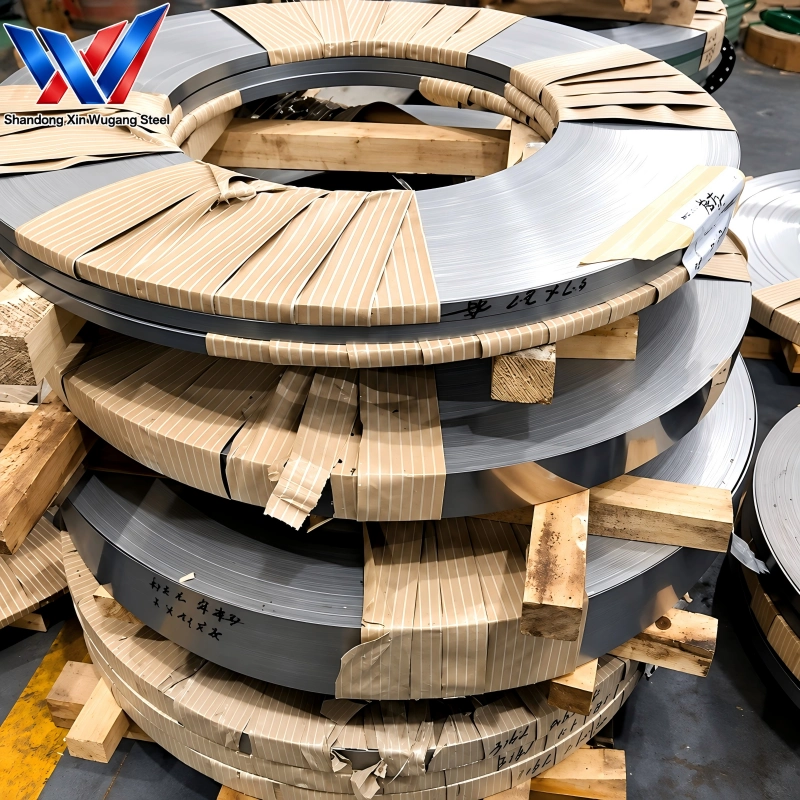

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

Main difference is carbon content. 304L max C ≤0.03%. It avoids intergranular corrosion after welding, ideal for parts requiring welding.

Thickness tolerance controlled within ±0.01mm, ultra thin custom thickness can reach 0.01mm.

Yes, edge deburring and rounding available for continuous high speed stamping.

Welded precision electronic components, welded gaskets, battery assembly parts, chemical instrument thin fittings.

MOQ 5 tons for standard specification, custom ultra-thin size MOQ can be negotiated.
