904L Stainless Steel Hexagonal Bar | SUS904L Hex Bar ASTM A276 GB/T4228

Super austenitic grade with outstanding resistance to strong acid & pitting corrosion
Ultra-low carbon content eliminates intergranular corrosion risk after welding
High alloy composition for severe corrosive chemical working environment
Good ductility and machinability for precision fastener production
Compliant with GB/T4228, ASTM A276, EN10088 for heavy chemical industry procurement

Product Overview

904L Stainless Steel Hexagonal Bar (SUS904L, 1.4539 / X1NiCrMoCu25-20-5 / 015Cr21Ni26Mo5Cu2) is super austenitic stainless steel solid hexagonal bar, manufactured in accordance with GB/T4228, ASTM A276 and EN10088 standards. High nickel, molybdenum and copper content delivers excellent performance in dilute sulfuric acid and other strong corrosive media.

The near-net hexagonal cross-section reduces cutting time and raw material loss for chemical equipment hex bolts and threaded connectors. Our 904L hex bar covers across-flat dimension S6mm ~ S80mm, mainstream sizes S8, S10, S12, S14, S17, S19, S22, S24, S27, S30, S32, S36, S41, S46, S50.

Typical applications: sulfuric acid processing equipment, fertilizer plant hardware, seawater desalination, flue gas desulfurization (FGD), pharmaceutical reactor fasteners. All batches are supplied with mill test certificate for material traceability.

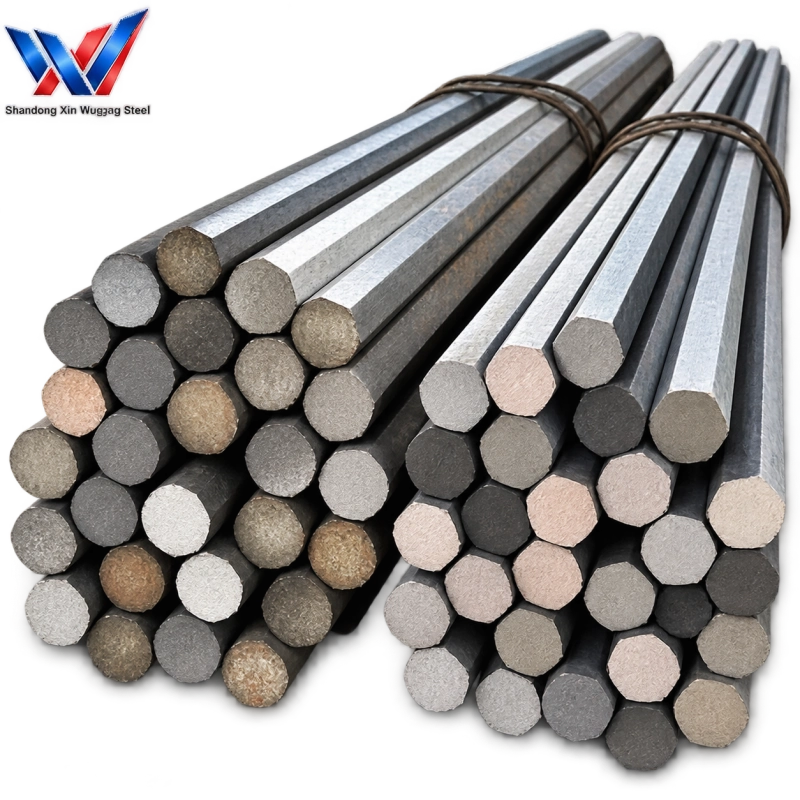

Stainless Steel Hexagonal Bar

Chemical & Mechanical Property Snapshot

Grade	Equivalent Grade	C Max	Cr	Ni	Mo	Mn	Yield Strength (MPa) Min	Tensile Strength (MPa) Min	Elongation (%) Min	Hardness HB Max
904L	1.4539 / X1NiCrMoCu25-20-5 / SUS904L / 015Cr21Ni26Mo5Cu2	0.02	19.00-23.00	23.00-28.00	4.00-5.00	2.00	220	490	35	215

Detailed Technical Specifications

Item	Specification
Product Name	904L Stainless Steel Hexagonal Bar
Material Type	904L Super Austenitic Stainless Steel
Shape	Solid Hexagonal Cross Section
Production Standards	GB/T4228, ASTM A276, EN10088
Across Flats Dimension	S6mm – S80mm
Mainstream Sizes	S8, S10, S12, S14, S17, S19, S22, S24, S27, S30, S32, S36, S41, S46, S50
Material Performance	Excellent resistance to strong acid, pitting & crevice corrosion
Typical Processing	Chemical equipment hex bolts, acid-resistant threaded fittings, FGD components
Quality Control	Mill Test Certificate including heat number, chemical composition and mechanical property data
Export Packing	Bundled seaworthy packing to prevent bruising and scratching
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit

Dimension Table

Across Flats Size (S)	Weight (kg/m)	Tolerance
S6	0.247	±0.08 mm
S8	0.442	±0.08 mm
S10	0.690	±0.10 mm
S12	0.991	±0.10 mm
S14	1.344	±0.12 mm
S17	1.980	±0.12 mm
S19	2.460	±0.15 mm
S22	3.280	±0.15 mm
S24	3.910	±0.15 mm
S27	4.930	±0.20 mm
S30	6.080	±0.20 mm
S32	6.990	±0.20 mm
S36	8.830	±0.25 mm
S41	11.45	±0.25 mm
S46	14.40	±0.30 mm
S50	16.98	±0.30 mm
S60	24.45	±0.35 mm
S70	33.35	±0.40 mm
S80	43.67	±0.40 mm

Product Comparison Table

Comparison Item	904L Stainless Steel Hexagonal Bar	904L Stainless Steel Round Bar	904L Stainless Steel Square Bar
Cross Section	Hexagonal	Round	Square
Main Purpose	Strong acid resistant hex fasteners, chemical threaded fittings	Acid resistant shafts, chemical machining components	Anti-corrosion structural frames for chemical plants
Machining Advantage	Near-net hex profile reduces cutting work, saves raw material and processing time	Requires secondary machining for hex shapes, more material waste	Stable square geometry for chemical equipment fabrication
Standards	GB/T4228, ASTM A276, EN10088	GB/T1220, ASTM A276, EN10088	GB/T1220, ASTM A276, EN10088
Application Fields	Sulfuric acid plant fasteners, FGD equipment bolts, pharmaceutical reactor fittings	Chemical pump shafts, acid resistant machinery spare parts	Chemical tank support frames, anti-corrosion equipment racks
Key Buyer Value	Direct hex shape for severe corrosion fastener manufacturing, superior acid resistance	Flexible turning for custom super alloy components	Stable structural performance in strong corrosive environment
Corrosion Resistance	Outstanding (strong acid, pitting, crevice corrosion)	Outstanding (strong acid, pitting, crevice corrosion)	Outstanding (strong acid, pitting, crevice corrosion)
Cost Level	Very High	High	Very High

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Seawater Valve Fasteners

Chemical Pipeline Threaded Fittings

Corrosion-Resistant Hex Bolts

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is the main application of 904L stainless steel hex bar?

904L is used for equipment exposed to dilute sulfuric acid and other harsh corrosive chemical environments.

What is the difference between 904L and 316L?

904L is super austenitic stainless steel with higher Ni, Mo, Cu content; it has far better resistance to strong acid than 316L.

What is equivalent grade of SUS904L hex bar?

Equivalent: 1.4539, X1NiCrMoCu25-20-5, 015Cr21Ni26Mo5Cu2.

Can 904L hexagonal bar be welded?

Yes, low carbon composition avoids intergranular corrosion after welding.

What is MOQ and production lead time?

MOQ 5 tons, lead time 7–15 working days after deposit.
