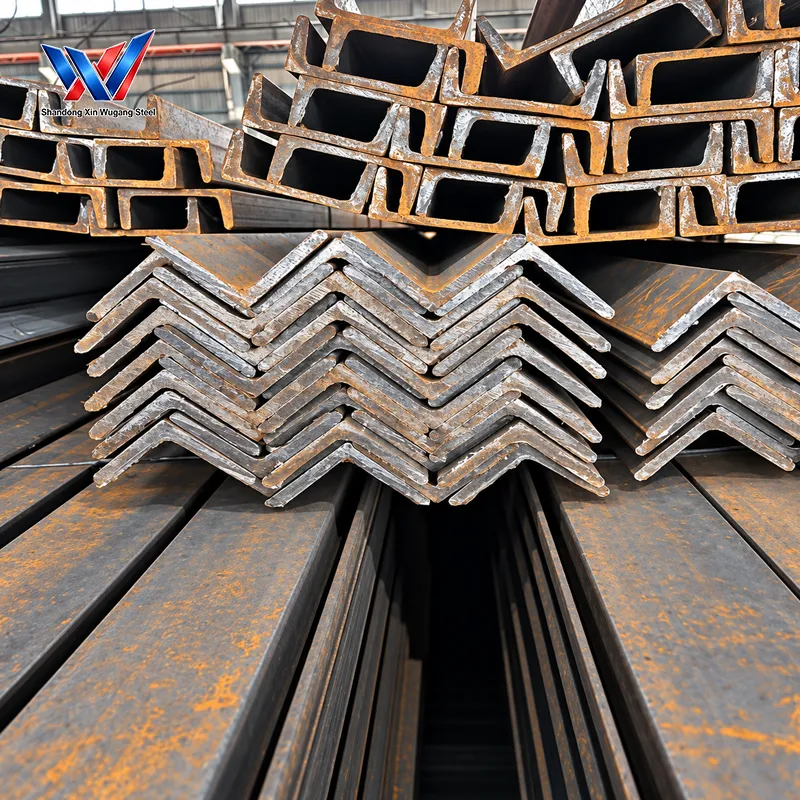

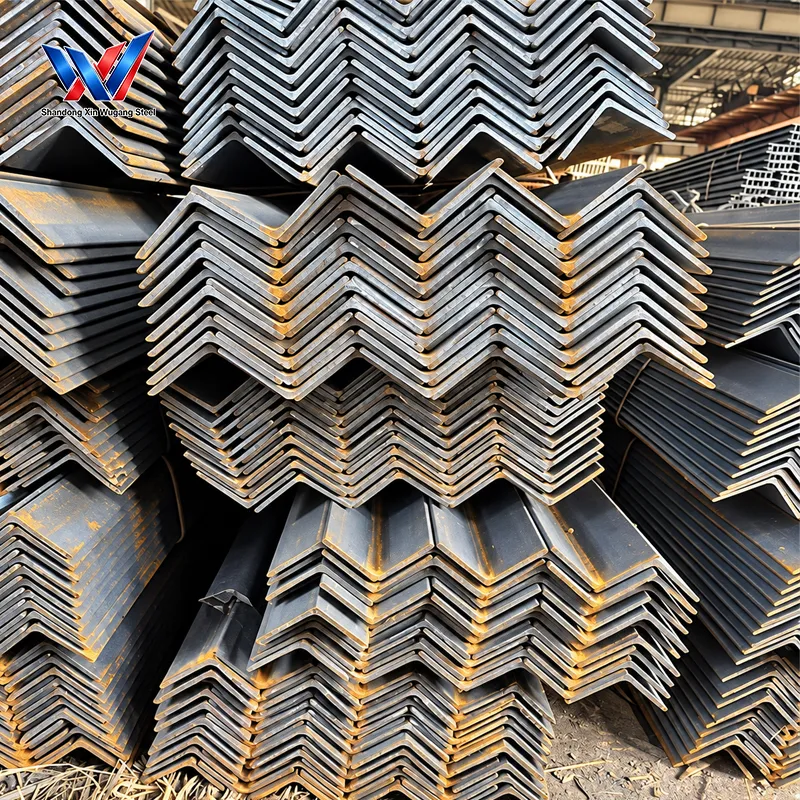

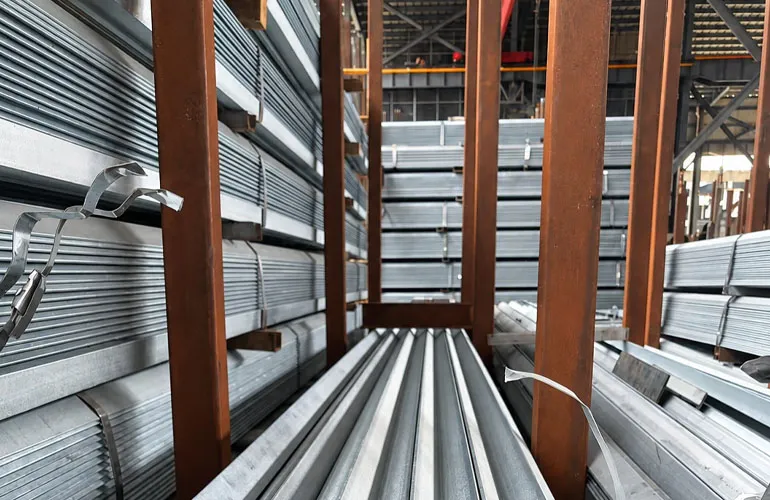

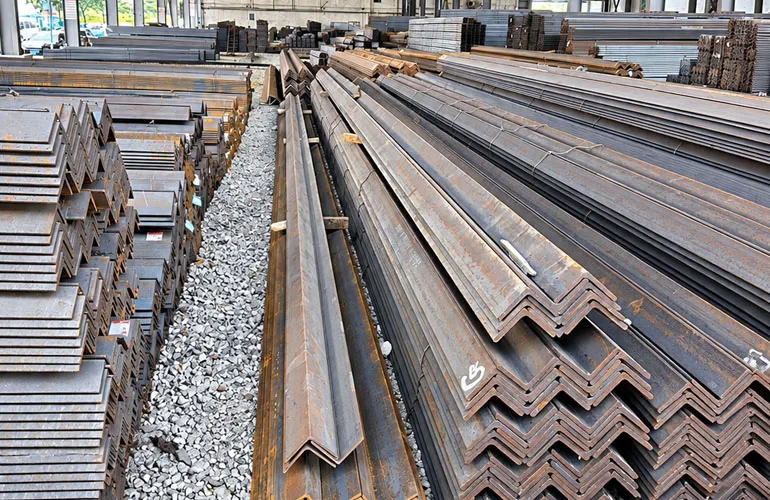

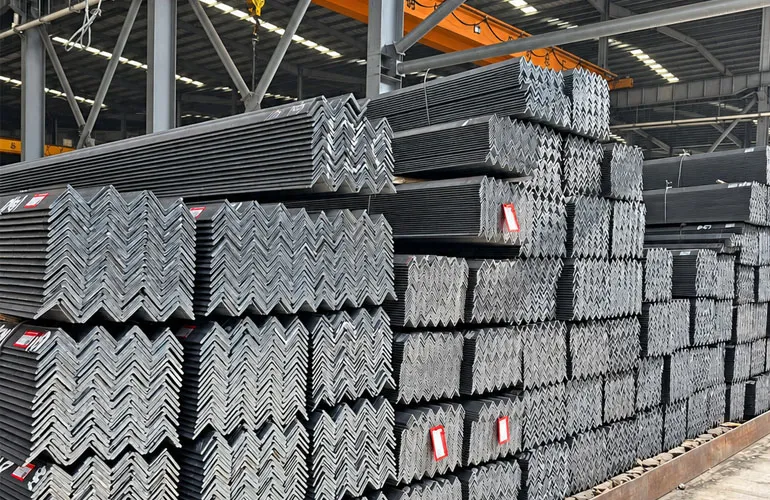

Angle Steel

Angle Steel Angle Steel Angle Steel Angle Steel Angle Steel

Angle Steel

  1. Full‑set global standard compliance for worldwide project procurement
  2. Complete size portfolio: equal & unequal angle, support non‑standard thickness customization
  3. Multiple anti‑corrosion surface solutions for indoor and outdoor working environments
  4. Rich processing capacity, flexible cutting & fabrication for connection and bracket components
Contact Us

Product Overview

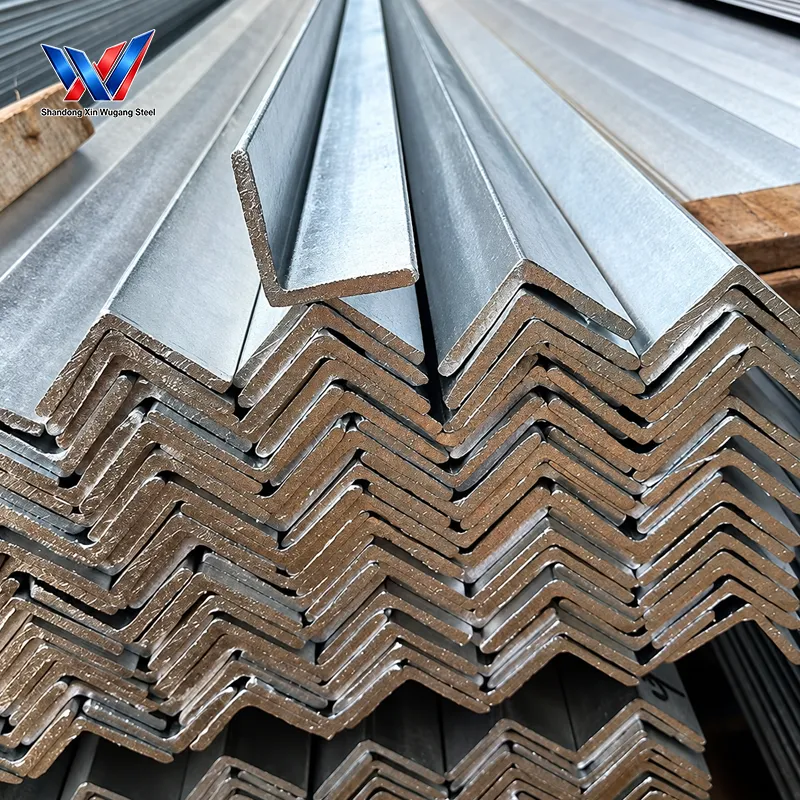

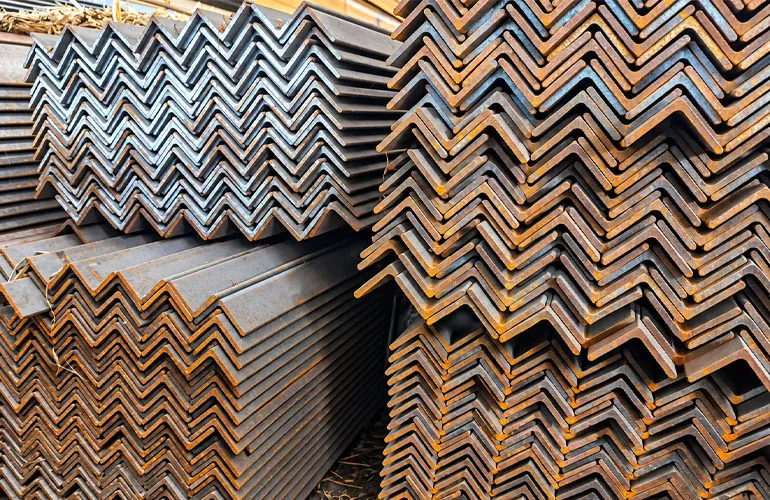

Angle Steel is a hot-rolled L-shaped structural steel product available in both equal angle steel and unequal angle steel configurations. It is designed for structural connections, supporting brackets, bracing members and reinforcement components across construction, municipal engineering, industrial facilities and new-energy projects.

The product range covers comprehensive dimensions for international project procurement. Equal angle steel is available from 20×20 mm to 250×250 mm, with thicknesses from 3 mm to 20 mm, while unequal angle steel covers mainstream sizes from 32×20 mm to 200×125 mm, with thicknesses from 3 mm to 16 mm. Non-standard thicknesses and extra-thick equal angles can be customized.

Material options include Q235B, Q355B, Q345B and Q420 for Chinese-standard projects; A36, A572 Gr.50 and A588 for American-standard projects; S235JR, S275JR and S355JR for European projects; and SS400 and SM490B for Japanese-standard orders. Standard lengths are 6 m, 9 m and 12 m, with customized lengths from 3 m to 18 m, as well as cut-to-length and segment cutting services.

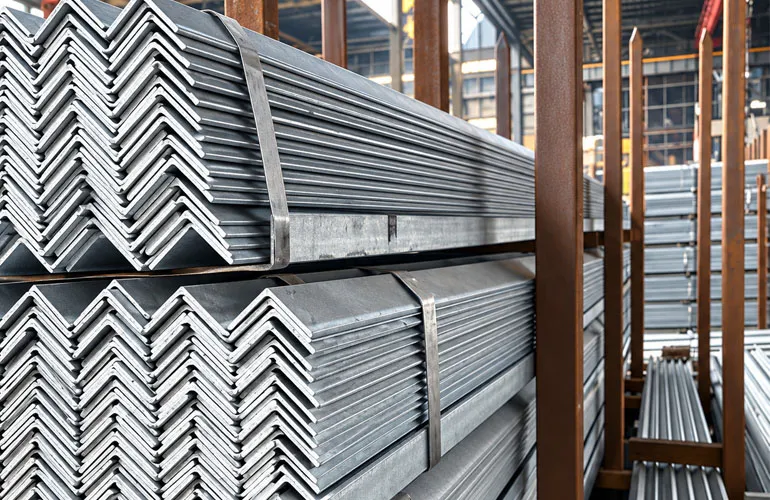

Surface and fabrication options include hot-rolled black finish, shot blasting, pickling, anti-corrosive coating, hot-dip galvanizing, electro-galvanizing and fire-retardant coating. Cutting, drilling, punching, chamfering, welding, assembly and special bending can be performed according to customer drawings.

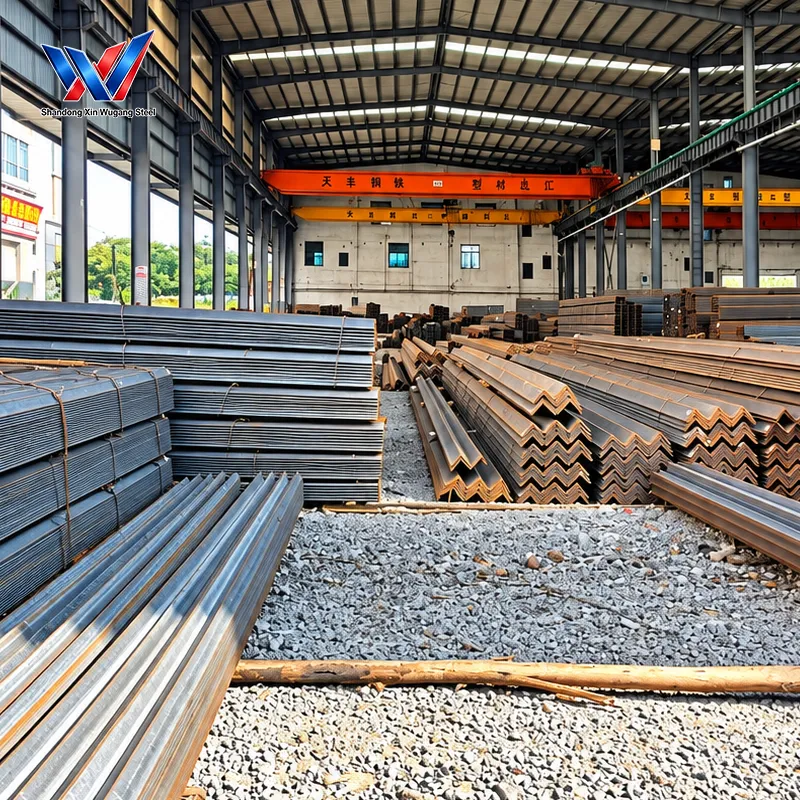

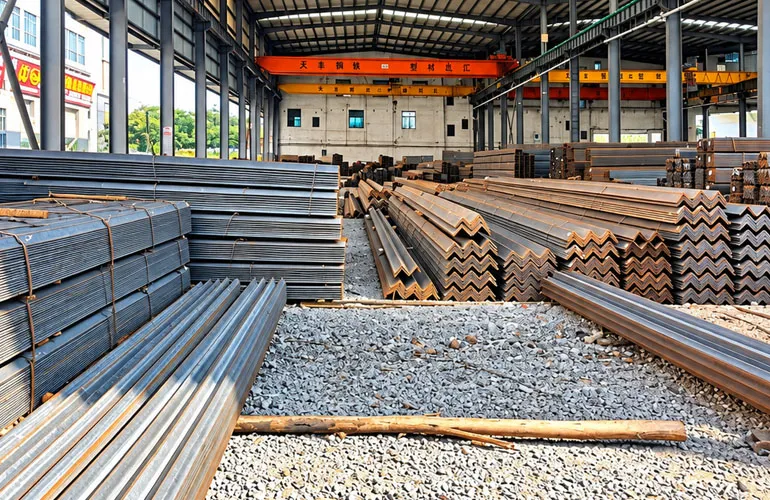

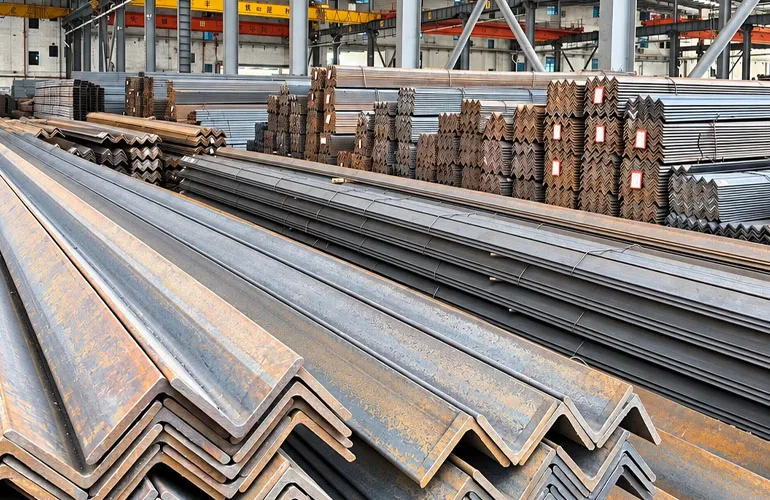

Inside Our Shandong Processing Facility

Chemical & Mechanical Property Snapshot

Grade Standard C Max(%) Mn Max(%) Si Max(%) S Max(%) P Max(%) Yield Strength Min (MPa) Tensile Strength (MPa) Elongation Min (%)
Q235B GB/T 706 0.20 1.40 0.35 0.045 0.045 235 370-500 26
Q355B GB/T 706 0.20 1.60 0.50 0.040 0.040 355 470-630 21
Q345B GB/T 706 0.20 1.70 0.50 0.040 0.040 345 470-630 21
Q420 GB/T 706 0.20 1.70 0.50 0.040 0.040 420 520-680 19
A36 ASTM A36 0.25 1.03 0.40 0.050 0.040 250 400-550 20
A572 Gr.50 ASTM A572 0.23 1.35 0.40 0.050 0.040 345 450-600 18
A588 ASTM A588 0.19 1.25 0.40 0.050 0.040 345 480-620 18
S235JR EN 10056 0.17 1.40 – 0.035 0.035 235 360-510 25
S275JR EN 10056 0.21 1.50 – 0.035 0.035 275 410-560 23
S355JR EN 10056 0.24 1.60 0.55 0.035 0.035 355 470-630 21
SS400 JIS G3101 0.21 1.50 – 0.050 0.040 245 400-510 21
SM490B JIS G3106 0.18 1.60 0.55 0.035 0.035 325 490-610 20

Detailed Technical Specifications

Technical Item Detailed Specification
Product Name Angle Steel
Product Type Hot-Rolled L-Shaped Structural Steel
Configurations Equal Angle Steel / Unequal Angle Steel
Applicable Standards GB/T 706-2016; GB/T 707-2006; ASTM A6/A6M-22; ASTM A36-22; EN 10056-1-2017; EN 10034-2019; JIS G3192-2018; ISO 657-2017
Equal Angle Size 20×20 mm–250×250 mm
Equal Angle Thickness 3–20 mm
Equal Angle Customization Extra-thick sizes available upon request
Unequal Angle Size 32×20 mm–200×125 mm
Unequal Angle Thickness 3–16 mm
Unequal Angle Customization Non-standard thickness available
Equal Angle Marking Side × Side × Thickness
Unequal Angle Marking Long Side × Short Side × Thickness
Chinese Material Grades Q235B, Q355B, Q345B, Q420
American Material Grades A36, A572 Gr.50, A588
European Material Grades S235JR, S275JR, S355JR
Japanese Material Grades SS400, SM490B
Standard Lengths 6 m, 9 m, 12 m
Custom Length 3–18 m
Cutting Cut-to-Length / Segment Cutting

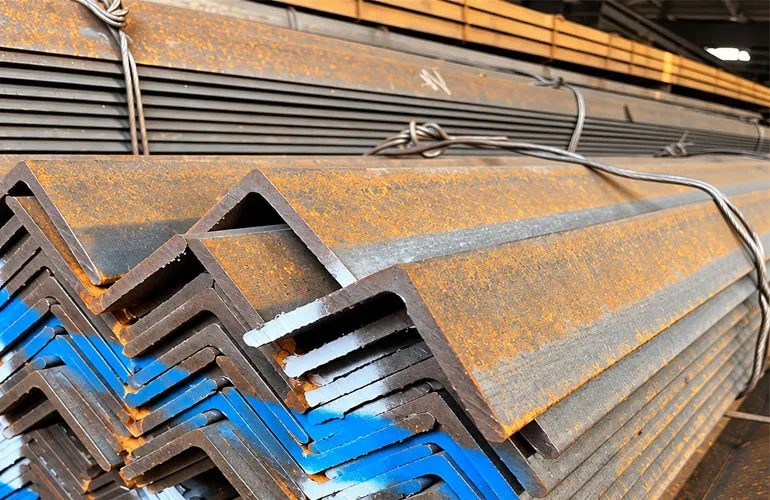

Original Surface Hot-Rolled Black Finish
Surface Treatment Shot-Blasting, Pickling, Anti-Corrosive Paint Coating, Hot-Dip Galvanizing, Electro-Galvanizing, Fire-Retardant Coating
Hot-Dip Galvanizing Zinc Layer 85–275 g/m²
Fabrication Services Cutting, Drilling, Punching, Chamfering, Welding, Assembling, Special Bending
Processing Basis Customer Drawings
Quality Documentation Mill Test Certificate
MTC Verification Chemical Composition and Mechanical Properties
Packing Export-Qualified Seaworthy Packing
Structural Applications Node Connectors, Frame Joint Corner Pieces, Bracing Members
Municipal Applications Power Transmission Tower Auxiliary Parts, Traffic Sign Brackets, Highway Guardrail Frameworks
Industrial Applications Equipment Base Supports, Warehouse Rack Accessories, Pipeline Support Frames
Building Applications Scaffold Accessories, Roof Bracing Components, Door-Window Frame Reinforcement
Transportation Applications Truck Body Frames, Bridge Auxiliary Supports
New Energy Applications Photovoltaic and Wind-Power Auxiliary Brackets
Other Applications Advertisement Supports, Temporary Construction Frames, Agricultural Machinery Fittings, General Hardware Spare Parts
MOQ 5 Ton
Payment Terms T/T, L/C at Sight
Delivery Time 7–15 working days after receiving deposit

Dimension Table

Designation Side 1 (mm) Side 2 (mm) Thickness (mm) Weight kg/m Section Area cm²
Equal Angle 20×20×3 20 20 3 0.88 1.13
Equal Angle 20×20×4 20 20 4 1.15 1.46
Equal Angle 25×25×3 25 25 3 1.12 1.43
Equal Angle 25×25×4 25 25 4 1.46 1.86
Equal Angle 30×30×3 30 30 3 1.37 1.75
Equal Angle 30×30×4 30 30 4 1.79 2.29
Equal Angle 40×40×4 40 40 4 2.42 3.09
Equal Angle 40×40×5 40 40 5 2.97 3.79
Equal Angle 50×50×5 50 50 5 3.77 4.80
Equal Angle 50×50×6 50 50 6 4.43 5.64
Equal Angle 63×63×6 63 63 6 5.90 7.51
Equal Angle 63×63×8 63 63 8 7.47 9.52
Equal Angle 75×75×6 75 75 6 7.04 8.98
Equal Angle 75×75×8 75 75 8 9.03 11.52
Equal Angle 80×80×8 80 80 8 9.66 12.30
Equal Angle 100×100×8 100 100 8 12.28 15.60
Equal Angle 100×100×10 100 100 10 15.12 19.26
Unequal Angle 32×20×3 32 20 3 1.17 1.49
Unequal Angle 32×20×4 32 20 4 1.52 1.94
Unequal Angle 40×25×4 40 25 4 1.86 2.37
Unequal Angle 40×25×5 40 25 5 2.26 2.88
Unequal Angle 50×32×4 50 32 4 2.49 3.17
Unequal Angle 50×32×5 50 32 5 3.06 3.90
Unequal Angle 63×40×5 63 40 5 3.92 4.99
Unequal Angle 63×40×6 63 40 6 4.64 5.90
Unequal Angle 80×50×5 80 50 5 5.01 6.38
Unequal Angle 80×50×6 80 50 6 5.92 7.56
Unequal Angle 100×63×6 100 63 6 7.55 9.64
Unequal Angle 100×63×8 100 63 8 9.87 12.58
Unequal Angle 100×80×6 100 80 6 8.35 10.66
Unequal Angle 100×80×8 100 80 8 10.95 13.94
Unequal Angle 125×80×8 125 80 8 12.53 15.96
Unequal Angle 125×80×10 125 80 10 15.47 19.71

Product Comparison Table

Comparison Item Q235B S235JR A36 Q355B S355JR A572 Gr.50 Q345B S275JR A588 Q420 SS400 SM490B
Equivalent Standard GB/T706 EN10056 ASTM A36 GB/T706 EN10056 ASTM A572 GB/T706 EN10056 ASTM A588 GB/T706 JIS G3101 JIS G3106
Yield Strength Min (MPa) 235 235 250 355 355 345 345 275 345 420 245 325
Tensile Strength Range (MPa) 370-500 360-510 400-550 470-630 470-630 450-600 470-630 410-560 480-620 520-680 400-510 490-610
Elongation (%) 26 25 20 21 21 18 21 23 18 19 21 20
Main Feature General structural grade, low cost, good weldability European basic structural carbon steel American common carbon structural steel, widely used High strength low alloy, excellent load capacity European high strength structural steel US HSLA steel for construction Former Q345, low alloy structural steel Medium strength European carbon steel Weathering resistant steel, corrosion resistance Ultra high strength low alloy steel Japanese general structural steel Japanese low alloy high strength steel
Typical Application General brackets, building bracing, simple frame EU construction & engineering projects North America building & support frames Heavy load bracket, tower, rack, bridge auxiliary European heavy structural projects US construction & infrastructure Structure supports, transmission tower parts Medium load EU structural components Outdoor weather exposed structures Heavy-duty mechanical support Japanese general building frames Industrial heavy load structures
Weldability Excellent Excellent Good Good Good Good Good Excellent Good Fair Good Good
Corrosion Resistance Normal Normal Normal Normal Normal Normal Normal Normal Superior Normal Normal Normal
Surface Options Black, shot blast, galvanized, painted Black, shot blast, galvanized, painted Black, shot blast, galvanized, painted Black, shot blast, galvanized, painted Black, shot blast, galvanized, painted Black, shot blast, galvanized, painted Black, shot blast, galvanized, painted Black, shot blast, galvanized, painted Black, shot blast, galvanized, painted Black, shot blast, galvanized, painted Black, shot blast, galvanized, painted Black, shot blast, galvanized, painted



App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

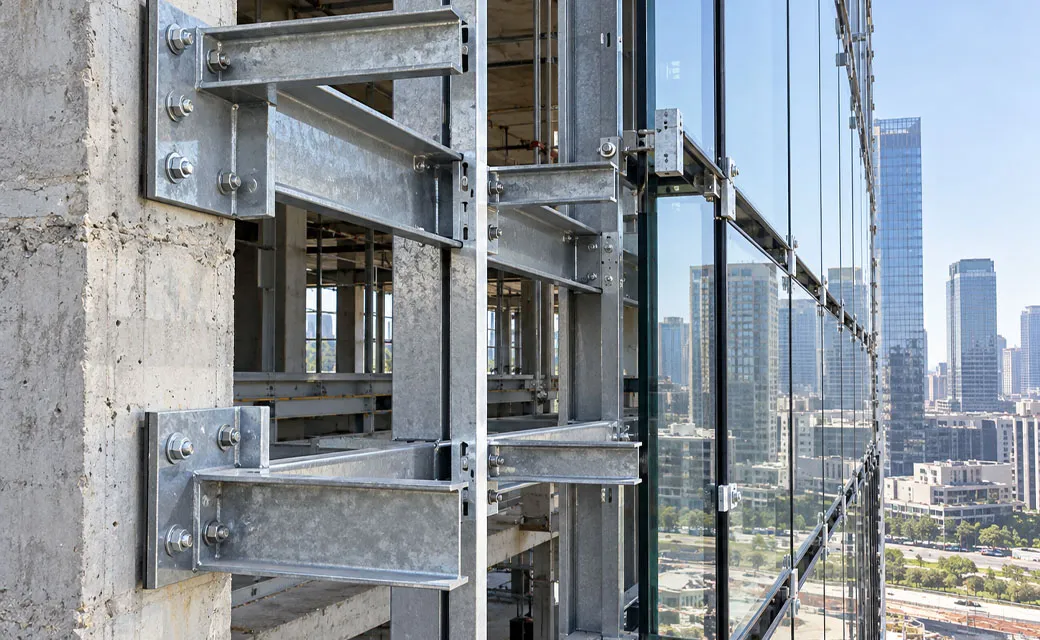

Curtain Wall Frame Support

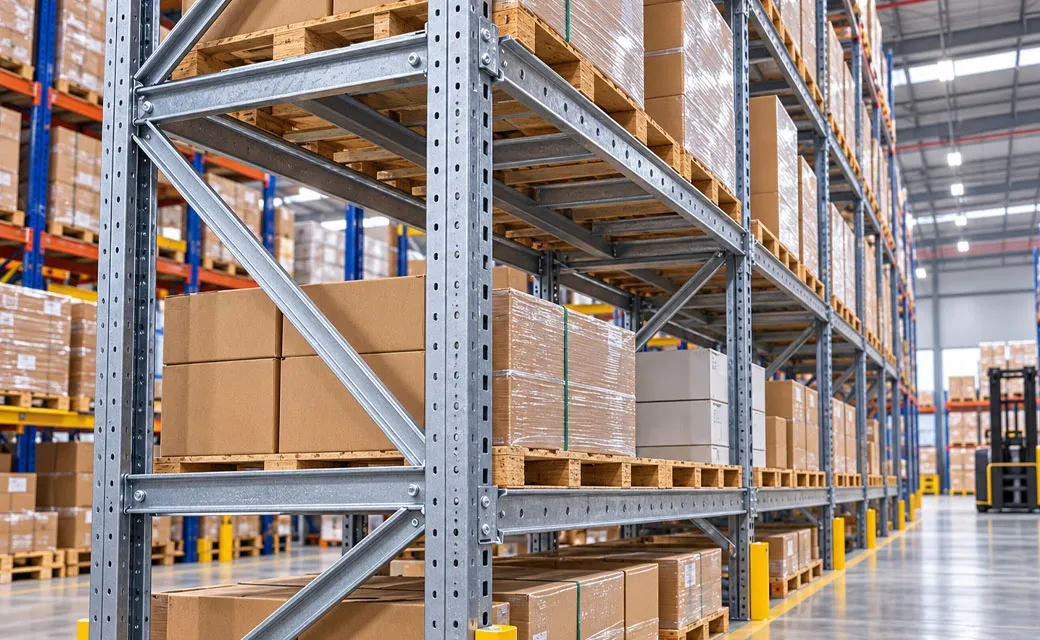

Warehouse Rack Bracing

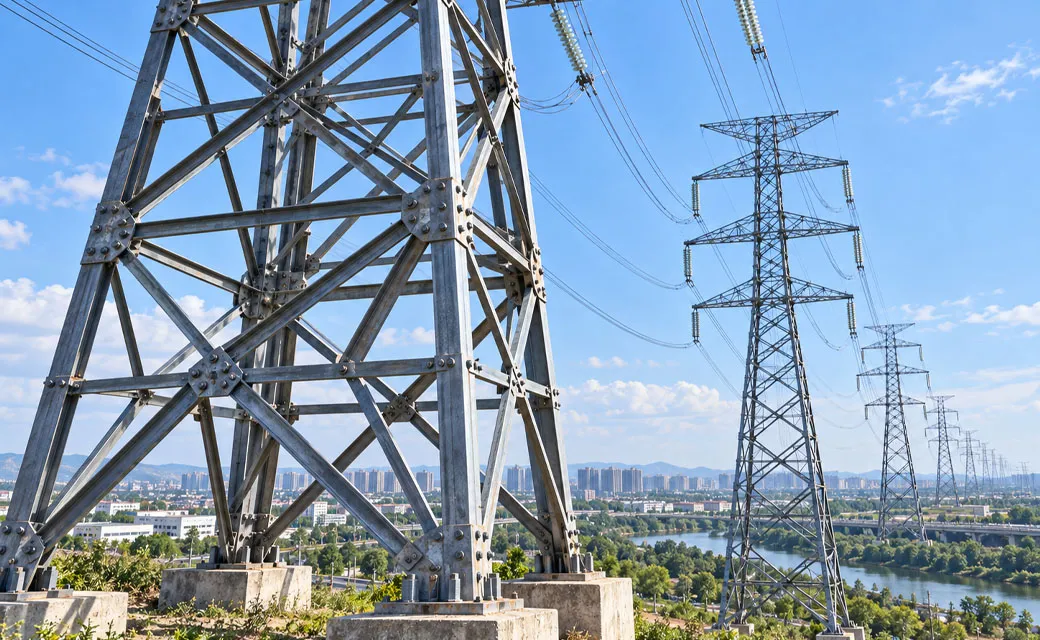

Transmission Tower Structural Members

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

Angle Steel is a hot-rolled L-shaped structural steel profile available as equal angle steel and unequal angle steel. It is used for connections, brackets, bracing and supporting components.

Equal angle steel covers 20×20 mm to 250×250 mm, with thicknesses from 3 mm to 20 mm. Extra-thick sizes can be customized upon request.

Unequal angle steel covers mainstream sizes from 32×20 mm to 200×125 mm, with thicknesses from 3 mm to 16 mm. Non-standard thicknesses are also supported.

Available grades include Q235B, Q355B, Q345B and Q420, American grades A36, A572 Gr.50 and A588, European grades S235JR, S275JR and S355JR, and Japanese grades SS400 and SM490B.

Yes. Custom lengths from 3–18 m, cut-to-length and segment cutting are available. Additional processing includes cutting, drilling, punching, chamfering, welding, assembly and special bending according to customer drawings.

Related Projects

Steel And Metal Materials Supplied To Projects Worldwide.

Learn More
Vietnam Binh Duong Foreign-Invested Industrial Park Project

Vietnam Binh Duong Foreign-Invested Industrial Park Project

A large-scale foreign-invested smart manufacturing industrial park was developed in Binh Duong Province, Vietnam. The project included three large-span steel structure workshops w…

Texas Commercial Warehouse & Logistics Center Project, USA

Texas Commercial Warehouse & Logistics Center Project, USA

A large-scale e-commerce logistics center was constructed near Houston, Texas, USA, featuring a single-story large-span steel structure designed for modern warehousing and distribu…

Middle East Petrochemical EPC Project

Middle East Petrochemical EPC Project

A petrochemical EPC project in the Middle East involved the construction of new raw material storage tanks and shell-and-tube heat exchanger systems for an oil refining supporting …

Related Products

Related Steel Solutions For Construction And Industrial Applications

Learn More

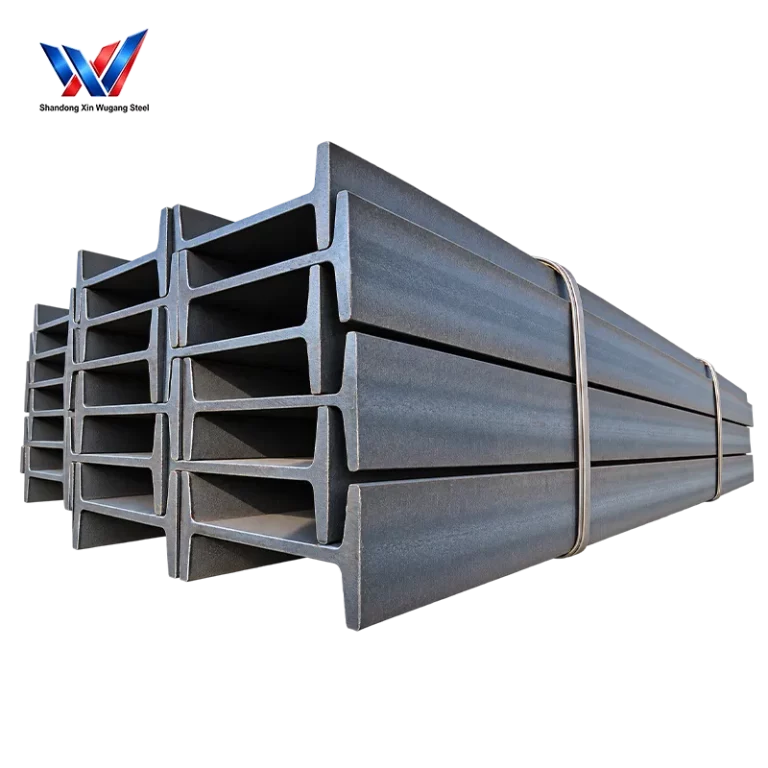

I-Beam

I-Beam

View More

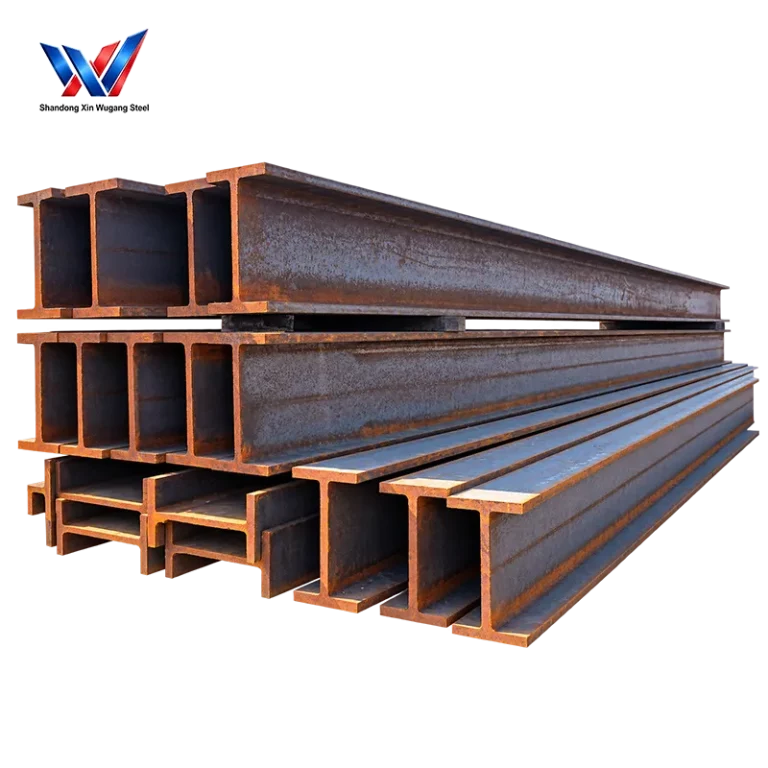

H-Beam
