  1. Full global standard coverage: GB, ASTM, EN, JIS to match international project requirements
  2. Complete size range: light‑duty, heavy‑duty for different load‑bearing demands
  3. Flexible length supply, diversified surface treatment & custom machining service
  4. Good lateral rigidity, cost‑effective for secondary beams and supporting structures
Contact Us

Product Overview

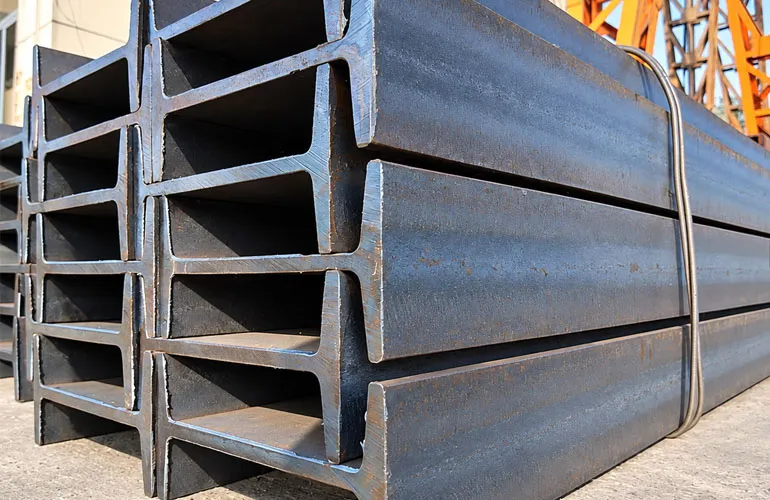

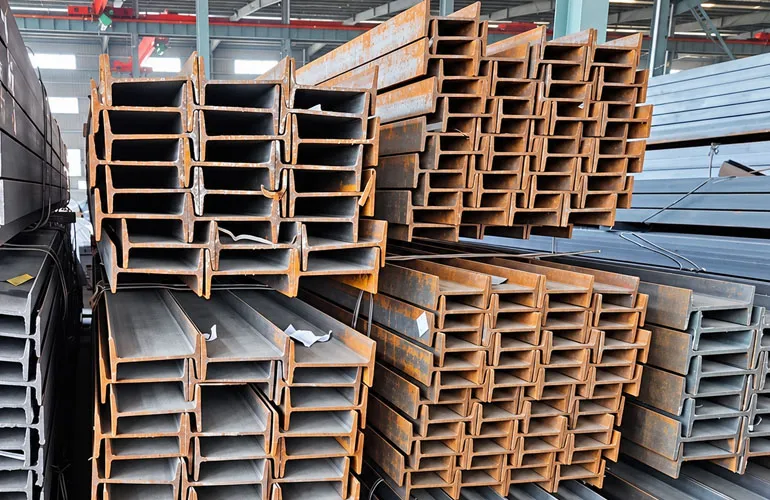

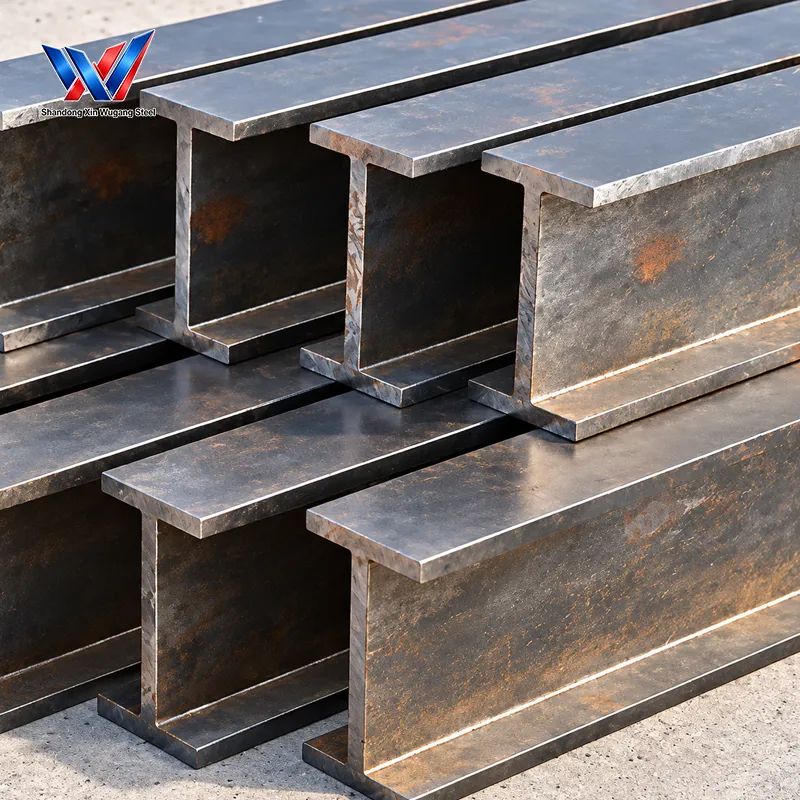

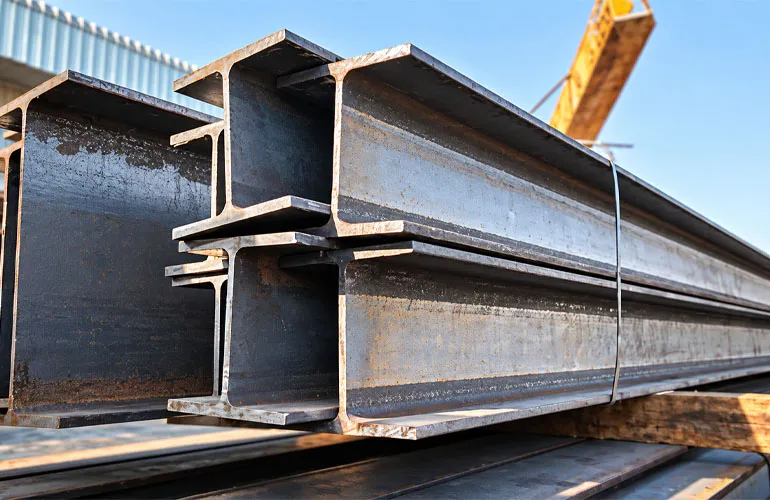

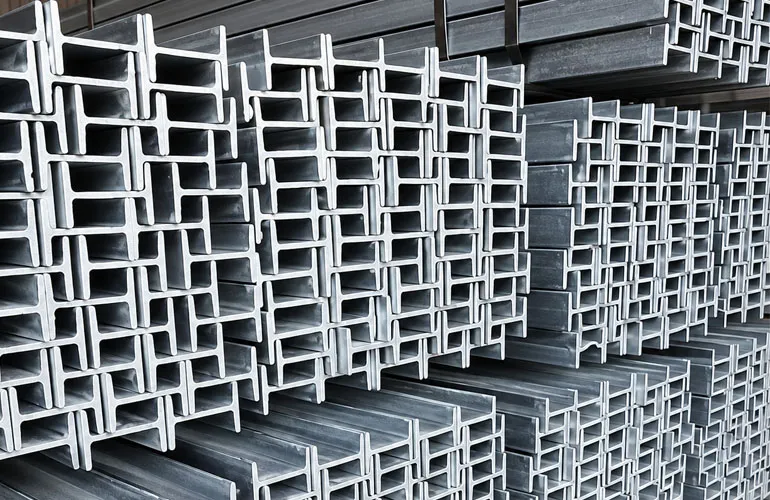

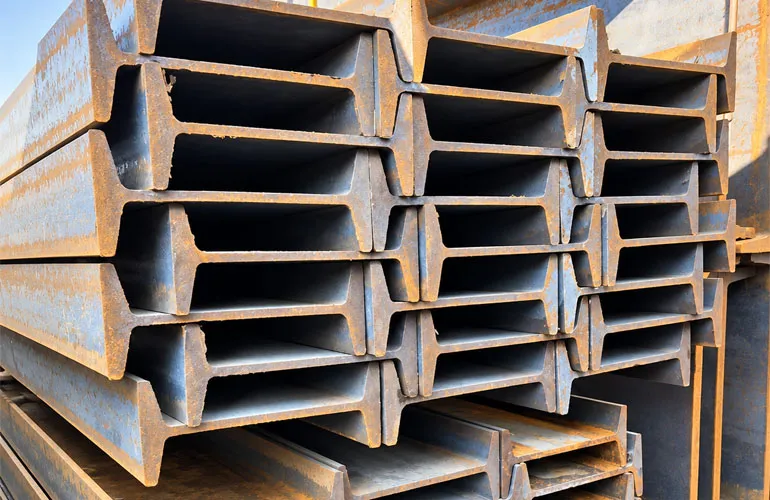

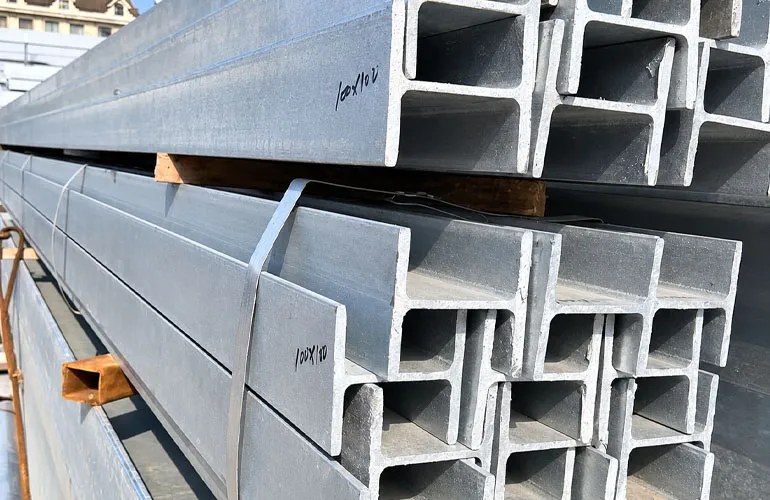

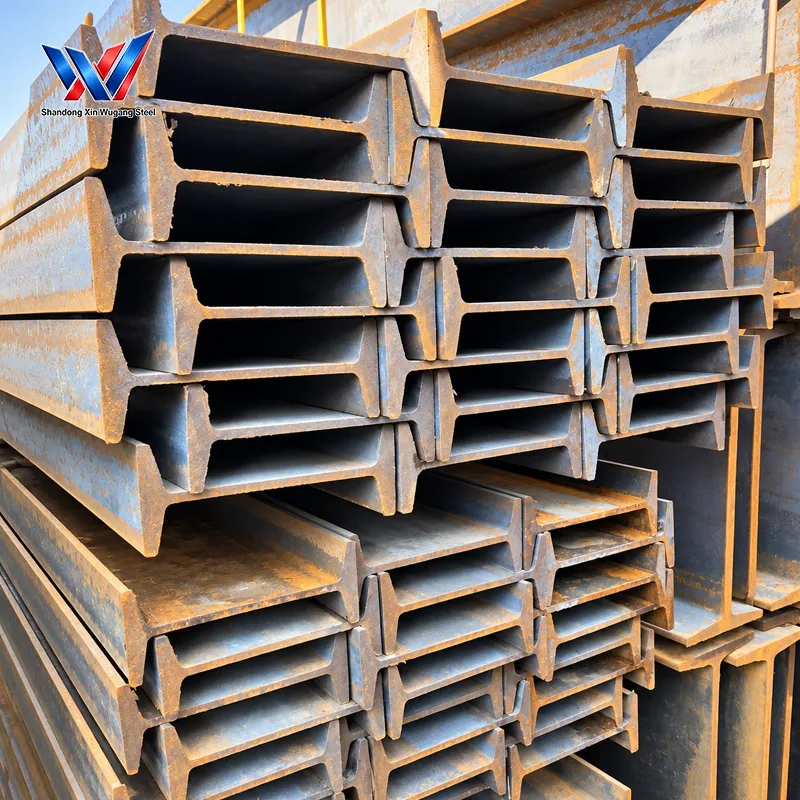

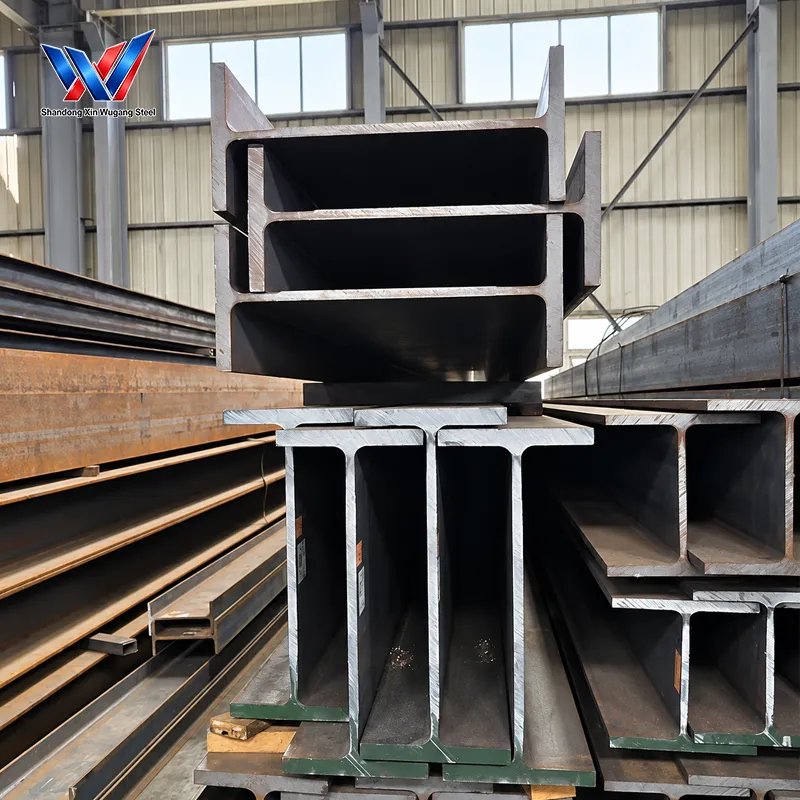

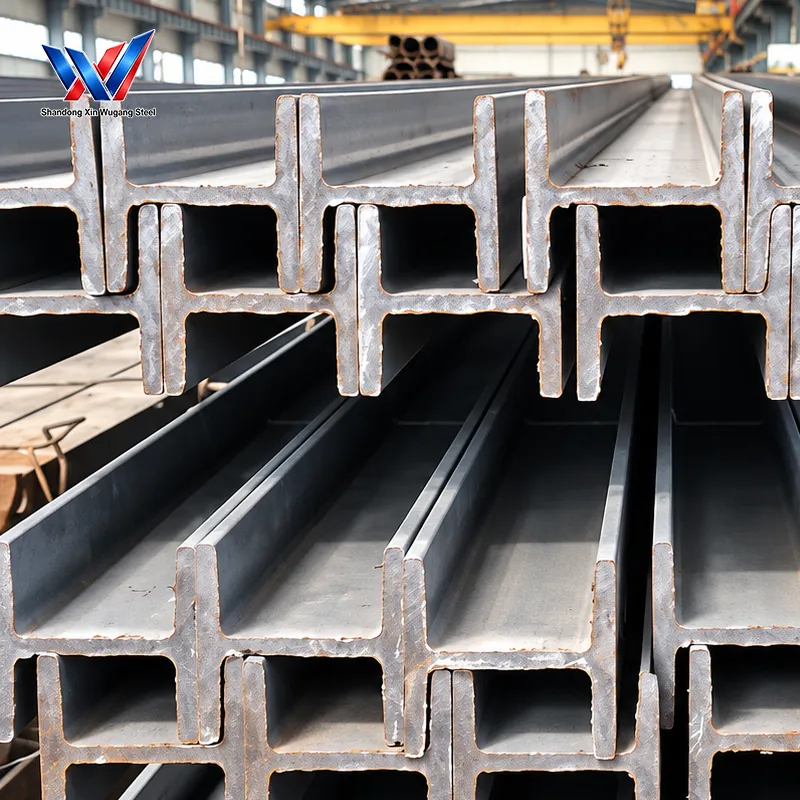

I-Beam is a hot-rolled I-shaped structural steel section designed for secondary load-bearing and supporting structures. It is manufactured according to major international standards including GB/T 706-2016, GB/T 11263-2017, ASTM A6/A6M-22, EN 10034-2019, EN 10210-1, JIS G3192-2018 and ISO 657-2017, supporting different international project specifications.

The product range covers multiple international I-Beam systems, including Chinese light-duty and heavy-duty I-Beams, European IPN, American S-Series and Japanese IS-Series. The Chinese range includes light-duty sections from 10# to 128a/128b and heavy-duty sections from 130a/130b to 163a/163b. European IPN sections range from IPN80 to IPN550, while the supplied American S-Series and Japanese IS-Series cover their respective standard sizes.

Available material grades include Q235B, Q355B, Q345B, Q355NL, Q420, A36, A572 Gr.50, A572 Gr.60, A992, A588, S235JR, S275JR, S355JR, S460JR, SS400, SS490 and SM490B. Standard delivery lengths are 6 m, 9 m and 12 m, with customized lengths from 3 m to 18 m and cut-to-length service available.

I-Beams are widely used for secondary beams, crane beams, equipment platform supports, pipeline brackets, machine bases, conveyor supports, mezzanine beams, stair supports, warehouse rack beams, temporary construction beams and ship auxiliary structures. Surface treatment and processing options include shot blasting, pickling, anti-corrosive paint, hot-dip galvanizing, fire-retardant coating, end beveling, drilling and cutting according to customer drawings.

I-Beam

Chemical & Mechanical Property Snapshot

Grade Standard C Max % Si Max % Mn Max % P Max % S Max % Yield Strength (MPa) Tensile Strength (MPa) Elongation (A5 %)
Q235B GB/T 706 0.20 0.35 1.40 0.045 0.045 ≥235 370~500 ≥26
Q355B GB/T 706 0.20 0.50 1.60 0.035 0.035 ≥355 470~630 ≥21
Q345B GB/T 706 0.20 0.50 1.70 0.035 0.035 ≥345 470~630 ≥21
Q355NL GB/T 706 0.18 0.50 1.60 0.030 0.025 ≥355 470~630 ≥22
Q420 GB/T 706 0.20 0.50 1.70 0.035 0.035 ≥420 520~680 ≥19
A36 ASTM A6 0.25 0.40 1.20 0.040 0.050 ≥250 400~550 ≥20
A572 Gr.50 ASTM A6 0.23 0.40 1.35 0.040 0.050 ≥345 450~600 ≥18
A572 Gr.60 ASTM A6 0.26 0.40 1.35 0.040 0.050 ≥415 520~670 ≥17
A992 ASTM A6 0.23 0.50 1.35 0.040 0.050 ≥345 450~620 ≥18
A588 ASTM A6 0.19 0.30 1.25 0.040 0.050 ≥345 485~620 ≥18
S235JR EN 10025 0.17 0.35 1.40 0.035 0.035 ≥235 360~510 ≥25
S275JR EN 10025 0.21 0.35 1.40 0.035 0.035 ≥275 410~560 ≥23
S355JR EN 10025 0.24 0.55 1.60 0.035 0.035 ≥355 470~630 ≥21
S460JR EN 10025 0.20 0.60 1.70 0.030 0.030 ≥460 540~720 ≥17
SS400 JIS G3192 0.25 — 1.40 0.040 0.040 ≥245 400~510 ≥21
SS490 JIS G3192 0.32 — 1.60 0.040 0.040 ≥325 490~610 ≥19
SM490B JIS G3192 0.18 0.55 1.60 0.035 0.035 ≥325 490~610 ≥21

Detailed Technical Specifications

Technical Item Detailed Specification
Product Name I-Beam
Product Type Hot-Rolled I-Shaped Structural Steel
Level 1 Category Structural Section/Profile
Level 2 Category H & I & W Beam
Level 3 Category I-Beam
Applicable Standards GB/T 706-2016; GB/T 11263-2017; ASTM A6/A6M-22; EN 10034-2019; EN 10210-1; JIS G3192-2018; ISO 657-2017
Chinese Light-Duty Series 10#, 12#, 14#, 16#, 18#, 20a/20b, 22a/22b, 25a/25b, 28a/28b
Chinese Heavy-Duty Series 30a/30b/30c, 36a/36b/36c, 40a/40b/40c, 45a/45b/45c, 56a/56b/56c, 63a/63b/63c
European Series IPN80, IPN100, IPN120, IPN140, IPN160, IPN180, IPN200, IPN220, IPN240, IPN270, IPN300, IPN330, IPN360, IPN400, IPN450, IPN500, IPN550
American S-Series S6×12.5, S8×18.4, S10×25.4, S12×31.8, S15×42.9, S18×54.7, S20×65.4, S24×79.9
Japanese IS-Series IS100, IS125, IS150, IS200, IS250, IS300, IS350, IS400
Chinese Material Grades Q235B, Q355B, Q345B, Q355NL, Q420
American Material Grades A36, A572 Gr.50, A572 Gr.60, A992, A588
European Material Grades S235JR, S275JR, S355JR, S460JR
Japanese Material Grades SS400, SS490, SM490B
Standard Lengths 6 m / 9 m / 12 m
Custom Lengths 3–18 m
Cut-to-Length Available
Original Surface Hot-Rolled Black Finish
Surface Treatment Shot-Blasting, Pickling, Anti-Corrosive Paint, Hot-Dip Galvanizing, Fire-Retardant Coating
Machining Services End Beveling, Drilling, Cutting
Drawing-Based Processing Cutting and processing according to customer drawings
Quality Documentation Mill Test Certificate
MTC Verification Chemical Composition and Mechanical Performance
Packing Seaworthy Export-Grade Packing
Industrial Applications Secondary beams, light/heavy crane beams, equipment platform supports, steel platform frames
Municipal Applications Pipeline brackets, street lamp foundation supports, municipal retaining wall supports, bridge auxiliary structures
Mechanical Applications Small equipment racks, machine tool bases, conveyor supports
Civil Construction Window lintels, mezzanine bearing beams, stair support beams, prefabricated building sub-components
Warehouse Applications Secondary beams for warehouse racks
Temporary Construction Temporary construction beams
Marine Applications Ship auxiliary structures
MOQ 5 Ton
Payment Terms T/T, L/C at Sight
Delivery Time 7–15 working days after receiving deposit
Package Steel strips bundled, wrapped with waterproof plastic sheet; suitable for sea freight container

Dimension Table

Designation Height (H) mm Flange Width (B) mm Web Thickness (tw) mm Flange Thickness (tf) mm Weight kg/m Section Area cm²
I10# 100 68 4.5 7.6 11.26 14.3
I12# 120 74 5.0 8.4 13.99 17.8
I14# 140 80 5.5 9.1 16.89 21.5
I16# 160 88 6.0 9.9 20.51 26.1
I18# 180 94 6.5 10.7 24.14 30.8
I20a 200 100 7.0 11.4 27.91 35.5
I20b 200 102 9.0 11.4 31.07 39.5
I22a 220 110 7.5 12.3 33.07 42.0
I22b 220 112 9.5 12.3 36.52 46.4
I25a 250 116 8.0 13.0 38.11 48.5
I25b 250 118 10.0 13.0 42.03 53.5
I28a 280 122 8.5 13.7 43.49 55.4
I28b 280 124 10.5 13.7 47.89 61.0
I30a 300 126 9.0 14.4 48.00 61.2
I30b 300 128 11.0 14.4 52.79 67.2
I30c 300 130 13.0 14.4 57.50 73.2
I36a 360 136 10.0 15.8 60.04 76.3
I36b 360 138 12.0 15.8 65.69 83.5
I36c 360 140 14.0 15.8 71.34 90.7
I40a 400 142 10.5 16.5 67.59 86.1
I40b 400 144 12.5 16.5 73.87 94.1
I40c 400 146 14.5 16.5 80.16 102.1
I45a 450 150 11.5 18.0 80.42 102.4
I45b 450 152 13.5 18.0 87.48 111.4
I45c 450 154 15.5 18.0 94.55 120.4
I56a 560 166 12.5 21.0 106.32 135.4
I56b 560 168 14.5 21.0 115.11 146.5
I56c 560 170 16.5 21.0 123.90 157.6
I63a 630 176 13.0 22.0 121.41 154.7
I63b 630 178 15.0 22.0 131.30 167.3
I63c 630 180 17.0 22.0 141.19 179.9
IPN80 80 42 3.9 5.9 6.0 7.6
IPN100 100 50 4.5 6.8 8.3 10.6
IPN120 120 58 5.1 7.7 11.1 14.2
IPN140 140 66 5.7 8.6 14.3 18.3
IPN160 160 74 6.3 9.5 17.9 22.8
IPN180 180 82 6.9 10.4 21.9 27.9
IPN200 200 90 7.5 11.3 26.2 33.4
IPN220 220 98 8.1 12.2 31.1 39.5
IPN240 240 106 8.7 13.1 36.4 46.2
IPN270 270 114 9.5 14.2 42.2 53.7
IPN300 300 124 10.2 15.3 48.1 61.3
IPN330 330 133 11.0 16.3 54.7 69.7
IPN360 360 142 11.8 17.4 61.2 78.2
IPN400 400 152 12.8 18.6 69.4 88.5
IPN450 450 165 14.0 20.0 79.6 101.5
IPN500 500 177 15.2 21.3 90.7 115.7
IPN550 550 190 16.5 22.7 103.0 131.2
S6×12.5 152.4 63.5 4.3 7.5 18.6 23.7
S8×18.4 203.2 80.0 5.3 8.8 27.4 34.9
S10×25.4 254.0 88.9 6.1 10.2 37.8 48.1
S12×31.8 304.8 101.6 6.6 10.9 47.3 60.1
S15×42.9 381.0 127.0 7.9 12.8 63.8 81.1
S18×54.7 457.2 152.4 9.0 14.5 81.4 103.5
S20×65.4 508.0 152.4 10.0 16.0 97.3 123.7
S24×79.9 609.6 177.8 10.9 17.4 119.0 151.3
IS100 100 50 4.2 7.2 8.4 10.7
IS125 125 65 4.8 8.1 11.9 15.1
IS150 150 75 5.4 9.0 15.7 19.9
IS200 200 100 6.2 10.2 25.4 32.3
IS250 250 125 6.9 11.6 37.3 47.5
IS300 300 150 7.6 13.0 50.7 64.5
IS350 350 165 8.1 14.2 61.8 78.6
IS400 400 180 8.6 15.3 72.5 92.2

Product Comparison Table

Material Grade Equivalent International Grade Standard Min Yield Strength (MPa) Tensile Strength (MPa) Core Features Typical Application
Q235B S235JR / A36 / SS400 GB/T706, EN10025, ASTM A6, JIS G3192 235 370~500 General carbon steel, excellent weldability, low cost Common building beams, support frames, general structures
Q355B S355JR / A572 Gr.50 / SS490 GB/T706, EN10025, ASTM A6, JIS G3192 355 470~630 High strength, good toughness, widely used in heavy load Warehouse beams, crane beams, bridge auxiliary structures
Q345B S355JR / A572 Gr.50 GB/T706, EN10025, ASTM A6 345 470~630 Classic low alloy steel, stable performance Mechanical bases, equipment supports
Q355NL S355NL / A572 Gr.50 GB/T706, EN10025, ASTM A6 355 470~630 Low temperature impact resistance, suitable for cold environment Outdoor low-temperature engineering, northern construction projects
Q420 S420JR / A572 Gr.60 GB/T706, EN10025, ASTM A6 420 520~680 Ultra high strength low alloy steel Heavy machinery frame, high load bearing structures
A36 Q235B / S235JR / SS400 ASTM A6, GB/T706, EN10025, JIS G3192 250 400~550 American standard general structural steel US standard construction projects
A572 Gr.50 Q355B / S355JR / SS490 ASTM A6, GB/T706, EN10025, JIS G3192 345 450~600 High strength low alloy, Columbium-Vanadium steel North America heavy load structural projects
A572 Gr.60 Q420 / S460JR ASTM A6, GB/T706, EN10025 415 520~670 Higher strength, limited ductility High-load equipment supporting structures
A992 Q355B / S355JR ASTM A6, GB/T706, EN10025 345 450~620 Preferred grade for US structural steel frames American building frame projects
A588 Q355B weathering option ASTM A6, GB/T706 345 485~620 Atmospheric corrosion resistant steel, weathering performance Outdoor structures without painting
S235JR Q235B / A36 / SS400 EN10025, GB/T706, ASTM A6, JIS G3192 235 360~510 EU standard general carbon steel, excellent weldability European standard civil construction
S275JR Q275B / A283 Gr.D EN10025 275 410~560 Medium strength carbon steel Medium load support structure
S355JR Q355B / A572 Gr.50 / SS490 EN10025, GB/T706, ASTM A6, JIS G3192 355 470~630 EU low alloy high strength steel European heavy engineering
S460JR Q420 / A572 Gr.60 EN10025, GB/T706, ASTM A6 460 540~720 EU ultra high strength steel Heavy industry mechanical structures
SS400 Q235B / S235JR / A36 JIS G3192, GB/T706, EN10025, ASTM A6 245 400~510 JIS general structural steel Japanese standard construction projects
SS490 Q355B / S355JR / A572 Gr.50 JIS G3192, GB/T706, EN10025, ASTM A6 325 490~610 JIS high strength structural steel Japanese heavy load engineering
SM490B Q355B / S355JR JIS G3192, GB/T706, EN10025 325 490~610 JIS low alloy steel, good seismic performance Building seismic support, steel platform



App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

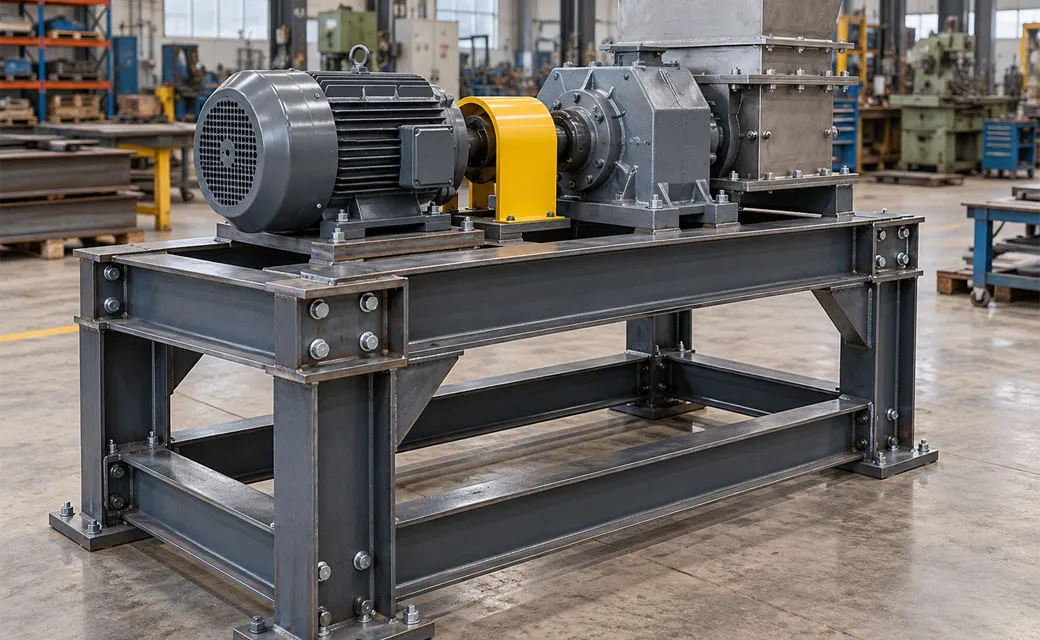

Small Equipment Frame

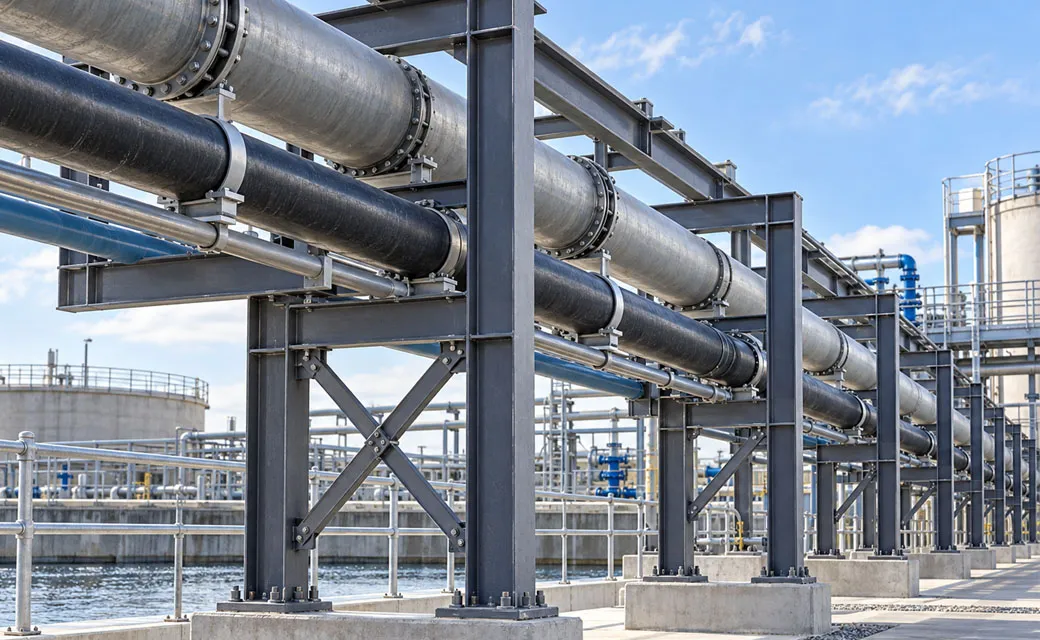

Pipe Support

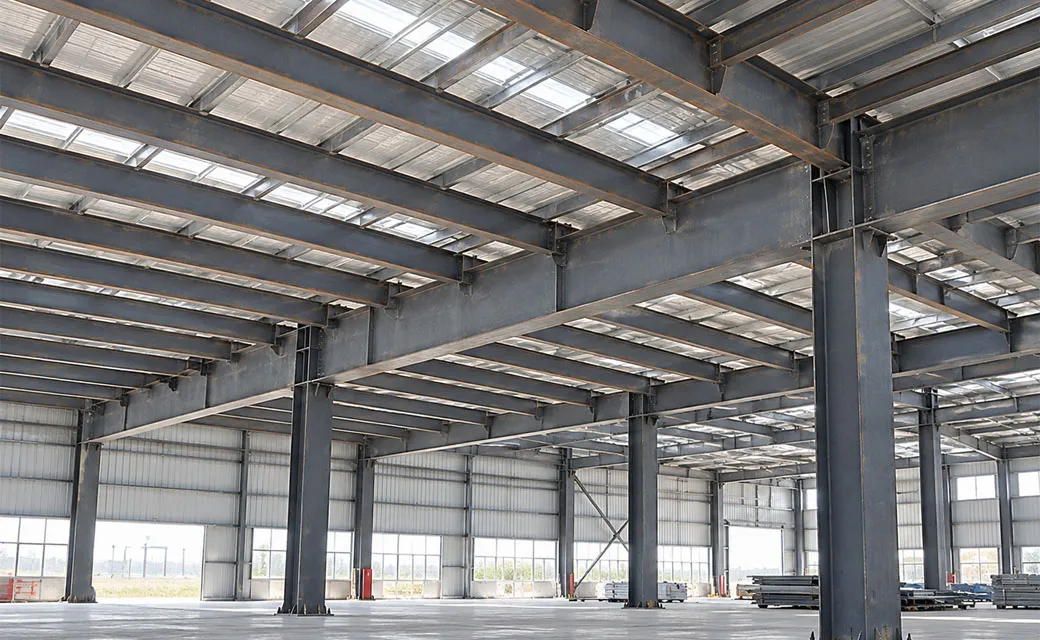

Factory Secondary Beam

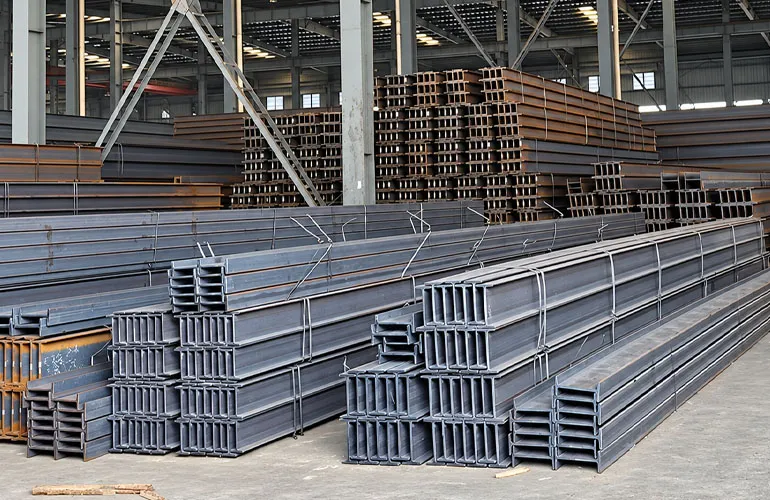

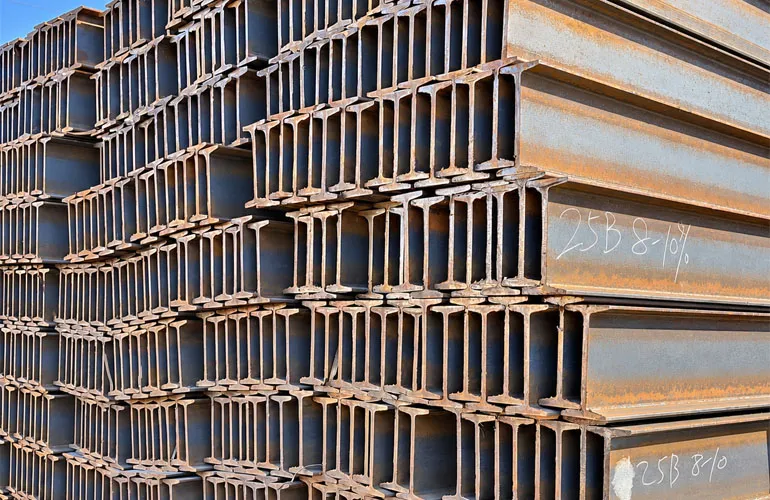

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

I-Beam is commonly used for secondary beams, crane beams, equipment platform supports, pipeline brackets, machine bases, conveyor supports, mezzanine beams, stair supports, warehouse rack beams and ship auxiliary structures.

The supplied range includes Chinese light-duty I-Beams from 10# to 128a/128b, heavy-duty sections from 130a/130b to 163a/163b, European IPN80–IPN550, American S-Series and Japanese IS100–IS400.

Available grades include Q235B, Q355B, Q345B, Q355NL, Q420, A36, A572 Gr.50, A572 Gr.60, A992, A588, S235JR, S275JR, S355JR, S460JR, SS400, SS490 and SM490B.

Yes. Standard lengths are 6 m, 9 m and 12 m, while custom lengths from 3 m to 18 m and cut-to-length service are supported.

Yes. Available surface treatments include shot blasting, pickling, anti-corrosive paint, hot-dip galvanizing and fire-retardant coating. End beveling, drilling and cutting can also be provided according to customer drawings.
