  1. Strictly follow North‑American ASTM standards, fully match US & Canada project tender requirements
  2. Comprehensive W‑series size range covering light, medium and extra‑heavy weight sections
  3. Flexible length supply, North‑America compliant painting & hot‑dip galvanizing treatment
  4. Excellent strength‑to‑weight ratio, ideal for high‑rise, bridge and heavy‑load structural systems
Contact Us

Product Overview

W-Beam is an American wide-flange, hot-rolled structural steel section designed for main load-bearing and supporting systems. It is manufactured according to ASTM A6/A6M-22, ASTM A992-22, ISO 657-2017, EN 10034-2019 and GB/T 11263-2017, making it suitable for North-American standard projects as well as cross-regional engineering procurement.

The product covers a comprehensive W-Series range from W4×13 to W44×335, including commonly specified sections such as W6×15, W8×24, W10×30, W12×50, W14×53, W16×67, W18×71, W21×55, W24×84, W27×94, W30×124 and W36×150. Material options include A992, A36, A572 Gr.50/Gr.60 and A588, with Q235B, Q355B, S235JR and S355JR also available for specified projects.

Standard delivery lengths are 6 m and 12 m, while customized lengths from 3 m to 18 m and cut-to-length processing are supported. Surface options include hot-rolled black finish, shot blasting, pickling, anti-corrosive coating, hot-dip galvanizing and fire-retardant coating. Fabrication services include end beveling, drilling, cutting, welding and component assembly according to customer drawings.

W-Beams are mainly used in North-American-style buildings, bridges, industrial facilities, new-energy projects and port engineering. Typical applications include building columns and roof girders, bridge girders and cross beams, factory frames, crane beams, equipment bases, photovoltaic support frames, wind-turbine base structures, power-station structures and port equipment racks.

W-Beam

Chemical & Mechanical Property Snapshot

Grade Standard C Max (%) Mn (%) P Max (%) S Max (%) Si (%) Yield Strength MPa Tensile Strength MPa Elongation %
A992 ASTM A992 0.23 0.80–1.35 0.035 0.045 0.40 max ≥345 450–620 ≥18
A36 ASTM A36 0.25 0.80–1.20 0.040 0.050 0.40 max ≥250 400–550 ≥20
A572 Gr.50 ASTM A572 Gr50 0.23 0.80–1.35 0.035 0.045 0.40 max ≥345 450–600 ≥18
A572 Gr.60 ASTM A572 Gr60 0.26 0.80–1.35 0.035 0.045 0.40 max ≥415 520–650 ≥17
A588 ASTM A588 0.19 0.80–1.25 0.035 0.040 0.30–0.65 ≥345 485–620 ≥18
Q235B GB/T 11263 0.20 0.30–0.70 0.045 0.050 ≤0.35 ≥235 375–500 ≥21
Q355B GB/T 11263 0.20 0.90–1.65 0.035 0.035 ≤0.50 ≥355 470–630 ≥21
S235JR EN 10025 0.17 ≤1.40 0.035 0.035 ≤0.35 ≥235 360–510 ≥24
S355JR EN 10025 0.24 ≤1.60 0.035 0.035 ≤0.55 ≥355 470–630 ≥21

Detailed Technical Specifications

Technical Item Detailed Specification
Product Name W-Beam
Product Type American Wide-Flange Hot-Rolled Structural Steel
Level 1 Category Structural Section/Profile
Level 2 Category H & I & W Beam
Level 3 Category W-Beam
Applicable Standards ASTM A6/A6M-22; ASTM A992-22; ISO 657-2017; EN 10034-2019; GB/T 11263-2017
W-Series Range W4×13–W44×335
Common W-Series Models W6×15, W6×20, W8×18, W8×21, W8×24, W10×22, W10×30, W10×39, W12×26, W12×35, W12×40, W12×50, W14×34, W14×43, W14×53, W14×68, W16×36, W16×40, W16×50, W16×67, W18×40, W18×50, W18×60, W18×71, W21×44, W21×55, W21×68, W21×83, W24×55, W24×68, W24×76, W24×84, W24×103, W27×84, W27×94, W27×102, W30×90, W30×108, W30×116, W30×124, W36×135, W36×150, W40×149, W44×335
Primary US Grades A992, A36, A572 Gr.50, A572 Gr.60, A588
Alternative Grades Q355B, Q235B, S355JR, S235JR
Standard Lengths 6 m / 12 m
Custom Length 3–18 m
Cut-to-Length Available
Original Surface Hot-Rolled Black Finish
Surface Treatment Shot-Blasting, Pickling, Anti-Corrosive Paint Coating, Hot-Dip Galvanizing, Fire-Retardant Coating
Galvanizing Coating Weight 120–275 g/m²
Fabrication Services End Beveling, Drilling, Cutting, Welding, Component Assembly
Drawing-Based Processing Available according to customer drawings
Quality Documentation Official Mill Test Certificate
MTC Content Chemical Composition and Mechanical Properties
Packing Seaworthy Export Packing
Building Applications Main columns, roof girders, commercial building frames, high-rise steel structures
Bridge Applications Highway and railway bridge girders, cross beams, viaduct frameworks, auxiliary supports
Industrial Applications Factory steel frames, crane beams, equipment bases, storage-rack upright columns
New Energy Applications Photovoltaic support frames, wind-turbine base frameworks, power-station steel structures
Oil & Chemical Applications Oil-chemical plant structures
Port Applications Port handling equipment racks
Other Applications Tower crane bases, temporary construction supports, prefabricated building components
MOQ 5 Ton
Payment Terms T/T, L/C at Sight
Delivery Time 7–15 working days after receiving deposit

Dimension Table

Designation Height (H) mm Flange Width (B) mm Web Thickness (tw) mm Flange Thickness (tf) mm Weight kg/m Section Area cm²
W4×13 101.6 101.6 5.8 7.6 19.3 24.6
W6×15 152.4 101.6 5.6 7.1 22.3 28.4
W6×20 152.4 152.4 6.6 9.1 29.8 37.9
W8×18 203.2 101.6 5.8 7.6 26.8 34.2
W8×21 203.2 133.4 6.1 7.9 31.2 39.8
W8×24 203.2 165.1 6.1 8.3 35.8 45.7
W10×22 254.0 101.6 6.1 8.4 32.7 41.7
W10×30 254.0 146.0 6.6 9.9 44.6 56.9
W10×39 254.0 165.1 9.1 11.8 57.9 73.8
W12×26 304.8 127.0 6.1 8.4 38.6 49.2
W12×35 304.8 165.1 6.6 9.9 52.0 66.2
W12×40 304.8 190.5 7.2 10.2 59.2 75.4
W12×50 304.8 203.2 9.1 12.6 74.0 94.4
W14×34 355.6 165.1 6.6 9.7 50.7 64.7
W14×43 355.6 177.8 7.9 11.2 64.0 81.6
W14×53 355.6 203.2 9.1 12.8 78.8 100.4
W14×68 355.6 254.0 10.2 14.7 101.2 128.8
W16×36 406.4 152.4 6.6 9.9 53.5 68.2
W16×40 406.4 177.8 6.6 10.2 59.2 75.4
W16×50 406.4 203.2 7.9 11.8 74.0 94.4
W18×50 457.2 190.5 7.9 11.8 74.0 94.4
W18×60 457.2 203.2 9.1 13.5 89.0 113.6
W18×71 457.2 254.0 10.2 14.7 105.4 134.6
W21×44 533.4 165.1 7.1 10.2 65.3 83.4
W21×55 533.4 190.5 8.1 12.1 81.7 104.3
W21×68 533.4 210.8 9.7 13.8 101.2 128.8
W21×83 533.4 254.0 10.9 16.3 123.5 157.2
W24×55 609.6 177.8 7.9 11.2 81.7 104.3
W24×68 609.6 203.2 9.1 13.0 101.2 128.8
W24×84 609.6 228.6 10.5 15.4 124.8 158.9
W24×103 609.6 254.0 12.6 17.7 152.9 194.8
W27×84 685.8 228.6 10.2 14.7 124.8 158.9
W27×94 685.8 254.0 10.9 15.7 139.7 178.1
W27×107 685.8 254.0 12.3 17.4 159.1 202.8
W30×90 762.0 210.8 11.2 16.3 133.7 170.6
W30×108 762.0 254.0 11.9 17.4 160.6 204.7
W30×124 762.0 254.0 13.8 19.6 184.3 234.8
W36×135 914.4 304.8 14.0 20.1 200.7 255.8
W36×150 914.4 304.8 15.9 21.7 223.0 284.2
W40×149 1016.0 304.8 14.4 20.3 221.5 282.3
W44×335 1117.6 419.1 25.0 41.3 498.9 636.2

Product Comparison Table

W-Beam Grade Equivalent Grade Applicable Standard Yield Strength MPa Tensile Strength MPa Typical Application Selection Consideration
A992 W-Beam Q355B / S355JR ASTM A992 ≥345 450–620 Steel building frames, columns, girders, commercial high-rise structures The most popular US wide-flange grade; direct replacement for A572 Gr50 for building projects
A36 W-Beam Q235B / S235JR ASTM A36 ≥250 400–550 General construction, secondary supports, non-load heavy structures Low carbon, excellent weldability; ideal for general structural fabrication
A572 Gr.50 W-Beam Q355B / S355JR ASTM A572 Gr.50 ≥345 450–600 Bridges, industrial frames, crane beams, heavy load members High strength low alloy steel; widely used for bridge & industrial projects
A572 Gr.60 W-Beam Q420B ASTM A572 Gr.60 ≥415 520–650 Heavy machinery base, high-load support structures Higher strength grade for heavy duty design, strict welding procedure required
A588 Weathering W-Beam Q355NH ASTM A588 ≥345 485–620 Outdoor bridge, viaduct, open-air structures, no painting required Atmospheric corrosion resistant steel; develops protective rust patina, long service life
Q235B W-Beam A36 / S235JR GB/T 11263 ≥235 375–500 Domestic building frames, temporary supports, low-load structures Chinese standard grade, cost-effective, good weldability
Q355B W-Beam A992 / A572 Gr50 / S355JR GB/T 11263 ≥355 470–630 Bridges, factory frames, new energy support structures China mainstream high strength structural grade, widely export alternative to ASTM grades
S235JR W-Beam A36 / Q235B EN 10025 ≥235 360–510 European standard construction, general structural frames European common carbon structural steel, suitable for EU tender projects
S355JR W-Beam A992 / A572 Gr50 / Q355B EN 10025 ≥355 470–630 EU bridge, industrial heavy load structures European high strength low alloy steel, substitute for A992 for European projects

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

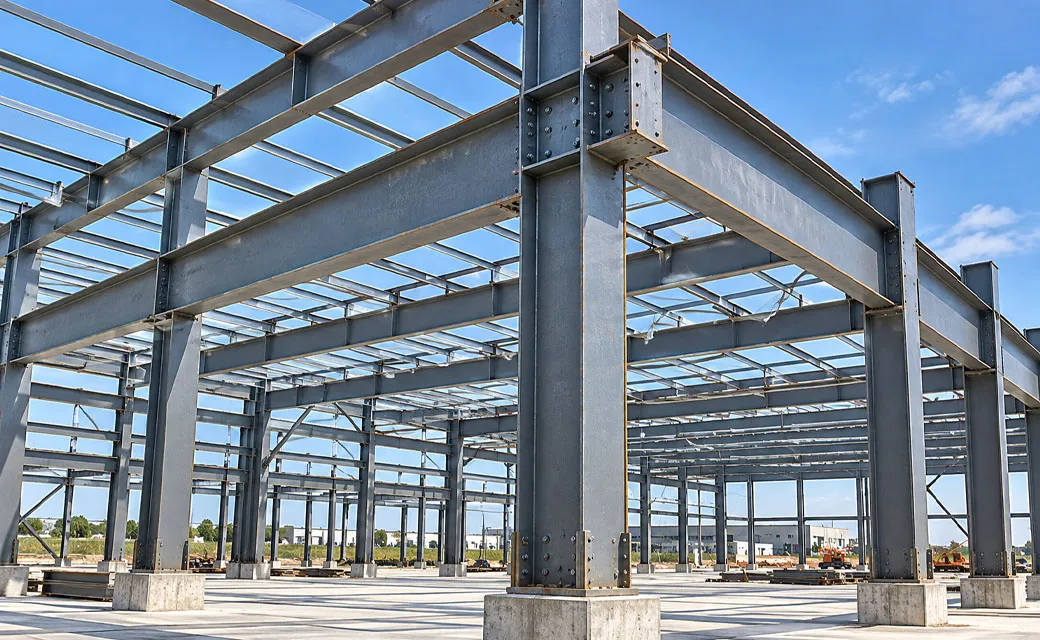

North American Factory Building Frame

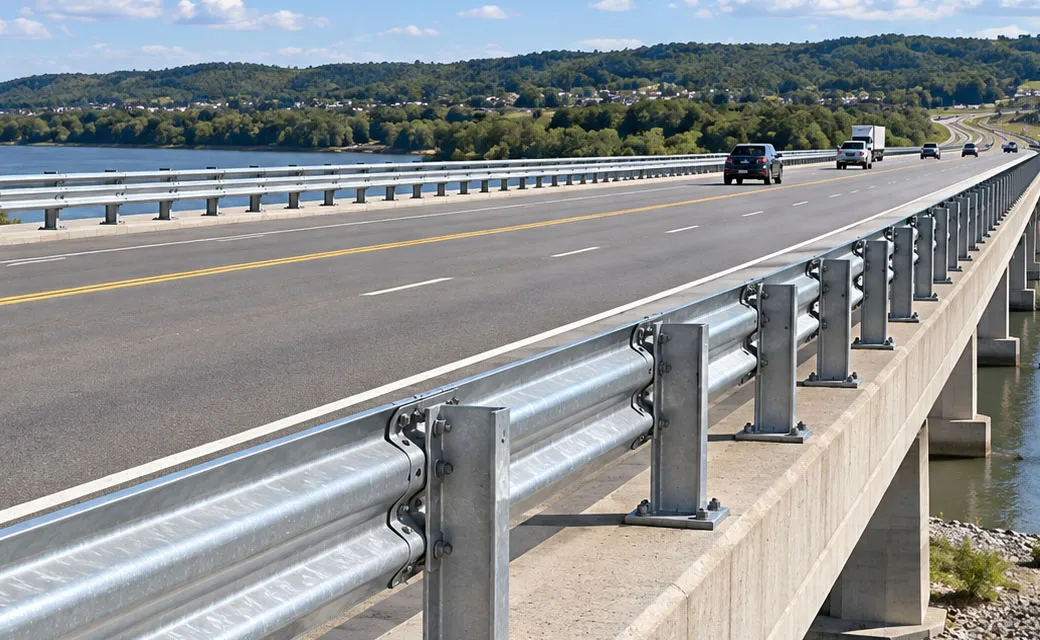

North American Highway Bridges

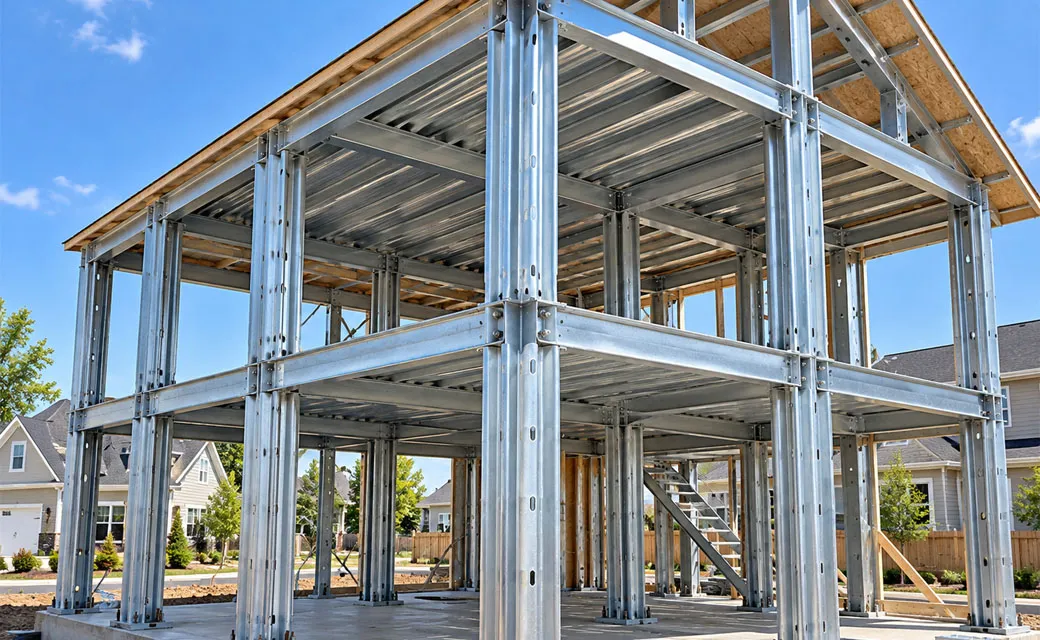

Main Column for Steel Structure Residential Buildings

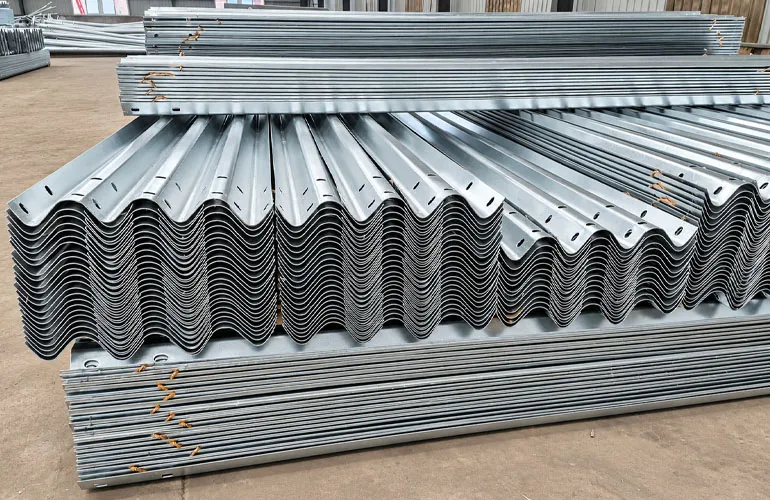

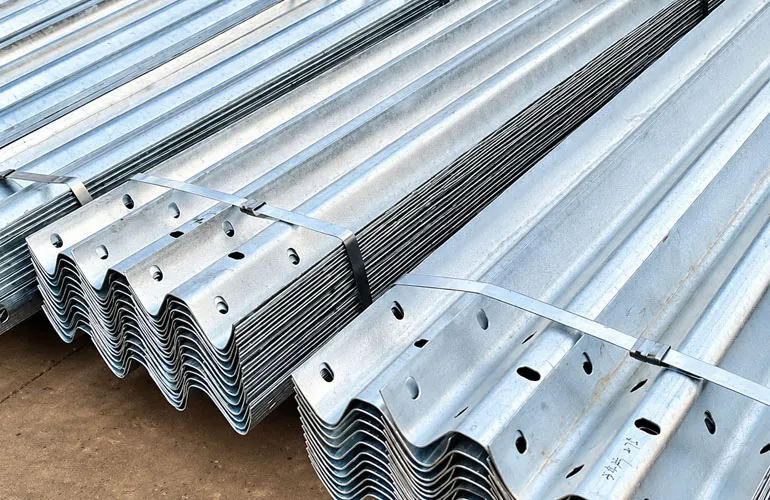

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

W-Beam is an American wide-flange hot-rolled structural steel section widely used in North-American construction and heavy-duty infrastructure projects.

The supplied W-Series range extends from W4×13 to W44×335, including commonly specified sections such as W6×15, W8×24, W10×30, W12×50, W14×53, W16×67, W18×71, W21×55, W24×84, W27×94, W30×124 and W36×150.

The main supplied grades are A992, A36, A572 Gr.50, A572 Gr.60 and A588. Q235B, Q355B, S235JR and S355JR are also available for specified projects.

Yes. Standard lengths are 6 m and 12 m, while customized lengths from 3 m to 18 m and cut-to-length processing are available.

Yes. Surface options include hot-dip galvanizing, anti-corrosive coating, shot blasting, pickling and fire-retardant coating. Fabrication services include beveling, drilling, cutting, welding and component assembly according to customer drawings.
