API 5CT Oil Casing & Tubing Pipe | H40 J55 K55 N80 L80 P110 OCTG Seamless Steel Pipe

Strictly complies with API Spec 5CT / 5B & ISO 11960 standards, widely accepted by global oilfield operators
Full grade range from H40 to V150, covering general, high-strength and corrosion-resistant OCTG requirements
Multiple thread options: BTC, LC, SC, LTC and premium VAM connections for different downhole conditions
Standard R1/R2/R3 lengths available, custom cut-to-length for specific well depth projects
Full API standard inspection per batch, complete Mill Test Report for full quality traceability

Product Overview

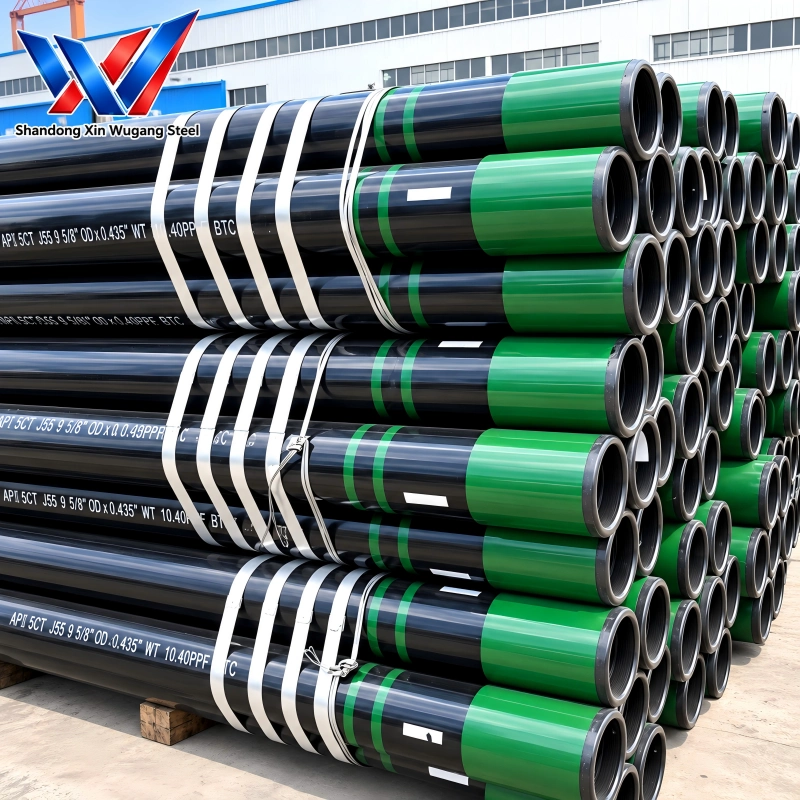

API Oil/Casing Pipe is a core Oil Country Tubular Goods (OCTG) product specially designed for onshore and offshore oil, gas, geothermal and shale gas well operations. It is mainly used as casing to support wellbore walls during drilling and completion, and as tubing to transport produced oil and gas from downhole to surface. All products are manufactured and inspected in strict accordance with API Spec 5CT, API Spec 5B and ISO 11960 international standards.

The product covers a complete steel grade system to adapt to different well depth, pressure and corrosion conditions. General-purpose grades H40, J55 and K55 are suitable for shallow to medium depth conventional wells; high-strength grades N80, L80, C90, T95 and P110 are designed for medium-deep high-pressure wells and fracturing operations; ultra-high strength grades Q125 and V150 are for ultra-deep wells and high-stress fracturing environments; corrosion-resistant alloy grades L80-9Cr and L80-13Cr are specially used for acid gas and high corrosive downhole conditions.

The pipe supports multiple thread connection solutions: standard threads including BTC buttress thread, LC long thread coupling, SC short thread coupling and LTC long round thread, as well as VAM premium special connections for high-sealing and high-pressure demanding environments. Standard lengths are available in R1 (4.88m), R2 (7.32m) and R3 (10.36m) to match different well depth designs, and custom fixed lengths can also be provided according to project drawings.

This OCTG pipe is widely used in onshore oilfields, offshore drilling platforms, shale gas extraction, coal-bed methane wells, geothermal projects, hydraulic fracturing operations and oil-gas gathering systems.

API Oil/Casing Pipe

Chemical & Mechanical Property Snapshot

Grade	C (%)	Mn (%)	P (Max %)	S (Max %)	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)
H40	0.28–0.38	1.20–1.50	0.030	0.030	276	≥414	≥29
J55	0.28–0.39	1.20–1.50	0.030	0.030	379–552	≥517	≥24
K55	0.28–0.39	1.20–1.50	0.030	0.030	379–552	≥655	≥24
N80	0.28–0.43	1.30–1.60	0.030	0.030	552–758	≥689	≥18
L80	0.25–0.35	1.20–1.50	0.030	0.030	552–655	≥689	≥18
L80-9Cr	0.15 Max	0.30–0.60	0.020	0.010	552–655	≥689	≥18
L80-13Cr	0.15 Max	0.25–0.60	0.020	0.010	552–655	≥689	≥18
C90	0.25–0.35	1.20–1.50	0.030	0.030	621–758	≥724	≥18
T95	0.25–0.35	1.20–1.50	0.030	0.030	655–758	≥724	≥18
P110	0.25–0.35	1.30–1.60	0.030	0.030	758–965	≥862	≥15
Q125	0.25–0.35	1.30–1.60	0.030	0.030	862–1034	≥931	≥14
V150	0.25–0.35	1.30–1.60	0.030	0.030	1034–1241	≥1103	≥12

Detailed Technical Specifications

Item	Technical Details
Product Name	API Oil / Casing Pipe (OCTG)
Product Category	Carbon Seamless Steel Pipe / Oil Country Tubular Goods
Applicable Standards	API Spec 5CT, API Spec 5B, ISO 11960, GB/T 1983, SY/T 6194
Tubing Steel Grades	J55, N80-1, N80-Q, L80-1, L80-9Cr, L80-13Cr, P110, C90, T95, Q125
Casing Steel Grades	H40, J55, K55, N80, L80, P110, V150
Tubing Outer Diameter Range	1.05″, 1.315″, 1.66″, 1.9″, 2-3/8″, 2-7/8″, 3-1/2″
Casing Outer Diameter Range	4-1/2″, 5-1/2″, 7″, 7-5/8″, 9-5/8″, 10-3/4″, 13-3/8″, 16″, 20″
Thread Types	BTC buttress thread, LC long thread coupling, SC short thread coupling, LTC long round thread, VAM premium special connection
Length Options	R1: 4.88m; R2: 7.32m; R3: 10.36m; custom length available
Application Environment	Onshore oilfield, offshore platform, shale gas, coal-bed methane, geothermal well, fracturing operation
Corrosion Resistant Options	L80-9Cr / L80-13Cr alloy series for acid gas and corrosive environments
Inspection Requirement	API standard dimensional check, hydrostatic test, NDT non-destructive test, thread gauge inspection
MOQ	5 Ton for standard sizes
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit
Package	Waterproof paper + galvanized steel strap + seaworthy export wooden pallet / bundle

Dimension Range Table

Type	Nominal Size (inch)	OD (mm)	Wall Thickness Options	Length
Tubing	1.05″	26.67	Standard / Heavy	R1 / R2 / R3
Tubing	1.315″	33.40	Standard / Heavy	R1 / R2 / R3
Tubing	1.66″	42.16	Standard / Heavy	R1 / R2 / R3
Tubing	1.9″	48.26	Standard / Heavy	R1 / R2 / R3
Tubing	2-3/8″	60.32	Standard / Heavy	R1 / R2 / R3
Tubing	2-7/8″	73.03	Standard / Heavy	R1 / R2 / R3
Tubing	3-1/2″	88.90	Standard / Heavy	R1 / R2 / R3
Casing	4-1/2″	114.30	Standard / Heavy / Extra Heavy	R1 / R2 / R3
Casing	5-1/2″	139.70	Standard / Heavy / Extra Heavy	R1 / R2 / R3
Casing	7″	177.80	Standard / Heavy / Extra Heavy	R1 / R2 / R3
Casing	7-5/8″	193.68	Standard / Heavy / Extra Heavy	R1 / R2 / R3
Casing	9-5/8″	244.48	Standard / Heavy / Extra Heavy	R1 / R2 / R3
Casing	10-3/4″	273.05	Standard / Heavy / Extra Heavy	R1 / R2 / R3
Casing	13-3/8″	339.73	Standard / Heavy / Extra Heavy	R1 / R2 / R3
Casing	16″	406.40	Standard / Heavy / Extra Heavy	R1 / R2 / R3
Casing	20″	508.00	Standard / Heavy / Extra Heavy	R1 / R2 / R3

Product Comparison Table

Steel Grade	Yield Strength Range	Grade Classification	Typical Well Condition & Application
H40	276 MPa	General purpose low strength	Shallow wells, surface casing, low pressure conductor pipe
J55 / K55	379–552 MPa	General purpose medium strength	Shallow to medium depth conventional oil & gas wells, surface & intermediate casing
N80	552–758 MPa	High strength	Medium depth production wells, hydraulic fracturing wells, intermediate & production casing
L80	552–655 MPa	High strength, heat treated	Medium-deep wells, production tubing & casing, suitable for slightly corrosive conditions
L80-9Cr / L80-13Cr	552–655 MPa	Corrosion resistant alloy	Acid gas wells, CO₂ / H₂S corrosive environments, production tubing
C90 / T95	621–758 MPa	High strength, high toughness	Deep high-pressure wells, heavy load casing, fracturing operations
P110	758–965 MPa	Ultra high strength	Deep wells, high-pressure production casing, fracturing well casing
Q125 / V150	862–1241 MPa	Extra high strength	Ultra-deep wells, high stress fracturing, extreme pressure casing strings

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Crude Oil and Natural Gas Transportation in Oil & Gas Production

Offshore Oil & Gas Well Casing and Cementing

Onshore Oilfield

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What standards do your API oil casing pipes comply with?

Our API oil casing and tubing pipes are manufactured and inspected strictly in accordance with API Spec 5CT, API Spec 5B and ISO 11960 international standards, and can also meet GB/T and SY/T domestic standards.

How do I choose the right steel grade for my well project?

For shallow conventional wells, J55/K55 is recommended. For medium-deep high-pressure wells, choose N80 or L80. For acid gas corrosive environments, select L80-9Cr or L80-13Cr. For deep wells and fracturing operations, P110, Q125 or V150 high-strength grades are more suitable. We can provide grade selection guidance based on your well parameters.

What thread types are available for API 5CT casing and tubing?

We provide standard API threads including BTC buttress thread, LC long thread, SC short thread and LTC long round thread. We can also supply VAM and other premium special connections for high-sealing demanding downhole environments.

What length options do you provide for OCTG pipes?

Standard API lengths R1 (4.88m), R2 (7.32m) and R3 (10.36m) are available. Custom fixed lengths can also be produced according to your well depth design.

Do you provide corrosion-resistant OCTG pipes for acid gas wells?

Yes. We supply L80-9Cr and L80-13Cr chromium alloy series, which have excellent resistance to CO₂ and H₂S corrosion, and are specially designed for acid gas and corrosive downhole conditions.
