Hastelloy Super Alloy Bar Hastelloy B2 C22 C276 X Nickel‑Molybdenum Round Bar

Super Alloy Bar Super Alloy Bar Super Alloy Bar

Hastelloy Super Alloy Bar Hastelloy B2 C22 C276 X Nickel‑Molybdenum Round Bar

  1. Superior resistance to pitting, crevice corrosion and strong acid media
  2. Resistant to reducing & oxidizing mixed corrosive working condition
  3. Hot‑rolled heavy bar and precision cold‑drawn ground bar available
  4. Custom round, square, hexagon profiles & cutting service
  5. Reliable performance for FGD, chemical reactor harsh environment
Contact Us

Product Overview

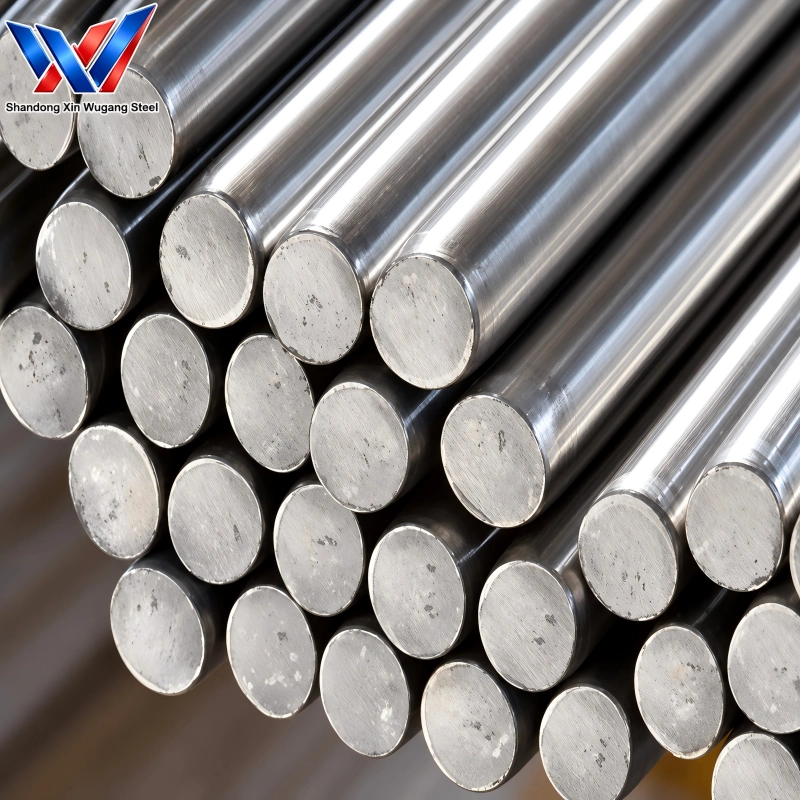

Hastelloy Super Alloy Bar is nickel‑molybdenum / nickel‑chromium‑molybdenum super alloy solid bar, produced under ASTM B408, ASTM B564 standards. Main grades include Hastelloy B2, Hastelloy C22, Hastelloy C276, Hastelloy X.

Two processing forms: hot‑rolled bar Φ12‑250 mm for forging heavy‑duty components; cold‑drawn precision ground bar Φ3‑100 mm for precision mechanical parts. Support custom square, hexagonal shape. Standard length 3 m & 6 m, provide water‑jet cutting, forging modification per drawing.

Mainly applied in flue‑gas desulfurization(FGD), chemical reactors handling strong acid, petrochemical, pollution‑control equipment, offshore anti‑corrosion structural parts.

Super Alloy Bar

Chemical & Mechanical Property Snapshot

Grade UNS No. W.Nr. Chemical Composition(Main Elements) Tensile Strength(MPa) Yield Strength(MPa) Elongation(%) Hardness(HB)
Hastelloy B2 N10665 2.4617 Ni≥65, Mo26‑30, Fe≤2.0, Cr≤1.0 ≥690 ≥310 ≥40 ≤230
Hastelloy C22 N06022 2.4602 Ni≥56, Cr20‑22.5, Mo12.5‑14.5, W2.5‑3.5 ≥690 ≥310 ≥45 ≤220
Hastelloy C276 N10276 2.4819 Ni≥57, Cr14.5‑16.5, Mo15‑17, W3‑4.5 ≥690 ≥280 ≥40 ≤230
Hastelloy X N06002 2.4865 Ni≥47, Cr20.5‑23, Mo8‑10, W0.2‑1.0 ≥690 ≥275 ≥32 ≤210

Detailed Technical Specifications

Technical Item Complete Specification
Product Name Hastelloy Super Alloy Bar
Product Category Super Alloy Bar
Level1 Category Steel Bar/Rod
Level2 Category Alloy Steel Bar
Level3 Category Hastelloy Nickel‑Molybdenum Super Alloy Bar
Material Type Hastelloy Nickel‑Base Corrosion‑Resistant Super Alloy
Applicable Standards ASTM B408, ASTM B564, ASME SB‑408
Available Grades Hastelloy B2, Hastelloy C22, Hastelloy C276, Hastelloy X
Hot‑Rolled Bar Diameter Φ12‑250 mm
Cold‑Drawn Precision Ground Bar Diameter Φ3‑100 mm
Custom Profiles Round, Square, Hexagonal, Flat
Standard Fixed Length 3 m, 6 m
Cutting Service Water‑Jet Cutting
Modification Service Forging Modification
Customization Basis Customer Drawings
Surface Condition Hot rolled black surface; Cold‑drawn bright ground surface
Core Performance Excellent pitting & crevice corrosion resistance, strong acid resistance
Quality Documentation Mill Test Certificate with UNS, W.Nr., chemical & mechanical test report
Packing Export anti‑scratch wooden package for precision bar
Application FGD system, chemical reactor, petrochemical, pollution control equipment
MOQ 5 Ton
Payment Terms T/T, L/C at Sight
Delivery Time 7‑15 working days after deposit received

Dimension Specification Table

Item Specifications
Hot Rolled Round Bar Diameter Φ12 mm–Φ250 mm
Cold Drawn Precision Ground Round Bar Diameter Φ3 mm–Φ100 mm
Square Bar Size Custom side width
Hexagonal Bar Size Custom across-flat dimension
Flat Bar Custom thickness × width
Standard Fixed Length 3 m, 6 m
Custom Length Cut to length according to customer drawing
Tolerance Hot rolled: ISO h11; Cold drawn ground: h7 / h9
Surface Finish Hot-rolled black / pickled; Cold-drawn bright ground
Available Processing Water jet cutting, forging modification

Product Comparison Table

Alloy Grade UNS Number W.Nr. Common Equivalent Grade Main Alloy Elements Key Feature Typical Application
Hastelloy B2 N10665 2.4617 NiMo28 Ni65,Mo28 Excellent resistance to reducing acid Hydrochloric acid processing equipment
Hastelloy C22 N06022 2.4602 ‑ Ni56,Cr21,Mo13,W3 Balanced oxidizing & reducing corrosion resistance Multi‑purpose chemical process equipment
Hastelloy C276 N10276 2.4819 NiMo16Cr15W Ni57,Mo16,Cr15,W4 Resist pitting, crevice & strong mixed acid FGD scrubber, chemical reactors
Hastelloy X N06002 2.4865 ‑ Ni47,Cr22,Mo9,W0.8 Good high‑temperature strength & oxidation resistance Gas‑turbine combustion components

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Rocket Structural Connection Components

Deep-Sea Exploration Pressure-Resistant Structural Components

Aircraft Engine Blade Fasteners

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

Hastelloy C276 is the most versatile grade, used for mixed strong acid, chloride pitting corrosion, FGD desulfurization scrubber, waste‑gas treatment equipment.

Hastelloy B2 is optimized for reducing acid like hydrochloric acid; C‑series(C22/C276) resist both oxidizing and reducing corrosive medium with high chromium content.

Yes, we can supply forged semi‑finished product, and provide suggestion for proper heat‑treatment parameters.

Partial common size in stock, special diameter & custom profile will be produced upon order. MOQ is 5 ton.

Cold‑drawn ground bar achieves tight diameter tolerance, suitable for shaft, bolt and precision fitting parts.
