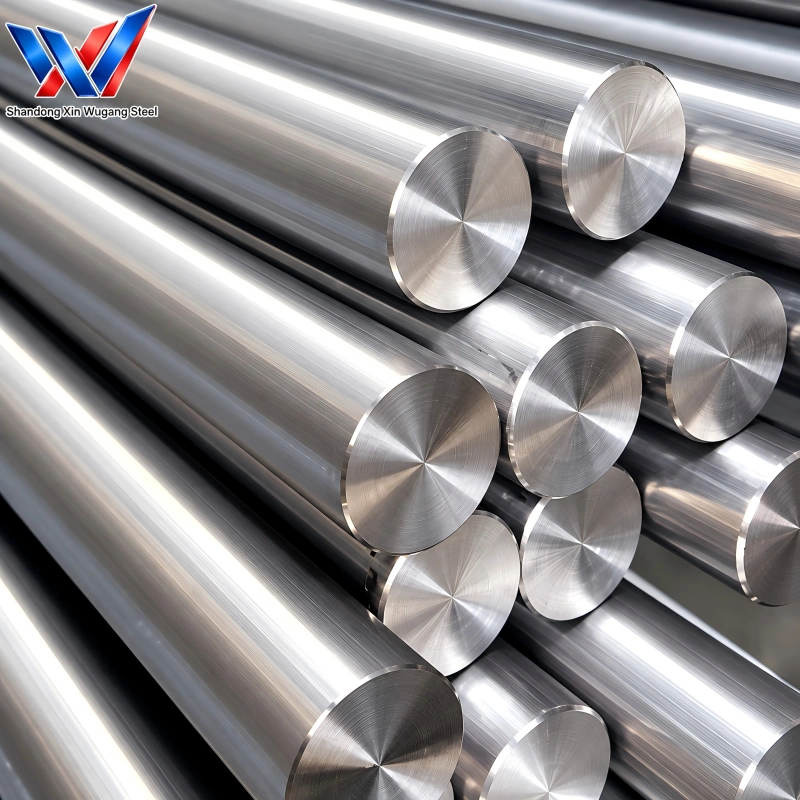

Monel Super Alloy Bar Monel 400 K500 Nickel‑Copper Alloy Round Bar

Excellent seawater and alkaline medium corrosion resistance
Non‑magnetic performance for special marine instrument application
Monel K500 version with age‑hardened higher mechanical strength
Supply hot‑rolled bar and precision cold‑drawn ground bar
Support custom round, square, hexagon and cutting service

Product Overview

Monel Super Alloy Bar is nickel‑copper alloy solid bar, manufactured following ASTM B164 standard. Main grades: Monel 400 (solid‑solution alloy), Monel K500 (precipitation‑hardened nickel‑copper alloy).

Hot‑rolled bar Φ12‑250 mm for marine forging parts; cold‑drawn precision ground bar Φ3‑100 mm for high‑precision shaft, fastener components. Custom square, hexagonal profiles are supported. Standard length 3 m,6 m. Provide water‑jet cutting and forging modification service based on customer drawing.

Typical applications: marine pump shaft, seawater valve component, offshore platform fitting, salt‑water desalination equipment, alkaline chemical processing equipment.

Super Alloy Bar

Chemical & Mechanical Property Snapshot

Grade	UNS No.	W.Nr.	Chemical Composition(Main Elements)	Tensile Strength(MPa)	Yield Strength(MPa)	Elongation(%)	Hardness(HB)
Monel 400	N04400	2.4360	Ni63‑70, Cu28‑34, Fe ≤2.5	≥480	≥170	≥35	≤150
Monel K500	N05500	2.4375	Ni63‑70, Cu27‑33, Al2.3‑3.15, Ti0.35‑0.85	≥830	≥585	≥20	≤280

Detailed Technical Specifications

Technical Item	Complete Specification
Product Name	Monel Super Alloy Bar
Product Category	Super Alloy Bar
Level1 Category	Steel Bar/Rod
Level2 Category	Alloy Steel Bar
Level3 Category	Monel Nickel‑Copper Super Alloy Bar
Material Type	Nickel‑Copper Monel Alloy
Applicable Standards	ASTM B164, ASTM B564
Available Grades	Monel 400, Monel K500
Hot‑Rolled Bar Diameter	Φ12‑250 mm
Cold‑Drawn Precision Ground Bar Diameter	Φ3‑100 mm
Custom Profiles	Round, Square, Hexagonal, Flat
Standard Fixed Length	3 m, 6 m
Cutting Service	Water‑Jet Cutting
Modification Service	Forging Modification
Customization Basis	Customer Drawings
Surface Condition	Hot rolled black surface; Cold‑drawn bright ground surface
Core Performance	Great seawater & alkali corrosion resistance; K500 age‑hardened high strength
Quality Documentation	Mill Test Certificate with UNS, W.Nr., chemical & mechanical test report
Packing	Export anti‑scratch wooden package for precision bar
Application	Marine pump, seawater valve, desalination, offshore platform fitting
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7‑15 working days after deposit received

Dimension Specification Table

Item	Specifications
Hot Rolled Round Bar Diameter	Φ12 mm–Φ250 mm
Cold Drawn Precision Ground Round Bar Diameter	Φ3 mm–Φ100 mm
Square Bar Size	Custom side width
Hexagonal Bar Size	Custom across-flat dimension
Flat Bar	Custom thickness × width
Standard Fixed Length	3 m, 6 m
Custom Length	Cut to length according to customer drawing
Tolerance	Hot rolled: ISO h11; Cold drawn ground: h7 / h9
Surface Finish	Hot-rolled black / pickled; Cold-drawn bright ground
Available Processing	Water jet cutting, forging modification

Product Comparison Table

Alloy Grade	UNS Number	W.Nr.	Common Equivalent Grade	Main Alloy Elements	Key Feature	Typical Application
Monel400	N04400	2.4360	NiCu30Fe	Ni66,Cu31	Good seawater & alkaline corrosion resistance	Marine pump shaft, valve body components
Monel K500	N05500	2.4375	‑	Ni65,Cu29,Al,Ti	Age‑hardened, much higher tensile & yield strength	High‑load marine shaft, fastener parts

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Rocket Structural Connection Components

Deep-Sea Exploration Pressure-Resistant Structural Components

Aircraft Engine Blade Fasteners

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is difference between Monel400 and Monel K500 bar?

Monel 400 is solid‑solution alloy with medium strength; Monel K500 adds Aluminum‑Titanium element for age‑hardening treatment, much higher strength for heavy‑load marine component.

Is Monel alloy bar anti‑rust under seawater environment?

Yes, Monel nickel‑copper alloy has excellent resistance to seawater corrosion, widely used for offshore seawater contact parts.

Does Monel bar support non‑magnetic requirement?

Monel series is nearly non‑magnetic under room‑temperature condition, suitable for marine instrument parts.

Can we get short cut pieces for Monel bar?

Water‑jet cutting service available, full‑order MOQ 5 ton.

What packaging for Monel bright ground bar?

Anti‑scratch wooden export package, to avoid scratch for precision bright surface.
