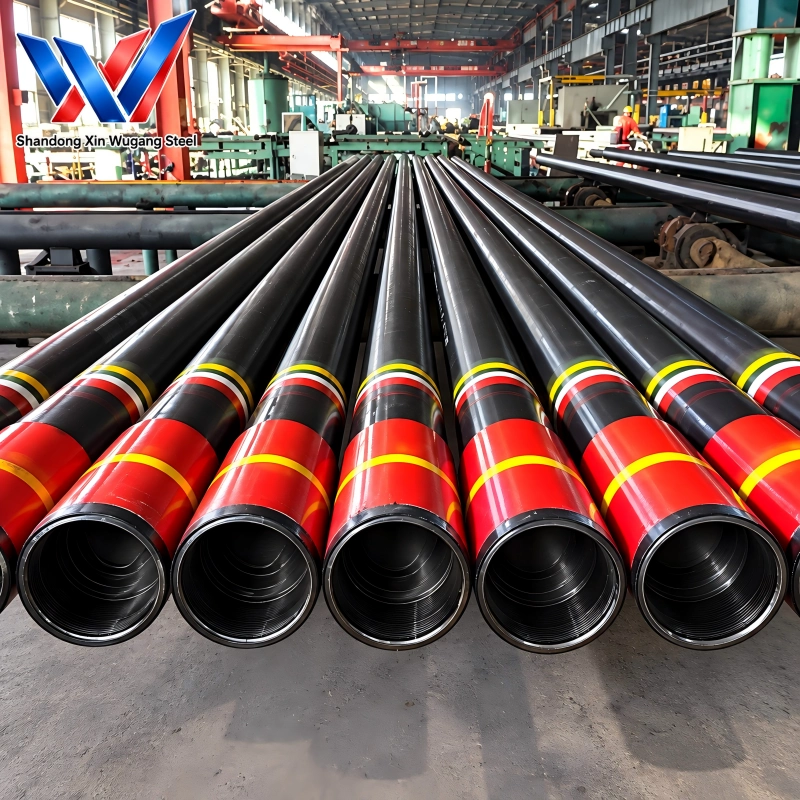

N80 L80 API 5CT Oil Production Tubing Pipe | Seamless OCTG Tubing
- Standard production tubing grade, most widely used for oil & gas well completion and production
- Excellent strength and toughness, good resistance to fluid erosion and downhole fatigue
- Available in N80-1, N80-Q, L80-1 heat treatment grades for different well conditions
- Standard EUE / NUE tubing threads, good interchangeability with wellhead equipment
- Stable mass production capacity, short lead time for large-scale oilfield projects
Contact Us
Product Overview
N80 and L80 are standard high-strength grades for oil production tubing in API 5CT system, mainly used as production tubing to transport produced oil and gas from downhole reservoir to surface. They have excellent comprehensive mechanical properties, can bear downhole pressure, tensile load and fluid erosion, and are suitable for medium-deep production wells and conventional well completion operations.
N80 grade is divided into N80-1 (normalized) and N80-Q (quenched & tempered) two delivery states; L80 grade is quenched and tempered heat treated, with better toughness and uniform structure. Both are manufactured by seamless hot rolling + cold finishing process, produced in strict accordance with API Spec 5CT and ISO 11960 standards. Common tubing outer diameters include 1.05″, 1.315″, 1.66″, 1.9″, 2-3/8″, 2-7/8″, 3-1/2″. Thread forms include EUE (external upset ends) and NUE (non-upset ends) to match different wellhead connections. Standard lengths are R1 (6.10m) and R2 (9.14m), and custom lengths are available.
N80 / L80 API production tubing is widely used in onshore and offshore production wells, gas lift wells, water injection wells and well completion projects.
Chemical & Mechanical Property Snapshot
Detailed Technical Specifications
Dimension Range Table
Product Comparison Table
App Market
Reliable Steel Coil Solutions For Diverse Industrial Applications
Crude Oil and Natural Gas Transportation in Oil & Gas Production
Offshore Oil & Gas Well Casing and Cementing
Onshore Oilfield
Product Packaging
Secure Export Packaging For Safe Handling And Delivery
FAQs
L80 has stricter carbon equivalent control and quenched & tempered heat treatment, with better toughness and SSC (sulfide stress cracking) resistance margin. N80 is more economical for conventional sweet wells.
Yes. N80 tubing is suitable for water injection and gas injection wells under conventional conditions. For corrosive injection media, corrosion-resistant grades are recommended.
Yes. We can supply tubing with API standard couplings, and can also provide tubing pup joints, crossover subs and other accessories.
The standard lengths for API tubing are R1 (range 1, approx. 6.10m) and R2 (range 2, approx. 9.14m). Custom lengths are available upon request.
Yes. We can provide NDT services such as electromagnetic testing, ultrasonic testing and magnetic particle inspection according to customer requirements.
