SUS304 Stainless Steel Seamless Pipe | 1.4301 X5CrNi18-10 06Cr19Ni10 Seamless Stainless Tube

Excellent general corrosion resistance for most atmospheric and mild chemical environments
Fully austenitic structure, good ductility and easy forming & welding performance
Wide temperature working range, stable performance at both low and moderate high temperature
Smooth inner surface without seam, low fluid resistance for pipeline transmission
Long service life, low maintenance cost for industrial and sanitary piping systems

Product Overview

Our SUS304 Stainless Steel Seamless Pipe, also known as 1.4301 (X5CrNi18-10) and GB grade 06Cr19Ni10, is the most widely used austenitic stainless steel seamless tube. Manufactured by hot piercing and cold drawing process without welding seam, it eliminates potential weak points from weld lines. This grade balances corrosion resistance, mechanical strength and cost efficiency. It resists oxidation and rust under normal atmospheric, fresh water and weak acid conditions. Available in a full range of outer diameter and wall thickness specifications, our SUS304 seamless pipe is commonly used for water treatment, food sanitary piping, chemical equipment, construction structural piping and general industrial fluid transport.

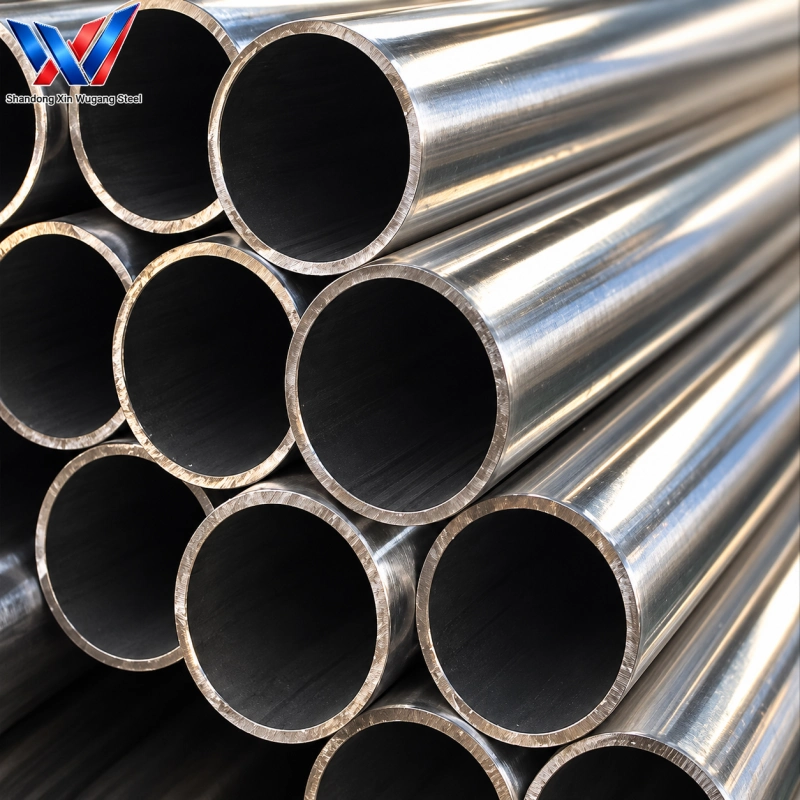

Stainless Steel Welded Steel Pipe

Chemical & Mechanical Property Snapshot

Item	Value
Grade	SUS304 / 1.4301 / X5CrNi18-10 / 06Cr19Ni10
Steel Type	Austenitic Stainless Steel
Chemical Composition (wt%)	C ≤0.08, Si ≤1.00, Mn ≤2.00, P ≤0.045, S ≤0.030, Cr 18.00~20.00, Ni 8.00~10.50
Tensile Strength (MPa)	≥515
Yield Strength (MPa)	≥205
Elongation (%)	≥40
Hardness (HB)	≤201

Detailed Technical Specifications

Specification	Details
Grade	SUS304 /1.4301 / X5CrNi18-10 /06Cr19Ni10
Product Type	Stainless Steel Seamless Pipe
Shape	Round (custom shape available upon request)
OD Range	6mm ~ 426mm
Wall Thickness	1.0mm ~ 40mm
Length	2000mm ~ 12000mm or cut to custom length
Surface Finish	Pickled, Bright annealed, Polished
Standard	ASTM A312, EN 10216-5, JIS G3459, GB/T 17395
MOQ	5 Ton
Lead Time	15 – 25 working days after deposit
Payment Term	T/T, L/C at sight
Packaging	Wooden case, waterproof plastic film

Shape Section

Item	Shape Description	Application Notes
Round Welded Tube	Circular hollow welded stainless steel tube	Standard stock for decorative & sanitary service
Square Welded Tube	Hollow square welded profile	Mainly used for architectural decoration and handrail frames
Rectangular Welded Tube	Hollow rectangular welded profile	Construction, furniture, curtain wall frameworks
Special Custom Shape	Oval / Elliptical welded tube	Custom order for special decoration, with longer lead time

Dimension Section

Tube Type	Shape	Outer Dimension	Wall Thickness
Decorative Stainless Steel Welded Tube	Round Tube	OD 6 mm, 8 mm, 10 mm, 12 mm, 16 mm, 19 mm, 22 mm, 25 mm, 28 mm, 32 mm, 38 mm, 42 mm, 48 mm, 51 mm, 63 mm, 76 mm, 89 mm, 102 mm, 114 mm, 127 mm, 141 mm, 168 mm, 219 mm, 273 mm, 325 mm	0.4 mm, 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm
Decorative Stainless Steel Welded Tube	Square Tube	10×10 mm, 12×12 mm, 15×15 mm, 20×20 mm, 25×25 mm, 30×30 mm, 38×38 mm, 40×40 mm, 50×50 mm, 60×60 mm, 75×75 mm, 80×80 mm, 100×100 mm, 120×120 mm, 150×150 mm, 180×180 mm, 200×200 mm	0.4 mm, 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm
Decorative Stainless Steel Welded Tube	Rectangular Tube	20×10 mm, 25×10 mm, 30×15 mm, 40×20 mm, 50×25 mm, 60×30 mm, 70×40 mm, 80×40 mm, 90×50 mm, 100×50 mm, 120×60 mm, 150×80 mm, 200×100 mm, 250×150 mm	0.4 mm, 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm
Sanitary Stainless Steel Welded Tube	Round Tube	OD 12.7 mm, 19 mm, 25.4 mm, 32 mm, 38.1 mm, 50.8 mm	0.8 mm, 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm

Product Comparison Table

AISI / ASTM Grade	EN Material No.	EN Chemical Designation	JIS SUS Grade	GB Grade	Steel Type	Core Feature	Typical Application
304	1.4301	X5CrNi18-10	SUS304	06Cr19Ni10	Austenitic	General corrosion resistance	Construction, sanitary pipe base
304L	1.4307	X2CrNi18-9	SUS304L	022Cr19Ni10	Low-C Austenitic	Resistant to intergranular corrosion	Welded sanitary tubes
316L	1.4404	X2CrNiMo17-12-2	SUS316L	022Cr17Ni12Mo2	Mo-Bearing Austenitic	Superior chloride resistance	Marine, chemical pipeline
310S	1.4845	X12CrNi25-21	SUS310S	06Cr25Ni20	High Temp Austenitic	Excellent high temperature oxidation resistance	Furnace, high-temperature equipment
2205	1.4462	X2CrNiMoN22-5-3	SUS329J3L	022Cr23Ni5Mo3N	Duplex Stainless	High strength & chloride pitting resistance	Oil & gas, seawater system
904L	1.4539	X1NiCrMoCu25-20-5	N08904	015Cr21Ni26Mo5Cu2	Super Austenitic	Strong acid corrosion resistance	Acid processing industry

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

API (Active Pharmaceutical Ingredient) Transfer

Dairy Processing Pipeline

Beer and Beverage Production Line

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is SUS304 stainless steel seamless pipe, equivalent to which standard grades?

SUS304 seamless pipe is equivalent to EN 1.4301 (X5CrNi18-10) and GB 06Cr19Ni10, the most popular austenitic stainless seamless tube.

What is the difference between 304 seamless pipe and 304 welded pipe?

304 seamless pipe has no welding seam, better pressure bearing capacity, suitable for high pressure working condition; welded pipe has weld seam and lower cost for decorative use.

What surface options are available for SUS304 seamless pipe?

Pickled finish, bright annealed finish and mirror polished finish can be supplied as your requirement.

What is your MOQ for SUS304 seamless pipe?

Our MOQ is 5 tons.

Can we cut the SUS304 seamless pipe to custom length?

Yes, we provide custom cutting service for your project needs.
