SUS309S Stainless Steel Seamless Pipe | 1.4828 X15CrNiSi20-12 06Cr23Ni13 Heat Resistant Seamless Tube

Excellent high-temperature oxidation resistance, stable performance under continuous high heat exposure
High chromium & nickel composition, outstanding scaling resistance at elevated temperatures
Good thermal fatigue performance, suitable for repeated heating and cooling working conditions
Great weldability, maintains mechanical and anti-oxidation properties after welding
Seamless structure, no weld weakness for high-temperature pressure pipeline service

Product Overview

Our SUS309S Stainless Steel Seamless Pipe, also known as 1.4828 (X15CrNiSi20-12) and GB grade 06Cr23Ni13, is a heat-resistant austenitic stainless steel seamless tube. Manufactured by hot piercing and cold drawing processes without welding seams, it eliminates the risk of weld line failure under high-temperature service. With high chromium and nickel content plus silicon addition, SUS309S provides strong resistance to high-temperature oxidation and scaling. It can withstand long-term operation at high temperature environments, widely used for high-temperature flue piping, furnace components, heat treatment equipment, boiler pipelines and industrial thermal system piping. We supply full OD and wall thickness specifications of SUS309S seamless pipe to meet your high-temperature industrial project requirements.

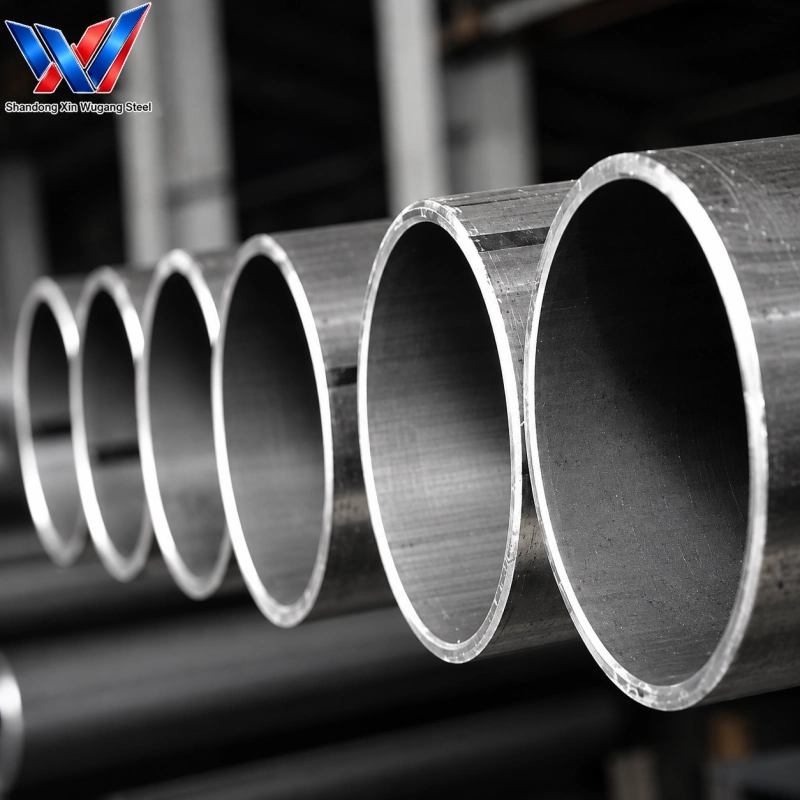

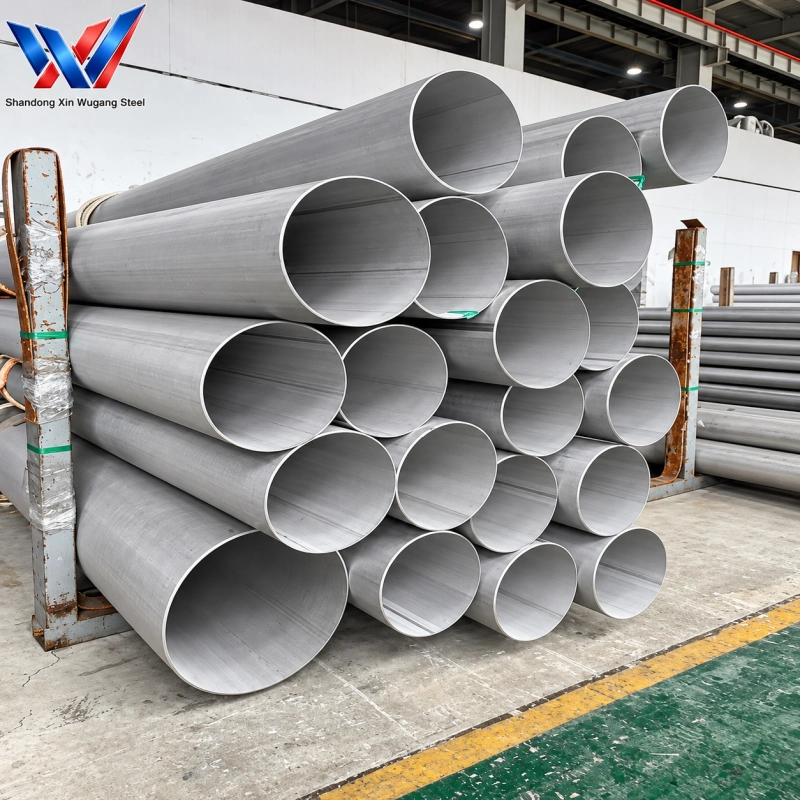

Stainless Steel Welded Steel Pipe

Chemical & Mechanical Property Snapshot

Item	Value
Grade	SUS309S / 1.4828 / X15CrNiSi20-12 / 06Cr23Ni13
Steel Type	Heat-Resistant Austenitic Stainless Steel
Chemical Composition (wt%)	C ≤0.08, Si ≤1.50, Mn ≤2.00, P ≤0.045, S ≤0.030, Cr 22.00~24.00, Ni 12.00~15.00
Tensile Strength (MPa)	≥515
Yield Strength (MPa)	≥205
Elongation (%)	≥40
Hardness (HB)	≤201

Detailed Technical Specifications

Specification	Details
Grade	SUS309S /1.4828 / X15CrNiSi20-12 /06Cr23Ni13
Product Type	Stainless Steel Seamless Pipe
Shape	Round (custom shape available upon request)
OD Range	6mm ~ 426mm
Wall Thickness	1.0mm ~ 40mm
Length	2000mm ~ 12000mm or cut to custom length
Surface Finish	Pickled, Bright annealed
Standard	ASTM A312, EN 10216-5, JIS G3459, GB/T 17395
MOQ	5 Ton
Lead Time	15 – 25 working days after deposit
Payment Term	T/T, L/C at sight
Packaging	Wooden case, waterproof plastic film

Shape Section

Item	Shape Description	Application Notes
Round Welded Tube	Circular hollow welded stainless steel tube	Standard stock for decorative & sanitary service
Square Welded Tube	Hollow square welded profile	Mainly used for architectural decoration and handrail frames
Rectangular Welded Tube	Hollow rectangular welded profile	Construction, furniture, curtain wall frameworks
Special Custom Shape	Oval / Elliptical welded tube	Custom order for special decoration, with longer lead time

Dimension Section

Tube Type	Shape	Outer Dimension	Wall Thickness
Decorative Stainless Steel Welded Tube	Round Tube	OD 6 mm, 8 mm, 10 mm, 12 mm, 16 mm, 19 mm, 22 mm, 25 mm, 28 mm, 32 mm, 38 mm, 42 mm, 48 mm, 51 mm, 63 mm, 76 mm, 89 mm, 102 mm, 114 mm, 127 mm, 141 mm, 168 mm, 219 mm, 273 mm, 325 mm	0.4 mm, 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm
Decorative Stainless Steel Welded Tube	Square Tube	10×10 mm, 12×12 mm, 15×15 mm, 20×20 mm, 25×25 mm, 30×30 mm, 38×38 mm, 40×40 mm, 50×50 mm, 60×60 mm, 75×75 mm, 80×80 mm, 100×100 mm, 120×120 mm, 150×150 mm, 180×180 mm, 200×200 mm	0.4 mm, 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm
Decorative Stainless Steel Welded Tube	Rectangular Tube	20×10 mm, 25×10 mm, 30×15 mm, 40×20 mm, 50×25 mm, 60×30 mm, 70×40 mm, 80×40 mm, 90×50 mm, 100×50 mm, 120×60 mm, 150×80 mm, 200×100 mm, 250×150 mm	0.4 mm, 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm
Sanitary Stainless Steel Welded Tube	Round Tube	OD 12.7 mm, 19 mm, 25.4 mm, 32 mm, 38.1 mm, 50.8 mm	0.8 mm, 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm

Product Comparison Table

AISI / ASTM Grade	EN Material No.	EN Chemical Designation	JIS SUS Grade	GB Grade	Steel Type	Core Feature	Typical Application
304	1.4301	X5CrNi18-10	SUS304	06Cr19Ni10	Austenitic	General corrosion resistance	Construction, sanitary pipe base
304L	1.4307	X2CrNi18-9	SUS304L	022Cr19Ni10	Low-C Austenitic	Resistant to intergranular corrosion	Welded sanitary tubes
316L	1.4404	X2CrNiMo17-12-3	SUS316L	022Cr17Ni12Mo2	Low-C Mo-Bearing Austenitic	Weldable, anti-chloride	Food & pharmaceutical sanitary pipe
309S	1.4828	X15CrNiSi20-12	SUS309S	06Cr23Ni13	Heat-Resistant Austenitic	Good high-temperature oxidation resistance	High-temperature flue piping
310S	1.4845	X12CrNi25-21	SUS310S	06Cr25Ni20	Heat-Resistant Austenitic	Extreme high-temperature resistance	Furnace & heat equipment pipe
2205	1.4462	X2CrNiMoN22-5-3	SUS329J3L	022Cr23Ni5Mo3N	Duplex Stainless	High strength & chloride pitting resistance	Oil & gas, seawater system
904L	1.4539	X1NiCrMoCu25-20-5	N08904	015Cr21Ni26Mo5Cu2	Super Austenitic	Strong acid corrosion resistance	Acid processing industry

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

API (Active Pharmaceutical Ingredient) Transfer

Dairy Processing Pipeline

Beer and Beverage Production Line

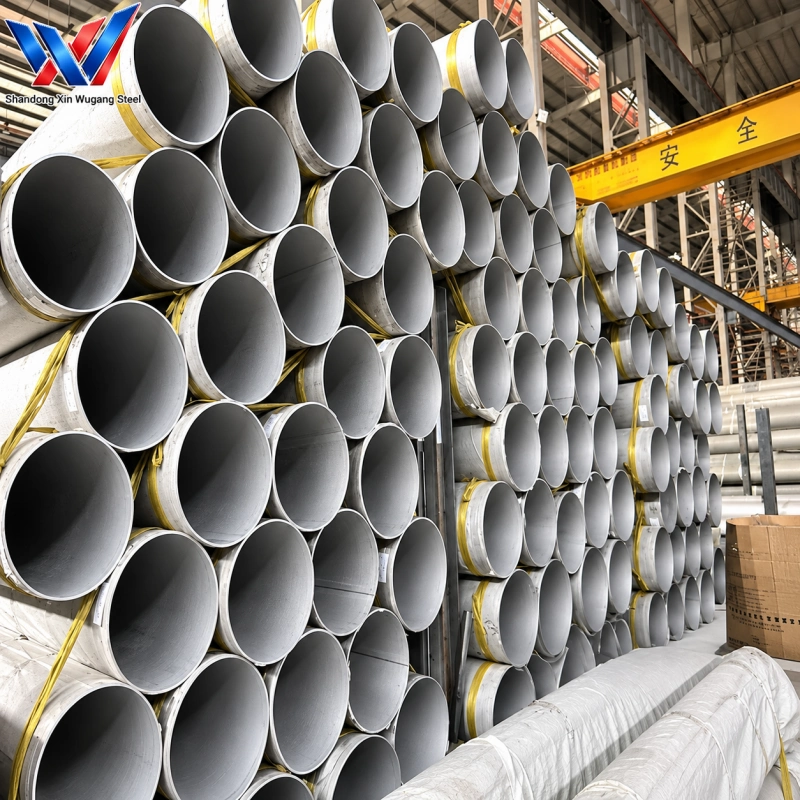

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is SUS309S seamless pipe, what are its equivalent grades?

SUS309S seamless pipe is equivalent to EN 1.4828 (X15CrNiSi20-12) and GB 06Cr23Ni13, a heat-resistant austenitic stainless seamless tube designed for high temperature working environments.

What is the main application of SUS309S seamless pipe?

It is widely used for high-temperature flue piping, furnace linings, heat treatment furnace parts, boiler pipes and thermal processing equipment.

What is the difference between 309S and 310S seamless pipe?

309S has good high-temperature oxidation resistance for moderate high-temperature service, while 310S can withstand even higher working temperatures up to 1100℃.

What is your MOQ for SUS309S seamless pipe?

Our MOQ is 5 tons.

Can SUS309S seamless pipe be cut to custom length?

Yes, we can cut SUS309S seamless pipe to custom lengths as your project requirements.
