SUS316L Stainless Steel Coil 1.4404 X2CrNiMo17-12-2 022Cr17Ni12Mo2, Low Carbon Stainless Steel Strip

Ultra-low carbon content minimizes intergranular corrosion after welding
Superior pitting & crevice corrosion resistance with Molybdenum addition
Excellent ductility, easy for stamping, bending and deep drawing
Stable performance in high humidity, marine and chemical environments
Good high-temperature oxidation resistance and long service life

Product Overview

SUS316L, also known as 1.4404 (EN standard), X2CrNiMo17-12-2 (EN material number), 022Cr17Ni12Mo2 (Chinese GB standard), is a widely used low-carbon austenitic stainless steel coil. Compared with standard 316 stainless steel, 316L reduces carbon content to restrain chromium carbide precipitation during welding, avoiding intergranular corrosion. The molybdenum element inside significantly improves resistance to chloride ion corrosion, making it suitable for seawater, salt, acid and damp working conditions.

Our SUS316L stainless steel coil can be customized in thickness, width, surface finish (2B, BA, No.1, brushed, mirror). It is widely supplied for chemical equipment, marine components, food processing machinery, pharmaceutical tanks, heat exchangers and pipeline systems. We provide factory direct supply, customizable slitting service, stable dimensional tolerance and strict quality inspection before shipment.

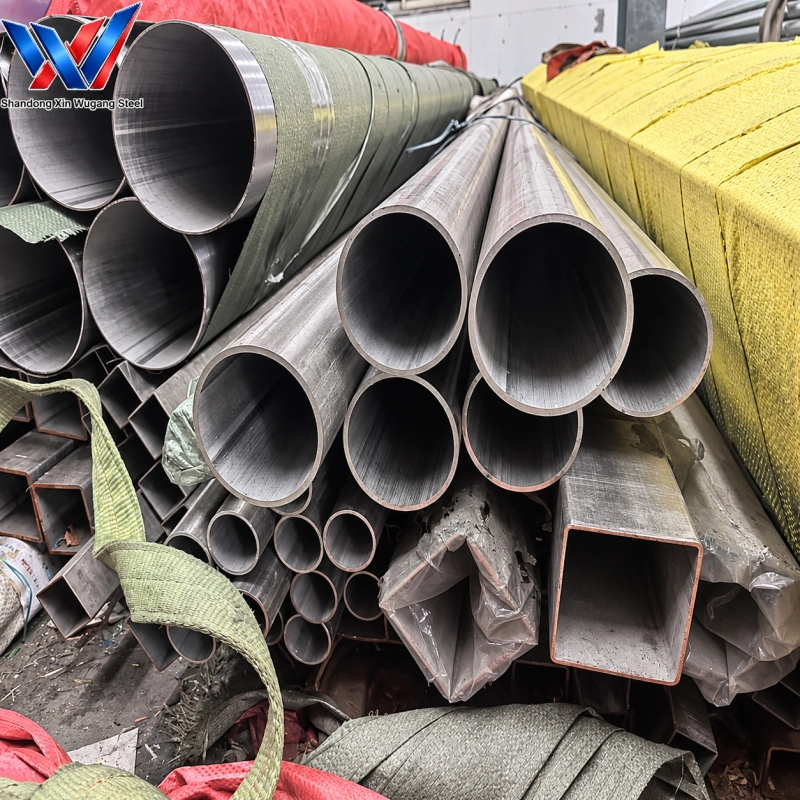

Stainless Steel Seamless Steel Pipe

Chemical & Mechanical Property Snapshot

Item	Specification
Grade	SUS316L / 1.4404 / X2CrNiMo17-12-2 / 022Cr17Ni12Mo2
Chemical Composition	C ≤0.03%, Cr:16.0–18.5%, Ni:10.0–14.0%, Mo:2.0–3.0%, Si ≤1.0%, Mn ≤2.0%, P ≤0.045%, S ≤0.03%
Yield Strength (Rp0.2)	≥205 MPa
Tensile Strength (Rm)	≥480 MPa
Elongation (A)	≥40%
Hardness HV	≤215 HV

Detailed Technical Specifications

Parameter	Details
Material Grade	SUS316L, 1.4404, X2CrNiMo17-12-2, 022Cr17Ni12Mo2
Product Type	Stainless Steel Coil / Strip
Thickness Range	0.3mm – 6.0mm
Width Range	10mm – 1500mm (slitting available)
Surface Finish	2B, BA, No.1, No.4, Hairline, Mirror 8K
Edge Type	Mill Edge / Slit Edge
Coil Weight	1–25 tons per coil
Standard	ASTM A240, EN 10088, GB/T 20878
Tolerance	Thickness & width according to international standard
Certification	ISO, SGS, Mill Test Certificate (MTC)
Minimum Order Quantity(MOQ)	5 Ton
Lead Time	7–15 working days
Payment Term	T/T, L/C at sight
Package	Waterproof paper + plastic film + steel pallet

Shape Section

Item	Shape Description	Notes
Primary Shape	Round / Circular Seamless Pipe	Most common form for stainless seamless pipe; stable OD & WT dimensional control; covers all grades (304, 304L, 316, 316L, 317L, 321, 309S, 310S, 2205, 2507, 904L)
Square Seamless Tube	Hollow square seamless profile	Cold-drawn seamless, no welding seam; suitable for structural and machinery applications
Rectangular Seamless Tube	Hollow rectangular seamless profile	Cold-drawn seamless, seamless construction; custom side dimensions available
Hexagonal Seamless Tube	Hexagonal hollow seamless bar / tube	Cold-drawn seamless; used for fittings and hydraulic parts
Octagonal Seamless Tube	Octagonal hollow seamless tube	Special custom cold-drawn seamless product; suitable for low-volume applications

Dimension Section

Item	Specification Details
Product Form	Stainless Steel Seamless Steel Pipe
Outer Diameter (OD) Range	6 mm–630 mm; Common stock OD: 10 mm, 12 mm, 16 mm, 20 mm, 25 mm, 32 mm, 38 mm, 42 mm, 48 mm, 57 mm, 60 mm, 76 mm, 89 mm, 102 mm, 114 mm, 168 mm, 219 mm, 273 mm, 325 mm
Wall Thickness (WT) Range	1.0 mm–40 mm; Common stock WT: 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 4.0 mm, 5.0 mm, 6.0 mm, 8.0 mm, 10 mm
Length	Fixed length: 3000 mm / 6000 mm / custom cut length; Random length: 4000–7000 mm
Tolerance	OD tolerance: ±0.1–±0.5 mm (depends on OD grade); Wall thickness tolerance: ±10%
End Type	Plain end / Beveled end
Surface Finish	Pickled / Bright annealed / Polished
Packaging	Wooden bundle / Wooden case

Product Comparison Table

Grade	Carbon	Mo Content	Corrosion Resistance	Weldability	Typical Application
SUS316L (1.4404 / X2CrNiMo17-12-2 / 022Cr17Ni12Mo2)	≤0.03%	2.0~3.0%	Excellent (chloride resistant)	Very good, no post-weld annealing required	Marine, chemical, food & pharma
SUS316	≤0.08%	2.0~3.0%	Good	Good, risk of intergranular corrosion	General chemical equipment
SUS304L	≤0.03%	No Mo	Moderate	Very good	Indoor, non-chloride environment
SUS304	≤0.08%	No Mo	Moderate	Good	Kitchen, general machinery

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Power Plant FGD Pipeline

Chemical Acid and Alkali Corrosive Media Transportation

Desalination Pipeline

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is SUS316L? What is 1.4404 / X2CrNiMo17-12-2 / 022Cr17Ni12Mo2?

They are the same stainless steel grade under different standards. SUS316L is JIS Japanese standard; 1.4404 and X2CrNiMo17-12-2 are EN European standard; 022Cr17Ni12Mo2 is Chinese GB standard. It is low carbon austenitic stainless steel with molybdenum.

What is the main advantage of SUS316L over SUS316?

The low carbon (≤0.03%) of SUS316L prevents chromium carbide precipitation during welding. It effectively avoids intergranular corrosion, so no heat treatment is needed after welding.

Can SUS316L resist seawater corrosion?

SUS316L has good chloride resistance and can be used for splash zones and marine auxiliary parts. It is not fully resistant to long-term immersion in concentrated seawater.

What surface options can you supply for SUS316L coil?

We provide 2B, BA, No.1, No.4 hairline and mirror 8K finish. Custom slitting for narrow strips is supported.

What is your MOQ and delivery time?

MOQ is 5 tons. Normal lead time 7–15 working days based on stock status. MTC test certificate will be provided together with goods.
