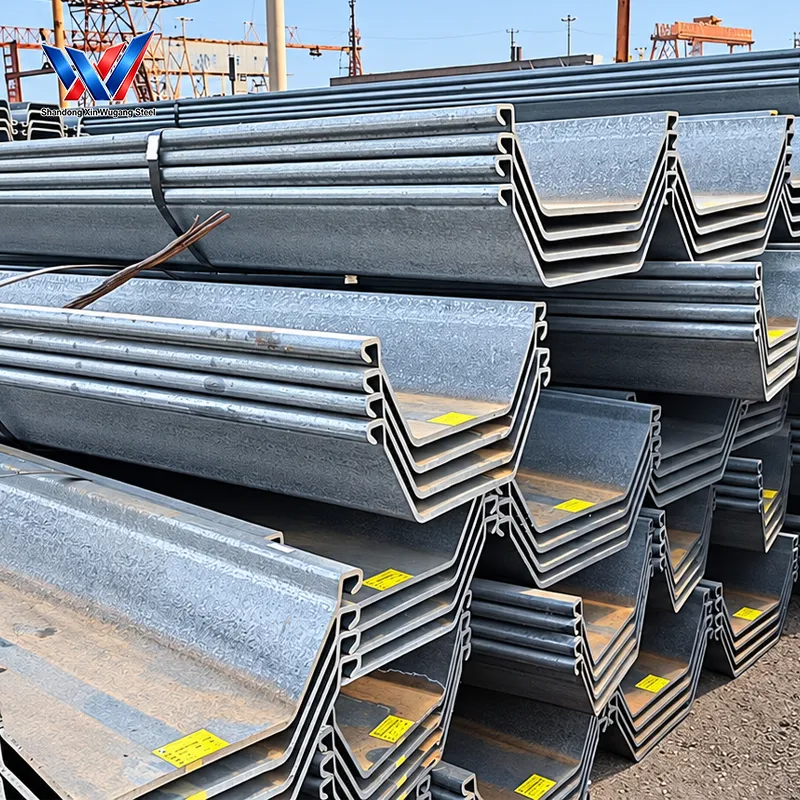

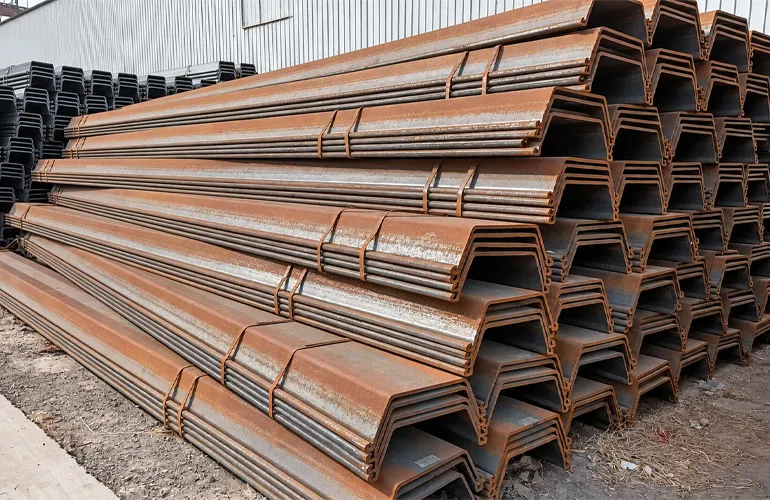

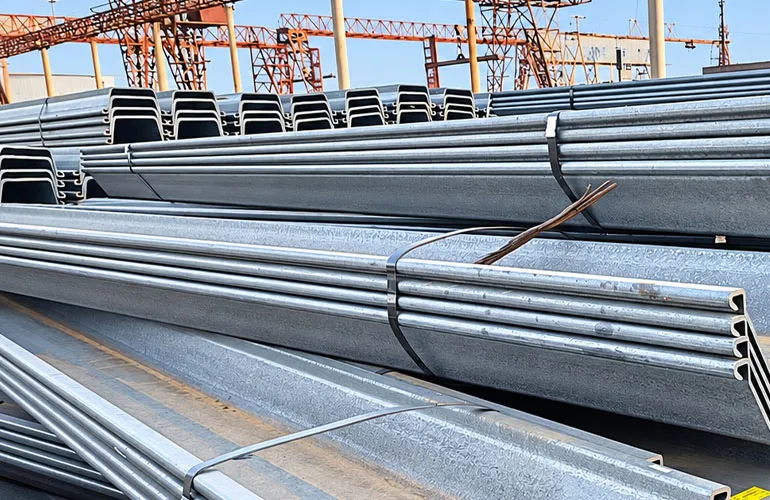

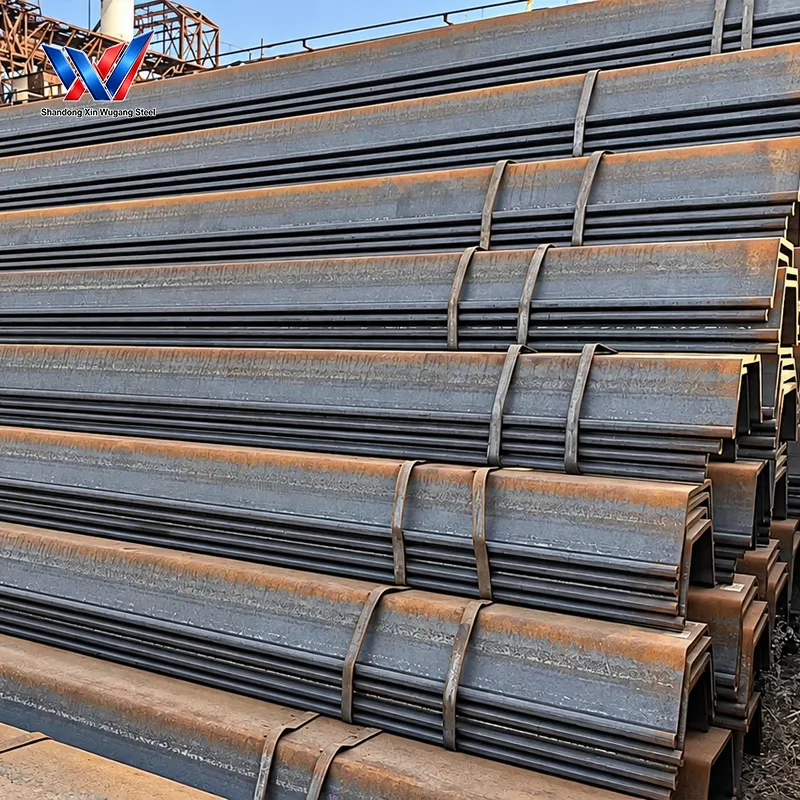

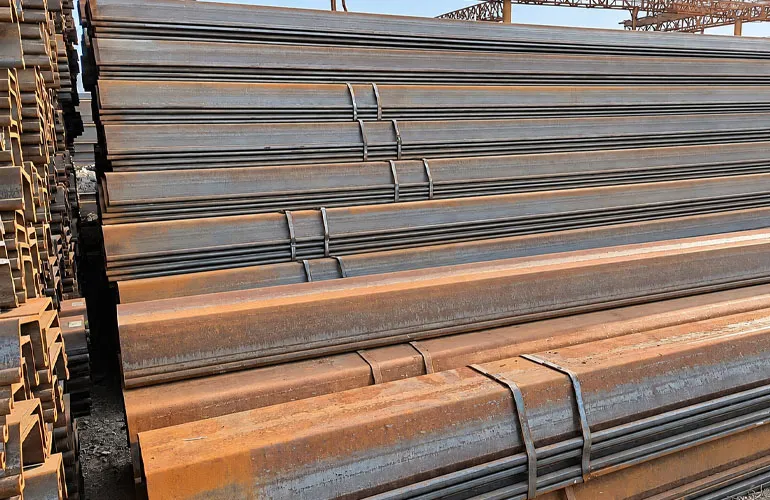

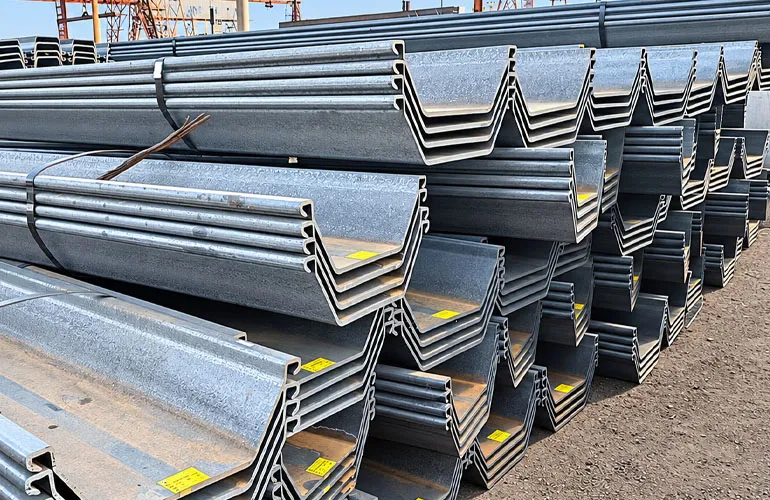

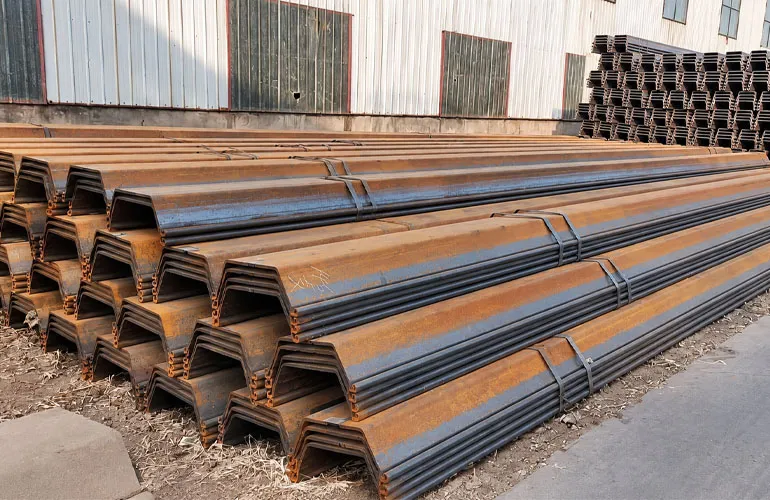

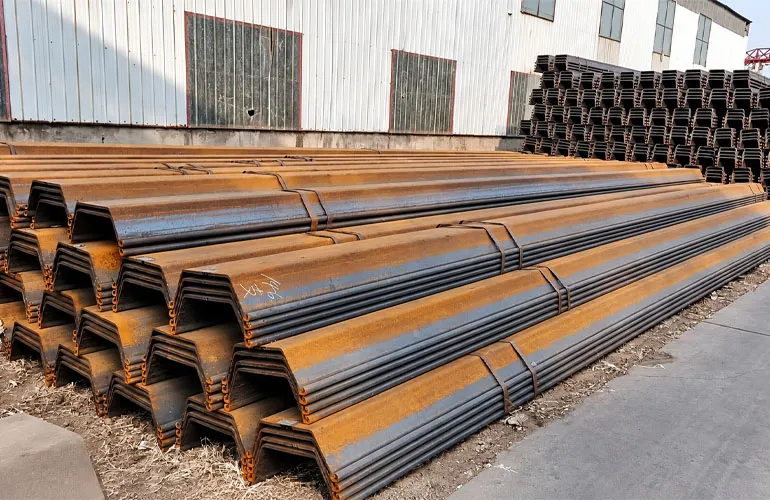

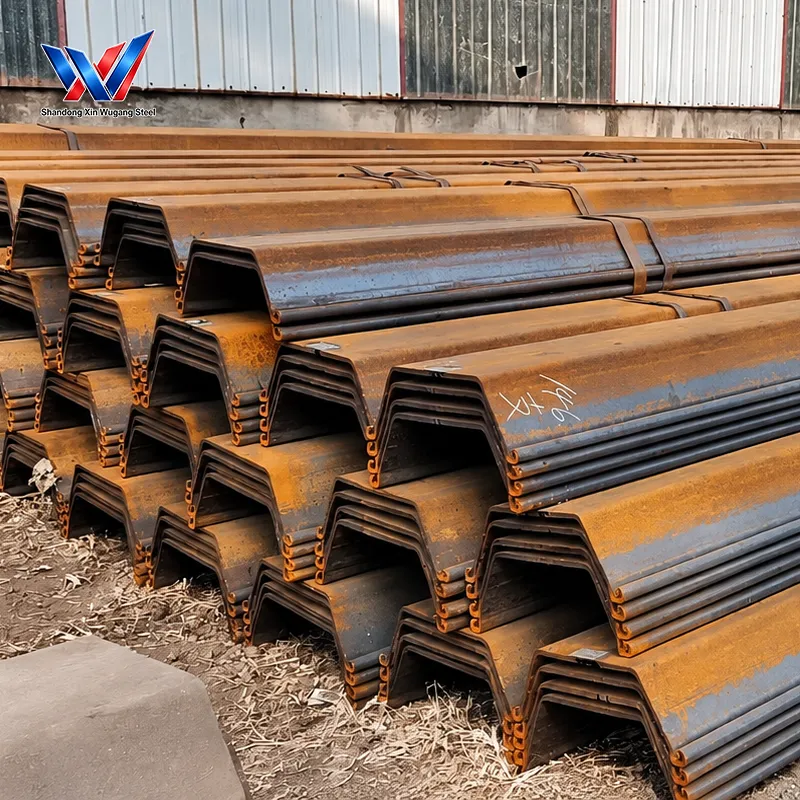

U Type Steel Sheet Pile

Reliable interlock connection for watertight continuous retaining wall
Complete global standard sizes: GB SP, Euro U, ASTM PU series
High bending stiffness, suitable for deep excavation & coastal environment
Reusable material, flexible cutting and on‑site splicing available

Product Overview

U Type Steel Sheet Pile is a hot-rolled interlocking steel retaining member designed for temporary and permanent earth-retaining and water-barrier structures. With its U-shaped profile and reliable interlock connection system, it creates continuous retaining walls for civil engineering, hydraulic projects and foundation construction.

Manufactured according to international standards including GB/T 2093-2014, ASTM A6/A6M-22, EN 10248-1-2017 and JIS G3192-2018, U Type Steel Sheet Pile is available in multiple global standard series, including Chinese SP series, European U series and American PU series.

The product range covers SP-III, SP-IV, SP-V, SP-VI, U250-U600 and PU12-PU20 specifications. Different steel grades, dimensions and corrosion protection options are available to meet various excavation depths, marine environments and infrastructure requirements.

U Type Steel Sheet Pile provides high bending stiffness, reliable soil retention and water-stop performance through its interlocking clutch design. It is widely used in deep foundation pits, river revetment, port wharf construction, municipal trench support, flood-control engineering and offshore auxiliary structures.

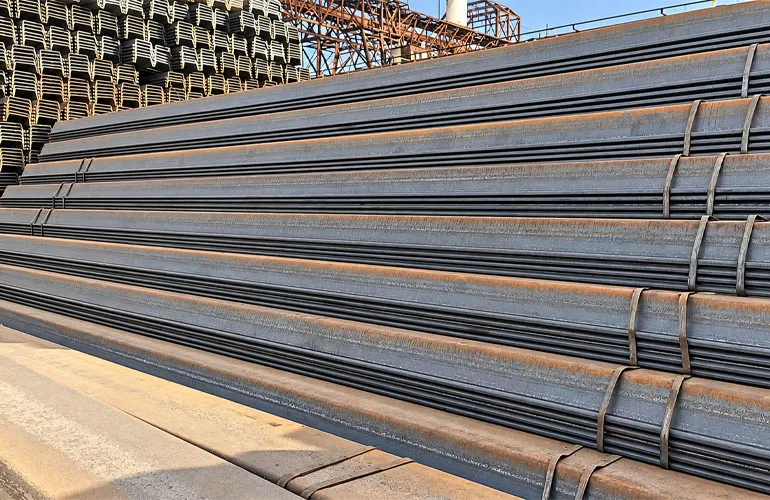

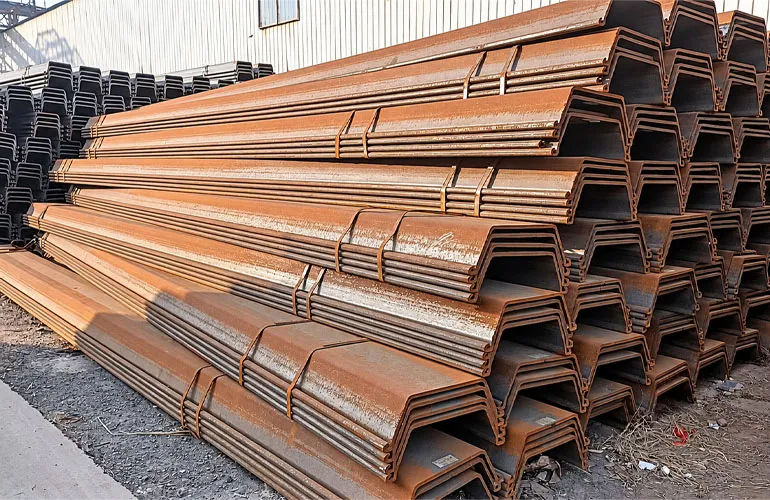

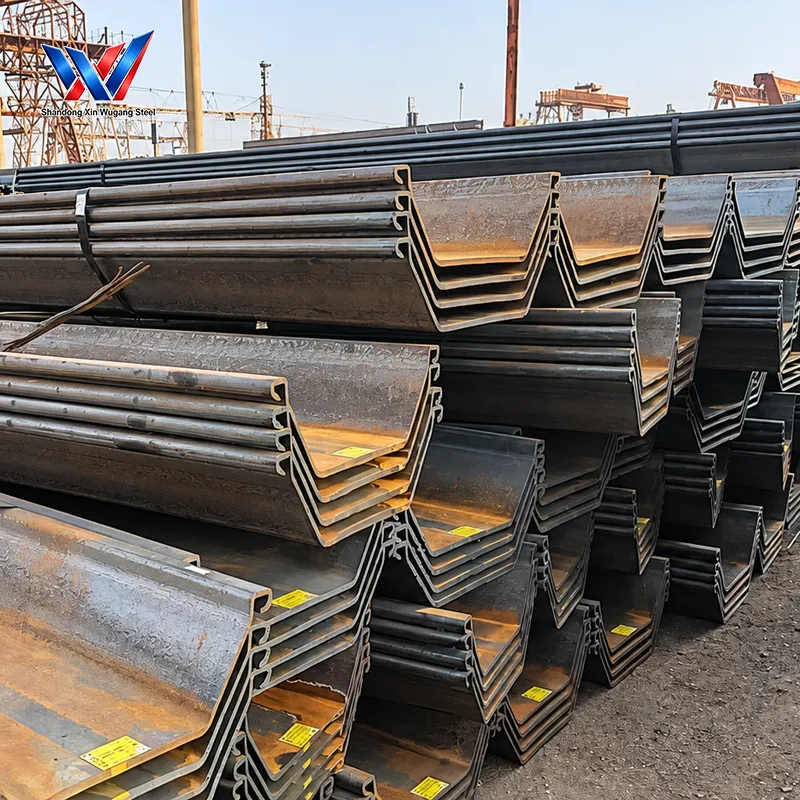

Inside Our Shandong Processing Facility

Chemical & Mechanical Property Snapshot

Grade	C (Max, %)	Si (Max, %)	Mn (Max, %)	P (Max, %)	S (Max, %)	Yield Strength (MPa, Min)	Tensile Strength (MPa)	Elongation (%, Min)
Q235B	0.20	0.35	1.40	0.045	0.045	235	370-500	26
Q355B	0.20	0.50	1.60	0.035	0.035	355	470-630	21
Q355NL	0.20	0.50	1.60	0.030	0.030	355	470-630	21
Q420	0.20	0.50	1.70	0.035	0.035	420	520-680	19
Q460	0.20	0.60	1.80	0.035	0.035	460	550-720	17
S235JR	0.17	–	1.40	0.040	0.040	235	360-510	25
S275JR	0.21	–	1.50	0.040	0.040	275	410-560	23
S355JR	0.24	0.55	1.60	0.040	0.040	355	470-630	21
A36	0.25	0.40	1.20	0.040	0.050	250	400-550	20
A572 Gr50	0.23	0.40	1.35	0.040	0.050	345	450-600	18
A588	0.19	0.30	1.25	0.040	0.050	345	485-620	18
SS400	0.21	–	1.50	0.050	0.050	245	400-510	21
SY295	0.18	–	1.50	0.040	0.040	295	440	20
SY390	0.18	–	1.50	0.040	0.040	390	490	18
AML235	0.20	0.35	1.40	0.035	0.035	235	370	26
AML355	0.20	0.50	1.60	0.030	0.030	355	470	21

Detailed Technical Specifications

Technical Item	Specification
Product Name	U Type Steel Sheet Pile
Product Type	Hot Rolled Interlocking Steel Sheet Pile
Section Shape	U Shape
Connection Type	Interlocking Clutch System
Applicable Category	Steel Sheet Pile
Manufacturing Standards	GB/T 2093-2014; ASTM A6/A6M-22; EN 10248-1-2017; JIS G3192-2018
Chinese Series	SP-III, SP-IV, SP-V, SP-VI
European Series	U250, U300, U350, U400, U450, U500, U600
American Series	PU12, PU14, PU16, PU18, PU20
SP-III Size	400×100×10.5mm
SP-IV Size	400×125×13mm
SP-V Size	500×150×15mm
SP-VI Size	500×170×18mm
PU Series Range	305×102×6.4mm to 508×152×9.5mm
Material Grades	Q235B, Q355B, Q355NL, Q420, Q460
American Grades	A36, A572 Gr50, A588
European Grades	S235JR, S275JR, S355JR
Japanese Grades	SS400, SY295, SY390
Marine Grades	AML235, AML355
Standard Length	6m / 9m / 12m
Custom Length	3m–18m
Surface Options	Hot rolled finish, shot blasting, coating, galvanizing, epoxy coating
Galvanizing Thickness	85–275g/㎡
Processing	End beveling, drilling, cutting, welding, splicing, clutch repair
Quality Documentation	Mill Test Certificate
Packaging	Seaworthy export packaging
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	15–25 working days after receiving deposit

Dimension Table

Series	Model	Dimension (Width × Height × Thickness)
Chinese GB SP Series	SP-III	400 × 100 × 10.5 mm
Chinese GB SP Series	SP-IV	400 × 125 × 13 mm
Chinese GB SP Series	SP-V	500 × 150 × 15 mm
Chinese GB SP Series	SP-VI	500 × 170 × 18 mm
European EN U Series	U250	250 × 85 × 6 mm
European EN U Series	U300	300 × 100 × 7 mm
European EN U Series	U350	350 × 110 × 8 mm
European EN U Series	U400	400 × 120 × 9 mm
European EN U Series	U450	450 × 130 × 10 mm
European EN U Series	U500	500 × 140 × 12 mm
European EN U Series	U600	600 × 150 × 14 mm
American ASTM PU Series	PU12	305 × 102 × 6.4 mm
American ASTM PU Series	PU14	356 × 114 × 7.1 mm
American ASTM PU Series	PU16	406 × 127 × 7.9 mm
American ASTM PU Series	PU18	457 × 140 × 8.7 mm
American ASTM PU Series	PU20	508 × 152 × 9.5 mm

Product Comparison Table

Comparison Item	Q235B / S235JR / A36 / SS400	Q355B / S355JR / A572 Gr50 / SY295	Q420 / Q460 / SY390 / A588
Equivalent Standard	GB/T 2093, EN10248, ASTM A6, JIS G3192	GB/T 2093, EN10248, ASTM A6, JIS G3192	GB/T 2093, EN10248, ASTM A6, JIS G3192
Yield Strength	≥235MPa	≥355MPa	≥420~460MPa
Tensile Strength	370-510MPa	470-630MPa	520-720MPa
Main Advantage	Low cost, excellent weldability, general engineering use	High strength, good toughness, cost balance for medium deep excavation	Ultra high strength, resistant to heavy load & deep foundation
Typical Application	River revetment, shallow trench, temporary retaining wall	Deep foundation pit, port, coastal engineering, flood control	Super deep excavation, heavy marine project, permanent retaining structure
Impact Performance	Normal temperature impact	Low temperature toughness available (Q355NL)	Excellent low temperature & fatigue resistance
Weldability	Excellent	Good	Moderate
Corrosion Resistance	Base carbon steel, needs coating/galvanizing	Base carbon steel, needs coating/galvanizing	A588 offers weathering resistance
Reusability	Yes	Yes	Yes
Common U-Type Profile	SP-III, SP-IV, U250, U300, PU12, PU14	SP-V, SP-VI, U350, U400, PU16, PU18	U450, U500, U600, PU20
Suitable Excavation Depth	≤6m	6~12m	>12m

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Port Cofferdam Construction

River Regulation Cofferdam

Deep Excavation Shoring System

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is U Type Steel Sheet Pile?

U Type Steel Sheet Pile is a hot-rolled interlocking steel retaining product used for earth-retaining and water-barrier structures.

What standards are available for U Type Steel Sheet Pile?

It is manufactured according to GB/T 2093-2014, ASTM A6/A6M-22, EN 10248-1-2017 and JIS G3192-2018 standards.

Can U Type Steel Sheet Pile be customized?

Yes. Custom lengths from 3m–18m and processing services including cutting, drilling and welding are available.

Which projects use U Type Steel Sheet Pile?

It is commonly used for foundation pits, river revetment, port construction, municipal trenches and flood-control projects.

What surface treatments are available?

Options include hot rolled finish, shot blasting, anti-corrosion coating, hot-dip galvanizing and epoxy protective coating.
