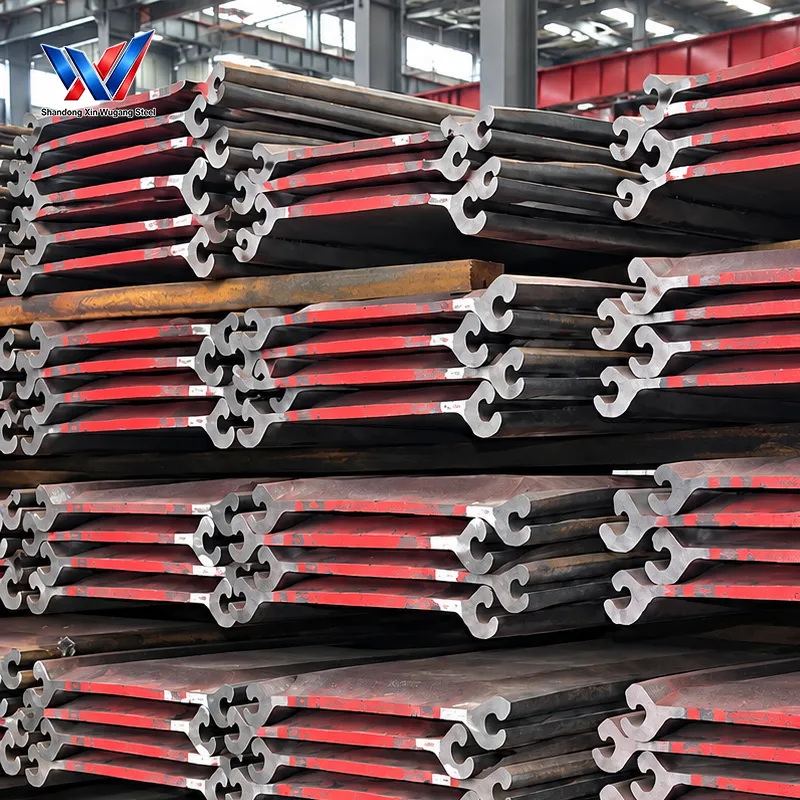

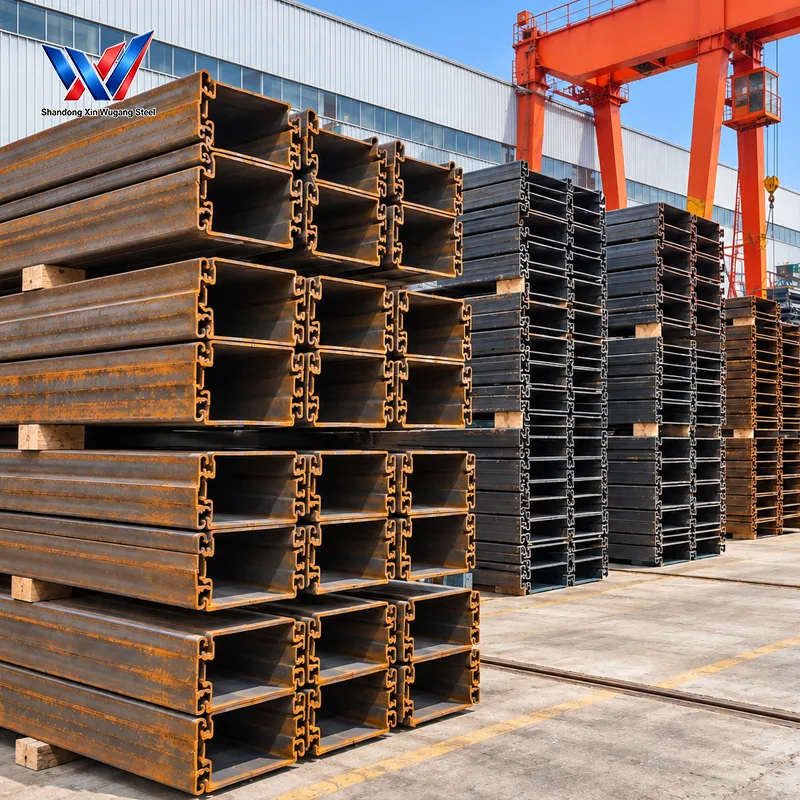

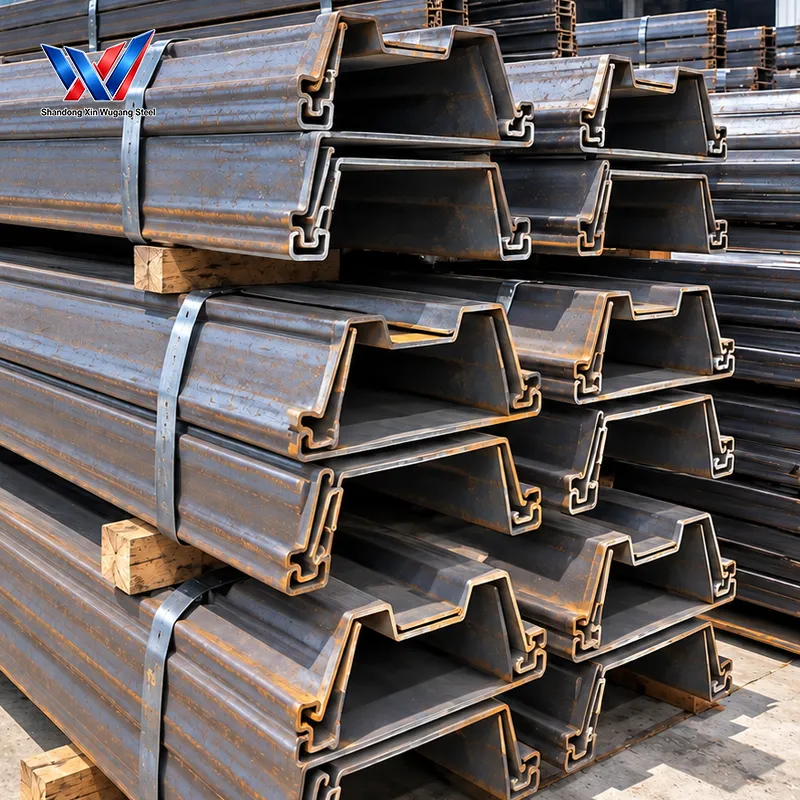

Straight Web Steel Sheet Pile

Simple flat‑web profile, easy driving and installation
Complete GB PZ & Euro LSP sizes for light‑load conditions
Compact structure, cost‑effective for temporary projects
Interlock joint ensures basic water‑stop performance

Product Overview

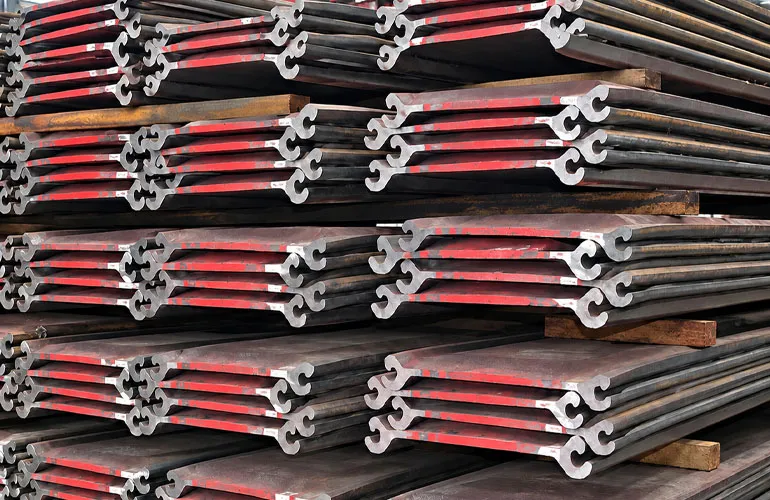

Straight Web Steel Sheet Pile is a hot-rolled interlocking steel sheet pile with a flat straight web structure. It is mainly designed for shallow excavation support, temporary cofferdams, municipal trench protection and light-duty retaining projects where easy installation and cost efficiency are required.

Different from U Type Steel Sheet Pile and Z Type Steel Sheet Pile, the straight web design features a flat middle web with interlock clutches located on both edges. This structure provides convenient pile driving, easier transportation and economical performance for light-load engineering conditions.

Straight Web Steel Sheet Pile includes Chinese PZ series and European LSP series, manufactured according to international standards including GB/T 2093-2014, ASTM A6/A6M-22, EN 10248-1-2017 and JIS G3192-2018 for overseas engineering procurement.

Available with multiple steel grades, standard lengths and customized fabrication services, Straight Web Steel Sheet Pile provides practical retaining solutions for temporary construction works, municipal engineering, flood-control barriers and light cofferdam structures.

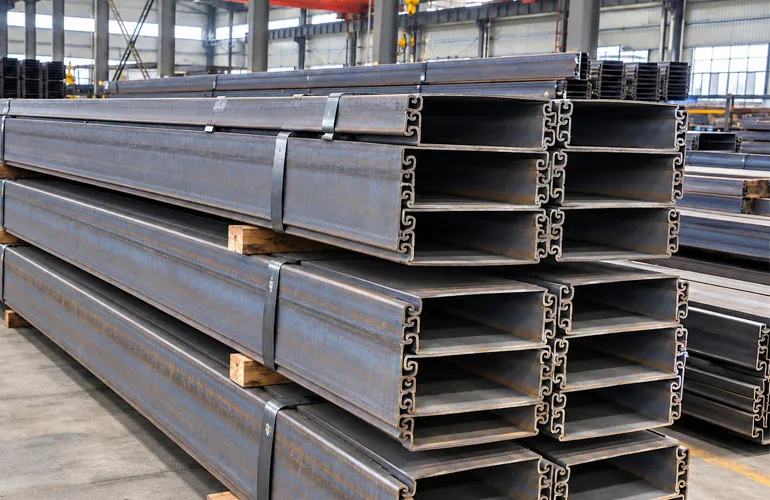

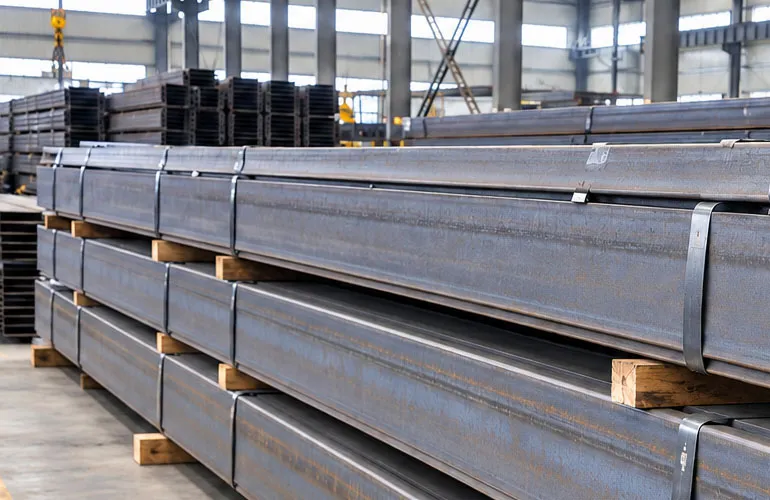

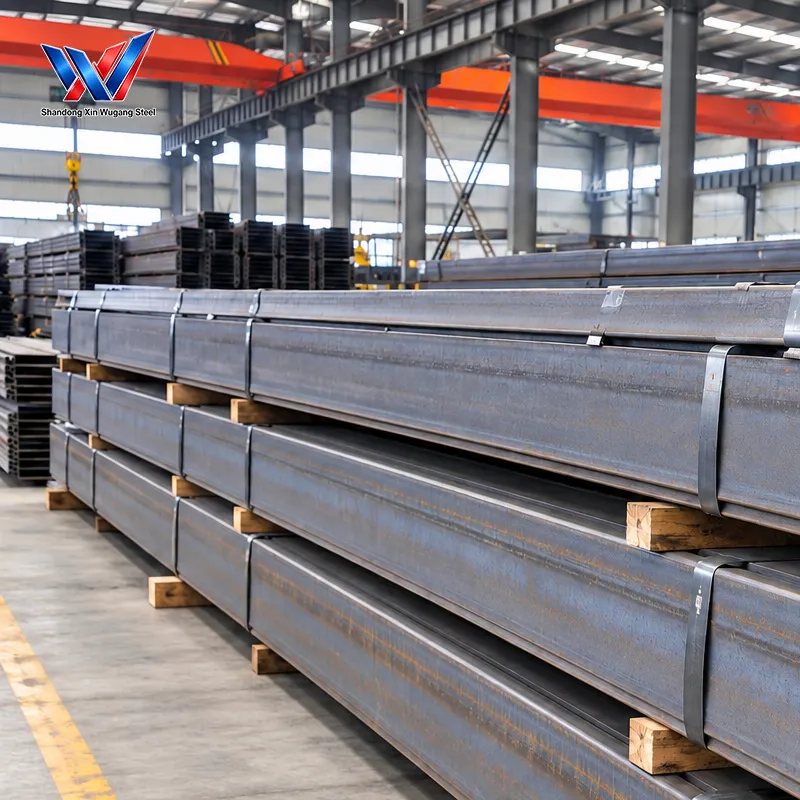

Inside Our Shandong Processing Facility

Chemical & Mechanical Property Snapshot

Grade	Standard	C Max (%)	Mn (%)	Si Max (%)	P Max (%)	S Max (%)	Yield Strength (MPa, Min)	Tensile Strength (MPa)	Elongation A5 (%, Min)
Q235B	GB/T 2093	0.20	0.30~0.70	0.35	0.045	0.045	235	370~500	26
Q355B	GB/T 2093	0.20	1.00~1.60	0.50	0.035	0.035	355	470~630	21
Q355NL	GB/T 2093	0.18	1.00~1.60	0.50	0.030	0.030	355	470~630	22
Q420	GB/T 2093	0.20	1.00~1.70	0.50	0.035	0.035	420	520~680	19
Q460	GB/T 2093	0.20	1.00~1.80	0.60	0.035	0.035	460	550~720	17
A36	ASTM A6/A6M	0.25	≤1.20	0.40	0.04	0.05	250	400~550	20
A572 Gr50	ASTM A6/A6M	0.23	≤1.35	0.40	0.04	0.05	345	450~600	18
A588	ASTM A6/A6M	0.19	0.80~1.25	0.30~0.65	0.04	0.05	345	485~620	18
S235JR	EN 10248	0.17	≤1.40	–	0.035	0.035	235	360~510	25
S275JR	EN 10248	0.21	≤1.40	–	0.035	0.035	275	410~560	23
S355JR	EN 10248	0.24	≤1.60	0.55	0.035	0.035	355	470~630	21
SS400	JIS G3192	≤0.26	–	–	0.05	0.05	245	400~510	21
SY295	JIS G3192	≤0.20	–	–	0.04	0.04	295	490~610	20
SY390	JIS G3192	≤0.18	–	–	0.04	0.04	390	490~610	18
AML235	Marine Grade	0.20	0.30~0.70	0.35	0.035	0.035	235	370~500	26
AML355	Marine Grade	0.18	1.00~1.60	0.50	0.030	0.030	355	470~630	22

Detailed Technical Specifications

Technical Item	Specification
Product Name	Straight Web Steel Sheet Pile
Product Type	Hot Rolled Flat Web Interlocking Steel Sheet Pile
Profile Structure	Flat straight web with edge interlock clutches
Main Feature	Easy pile driving and economical light-load retaining solution
Manufacturing Standards	GB/T 2093-2014; ASTM A6/A6M-22; EN 10248-1-2017; JIS G3192-2018
Chinese Series	PZ Series
PZ18 Size	180×60×5mm
PZ22 Size	220×70×6mm
PZ25 Size	250×80×7mm
PZ30 Size	300×90×8mm
European Series	LSP Series
LSP180 Size	180×65×5mm
LSP220 Size	220×75×6mm
LSP250 Size	250×85×7mm
LSP300 Size	300×95×8mm
Standard Length	6m / 9m / 12m
Customized Length	3m–18m
China Grades	Q235B, Q355B, Q355NL, Q420, Q460
ASTM Grades	A36, A572 Gr50, A588
EN Grades	S235JR, S275JR, S355JR
JIS Grades	SS400, SY295, SY390
Marine Grades	AML235, AML355
Surface Options	Black finish, shot blasting, anti-corrosion coating, galvanizing, epoxy coating
Galvanizing Weight	85–275g/㎡
Fabrication Service	End beveling, drilling, cutting, welding assembly, interlock repair
Quality Control	Mill Test Certificate
Packaging	Seaworthy export packaging
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	15–25 working days after receiving deposit

Dimension Table

Series	Model	Width × Height × Thickness (mm)	Standard Length (m)	Custom Length (m)
GB PZ Series	PZ18	180 × 60 × 5	6 / 9 / 12	3~18
GB PZ Series	PZ22	220 × 70 × 6	6 / 9 / 12	3~18
GB PZ Series	PZ25	250 × 80 × 7	6 / 9 / 12	3~18
GB PZ Series	PZ30	300 × 90 × 8	6 / 9 / 12	3~18
EU LSP Series	LSP180	180 × 65 × 5	6 / 9 / 12	3~18
EU LSP Series	LSP220	220 × 75 × 6	6 / 9 / 12	3~18
EU LSP Series	LSP250	250 × 85 × 7	6 / 9 / 12	3~18
EU LSP Series	LSP300	300 × 95 × 8	6 / 9 / 12	3~18

Product Comparison Table

Grade	Standard	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)	Equivalent International Grade	Main Application
Q235B	GB/T 2093	≥235	370–500	≥26	S235JR / A36 / SS400	General retaining wall, temporary foundation pit, low water pressure project
Q355B	GB/T 2093	≥355	470–630	≥21	S355JR / A572 Gr.50 / SP490	Deep foundation pit, river bank reinforcement, medium load retaining structure
S235JR	EN 10248	≥235	360–510	≥26	Q235B / A36 / SS400	European standard temporary cofferdam, light earth retaining
S355JR	EN 10248	≥355	470–630	≥21	Q355B / A572 Gr.50 / SP490	EU standard river cofferdam, heavy load foundation support
A36	ASTM A6/A6M	≥250	400–550	≥23	Q235B / S235JR / SS400	North America temporary retaining, simple excavation support
A572 Gr.50	ASTM A6/A6M	≥345	450–600	≥21	Q355B / S355JR / SP490	American standard deep pit, port engineering sheet pile
SS400	JIS G3192	≥245	400–510	≥21	Q235B / S235JR / A36	Asia market cofferdam, soil retaining project
SP490	JIS G3192	≥355	490–610	≥19	Q355B / S355JR / A572 Gr.50	High load waterfront engineering, permanent retaining wall

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

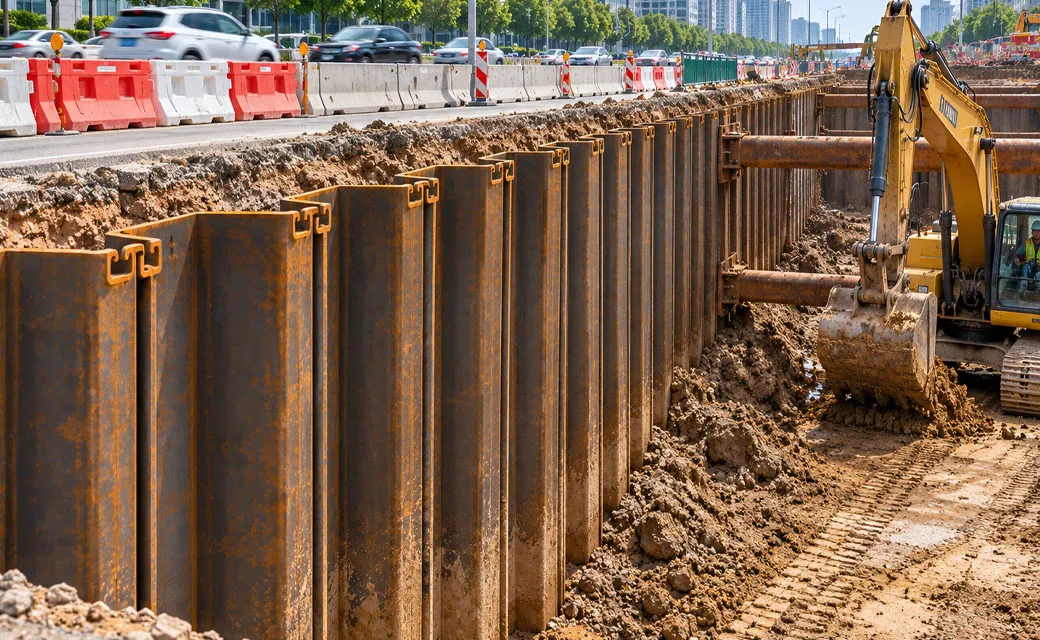

Municipal Road Expansion Excavation Support

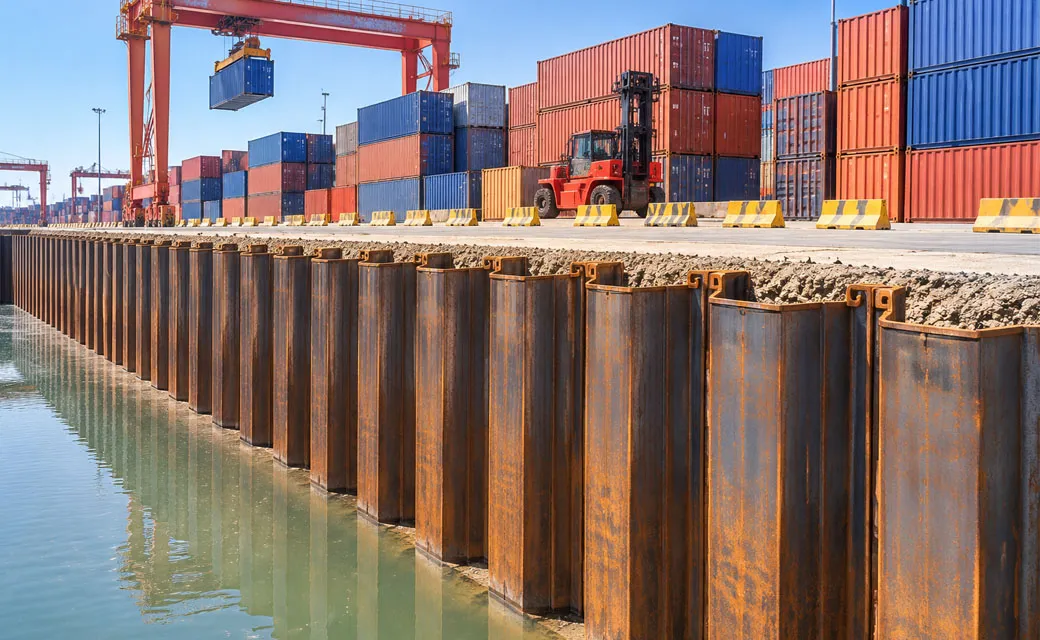

Slope Support for Container Yards

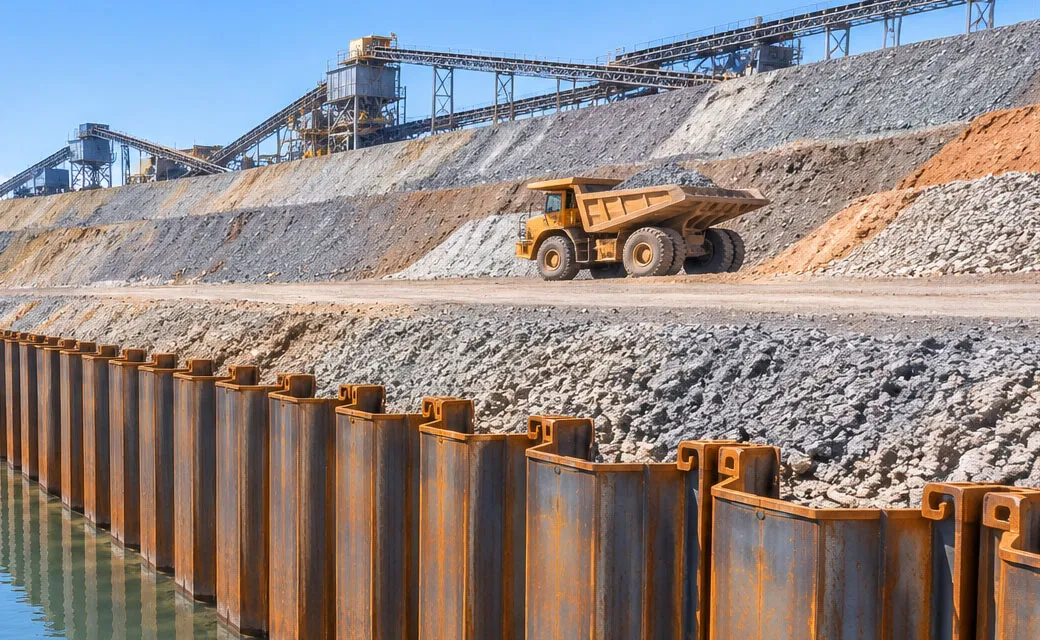

Slope Support for Mine Tailings Storage Facilities

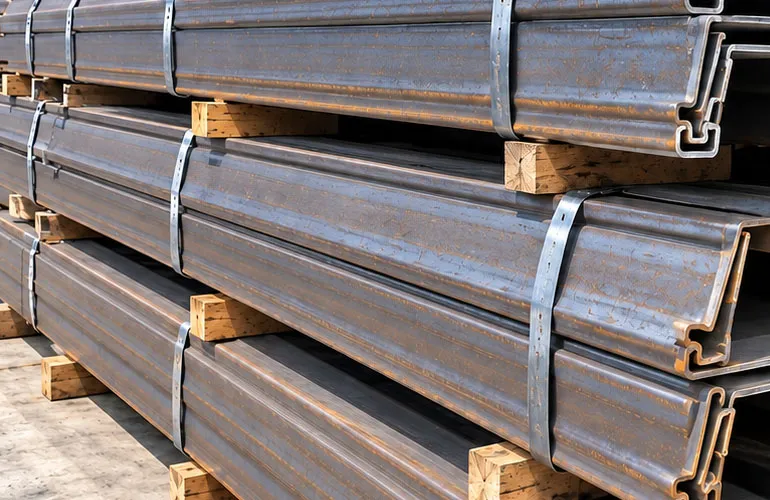

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is Straight Web Steel Sheet Pile?

Straight Web Steel Sheet Pile is a hot-rolled flat web interlocking steel sheet pile designed for shallow excavation, temporary cofferdams and light retaining projects.

What sizes are available for Straight Web Steel Sheet Pile?

It includes Chinese PZ18, PZ22, PZ25, PZ30 and European LSP180, LSP220, LSP250, LSP300 sizes.

Can Straight Web Steel Sheet Pile be customized?

Yes. Customized lengths from 3m to 18m and fabrication services including cutting, drilling and welding are available.

What is the difference between Straight Web and Z Type Steel Sheet Pile?

Straight Web Steel Sheet Pile focuses on easy installation and cost efficiency for light-load applications, while Z Type Steel Sheet Pile provides higher section modulus for deeper and heavier projects.

Where is Straight Web Steel Sheet Pile used?

It is mainly used in shallow foundation pits, municipal trench support, temporary cofferdams, flood barriers and light hydraulic projects.
