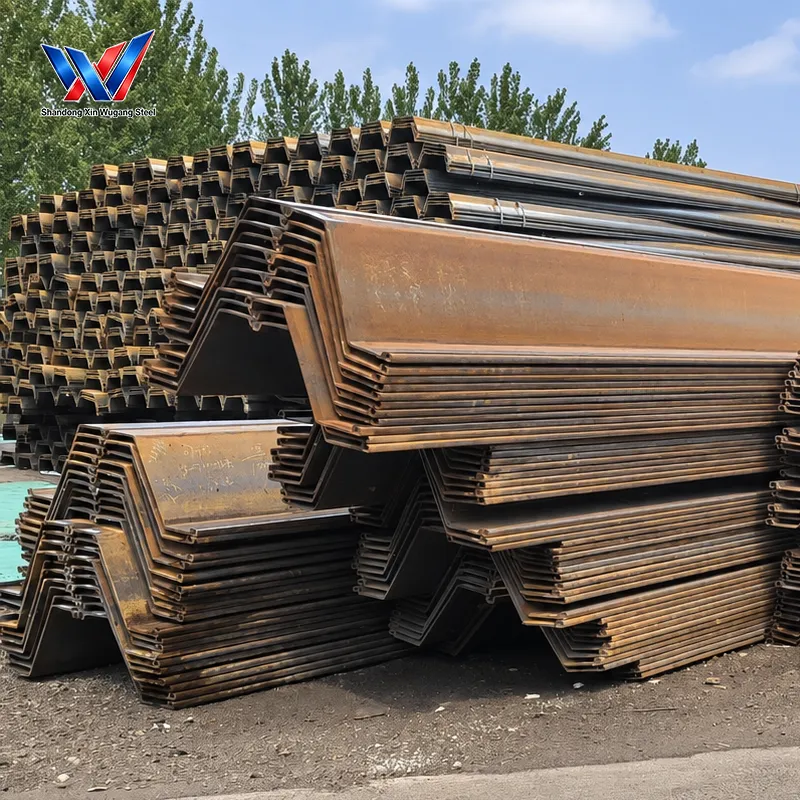

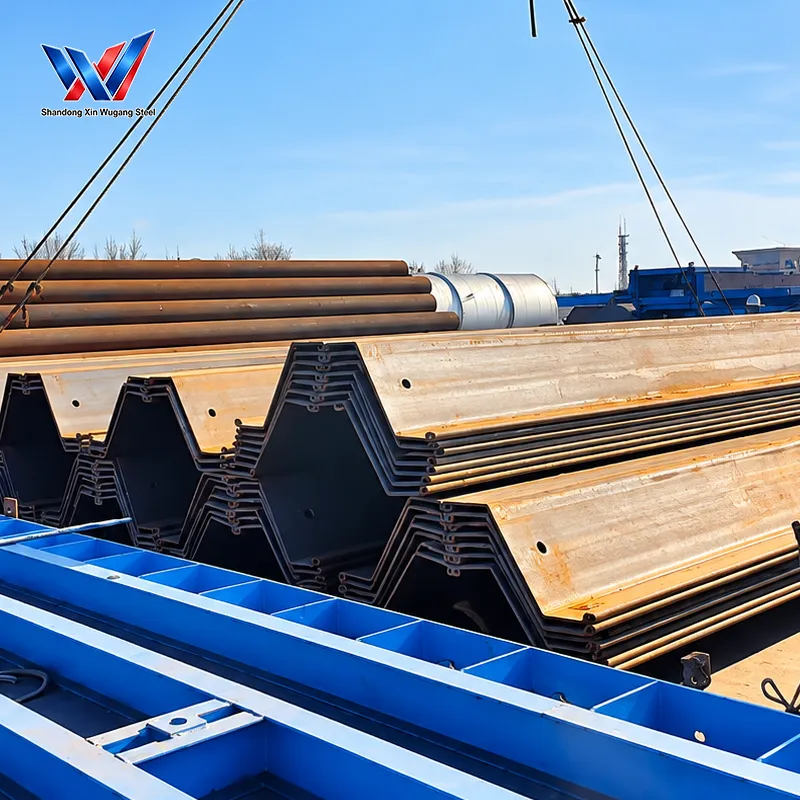

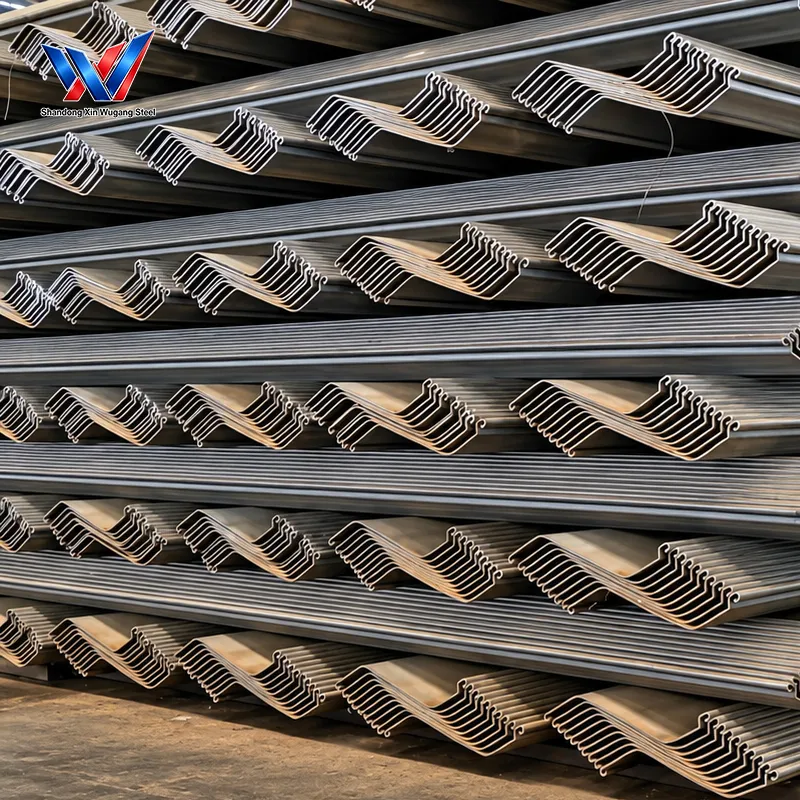

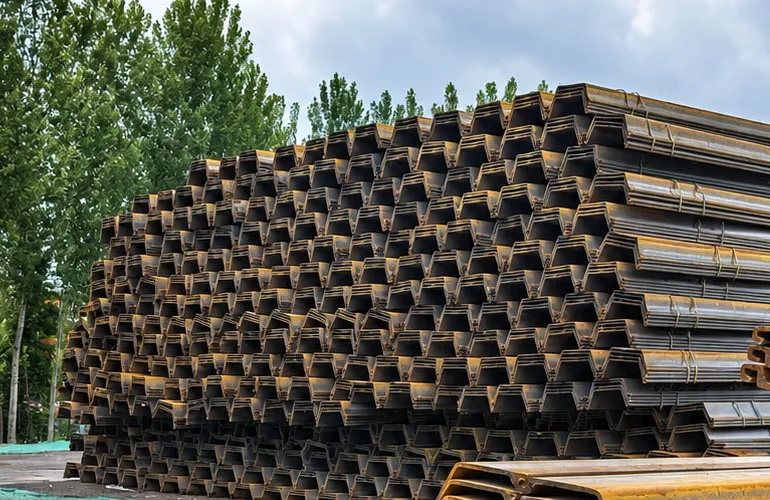

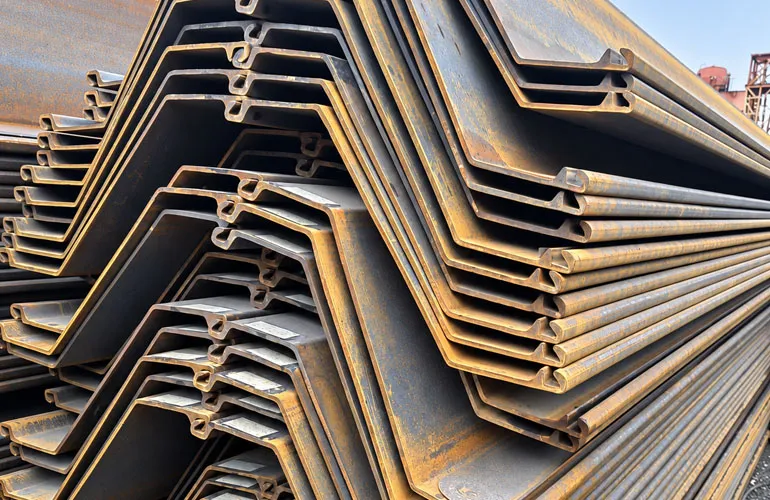

Z Type Steel Sheet Pile

High section modulus, excellent bending resistance for deep‑depth application

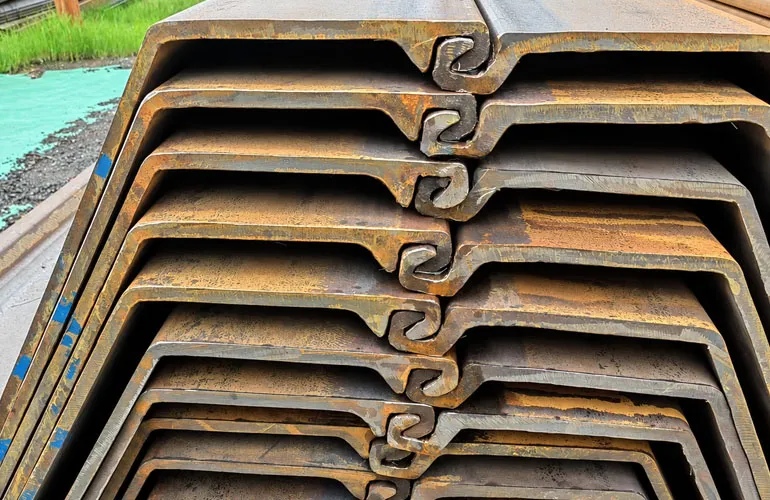

Tight interlock clutches, reliable water‑stop performance for marine environment
Complete GB & Euro standard sizes, flexible for permanent & temporary works
Reusable steel material, supports custom cutting and field splicing

Product Overview

Z Type Steel Sheet Pile is a hot-rolled interlocking steel profile with a distinctive Z-shaped cross-section, designed for heavy-duty earth retaining, water barrier and foundation support applications. Its optimized Z geometry provides higher section modulus and bending resistance, making it suitable for deep excavation, marine structures and permanent retaining wall systems.

Manufactured according to international standards including GB/T 2093-2014, ASTM A6/A6M-22, EN 10248-1-2017 and JIS G3192-2018, Z Type Steel Sheet Pile covers Chinese Z series and European Z series to meet global engineering procurement requirements.

The product range includes Chinese standard Z270, Z350, Z400 and Z500, as well as European standard Z275, Z355, Z430 and Z550. The Z-shaped layout moves interlock clutches away from the neutral axis, improving structural efficiency compared with traditional sheet pile profiles for large lateral-load applications.

Z Type Steel Sheet Pile provides reliable interlocking performance, strong soil retention and water sealing capability. It is widely applied in deep foundation pits, port and harbour construction, river reinforcement, municipal trench support, flood-control projects and offshore engineering structures.

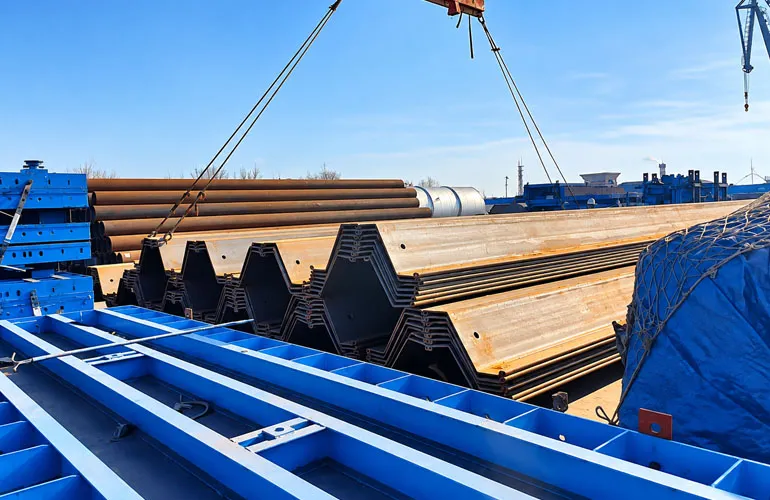

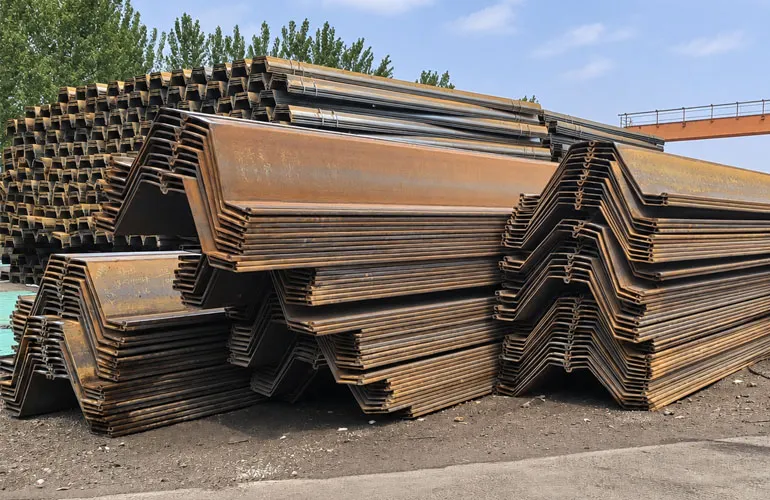

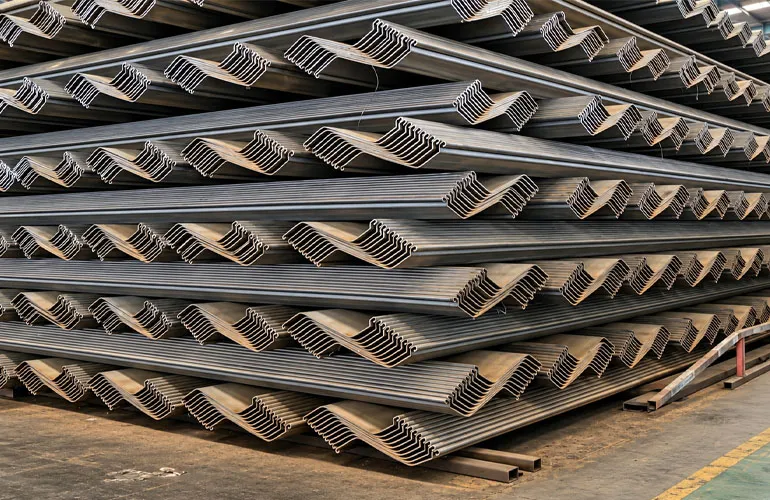

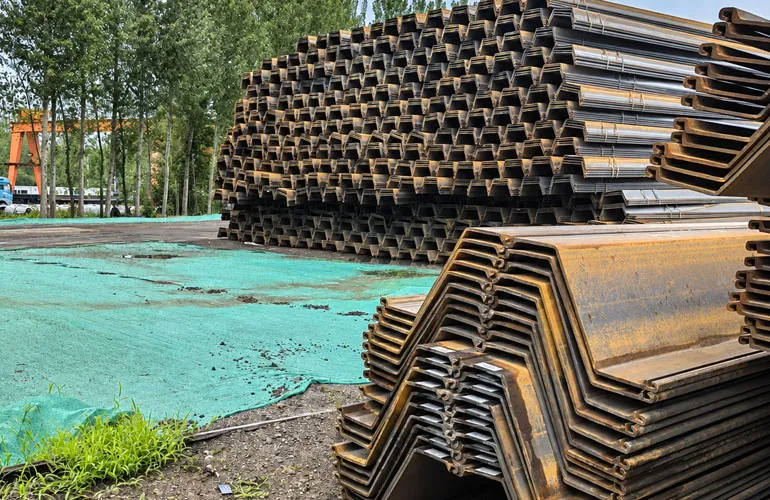

Inside Our Shandong Processing Facility

Chemical & Mechanical Property Snapshot

Grade	C (Max)	Mn	Si (Max)	S (Max)	P (Max)	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)
Q235B	0.20	0.30–0.70	0.35	0.045	0.045	≥235	375–500	≥26
Q355B	0.20	1.00–1.60	0.50	0.035	0.035	≥355	470–630	≥21
Q355NL	0.20	1.00–1.60	0.50	0.030	0.030	≥355	470–630	≥21
Q420	0.20	1.00–1.70	0.55	0.035	0.035	≥420	520–680	≥19
Q460	0.20	1.00–1.80	0.55	0.035	0.035	≥460	550–720	≥17
S235JR	0.17	≤1.40	0.35	0.035	0.035	≥235	360–510	≥25
S275JR	0.21	≤1.50	0.35	0.035	0.035	≥275	410–560	≥23
S355JR	0.24	≤1.60	0.55	0.035	0.035	≥355	470–630	≥21
A36	0.25	≤1.03	0.40	0.050	0.040	≥250	400–550	≥20
A572 Gr50	0.23	≤1.35	0.40	0.040	0.040	≥345	450–600	≥18
A588	0.19	0.80–1.25	0.30–0.65	0.050	0.040	≥345	485–620	≥18
SS400	0.25	—	—	0.050	0.040	≥245	400–510	≥21
SY295	0.18	≤1.50	0.55	0.040	0.040	≥295	490–610	≥20
SY390	0.18	≤1.60	0.55	0.040	0.040	≥390	490–610	≥18
AML235	0.20	≤1.40	0.35	0.035	0.035	≥235	360–510	≥25
AML355	0.20	≤1.60	0.55	0.035	0.035	≥355	470–630	≥21

Detailed Technical Specifications

Technical Item	Specification
Product Name	Z Type Steel Sheet Pile
Product Type	Hot Rolled Interlocking Z Sheet Pile
Section Shape	Z-shaped Cross Section

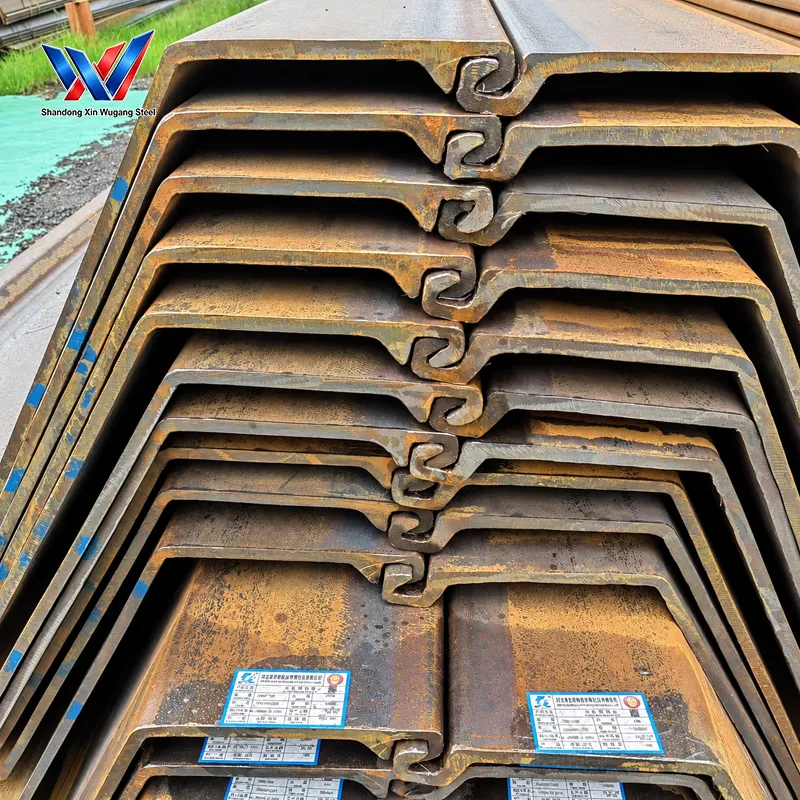

Connection Type	Interlocking Clutch System
Main Advantage	High Section Modulus and Bending Resistance
Manufacturing Standards	GB/T 2093-2014; ASTM A6/A6M-22; EN 10248-1-2017; JIS G3192-2018
Chinese Series	Z270, Z350, Z400, Z500
Chinese Z270 Size	270×125×9mm
Chinese Z350 Size	350×150×10mm
Chinese Z400 Size	400×170×12mm
Chinese Z500 Size	500×200×14mm
European Series	Z275, Z355, Z430, Z550
European Z275 Size	275×130×8mm
European Z355 Size	355×160×9mm
European Z430 Size	430×180×11mm
European Z550 Size	550×210×13mm
Standard Length	6m / 9m / 12m
Custom Length	3m–18m
Material Grades	Q235B, Q355B, Q355NL, Q420, Q460
ASTM Grades	A36, A572 Gr50, A588
EN Grades	S235JR, S275JR, S355JR
JIS Grades	SS400, SY295, SY390
Marine Grades	AML235, AML355
Surface Treatment	Black finish, shot blasting, anti-corrosion coating, galvanizing, epoxy coating
Galvanizing Coating Weight	85–275g/㎡
Processing Service	End beveling, drilling, cutting, welding assembly, clutch repair
Quality Certificate	Mill Test Certificate
Packaging	Seaworthy Export Packaging
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	15–25 working days after receiving deposit

Size Table

Item	Section Size (Width × Height × Thickness)
Chinese Z270	270×125×9mm
Chinese Z350	350×150×10mm
Chinese Z400	400×170×12mm
Chinese Z500	500×200×14mm
European Z275	275×130×8mm
European Z355	355×160×9mm
European Z430	430×180×11mm
European Z550	550×210×13mm
Standard Length	6m / 9m / 12m
Custom Length	3m–18m

Product Comparison Table

Comparison Item	Z Type Steel Sheet Pile	U Type Steel Sheet Pile	Straight Web Sheet Pile
Cross Section	Z-shaped profile	U-shaped profile	Flat web profile
Section Modulus	Higher	Medium	Low-Medium
Bending Resistance	Excellent for deep excavation, heavy lateral load	Good for general retaining works	Suitable for special retaining applications
Interlock Position	Away from neutral axis, reduce stress concentration	Near neutral axis	Web connection design
Typical Material Grade	Q235B, Q355B, S235JR, S355JR, A572Gr50, SY390	Q235B, Q355B, S235JR, S355JR, SS400, SY295	Q355B, S355JR, A572Gr50
Typical Application	Deep excavation, ports, marine structures, flood control	Foundation pits, river works, temporary retaining	Special retaining walls, tight space projects
Large Lateral Load Performance	Excellent performance	Moderate performance	Project dependent
Reuse Capability	Available	Available	Available
Processing Options	Cutting, drilling, welding, splicing, end bevelling	Cutting, drilling, welding	Custom processing
Water Sealing Performance	Good interlock water stop	Reliable sealing	Basic sealing
Cost Level	Medium-High	Medium	High
Standard	GB/T 2093, EN10248, ASTM A6/A6M, JIS G3192	GB/T 2093, EN10248, ASTM A6/A6M, JIS G3192	GB/T 2093, EN10248

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

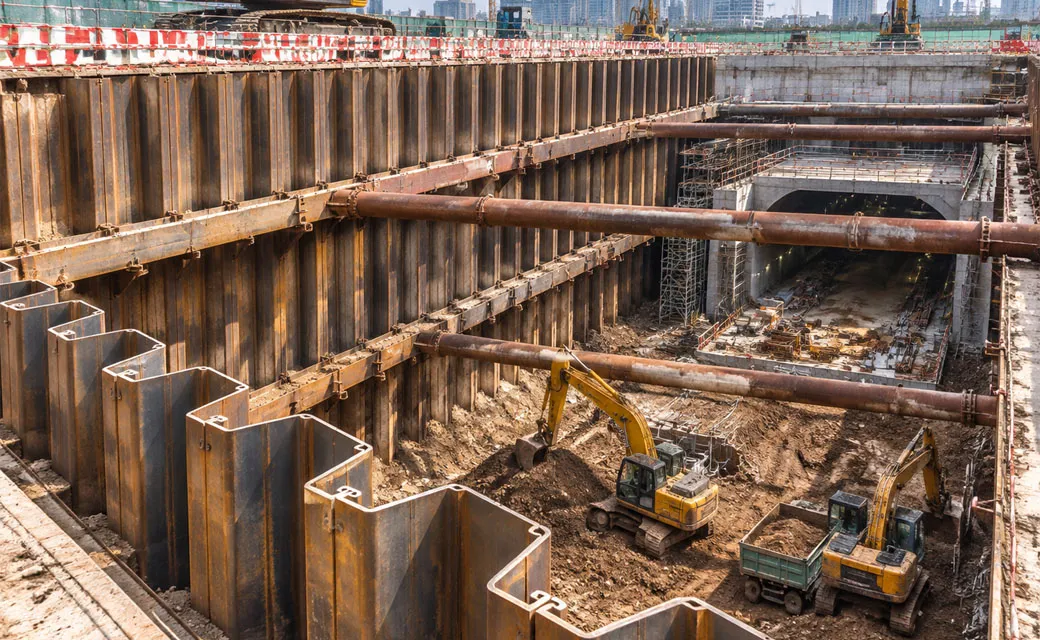

Metro Tunnel Excavation Support

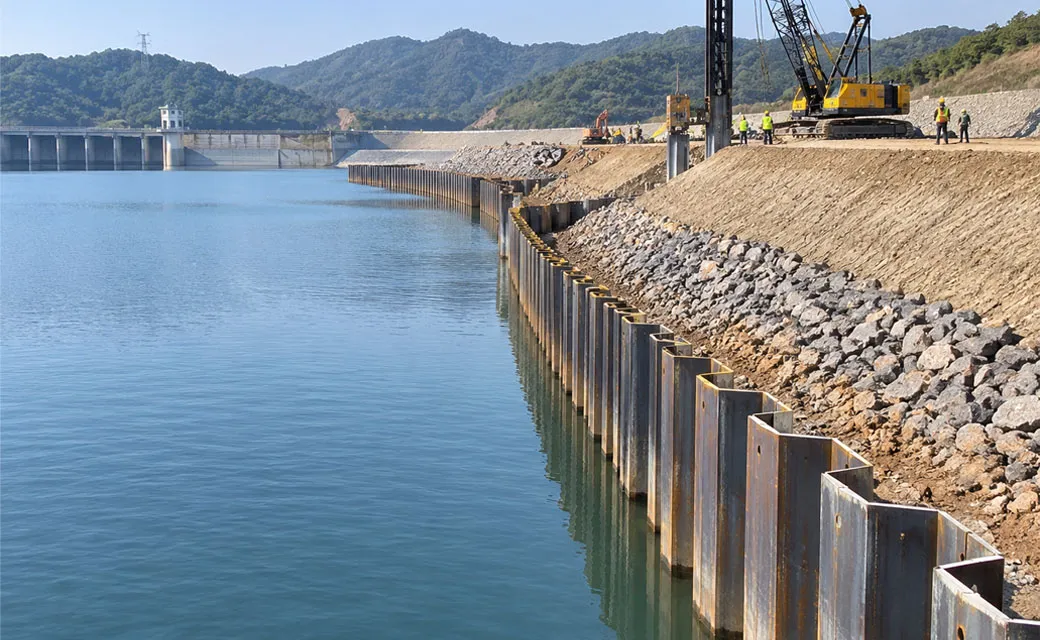

Reservoir Dam Reinforcement

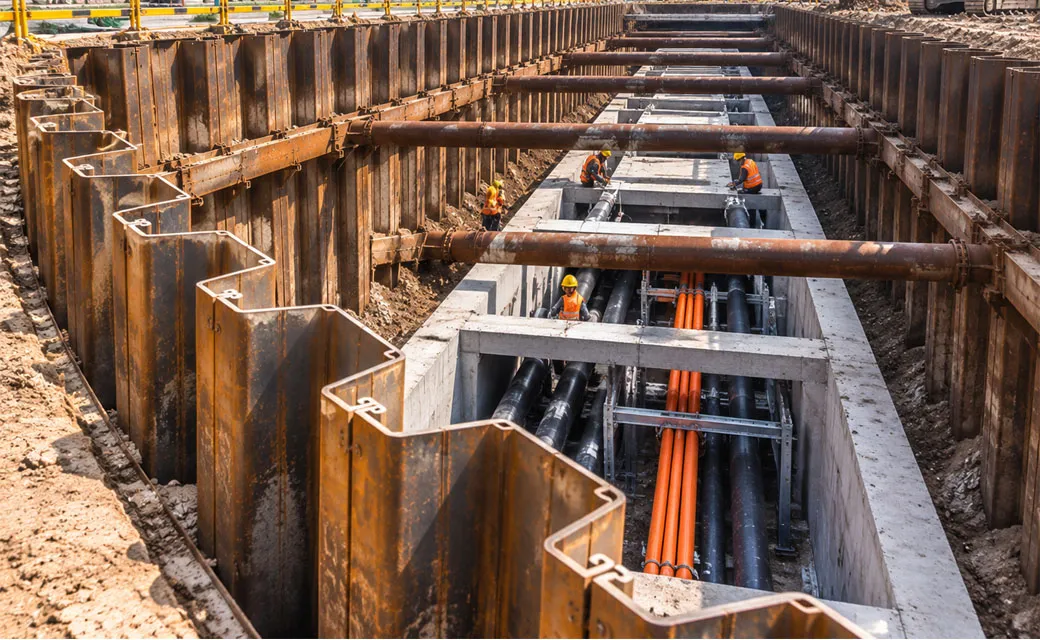

Underground Utility Tunnel Shoring System

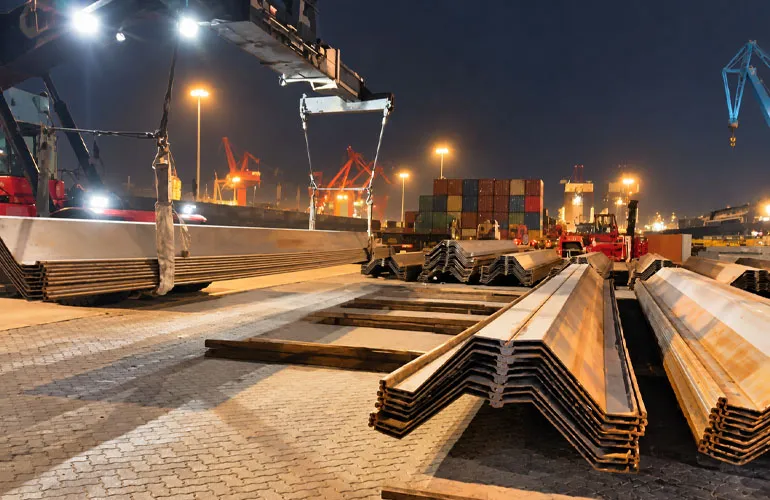

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is Z Type Steel Sheet Pile?

Z Type Steel Sheet Pile is a hot-rolled interlocking steel profile with a Z-shaped cross-section used for retaining walls and water barrier structures.

Why choose Z Type Steel Sheet Pile instead of U Type?

The Z-shaped design moves interlock clutches away from the neutral axis, providing higher section modulus and better bending performance for large lateral loads.

What standards are available for Z Type Steel Sheet Pile?

It follows GB/T 2093-2014, ASTM A6/A6M-22, EN 10248-1-2017 and JIS G3192-2018 standards.

Can Z Type Steel Sheet Pile be customized?

Yes. Custom lengths from 3m–18m and processing services including cutting, drilling, welding and splicing are available.

Where is Z Type Steel Sheet Pile commonly used?

It is widely used in deep excavation, harbour construction, river reinforcement, municipal trench support and offshore engineering projects.
