Wire Rod Manufacturer

Wire Rod Wire Rod Wire Rod Wire Rod

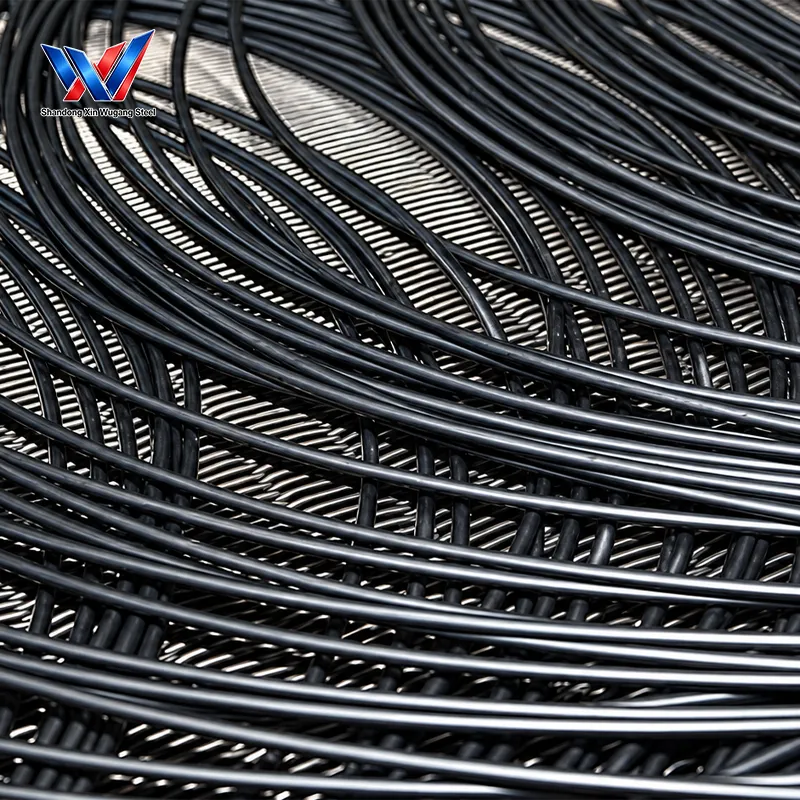

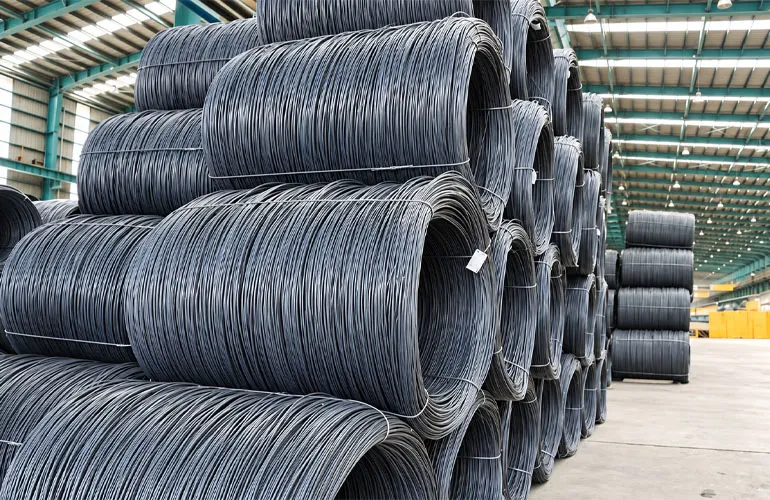

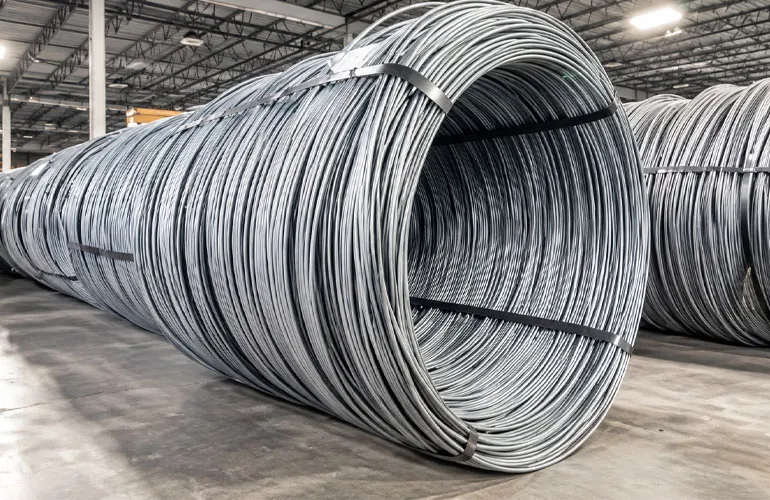

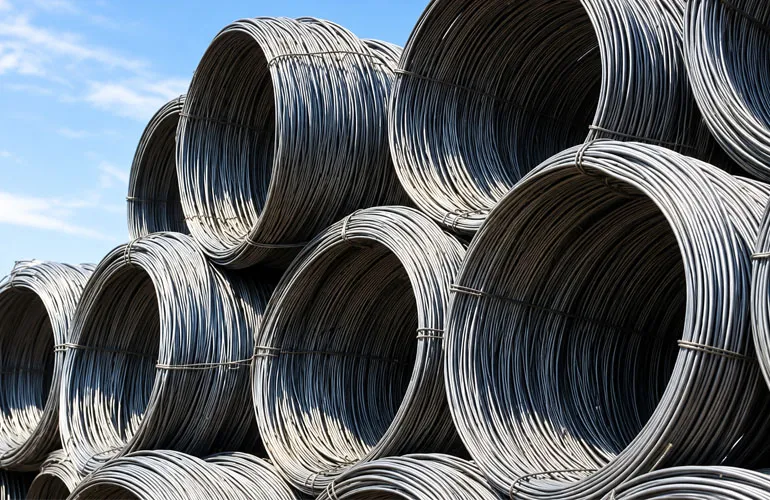

Wire Rod

  1. Complete grade coverage: low‑carbon, medium‑carbon, cold‑heading special grade, high‑carbon tire‑cord grade
  2. Standard diameter range 5.5‑16 mm, strict compliance with GB/T, ASTM, EN, JIS international standards
  3. Flexible coil solution: 1.5‑2.5t standard coil, optional 850/1100mm inner diameter, big coil split‑down service available
  4. Multi‑purpose material: fit for drawing, cold heading, stamping to produce wire, fasteners, cables and tire cord
Contact Us

Product Overview

Wire Rod is a hot-rolled coiled steel raw material designed for further processing applications including wire drawing, cold heading, stamping and spring manufacturing. It is widely used as a basic material for producing steel wire, fasteners, hardware components, steel strand and tire cord.

Our Wire Rod product range covers low-carbon drawing grade, medium-carbon grade, cold-heading special grade and high-carbon tire-cord grade, supporting different downstream manufacturing requirements. Production and inspection follow international standards including GB/T 14981, ASTM A510, EN 10263, JIS G3505 and JIS G3506.

Available material grades include Q195, Q235, SAE1008, SAE1010, SWRM6, SWRM8, SWRCH6A, SWRCH8A for low-carbon applications; SAE1018, 1022, 1035, 1045 and SWRCH series for medium-carbon applications; ML08Al, ML35, ML40Cr and other cold-heading grades; as well as 65#, 70# and 82B high-carbon tire-cord grades.

With standard diameters from 5.5mm to 16mm, coil weights of 1.5-2.5 tons, and inner diameter options of 850mm and 1100mm, Wire Rod can meet different production line requirements. Big coil splitting service is available for customers requiring smaller coil sizes.

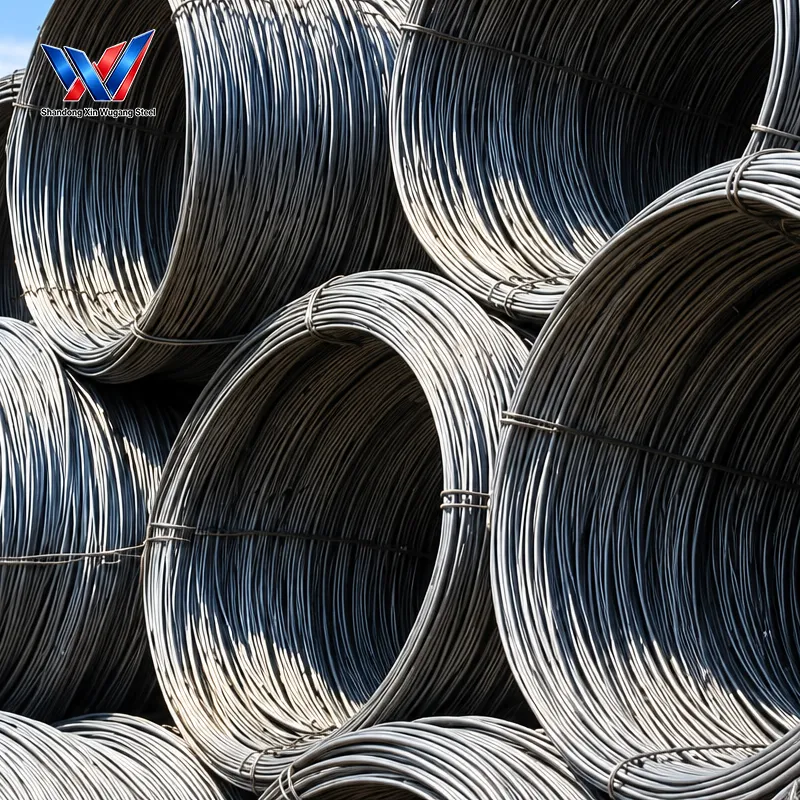

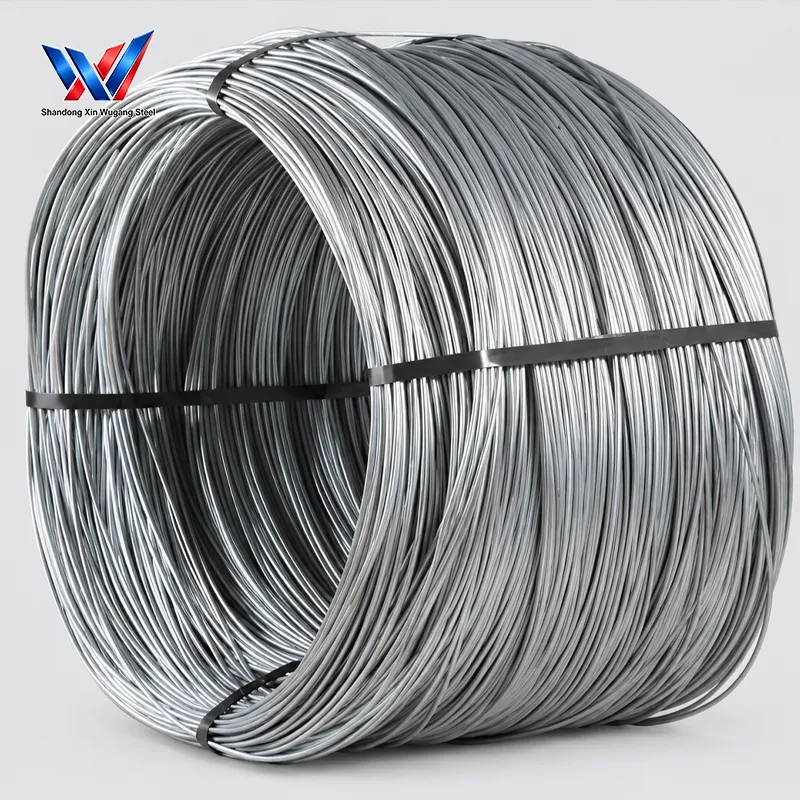

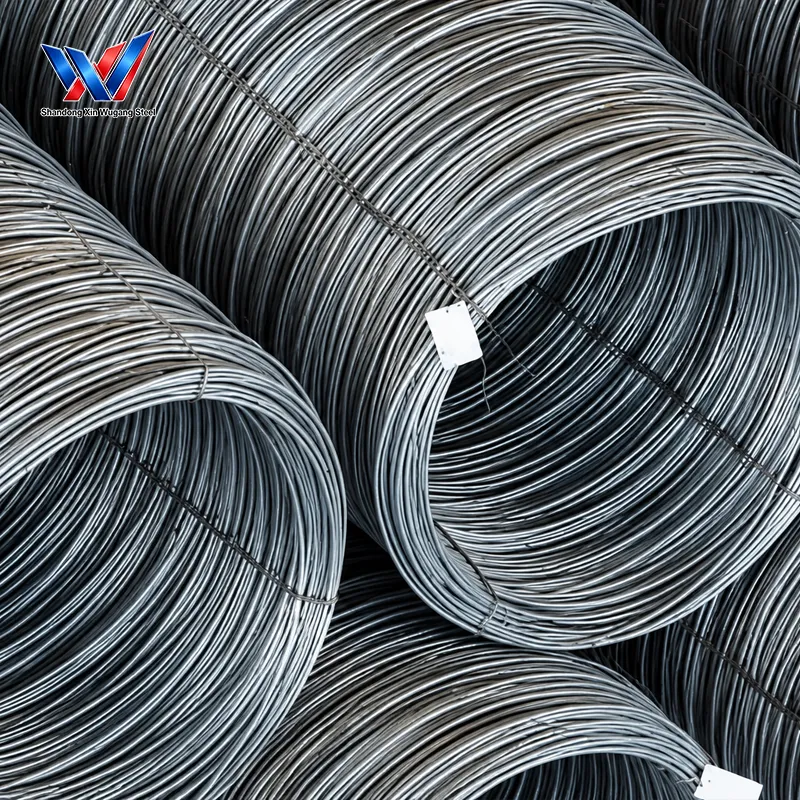

Wire Rod

Chemical & Mechanical Property Snapshot

Grade Standard C (%) Mn (%) Si (%) S (%) Max P (%) Max Tensile Strength (MPa) Elongation (%) Reduction of Area (%)
Q195 GB/T 14981 0.06–0.12 0.25–0.50 ≤0.30 0.050 0.045 315–430 ≥33 ≥55
Q235 GB/T 14981 0.12–0.22 0.30–0.65 ≤0.30 0.050 0.045 375–500 ≥26 ≥50
SAE1008 ASTM A510 ≤0.10 0.30–0.50 ≤0.05 0.040 0.040 300–420 ≥35 ≥55
SAE1010 ASTM A510 0.08–0.13 0.30–0.60 ≤0.05 0.040 0.040 310–430 ≥33 ≥52
SWRM6 JIS G3505 ≤0.08 0.25–0.45 ≤0.10 0.040 0.040 295–410 ≥35 ≥55
SWRM8 JIS G3505 0.06–0.10 0.30–0.50 ≤0.10 0.040 0.040 305–420 ≥34 ≥54
SWRCH6A JIS G3506 ≤0.08 0.20–0.40 ≤0.10 0.030 0.030 290–400 ≥36 ≥58
SWRCH8A JIS G3506 ≤0.10 0.25–0.45 ≤0.10 0.030 0.030 300–410 ≥35 ≥56
SAE1018 ASTM A510 0.15–0.20 0.60–0.90 ≤0.10 0.040 0.040 440–560 ≥25 ≥48
SAE1022 ASTM A510 0.18–0.23 0.70–1.00 ≤0.10 0.040 0.040 460–580 ≥23 ≥45
SAE1035 ASTM A510 0.32–0.38 0.60–0.90 ≤0.15 0.040 0.040 540–660 ≥20 ≥40
SAE1045 ASTM A510 0.42–0.48 0.60–0.90 ≤0.15 0.040 0.040 600–720 ≥16 ≥35
SWRCH35K JIS G3506 0.32–0.38 0.60–0.90 ≤0.10 0.030 0.030 530–650 ≥20 ≥42
SWRCH45K JIS G3506 0.42–0.48 0.60–0.90 ≤0.10 0.030 0.030 590–710 ≥17 ≥36
ML08Al GB/T 14981 ≤0.10 0.30–0.60 ≤0.10 0.030 0.030 300–410 ≥35 ≥58
ML35 GB/T 14981 0.32–0.39 0.50–0.80 ≤0.20 0.035 0.035 520–640 ≥21 ≥41
ML40Cr GB/T 14981 0.37–0.44 0.50–0.80 ≤0.20 0.035 0.035 580–700 ≥19 ≥38
SWRCH18A JIS G3506 0.15–0.20 0.60–0.90 ≤0.10 0.030 0.030 430–550 ≥26 ≥49
SWRCH22A JIS G3506 0.19–0.24 0.70–1.00 ≤0.10 0.030 0.030 450–570 ≥24 ≥46
65# GB/T 14981 0.62–0.70 0.50–0.80 0.17–0.37 0.035 0.035 ≥710 ≥10 ≥30
70# GB/T 14981 0.67–0.75 0.50–0.80 0.17–0.37 0.035 0.035 ≥725 ≥9 ≥28
82B GB/T 14981 0.79–0.86 0.60–0.90 0.15–0.35 0.025 0.025 ≥1100 ≥8 ≥25

Detailed Technical Specifications

Item Specification
Product Name Wire Rod
Product Type Hot-rolled coiled steel rod
Manufacturing Standard GB/T14981, ASTM A510, EN10263, JIS G3505, JIS G3506
Production Grades Low-carbon drawing grade, medium-carbon grade, cold-heading grade, high-carbon tire-cord grade
Low Carbon Grades Q195, Q235, SAE1008, SAE1010, SWRM6, SWRM8, SWRCH6A, SWRCH8A
Medium Carbon Grades SAE1018, SAE1022, SAE1035, SAE1045, SWRCH35K, SWRCH45K
Cold Heading Grades ML08Al, ML35, ML40Cr, SWRCH18A, SWRCH22A, SWRCH45K
High Carbon Tire Cord Grades 65#, 70#, 82B
Diameter Range 5.5mm, 6.0mm, 6.5mm, 8.0mm, 10mm, 12mm, 14mm, 16mm
Coil Weight 1.5-2.5 tons
Coil Inner Diameter 850mm / 1100mm
Coil Processing Big coil splitting service available
Quality Control Mill Test Certificate including heat number, chemical composition and mechanical performance
Packaging Steel strapped coils suitable for ocean export transport
MOQ 5 Ton
Payment Terms T/T, L/C at Sight
Delivery Time 7–15 working days after receiving deposit

Dimension Specification Table

Item Specification
Nominal Diameter 5.5 mm, 6.0 mm, 6.5 mm, 8.0 mm, 10 mm, 12 mm, 14 mm, 16 mm
Coil Weight 1.5–2.5 tons per coil
Coil Inner Diameter 850 mm / 1100 mm
Coil Service Big coil splitting service available
Tolerance ±0.3 mm (hot-rolled standard tolerance)
Surface Hot-rolled, descaled / non-descaled optional

Product Comparison Table

Product Type Equivalent Grades Main Characteristics Typical Applications Selection Guide
Low Carbon Wire Rod Q195, Q235, SAE1008, SAE1010, SWRM6, SWRM8, SWRCH6A, SWRCH8A Excellent ductility and drawing performance, low carbon content, easy for cold processing Galvanized wire, baling wire, welding electrode core wire, nails, wire mesh, construction binding wire Suitable for general wire drawing and simple cold forming, low-strength requirements
Medium Carbon Wire Rod SAE1018, SAE1022, SAE1035, SAE1045, SWRCH35K, SWRCH45K Medium carbon content, good balance of ductility and strength, higher hardness after heat treatment Bolts, nuts, rivets, cold-heading fasteners, hardware stamping parts Suitable for fastener manufacturing requiring moderate strength
Cold Heading Wire Rod ML08Al, ML35, ML40Cr, SWRCH18A, SWRCH22A, SWRCH45K Low impurity, uniform microstructure, excellent cold forging and anti-cracking performance Precision fasteners, automotive hardware components, complex-shaped cold-forming parts Selected for strict cold deformation and precision forming requirements
High Carbon Tire Cord Wire Rod 65#, 70#, 82B Ultra-high strength, good torsion and bending performance, stable drawing properties Prestressed steel strand, bridge cables, steel wire rope, spring wire, tire cord, piano wire Suitable for high-strength wire products, heavy-load and fatigue-resistance scenarios

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

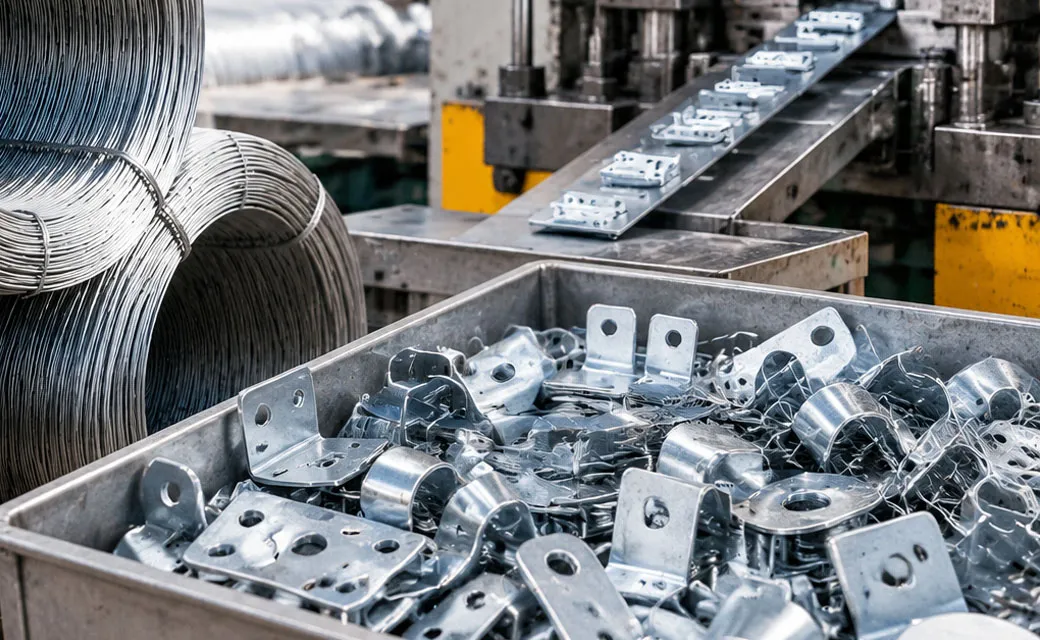

Hardware Stamping Parts

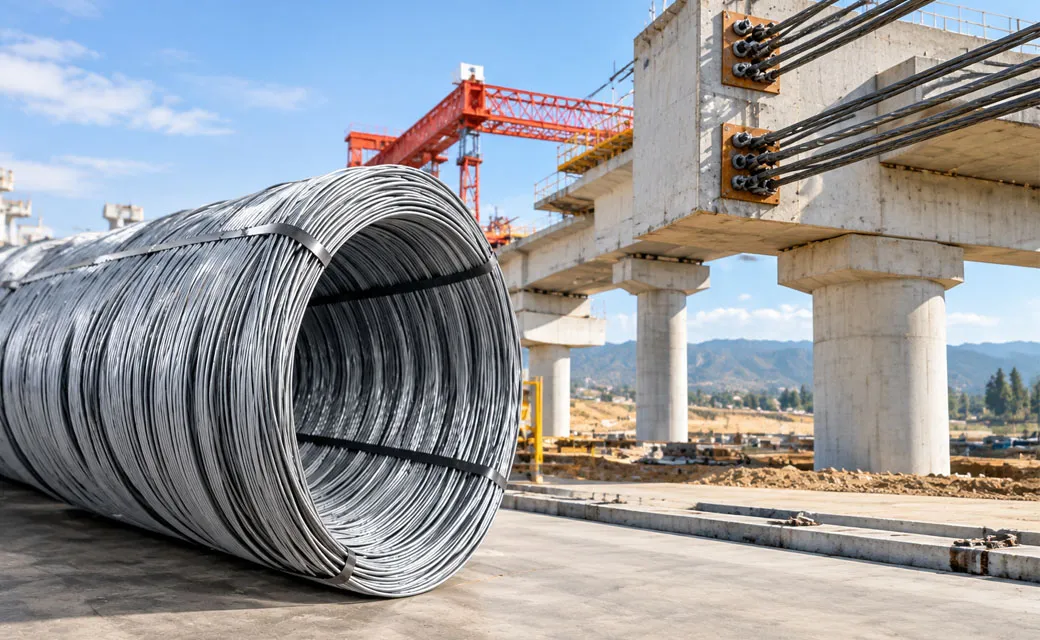

Prestressed Steel Strand

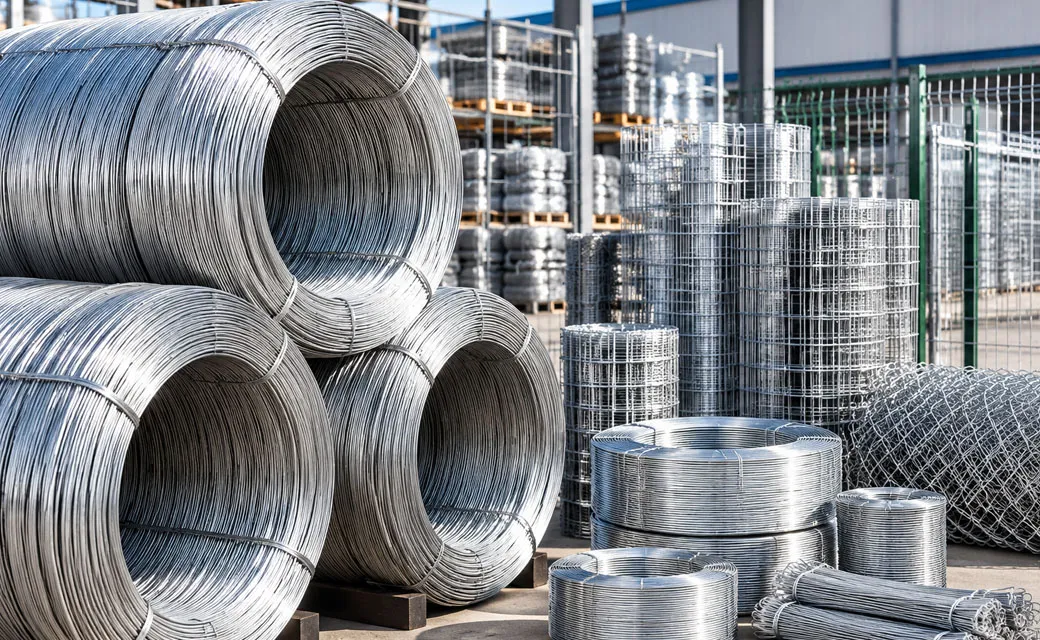

Galvanized Iron Wire

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

Wire Rod is used as a hot-rolled steel raw material for wire drawing, cold heading, stamping, spring manufacturing, fasteners, steel strand and tire cord production.

Wire Rod is manufactured according to GB/T14981, ASTM A510, EN10263, JIS G3505 and JIS G3506 standards.

Available grades include low-carbon, medium-carbon, cold-heading and high-carbon tire-cord grades such as Q195, Q235, SAE grades, SWRCH grades and 82B.

Wire Rod is available in nominal diameters from 5.5mm to 16mm, including 5.5mm, 6mm, 6.5mm, 8mm, 10mm, 12mm, 14mm and 16mm.

Yes. Coil inner diameter options include 850mm and 1100mm, and big coil splitting service is available for customers requiring smaller coils.
