Alloy Steel Coil | Heat Resistant Cr-Mo Steel Coil

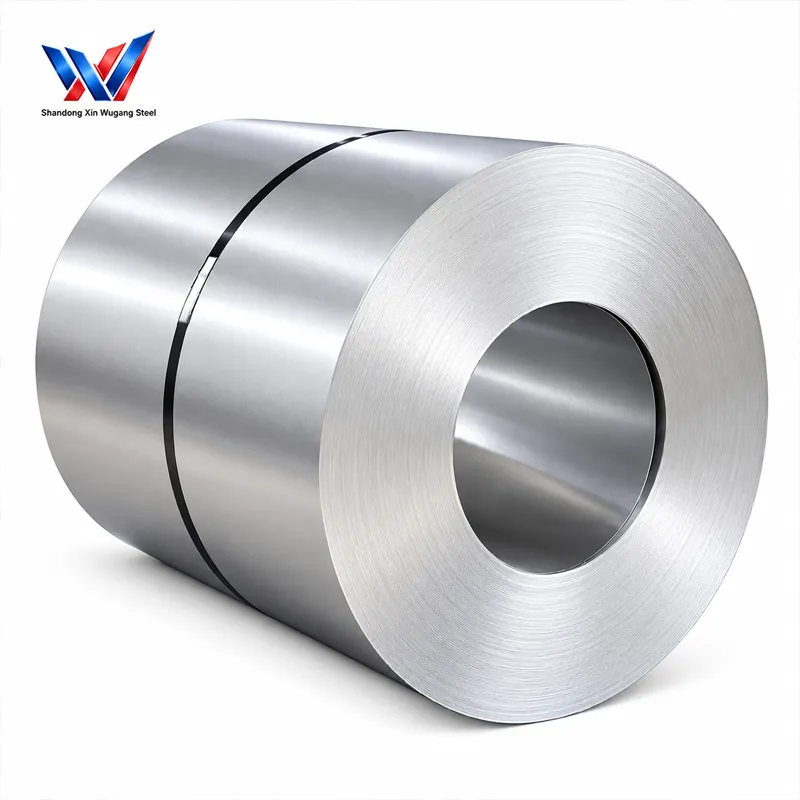

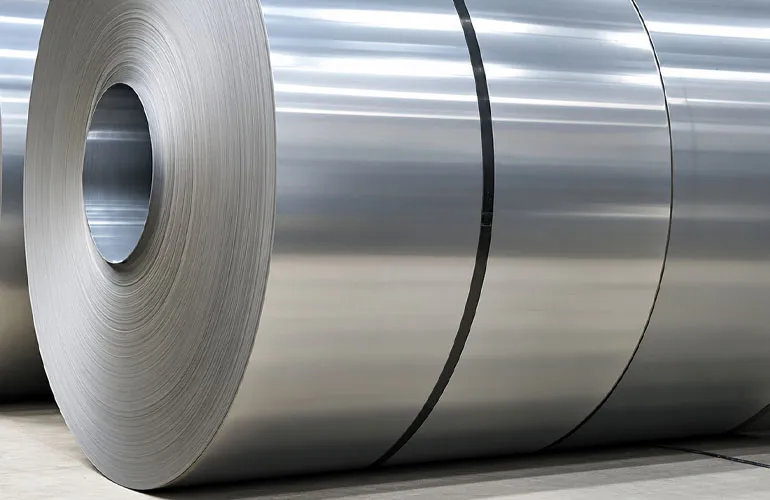

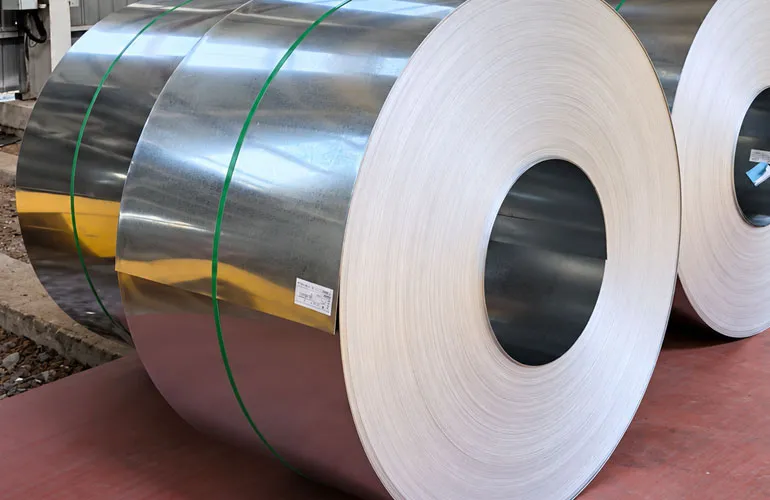

Alloy Steel Coil (5)

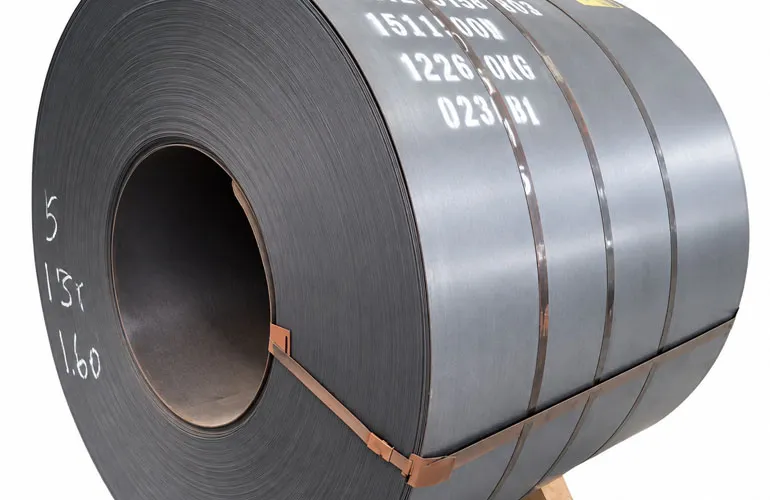

Alloy Steel Coil

  1. Complete GB / ASTM / EN grade portfolio for high‑temp pressure‑bearing equipment
  2. Hot‑rolled & cold‑rolled available, precise slitting down to 15 mm narrow strips
  3. Full‑range secondary processing: cutting, bending, beveling, normalizing‑tempering
  4. Strictly follow EN/GB rolling tolerance, full MTC per EN10204 for export
Contact Us

Product Overview

Alloy Steel Coil is a low-alloy heat-resistant steel coil designed for high-temperature and pressure-bearing working conditions. The product portfolio covers GB, ASTM/ASME and EN grades, including 15CrMo, 12Cr1MoV, 15CrMoR, 16Mo3, A387 Gr11, A387 Gr22, A387 Gr91 (P91) and A387 Gr92 (P92).

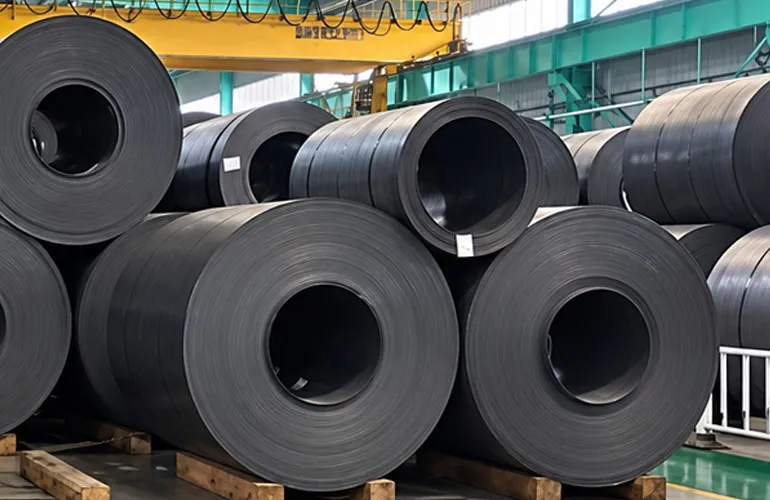

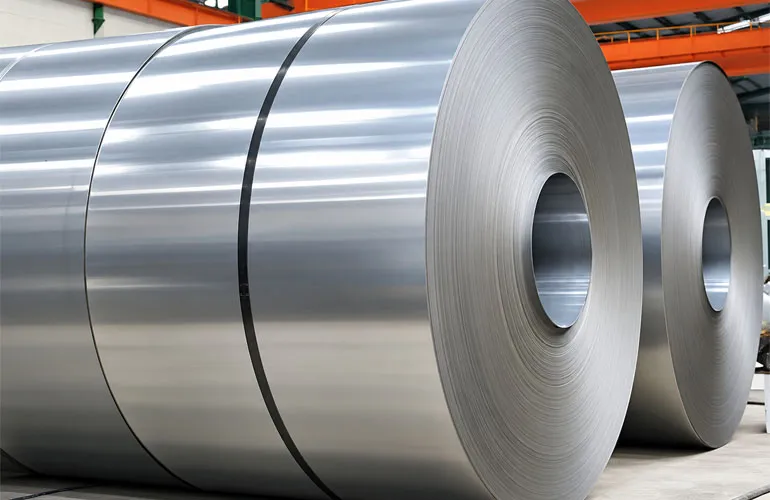

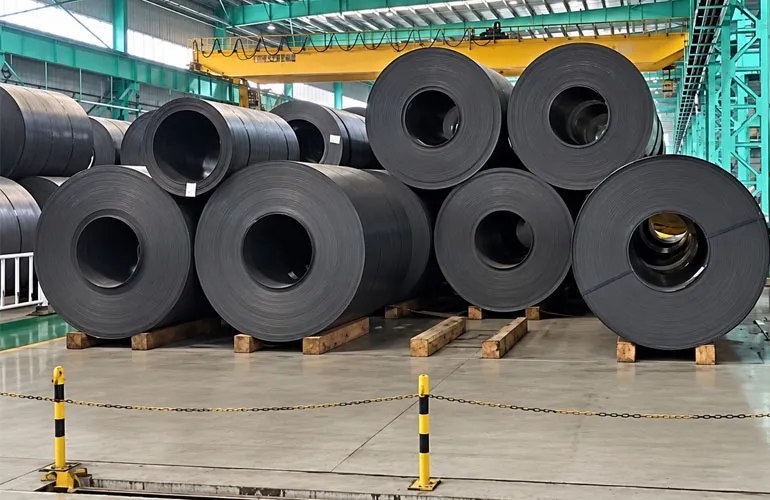

Both hot-rolled and cold-rolled alloy steel coil options are available. Hot-rolled material covers 2.0–16.0mm, while cold-rolled precision material covers 0.3–3.0mm with dimensional tolerance up to ±0.01mm. Slitting, cutting, bending, beveling, normalizing and tempering are also available for different fabrication requirements.

The material is suitable for thermal power, petrochemical, coal-chemical, pressure-vessel and other high-temperature equipment applications, including boiler headers, steam pipeline materials, reactor shells, heat-exchanger components and pressure-containing fittings. Export orders are supplied with EN 10204 Mill Test Certificates for material traceability.

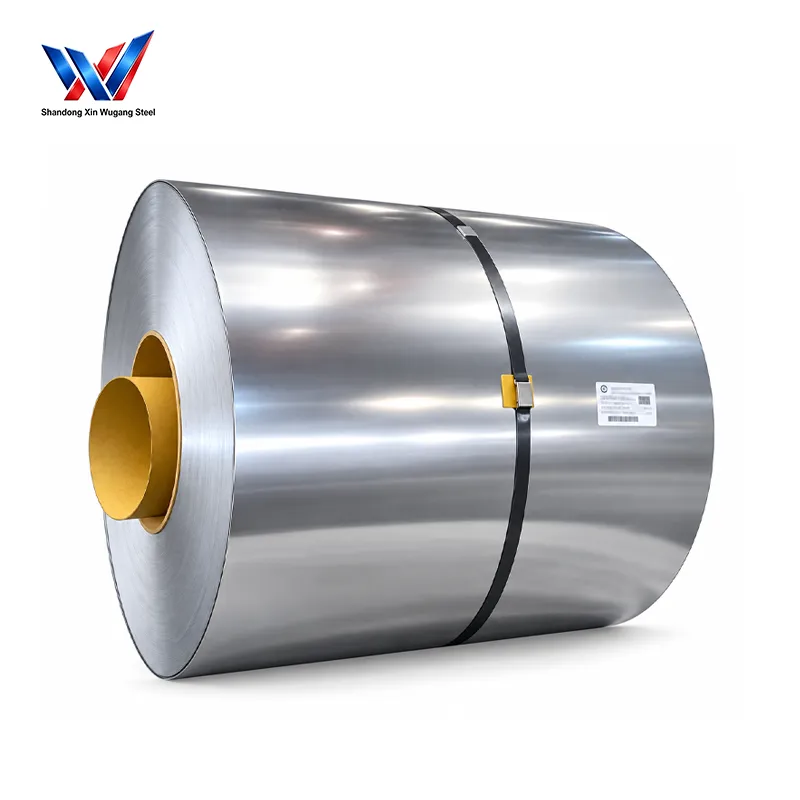

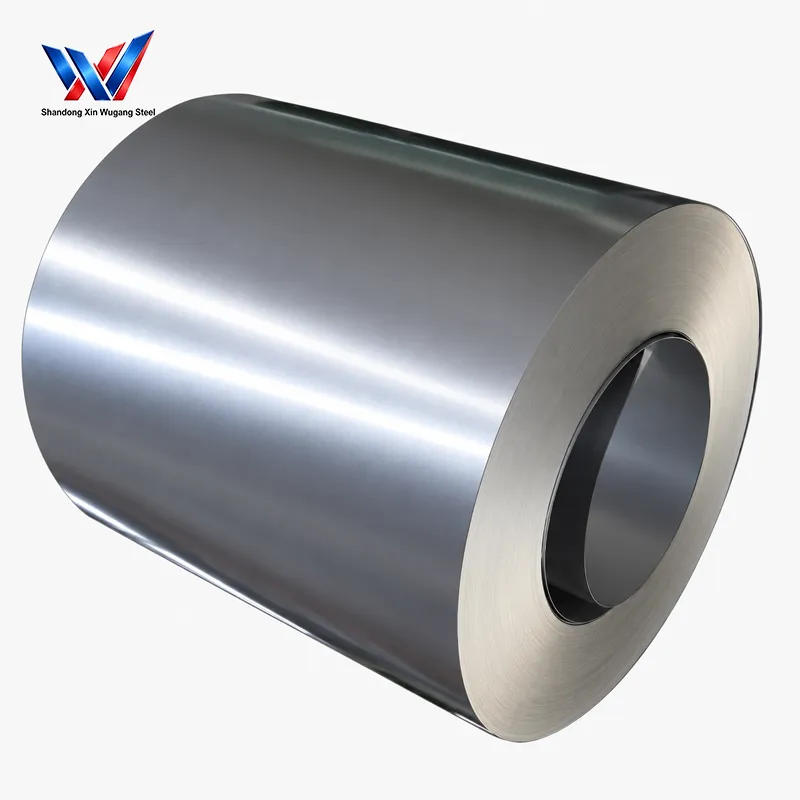

Alloy Steel Coil

Chemical & Mechanical Property Snapshot

Grade C (%) Si (%) Mn (%) Cr (%) Mo (%) Yield Strength (MPa) Tensile Strength (MPa) Elongation (%)
15CrMo 0.12–0.18 0.17–0.37 0.40–0.70 0.80–1.10 0.40–0.55 ≥295 ≥440 ≥22
12Cr1MoV 0.08–0.15 0.17–0.37 0.40–0.70 0.90–1.20 0.25–0.35 ≥245 ≥490 ≥22
16Mo3 0.12–0.20 0.15–0.35 0.40–0.90 ≤0.30 0.25–0.35 ≥270 440–570 ≥22
A387 Gr11 0.05–0.17 0.44–0.86 0.35–0.73 1.00–1.50 0.44–0.65 ≥275 415–585 ≥18
A387 Gr22 0.05–0.15 ≤0.50 0.25–0.66 2.00–2.50 0.90–1.10 ≥310 515–690 ≥18
A387 Gr91 (P91) 0.08–0.12 0.20–0.50 0.30–0.60 8.00–9.50 0.85–1.05 ≥415 585–760 ≥20
A387 Gr92 (P92) 0.07–0.13 ≤0.50 0.30–0.60 8.50–9.50 0.30–0.60 ≥440 620–780 ≥18
13CrMo4-5 0.08–0.18 0.15–0.40 0.40–0.70 0.70–1.15 0.40–0.60 ≥290 440–590 ≥20

Detailed Technical Specifications

Technical Item Specification
Product Name Alloy Steel Coil
Material Type Low-Alloy Heat-Resistant Steel
Main Standards GB/T 11251, GB/T 3077, GB/T 709, ASTM A204/A204M, ASTM A1018, EN 10137, EN 10028-2, EN 10204
GB Grades 15CrMo, 12Cr1MoV, 12Cr1MoVR, 15CrMoR, 16Mo3, 13CrMo44, 12Cr2Mo1R
ASTM / ASME Grades A387 Gr11 CL1/CL2, A387 Gr12 CL1/CL2, A387 Gr22 CL1/CL2, A387 Gr5, A387 Gr91 (P91), A387 Gr92 (P92)
EN Grades 13CrMo4-5 (1.7335), 16Mo3 (1.5415), 10CrMo9-10 (1.7380), 12CrMo91
Hot-Rolled Thickness 2.0–16.0 mm
Hot-Rolled Mother Coil Width 1000 / 1250 / 1500 mm
Hot-Rolled Slitting Width Minimum 15 mm
Hot-Rolled Coil ID 508 mm standard; 610 mm customizable
Hot-Rolled Single Coil Weight 5–28 tons
Hot-Rolled Thickness Tolerance ±0.2–0.8 mm
Flatness Meets EN and GB rolling specifications
Cold-Rolled Thickness 0.3–3.0 mm
Cold-Rolled Maximum Width 1250 mm
Cold-Rolled Dimensional Tolerance ±0.01 mm
Cold-Rolled Surface Options Pickled black surface, bright annealed finish, anti-rust oil treatment

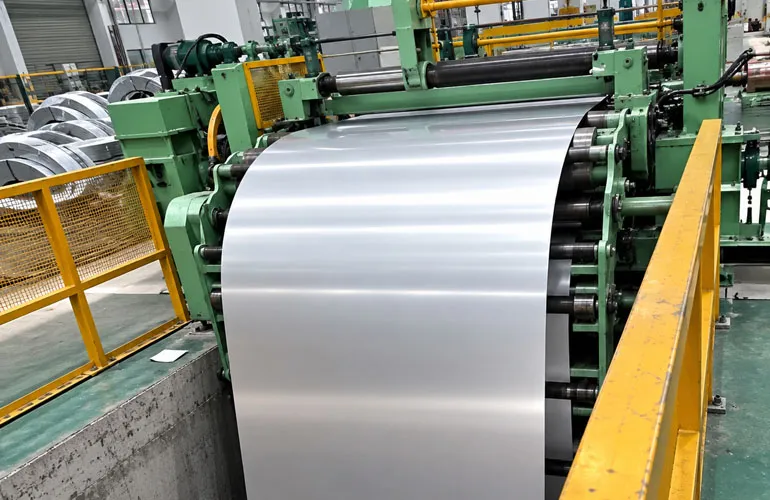

Processing Services Slitting, flattening, cutting into steel plates, custom-size shearing, roll bending, bevel preparation
Heat Treatment Normalizing and tempering
Documentation EN 10204 Mill Test Certificate (MTC)
Material Traceability Chemical composition and mechanical-property traceability
Typical Industries Thermal power, petrochemical, coal-chemical, pressure-vessel manufacturing, hydraulic equipment, engineering machinery, oil-field equipment
Typical Applications Boiler headers, superheater/reheater tubes, main steam pipelines, reactor shells, heat-exchanger tube sheets, gasification furnace components, storage-vessel shells, hydraulic cylinder tubes and pressure-containing fittings
MOQ 5 Ton
Payment Terms T/T, L/C at Sight
Delivery Time 7–15 working days after receiving deposit
Package Waterproof paper + galvanized steel strap + seaworthy export wooden pallet

Product Comparison Table

Item Hot-Rolled Alloy Steel Coil Cold-Rolled Precision Alloy Steel Coil
Thickness 2.0–16.0 mm 0.3–3.0 mm
Width 1000 / 1250 / 1500 mm Mother Coil Max. 1250 mm
Dimensional Tolerance Thickness tolerance ±0.2–0.8 mm Dimensional tolerance ±0.01 mm
Surface According to hot-rolled specification Pickled black, bright annealed, anti-rust oil
Slitting Minimum cutting width 15 mm Precision processing available according to requirements
Coil ID 508 mm standard; 610 mm customizable 508 mm customizable
Coil Weight 5–28 tons 0.5–10 tons
Typical Requirement Thicker material and heavy industrial fabrication Thin material and tighter dimensional requirements
Processing Cutting, shearing, bending, beveling, normalizing, tempering Cutting, shearing, bending, beveling, heat treatment
Typical Applications Pressure vessels, boilers, steam systems, petrochemical equipment Precision alloy components and thinner fabricated parts
Available Grades 15CrMo, 12Cr1MoV, 16Mo3, A387 Gr11 / Gr22 / Gr91 / Gr92, 13CrMo4-5 15CrMo, 12Cr1MoV, 16Mo3, A387 Gr11 / Gr22

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

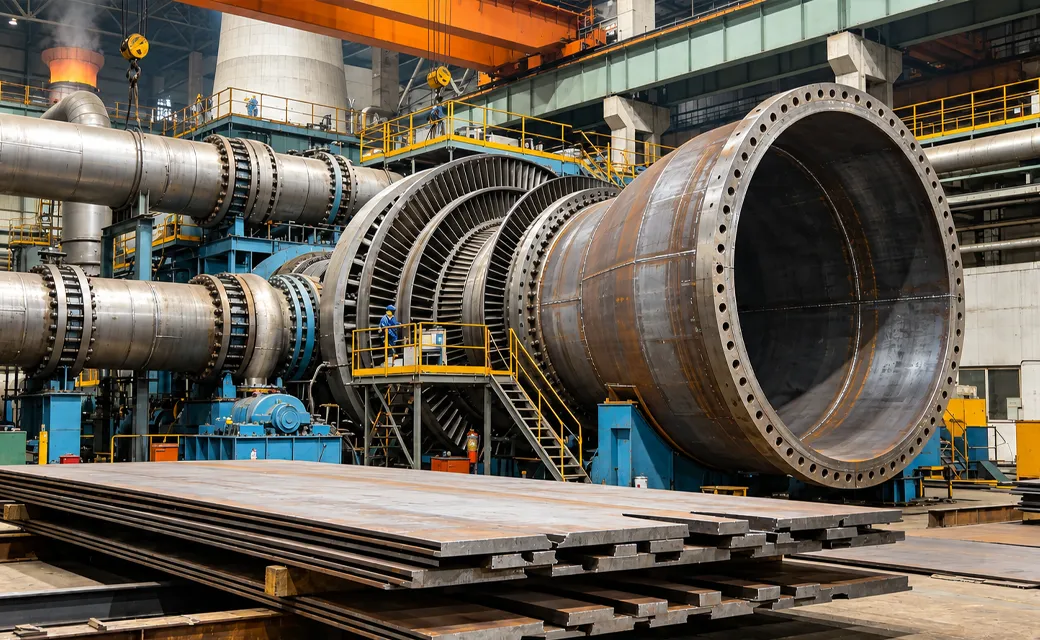

Finished Products of Steam Turbine Cylinder Body and Steam Pipeline Header

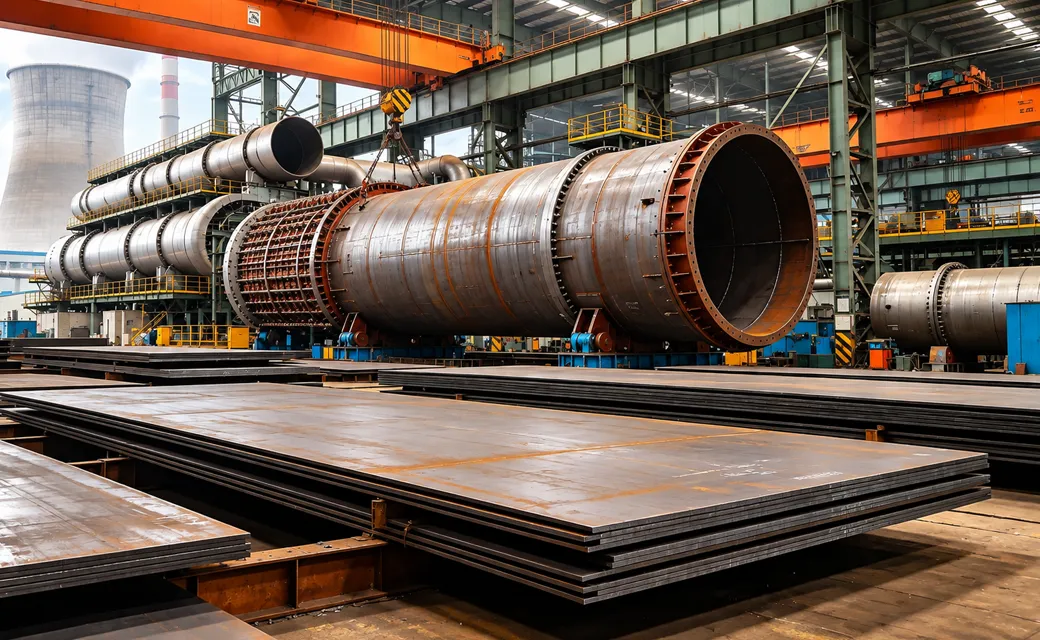

Power plant boiler Alloy Sheet

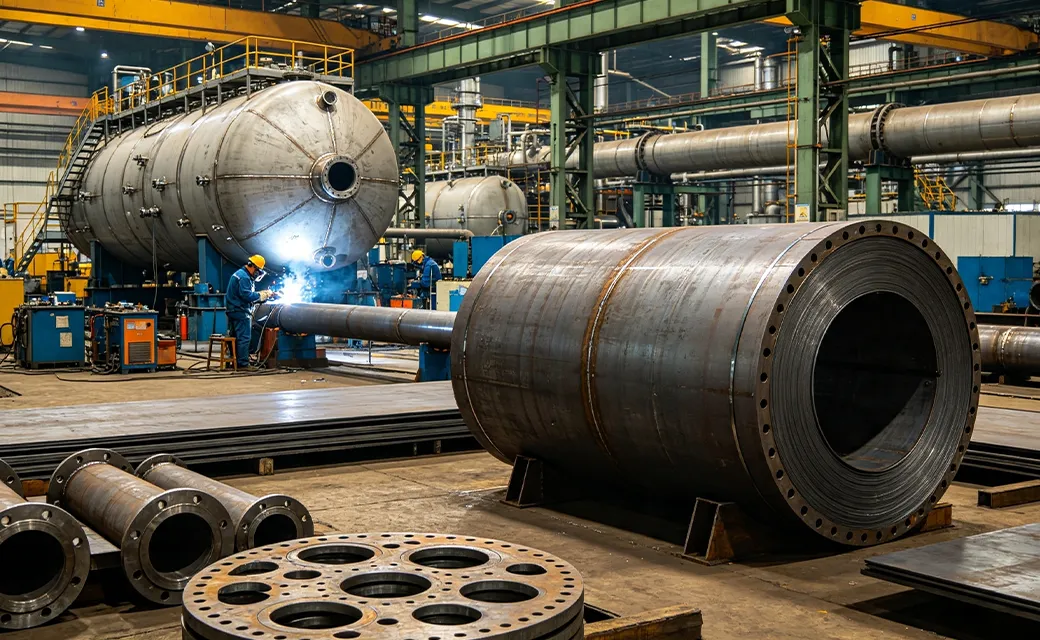

High-pressure Heat Exchanger Tube Sheet + Oil and Gas High-pressure storage Tank Workshop

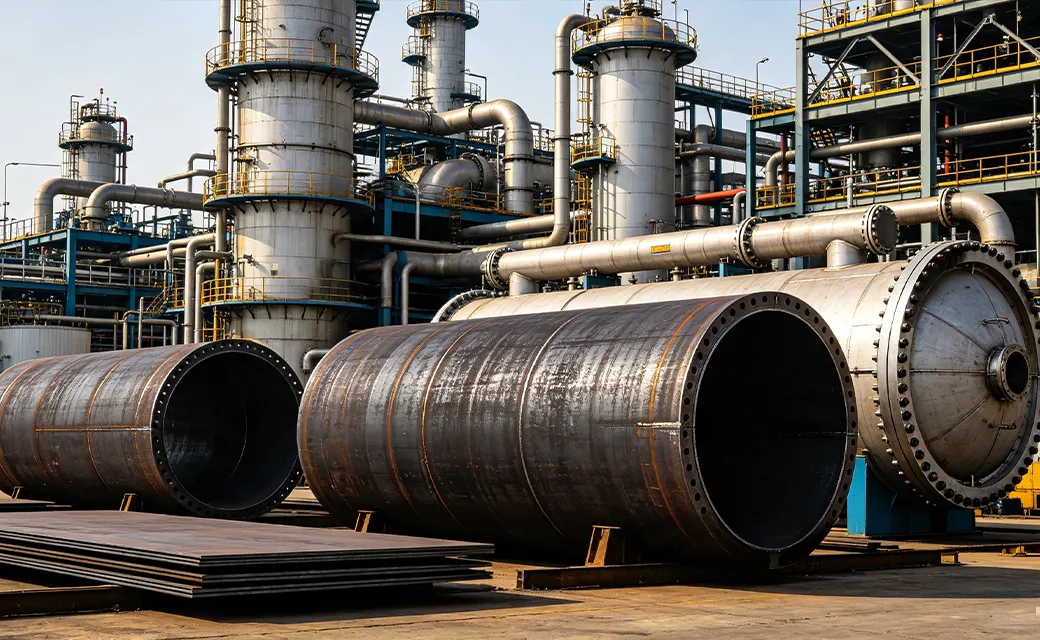

Large-scale Hydrogenation Reactor in the Refinery Alloy Sheet

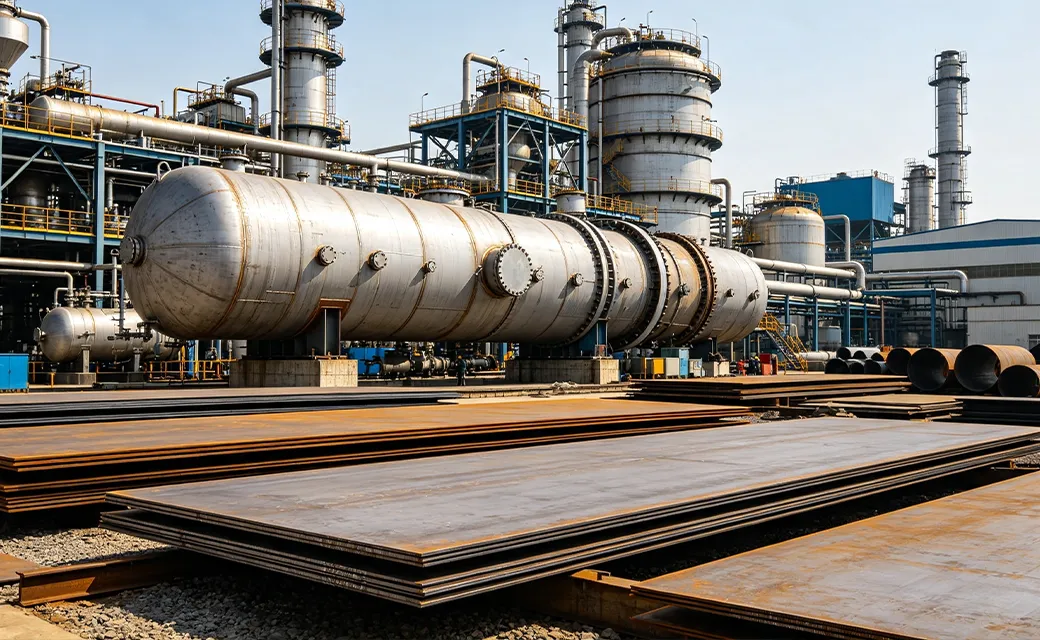

Large-scale ammonia synthesis tower industry alloy sheet

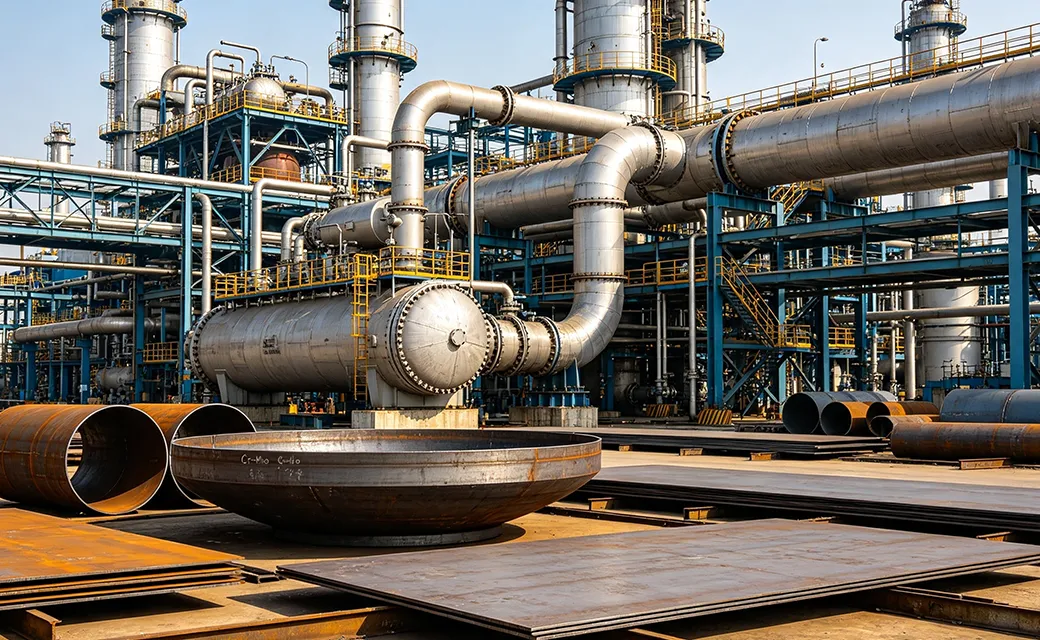

Methanol pressure vessels, high-temperature cracking equipment

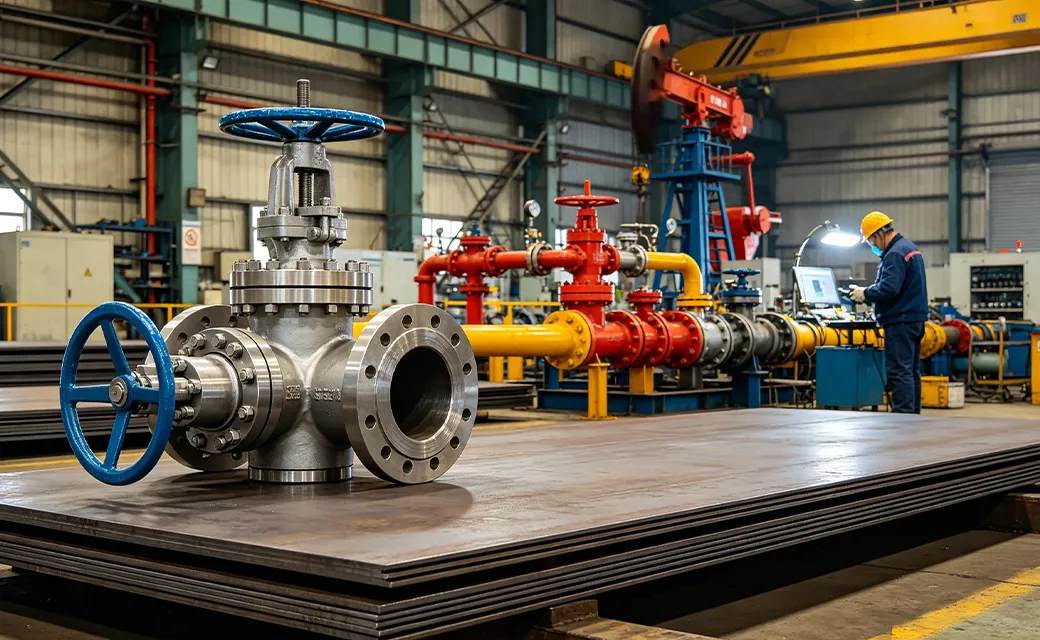

Assembly of Pressure-bearing components in the wellhead of an oilfield well

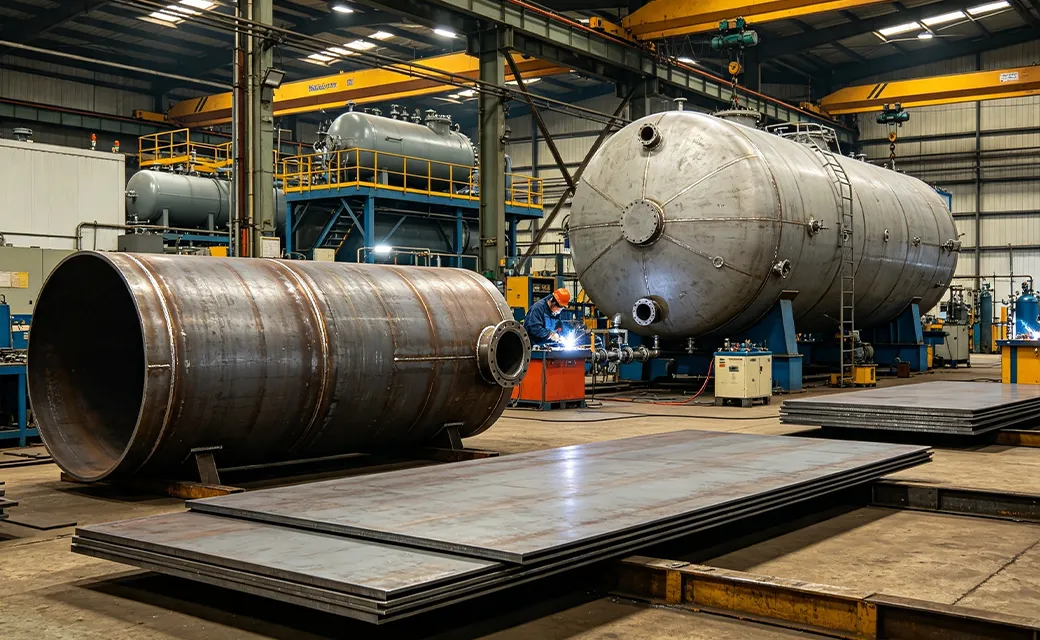

Finished products of air compressor air storage tank and boiler air collecting tank

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

Alloy Steel Coil is used for high-temperature and pressure-bearing applications, including thermal power equipment, petrochemical equipment, coal-chemical equipment and pressure vessels.

Available grades include GB grades such as 15CrMo and 16Mo3, ASTM/ASME grades such as A387 Gr11, A387 Gr22 and A387 Gr91, and EN grades such as 13CrMo4-5 and 10CrMo9-10.

The supplied hot-rolled thickness range is 2.0–16.0 mm, with mother coil widths of 1000, 1250 and 1500 mm.

Yes. Available processing includes slitting, flattening and cutting, custom-size shearing, roll bending, bevel preparation, normalizing and tempering.

Export orders are supplied with an EN 10204 Mill Test Certificate for chemical composition and mechanical-property traceability.

Related Projects

Steel And Metal Materials Supplied To Projects Worldwide.

Learn More
Vietnam Binh Duong Foreign-Invested Industrial Park Project

Vietnam Binh Duong Foreign-Invested Industrial Park Project

A large-scale foreign-invested smart manufacturing industrial park was developed in Binh Duong Province, Vietnam. The project included three large-span steel structure workshops w…

Texas Commercial Warehouse & Logistics Center Project, USA

Texas Commercial Warehouse & Logistics Center Project, USA

A large-scale e-commerce logistics center was constructed near Houston, Texas, USA, featuring a single-story large-span steel structure designed for modern warehousing and distribu…

Middle East Petrochemical EPC Project

Middle East Petrochemical EPC Project

A petrochemical EPC project in the Middle East involved the construction of new raw material storage tanks and shell-and-tube heat exchanger systems for an oil refining supporting …

Related Products

Related Steel Solutions For Construction And Industrial Applications

Learn More

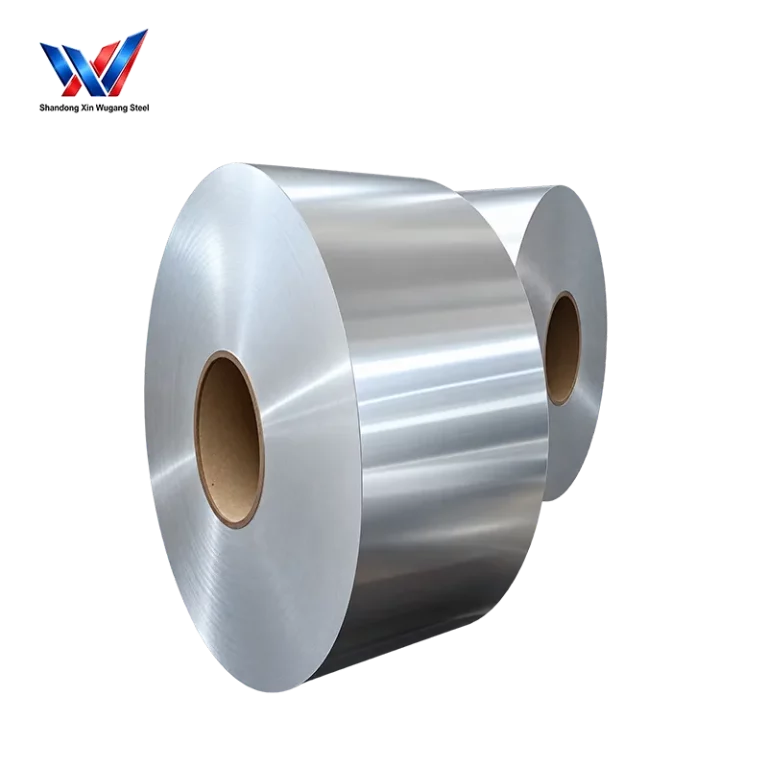

Nickel/Super Alloy Coil
