ASTM A500 Gr.B & ASTM A500 Gr.C Galvanized Square Rectangular Steel Pipe | ASTM A500 Hollow Section

ASTM A500 Gr.B & ASTM A500 Gr.C Galvanized Square Rectangular Steel Pipe | ASTM A500 Hollow Section

  1. Manufactured strictly to ASTM A500 standard, fully compliant for North American construction projects
  2. Hot-dip galvanized coating offers reliable long-term anti-corrosion performance for outdoor applications
  3. Stable mechanical properties, Gr.C delivers higher yield strength than Gr.B for heavier loads
  4. Smooth galvanized surface, good weldability and easy cutting & fabrication
  5. Precise dimensional tolerance, widely accepted for US structural hollow section projects
Contact Us

Product Overview

Our ASTM A500 Gr.B & ASTM A500 Gr.C galvanized square and rectangular steel pipe is hot-dip galvanized structural hollow section produced in accordance with ASTM A500 standard. The base raw material adopts ASTM A500 Gr.B and ASTM A500 Gr.C carbon steel grades, processed with welding then hot-dip galvanization to form a dense zinc protective coating on steel surface.

ASTM A500 Gr.B is the common grade for general North American building frames, while ASTM A500 Gr.C provides higher yield strength for medium & heavy load structural designs. This ASTM A500 galvanized SHS/RHS is widely used in US building construction, framework supports, guardrails, solar mounting frames, outdoor infrastructure and mechanical structures. Uniform zinc coating thickness provides excellent corrosion resistance in open-air and humid environments. Custom cutting service is available to meet different engineering length requirements.

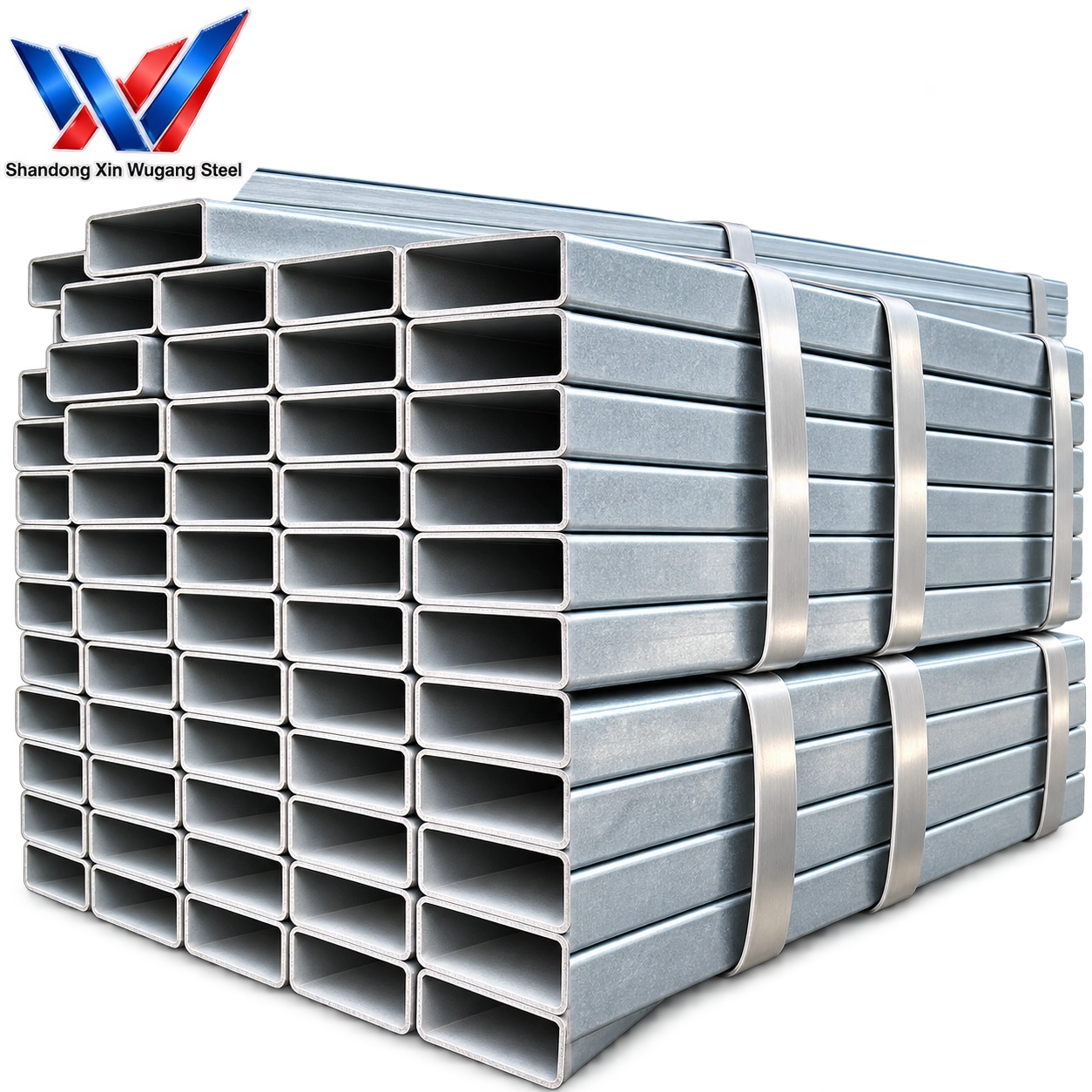

Galvanized Square/Rectangular Steel Pipe

Chemical & Mechanical Property Snapshot

Property Item ASTM A500 Gr.B ASTM A500 Gr.C
Standard ASTM A500 ASTM A500
Yield Strength Min (MPa) 290 345
Tensile Strength Min (MPa) ≥400 ≥427
C ≤ (%) ≤0.26 ≤0.26
Mn ≤ (%) ≤1.35 ≤1.35
P ≤ (%) ≤0.035 ≤0.035
S ≤ (%) ≤0.035 ≤0.035
Elongation A (%) ≥20 ≥20

Detailed Technical Specifications

Specification Item Details
Product Name Galvanized Square / Rectangular Steel Pipe
Steel Grade ASTM A500 Gr.B, ASTM A500 Gr.C
Execution Standard ASTM A500
Production Process Welded tube + Hot Dipped Galvanized
Zinc Coating Weight 60-275 g/m²
Wall Thickness 1.2mm – 16mm
Outer Dimension (Square) 10×10mm ~ 400×400mm
Outer Dimension (Rectangular) 20×10mm ~ 500×300mm
Length 5.8m / 6m / 11.8m or custom cut length
Surface Hot-dip galvanized, silver bright surface
MOQ 5 Tons
Lead Time 7–15 working days after deposit
Payment Terms T/T, L/C at sight
Package Bundled with steel strips, export standard packing

Dimension Section

Type Cross Section Size (mm) Available Wall Thickness (mm) Standard Length Custom Cut Length
SHS Square Hollow Section 10×10 0.8, 1.2, 1.5, 2.0, 2.5, 3.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 15×15 0.8, 1.2, 1.5, 2.0, 2.5, 3.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 20×20 0.8, 1.2, 1.5, 2.0, 2.5, 3.0, 4.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 25×25 0.8, 1.2, 1.5, 2.0, 2.5, 3.0, 4.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 30×30 0.8, 1.2, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 40×40 1.2, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 50×50 1.2, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 60×60 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 80×80 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 100×100 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 120×120 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 150×150 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 200×200 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 250×250 4.0, 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 300×300 4.0, 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 400×400 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
SHS Square Hollow Section 500×500 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 20×10 0.8, 1.2, 1.5, 2.0, 2.5, 3.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 30×20 0.8, 1.2, 1.5, 2.0, 2.5, 3.0, 4.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 40×20 1.2, 1.5, 2.0, 2.5, 3.0, 4.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 40×30 1.2, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 50×25 1.2, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 50×30 1.2, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 60×40 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 80×40 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 80×60 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 100×50 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 100×80 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 120×60 2.0, 2.5, 3.0, 4.0, 5.0, 6.0, 8.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 150×100 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 200×100 2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 250×150 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 300×200 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 400×200 4.0, 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 500×300 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m
RHS Rectangular Hollow Section 600×400 6.0, 8.0, 10.0, 12.0, 16.0 6 m / 12 m 1–12 m

Product Comparison Table

Comparison Item ASTM A500 Gr.B ASTM A500 Gr.C
Equivalent Standard ASTM A500 ASTM A500
Yield Strength Min (MPa) 290 345
Tensile Strength (MPa) ≥400 ≥427
Typical Application North American building SHS / RHS, general construction frames North American high-load hollow sections, heavy support structures
Corrosion Resistance After Galvanizing Good Good
Main Advantage Popular for U.S. construction, balanced strength and cost Higher yield strength than Grade B, suitable for medium-heavy load projects

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

New Energy Photovoltaic Industry

Building Enclosure and Security Engineering

Industrial Building Steel Structures

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

Our ASTM A500 Gr.B and ASTM A500 Gr.C galvanized hollow sections are produced following ASTM A500 standard, suitable for North American construction projects.

ASTM A500 Gr.C has higher minimum yield and tensile strength than Gr.B. Gr.B is for common building structures; Gr.C is selected for projects requiring higher load-bearing capacity.

Yes, custom cutting service is available, subject to MOQ 5 tons.

Zinc coating weight ranges from 60g/m² to 275g/m², we can adjust zinc thickness as per your anti-corrosion requirements.

MOQ is 5 tons. Lead time is 7–15 working days after deposit received. Payment methods include T/T and L/C at sight.
