B50A250 / B20AHV800 CRNO Coil | Baosteel Non-oriented Silicon Steel Coil

Genuine Baosteel B+ series material, stable and reliable quality with official traceability
Covers both conventional high-efficiency (B50A250) and ultra-thin high-frequency (B20AHV800) scenarios
Ultra-low iron loss design, significantly improves motor efficiency and reduces temperature rise
High-precision slitting and coating technology, meets high-end motor manufacturing requirements
Complete specifications and certificates, widely used in new energy and high-frequency power industries

Product Overview

B50A250 and B20AHV800 are representative high-end grades of Baosteel B+ series cold-rolled non-oriented silicon steel. B50A250 is 0.50mm conventional gauge ultra-low loss grade, mainly used for high-efficiency industrial motors and new energy vehicle drive motors. B20AHV800 is 0.20mm ultra-thin high-frequency grade, specially designed for high-frequency working conditions such as new energy vehicle drive motors, high-frequency power supplies and PCS energy storage converters.

Both grades adopt Baosteel’s unique composition design and process control, with excellent iron loss and magnetic induction performance, and good mechanical properties and punchability. They can be supplied with high-performance inorganic insulation coating, which has good insulation performance, heat resistance and punchability. The original mother coil width is 1000-1250mm, and precision slitting service with ±0.005mm tolerance is available.

B50A250 is widely used in new energy vehicle drive motors, high-efficiency industrial motors, servo motors and high-performance generators. B20AHV800 is mainly used in EV drive motors, high-frequency transformers, PCS energy storage converters and switching power supplies. We can provide supporting processing services such as flattening, stamping and laser cutting.

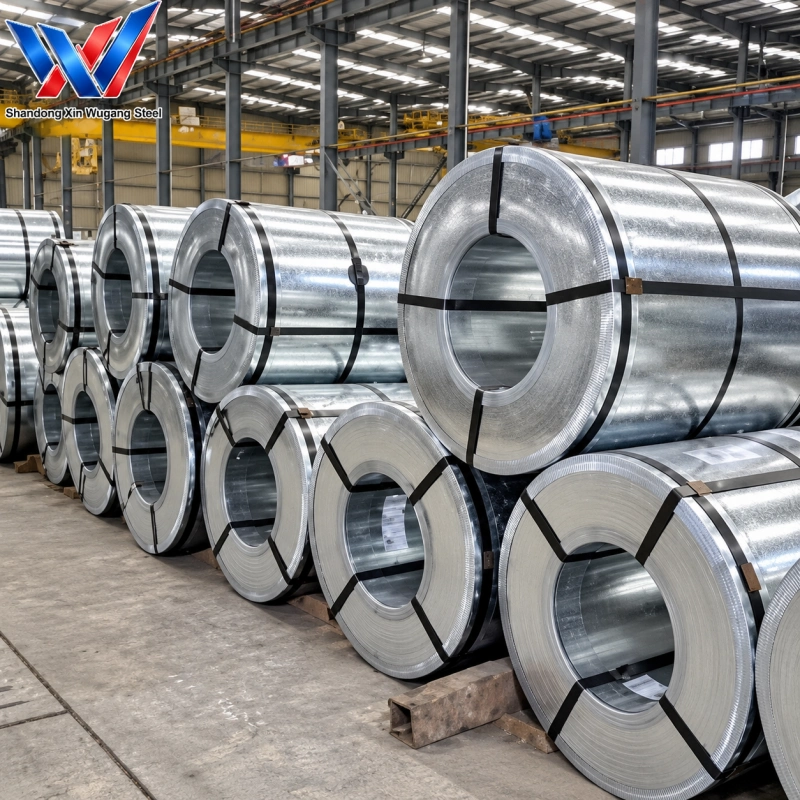

CRNO Coil

Chemical & Mechanical Property Snapshot

Grade	Si Content (%)	Iron Loss P₁.₅/₅₀ (W/kg)	Magnetic Induction B₅₀ (T)	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)
0.50 mm Series
50WW250	3.1–3.4	≤2.50	≥1.64	340	440	≥22
50WW310	3.0–3.3	≤3.10	≥1.65	330	430	≥23
50WW350	2.8–3.2	≤3.50	≥1.66	320	420	≥24
50WW400	2.7–3.1	≤4.00	≥1.67	310	410	≥24
50WW470	2.6–3.0	≤4.70	≥1.68	300	400	≥25
50WW600	2.4–2.8	≤6.00	≥1.69	280	380	≥26
50WW800	2.2–2.6	≤8.00	≥1.70	260	360	≥27
50WW1000	2.0–2.4	≤10.00	≥1.71	240	340	≥28
50WW1300	1.8–2.2	≤13.00	≥1.72	220	320	≥29
B50A250	3.1–3.4	≤2.50	≥1.64	340	440	≥22
B50A470	2.6–3.0	≤4.70	≥1.68	300	400	≥25
B50A600	2.4–2.8	≤6.00	≥1.69	280	380	≥26
B50A800	2.2–2.6	≤8.00	≥1.70	260	360	≥27
0.35 mm Series
35WW230	3.2–3.5	≤2.30	≥1.62	360	460	≥21
35WW250	3.1–3.4	≤2.50	≥1.63	350	450	≥21
35WW270	3.0–3.3	≤2.70	≥1.64	340	440	≥22
35WW300	2.9–3.2	≤3.00	≥1.65	330	430	≥22
35WW360	2.7–3.1	≤3.60	≥1.66	320	420	≥23
35WW400	2.6–3.0	≤4.00	≥1.67	310	410	≥23
B35A230	3.2–3.5	≤2.30	≥1.62	360	460	≥21
B35A300	2.9–3.2	≤3.00	≥1.65	330	430	≥22
B35A360	2.7–3.1	≤3.60	≥1.66	320	420	≥23
0.65 mm Series
65WW600	2.5–2.9	≤6.00	≥1.70	270	370	≥27
65WW800	2.3–2.7	≤8.00	≥1.71	250	350	≥28
Note: Semi-processed grades require customer-side stress-relief annealing to activate magnetic properties. HV series are tested at 400 Hz; all other grades are tested at 50 Hz / 1.5 T.

Detailed Technical Specifications

Item	Technical Specification
Product Name	B50A250 / B20AHV800 Baosteel CRNO Coil
Full Name	Baosteel B+ Series Cold-Rolled Non-Oriented Silicon Steel Coil
Standard	Baosteel Enterprise Standard / GB/T 2521.1
Representative Grades	B50A250, B20AHV800
Nominal Thickness	0.50 mm (B50A250) / 0.20 mm (B20AHV800)
Mother Coil Width	1000–1250 mm
Slitting Width Range	5–1240 mm
Slitting Width Tolerance	±0.005 mm
Coil Inner Diameter	508 mm
Single Coil Weight	1.5–7 tons
Insulation Coating	High-performance inorganic insulation coating
Environmental Coating	RoHS compliant chrome-free coating
Processing Services	Flattening, stamping, laser cutting, stress-relief annealing
Typical Applications	EV drive motors, high-efficiency industrial motors, high-frequency power supplies, PCS converters
MOQ	5 Ton for standard mother coil; custom ultra-thin gauge MOQ subject to specification
Payment Terms	T/T, L/C at Sight
Packing	Waterproof kraft paper + galvanized steel strapping + seaworthy export wooden pallet
Trade Terms	FOB Qingdao, CFR, CIF, EXW optional
Delivery Time	7–15 working days after receiving deposit
Certificates	Official Baosteel Mill Test Certificate; ISO, SGS, RoHS available upon request

Product Comparison Table

Thickness Category	GB WW Grade	Baosteel B+A Grade	JIS Grade	ASTM A677 Grade	Semi-Processed Grade	Typical Application
0.50 mm Ultra-Low-Loss Grade	50WW250	B50A250	50W250	M250-50 / M19	—	High-efficiency industrial motors, EV auxiliary motors
0.50 mm Mid-Low-Loss Grade	50WW310 / 50WW350	—	—	—	—	Energy-saving home appliance motors
0.50 mm General-Purpose Grade	50WW400 / 50WW470	B50A470	50W470	M470-50 / M27	—	General industrial motors, generator cores
0.50 mm Economic Grade	50WW600 / 50WW800 / 50WW1000 / 50WW1300	B50A600 / B50A800	—	M600-50 / M36	—	Low-power small motors, fan motors, pump motors
0.35 mm Ultra-Low-Loss Grade	35WW230 / 35WW250	B35A230	35W230	M300-35	—	High-speed motors, high-efficiency generators
0.35 mm Mid-Low-Loss Grade	35WW270 / 35WW300	B35A300	35W300	—	—	Compressor motors, new-energy drive motors
0.35 mm General-Purpose Grade	35WW360 / 35WW400	B35A360	—	—	—	Small generators, servo motors
0.65 mm Generator Grade	65WW600 / 65WW800	—	—	—	—	Large diesel generators, wind turbine cores
Ultra-Thin High-Frequency Grade	—	B20AHV800 / B15AHV950 / B10AHV900	—	—	—	EV drive motors, PCS energy-storage converters
Semi-Processed Grade	—	—	—	—	SP35 / SP50	Custom annealing projects, self-designed magnetic cores

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Industrial Motor

Appliance Motor

Power Generation & Energy Storage Equipment

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

Are B50A250 and B20AHV800 genuine Baosteel materials?

Yes, all materials are directly supplied by Baosteel with official mill test certificates for traceability.

What is the difference between B50A250 and B20AHV800?

B50A250 is 0.50mm conventional gauge for high-efficiency motors; B20AHV800 is 0.20mm ultra-thin grade specially for high-frequency working conditions.

Can B20AHV800 be used for EV drive motors?

Yes, B20AHV800 is designed for high-frequency applications such as new energy vehicle drive motors and high-frequency power supplies, with excellent iron loss performance at 400Hz.

Can you slit ultra-thin B20AHV800 without burr?

Yes, we have precision slitting equipment for ultra-thin silicon steel, which can control burr height and width tolerance within the required range.

What is the MOQ for Baosteel high-end grades?

Standard mother coil MOQ is 5 tons. For ultra-thin high-frequency grades, please contact us for specific MOQ according to specifications.
