Baosteel Hi-B R Series CRGO Coil | B23R075 B23R080 B27R085 High Magnetic Induction Silicon Steel Coil

Hi-B high magnetic induction, laser scribed ultra-low core loss
Designed for high-end large power, wind power and energy storage transformers
High saturation magnetic induction reduces transformer core size
0.23/0.27/0.30mm thin gauge for high efficiency energy saving design
Precision slitting and professional core processing service available

Product Overview

Baosteel Hi-B R Series CRGO coil is laser scribed high magnetic induction grain oriented silicon steel, premium grade for high-performance magnetic core. Main grades: B23R075, B23R080, B23R085, B27R085, B27R090, B30R100.

The laser scribing treatment effectively reduces magnetic domain width and core loss, with higher magnetic induction than conventional P series CRGO. It is widely used for large power transformers, wind turbine transformers, energy storage reactors and high efficiency distribution transformers. Available thickness:0.23,0.27,0.30mm. Mother coil width 700–1250mm, precision slitting down to 20mm width. C5/C6/RoHS lead-free insulation coating options. Full downstream core processing service and MTC certificate supplied.

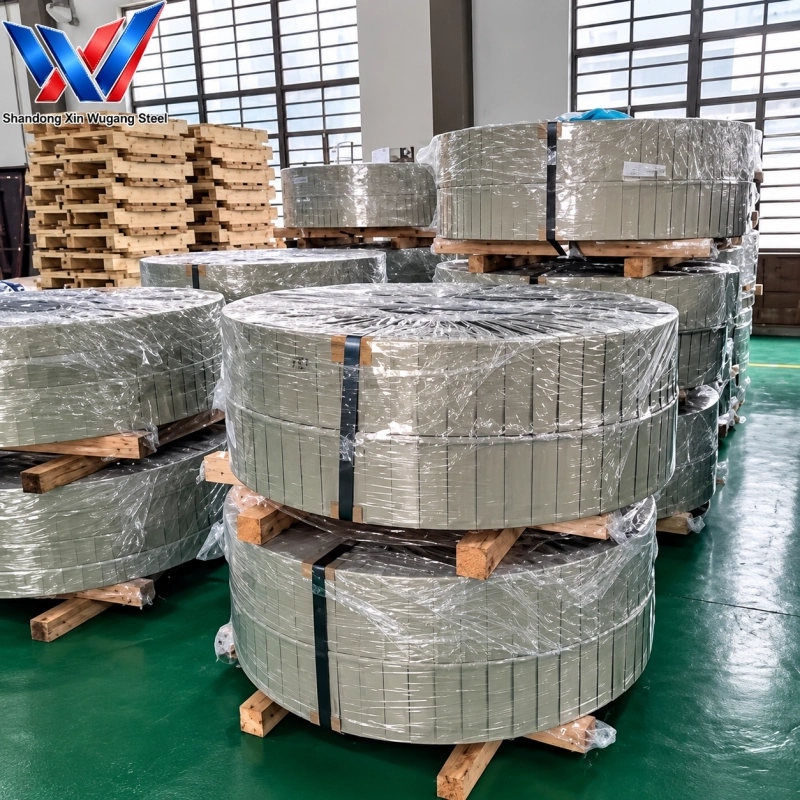

CRGO Coil

Chemical & Mechanical Property Snapshot

Grade	C (Carbon) Max %	Si (Silicon) %	Mn Max %	P Max %	S Max %	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation A50 (%)	Magnetic Core Loss P17/50 (W/kg)
B23R075	0.05	3.20–3.45	0.10	0.025	0.02	340	470	≥10	0.75
B23R080	0.05	3.20–3.45	0.10	0.025	0.02	340	470	≥10	0.80
B27R085	0.05	3.20–3.45	0.10	0.025	0.02	320	450	≥11	0.85
B30R100	0.05	3.20–3.45	0.10	0.025	0.02	315	445	≥12	1.00

Detailed Technical Specifications

Item	Specification
Product	Baosteel Hi-B R Series Laser Scribed CRGO Silicon Steel Coil
Included Grades	B23R075, B23R080, B23R085, B27R085, B27R090, B30R100
Material Type	Hi-B high magnetic induction grain oriented electrical steel, laser scribed
Applicable Standards	GB/T 2521.2-2025, IEC 60404-8-7
Standard Thickness	0.23 mm,0.27 mm,0.30 mm
Customized Thickness	Down to 0.18mm
Mother Coil Width	700–1250 mm
Precision Slitting Width	Down to 20 mm
Slitting Width Tolerance	±0.1 mm
Standard Coil ID	508 mm (20 inch)
Customized Coil ID	610 mm
Single Coil Weight	2–8 tons
Coil Splitting	Available per order
Insulation Coatings	C5 general inorganic coating; C6 high-insulation coating; RoHS lead-free coating
Available Processing	Flattening & cut-to-length, EI lamination stamping, toroidal core winding, stress-relief annealing, laser cutting
Main Applications	Large power transformers, wind-power transformers, energy-storage reactors, high efficiency transformers
Quality Documentation	Mill Test Certificate (MTC)
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit
Package	Waterproof paper + galvanized steel strap + seaworthy export wooden pallet

Product Comparison Table

Specification	B23R075	B23R080	B27R085	B30R100
Thickness	0.23mm	0.23mm	0.27mm	0.30mm
Core Loss P17/50	0.75 W/kg	0.80 W/kg	0.85 W/kg	1.00 W/kg
Key Feature	Ultra-low loss top grade Hi-B laser scribed	High performance thin gauge Hi-B	Balanced low loss & thickness	Cost effective Hi-B grade
Typical Application	Ultra high efficiency large transformer	Wind power transformer core	Energy storage reactor core	Medium high performance power transformer
Coating Option	C5/C6/RoHS Lead-free	C5/C6/RoHS Lead-free	C5/C6/RoHS Lead-free	C5/C6/RoHS Lead-free

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Photovoltaic Inverter Energy Storage Transformer, Wind Power Box Transformer, High-speed rail Traction Transformer

Transformer Voltage Current Metering Transformer Reactor Core

Military Special Power Supply Excitation Core of medical nuclear Magnetic Equipment

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is Baosteel Hi-B R series CRGO?

Hi-B R series is laser scribed high magnetic induction grain oriented silicon steel, premium CRGO grade for high-end large transformers, wind power and energy storage reactors.

What is laser scribing function for Hi-B CRGO?

Laser scribing refines magnetic domain structure, reduces core loss and improves energy efficiency of transformer core.

Can Hi-B R series coil be slit to narrow strips?

Yes, precision slitting service available, minimum slit width down to 20mm.

What is the main difference between Hi-B R series and P series?

Hi-B R series has higher magnetic induction and lower core loss after laser scribing, for high performance projects; P series conventional CRGO for standard distribution transformers.

Can you supply MTC for Baosteel Hi-B R series?

Yes, complete Mill Test Certificate including magnetic, mechanical and chemical test data provided for every batch.
