C Purlin Steel

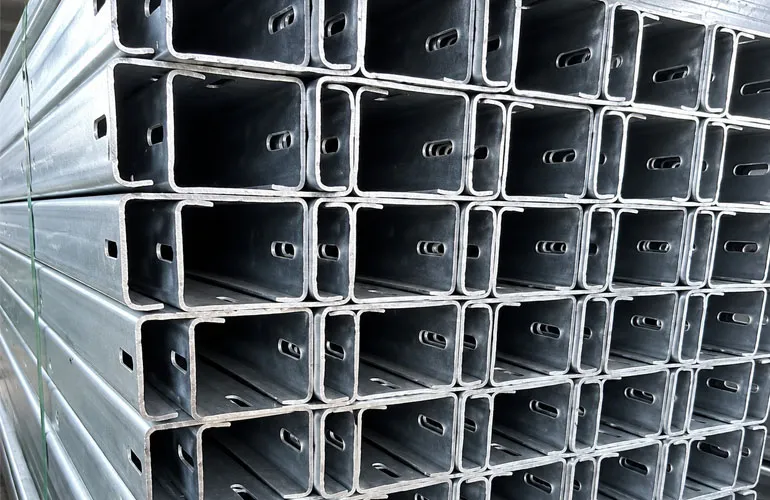

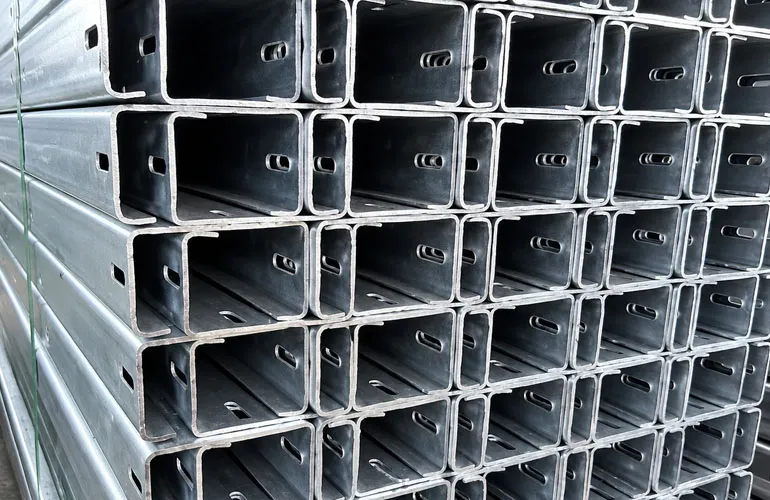

C Purlin

Cold‑formed high strength, light weight yet good load‑bearing capacity
Pre‑drilled bolt holes, fast on‑site assembly, lower site‑work workload
Multiple galvanized grades Z120‑Z275g/㎡ for coastal anti‑corrosion demand
Full light‑medium‑heavy size series, support non‑standard custom dimensions

Product Overview

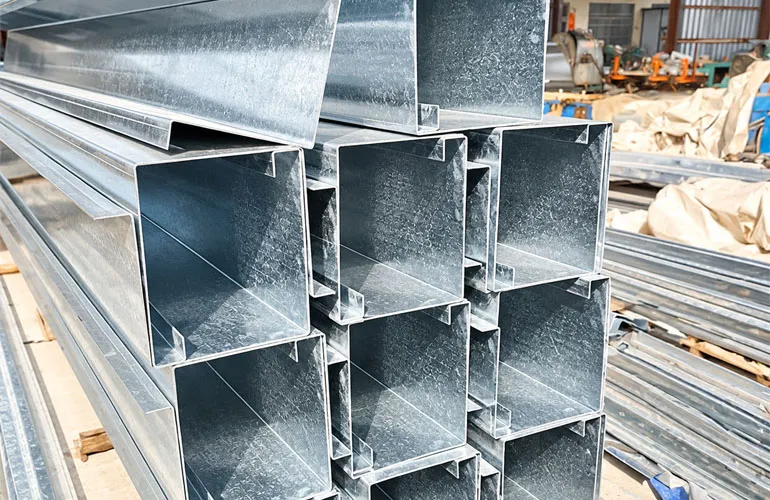

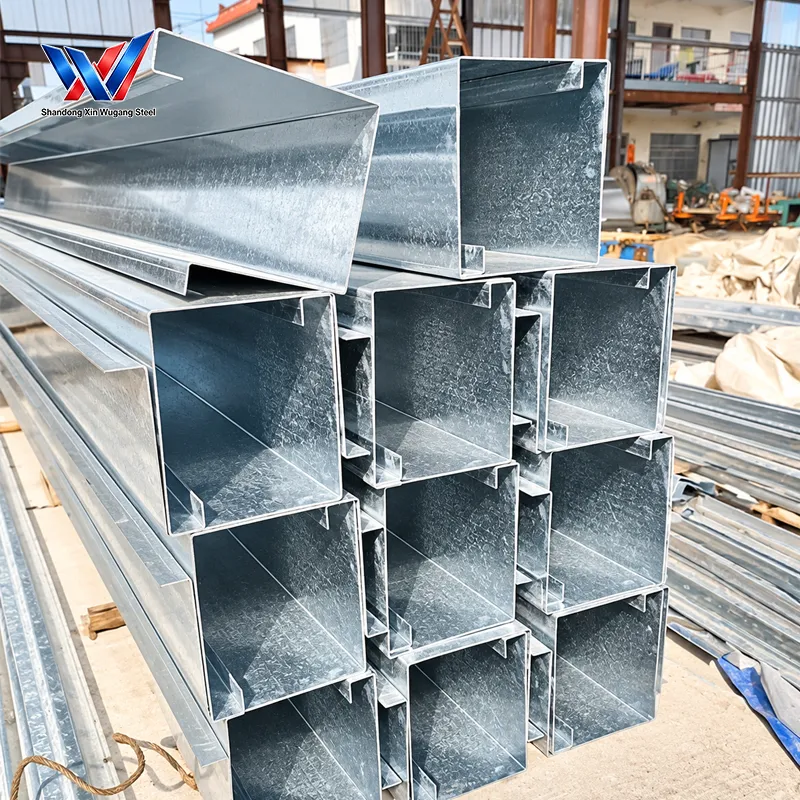

C Purlin is a cold-formed C-shaped steel profile manufactured through cold rolling process. As one of the important secondary structural components in steel buildings, it provides lightweight structural support with efficient load-bearing performance. C Purlin is widely used for roof systems, wall enclosure structures and secondary framing applications.

Manufactured according to international standards including GB/T 6728-2017, GB/T 12755-2019, GB/T 2518-2008, ASTM A653/A653M-22, EN 10162-2019 and JIS G3141-2017, C Purlin meets requirements for global engineering projects and cross-border procurement.

The product range includes light-duty, medium-duty and heavy-duty C Purlin series. Standard sizes cover C80×40×15×1.2 to C300×80×30×4.0, while customized dimensions are available with height 60–400mm, curl edge 15–50mm and wall thickness 1.0–5.0mm according to engineering drawings.

C Purlin supports multiple raw materials, including cold-rolled substrates and hot-dip galvanized substrates. Pre-punched bolt holes, customized lengths, anti-corrosion coatings and secondary processing services such as cutting, bending and splicing are available. It is widely applied in industrial workshops, agricultural greenhouses, photovoltaic structures, prefabricated buildings, warehouses and steel-frame construction projects.

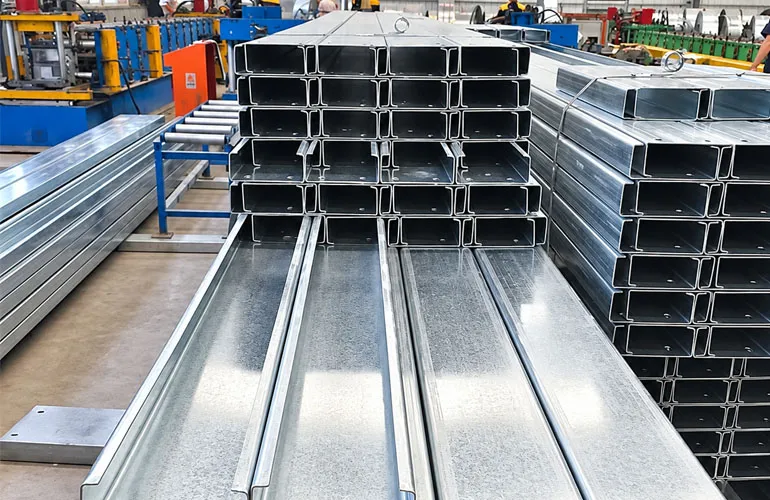

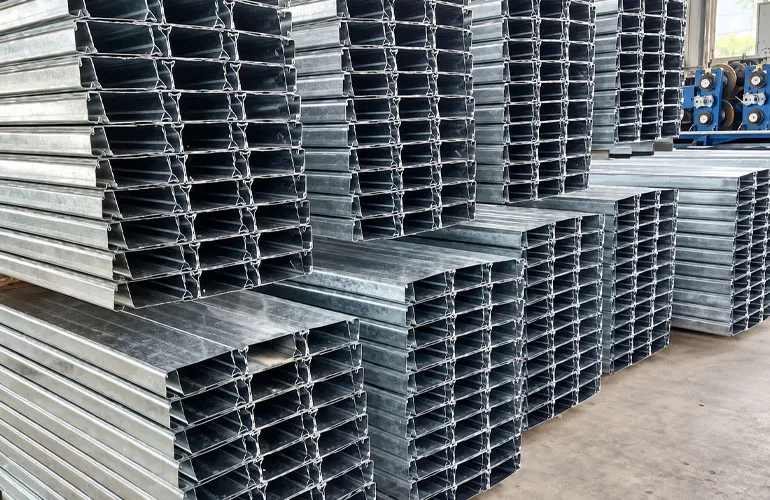

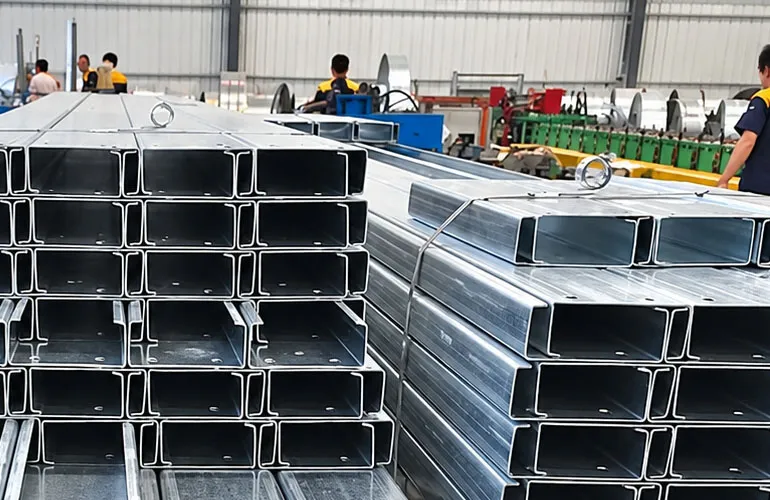

Inside Our Shandong Processing Facility

Chemical & Mechanical Property Snapshot

Grade	C %	Mn %	Si %	S %	P %	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)
Q235B	≤0.20	≤1.40	≤0.35	≤0.045	≤0.045	≥235	370–500	≥26
Q355B	≤0.20	≤1.60	≤0.35	≤0.040	≤0.040	≥355	470–630	≥21
DX51D+Z	≤0.12	≤0.60	≤0.50	≤0.045	≤0.045	≥280	270–500	≥26
DX52D+Z	≤0.12	≤0.60	≤0.50	≤0.045	≤0.045	≥240	270–420	≥30
DX53D+Z	≤0.12	≤0.60	≤0.50	≤0.045	≤0.045	≥220	270–380	≥34
SPCC	≤0.15	≤0.60	≤0.10	≤0.050	≤0.050	≥240	270–410	≥28
SGCC	≤0.15	≤0.60	≤0.10	≤0.050	≤0.050	≥240	270–410	≥28

Detailed Technical Specifications

Technical Item	Specification
Product Name	C Purlin
Product Type	Cold Formed C-Shaped Steel Purlin
Manufacturing Process	Cold Rolling Forming
Applicable Standards	GB/T 6728-2017, GB/T 12755-2019, GB/T 2518-2008, ASTM A653/A653M-22, EN 10162-2019, JIS G3141-2017
Product Series	Light Duty / Medium Duty / Heavy Duty
Profile Shape	C-shaped Steel Section
Light Duty Sizes	C80×40×15×1.2, C80×40×15×1.5, C100×50×20×1.2, C100×50×20×1.5, C120×50×20×1.5
Medium Duty Sizes	C140×60×20×1.8, C140×60×20×2.0, C160×60×20×2.0, C180×70×20×2.5
Heavy Duty Sizes	C200×70×20×2.5, C200×70×20×3.0, C220×75×25×3.0, C250×75×25×3.0, C300×80×30×4.0
Custom Height	60–400mm
Curl Edge Width	15–50mm
Wall Thickness	1.0–5.0mm
Standard Length	6m / 9m / 12m
Custom Length	1m–18m
Cold Rolled Materials	Q235B, Q355B, SPCC, DC01, DC03
Galvanized Materials	DX51D+Z, DX52D+Z, DX53D+Z, SGCC, SGCH
Surface Treatment	Black finish, galvanizing, electro-galvanizing, anti-corrosion painting
Galvanizing Coating	Z120–Z275g/㎡

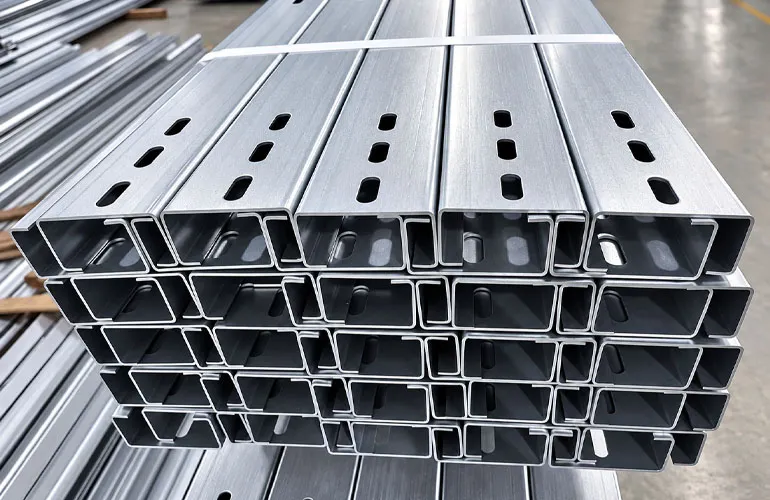

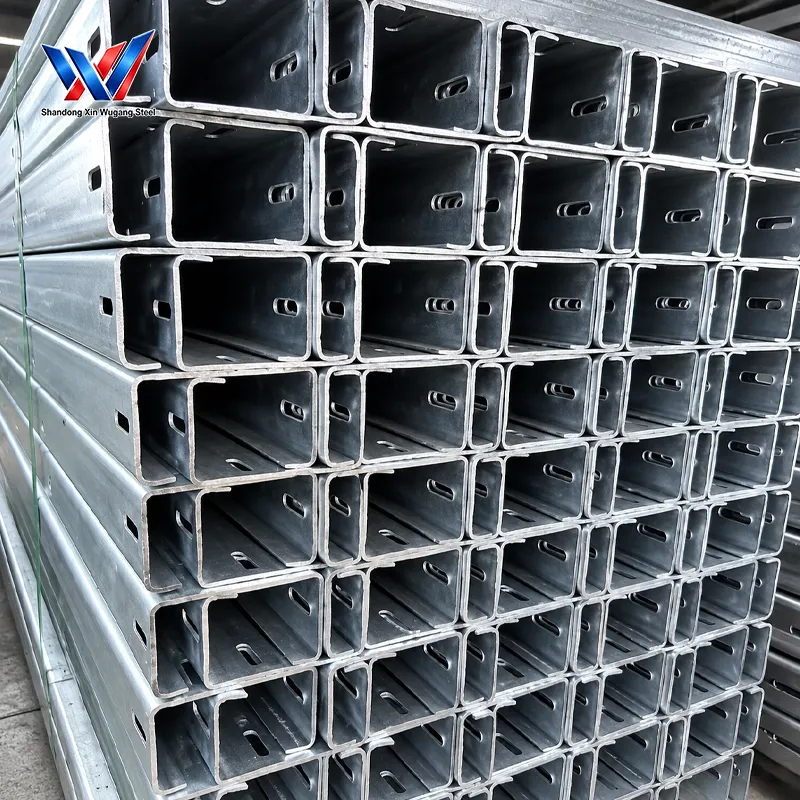

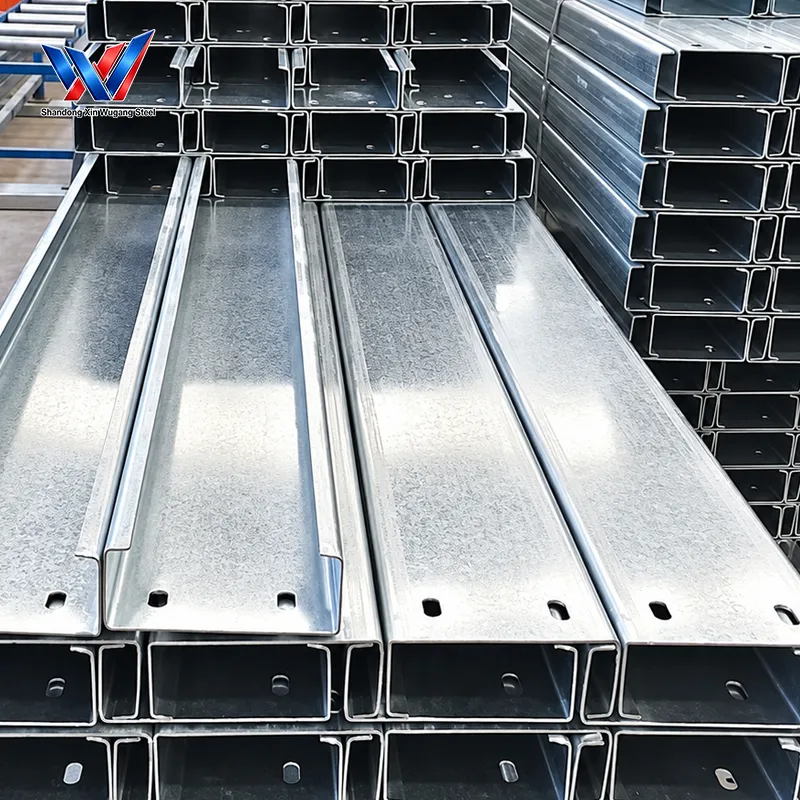

Hole Processing	Factory pre-punched bolt holes
Secondary Processing	Cutting, bending, splicing, custom forming
Quality Document	Mill Test Certificate
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	15–25 working days after receiving deposit
Packaging	Steel bundles with steel strapping, wrapped with waterproof plastic sheet; each bundle marked with product label

Dimension & Weight Table

Spec (H×B×C×t mm)	Height (mm)	Flange (mm)	Lip (mm)	Thickness (mm)	Theoretical Weight (kg/m)
C80×40×15×1.2	80	40	15	1.2	4.71
C80×40×15×1.5	80	40	15	1.5	5.83
C100×50×20×1.2	100	50	20	1.2	5.55
C100×50×20×1.5	100	50	20	1.5	6.87
C100×50×20×1.8	100	50	20	1.8	8.15
C120×50×20×1.5	120	50	20	1.5	7.10
C120×50×20×1.8	120	50	20	1.8	8.42
C120×50×20×2.0	120	50	20	2.0	9.28
C140×60×20×1.8	140	60	20	1.8	9.44
C140×60×20×2.0	140	60	20	2.0	10.41
C140×60×20×2.5	140	60	20	2.5	12.82
C160×60×20×2.0	160	60	20	2.0	11.04
C160×60×20×2.5	160	60	20	2.5	13.61
C160×60×20×3.0	160	60	20	3.0	16.09
C180×70×20×2.0	180	70	20	2.0	12.28
C180×70×20×2.5	180	70	20	2.5	15.16
C180×70×20×3.0	180	70	20	3.0	17.94
C200×70×20×2.5	200	70	20	2.5	15.94
C200×70×20×3.0	200	70	20	3.0	18.86
C220×75×25×2.5	220	75	25	2.5	17.47
C220×75×25×3.0	220	75	25	3.0	20.66
C250×75×25×2.5	250	75	25	2.5	18.65
C250×75×25×3.0	250	75	25	3.0	22.07
C300×80×30×3.0	300	80	30	3.0	24.97
C300×80×30×4.0	300	80	30	4.0	32.82

Product Comparison Table

Grade	Standard	Yield Strength (MPa)	Tensile Strength (MPa)	Coating Option	Application	Key Feature
Q235B C Purlin	GB/T 12755-2019, GB/T 6728	≥235	370–500	Hot-dip galvanized / Pre-galvanized	Common steel structure workshop, roof & wall support	Cost-effective, general load bearing
Q355B C Purlin	GB/T 12755-2019, GB/T 6728	≥355	470–630	Hot-dip galvanized / Pre-galvanized	Large-span warehouse, heavy load building	High strength, reduce purlin weight
S235JR C Purlin	EN 10162	≥235	360–510	Hot-dip galvanized / Pre-galvanized	EU standard construction project	CE compliance, Europe market
S355JR C Purlin	EN 10162	≥355	470–630	Hot-dip galvanized / Pre-galvanized	Europe heavy-duty steel building	High strength for European projects
ASTM A653 Grade A C Purlin	ASTM A653/A653M	≥205	≥340	Galvanized / Galvalume	North America light gauge structure	Good formability
ASTM A653 Grade B C Purlin	ASTM A653/A653M	≥240	≥370	Galvanized / Galvalume	North America roof & wall purlin	Balanced strength & ductility

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

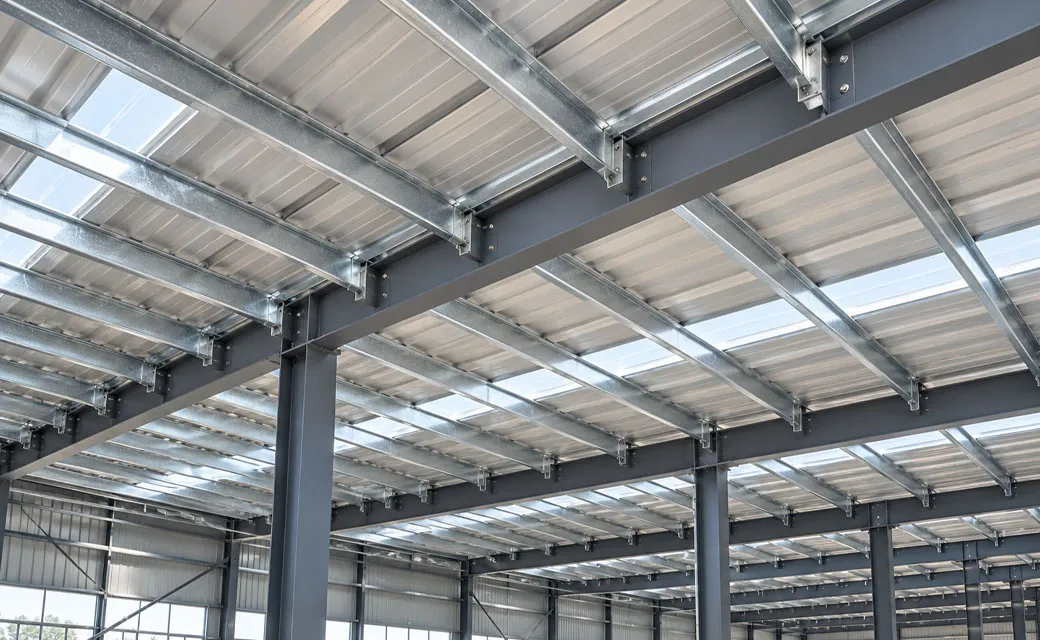

Steel Structure Factory Roof

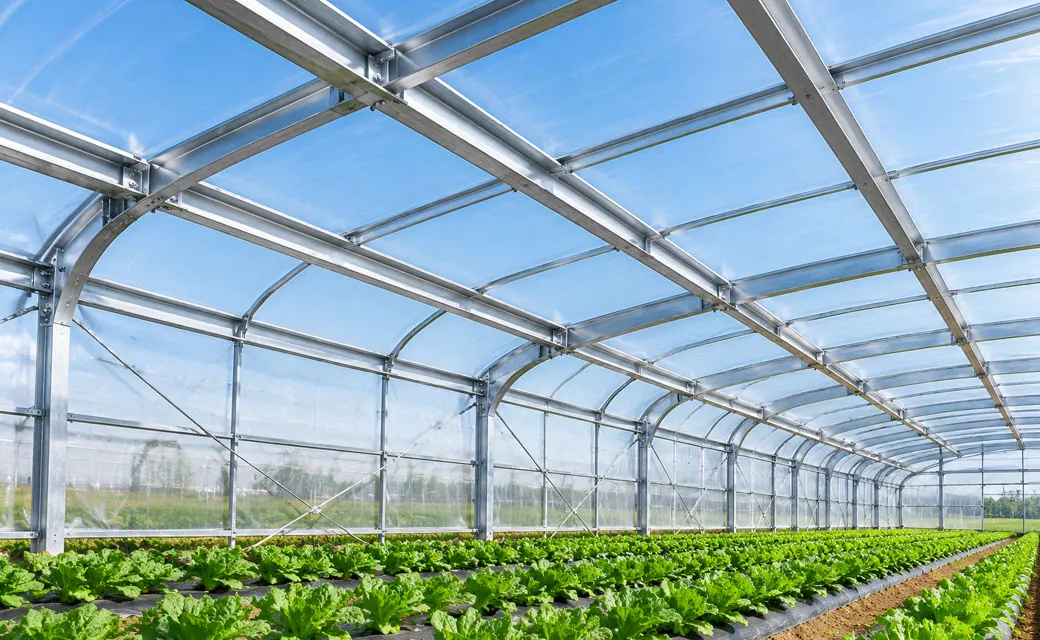

Vegetable Greenhouse

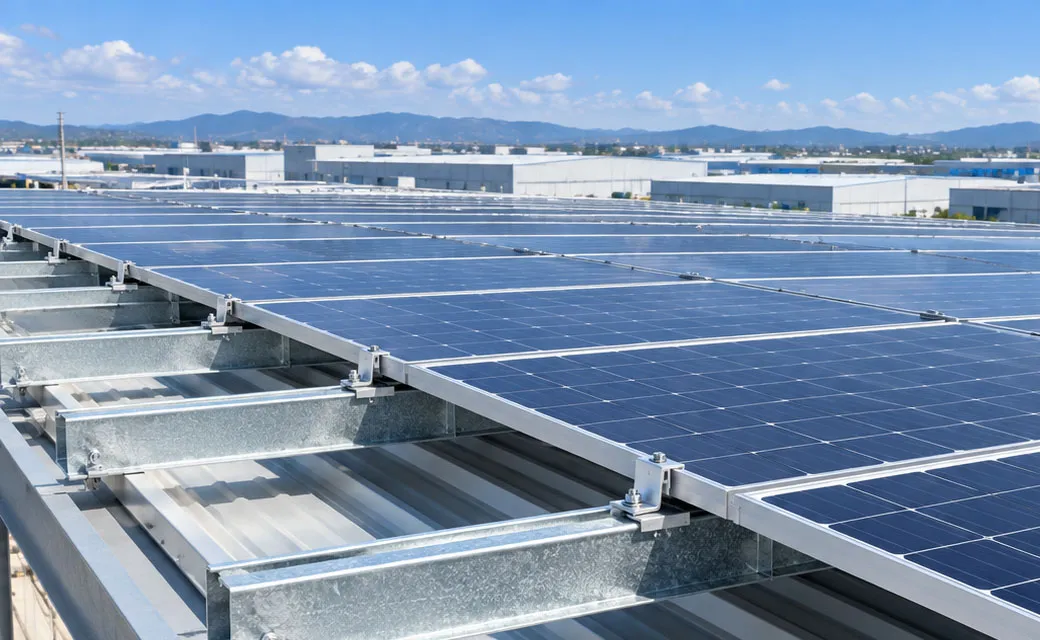

Solar Roof Mounting Bracket

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is C Purlin?

C Purlin is a cold-formed C-shaped steel profile used as a secondary structural component in steel buildings.

What standards does C Purlin follow?

C Purlin complies with GB/T 6728-2017, GB/T 12755-2019, ASTM A653/A653M-22, EN 10162-2019 and JIS G3141-2017 standards.

What sizes are available for C Purlin?

The product includes light-duty, medium-duty and heavy-duty series from C80×40×15×1.2 to C300×80×30×4.0.

Can C Purlin be customized?

Yes. Customized height, edge width, thickness, length and processing are available according to engineering drawings.

Where is C Purlin used?

C Purlin is used in steel workshops, greenhouses, photovoltaic structures, prefabricated buildings, warehouses and equipment support structures.
