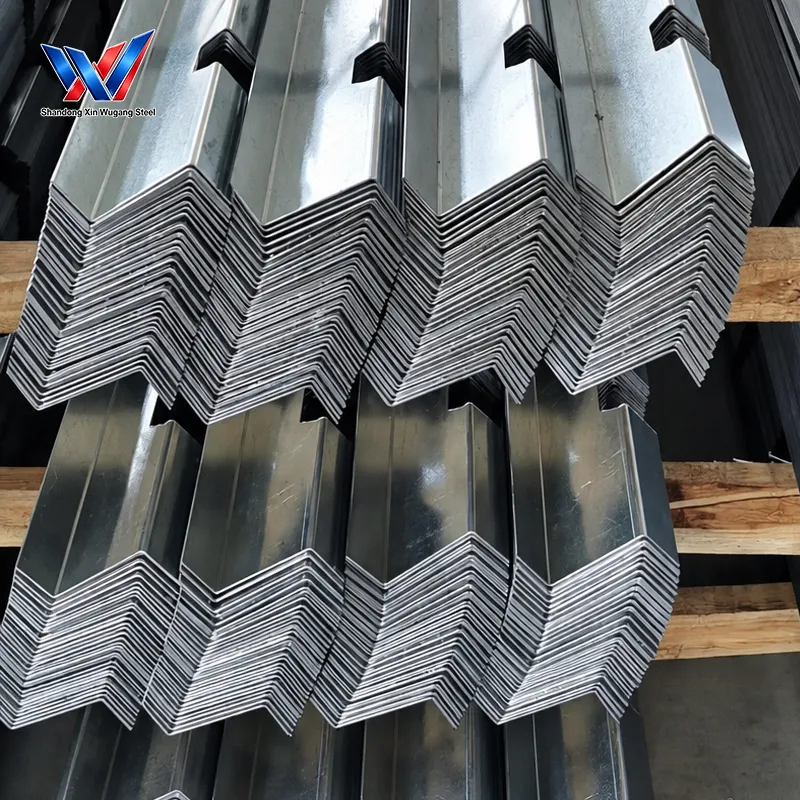

Z Purlin Steel

Z Purlin Z Purlin Z Purlin Z Purlin Z Purlin

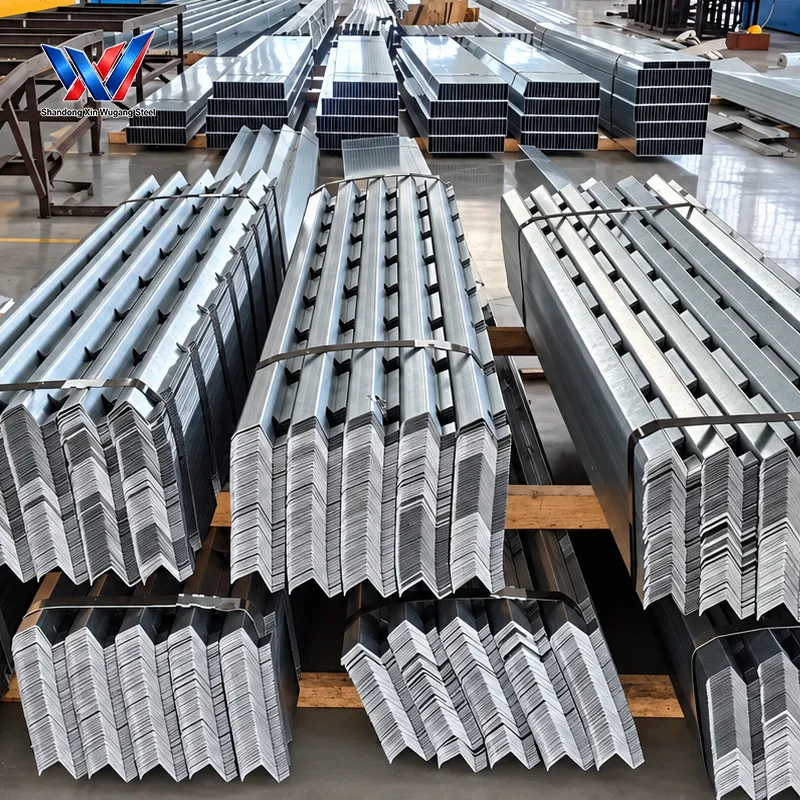

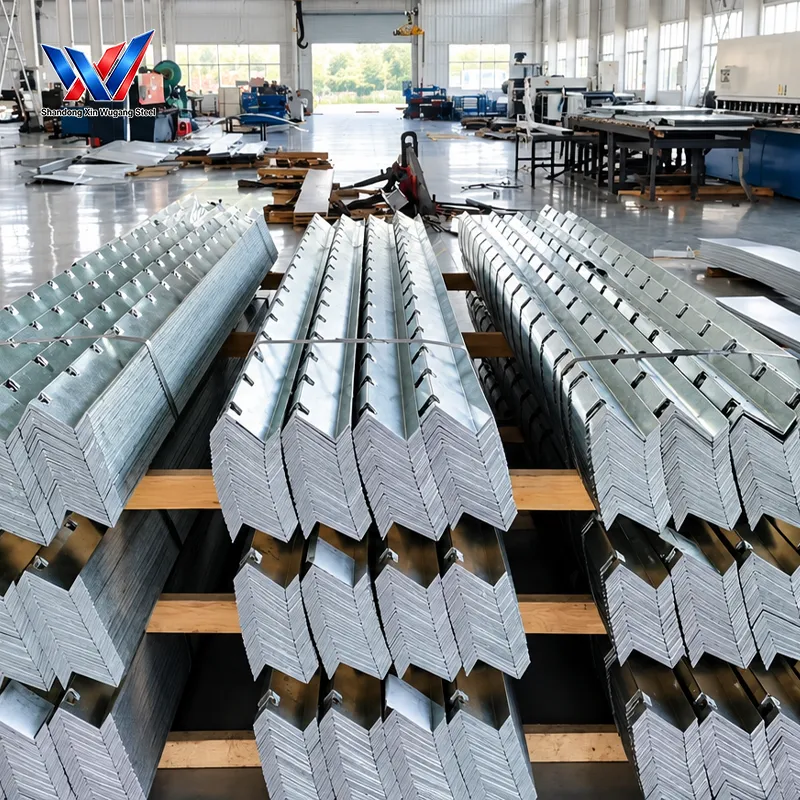

Z Purlin

  1. Unique Z‑shape, realize continuous lap‑splice for large‑span roof design
  2. High section modulus, high load‑bearing performance with lightweight material

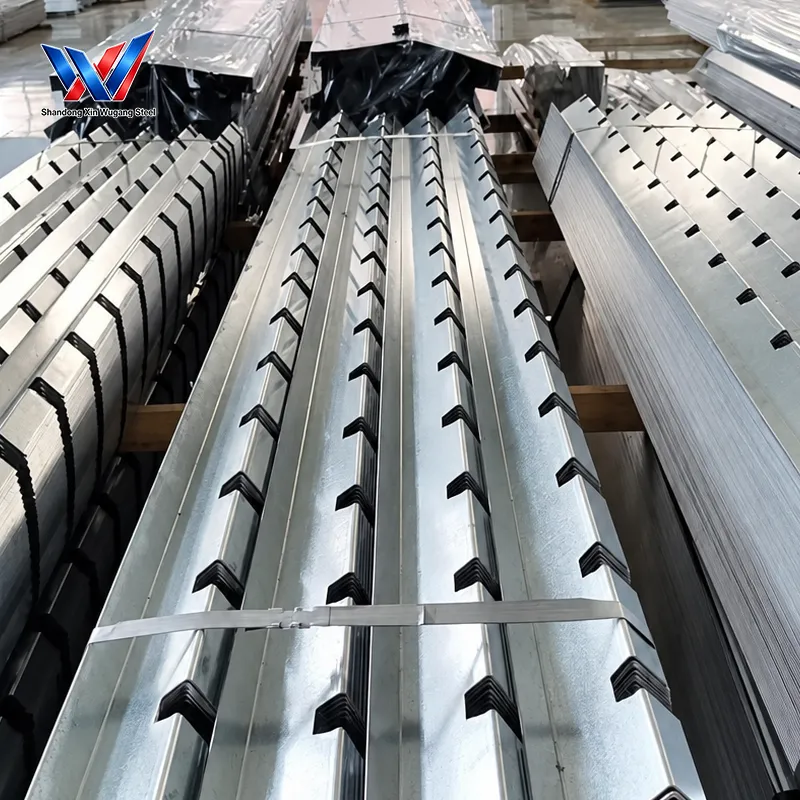

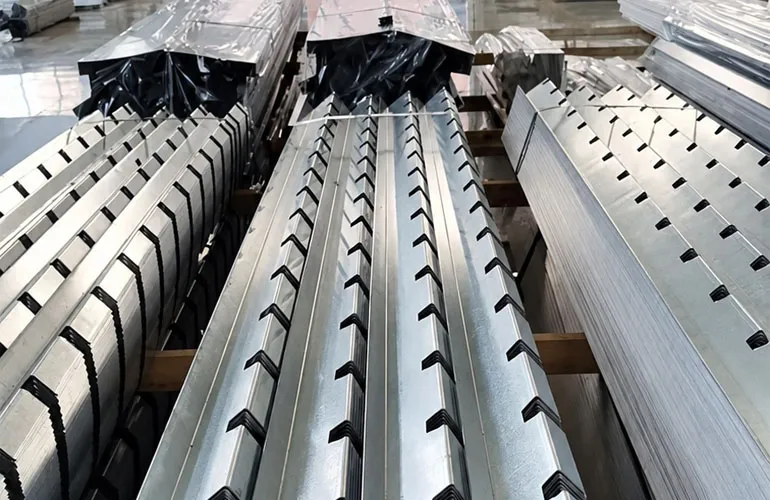

  3. Factory pre‑punched holes, speed up on‑site installation, reduce site processing work
  4. Full‑size series, support non‑standard custom dimensions for special projects
Contact Us

Product Overview

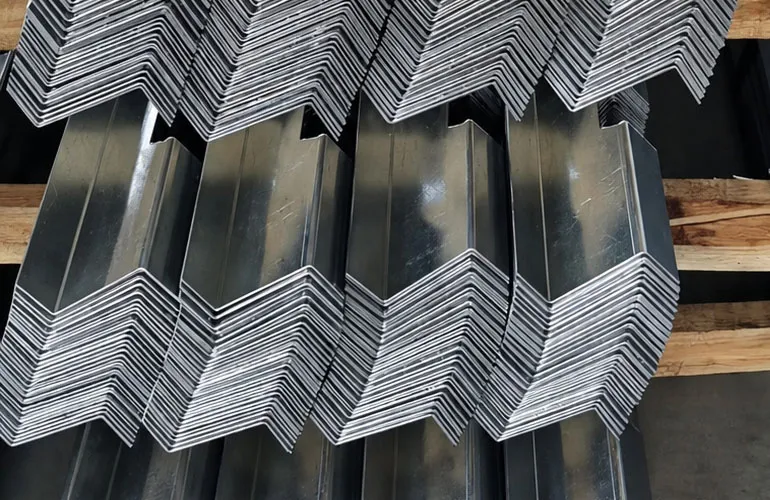

Z Purlin is a cold-formed Z-shaped thin-wall steel profile designed for modern steel structure construction. As an important secondary structural component, it provides efficient roof and wall support solutions for large-span steel buildings. Its unique Z-section design allows continuous lap-joint connection, making it especially suitable for large-span roof systems.

Manufactured according to international standards including GB/T 6728-2017, GB/T 12755-2019, ASTM A653/A653M-22, EN 10162-2019 and JIS G3141-2017, Z Purlin meets material inspection requirements for global engineering projects and international procurement.

Our Z Purlin product range includes light-duty, medium-duty and heavy-duty series. Standard models cover Z100×50×20×1.2 to Z300×80×30×4.0, while customized dimensions are available according to engineering drawings, including height 60–400mm, curl edge 15–50mm and wall thickness 1.0–5.0mm.

Z Purlin supports cold-rolled steel and galvanized steel substrates, factory pre-punched holes, customized lengths from 1–18m and multiple corrosion-resistant surface treatments. It is widely used in large-span industrial workshops, photovoltaic support systems, agricultural greenhouses, modular buildings, warehouses and other steel construction projects.

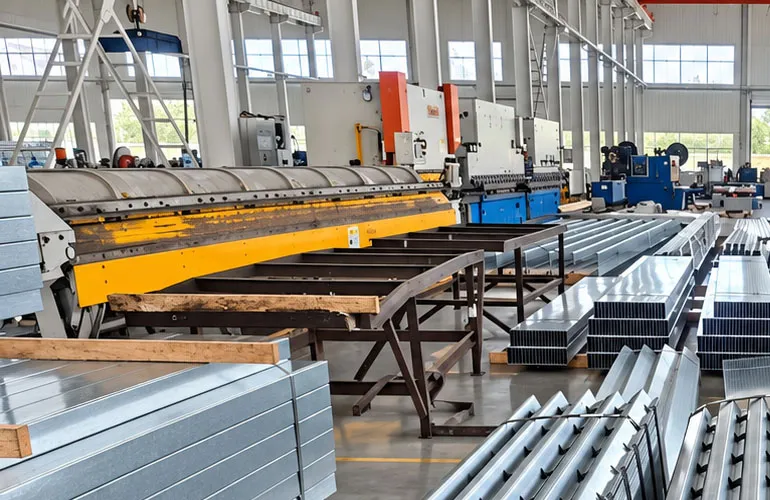

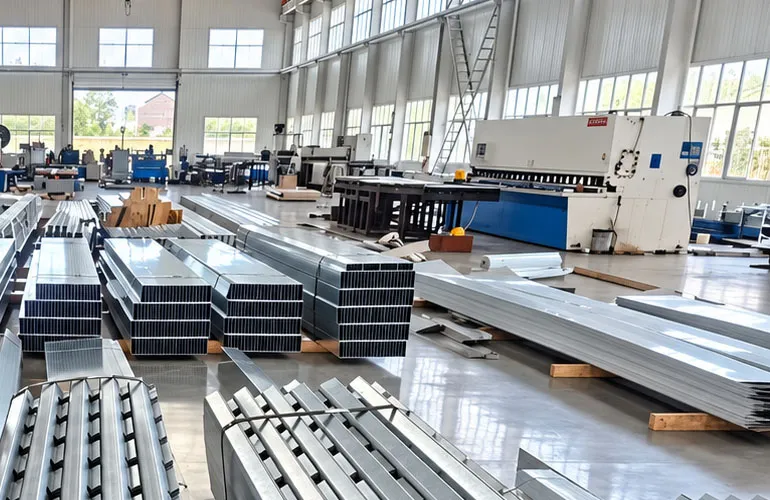

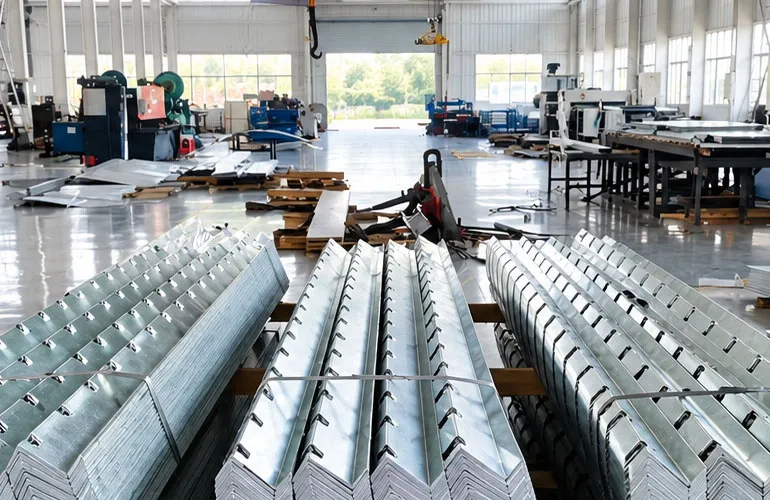

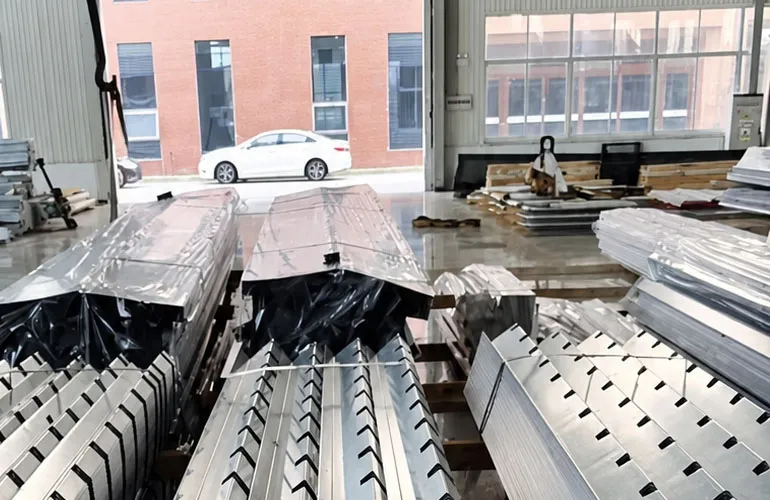

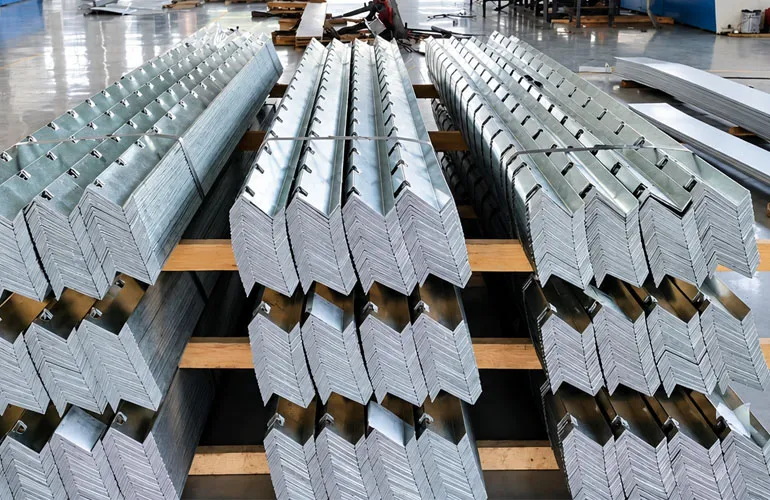

Inside Our Shandong Processing Facility

Chemical & Mechanical Property Snapshot

Grade Standard C (%) max Mn (%) max Si (%) max P (%) max S (%) max Yield Strength (MPa, min) Tensile Strength (MPa) Elongation (%) min
Q235B Z Purlin GB/T 12755-2019, GB/T 6728 0.20 1.40 0.35 0.045 0.045 235 370–500 26
Q355B Z Purlin GB/T 12755-2019, GB/T 6728 0.20 1.60 0.50 0.040 0.040 355 470–630 21
DX51D+Z EN 10142, EN10162 0.12 0.60 0.50 0.10 0.045 280 270–500 26
DX52D+Z EN 10142, EN10162 0.12 0.60 0.50 0.10 0.045 260 270–420 30
DX53D+Z EN 10142, EN10162 0.12 0.60 0.50 0.10 0.045 220 270–380 34
SGCC JIS G3302 0.15 0.60 – 0.050 0.050 240 270–410 24
SGCH JIS G3302 0.15 0.60 – 0.050 0.050 290 270–440 22
SPCC JIS G3131 0.15 0.60 – 0.050 0.050 210 270–410 27
DC01 EN 10130 0.12 0.60 – 0.045 0.045 210 270–410 28
DC03 EN 10130 0.10 0.45 – 0.035 0.035 190 270–390 32

Detailed Technical Specifications

Technical Item Specification
Product Name Z Purlin
Product Type Cold Formed Z-Shaped Steel Purlin
Section Shape Z-shaped Thin Wall Profile
Manufacturing Process Cold Forming Rolling
Application Category Purlin & Cold Formed Steel
Applicable Standards GB/T 6728-2017; GB/T 12755-2019; ASTM A653/A653M-22; EN 10162-2019; JIS G3141-2017
Product Series Light Duty / Medium Duty / Heavy Duty
Light Duty Sizes Z100×50×20×1.2; Z100×50×20×1.5; Z120×50×20×1.5; Z120×50×20×1.8; Z120×50×20×2.0
Medium Duty Sizes Z140×60×20×1.8; Z140×60×20×2.0; Z160×60×20×2.0; Z180×70×20×2.5
Heavy Duty Sizes Z200×70×20×2.5; Z220×75×25×3.0; Z250×75×25×3.0; Z300×80×30×4.0
Custom Height 60–400mm
Curl Edge Width 15–50mm
Wall Thickness 1.0–5.0mm
Standard Length 6m / 9m / 12m
Custom Length 1m–18m
Cold Rolled Materials Q235B, Q355B, SPCC, DC01, DC03
Galvanized Materials DX51D+Z, DX52D+Z, DX53D+Z, SGCC, SGCH
Hole Processing Factory pre-punched bolt holes
Surface Treatment Black finish, galvanizing, electro-galvanizing, anti-corrosion paint
Galvanizing Range Z120–Z275g/㎡
Processing Service Cutting, bending, splicing, custom forming
Quality Document Mill Test Certificate
MOQ 5 Ton
Payment Terms T/T, L/C at Sight
Delivery Time 15–25 working days after receiving deposit
Packaging Steel bundles with steel strapping, wrapped with waterproof plastic sheet; each bundle marked with product label

Dimension Table

Category Spec (Height×Flange×Lip×Thickness, mm)
Light Duty Z Purlin Z100×50×20×1.2
Light Duty Z Purlin Z100×50×20×1.5
Light Duty Z Purlin Z120×50×20×1.5
Light Duty Z Purlin Z120×50×20×1.8
Light Duty Z Purlin Z120×50×20×2.0
Medium Duty Z Purlin Z140×60×20×1.8
Medium Duty Z Purlin Z140×60×20×2.0
Medium Duty Z Purlin Z140×60×20×2.5
Medium Duty Z Purlin Z160×60×20×2.0
Medium Duty Z Purlin Z160×60×20×2.5
Medium Duty Z Purlin Z160×60×20×3.0
Medium Duty Z Purlin Z180×70×20×2.0
Medium Duty Z Purlin Z180×70×20×2.5
Medium Duty Z Purlin Z180×70×20×3.0
Heavy Duty Z Purlin Z200×70×20×2.5
Heavy Duty Z Purlin Z200×70×20×3.0
Heavy Duty Z Purlin Z220×75×25×2.5
Heavy Duty Z Purlin Z220×75×25×3.0
Heavy Duty Z Purlin Z250×75×25×2.5
Heavy Duty Z Purlin Z250×75×25×3.0
Heavy Duty Z Purlin Z300×80×30×3.0
Heavy Duty Z Purlin Z300×80×30×4.0
Custom Size Height: 60–400mm, Lip: 15–50mm, Wall Thickness: 1.0–5.0mm

Product Comparison Table

Grade Applicable Standard Yield Strength (MPa) Tensile Strength (MPa) Surface Option Formability Typical Application Core Feature
Q235B Z Purlin GB/T12755-2019, GB/T6728 ≥235 370–500 Black / Hot-dip galvanized Good General workshop, warehouse roof & wall Cost-effective, widely used standard grade
Q355B Z Purlin GB/T12755-2019, GB/T6728 ≥355 470–630 Black / Hot-dip galvanized Medium Large span workshop, PV support High strength, reduce purlin weight, heavy load
DX51D+Z Z Purlin EN10162, EN10142 ≥280 270–500 Pre-galvanized Good EU market steel building European standard galvanized substrate
DX52D+Z Z Purlin EN10162, EN10142 ≥260 270–420 Pre-galvanized Better EU roof structure, complex bending Superior forming performance
DX53D+Z Z Purlin EN10162, EN10142 ≥220 270–380 Pre-galvanized Excellent Deep forming, precise profile Best ductility for cold forming
SGCC Z Purlin JIS G3302, JIS G3141 ≥240 270–410 Pre-galvanized Good Japan & Southeast Asia projects JIS standard galvanized steel
SGCH Z Purlin JIS G3302, JIS G3141 ≥290 270–440 Pre-galvanized Medium Heavy-duty JIS steel construction Higher strength JIS galvanized grade
SPCC Z Purlin JIS G3131, JIS G3141 ≥210 270–410 Black finish Excellent Light gauge cold formed Z purlin Low carbon, great cold roll forming
DC01 Z Purlin EN10130, EN10162 ≥210 270–410 Black finish Good European light steel structure EU standard cold rolled base material
DC03 Z Purlin EN10130, EN10162 ≥190 270–390 Black finish Excellent Complex shape custom Z purlin Ultra ductile for complex cold forming

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

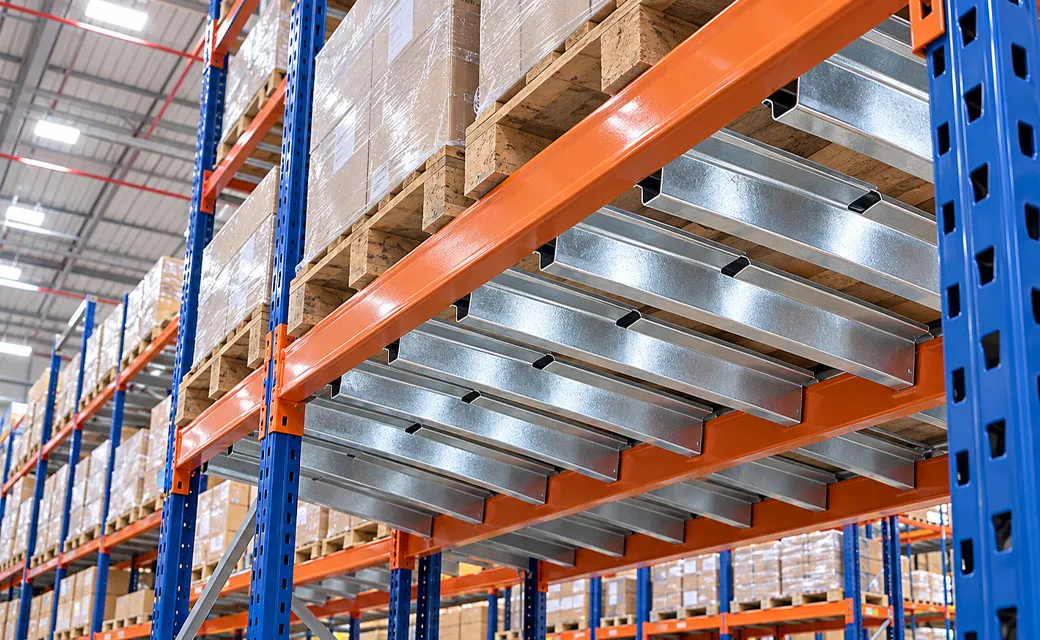

Warehouse Rack Secondary Beam

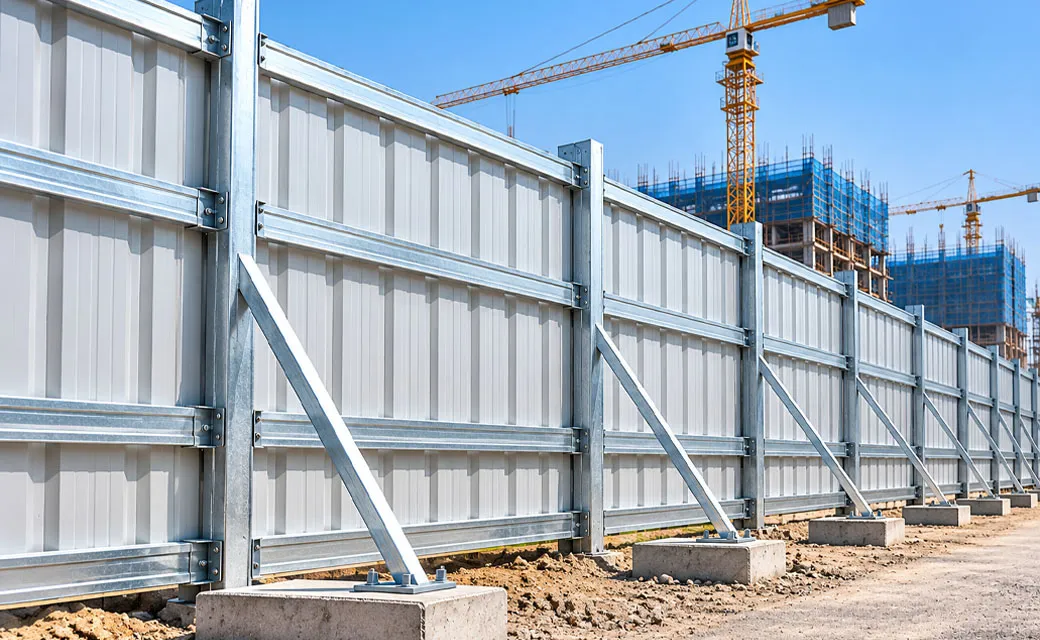

Temporary Construction Fence Frame

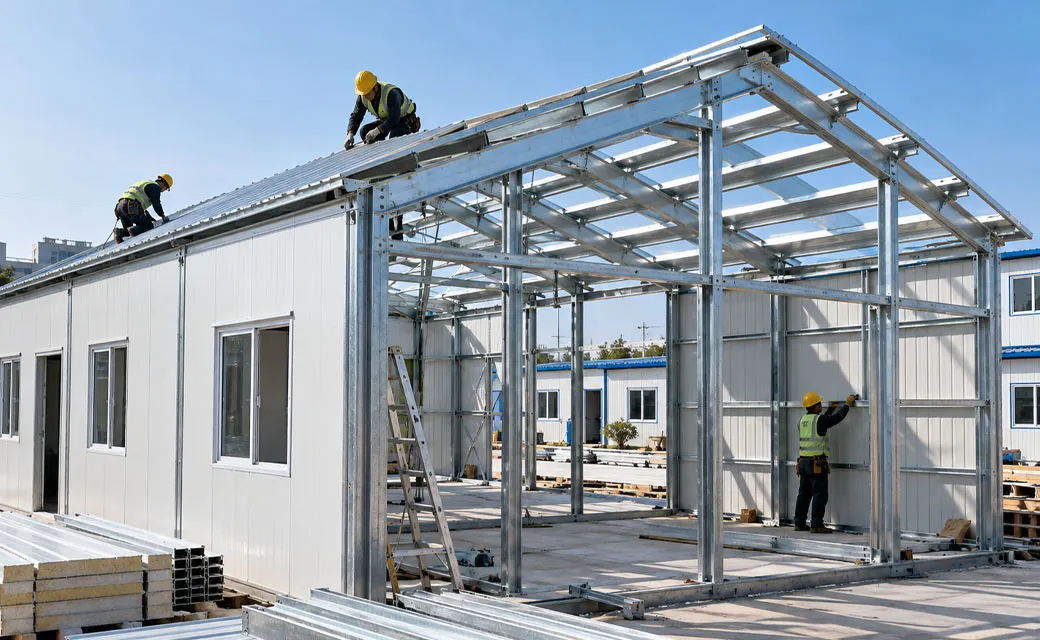

Prefabricated House

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

Z Purlin is a cold-formed Z-shaped thin-wall steel profile used as a secondary structural component in steel buildings.

Z Purlin has a Z-shaped section that supports continuous lap-joint connections, making it suitable for large-span roof structures.

It follows GB/T 6728-2017, GB/T 12755-2019, ASTM A653/A653M-22, EN 10162-2019 and JIS G3141-2017 standards.

Yes. Custom height, curl edge, thickness, length and processing services are available according to project drawings.

It is widely used in large-span steel workshops, photovoltaic structures, greenhouses, modular buildings and warehouse structures.
