Hastelloy C276 Hastelloy C22 Molybdenum‑Nickel Corrosion‑Resistant Seamless Pipe

Hastelloy C276 Hastelloy C22 Molybdenum‑Nickel Corrosion‑Resistant Seamless Pipe | UNS N10276 UNS N06022 Alloy Pipe

Resist mixed oxidizing‑reducing acid corrosion in complex chemical working medium
Excellent anti‑pitting and crevice corrosion performance in chloride‑rich environment
Hastelloy C22 optimizes chromium content for better oxidizing‑medium resistance compare with C276
Good thermal stability, avoid harmful intermetallic phase during welding & high‑temp exposure
Mainly used for chemical reactor, flue‑gas desulfurization, waste‑liquid treatment piping

Product Overview

Hastelloy C‑series are nickel‑molybdenum‑chromium super anti‑corrosion alloys. Hastelloy C276 (UNS N10276) is classic grade, performs great against reducing acid, chloride‑induced local corrosion. Hastelloy C22 (UNS N06022) raises chromium proportion, achieves balanced performance both for oxidizing acid and reducing corrosive environment.

Our Hastelloy C276 / C22 seamless pipe is produced by vacuum arc remelting raw material, hot extrusion and multi‑pass cold drawing, full solution annealing treatment. Every pipe undergoes ultrasonic and eddy‑current non‑destructive test. Products serve for chemical processing plant, FGD flue‑gas desulfurization system, pharmaceutical production equipment, waste water treatment, pickling line piping. We provide standard stock dimension and custom special sizes per drawing, full mill test certificate supplied.

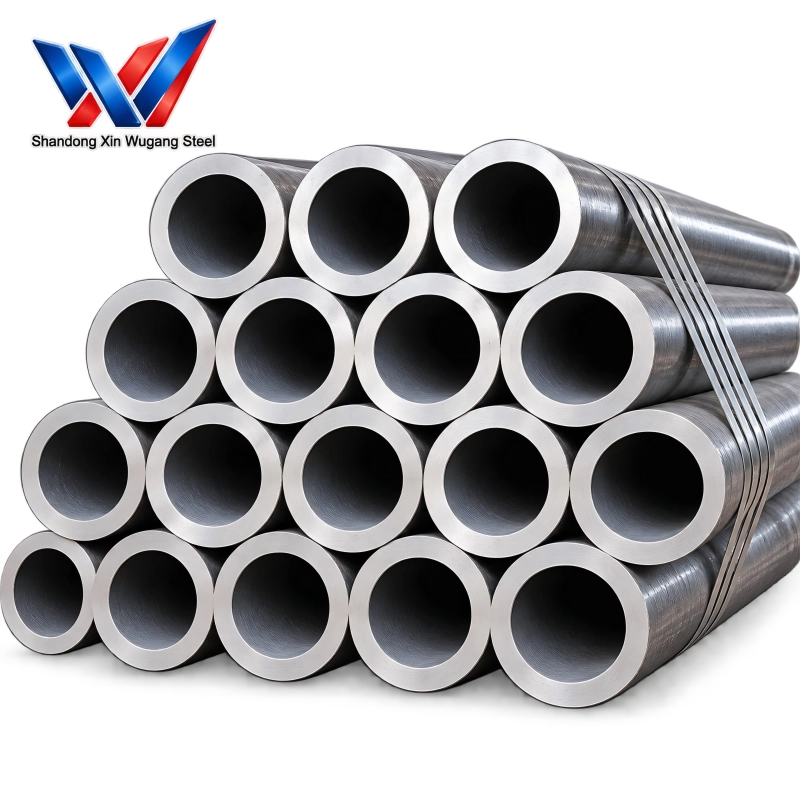

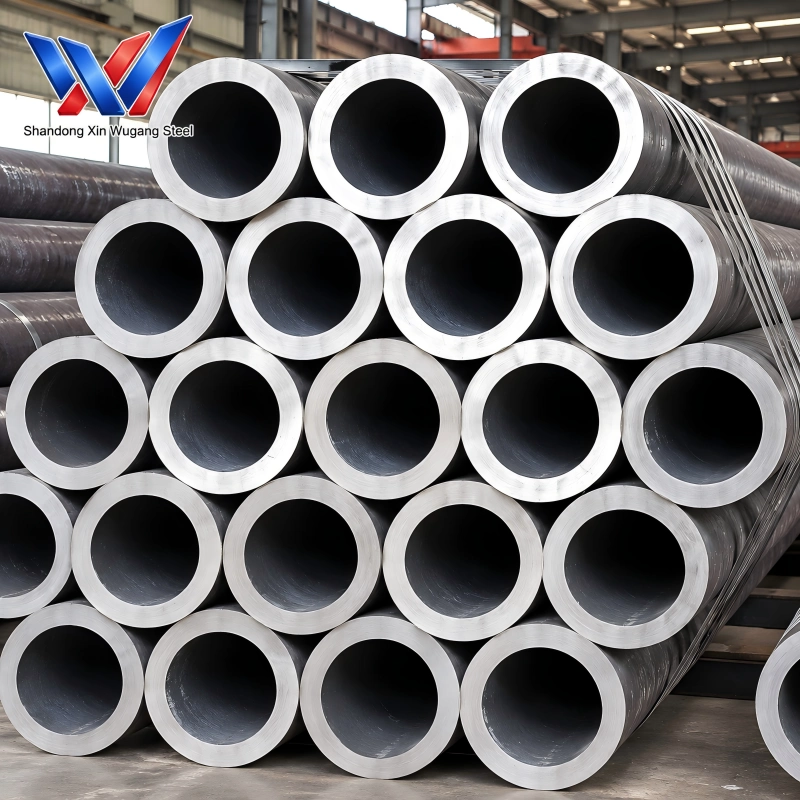

Nickel/Super Alloy Pipe

Chemical & Mechanical Property Snapshot

Grade	UNS No.	Ni(%)	Cr(%)	Mo(%)	W(%)	Yield Rp0.2 MPa Min	Tensile Rm MPa Min	Elongation A (%) Min
Hastelloy C276	N10276	Balance	14.5‑16.5	15‑17	3‑4.5	283	690	40
Hastelloy C22	N06022	Balance	20‑22.5	12.5‑14.5	Max 1.5	310	760	45

Detailed Technical Specifications

Item	Specification Details
Material Grade	Hastelloy C276, Hastelloy C22
UNS Code	UNS N10276, UNS N06022
Applicable Standards	ASTM B622, ASTM B829, ASME SB‑622, NACE MR0175
Pipe Manufacturing Type	Hot extruded seamless, Cold‑drawn seamless
Outer Diameter Range	6‑219mm; Custom special OD upon drawing
Wall Thickness Range	1.0‑20mm; heavy‑wall & thin‑wall available
Dimension Tolerance	OD: ±0.5 %‑±1 %; WT: ±7.5 % comply with ASTM B622
Available Length	Random mill length:3‑8m; Fixed cut length:1‑12m; Custom saw‑cut service
Delivery Condition	Solution Annealed & Pickled
Surface Options	Pickled bright annealed, Mechanical polishing
Pipe End Treatment	Plain end, Beveled end, Deburred end; Plastic end cap protection
Non‑Destructive Testing	Full‑body Ultrasonic Test(UT), Eddy‑Current Test(ET), Hydrostatic Test; PMI positive material identification
Destructive Lab Test	Chemical composition analysis, Tensile test, Hardness test, Flattening test, Flaring test
MOQ (Minimum Order Quantity)	5 Tons; small trial order negotiable subject to stock
Lead Time	Stock items:10‑16 working days; Custom production:38‑52 working days
Payment Term	T/T, Irrevocable L/C at sight
Packaging Details	Inner waterproof kraft paper; each pipe end fitted with plastic protective cap; bundled by steel strips; loaded into fumigated wooden pallet / solid wooden crate for ocean freight; anti‑moisture desiccant inside package
Trade Term	FOB, CFR, CIF, DAP, DDU
Document & Certificate	Mill Test Certificate MTC EN 10204 3.1; Third‑party inspection SGS/BV/LR available upon buyer request
Additional Service	Custom cutting, polishing, surface treatment, bundling mark, OEM label

Shape Options

Shape Type	Description & Typical Application
Round	Standard seamless round tube, widely used for fluid pipelines, boilers, hydraulic systems, and general structural projects
Square	Equal-side hollow square section, suitable for building frames, machinery supports, and heavy-load structural components
Rectangular	Unequal-side rectangular hollow section, ideal for beams, brackets, and vehicle chassis structural parts
Hexagonal	Hexagonal cross-section, suitable for drive shafts, mechanical fittings, and direct assembly without additional machining
Oval / Flat Oval	Oval hollow profile, used for automotive parts, agricultural machinery, and special frame structures
Special Custom Shaped	D-shaped, triangular, splined inner bore, lemon-shaped, and other non-standard profiles; custom production available according to customer drawings and samples

Dual‑unit Dimension Reference T

Outer Diameter (mm)	Outer Diameter (inch)	Wall Thickness (mm)	Wall Thickness (inch)
6	0.236″	0.8–2.0	0.031″–0.079″
12.7	0.50″	1.0–3.0	0.039″–0.118″
21.3	0.84″	1.5–4.0	0.059″–0.157″
33.7	1.33″	2.0–6.0	0.079″–0.236″
42.4	1.67″	2.0–8.0	0.079″–0.315″
60.3	2.37″	2.5–10	0.098″–0.394″
88.9	3.50″	3.0–12	0.118″–0.472″
114.3	4.50″	3.0–16	0.118″–0.630″
168.3	6.63″	4.0–20	0.157″–0.787″
219.1	8.63″	5.0–25	0.197″–0.984″
273	10.75″	6.0–30	0.236″–1.181″
323.9	12.75″	8.0–35	0.315″–1.378″
406.4	16.00″	10–40	0.394″–1.575″

Product Comparison Table

Grade	UNS	Alloy Characteristic	Corrosion Focus	Main Application	W.Nr Equivalent
Hastelloy C276	N10276	Ni‑Cr‑Mo‑W	Reducing acid, chloride local corrosion	FGD, chemical reactor	2.4819
Hastelloy C22	N06022	Higher Cr Ni‑Cr‑Mo	Balanced oxidizing & reducing medium	Mixed‑acid chemical process	2.4602
Hastelloy B3	N10675	High Mo nickel alloy	Strong reducing hydrochloric acid	Hydrochloric acid equipment	2.4600

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Sulfur-Containing Oil and Gas Corrosive Downhole Tubing String

Aerospace Hydraulic Piping System

High-Pressure Piping for Seawater Desalination

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is key difference between Hastelloy C276 and C22 seamless pipe?

Hastelloy C22 contains higher chromium content, better performance for oxidizing corrosive medium; C276 is outstanding for reducing‑type corrosion.

Can Hastelloy C‑series alloy pipe be used for flue‑gas desulfurization project?

Yes, Hastelloy C276 and C22 are very common material for FGD system anti‑corrosion piping.

Will inter‑granular corrosion happen after welding Hastelloy C276 pipe?

Solution‑annealed Hastelloy C276 has good anti‑intergranular‑corrosion property under proper welding procedure.

What test documents can you provide for Hastelloy alloy pipe?

Full mill test certificate EN10204 3.1 including chemical composition and mechanical test report. Third‑party inspection is acceptable

Is Hastelloy alloy suitable for mixed acid complex chemical environment?

Hastelloy C22 is preferred for mixed oxidizing‑reducing acid working condition.
