Monel 400 Monel K‑500 Nickel‑Copper Alloy Seamless Pipe | UNS N04400 UNS N05500 Marine‑Grade Alloy Pipe

Monel 400 Monel K‑500 Nickel‑Copper Alloy Seamless Pipe | UNS N04400 UNS N05500 Marine‑Grade Alloy Pipe

Excellent anti‑corrosion performance for seawater, brine and salt‑water splash environment
Monel K‑500 can obtain much higher strength and hardness by age‑hardening heat treatment
Good resistance to hydrofluoric acid and alkaline medium corrosion
Low susceptibility to stress‑corrosion cracking in marine chloride environment
Suitable for seawater cooling system, offshore platform, salt‑making and marine‑engineering piping

Product Overview

Monel alloy is classic nickel‑copper system super alloy. Monel 400 (UNS N04400) is solid‑solution nickel‑copper alloy, shows outstanding corrosion‑resistance for seawater, brine, hydrofluoric acid and alkali medium. Monel K‑500 (UNS N05500) is precipitation‑hardening version based on Monel400, adding aluminium and titanium element; after ageing heat‑treatment, mechanical strength and hardness improve greatly while keeping similar corrosion‑resistance performance as Monel400.

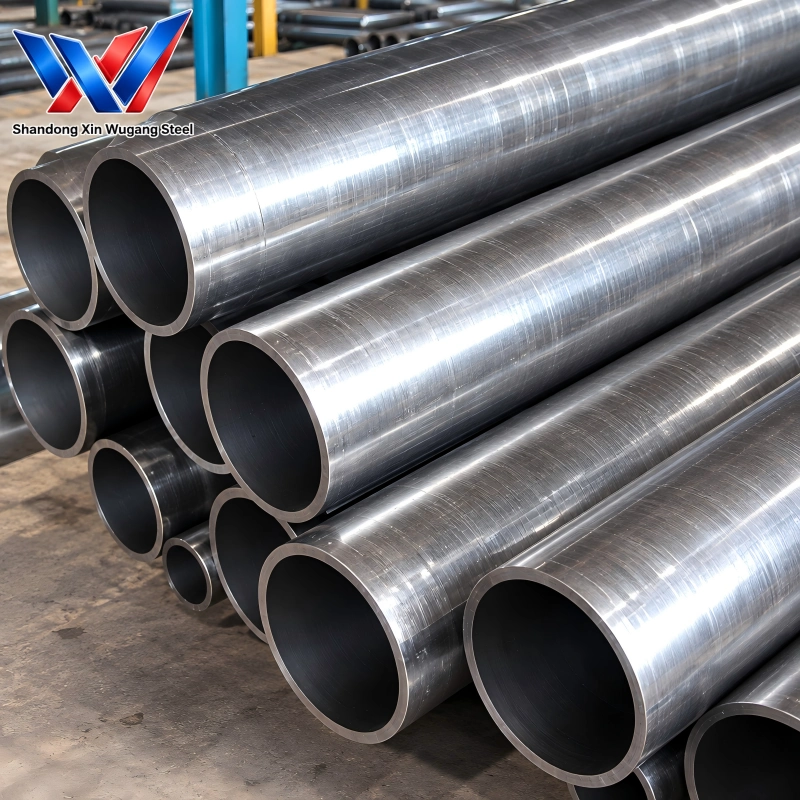

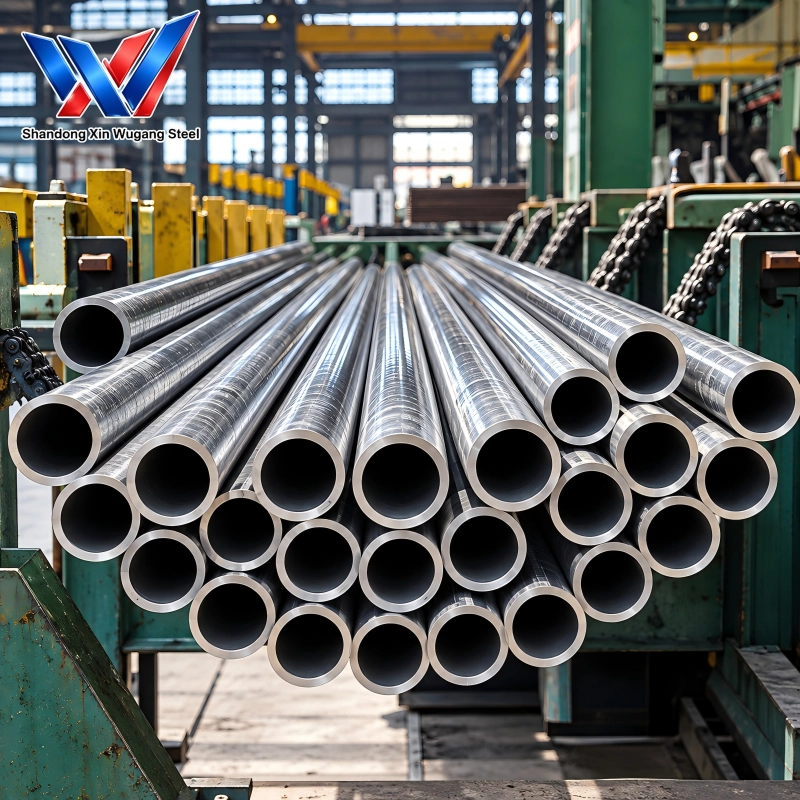

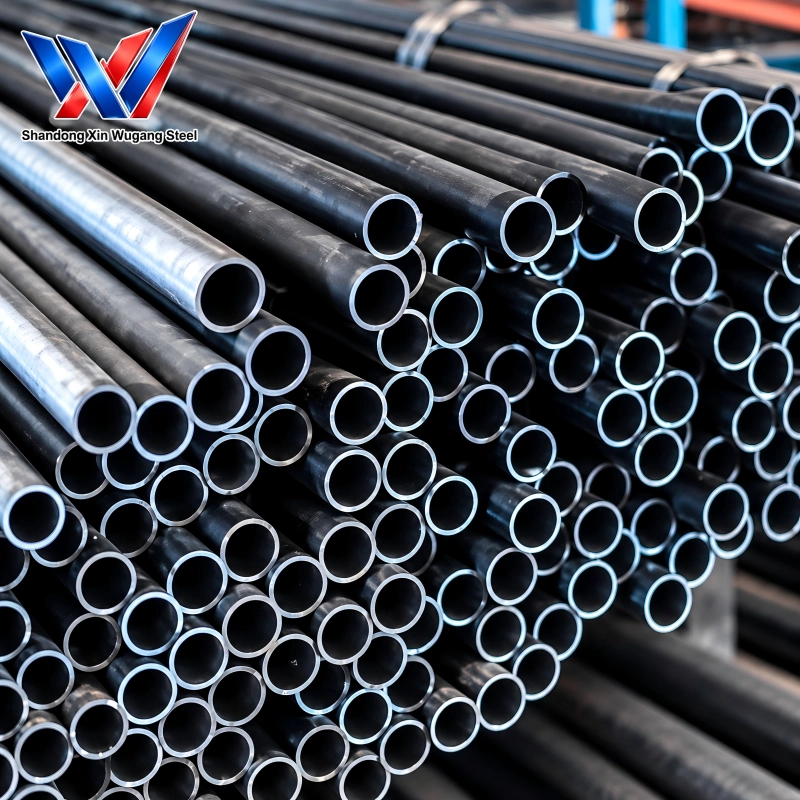

Our Monel 400 / K‑500 seamless pipe is made from premium Monel ingot, manufactured by hot extrusion and multi‑pass cold‑drawing. We can supply solution‑annealed status for Monel400; supply solution‑annealed or age‑hardened delivery status for Monel K‑500. All pipes pass ultrasonic, eddy‑current non‑destructive inspection. Widely used for marine seawater cooling pipeline, offshore auxiliary piping, salt‑plant equipment, hydrofluoric‑acid processing device. We provide standard stock sizes and custom dimension according to customer drawing, full mill test certificate attached for each order.

Nickel/Super Alloy Pipe

Chemical & Mechanical Property Snapshot

Grade	UNS No.	Ni(%)	Cu(%)	Al(%)	Ti(%)	Yield Rp0.2 MPa Min	Tensile Rm MPa Min	Elongation A (%) Min
Monel 400	N04400	63‑70	28‑34	—	—	170	480	35
Monel K‑500	N05500	63‑70	27‑33	2.3‑3.15	0.35‑0.85	620	895	20

Detailed Technical Specifications

Item	Specification Details
Material Grade	Monel 400, Monel K‑500
UNS Code	UNS N04400, UNS N05500
Applicable Standards	ASTM B165, ASTM B829, ASME SB‑165
Pipe Manufacturing Type	Hot extruded seamless, Cold‑drawn seamless
Outer Diameter Range	6‑219mm; Custom special OD upon drawing
Wall Thickness Range	1.0‑18mm; heavy‑wall & thin‑wall available
Dimension Tolerance	OD: ±0.5 %‑±1 %; WT: ±7.5 % comply with ASTM B165
Available Length	Random mill length:3‑8m; Fixed cut length:1‑12m; Custom saw‑cut service
Delivery Condition	Monel400:Solution‑annealed & pickled; Monel K‑500:Solution‑annealed / Age‑hardened optional
Surface Options	Pickled bright annealed, Mechanical polishing
Pipe End Treatment	Plain end, Beveled end, Deburred end; Plastic end cap protection
Non‑Destructive Testing	Full‑body Ultrasonic Test(UT), Eddy‑Current Test(ET), Hydrostatic Test; PMI positive material identification
Destructive Lab Test	Chemical composition analysis, Tensile test, Hardness test, Flattening test, Flaring test
MOQ (Minimum Order Quantity)	5 Tons; small trial order negotiable subject to stock
Lead Time	Stock items:7‑15 working days; Custom production:35‑50 working days
Payment Term	T/T, Irrevocable L/C at sight
Packaging Details	Inner waterproof kraft paper; each pipe end fitted with plastic protective cap; bundled by steel strips; loaded into fumigated wooden pallet / solid wooden crate for ocean freight; anti‑moisture desiccant inside package
Trade Term	FOB, CFR, CIF, DAP, DDU
Document & Certificate	Mill Test Certificate MTC EN 10204 3.1; Third‑party inspection SGS/BV/LR available upon buyer request
Additional Service	Custom cutting, polishing, surface treatment, bundling mark, OEM label

Shape Options

Shape Type	Description & Typical Application
Round	Standard seamless round tube, widely used for fluid pipelines, boilers, hydraulic systems, and general structural projects
Square	Equal-side hollow square section, suitable for building frames, machinery supports, and heavy-load structural components
Rectangular	Unequal-side rectangular hollow section, ideal for beams, brackets, and vehicle chassis structural parts
Hexagonal	Hexagonal cross-section, suitable for drive shafts, mechanical fittings, and direct assembly without additional machining
Oval / Flat Oval	Oval hollow profile, used for automotive parts, agricultural machinery, and special frame structures
Special Custom Shaped	D-shaped, triangular, splined inner bore, lemon-shaped, and other non-standard profiles; custom production available according to customer drawings and samples

Dual‑unit Dimension Reference T

Outer Diameter (mm)	Outer Diameter (inch)	Wall Thickness (mm)	Wall Thickness (inch)
6	0.236″	0.8–2.0	0.031″–0.079″
12.7	0.50″	1.0–3.0	0.039″–0.118″
21.3	0.84″	1.5–4.0	0.059″–0.157″
33.7	1.33″	2.0–6.0	0.079″–0.236″
42.4	1.67″	2.0–8.0	0.079″–0.315″
60.3	2.37″	2.5–10	0.098″–0.394″
88.9	3.50″	3.0–12	0.118″–0.472″
114.3	4.50″	3.0–16	0.118″–0.630″
168.3	6.63″	4.0–20	0.157″–0.787″
219.1	8.63″	5.0–25	0.197″–0.984″
273	10.75″	6.0–30	0.236″–1.181″
323.9	12.75″	8.0–35	0.315″–1.378″
406.4	16.00″	10–40	0.394″–1.575″

Product Comparison Table

Grade	UNS	Alloy Feature	Delivery Condition	Core Application	W.Nr Equivalent
Monel 400	N04400	Ni‑Cu solid‑solution alloy	Solution annealed	Seawater pipeline, salt‑water equipment	2.4360
Monel K‑500	N05500	Ni‑Cu precipitation hardening	Solution‑annealed / Age‑hardened	High‑strength marine components	2.4375
Inconel 600	N06600	Ni‑Cr‑Fe high‑temp alloy	Solution annealed	Furnace & chemical piping	2.4816

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Sulfur-Containing Oil and Gas Corrosive Downhole Tubing String

Aerospace Hydraulic Piping System

High-Pressure Piping for Seawater Desalination

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is main difference between Monel400 and Monel K‑500 seamless pipe?

Monel K‑500 added Al‑Ti element, can be age‑hardened for higher strength and hardness, corrosion‑resistance performance close to Monel400.

Can Monel alloy pipe work in long‑term seawater immersion environment?

Yes, Monel series nickel‑copper alloy is classic marine‑grade material for seawater cooling and offshore auxiliary piping

What delivery condition options for Monel K‑500 pipe?

We can supply solution‑annealed soft condition or age‑hardened high‑strength condition as per your technical requirement.

Does Monel alloy resist hydrofluoric acid corrosion?

Monel 400 & K‑500 own excellent performance for hydrofluoric acid in oxygen‑free service environment.

What is MOQ for Monel seamless pipe?

Standard MOQ 5 Tons, partial stock sizes can accept small trial quantity.
