S235JR Hexagonal Bar | EN 10277 EN10025-2 Low Carbon Structural Steel Hexagon Bar

Excellent weldability for structural fabrication
CE compliant and meets European EN standards
Great ductility for cutting, bending and forming
Stable chemical composition for consistent performance
Cost-effective for general structural engineering projects

Product Overview

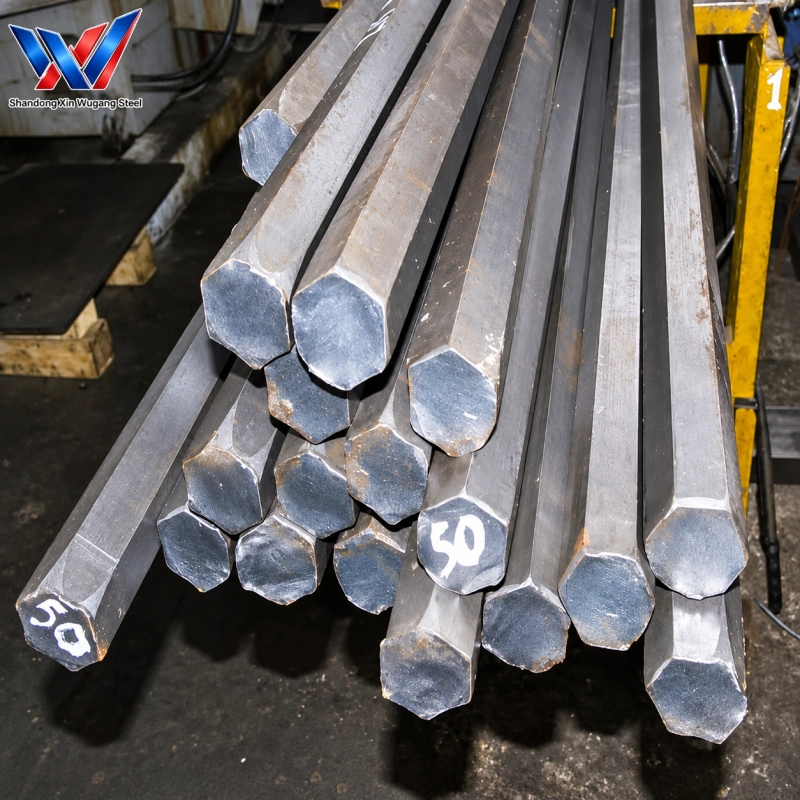

Our S235JR Hexagonal Bar is low carbon structural hexagonal steel bar produced under EN 10277, base standard EN10025-2. It can be manufactured via hot rolling or cold drawing process. This grade is a popular European structural steel with low carbon content, featuring outstanding weldability, good formability and reliable mechanical properties. Cold drawn S235JR hexagonal bar delivers bright smooth surface and tight dimensional tolerance, while hot rolled variant provides economical bulk supply. S235JR hexagonal bar is widely used for European standard structural components, support brackets, frame fabrication and general mechanical structural parts.

Carbon Steel Hexagonal Bar

Chemical & Mechanical Property Snapshot

Item	Value
Grade	S235JR
Standard	EN 10277 (Base EN10025-2)
Carbon (C)	≤0.17%(≤16mm); ≤0.20%(>16mm)
Silicon (Si)	≤0.35% (no minimum required)
Manganese (Mn)	≤1.40%
Phosphorus (P), Max	≤0.035%
Sulfur (S), Max	≤0.035%
Min Yield Strength	≥235 MPa (≤16mm)
Tensile Strength	360–510 MPa
Elongation (A5 Min)	≥25%

Detailed Technical Specifications

Specification Item	Details
Product Name	S235JR Hexagonal Bar
Standard	EN 10277 (Base EN10025-2)
Material	Low Carbon Structural Steel
Process	Cold Drawn / Hot Rolled
Surface	Bright cold drawn / Black hot rolled
Size Range (Across Flat)	6mm – 80mm
Dimensional Tolerance	Cold drawn: ±0.02~0.1mm; Hot rolled: ±0.3~1.0mm
MOQ	5 Tons
Lead Time	15-25 working days
Packing	Steel strips bundled, anti-rust paper packing
Delivery Term	FOB, CFR, CIF

Size Dimension Table

Item	Specification
Product Name	Carbon Steel Hexagonal Bar
Across-flat Size (S)	S8, S10, S12, S14, S17, S19, S22, S24, S27, S30, S32, S36, S41, S46, S50, S55, S60, S65, S70, S75, S80, S85, S90, S95, S100
Length	3–6 m standard length; custom cut length available
Tolerance	Cold drawn: h9/h11; Hot rolled: GB/T 705 standard tolerance
Cross Section	Hexagonal solid bar
Surface Finish	Hot-rolled black surface / Cold-drawn bright surface

Product Comparison Table

Comparison Item	S235JR Hexagonal Bar	S45C Hexagonal Bar	45# Hexagonal Bar	1018 Hexagonal Bar	1045 Hexagonal Bar
Equivalent Standard	EN 10277 (Base EN10025-2)	JIS G4051	GB/T 699	ASTM A108	ASTM A108
Material Type	Low Carbon Structural Steel	Medium Carbon Steel	Medium Carbon Steel	Low Carbon Steel	Medium Carbon Steel
Carbon Content (C)	≤0.17%(≤16mm); ≤0.20%(>16mm)	0.42~0.48%	0.42~0.50%	0.14~0.20%	0.43~0.50%
Silicon Content (Si)	≤0.35% (no minimum required)	0.15~0.35%	0.17~0.37%	≤0.60%	0.15~0.35%
Manganese Content (Mn)	≤1.40%	0.60~0.90%	0.50~0.80%	0.60~0.90%	0.60~0.90%
Phosphorus (P) Max	≤0.035%	≤0.030%	≤0.035%	≤0.040%	≤0.040%
Sulfur (S) Max	≤0.035%	≤0.035%	≤0.035%	≤0.050%	≤0.050%
Min Yield Strength (Hot Rolled / Normalized)	≥235 MPa (≤16mm)	≥345 MPa	≥355 MPa	≥205 MPa (Typical 250–330MPa for cold drawn)	≥355 MPa
Tensile Strength	360–510 MPa	570~740 MPa	≥600 MPa	415–520 MPa	585–700 MPa
Elongation (A5 Min)	≥25%	≥17%	≥16%	≥25%	≥16% (annealed)
Manufacturing Process	Cold Drawn / Hot Rolled	Cold Drawn / Hot Rolled	Cold Drawn / Hot Rolled	Cold Drawn / Hot Rolled	Cold Drawn / Hot Rolled
Surface Condition	Bright cold drawn / Black hot rolled	Bright cold drawn / Black hot rolled	Bright cold drawn / Black hot rolled	Bright cold drawn / Black hot rolled	Bright cold drawn / Black hot rolled
Size Range (Across Flat)	6mm – 80mm	6mm – 80mm	6mm – 80mm	6mm – 80mm	6mm – 80mm
Dimensional Tolerance	Cold drawn: ±0.02~0.1mm; Hot rolled: ±0.3~1.0mm	Cold drawn: ±0.02~0.1mm; Hot rolled: ±0.3~1.0mm	Cold drawn: ±0.02~0.1mm; Hot rolled: ±0.3~1.0mm	Cold drawn: ±0.02~0.1mm; Hot rolled: ±0.3~1.0mm	Cold drawn: ±0.02~0.1mm; Hot rolled: ±0.3~1.0mm
Main Application	European standard structural parts, brackets, frames	Shafts, gears, hydraulic parts, machinery components	Machinery shafts, gears, mold parts, structural components	Fasteners, pins, general machinery, welding parts	Axles, gears, machine tool components
Cost Level	Medium	Medium-High	Medium-High	Medium	Medium-High
Feature	Excellent weldability, CE compliance, general structural use	Good hardness & machinability, suitable for quenching & tempering	Good comprehensive strength, can be heat treated	Excellent weldability & ductility, easy bending	High tensile strength, good heat treatment performance

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Hydraulic Fittings

Hexagon Head Bolts

Nuts and Threaded Rods

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What standard is S235JR Hexagonal Bar manufactured to?

Our S235JR Hexagonal Bar complies with EN 10277, base standard EN10025-2 for European structural steel.

Is S235JR hexagonal bar suitable for welding?

Yes. Its low carbon composition provides outstanding weldability, widely used for welded structural frames and brackets.

What is the difference between S235JR and 1018 hexagonal bar?

S235JR is European structural steel grade with CE certification. 1018 is ASTM standard low carbon steel. Both have good weldability but follow different regional standards.

What surface options are available?

Bright cold drawn finish with tight tolerance and black hot rolled finish for cost saving.

What is MOQ for S235JR hexagonal bar?

MOQ is 5 tons, custom sizes are available upon request.
