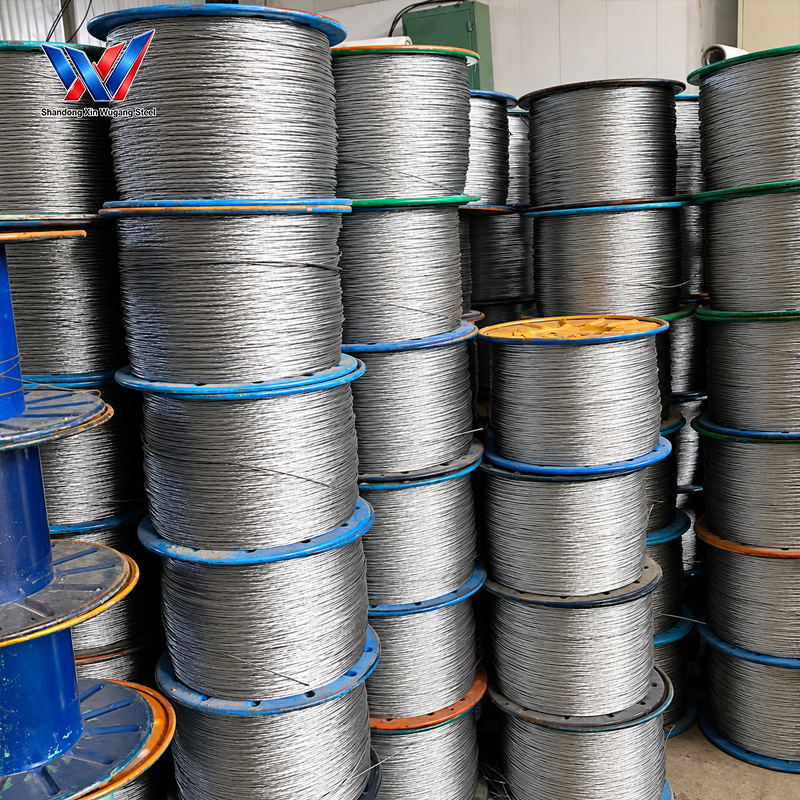

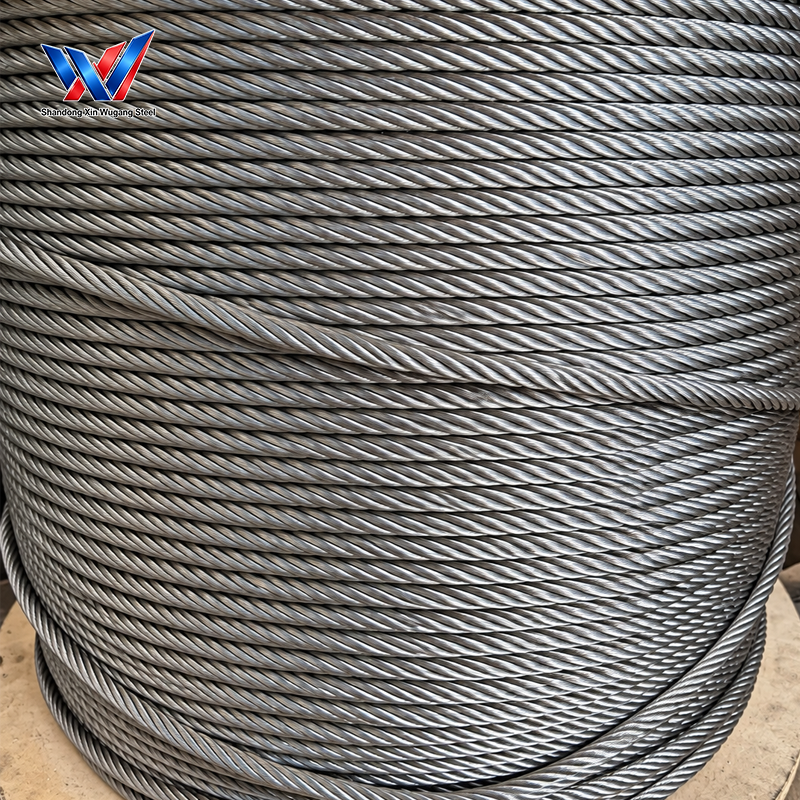

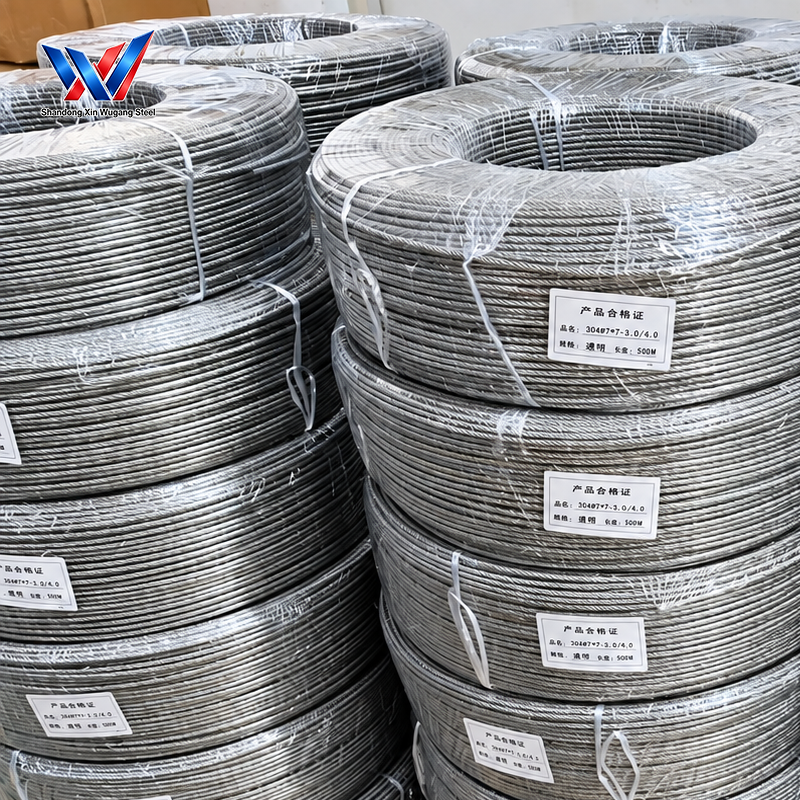

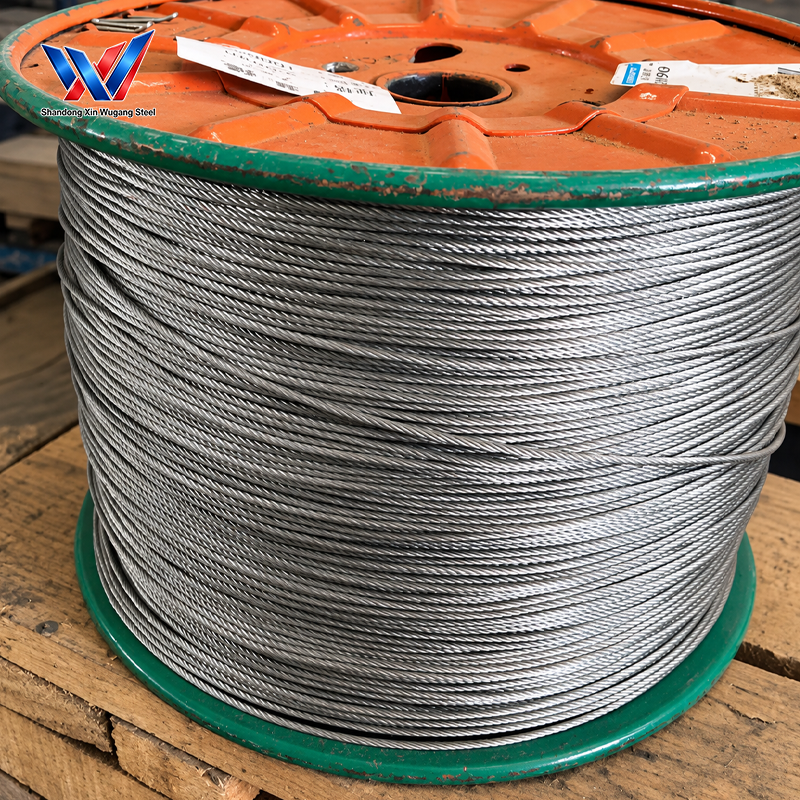

Steel Wire Rope
- Complete structures & strength grades for diverse load requirements
- Fiber core / metal core optional for different working conditions
- Bright, galvanized, stainless multiple anti‑corrosion options
- Customizable diameter and reel‑length service
Contact Us
Product Overview
Steel Wire Rope is a multi-strand twisted metal rope designed for load-bearing, lifting, traction and reinforcement applications. It is manufactured from high-carbon steel wire rod or stainless steel materials and is supplied in multiple rope constructions, core types, tensile strength grades and surface finishes. The product complies with GB/T 20118-2017, EN 10264, ASTM A1023, JIS G3525 and ISO 2408, supporting international engineering and third-party inspection requirements.
The available rope constructions include 6×7, 6×12, 6×19, 6×19S, 6×19W, 6×37 and 6×61, together with multi-layer non-rotating and anti-twist constructions such as 18×7, 30×7 and 35×7. Both FC fiber core and IWR/IWRC metal steel core options are available for different load-bearing and operating requirements.
Steel Wire Rope is available in high-carbon steel grades based on 60#, 65#, 70# and 82B, while 304 and 316 stainless steel options are available for applications requiring stronger corrosion resistance. Tensile strength grades range from 1570 MPa to 2160 MPa, including 1570, 1670, 1770, 1870, 1960 and ultra-high-strength 2160 MPa.
The rope diameter range is 1–50 mm, with standard reel lengths of 100 m, 200 m, 500 m and 1000 m, while custom reel lengths can be supplied according to project requirements. Surface options include bright non-coated, Class B/Class C hot-dip galvanized, stainless steel surface and factory-applied lubricant anti-rust oil.
Chemical & Mechanical Property Snapshot
Detailed Technical Specifications
Product Comparison Table
App Market
Reliable Steel Coil Solutions For Diverse Industrial Applications

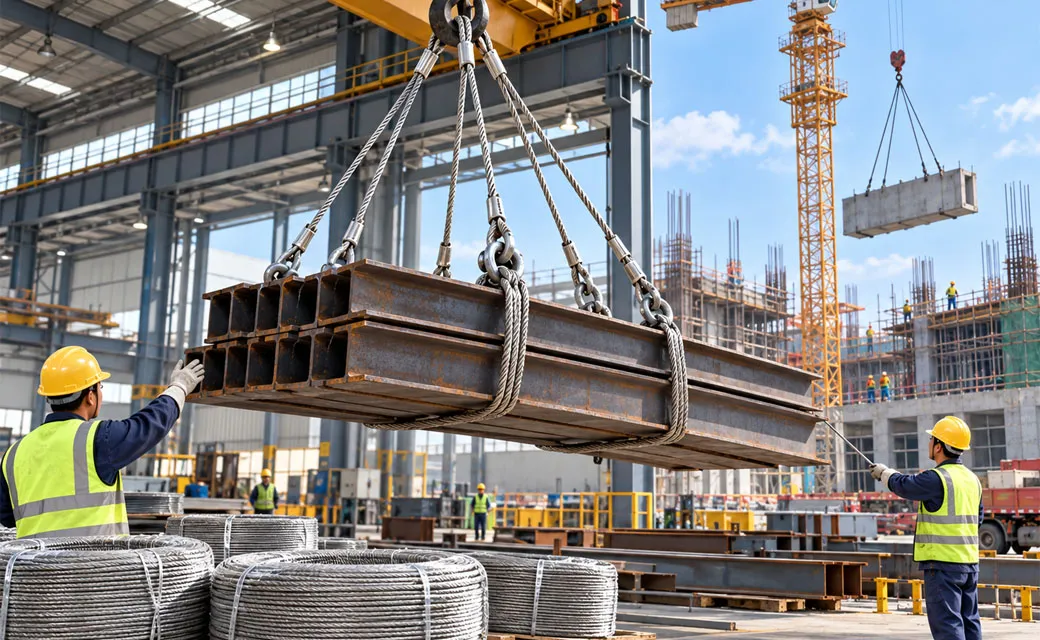

Lifting and Hoisting

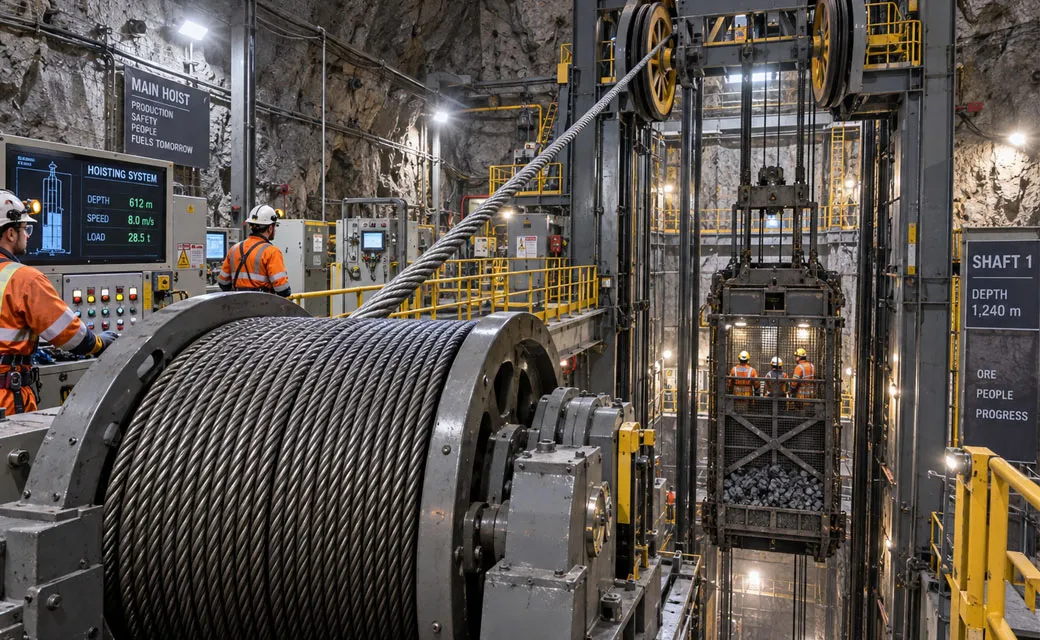

Mining Engineering

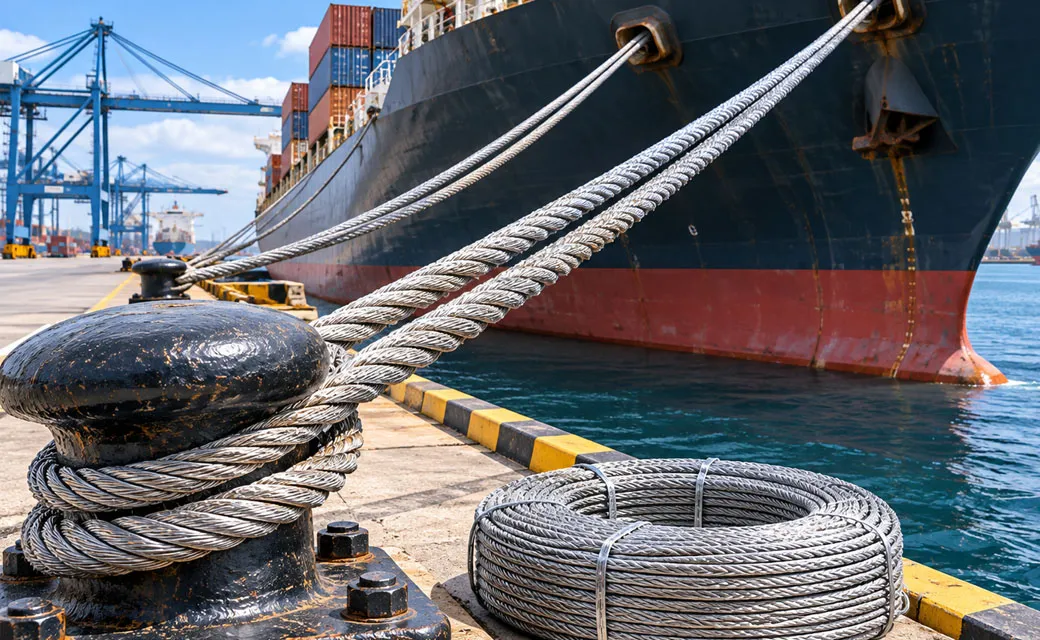

Marine Mooring Rope

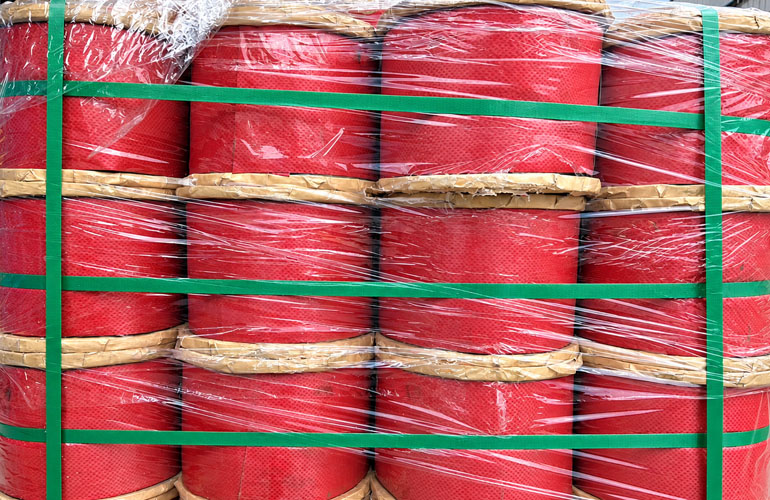

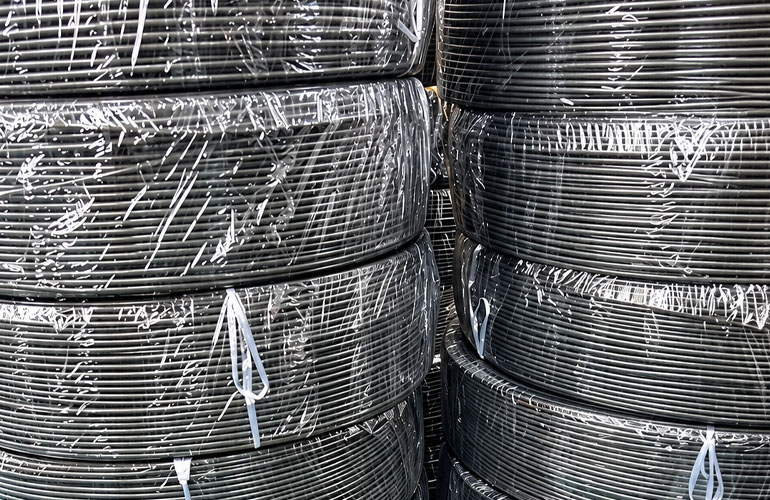

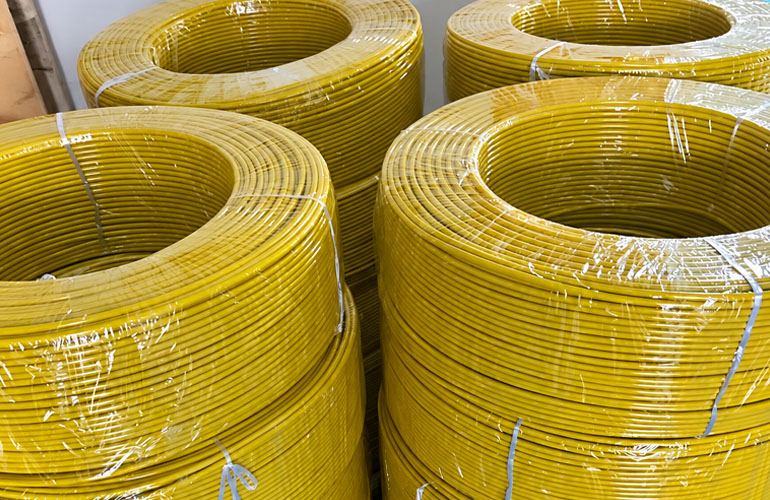

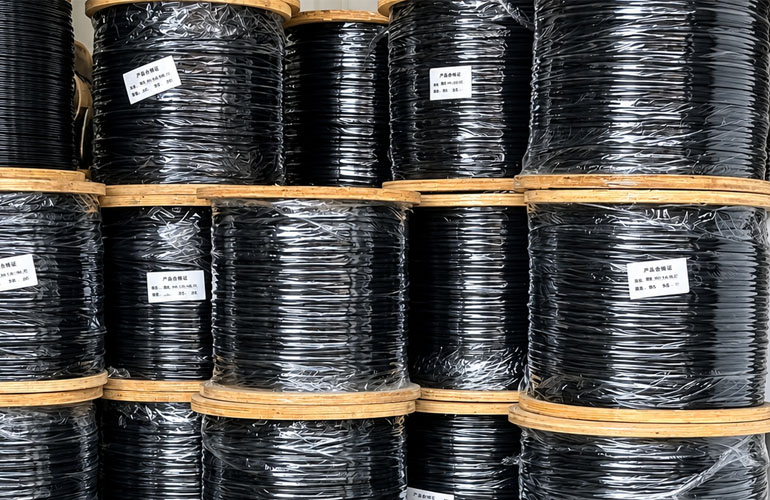

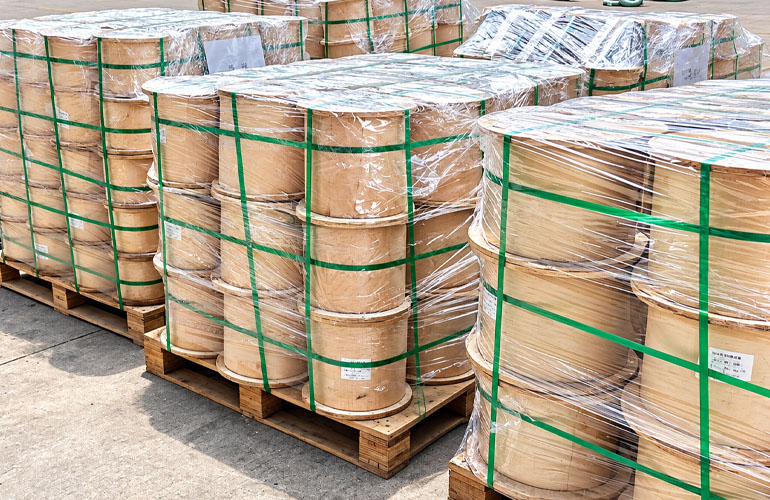

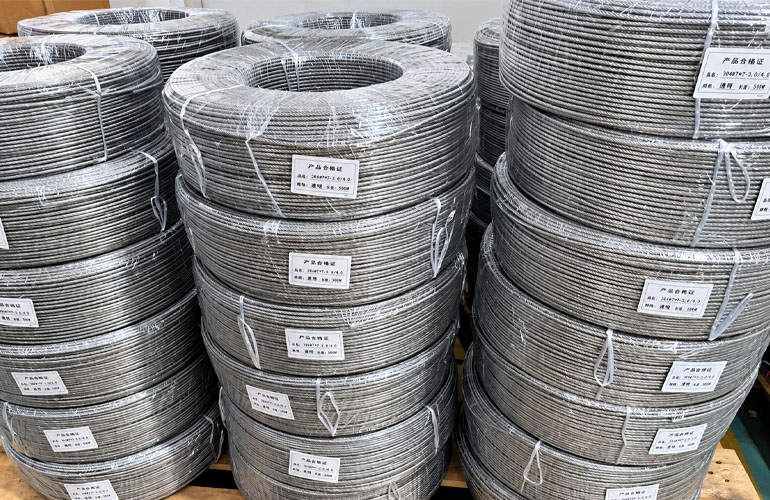

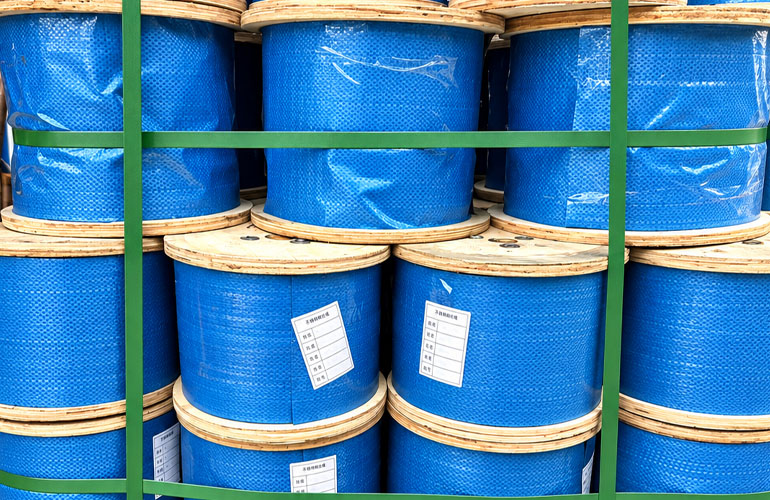

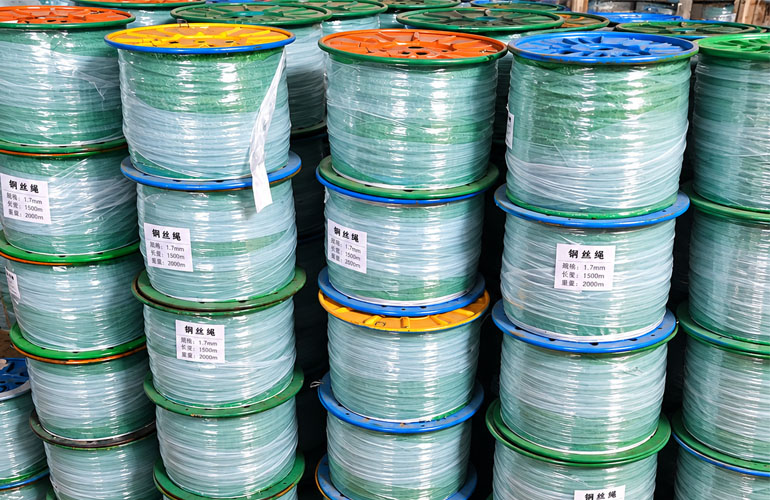

Product Packaging
Secure Export Packaging For Safe Handling And Delivery
FAQs
The supplied product specification lists GB/T 20118-2017, EN 10264, ASTM A1023, JIS G3525 and ISO 2408.
Available constructions include 6×7, 6×12, 6×19, 6×19S, 6×19W, 6×37, 6×61, 18×7, 30×7 and 35×7. The 18×7 construction is identified as multi-layer non-rotating, while 30×7 and 35×7 are identified as anti-twist constructions.
The product supports FC fiber core and IWR/IWRC metal steel core configurations.
The diameter range is 1–50 mm, while tensile strength grades include 1570, 1670, 1770, 1870, 1960 and 2160 MPa.
Yes. The supplied specifications support customized rope construction, core configuration, material, tensile strength, diameter, surface treatment and reel length according to project requirements. Standard reel lengths are 100 m, 200 m, 500 m and 1000 m, with arbitrary custom lengths available upon request.
