T2 Tin Free Steel Coil TFS/TMBP | Electrolytic Chromium Coated ECCS Steel Coil

T2 Tin Free Steel Coil TFS/TMBP | Electrolytic Chromium Coated ECCS Steel Coil

  1. Balanced ductility and hardness for moderate stamping
  2. Outstanding paint and printing ink adhesion
  3. Uniform electrolytic chromium coating
  4. Good surface flatness, less wrinkling during forming
  5. Available in single & double side chromium coating
Contact Us

Product Overview

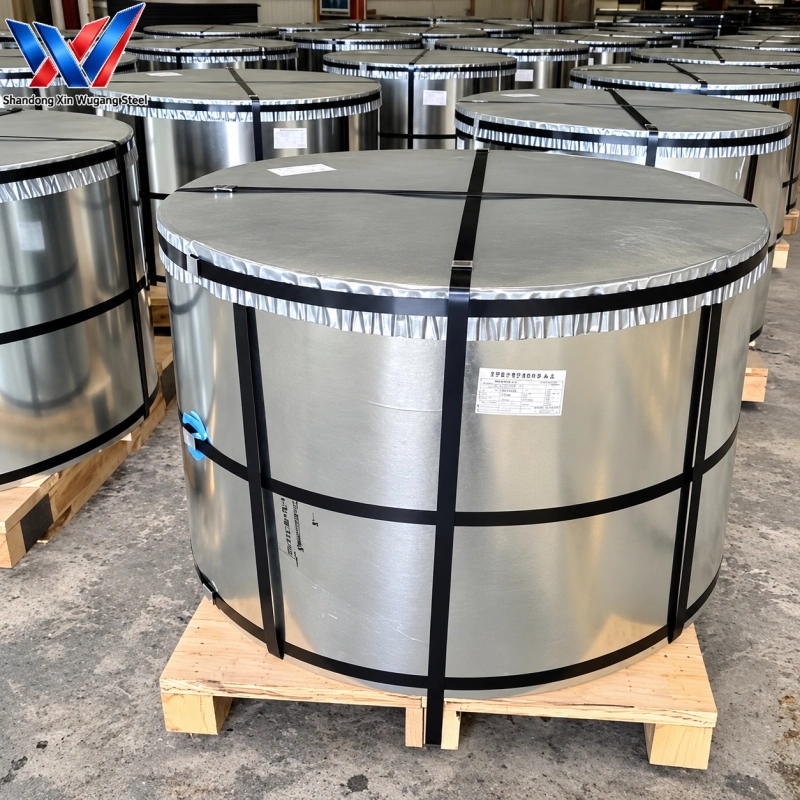

T2 Tin Free Steel Coil (TFS/TMBP / ECCS) is low-carbon cold rolled steel with electrolytic chromium coating. T2 temper grade has higher hardness than T1 while keeping good formability. It is widely chosen for medium stamping packaging components. Available in TFS-S single-sided and TFS-D double-sided chromium coating. Thickness 0.15–0.45mm, standard width 800–1050mm, custom slitting supported. Applied for crown caps, paint pail lids, cosmetic packaging and printed metal containers.

Tin Free Steel Coil - TFS/TMBP

Chemical & Mechanical Property Snapshot

Grade C Max (%) Mn Max (%) P Max (%) S Max (%) Yield Strength (MPa) Tensile Strength (MPa) Elongation (%) Hardness (HR30T)
T2 0.12 0.60 0.020 0.050 230–310 330–410 ≥24 50–56

Detailed Technical Specifications

Item Specification
Product Name T2 Tin Free Steel Coil – TFS/TMBP
Alternative Name T2 ECCS Electrolytic Chromium Coated Steel
Steel Substrate Low-carbon cold rolled steel
Surface Treatment Electrolytic chromium coating
Metallic Chromium Coating 70–150 mg/m²
Chromium-Hydrated-Oxide Layer 5–15 mg/m²
Coating Configuration TFS-S / TFS-D
Temper Grade T2
Thickness 0.15–0.45 mm
Standard Coil Width 800–1050 mm
Slitting Custom narrow-width slitting available
Applicable Standards ASTM A624/A624M, JIS G3315, EN 10202, GB/T 2520
Quality Documentation Mill Test Certificate covering coating weight, mechanical properties and chemical composition
Packing Seaworthy export-grade packing
MOQ 5 Ton
Payment Terms T/T, L/C at Sight
Delivery Time 7–15 working days after receiving deposit
Package Waterproof paper + galvanized steel strap + seaworthy export wooden pallet

Product Comparison Table

Specification T2 TFS-S T2 TFS-D T2 ETP Tinplate
Material Type Tin Free Steel Tin Free Steel Electrolytic Tinplate
Surface Treatment Electrolytic Chromium Coating Electrolytic Chromium Coating Electrolytic Tin Coating
Coating Sides Single-Sided Double-Sided Tin Coating on Both Sides
Surface Structure Metallic Chromium + Chromium-Hydrated Oxide Metallic Chromium + Chromium-Hydrated Oxide Tin Coating
Paint / Printing Adhesion Excellent Excellent Good, depending on application
Yield Strength Range 230–310 MPa 230–310 MPa 230–310 MPa
Typical Selection Factor Medium stamping, single side coating Medium stamping, double side coating Welded can production
Thickness Range 0.15–0.45 mm 0.15–0.45 mm 0.15–0.45 mm
Standard Width 800–1050 mm 800–1050 mm 800–1050 mm
Typical Applications Bottle caps, printed metal lids Paint pail lids, cosmetic packaging Food cans, general welded metal cans
Important Boundary Not suitable for hermetic sealed welding Not suitable for hermetic sealed welding Suitable for sealed can welding

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Lithium Battery Steel Casing

Cosmetic Packaging Boxes

Crown Caps for Beer and Beverages

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

T2 has higher hardness and strength than T1, suited for moderate stamping jobs where less deep drawing is needed.

Yes, we provide custom slitting service for T2 grade TFS coil.

Full Mill Test Certificate (MTC) including chemical composition, mechanical and coating test data.

MOQ 5 tons, delivery 7–15 working days after deposit.

It supports moderate stamping, but for ultra-deep drawing parts, T1 grade is recommended.
