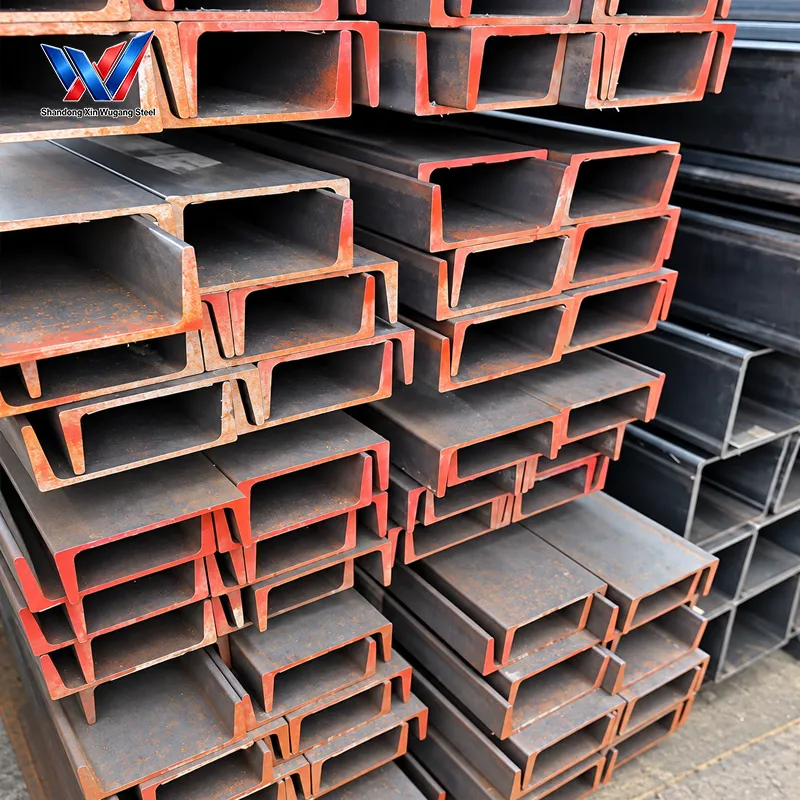

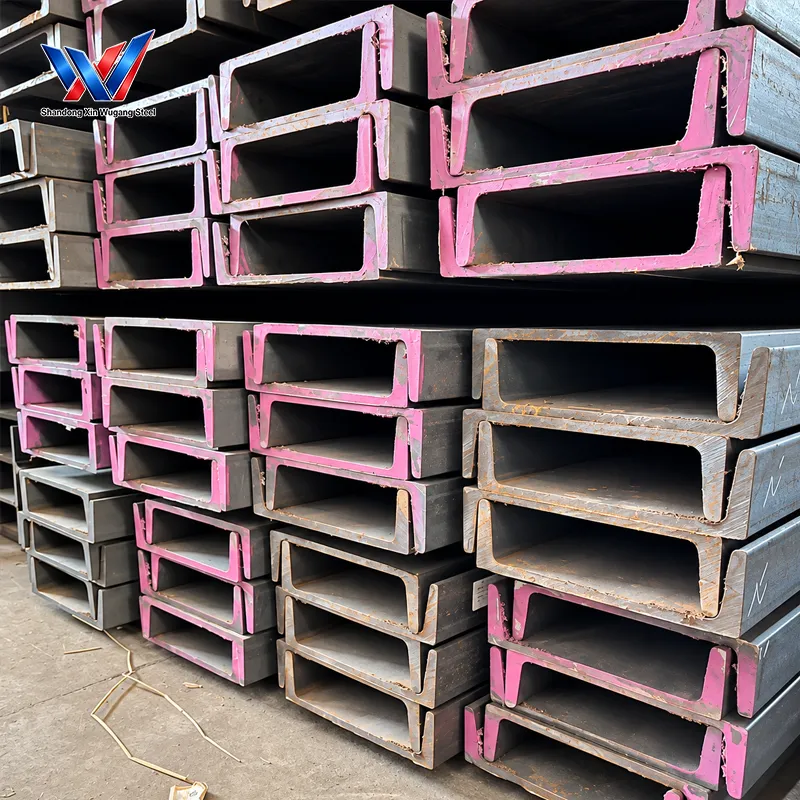

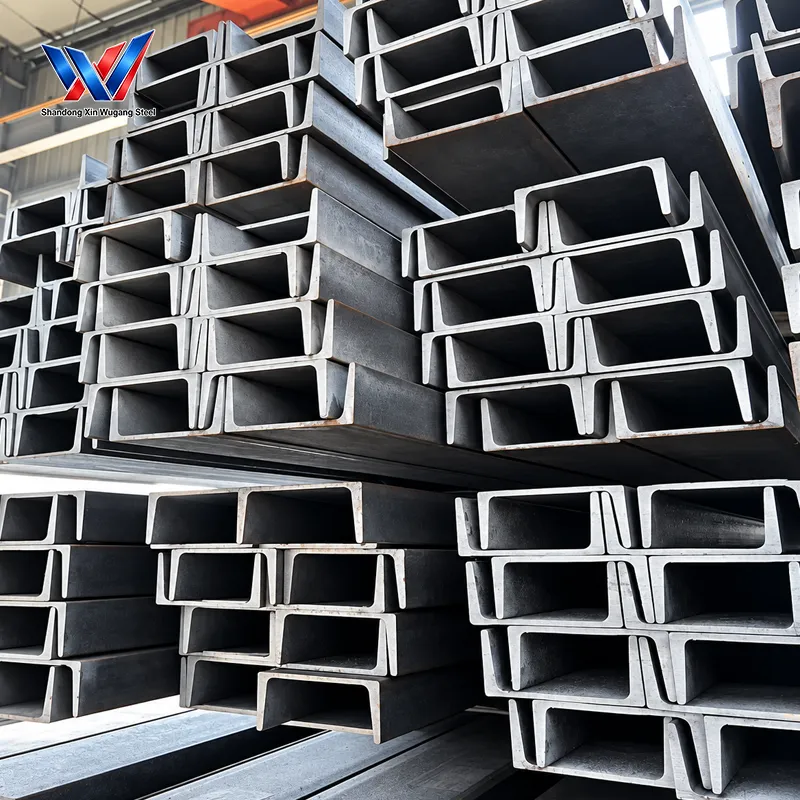

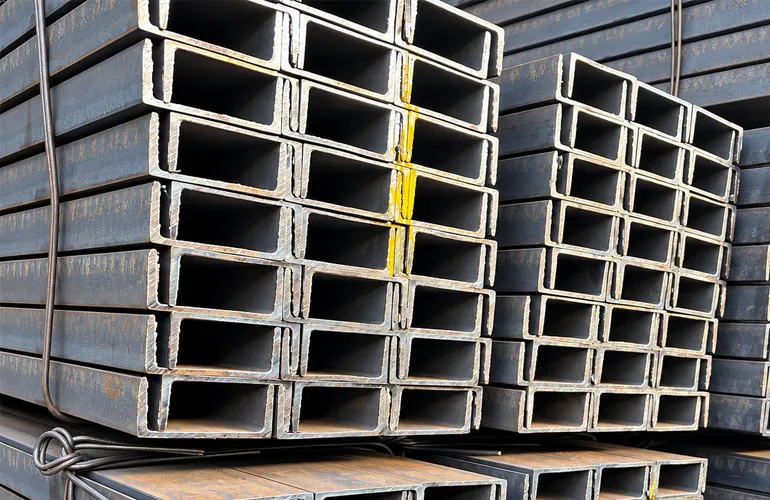

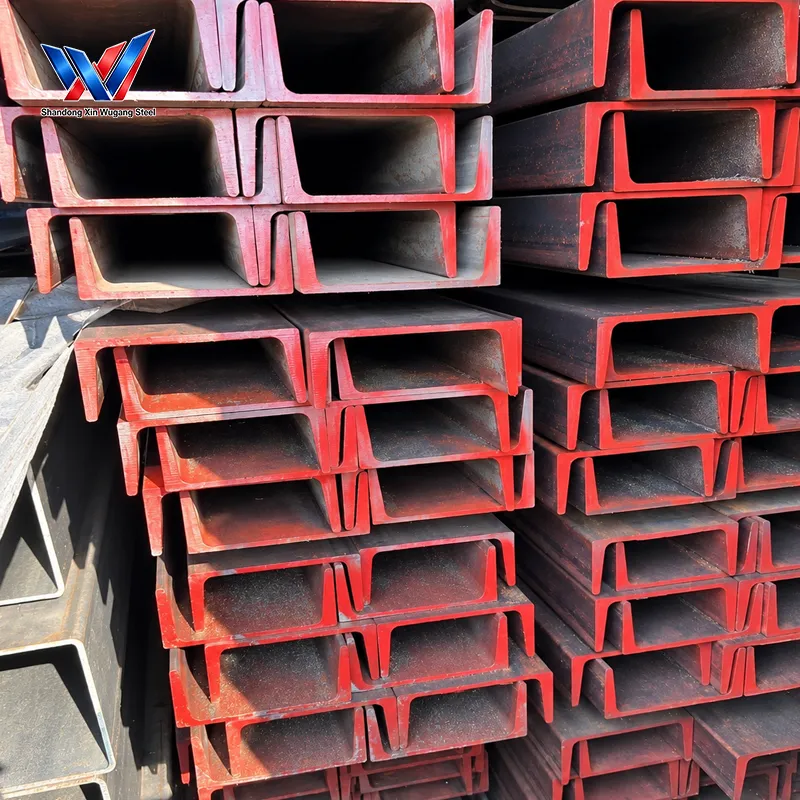

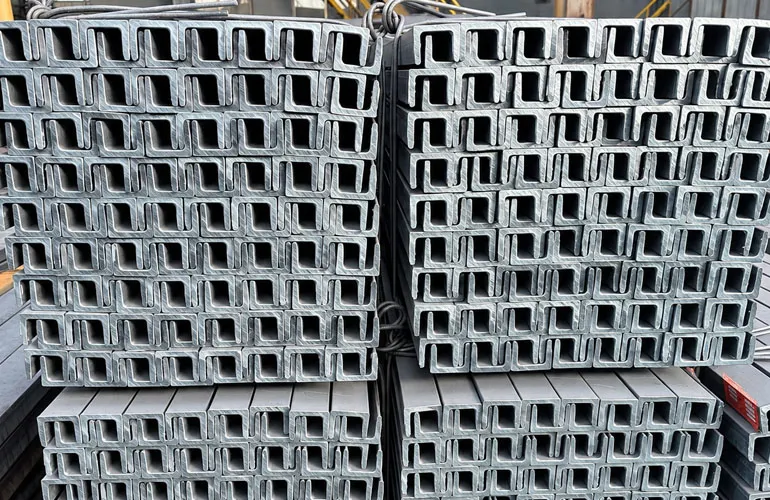

U Channel Steel

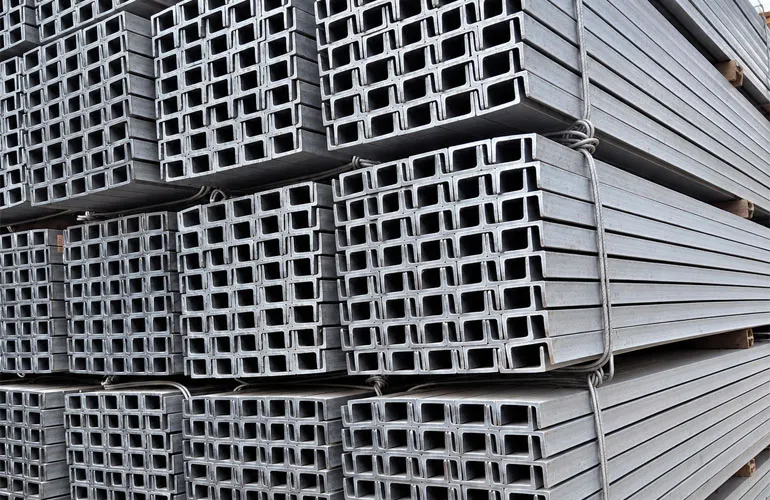

U Channel

Strict EN European UPN standard, independent dimension system, not interchangeable with US C‑Channel
Full UPN size series for light‑duty to heavy‑load European‑spec engineering
Multiple anti‑corrosion finishes adapt to indoor, outdoor and coastal operating conditions
Support cutting, drilling, welding, ready‑to‑use for frame and bracket fabrication

Product Overview

U Channel is a European standard hot-rolled structural channel steel manufactured according to EN standards. It adopts the European UPN dimension system with a flat inner flange design, which is technically different from American C Channel with tapered inner flanges. Due to different profile standards, U Channel and American C Channel cannot be directly substituted.

Produced according to EN 10034-2019 European standard and compatible with ISO 657-2017 international inspection requirements, European UPN U Channel is designed for European-specification engineering projects requiring standardized structural sections and reliable dimensional consistency.

The product range covers UPN80 to UPN500, including commonly used sizes such as UPN100, UPN120, UPN140, UPN160, UPN200, UPN220, UPN260, UPN300, UPN350, UPN400 and UPN450. Multiple steel grades are available, including S235JR, S275JR, S355JR, S355NL for European projects, Q235B/Q355B for Chinese-standard requirements and SS400/SM490B for Asia-Pacific procurement.

U Channel supports standard lengths of 6m, 9m and 12m, with customized lengths from 3m to 18m. Surface treatments including hot-dip galvanizing, anti-corrosion coating and other finishing options are available, together with cutting, drilling, welding and assembly services for structural fabrication requirements.

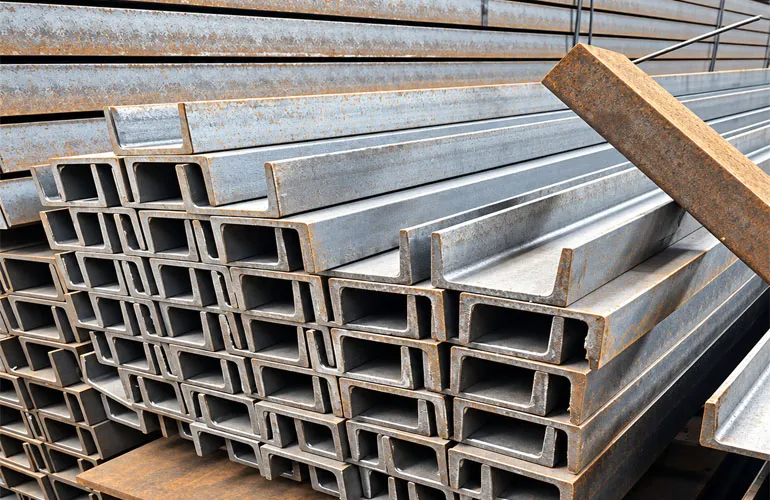

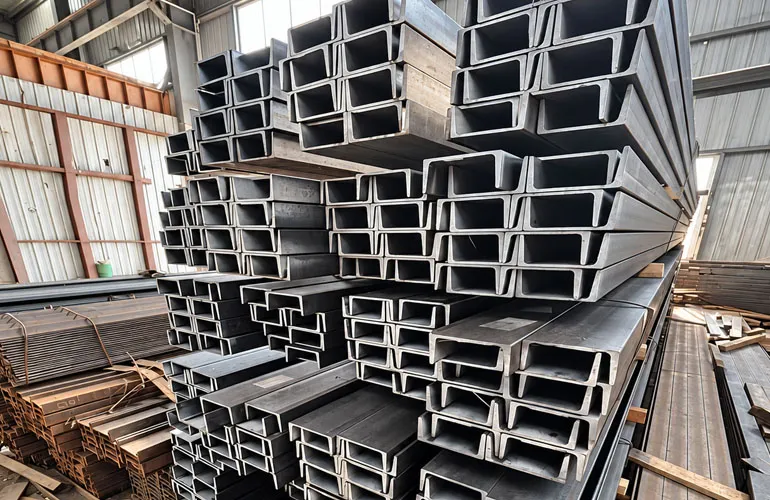

Inside Our Shandong Processing Facility

Chemical & Mechanical Property Snapshot

Grade	C Max %	Mn Max %	P Max %	S Max %	Yield Strength Min (MPa)	Tensile Strength (MPa)	Elongation Min (%)
S235JR	0.17	1.40	0.035	0.035	235	360–510	25
S275JR	0.21	1.50	0.035	0.035	275	410–560	23
S355JR	0.24	1.60	0.035	0.035	355	470–630	22
S355NL	0.20	1.60	0.030	0.030	355	470–630	22
Q235B	0.20	1.40	0.045	0.045	235	370–500	26
Q355B	0.20	1.60	0.045	0.045	355	470–630	21
SS400	0.21	1.50	0.050	0.050	245	400–510	21
SM490B	0.18	1.60	0.035	0.035	325	490–610	20

Detailed Technical Specifications

Technical Item	Specification
Product Name	U Channel
Product Type	European UPN Structural Channel Steel
Manufacturing Process	Hot-Rolled
Profile System	UPN U Channel
Profile Shape	U-shaped Structural Section
Inner Flange Design	Flat Inner Flange
Applicable Standard	EN 10034-2019
International Inspection Standard	ISO 657-2017
Size Range	UPN80–UPN500
Main Sizes	UPN100, UPN120, UPN140, UPN160, UPN180, UPN200, UPN220, UPN240, UPN260, UPN280, UPN300, UPN350, UPN400, UPN450, UPN500
European Steel Grades	S235JR, S275JR, S355JR, S355NL
Chinese Steel Grades	Q235B, Q355B
Asia-Pacific Grades	SS400, SM490B
Standard Length	6m / 9m / 12m
Customized Length	3m–18m
Cutting Service	Cut-to-Length / Segment Cutting
Surface Finish	Hot-Rolled Black Finish
Surface Treatment	Shot Blasting, Pickling, Anti-Corrosion Coating, Hot-Dip Galvanizing, Fire-Retardant Coating
Galvanizing Thickness	85–275g/㎡
Fabrication Services	Cutting, Drilling, End Beveling, Welding, Assembly
Processing Basis	Customer Technical Drawings
Quality Document	Mill Test Certificate
Inspection Content	Chemical Composition and Mechanical Performance
Export Packing	Seaworthy Export-Grade Packaging
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	15–25 working days after receiving deposit
Packaging	Steel bundles with steel strapping, wrapped with waterproof plastic sheet; each bundle marked with product label

Dimension Table

Designation	Height (H) mm	Flange Width (B) mm	Web Thickness (tw) mm	Flange Thickness (tf) mm	Weight kg/m	Section Area cm²
UPN80	80	45	6	8	8.64	11.0
UPN100	100	50	6	8.5	10.6	13.5
UPN120	120	55	7	9	13.4	17.0
UPN140	140	60	7	10	16.0	20.4
UPN160	160	65	7.5	10.5	18.8	23.9
UPN180	180	70	8	11	22.0	28.0
UPN200	200	75	8.5	11.5	25.4	32.4
UPN220	220	80	9	12.5	29.4	37.5
UPN240	240	85	9.5	13	33.2	42.3
UPN260	260	90	10	14	37.9	48.3
UPN280	280	95	10	15	41.5	53.0
UPN300	300	100	10	16	45.3	57.7
UPN350	350	100	11	16	52.0	66.2
UPN400	400	110	12	18	60.3	76.7
UPN450	450	115	13	19	68.7	87.5
UPN500	500	120	14	20	77.3	98.4

Product Comparison Table

Grade	Standard	Equivalent Grade	Yield Strength Min (MPa)	Tensile Strength (MPa)	Key Feature	Typical Application
S235JR	EN 10025-2	Q235B / SS400	235	360–510	General structural grade, excellent weldability, low cost	General building frame, support bracket, light fabrication
S275JR	EN 10025-2	ASTM A36	275	410–560	Medium strength, good toughness and weldability	Medium load supports, factory steel structure
S355JR	EN 10025-2	Q355B / SM490B	355	470–630	High strength low alloy, cost-effective heavy load option	Warehouse frame, heavy machinery base, bridge auxiliary structure
S355NL	EN 10025-3	Q355NL	355	470–630	Low temperature impact toughness, suitable for cold environment	Outdoor low-temperature projects, northern Europe construction
Q235B	GB/T 700	S235JR / SS400	235	370–500	China general carbon structural steel, easy processing	Domestic construction, general fabrication, export substitution
Q355B	GB/T 1591	S355JR / SM490B	355	470–630	Chinese HSLA steel, widely used for heavy load	Heavy load steel structure, equipment frame
SS400	JIS G3101	S235JR / Q235B	245	400–510	Japanese standard general structural steel	Asia-Pacific construction, mechanical supports
SM490B	JIS G3106	S355JR / Q355B	325	490–610	Japanese low alloy high strength steel	Large equipment base, heavy engineering in Asia

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Secondary Steel Beam

Bridge Auxiliary Support Structure

Forklift Fork Blanks

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is U Channel steel?

U Channel is European UPN hot-rolled structural channel steel produced according to EN standards with a U-shaped profile and flat inner flange design.

What sizes are available for U Channel?

The available range covers UPN80 to UPN500, including UPN100, UPN120, UPN140, UPN160, UPN200, UPN220, UPN260, UPN300, UPN350, UPN400 and UPN450.

What steel grades can be supplied?

Available grades include S235JR, S275JR, S355JR, S355NL, Q235B, Q355B, SS400 and SM490B.

Can U Channel be customized?

Yes. Customized lengths from 3m to 18m and fabrication services including cutting, drilling, welding and assembly are available.

What industries use U Channel?

U Channel is widely used in industrial buildings, bridge auxiliary structures, municipal supports, machinery bases and warehouse structures.
