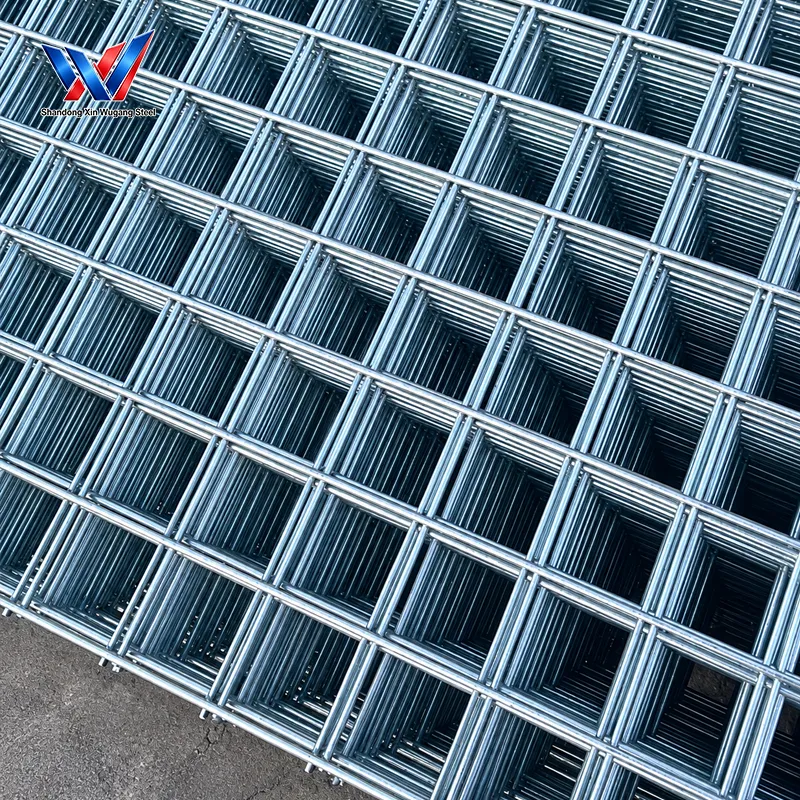

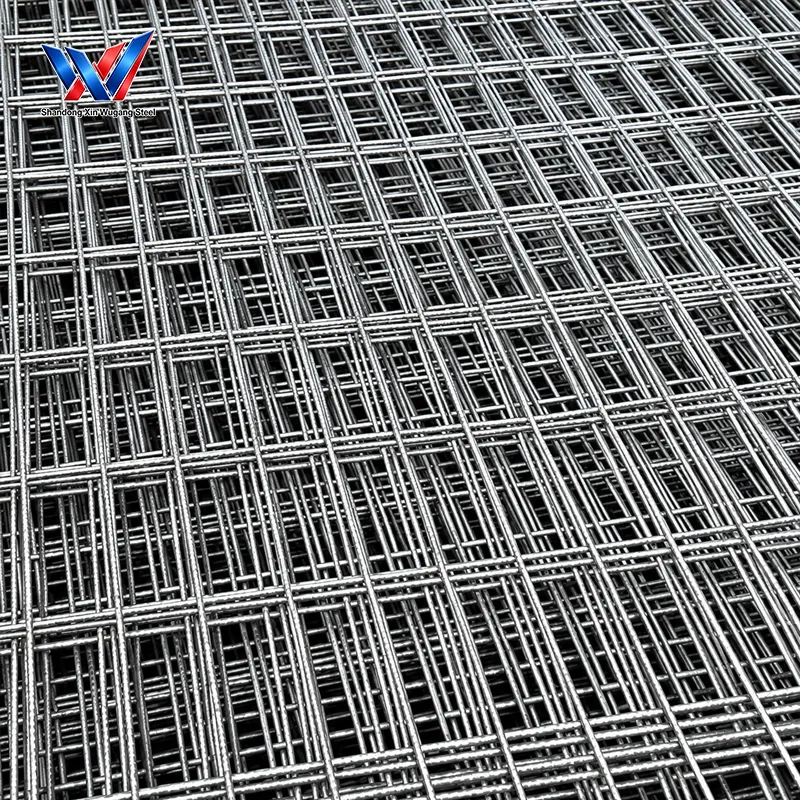

Welded Wire Mesh
- Carbon steel & stainless steel material options for different scenarios
- Multiple anti‑corrosion finishes for indoor, outdoor and coastal conditions
- Standard spot weld & heavy full weld for light‑duty and heavy‑duty usage
- Metric & imperial sizes to satisfy global regional market demands
Contact Us
Product Overview

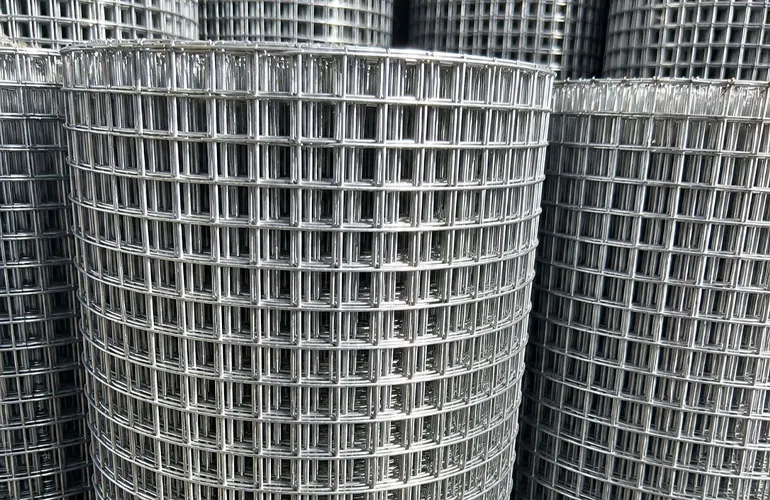

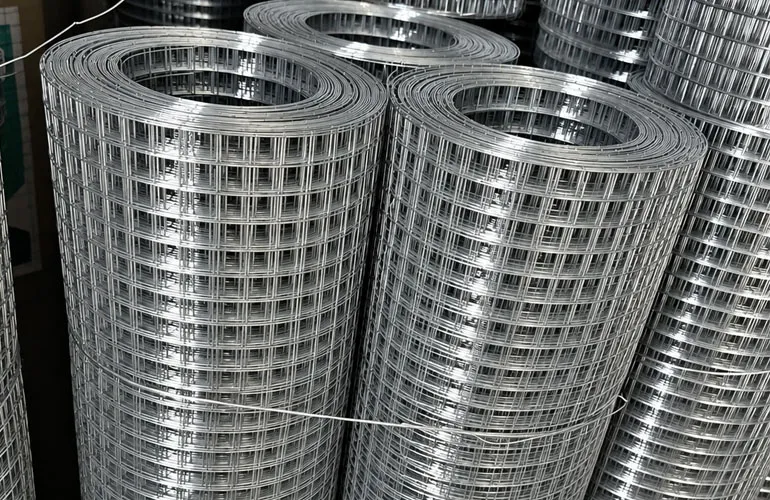

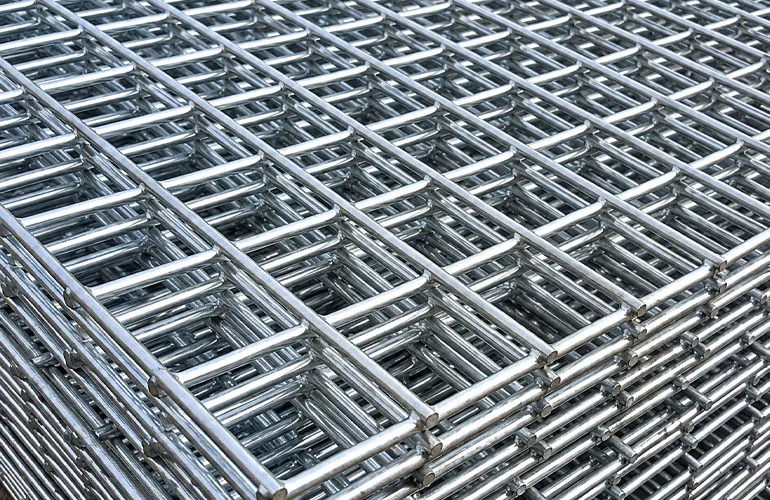

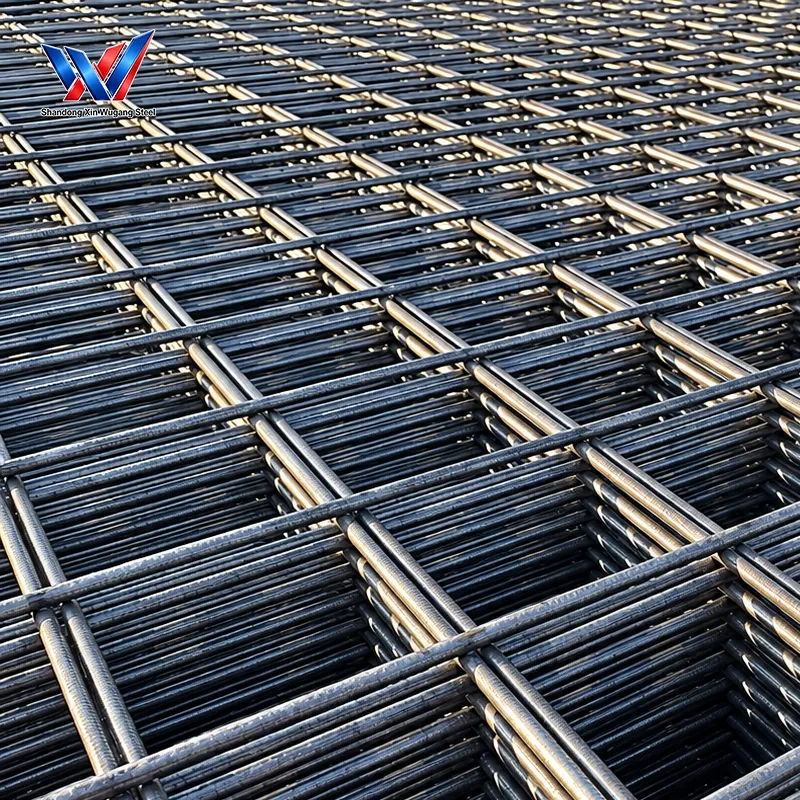

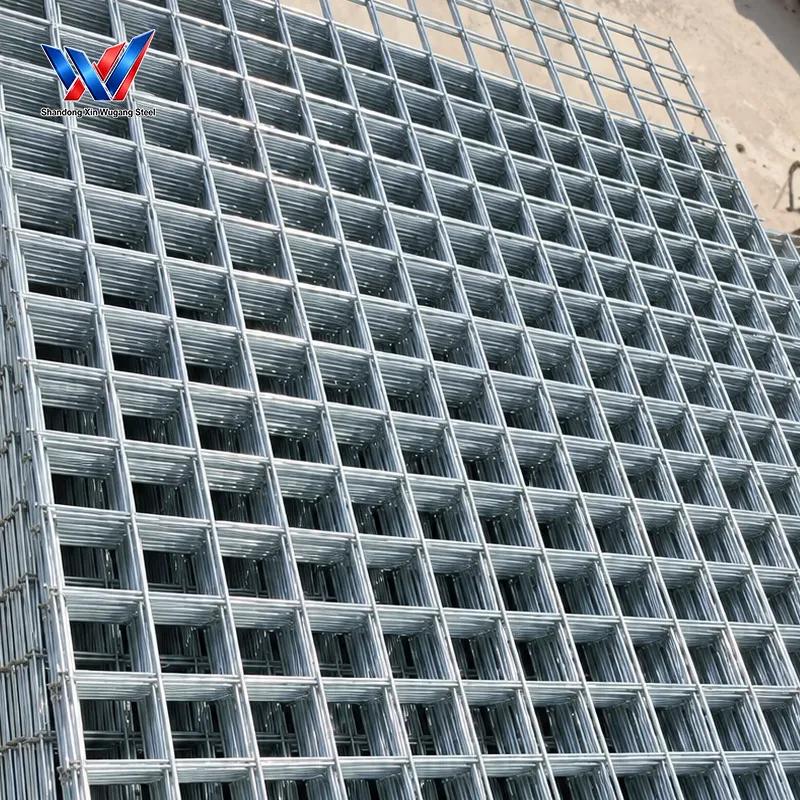

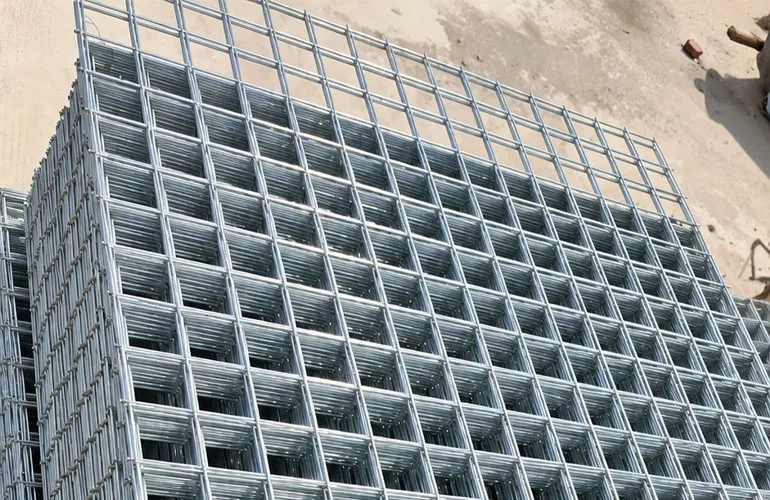

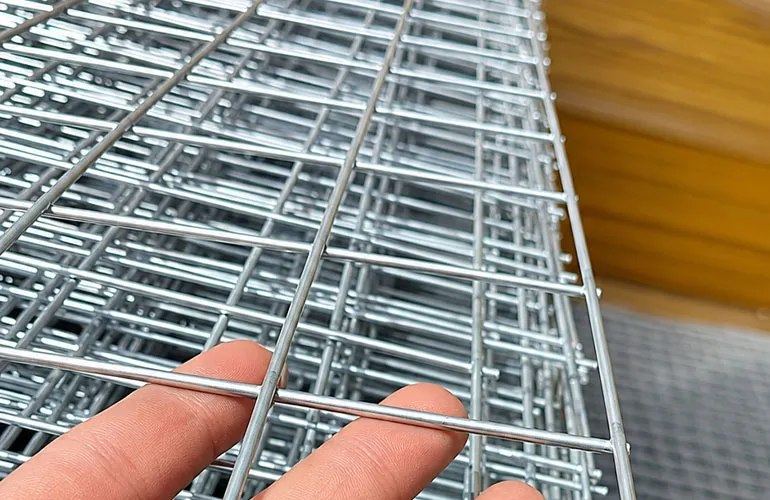

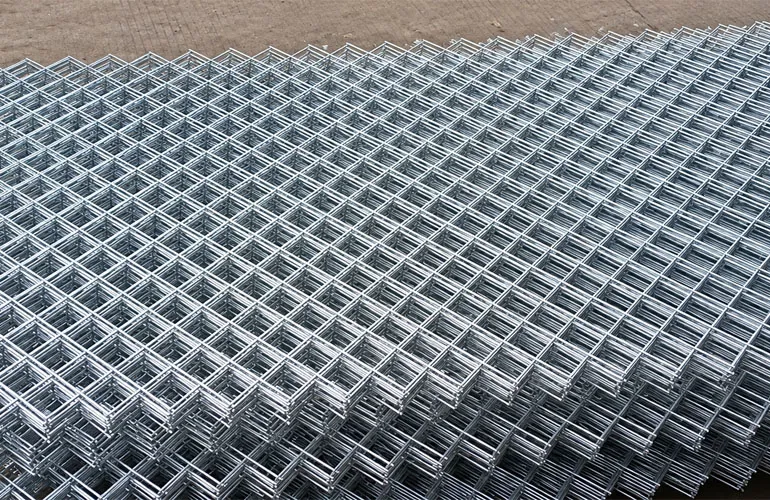

Welded Wire Mesh is a versatile welded metal mesh manufactured from low-carbon steel or stainless steel wire. It is available in both roll mesh and flat panel mesh formats, with a broad range of wire diameters and aperture sizes for different industrial and commercial requirements. The product complies with multiple international standards and can support different regional market specifications.
For carbon steel applications, available grades include Q195, Q235, SAE1006, SAE1008, S235JR and selected Russian GOST low-carbon wire rod grades. Stainless steel options include 201, 202, 304 (1.4301), 316 and 316L (1.4404) for applications requiring enhanced corrosion resistance. Wire diameters range from 0.4mm to 6.0mm, with a diameter tolerance of ±0.05mm.
Welded Wire Mesh can be supplied with different surface treatments, including Black Annealed, Electro-Galvanized, Hot-Dip Galvanized, PVC Coated and Stainless Steel. These options allow the mesh to be selected according to indoor, outdoor, humid, coastal, chemical or other demanding working environments.
The mesh is available in Standard Spot Weld and Heavy Full Weld grades. Metric and imperial specifications can be supplied, while roll and panel dimensions can be customized according to project requirements. Typical applications include wall plastering and reinforcement, livestock cages and fencing, machinery guarding, horticulture, greenhouse protection, and food or pharmaceutical filtration.
Chemical & Mechanical Property Snapshot
Detailed Technical Specifications
Product Comparison Table
App Market
Reliable Steel Coil Solutions For Diverse Industrial Applications

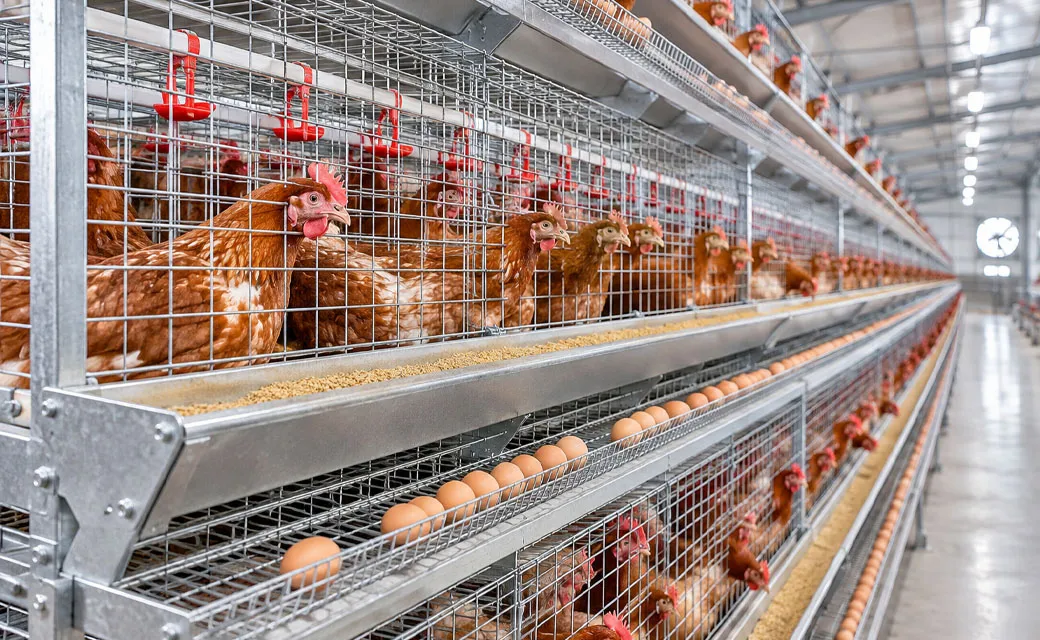

Livestock Farming

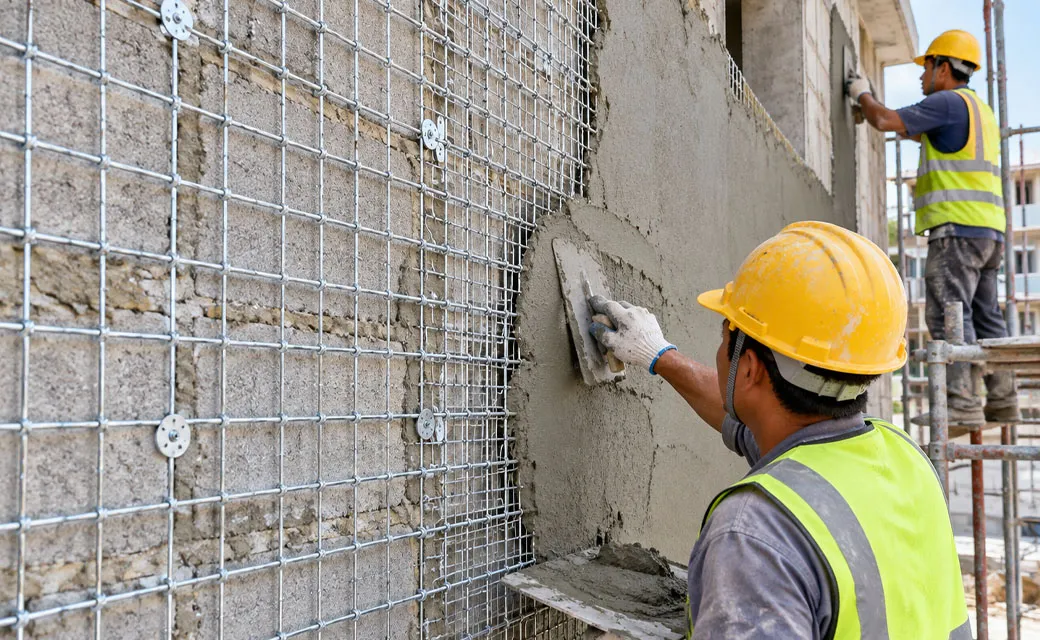

Anti-Crack Plaster Mesh for Interior and Exterior Walls

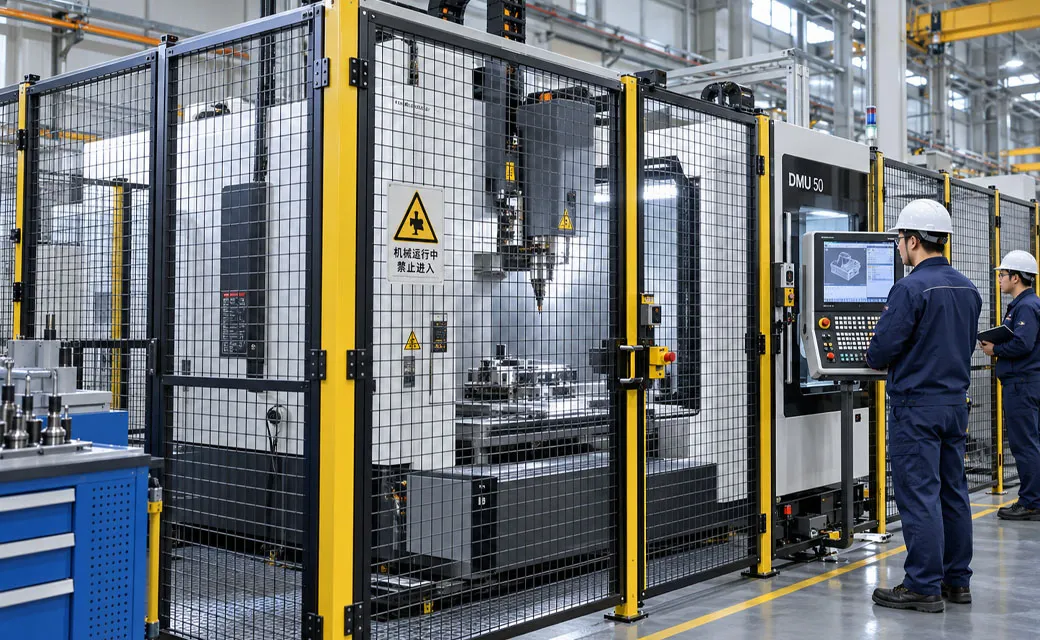

Machine Tool Guard

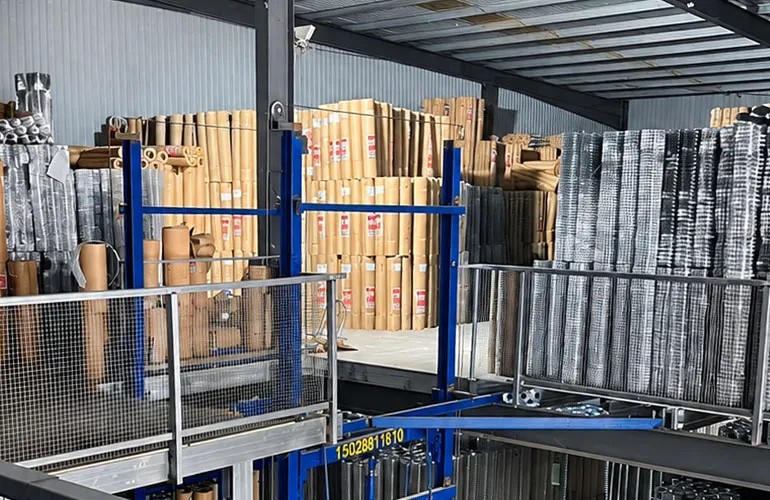

Product Packaging
Secure Export Packaging For Safe Handling And Delivery
FAQs
Welded Wire Mesh is available in low-carbon steel and stainless steel. Carbon steel options include Q195, Q235, SAE1006, SAE1008 and S235JR, while stainless options include 201, 202, 304, 316 and 316L.
The supplied specification covers wire diameters from 0.4 mm to 6.0 mm, with a diameter tolerance of ±0.05 mm.

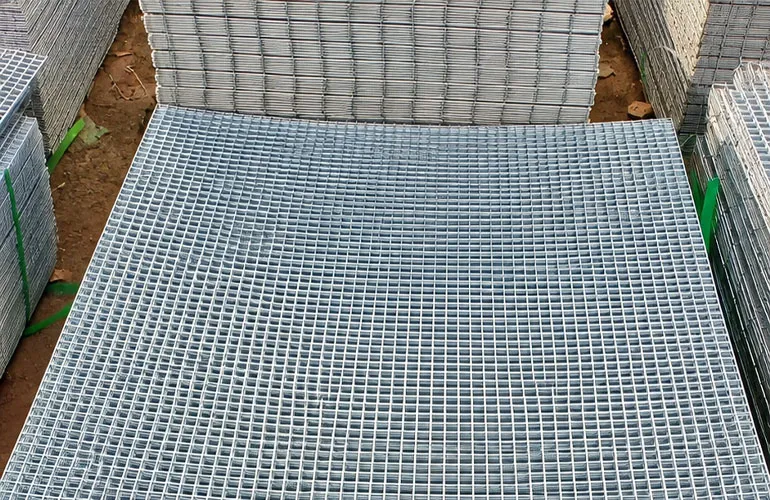

Yes. The product is supplied in both roll mesh and flat panel mesh. Common roll widths are 0.5–2 m, while common panel sizes include 1×2 m, 1.2×2.4 m and 2×4 m.
Available treatments include Black Annealed, Electro-Galvanized, Hot-Dip Galvanized, PVC Coated and stainless steel finishes.
Standard Spot Weld is intended for general-purpose applications, while Heavy Full Weld is available for applications requiring a heavier-duty welded structure.
