5-Bar Stainless Steel Checkered Plate | Anti Slip 5 Bar Tread Plate

Raised 5-bar embossed texture delivers superior anti-slip performance even under wet conditions
Multiple stainless grades optional:304,304L,316L,201,430 for different corrosion demand
Good bending & welding property, easy for on-site cutting and fabrication
Durable embossed pattern, not easy to wear out under long-term heavy traffic
Strictly manufactured to GB/T3280, ASTM A240, EN 10088 standards

Product Overview

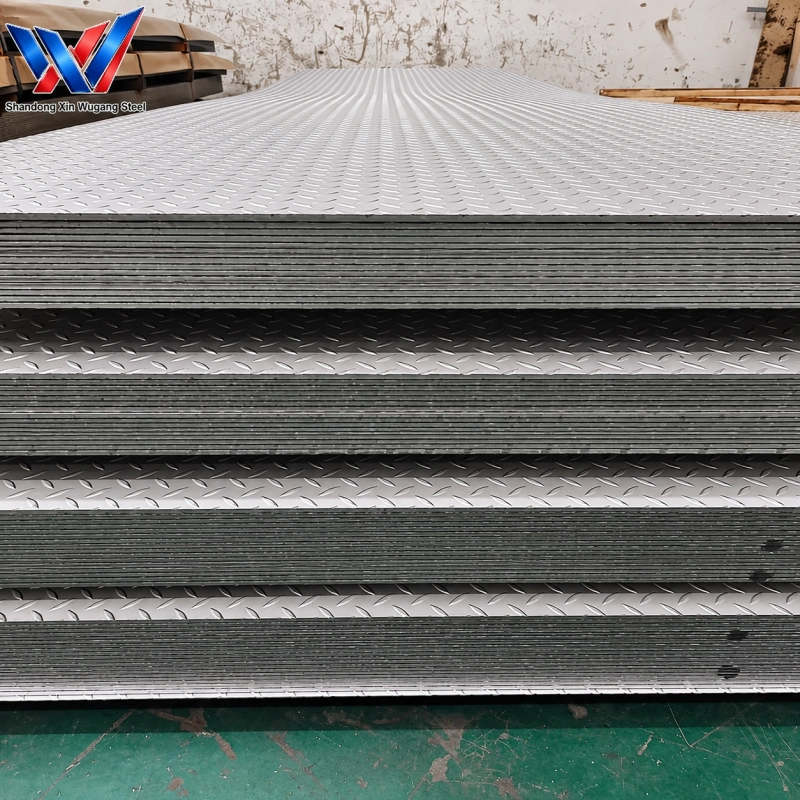

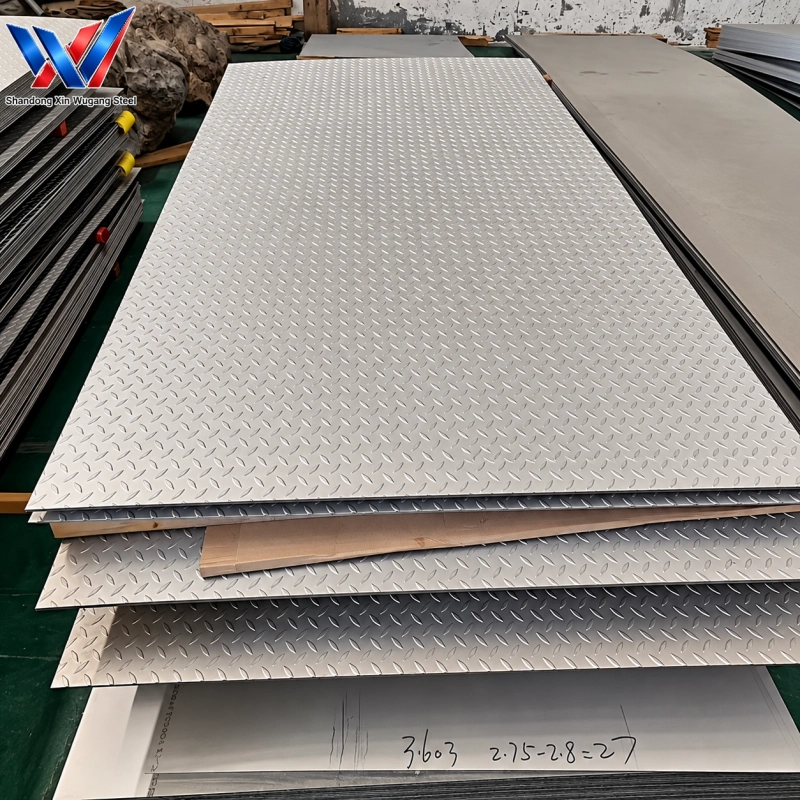

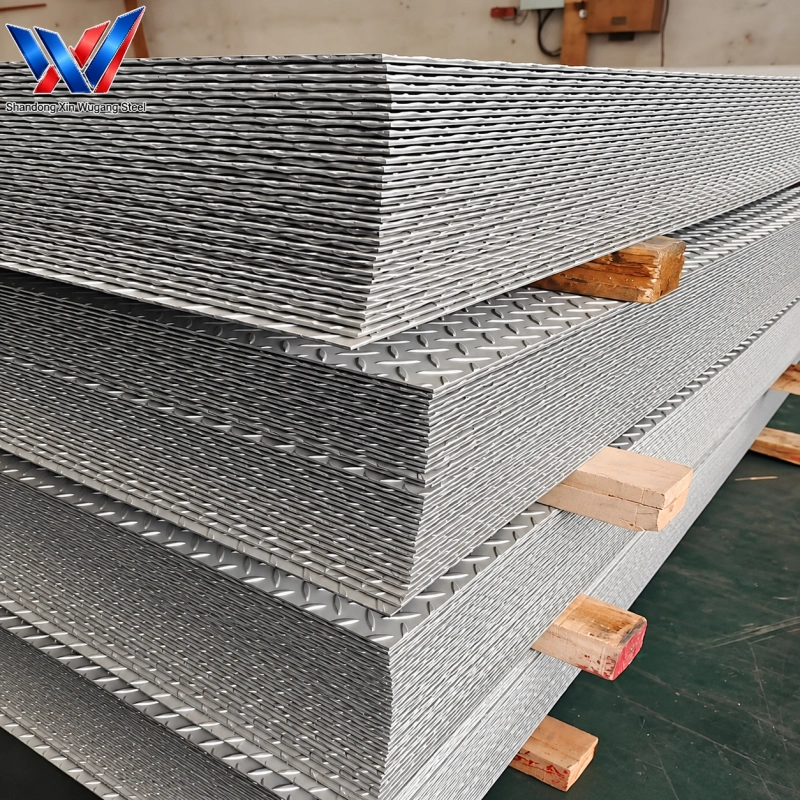

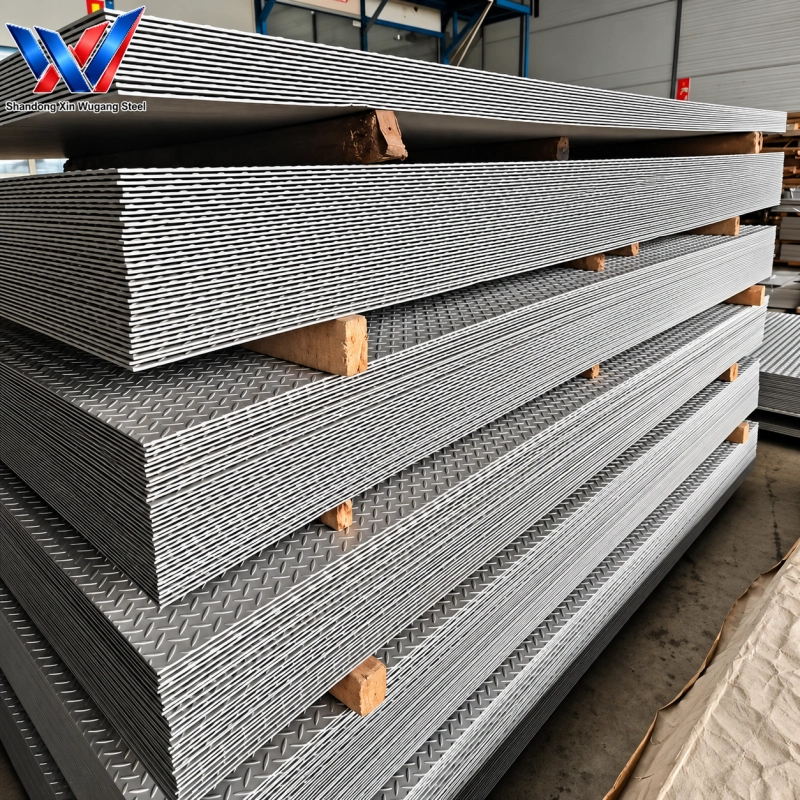

5-Bar Stainless Steel Checkered Plate is a hot embossed anti-slip stainless steel plate with classic five bar (willow leaf) raised pattern. The 5-bar protruding texture greatly increases surface friction coefficient to prevent slipping on walkways, ramps and ship decks.

We supply this 5 bar chequer plate in full grades including 304,304L,316L,201 and 430. Thickness range covers 1.0mm to 10.0mm. 304/304L version offers balanced corrosion resistance for general industrial use;316L grade adds molybdenum for seawater and coastal anti-corrosion;201 and 430 are economical choices for indoor decoration.

The plate keeps good processability, supports custom cutting, bending and splicing. Widely used for ship decks, industrial walkways, loading ramps, platform flooring. It can be cleaned simply and maintains stable anti-slip performance in long term service.

Stainless Checkered Plate

Chemical & Mechanical Property Snapshot

Grade	Standard	C Max (%)	Cr (%)	Ni (%)	Other Elements	YS Min (MPa)	TS (MPa)	El Min (%)	Remarks
304	GB/T3280, ASTM A240	0.08	18.0-20.0	8.0-10.5	–	205	≥515	40	General austenitic grade, good balance of corrosion resistance
304L	GB/T3280, ASTM A240	0.03	18.0-20.0	8.0-12.0	–	170	≥485	40	Low carbon version, good weldability, intergranular corrosion resistance
316L	GB/T3280, ASTM A240	0.03	16.0-18.5	10.0-14.0	Mo:2.0-3.0	170	≥485	40	Molybdenum added, superior seawater & chemical corrosion resistance
201	GB/T3280, ASTM A240	0.15	16.0-18.0	3.5-5.5	Mn:5.5-7.5	220	≥635	40	Low nickel, economical decorative anti-slip plate
430	GB/T3280, ASTM A240	0.12	16.0-18.0	≤0.75	–	205	≥450	22	Ferritic stainless steel, low cost for indoor decoration

Detailed Technical Specifications

Category	Item
Product Name	5-Bar Stainless Steel Checkered Plate
Product Type	5-Bar Embossed Anti-Slip Stainless Steel Plate
Manufacturing Process	One-step embossing pressing process
Applicable Standards	GB/T3280, ASTM A240, EN 10088
Main Grades	304,304L,316L,201,430
Grade Selection	304/304L for general applications; 316L for marine and chemical environments; 201/430 for indoor and decorative applications
Pattern Types	5-Bar (Willow Leaf)
Thickness Range	1.0-10.0mm
Material Form	Stainless steel plate with 5-bar raised anti-slip embossed surface
Surface Performance	High friction from 5-bar raised pattern, excellent anti-slip effect
Corrosion Resistance	Resistant to water, moisture, food residue, mild chemicals, and seawater (depends on grade)
Fabrication Performance	Supports bending, welding, splicing, and customized cutting
Surface Maintenance	Easy cleaning and sanitation for industrial and marine environments
Quality Documents	Material certification documents available
Application Fields	Ship decks, industrial walkways, loading ramps, platform anti-slip flooring
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit
Package	Waterproof paper + plastic film + wooden pallet, seaworthy export packing

Product Comparison Table

Product Type	Representative Grades	Main Characteristics	Recommended Applications
5-Bar Stainless Checkered Plate	304, 304L, 316L,201,430	Classic 5-bar raised texture, outstanding anti-slip property, heavy load resistance	Ship decks, industrial walkways, ramps, heavy traffic platforms
Lentil / Teardrop Stainless Pattern Plate	304,316L,201,430	Smooth teardrop embossed surface, easy cleaning, moderate friction	Factory floors and stair treads, food workshop floor
Diamond Stainless Pattern Plate	304,316L,201,430	Sharp diamond texture, high friction coefficient, strong wear resistance	Industrial passages and loading areas, warehouse floor
Perforated Stainless Pattern Plate	304,316L,201,430	Combines anti-slip and drainage function	Customized anti-slip applications with drainage requirement
304 Stainless Checkered Plate	304, 304L	Balanced corrosion resistance and hygienic performance	Food factories, clean workshops, indoor anti-slip floors
316L Stainless Checkered Plate	316L	Enhanced resistance to seawater and chemical environments	Marine walkways, offshore platforms, coastal projects
201 Stainless Checkered Plate	201	Cost-effective stainless solution	Indoor decoration and general walkways
430 Stainless Checkered Plate	430	Economical ferritic stainless option	Indoor platforms and decorative applications

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Marine Offshore Platform Walkway Stainless Steel

Food Factory Flooring Stainless Steel

Elevator Floor Panel Stainless Steel

Anti-Slip Stair Tread Stainless Steel

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What thickness options for 5-bar stainless checkered plate?

We supply thickness 1.0mm ~10.0mm, custom cutting available according to your project drawings.

Which grade is best for marine ship deck use?

316L grade 5-bar stainless plate is recommended for ship deck, it has molybdenum to resist seawater corrosion.

Can 5-bar stainless checkered plate be bent and welded?

Yes, the plate keeps good bending and welding performance for on-site fabrication.

What is MOQ of 5 bar stainless chequer plate?

MOQ is 5 tons. If you have special requirement for small trial order, please contact us.

What export packing you use?

Waterproof paper + plastic film + wooden pallet, seaworthy package for sea shipment.
