Blade Barbed Wire
- BTO economical & CBT heavy‑duty series to match different security requirements
- Galvanized and stainless‑steel options for inland, coastal and chemical harsh environments
- Three layout forms: spiral, straight line, cage for diversified installation scenarios
- Level 1‑3 security grading covers civil, law‑enforcement and top‑tier military‑border projects
Contact Us
Product Overview

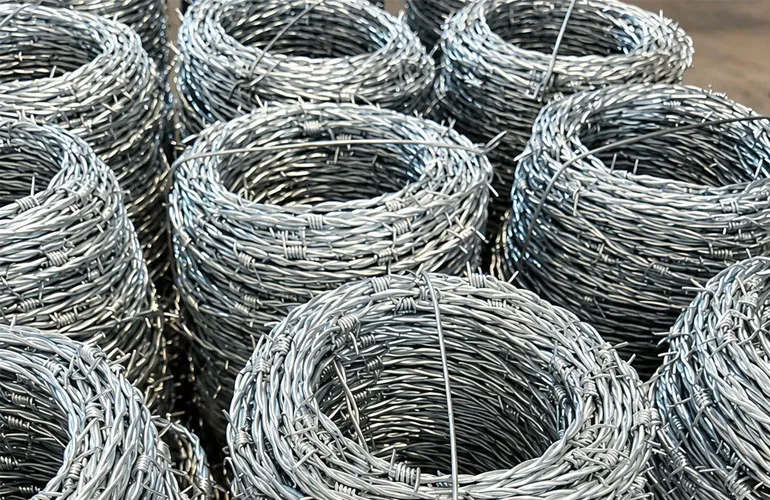

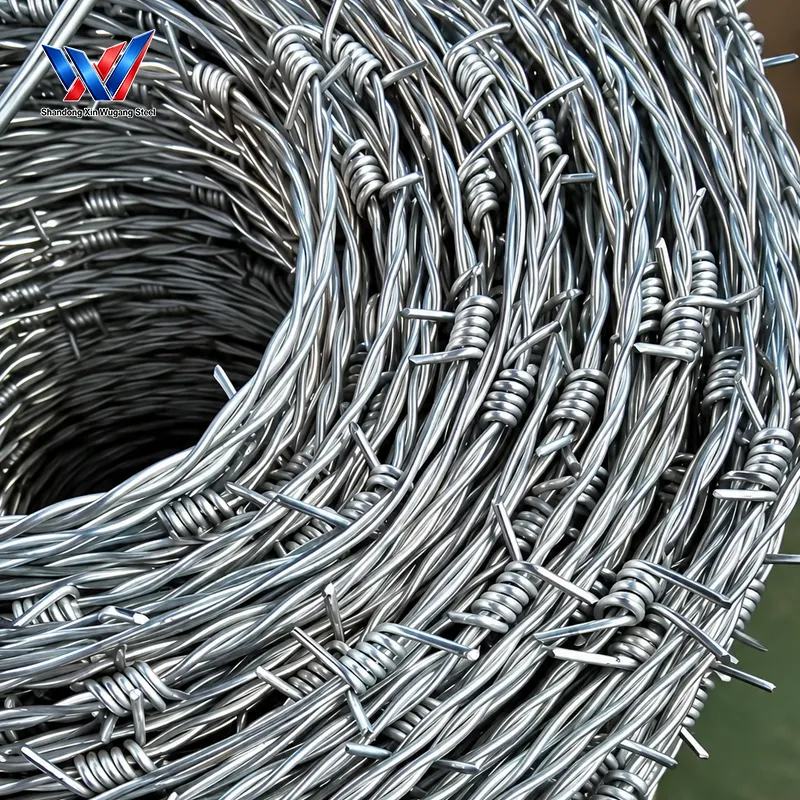

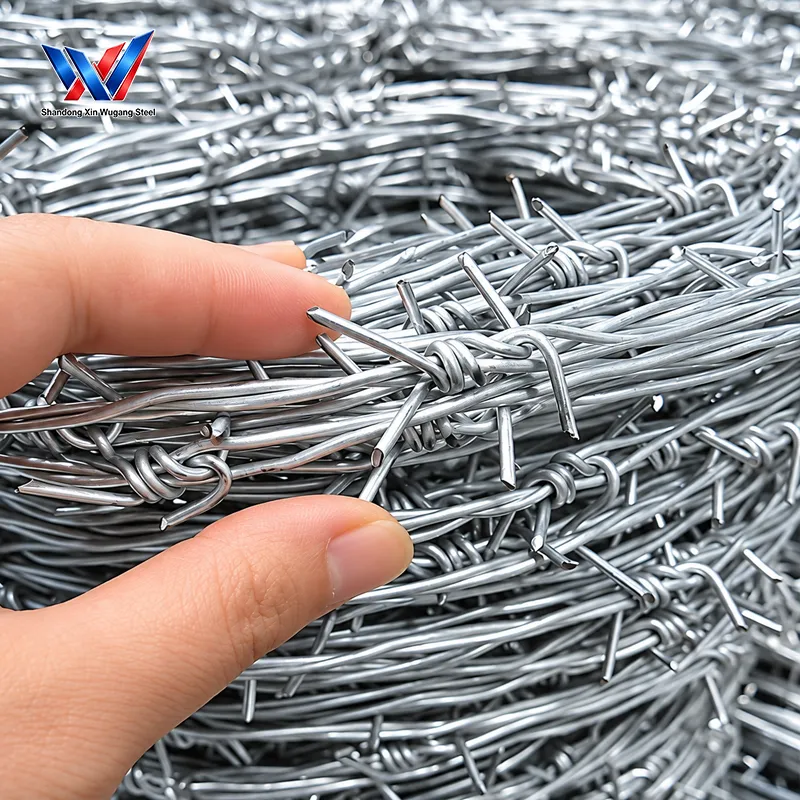

Blade Barbed Wire, also known as razor barbed wire, is a high-strength anti-climb security barrier designed for high-risk perimeter protection. The product is manufactured according to GB/T 15393, EN 10244, ASTM A641, ISO 1461, GOST R 57382-2017 and GOST 14918, supporting international inspection and tender requirements.
The product uses Q235 steel strip with galvanized steel wire core for general applications and CT3nc galvanized steel strip for Russian-market requirements. For heavy-corrosion environments, 304 stainless steel (08X18H10) and 316L stainless steel (03X17H13M2) integrated stamping materials are available.
Two major product series are available: the economical BTO series, including BTO-10, BTO-12, BTO-18 and BTO-22, and the heavy-strength CBT series, including CBT-60, CBT-65 and CBT-70. The product can be supplied in Concertina Spiral, Straight Line and Cage Type configurations for different installation requirements.
Standard blade thickness is 0.5 mm, while 0.6 mm and 0.7 mm reinforced strips are available for border and prison high-security applications. Single-roll unfolded lengths include 10 m, 20 m, 30 m and 50 m, with coil diameters of 300 mm, 450 mm, 600 mm and 900 mm.
Chemical & Mechanical Property Snapshot
Detailed Technical Specifications
Product Comparison Table
App Market
Reliable Steel Coil Solutions For Diverse Industrial Applications

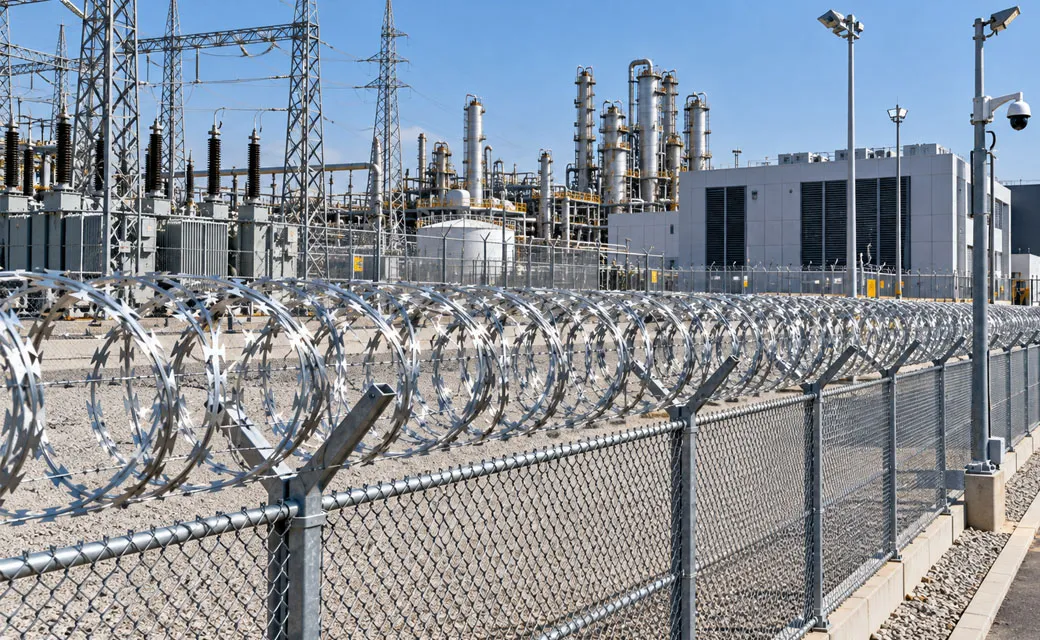

Critical Industrial Facilities

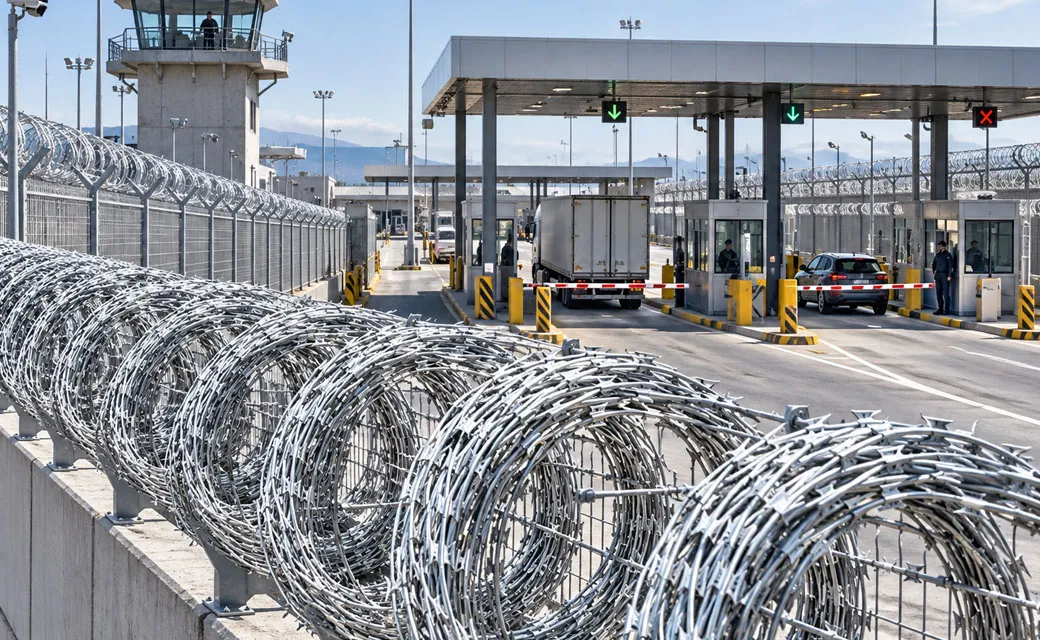

Border Crossings

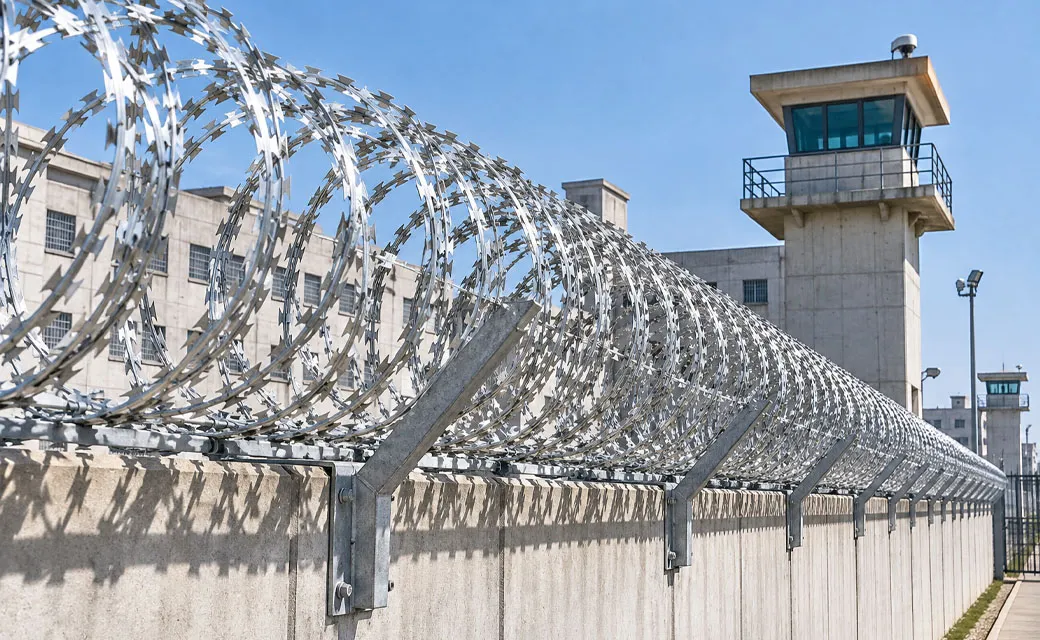

High-Security Areas

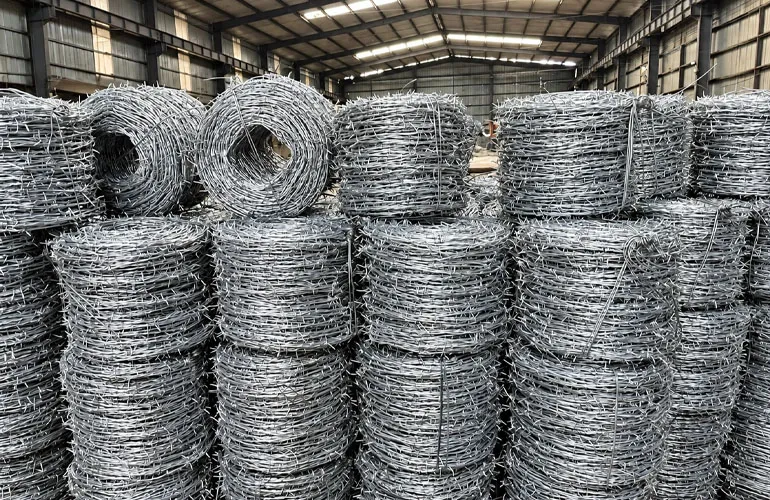

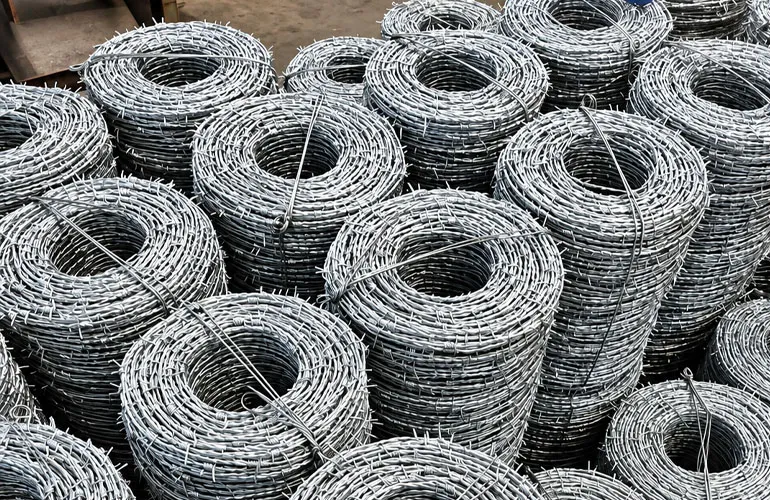

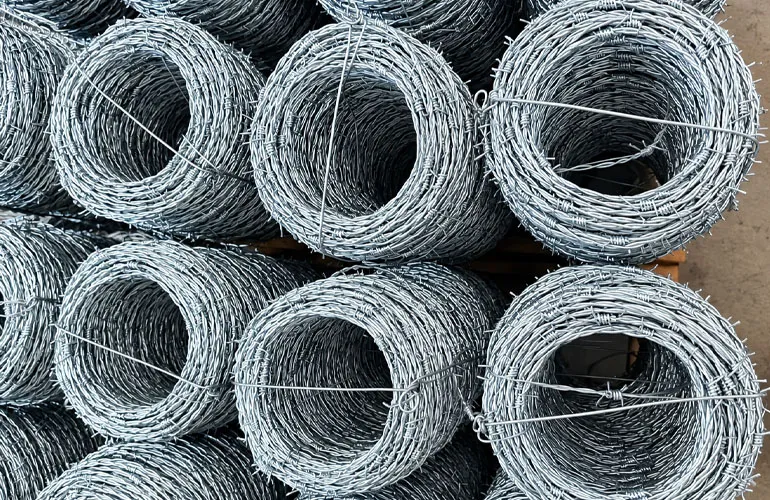

Product Packaging
Secure Export Packaging For Safe Handling And Delivery
FAQs
Blade Barbed Wire, also known as razor barbed wire, is a high-strength anti-climb security barrier used for high-risk perimeter protection.
The product can use Q235 steel strip with galvanized steel wire core, CT3nc galvanized steel strip, 304 stainless steel or 316L stainless steel according to application requirements.
BTO is the economical thin-sheet series, while CBT is the thick-strip heavy-strength series. The supplied product range includes BTO-10, BTO-12, BTO-18, BTO-22 and CBT-60, CBT-65, CBT-70.
The standard blade thickness is 0.5 mm. Reinforced 0.6 mm and 0.7 mm options are available for border and prison high-security applications.
Standard coil diameter options are 300 mm, 450 mm, 600 mm and 900 mm.
