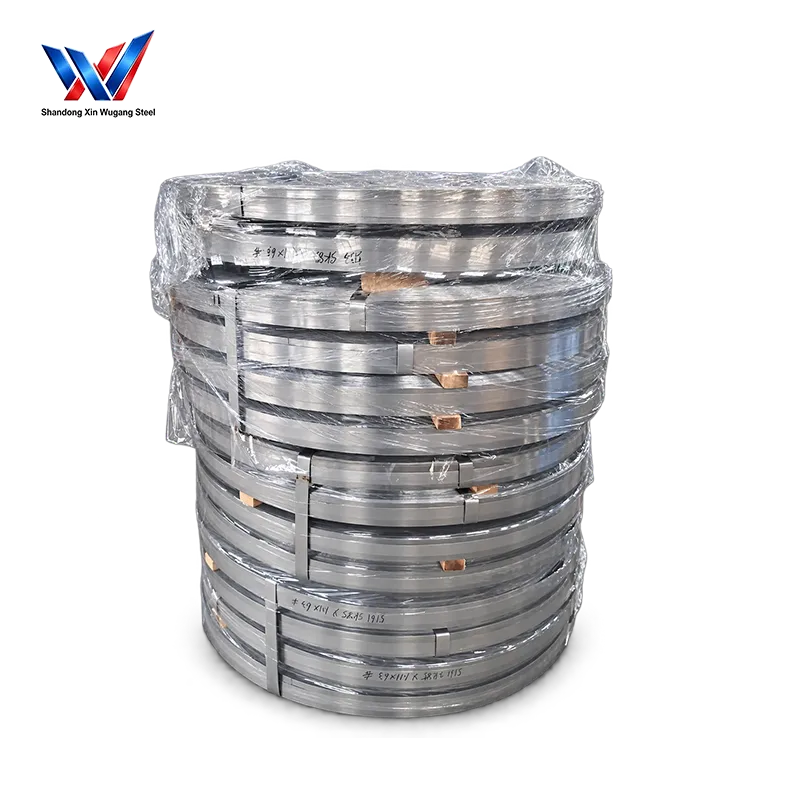

Carbon Steel Strip

Arbitrary narrow width slitting, precise dimensional tolerance for customized component production
Both hot & cold rolled substrate options adapt to flexible forming and rigid load-bearing demands
Optional post-processing: oiling, deburring, edge trimming to eliminate sharp cutting edges
Rich grade series ranging from soft deep-drawing to high-strength structural steel
Great ductility and weldability, easy for bending, coiling, stamping and secondary deep processing

Product Overview

Carbon Steel Strip is a narrow-width finished steel material produced by longitudinal slitting of hot rolled and cold rolled carbon steel coils. Manufactured according to GB/T3522, EN 10111, ASTM A635 and JIS G3131, it is designed for downstream stamping, bending, coiling and other secondary processing applications.

The product covers Chinese, American, European and Japanese grade systems, including Q195, Q235B, Q355B, SPHC/SPHD/SPHE, SPCC/SPCD/SPCE, A36, A1011 Gr36, A1018 Gr.B, A1008 CS Type A/B/C, S235JR, S275JR, S355JR and DC01–DC06. Buyers can select suitable grades according to forming requirements, from ductile grades for deep stamping to higher-strength grades for structural strip applications.

Thickness is available from 0.2–20 mm, with customized slitting widths from 10–1240 mm. Optional processing includes oiling, deburring, edge rounding and edge trimming, helping meet different storage, handling and downstream processing requirements.

After slitting and stress leveling, the strip provides uniform thickness, stable internal stress and consistent mechanical properties along its length. Depending on the substrate and grade, it can be used for packing strips, cable binding strips, flexible hose reinforcement, pipeline wrapping, hardware fasteners, spring belts and door & window lining materials.

Carbon Steel Strip

Chemical & Mechanical Property Snapshot

Grade	Standard	C (Max)	Mn (Max)	P (Max)	S (Max)	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation A80 (%)
Q195	GB/T 708	0.12	0.50	0.035	0.040	≥195	315–430	≥30
Q235B	GB/T 708	0.15	0.60	0.040	0.040	≥235	375–500	≥26
Q355B	GB/T 708	0.24	1.60	0.035	0.035	≥355	470–630	≥21
SPHC	JIS G3131	0.15	0.60	0.050	0.050	≥240	270–410	≥27
SPHD	JIS G3131	0.12	0.50	0.040	0.040	≥210	270–370	≥30
SPHE	JIS G3131	0.10	0.45	0.030	0.030	≥190	270–350	≥34
SPCC	JIS G3131	0.15	0.60	0.050	0.050	≥240	270–410	≥27
SPCD	JIS G3131	0.12	0.50	0.040	0.040	≥210	270–370	≥30
SPCE	JIS G3131	0.10	0.45	0.030	0.030	≥190	270–350	≥34
A36	ASTM A36	0.25	1.00	0.040	0.050	≥250	400–550	≥20
A1011 Gr36	ASTM A1011	0.25	1.20	0.040	0.050	≥250	400–550	≥22
A1018 Gr.B	ASTM A1018	0.15	0.60	0.035	0.040	≥240	270–410	≥27
A1008 CS A	ASTM A1008	0.10	0.50	0.030	0.035	170–240	270–410	≥28
A1008 CS B	ASTM A1008	0.08	0.45	0.025	0.030	160–220	270–370	≥32
A1008 CS C	ASTM A1008	0.06	0.40	0.020	0.025	150–200	270–350	≥36
S235JR	EN 10111	0.17	1.40	0.045	0.045	≥235	360–510	≥25
S275JR	EN 10111	0.21	1.50	0.045	0.045	≥275	410–560	≥23
S355JR	EN 10111	0.24	1.60	0.045	0.045	≥355	470–630	≥21
DD11	EN 10111	0.12	0.60	0.045	0.045	240 Max	270–410	≥28
DD12	EN 10111	0.10	0.50	0.035	0.035	220 Max	270–370	≥32
DD13	EN 10111	0.08	0.40	0.030	0.030	200 Max	270–350	≥36
DC01	EN 10130	0.12	0.60	0.045	0.045	240 Max	270–410	≥28
DC03	EN 10130	0.10	0.45	0.035	0.035	220 Max	270–370	≥32
DC04	EN 10130	0.08	0.40	0.030	0.030	200 Max	270–350	≥36
DC05	EN 10130	0.06	0.35	0.025	0.025	180 Max	270–330	≥38
DC06	EN 10130	0.03	0.30	0.020	0.020	170 Max	270–310	≥40
SS330	JIS G3131	0.15	0.60	0.050	0.050	≥240	330–430	≥22

Detailed Technical Specifications

Item	Specification
Product	Carbon Steel Strip
Material	Carbon Steel
Substrate	Hot Rolled / Cold Rolled Carbon Steel Coil
Thickness	0.2–20 mm
Width	10–1240 mm
Standard	GB/T3522 / EN 10111 / ASTM A635 / JIS G3131
Chinese Grades	Q195, Q235B, Q355B, SPHC, SPHD, SPHE, SPCC, SPCD, SPCE
ASTM Grades	A36, A1011 Gr36, A1018 Gr.B, A1008 CS Type A/B/C
EN Grades	S235JR, S275JR, S355JR, DD11, DD12, DD13, DC01, DC03, DC04, DC05, DC06
JIS Grades	SS330, SPHC, SPHD, SPCC, SPCD, SPCE
Processing	Slitting, stress leveling
Optional Treatment	Oiling, deburring, edge trimming, edge rounding
Forming	Bending, coiling, stamping and secondary processing
Key Characteristics	Uniform thickness, stable internal stress, good ductility and weldability
Documentation	Mill test certificates and dimensional inspection reports
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit
Package	Standard seaworthy export packing, wrapped with waterproof paper and steel straps

Product Comparison Table

China GB	ASTM (US)	EN (Europe)	JIS (Japan)	Material Feature
Q195	A1008 CS Type A	DC01	SPCC	Low carbon, general stamping & forming
Q235B	A36 / A1011 Grade36	S235JR	SS330	General structural carbon steel strip
Q355B	A1018 Gr.B	S355JR	–	High strength structural strip
SPHC	A1008 CS Type B	DD11	SPHC	Hot rolled low carbon for deep drawing
SPHD	A1008 CS Type C	DD12	SPHD	Hot rolled, medium deep drawing
SPHE	–	DD13	SPHE	Hot rolled, extra deep drawing
SPCC	A1008 CS Type A	DC01	SPCC	Cold rolled general purpose strip
SPCD	A1008 CS Type B	DC03	SPCD	Cold rolled deep drawing grade
SPCE	A1008 CS Type C	DC04	SPCE	Cold rolled extra deep drawing
–	–	DC05	–	Cold rolled super deep drawing
–	–	DC06	–	Cold rolled ultra deep drawing
–	–	S275JR	–	Medium strength structural steel strip

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Carbon Steel Strap Packing

Carbon Steel Hose Reinforcement

Carbon Steel Stamped Narrow Parts

Carbon Steel Spring Strip

Carbon Steel Pipe Cladding

Carbon Steel Hardware Buckle

Carbon Steel Cable Strap

Carbon Steel Window Door Lining

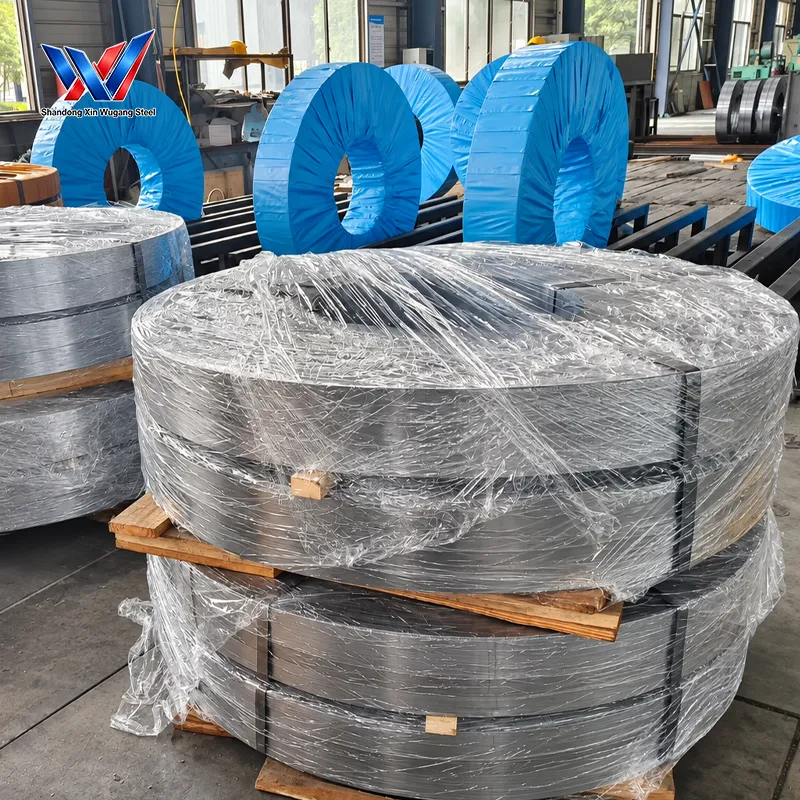

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is Carbon Steel Strip?

Carbon Steel Strip is narrow-width steel produced by longitudinally slitting hot rolled or cold rolled carbon steel coils for stamping, bending, coiling and other downstream processing.

What thickness and width are available?

The supplied thickness range is 0.2–20 mm, while customized slitting widths range from 10–1240 mm.

Can I choose hot rolled or cold rolled Carbon Steel Strip?

Yes. Both substrate options are available. Cold rolled strip is suitable for flexible precision forming, while hot rolled strip is positioned for applications requiring greater structural strength.

Can the strip edges be customized?

Yes. Available processing includes deburring, edge rounding and edge trimming, with oiling also available according to the required specification.

What standards and grades can be supplied?

The product covers GB/T3522, EN 10111, ASTM A635 and JIS G3131, together with corresponding Chinese, American, European and Japanese grades.
