Hot-Rolled Steel Coil

Complete multi-national standard grades, fully compatible with European, American, Asian engineering requirements.
Wide thickness & width range, available for slitting, cutting and flattening into steel plates.
Good plasticity, weldability and stamping property for various mechanical processing.
High structural yield strength, ideal for load-bearing structural components.
Cost-effective raw material, stable supply for large-scale construction projects.

Product Overview

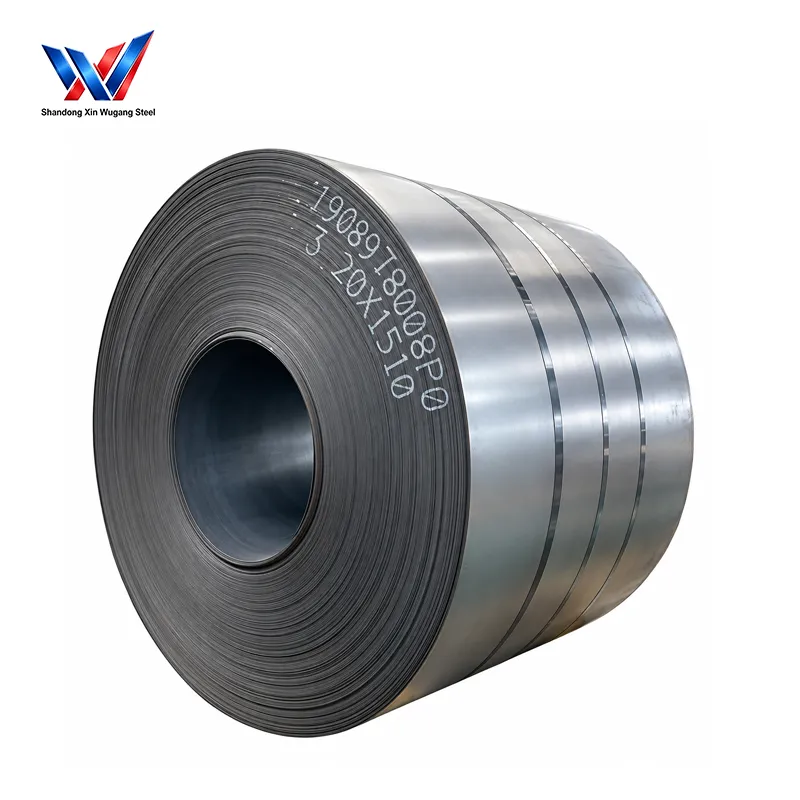

Hot-Rolled Steel Coil is a low-carbon carbon steel coil manufactured through high-temperature hot rolling and widely used as a basic raw material for construction, machinery manufacturing and metal processing. It is produced in accordance with GB/T 709, ASTM A635, EN 10111 and JIS G3131, with Chinese, American, European and Japanese grade systems available for different engineering requirements.

The product covers 1.5–25.0 mm thickness, with standard mother coil widths of 950, 1000, 1250 and 1500 mm, inner diameters of 508 or 610 mm, and single coil weights of 8–32 tons. Slitting is available for dividing large coils into smaller coils, while the material can also be flattened into hot rolled steel plates for further cutting and blanking.

Available grades include Q195, Q235B, Q355B, SPHC, SPHD, SPHE, A36, A1011 Gr36, A1018 Gr.B, S235JR, S275JR, S355JR, DD11, DD12, DD13 and SS330, allowing buyers to select material according to structural strength, forming or stamping requirements.

With good weldability, plasticity, punching, bending, cutting and deep-drawing performance, hot-rolled steel coil is suitable for steel structure fabrication, container frames, agricultural machinery, pipelines, tower supports, equipment bases, highway guardrails and construction scaffolding.

Hot-Rolled Steel Coil

Chemical & Mechanical Property Snapshot

Grade	C (wt%)	Mn (wt%)	Si (wt%)	P (wt%)	S (wt%)	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)
Q195	≤0.12	0.25–0.50	≤0.30	≤0.035	≤0.040	≥195	315–430	≥33
Q235B	≤0.20	0.40–0.65	≤0.30	≤0.045	≤0.045	≥235	375–500	≥26
Q355B	≤0.20	1.00–1.60	≤0.50	≤0.035	≤0.035	≥355	470–630	≥21
SPHC	≤0.15	≤0.60	≤0.05	≤0.040	≤0.040	≥245	270–410	≥27
SPHD	≤0.10	≤0.50	≤0.03	≤0.035	≤0.035	≥215	270–370	≥30
SPHE	≤0.08	≤0.45	≤0.03	≤0.030	≤0.030	≥195	270–370	≥32
A36	≤0.25	≤1.00	≤0.40	≤0.040	≤0.050	≥250	400–550	≥20
A1011 Gr36	≤0.25	≤0.80	≤0.50	≤0.040	≤0.050	≥250	400–550	≥22
A1018 Gr.B	≤0.15	0.30–0.60	≤0.04	≤0.035	≤0.040	≥220	340–450	≥25
S235JR	≤0.17	≤1.40	≤0.35	≤0.035	≤0.035	≥235	360–510	≥25
S275JR	≤0.21	≤1.50	≤0.35	≤0.035	≤0.035	≥275	410–560	≥23
S355JR	≤0.24	≤1.60	≤0.55	≤0.035	≤0.035	≥355	470–630	≥21
DD11	≤0.12	≤0.60	≤0.04	≤0.035	≤0.035	≥230	270–410	≥28
DD12	≤0.10	≤0.50	≤0.03	≤0.030	≤0.030	≥210	270–410	≥30
DD13	≤0.08	≤0.40	≤0.03	≤0.025	≤0.025	≥190	270–390	≥32
SS330	≤0.15	≤0.60	≤0.05	≤0.040	≤0.040	≥245	270–410	≥27

Detailed Technical Specifications

Item	Specification
Product	Hot-Rolled Steel Coil
Material	Low-Carbon Carbon Steel
Manufacturing Process	High-temperature continuous hot rolling
Surface Condition	Natural oxide scale formed during hot rolling
Chinese Standards	GB/T 709
American Standard	ASTM A635
European Standard	EN 10111
Japanese Standard	JIS G3131
Thickness	1.5–25.0 mm
Standard Mother Coil Width	950 / 1000 / 1250 / 1500 mm
Coil Inner Diameter	508 / 610 mm
Single Coil Weight	8–32 tons
Chinese Grades	Q195, Q235B, Q355B, SPHC, SPHD, SPHE
ASTM Grades	A36, A1011 Grade 36, A1018 Gr.B
EN Grades	S235JR, S275JR, S355JR, DD11, DD12, DD13
JIS Grades	SS330, SPHC, SPHD
Processing Services	Slitting, flattening, cutting, blanking
Mechanical Processing	Bending, welding, punching, cutting, deep drawing
Quality Documents	Official mill test certificates
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit
Package	Waterproof paper + plastic film + wooden pallet, seaworthy export packing

Product Comparison Table

Grade Standard	GB	ASTM	JIS	EN	Typical Yield Strength	Typical Tensile Strength	Common Usage
Mild Carbon	Q235B	A36	SS400	S235JR	235 MPa	370–500 MPa	General fabrication, structural parts
Medium Carbon	Q355B	A572 Gr50	SS490	S355JR	355 MPa	470–630 MPa	Heavy structure, machinery frame
Low Alloy	Q355NL	A572 Gr55	SM490A	S355NL	355 MPa	470–630 MPa	Low temperature service
High Strength	Q460B	A572 Gr60	SH490	S460JR	460 MPa	550–720 MPa	Engineering equipment

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Steel Structure Processing

Container Frame

1Pressing parts

Agricultural machinery parts

Pipe manufacturing

Tower support structure

1 Mechanical base

Guardrail enclosure

Scaffolding materials

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is Hot-Rolled Steel Coil used for?

Hot-Rolled Steel Coil is widely used for steel structure fabrication, container frames, agricultural machinery, pipelines, tower supports, machinery bases, highway guardrails and construction scaffolding.

What thicknesses are available for Hot-Rolled Steel Coil?

The supplied thickness range is 1.5–25.0 mm, with standard mother coil widths of 950, 1000, 1250 and 1500 mm.

Which grade should I choose for heavy-load structural components?

The supplied product description identifies Q355B as a grade with higher tensile strength for heavy-load components. The final grade should be selected according to the customer's engineering requirements and applicable standard.

Can Hot-Rolled Steel Coil be slit or converted into plate?

Yes. The supplied service range includes coil slitting into smaller coils and flattening into hot rolled steel plate for subsequent cutting and blanking.

Can you supply different international standards for Hot-Rolled Steel Coil?

Yes. The product documentation covers GB/T 709, ASTM A635, EN 10111 and JIS G3131, with corresponding Chinese, ASTM, EN and JIS grade options.
