Diamond Pattern Stainless Steel Checkered Plate | High Friction Anti Slip Diamond Tread Plate

Raised diamond embossed texture creates ultra-high friction for heavy slip prevention
Excellent wear resistance for long time heavy traffic loading area
Multiple stainless grades for different anti-corrosion and budget demand
Stable mechanical property, supports cutting, bending and welding processing
Produced to GB/T3280, ASTM A240, EN 10088 standards

Product Overview

Diamond Pattern Stainless Steel Checkered Plate is embossed stainless anti-slip plate with continuous raised diamond texture. The sharp protruding diamond surface provides maximum friction coefficient, best choice for heavy loading industrial passages and warehouse loading zones.

Available grades: 304,304L,316L,201,430, thickness range from1.0mm to10.0mm. 304/304L is general industrial grade;316L for coastal and weak chemical environment;201 &430 for low-cost indoor decorative anti-slip platform.

The diamond stainless chequer plate has strong wear resistance, keeps anti-slip effect after long heavy pedestrian and cargo rolling. It can be fabricated to custom size for industrial passages, loading bays, warehouse floor.

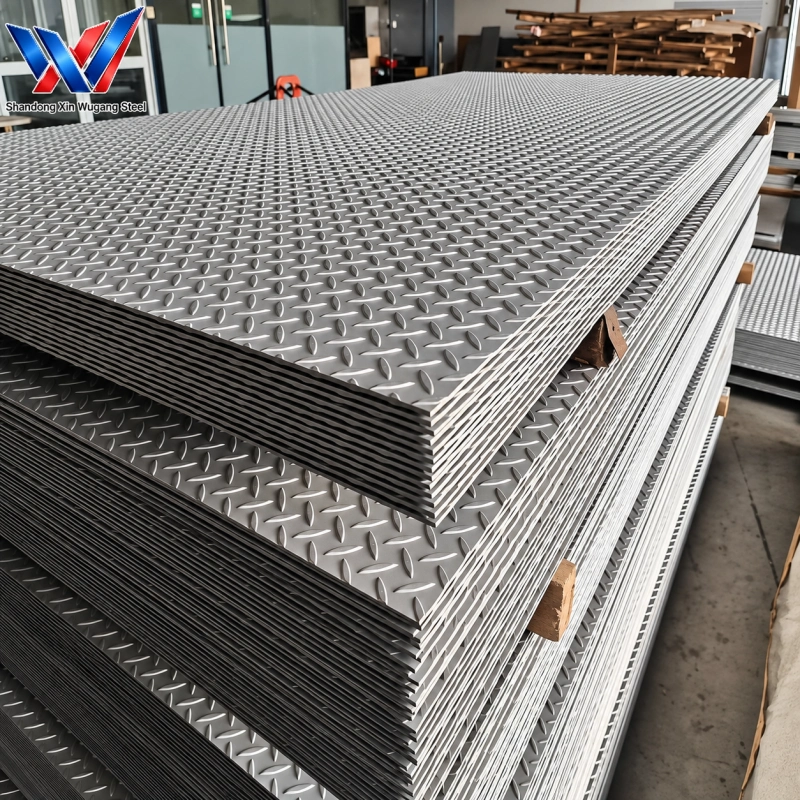

Stainless Checkered Plate

Chemical & Mechanical Property Snapshot

Grade	Standard	C Max (%)	Cr (%)	Ni (%)	Other Elements	YS Min (MPa)	TS (MPa)	El Min (%)	Remarks
304	GB/T3280, ASTM A240	0.08	18.0-20.0	8.0-10.5	–	205	≥515	40	General austenitic grade, good balance of corrosion resistance
304L	GB/T3280, ASTM A240	0.03	18.0-20.0	8.0-12.0	–	170	≥485	40	Low carbon version, good weldability, intergranular corrosion resistance
316L	GB/T3280, ASTM A240	0.03	16.0-18.5	10.0-14.0	Mo:2.0-3.0	170	≥485	40	Molybdenum added, superior seawater & chemical corrosion resistance
201	GB/T3280, ASTM A240	0.15	16.0-18.0	3.5-5.5	Mn:5.5-7.5	220	≥635	40	Low nickel, economical decorative anti-slip plate
430	GB/T3280, ASTM A240	0.12	16.0-18.0	≤0.75	–	205	≥450	22	Ferritic stainless steel, low cost for indoor decoration

Detailed Technical Specifications

Category	Item
Product Name	Diamond Pattern Stainless Steel Checkered Plate
Product Type	Diamond Embossed High Friction Anti-Slip Stainless Steel Plate
Manufacturing Process	One-step embossing pressing process
Applicable Standards	GB/T3280, ASTM A240, EN 10088
Main Grades	304,304L,316L,201,430
Grade Selection	304/304L for general industrial loading area;316L for coastal environment;201/430 for indoor decoration
Pattern Types	Diamond
Thickness Range	1.0-10.0mm
Material Form	Stainless steel plate with raised diamond embossed anti-slip surface
Surface Performance	Sharp raised diamond texture, ultra-high friction, strong wear resistance
Corrosion Resistance	Resistant to water, moisture, food residue, mild chemicals, and seawater (depends on grade)
Fabrication Performance	Supports bending, welding, splicing, and customized cutting
Surface Maintenance	Simple cleaning for industrial heavy traffic area
Quality Documents	Material certification documents available
Application Fields	Industrial passages, warehouse loading areas, heavy duty workshop floor
MOQ	5 Ton
Payment Terms	T/T, L/C at Sight
Delivery Time	7–15 working days after receiving deposit
Package	Waterproof paper + plastic film + wooden pallet, seaworthy export packing

Product Comparison Table

Product Type	Representative Grades	Main Characteristics	Recommended Applications
Diamond Stainless Pattern Plate	304,316L,201,430	Sharp diamond texture, high friction coefficient, strong wear resistance	Industrial passages and loading areas, warehouse floor
5-Bar Stainless Checkered Plate	304, 304L, 316L,201,430	Classic 5-bar raised texture, outstanding anti-slip property, heavy load resistance	Ship decks, industrial walkways, ramps, heavy traffic platforms
Lentil / Teardrop Stainless Pattern Plate	304,316L,201,430	Classic rounded teardrop embossed surface, easy cleaning, moderate friction	Factory floors and stair treads, food workshop floor
Perforated Stainless Pattern Plate	304,316L,201,430	Combines anti-slip and drainage function	Customized anti-slip applications with drainage requirement
304 Stainless Checkered Plate	304, 304L	Balanced corrosion resistance and hygienic performance	Food factories, clean workshops, indoor anti-slip floors
316L Stainless Checkered Plate	316L	Enhanced resistance to seawater and chemical environments	Marine walkways, offshore platforms, coastal projects
201 Stainless Checkered Plate	201	Cost-effective stainless solution	Indoor decoration and general walkways
430 Stainless Checkered Plate	430	Economical ferritic stainless option	Indoor platforms and decorative applications

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Marine Offshore Platform Walkway Stainless Steel

Food Factory Flooring Stainless Steel

Elevator Floor Panel Stainless Steel

Anti-Slip Stair Tread Stainless Steel

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is advantage of diamond stainless checkered plate?

Diamond pattern provides the highest friction and best wear resistance, perfect for heavy loading industrial passage.

Can diamond stainless plate be bent?

Yes, we use base stainless plate with good ductility for embossing, can do bending fabrication.

Which grade suitable for outdoor warehouse loading area near coast?

316L grade diamond plate is recommended for coastal area to resist salt spray corrosion.

What thickness can you produce?

1.0mm ~10.0mm thickness available, custom size cutting service.

What payment terms support?

T/T and L/C at sight acceptable.
