DX51D+AZ PPGL Prepainted Galvalume Steel Coil | EN10346 DX51D+AZ Aluzinc Color Coated Coil

DX51D+AZ Aluzinc substrate, outstanding anti-rust performance vs standard PPGI
Aluminum-zinc alloy base layer, excellent heat & UV resistance for outdoor exposure
Multiple coating systems PE/SMP/HDP/PVDF for different climate conditions
Good bending & roll forming property, easy to fabricate corrugated panels
Full MTC available, optional third-party inspection, seaworthy export packaging

Product Overview

DX51D+AZ PPGL Prepainted Galvalume Steel Coil, also known as aluzinc color coated coil, is manufactured complying with EN10346 standard. It adopts DX51D+AZ hot-dip galvalume steel as base substrate, which is coated with aluminum-zinc alloy (55% Al-Zn) on steel base, then covered with organic top paint and protective back coating.

Compared with ordinary galvanized PPGI, the aluzinc substrate provides far stronger corrosion resistance, making DX51D+AZ PPGL the preferred material for coastal, high humidity and salt-fog environments. The top organic coating can effectively resist ultraviolet aging, rain erosion and mild chemical contamination. We support customized aluzinc coating weight ranging from AZ50 to AZ150 g/m². Available coating options include standard polyester PE, silicon modified polyester SMP, high durability polyester HDP and PVDF fluorocarbon coating for long-term outdoor projects.

DX51D+AZ PPGL coil is widely processed into corrugated roofing sheets, exterior wall cladding, prefab house panels, warehouse siding, agricultural buildings and metal facade profiles. Custom thickness from 0.12mm to 1.2mm, width from 600mm to 1250mm, inner diameter 508mm or 610mm. Single coil weight can be controlled from 2 tons to 8 tons according to container loading requirement.

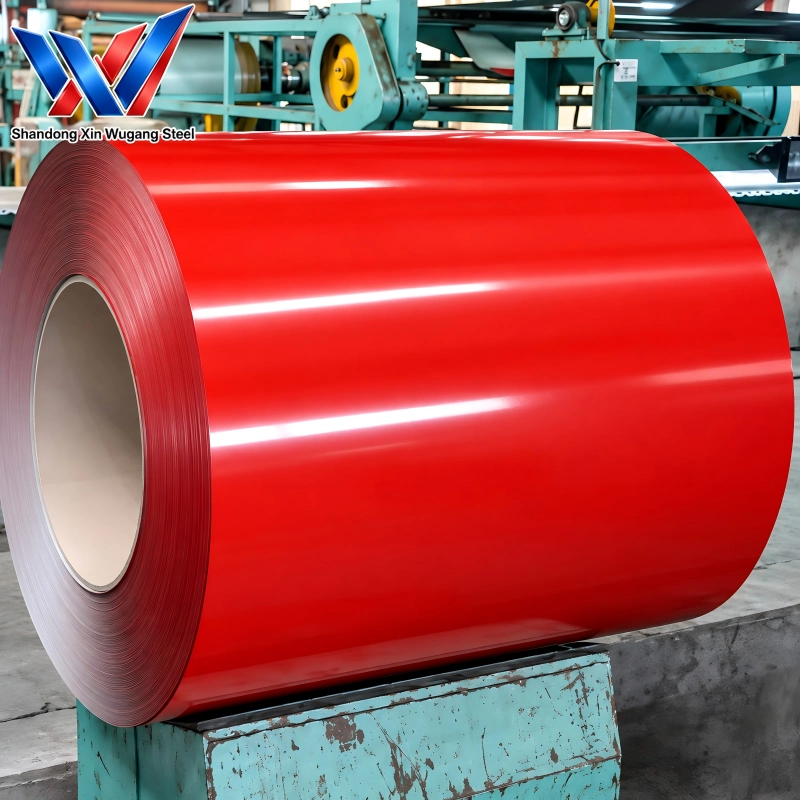

Prepainted Steel Coil - PPGI/PPGL

Chemical & Mechanical Property Snapshot

Item	Specification
Grade	DX51D+AZ
Executive Standard	EN10346
Substrate Material	Hot-dip Galvalume (Aluzinc) Steel
Yield Strength	240 – 360 MPa
Tensile Strength	270 – 500 MPa
Minimum Elongation (L0=80mm)	≥22%
Aluzinc Coating Mass	AZ50 / AZ70 / AZ100 / AZ150 g/m²
Top Paint Coating Thickness	15 ~35 μm
Back Paint Coating Thickness	5 ~12 μm
Coating System	PE / SMP / HDP / PVDF
T-bend Test	≤3T
Salt Spray Resistance	PE: ≥500h; HDP: ≥1000h; PVDF: ≥2000h

Detailed Technical Specifications

Parameter	Details
Full Product Name	DX51D+AZ PPGL Prepainted Galvalume Steel Coil
Base Grade	DX51D+AZ
Base Substrate	Hot Dip Aluzinc Galvalume Steel
Production Standard	EN10346
Total Thickness	0.12 mm – 1.2 mm
Available Width	600 mm, 750 mm, 800 mm, 900 mm, 1000 mm, 1200 mm, 1250 mm
Coil Inner Diameter	508 mm (20 inch) / 610 mm (24 inch)
Aluzinc Coating	AZ50, AZ70, AZ100, AZ150 g/m²
Top Coating Paint	15μm ~35μm
Backside Paint	5μm ~12μm protective epoxy paint
Coating Types	PE Polyester, SMP Silicon Modified Polyester, HDP High Durability Polyester, PVDF
Surface Finish	Smooth / Matte optional
Single Coil Weight	2 Ton ~ 8 Ton
Packaging Method	Waterproof paper + PVC plastic film + metal edge protector + steel strapping, seaworthy export package
Main Applications	Coastal roofing sheet, exterior wall cladding, prefabricated house, warehouse, farm building, metal facade panel
Inspection	Mill self-inspection; third-party inspection (SGS/BV etc.) available
Documents	Mill Test Certificate (MTC), Commercial Invoice, Packing List, Bill of Lading
MOQ	1 Metric Ton for regular specs

PPGI / PPGL Color Chart & Finishes

We supply PPGI and PPGL prepainted steel coil with full RAL solid color system and multiple customized pattern finishes. Gloss, matte, metallic, pearlescent, wood grain, marble grain, brick pattern, tile pattern and stucco texture options are available. Custom color & custom pattern are acceptable according to customer samples. Please note that slight color difference exists between screen display and real steel coil, physical color card can be provided for final confirmation before mass production.

Color Category	RAL No.	Color Name	Surface Finish	Application
White Series	RAL9010	Pure White	Gloss / Matte	Roofing, wall cladding, containers
White Series	RAL9002	Off White	Gloss / Matte	Building facades, warehouse panels
Grey Series	RAL7035	Light Grey	Gloss / Matte	Factory walls, equipment shells
Grey Series	RAL7024	Graphite Grey	Gloss / Matte	Roof tiles, exterior decoration
Grey Series	RAL9006	Silver Grey (Metallic)	Metallic Gloss	Roof decorative panels
Red Series	RAL3009	Oxide Red	Gloss	Corrugated roofs, agricultural buildings
Red Series	RAL3020	Traffic Red	Gloss / Matte	Doors, advertising boards
Blue Series	RAL5005	Signal Blue	Gloss	Factory roofing, enclosures
Green Series	RAL6005	Moss Green	Gloss / Matte	Warehouse roofs, farm buildings
Brown Series	RAL8017	Chocolate Brown	Gloss / Matte	Villa roofs, wall panels
Pattern Series	Custom	Wood Grain	Embossed Printed Texture	Interior & exterior walls, villa roofing
Pattern Series	Custom	Marble Grain	Printed Texture	Wall cladding, decorative panels
Pattern Series	Custom	Camouflage Pattern	Printed Coating	Special engineering projects, warehouse enclosures
Pattern Series	Custom	Brick Pattern	Embossed Printed Texture	Building facade decoration
Pattern Series	Custom	Tile Pattern	Printed Texture	Imitation tile roofing sheets
Pattern Series	Custom	Stucco Texture	Embossed Matte	Exterior wall panels

Product Comparison Table

Grade	Standard	Substrate Type	Coating Weight	Formability	Typical Application
DX51D+AZ	EN10346	PPGL Galvalume	AZ50~AZ150g/m²	General forming	Coastal roof & wall, salt fog environment
DX52D+AZ	EN10346	PPGL Galvalume	AZ50~AZ150g/m²	Deep drawing	Deep stamped complex profiles
DX51D+Z	EN10346	PPGI Galvanized	Z60~Z275g/m²	General forming	Normal inland building roofing
S250GD+AZ	EN10346	PPGL Galvalume	AZ50~AZ150g/m²	Medium forming	Structural exterior wall panels
S350GD+AZ	EN10346	PPGL Galvalume	AZ50~AZ150g/m²	Low forming	Heavy-duty structural components

App Market

Reliable Steel Coil Solutions For Diverse Industrial Applications

Industrial Factory Panels PPGI Steel

Container Sheets PPGI Steel

Rolling Shutters PPGI Steel

Product Packaging

Secure Export Packaging For Safe Handling And Delivery

FAQs

What is DX51D+AZ PPGL?

DX51D+AZ PPGL is prepainted galvalume steel coil, substrate coated with 55% aluminum-zinc alloy. It is also called aluzinc color coated coil, famous for superior anti-corrosion performance.

What is the difference between PPGL DX51D+AZ and PPGI DX51D+Z?

PPGL uses Al-Zn galvalume substrate, better anti-rust for coastal salt air; PPGI uses pure zinc galvanized substrate, cost-effective for inland normal environment.

Can DX51D+AZ PPGL be used in seaside projects?

Yes, it is the ideal choice for coastal areas. Choosing HDP or PVDF coating will further extend service life under salt fog atmosphere.

What coating options are available for DX51D+AZ PPGL?

PE for normal inland; SMP for moderate UV; HDP for strong sunlight; PVDF fluorocarbon for harsh coastal environment with longest lifespan.

Can DX51D+AZ PPGL coil be slit or cut to length?

Yes, we provide slitting and cut-to-length service to produce narrow steel strips or flat sheets as your drawing requirement.
